概述
客户端是如何向服务端发起请求的
前面客户端部分讲过，客户端的web.xml里配置了五个filter。下文中会使用序号来表示，具体的过滤器名称可以看上一章节。
1. 调用第1个filter
首先进入第一个filter：SingleSignOutFilter，因为现在是进行登录认证，没有登出请求，所以什么都没做，进入下一个filter。
2. 调用第2个filter
*AuthenticationFilter.java*
public class AuthenticationFilter extends AbstractCasFilter {
public final void doFilter(final ServletRequest servletRequest, final ServletResponse servletResponse,
final FilterChain filterChain) throws IOException, ServletException {
final HttpServletRequest request = (HttpServletRequest) servletRequest;
final HttpServletResponse response = (HttpServletResponse) servletResponse;
if (isRequestUrlExcluded(request)) {
logger.debug("Request is ignored.");
filterChain.doFilter(request, response);
return;
}
//此时重定向回来，还没有创建session，因此不能获取到assertion
final HttpSession session = request.getSession(false);
final Assertion assertion = session != null ? (Assertion) session.getAttribute(CONST_CAS_ASSERTION) : null;
if (assertion != null) {
filterChain.doFilter(request, response);
return;
}
final String serviceUrl = constructServiceUrl(request, response);
final String ticket = retrieveTicketFromRequest(request);
final boolean wasGatewayed = this.gateway && this.gatewayStorage.hasGatewayedAlready(request, serviceUrl);
//由于CAS服务端认证成功后重定向到客户端会带ticket参数，因此ticket不为空进入此代码中
if (CommonUtils.isNotBlank(ticket) || wasGatewayed) {
filterChain.doFilter(request, response);
return;//执行到这
}
......
}
执行到对ticket的判断，CAS单点登录服务端认证成功后会带上ticket重定向到客户端，因为此时ticket不为空，所以进入下一个filter。
4. 调用第3个filter
该类Cas20ProxyReceivingTicketValidationFilter在org.jasig.cas.client.validation包中继承自AbstractTicketValidationFilter。首先执行doFilter方法，注意doFilter是在父类中进行调用的，我们先分析父类方法。
*AbstractTicketValidationFilter.java*
public abstract class AbstractTicketValidationFilter extends AbstractCasFilter {
public final void doFilter(final ServletRequest servletRequest, final ServletResponse servletResponse,
final FilterChain filterChain) throws IOException, ServletException {
if (!preFilter(servletRequest, servletResponse, filterChain)) {
return;
}
final HttpServletRequest request = (HttpServletRequest) servletRequest;
final HttpServletResponse response = (HttpServletResponse) servletResponse;
//从请求中获取到ticket
final String ticket = retrieveTicketFromRequest(request);
//判断ticket是否为空
if (CommonUtils.isNotBlank(ticket)) {
logger.debug("Attempting to validate ticket: {}", ticket);
try {
//通过ticket和service去校验ticket，并返回assertion用户认证信息
final Assertion assertion = this.ticketValidator.validate(ticket,
constructServiceUrl(request, response));
logger.debug("Successfully authenticated user: {}", assertion.getPrincipal().getName());
request.setAttribute(CONST_CAS_ASSERTION, assertion);
if (this.useSession) {
//如果需要使用session，则把获取到的assertion认证信息放入会话
request.getSession().setAttribute(CONST_CAS_ASSERTION, assertion);
}
onSuccessfulValidation(request, response, assertion);
if (this.redirectAfterValidation) {
//认证成功后重定向到客户端的service地址
logger.debug("Redirecting after successful ticket validation.");
response.sendRedirect(constructServiceUrl(request, response));
return;
}
} catch (final TicketValidationException e) {
logger.debug(e.getMessage(), e);
onFailedValidation(request, response);
if (this.exceptionOnValidationFailure) {
throw new ServletException(e);
}
response.sendError(HttpServletResponse.SC_FORBIDDEN, e.getMessage());
return;
}
}
filterChain.doFilter(request, response);
}
…………
}
通过ticketValidator.validate(ticket, constructServiceUrl(request, response))对ticket进行校验。下面我们分析是如何进行ticket校验的。
5. 调用ticketValidator.validate校验ticket
AbstractUrlBasedTicketValidator类在org.jasig.cas.client.validation包中。
*AbstractUrlBasedTicketValidator.java*
public abstract class AbstractUrlBasedTicketValidator implements TicketValidator {
…………
public final Assertion validate(final String ticket, final String service) throws TicketValidationException {
//计算需要请求到CAS服务端的url地址（注意这里是普通登录模式，所以校验地址为：serviceValidate
final String validationUrl = constructValidationUrl(ticket, service);
logger.debug("Constructing validation url: {}", validationUrl);
try {
logger.debug("Retrieving response from server.");
//到CAS单点登录服务进行校验，获取返回结果
final String serverResponse = retrieveResponseFromServer(new URL(validationUrl), ticket);
if (serverResponse == null) {
throw new TicketValidationException("The CAS server returned no response.");
}
logger.debug("Server response: {}", serverResponse);
//解析从服务端获取到的信息
return parseResponseFromServer(serverResponse);
} catch (final MalformedURLException e) {
throw new TicketValidationException(e);
}
}
…………
注意retrieveResponseFromServer()会访问CAS单点登录服务端。
6. 调用retrieveResponseFromServer请求CAS单点登录服务端
AbstractCasProtocolUrlBasedTicketValidator类在org.jasig.cas.client.validation包中。
*AbstractCasProtocolUrlBasedTicketValidator.java*
public abstract class AbstractCasProtocolUrlBasedTicketValidator extends AbstractUrlBasedTicketValidator {
protected AbstractCasProtocolUrlBasedTicketValidator(final String casServerUrlPrefix) {
super(casServerUrlPrefix);
}
/**
* Retrieves the response from the server by opening a connection and merely reading the response.
*/
protected final String retrieveResponseFromServer(final URL validationUrl, final String ticket) {
return CommonUtils.getResponseFromServer(validationUrl, getURLConnectionFactory(), getEncoding());
}
}
最终调用CommonUtils.getResponseFromServer()，我们还要再往下找。
7. 调用CommonUtils.getResponseFromServer()
最终其实是通过后端发起http请求获取到cas服务端的数据。
## CommonUtils.java
public final class CommonUtils {
…………
public static String getResponseFromServer(final URL constructedUrl, final HttpURLConnectionFactory factory,
final String encoding) {
HttpURLConnection conn = null;
InputStreamReader in = null;
try {
//创建http的连接
conn = factory.buildHttpURLConnection(constructedUrl.openConnection());
if (CommonUtils.isEmpty(encoding)) {
in = new InputStreamReader(conn.getInputStream());
} else {
in = new InputStreamReader(conn.getInputStream(), encoding);
}
final StringBuilder builder = new StringBuilder(255);
int byteRead;
//通过输入流获取到服务端的响应
while ((byteRead = in.read()) != -1) {
builder.append((char) byteRead);
}
//通过流创建返回的数据
return builder.toString();
} catch (final Exception e) {
LOGGER.error(e.getMessage(), e);
throw new RuntimeException(e);
} finally {
closeQuietly(in);
if (conn != null) {
conn.disconnect();
}
}
}
…………
}
constructedUrl的传入值为：http://localhost:8080/cas/serviceValidate?ticket=ST-2-ZRix41JWjd3oHDoN3DhI-cas01.example.org&service=http%3A%2F%2Flocalhost%3A8088%2Fcas-client%2F

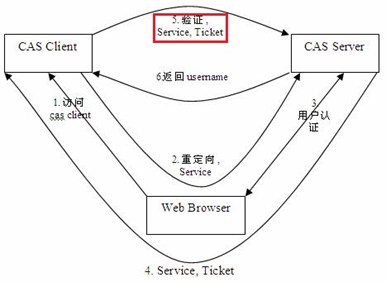

开始向服务端发验证请求，验证ticket，至此，完成了流程图的第5步：
后续我们就要对通过ST票据验证之后的数据进行解析以及ST验证成功和失败后返回给客户端的到底是什么信息，将在下一章节进行分析。
