SpringCloud Alibaba之Sentinel集成Ribbon/OpenFeign案例演示

57 阅读 0 评论
我是靠谱客的博主 狂野小鸭子，最近开发中收集的这篇文章主要介绍SpringCloud Alibaba之Sentinel集成Ribbon/OpenFeign案例演示，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

所有代码都在github上：https://github.com/demonruin/cloud2020/tree/master

Sentinel集成Ribbon：

1、准备服务提供者cloudalibaba-nacos-provider-payment9001，cloudalibaba-nacos-provider-payment9002，主要是端口不一样，其他一致，下面附上pom、yml和主业务类代码，这里自己建module即可

       <!--SpringCloud ailibaba nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
server:
  port: 9001

spring:
  application:
    name: nacos-provider-payment
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848

#暴露所有端点,和actuator监控有关
management:
  endpoints:
    web:
      exposure:
        exclude: "*"

package com.king.springcloud.controller;

import com.king.springcloud.entities.CommonResult;
import com.king.springcloud.entities.Payment;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;

/**
 * created by king on 2020/5/8 12:38 下午
 */
@RestController
@Slf4j
public class PaymentController {

    @Value("${server.port}")
    private String serverPort;


    /**
     * 此方法与接口是为了测试sentinel的fallback服务降级
     * @param id
     * @return
     */
    public static HashMap<Integer, Payment> hashMap = new HashMap();

    static {
        hashMap.put(1, new Payment(1L, "28a8c1e3bc2742d8848569891fb42181"));
        hashMap.put(2, new Payment(2L, "bba8c1e3bc2742d8848569891ac32182"));
        hashMap.put(3, new Payment(3L, "6ua8c1e3bc2742d8848569891xt92183"));
    }

    @GetMapping("/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Integer id) {
        Payment payment = hashMap.get(id);
        CommonResult<Payment> result = new CommonResult(200, "from mysql,serverPort: " + serverPort, payment);
        return result;
    }


}

主启动类就是正常的主启动类

package com.king.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

/**
 * created by king on 2020/5/8 12:08 下午
 */
@SpringBootApplication
@EnableDiscoveryClient
public class NacosProviderPaymentMain9001 {
    public static void main(String[] args) {
            SpringApplication.run(NacosProviderPaymentMain9001.class,args);
        }
}

2、主要是构建服务消费者微服务，这里pom中添加nacos/sentinel/openFeing等依赖，yml中添加nacos和sentinel的配置，再有测试业务类

 <!--SpringCloud openfeign -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <!--SpringCloud ailibaba nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <!--SpringCloud ailibaba sentinel -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--日常通用jar包配置-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.king.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
server:
  port: 83

spring:
  application:
    name: nacos-consumer-order
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:8080
        port: 8719
package com.king.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;

/**
 * created by king on 2020/5/8 4:01 下午
 */
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class NacosConsumerOrderMain83 {
    public static void main(String[] args) {
        SpringApplication.run(NacosConsumerOrderMain83.class, args);
    }
}

业务类CircleBreakerController

package com.king.springcloud.controller;

import com.alibaba.csp.sentinel.annotation.SentinelResource;
import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.king.springcloud.entities.CommonResult;
import com.king.springcloud.entities.Payment;
import com.king.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

/**
 * created by king on 2020/5/29 11:19 上午
 */
@RestController
@Slf4j
public class CircleBreakerController {
    private static  String SERVICE_URL="http://nacos-provider-payment/";
    @Resource
    private RestTemplate restTemplate;



    @RequestMapping("/consumer/fallback/{id}")
    @SentinelResource(value = "fallback") //没有配置
    //@SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
    //@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
//    @SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler",
//            exceptionsToIgnore = {IllegalArgumentException.class})
    public CommonResult<Payment> fallback(@PathVariable Long id)
    {
        CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/"+id, CommonResult.class,id);

        if (id == 4) {
            throw new IllegalArgumentException ("IllegalArgumentException,非法参数异常....");
        }else if (result.getData() == null) {
            throw new NullPointerException ("NullPointerException,该ID没有对应记录,空指针异常");
        }

        return result;
    }
    //本例是fallback
    public CommonResult handlerFallback(@PathVariable Long id, Throwable e) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(444,"兜底异常handlerFallback,exception内容  "+e.getMessage(),payment);
    }
    //本例是blockHandler
    public CommonResult blockHandler(@PathVariable  Long id, BlockException blockException) {
        Payment payment = new Payment(id,"null");
        return new CommonResult<>(445,"blockHandler-sentinel限流,无此流水: blockException  "+blockException.getMessage(),payment);
    }

    //==================OpenFeign===================
    @Resource
    private PaymentService paymentService;

    @GetMapping(value = "/consumer/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id)
    {
        return paymentService.paymentSQL(id);
    }

}

3、此时测试代码准备完毕，进行测试

  • 当@SentinelResource(value = "fallback") //没有其他任何配置的时候，根据代码处理，

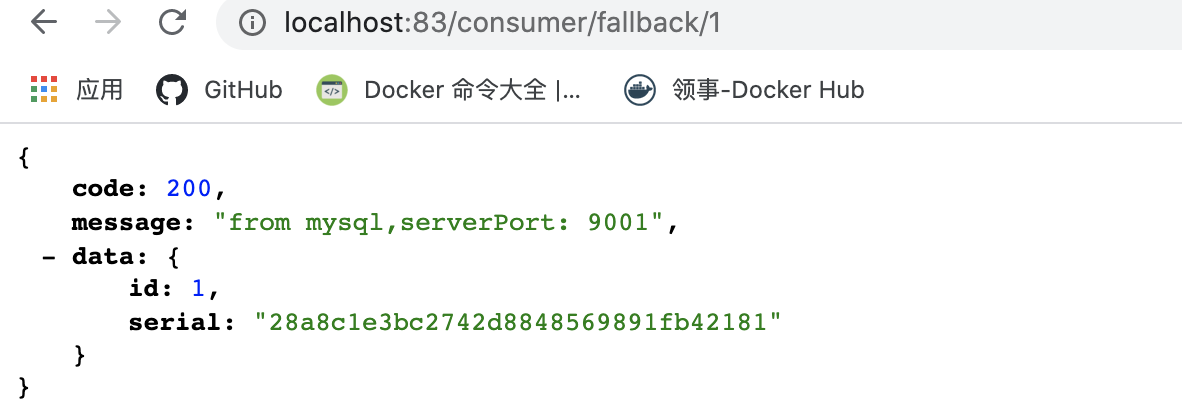

    • 当我们id=1或2或3时，是能正常响应的

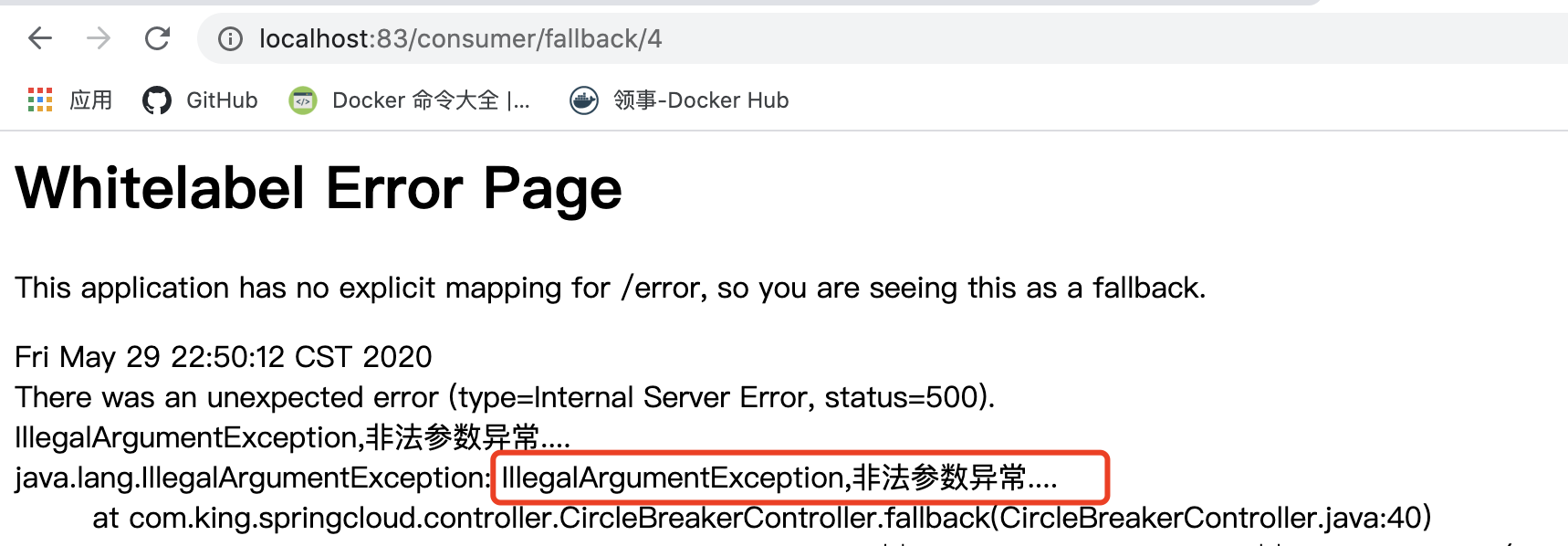

    • 当我们id=4时，会IllegalArgumentException,非法参数异常....
    • 当我们id=5时，会NullPointerException,该ID没有对应记录,空指针异常

  • 当@SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
    • 当我们id=1或2或3时，是能正常响应的
    • 当我们id=4时，会有 handlerFallback来处理异常

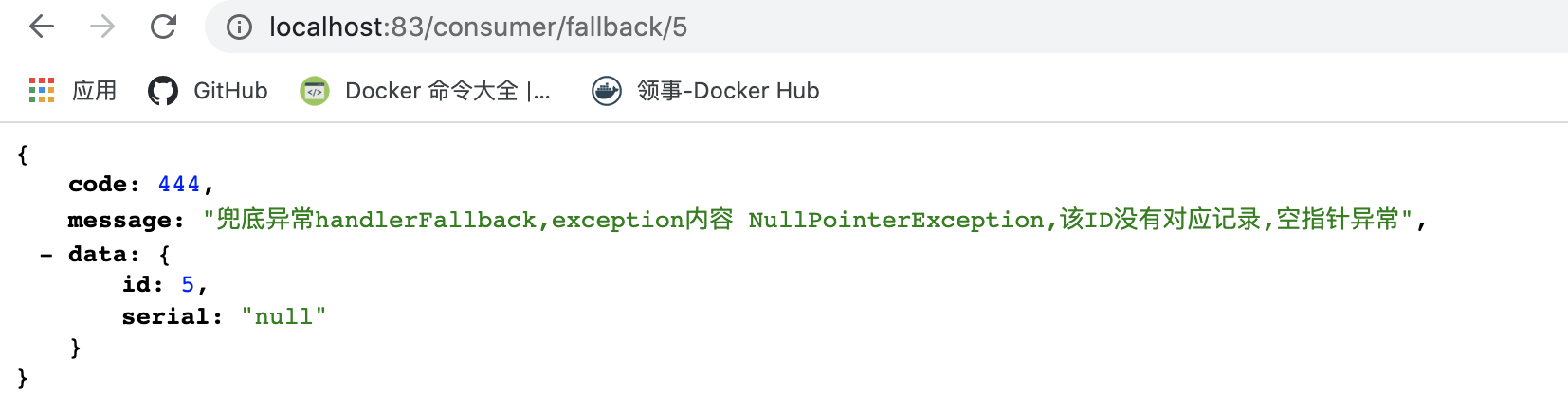

    • 当我们id=5时，会有 handlerFallback来处理异常

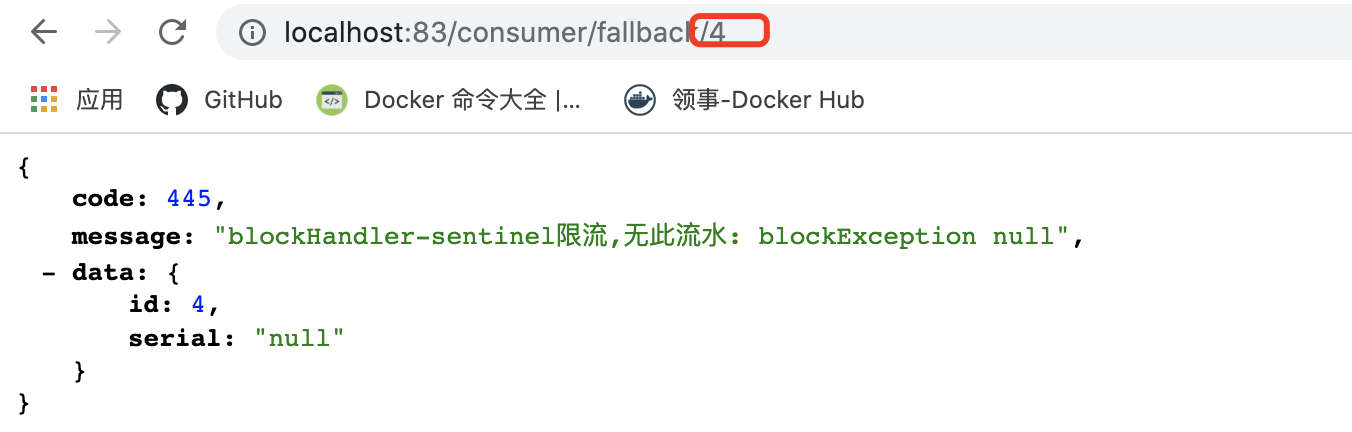

  • 当@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
    • 当我们id=1或2或3时，1qps是能正常响应的，快速访问会触发流控规则，返回自定义的处理方法结果

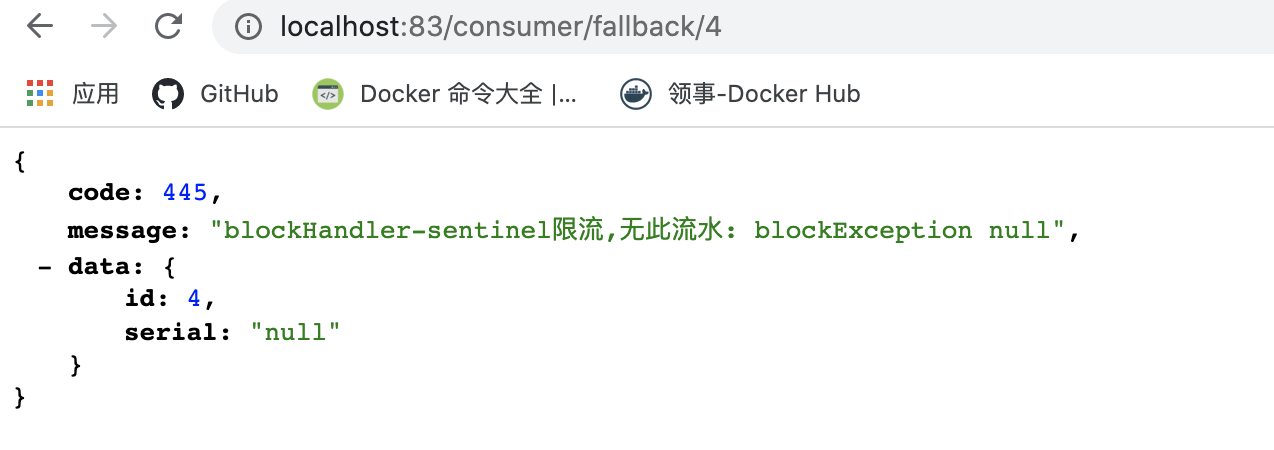

    • 当我们id=4时，1qps是能正常响应的，快速访问会触发流控规则，返回自定义的处理方法结果
    • 当我们id=5时，1qps是能正常响应的，快速访问会触发流控规则，返回自定义的处理方法结果

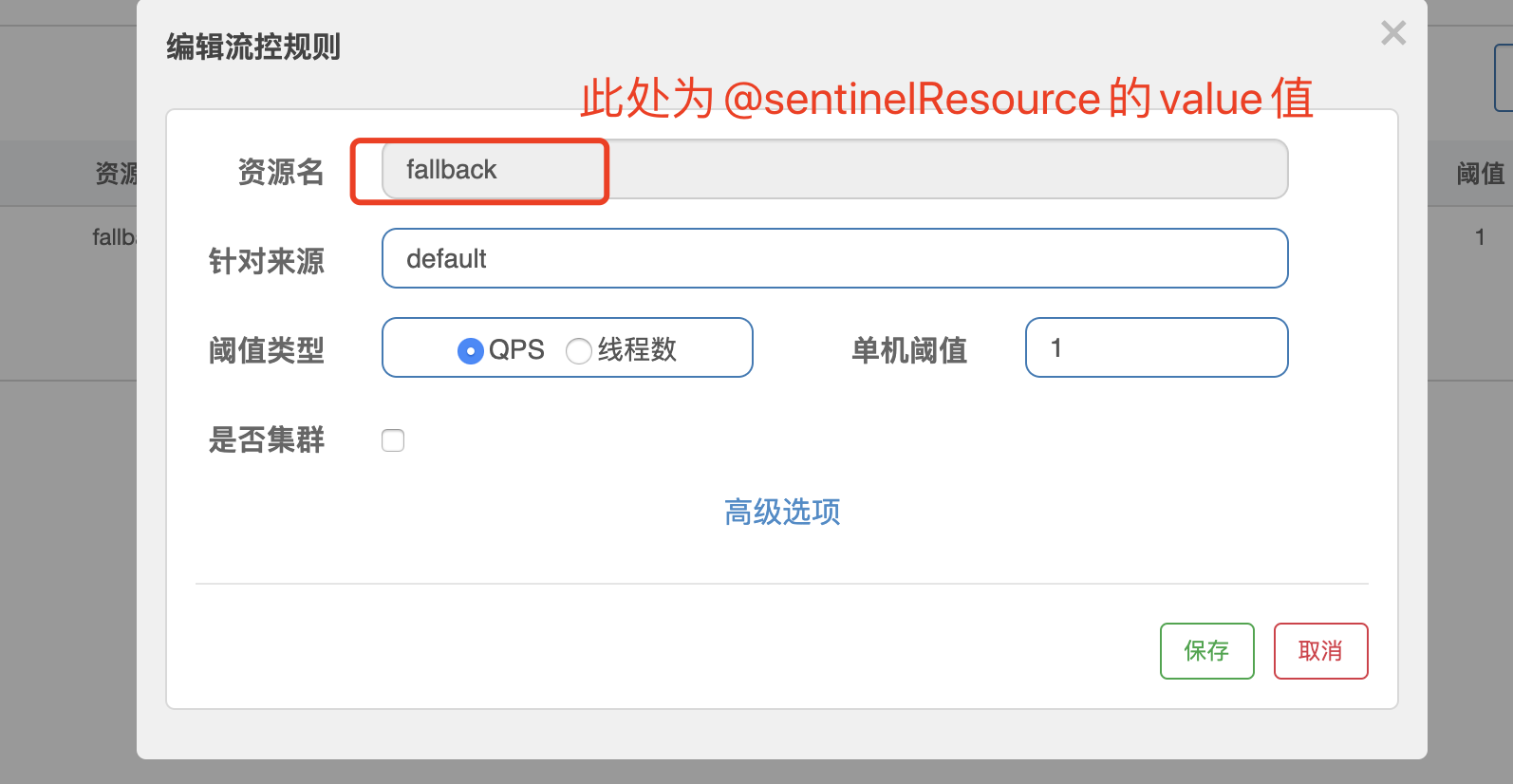

我们对@SentinelResource的value值进行流控限制

  • 当@SentinelResource(value = "fallback",fallback = "handlerFallback",blockHandler = "blockHandler", exceptionsToIgnore = {IllegalArgumentException.class})
    • 当我们id=1或2或3时，1qps是能正常响应的，快速访问会触发流控规则，返回自定义的处理方法结果

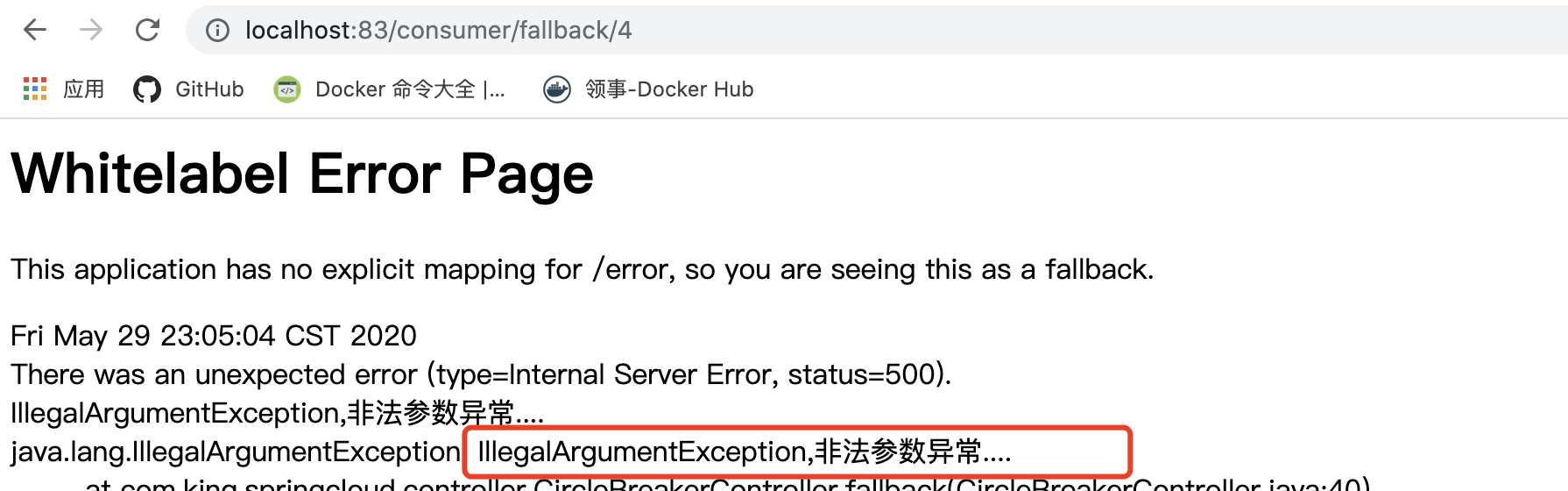

    • 当我们id=4时，因为exceptionsToIgnore = {IllegalArgumentException.class}，忽略了这个异常，所以1qps访问还是会正常报错页面的，快速访问会触发流控规则，返回自定义的处理方法结果

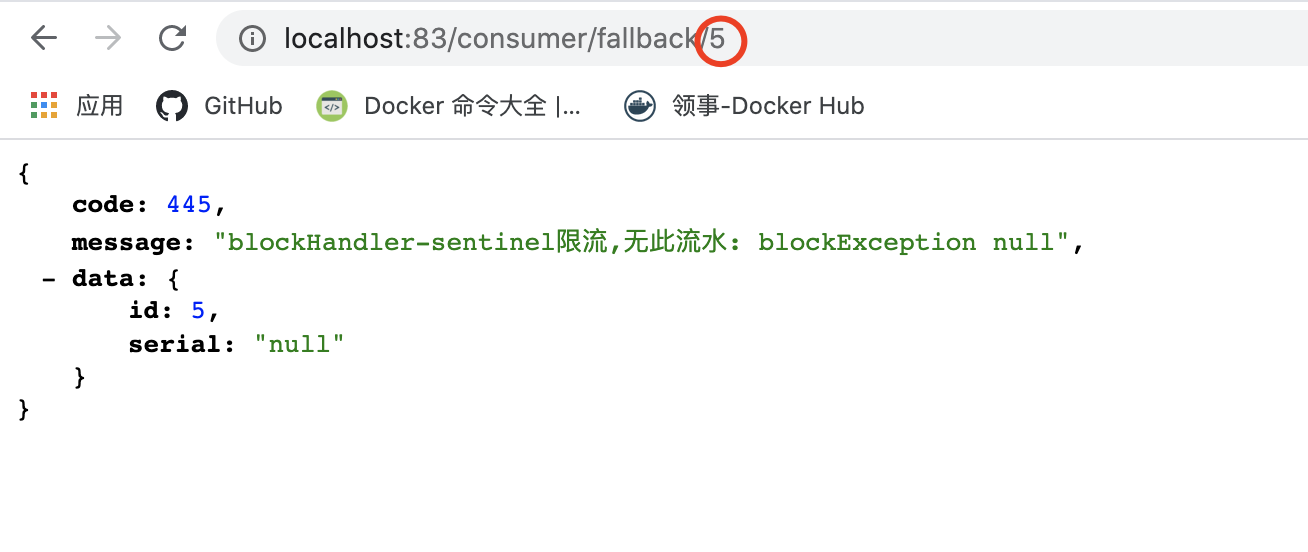

    • 当我们id=5时，1qps是能正常响应的，快速访问会触发流控规则，返回自定义的处理方法结果

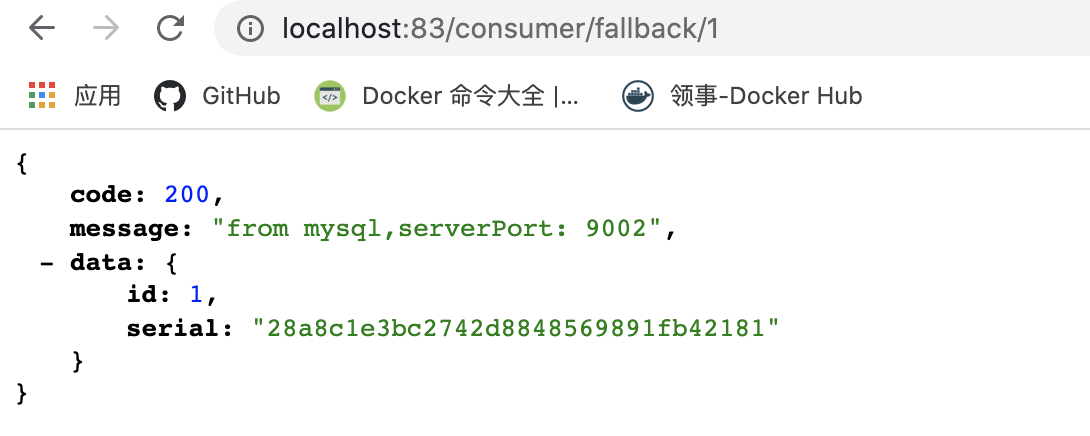

对了，多次刷新访问id=1的时候，会有Ribbon的轮训功能，会轮训请求9001和9002端口的服务~~~~~~~

至此是Sentinel集成Ribbon的案例，及@SentinelResource的fallback演示~~



Sentinel集成OpenFeign

1、在上述基础上，添加feign调用接口代码：

带@FeignClient注解的业务接口 ：PaymentService接口

package com.king.springcloud.service;

import com.king.springcloud.entities.CommonResult;
import com.king.springcloud.entities.Payment;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;

/**
 * created by king on 2020/5/29 1:30 下午
 */
@FeignClient(value = "nacos-provider-payment", fallback = PaymentServiceFallback.class)
public interface PaymentService {
    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id);
}

fallback = PaymentServiceFallback.class  ：PaymentServiceFallback处理方法：注意加@Component注解

package com.king.springcloud.service;

import com.king.springcloud.entities.CommonResult;
import com.king.springcloud.entities.Payment;
import org.springframework.stereotype.Component;

/**
 * created by king on 2020/5/29 1:33 下午
 */
@Component
public class PaymentServiceFallback implements PaymentService{
    @Override
    public CommonResult<Payment> paymentSQL(Long id) {
        return new CommonResult<>(44444,"服务降级返回,---PaymentFallbackService",new Payment(id,"errorSerial"));
    }
}

controller中的fengin代码上面已经粘贴了，现在附上主要代码

 //==================OpenFeign===================
    @Resource
    private PaymentService paymentService;

    @GetMapping(value = "/consumer/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id)
    {
        return paymentService.paymentSQL(id);
    }

在yml文件中添加  激活Sentinel对Feign的支持


feign:
  sentinel:
    enabled: true # 激活Sentinel对Feign的支持

2、进行测试~~

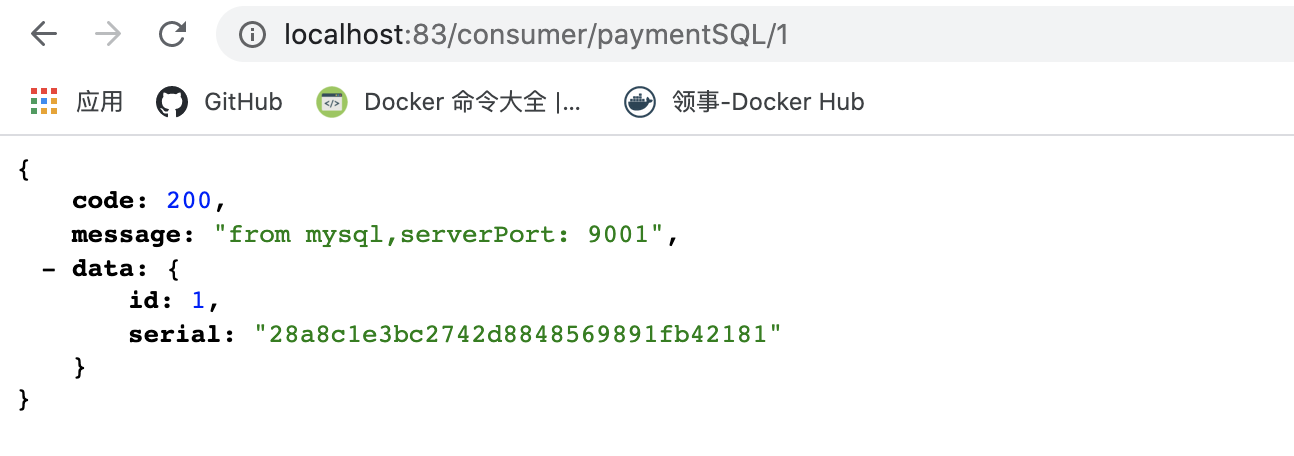

①、正常请求接口，能正常访问，返回结果

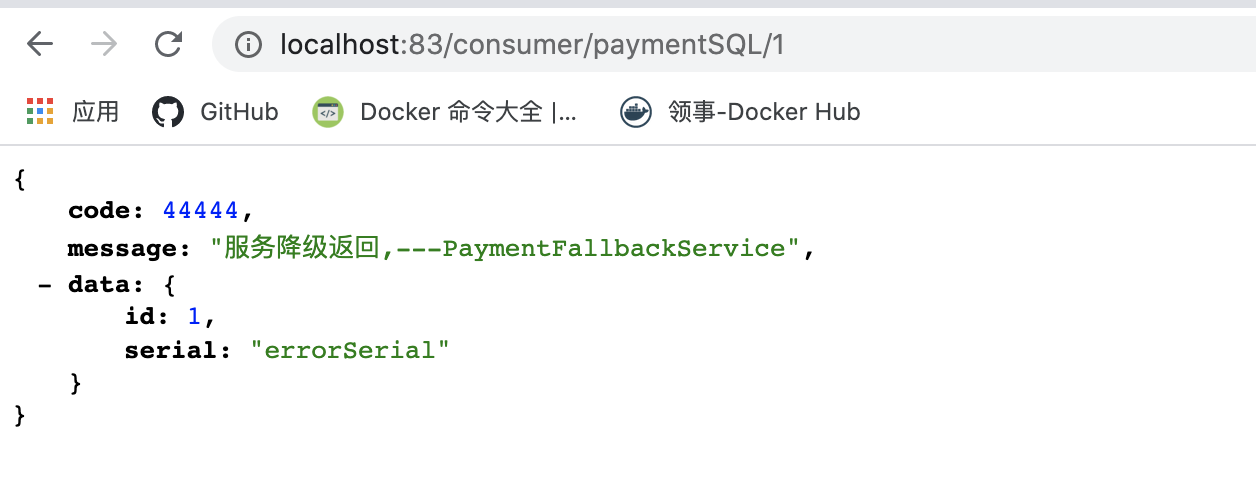

②、测试83调用9001，此时故意关闭9001微服务提供者，看83消费侧自动降级，不会被耗死

此时调用了服务降级，说明OpenFeign的fallback处理逻辑生效了~~

至此Sentinel对OpenFeign的集成案例演示完毕~~









最后

以上就是狂野小鸭子为你收集整理的SpringCloud Alibaba之Sentinel集成Ribbon/OpenFeign案例演示的全部内容，希望文章能够帮你解决SpringCloud Alibaba之Sentinel集成Ribbon/OpenFeign案例演示所遇到的程序开发问题。
