NETDMIS5.0构造平面相交点（隅角点）2023

143 阅读 0 评论 95 点赞

我是靠谱客的博主帅气外套，这篇文章主要介绍NETDMIS5.0构造平面相交点（隅角点）2023，现在分享给大家，希望可以做个参考。

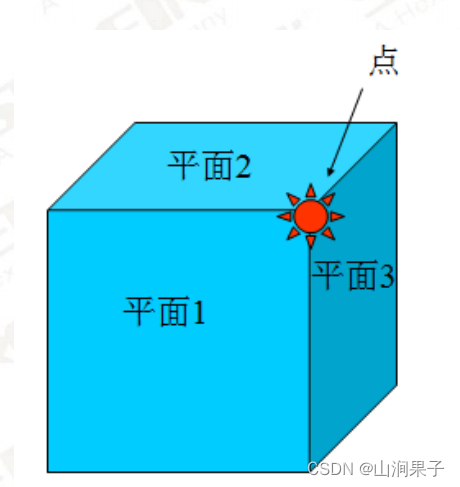

.隅角点——三个相交平面的交点（俗称墙角点，三个平面必须相交，面线线的原点既是该点）。

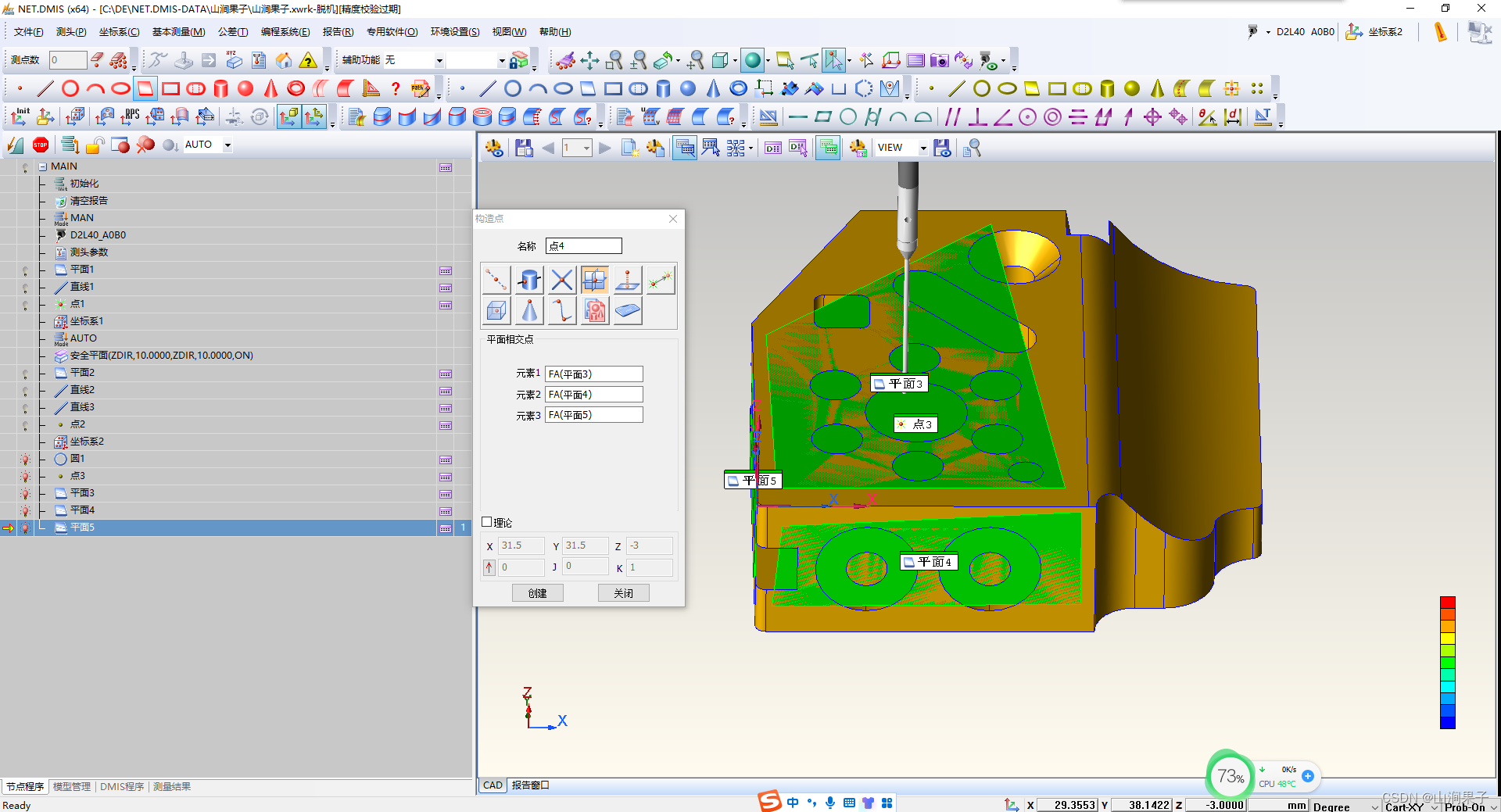

在这里插入图片描述

复制代码

F(平面3)=FEAT/PLANE,CART,28.4233,41.0210,0,0,0,1.00000000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面3),PLANE,CART,LSTSQR,28.4233,41.0210,$
0,0,0,1.00000000,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,2.6878,57.3284,0,0,0,1.00000000,$
3.8450,5.9700,0,0,0,1.00000000,60.0538,6.3173,0,0,0,1.00000000,47.1064,94.4684,0,0,0,1.00000000',TOUCH,$
0.3000,XYPLAN
F(平面4)=FEAT/PLANE,CART,33.6281,0,-13.3675,0,-1.00000000,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面4),PLANE,CART,LSTSQR,33.6281,0,-13.3675,$
0,-1.00000000,0,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,4.9335,0,-4.8099,0,-1.00000000,0,$
3.1835,0,-23.9540,0,-1.00000000,0,63.2242,0,-23.3833,0,-1.00000000,0,63.1711,0,-1.3227,0,-1.00000000,$
0',TOUCH,0.3000,XYPLAN
F(平面5)=FEAT/PLANE,CART,0,30.0705,-15.4755,-1.00000000,0,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面5),PLANE,CART,LSTSQR,0,30.0705,-15.4755,$
-1.00000000,0,0,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,0,6.1277,-4.6635,-1.00000000,0,0,$
0,4.1505,-25.9770,-1.00000000,0,0,0,54.8158,-25.8486,-1.00000000,0,0,0,55.1879,-5.4130,-1.00000000,0,$
0',TOUCH,0.3000,XYPLAN

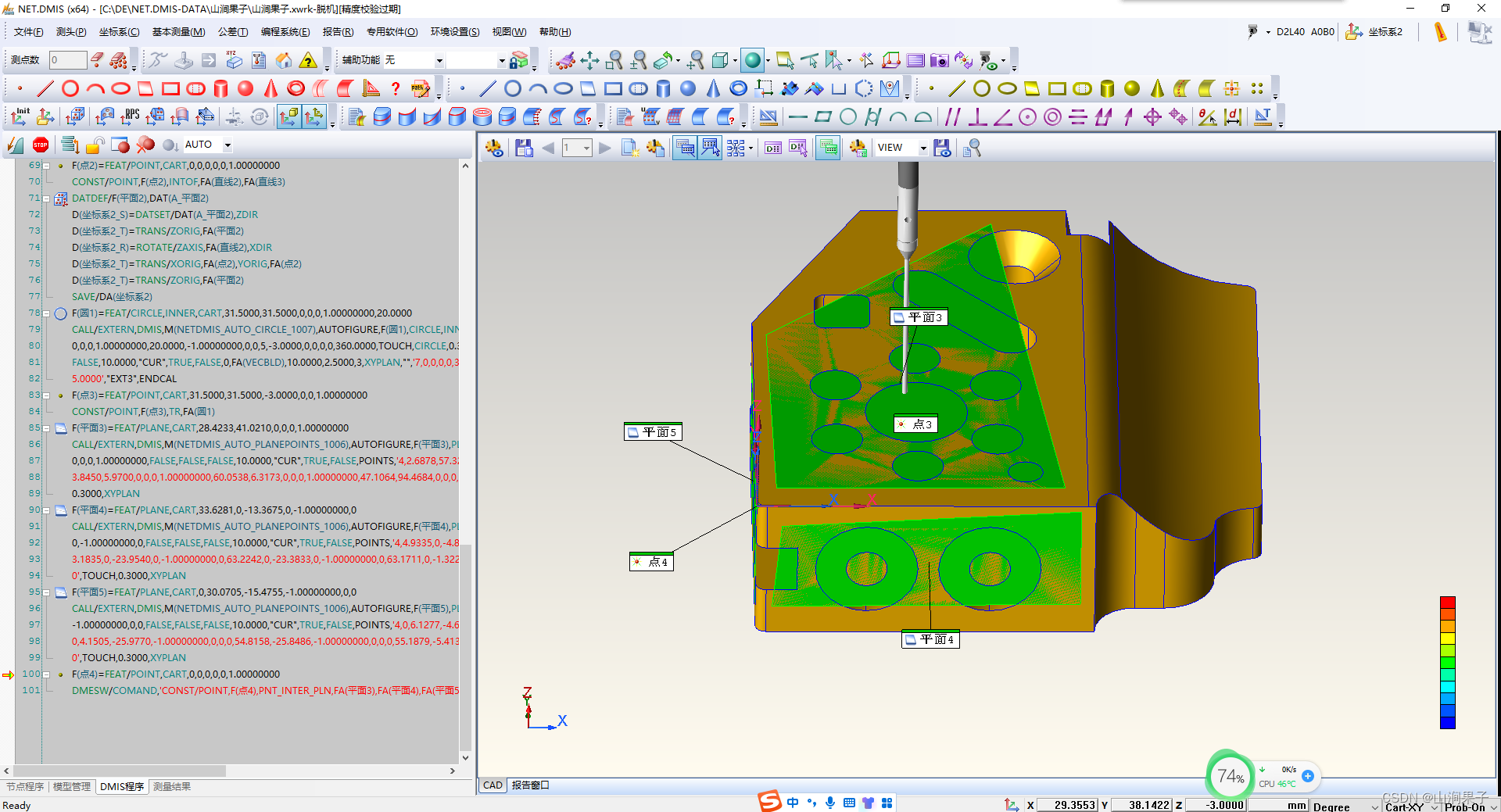

F(点4)=FEAT/POINT,CART,0,0,0,0,0,1.00000000
DMESW/COMAND,'CONST/POINT,F(点4),PNT_INTER_PLN,FA(平面3),FA(平面4),FA(平面5)'

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
F(平面3)=FEAT/PLANE,CART,28.4233,41.0210,0,0,0,1.00000000
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面3),PLANE,CART,LSTSQR,28.4233,41.0210,$
0,0,0,1.00000000,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,2.6878,57.3284,0,0,0,1.00000000,$
3.8450,5.9700,0,0,0,1.00000000,60.0538,6.3173,0,0,0,1.00000000,47.1064,94.4684,0,0,0,1.00000000',TOUCH,$
0.3000,XYPLAN
F(平面4)=FEAT/PLANE,CART,33.6281,0,-13.3675,0,-1.00000000,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面4),PLANE,CART,LSTSQR,33.6281,0,-13.3675,$
0,-1.00000000,0,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,4.9335,0,-4.8099,0,-1.00000000,0,$
3.1835,0,-23.9540,0,-1.00000000,0,63.2242,0,-23.3833,0,-1.00000000,0,63.1711,0,-1.3227,0,-1.00000000,$
0',TOUCH,0.3000,XYPLAN
F(平面5)=FEAT/PLANE,CART,0,30.0705,-15.4755,-1.00000000,0,0
CALL/EXTERN,DMIS,M(NETDMIS_AUTO_PLANEPOINTS_1006),AUTOFIGURE,F(平面5),PLANE,CART,LSTSQR,0,30.0705,-15.4755,$
-1.00000000,0,0,FALSE,FALSE,FALSE,10.0000,"CUR",TRUE,FALSE,POINTS,'4,0,6.1277,-4.6635,-1.00000000,0,0,$
0,4.1505,-25.9770,-1.00000000,0,0,0,54.8158,-25.8486,-1.00000000,0,0,0,55.1879,-5.4130,-1.00000000,0,$
0',TOUCH,0.3000,XYPLAN
F(点4)=FEAT/POINT,CART,0,0,0,0,0,1.00000000
DMESW/COMAND,'CONST/POINT,F(点4),PNT_INTER_PLN,FA(平面3),FA(平面4),FA(平面5)'
