概述

BS版图形系统 - Ribbon工具栏初步

组件实现
- Ribbon
- RibbonTab
- ToolBar
- Button
调用
- 对应的xml

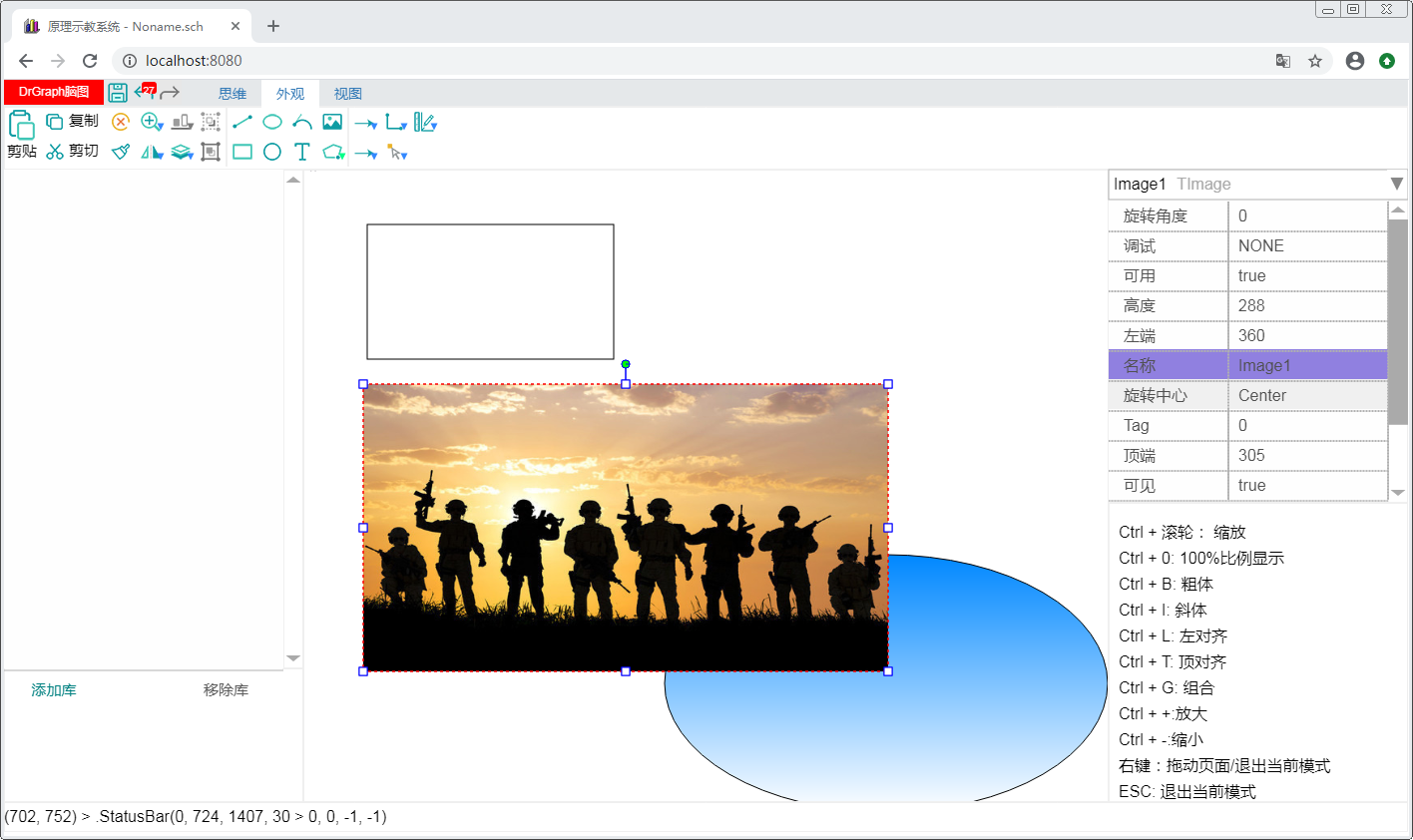

运行效果
下一步工作

QQ: 282397369
开始攻Ribbon，毕竟软件有个象样的界面，还是要拿得出手一点点。
思路就借鉴DevExpress，简化实现，不整太多的不必要环节。
第二个思路就是先实现功能，以后再模块化。

组件实现

先准备初步要用到的组件。

Ribbon

export class TRibbon extends TPageControl {
    btnApp: TButton;
    quickBtns: TButton[];
    constructor(parent: TContainer | null) {
        super(parent);
        this.Font.align = NFontAlign.Left;
        this.Font.Size = 14;
        this.Font.Color = new TColor("#337AB7");
        this.Brush.Color = new TColor("#E5E8EA");
        this.btnApp = new TButton(this);
        this.btnApp.ApplyXml(`boundRect="0, 0, 100, 25" Caption="DrGraph脑图" Font.Color="white" Font.Size="12" glyphPos="Top" Command="Edit.Delete" FillColor="#FF0000"`);
        this.quickBtns = [];
        let delta = 1;
        let left = this.btnApp.Right + delta;
        let quickIcons: string[] = ["FileSave;File.Save", "Undo;Edit.Undo", "Redo;Edit.Redo"];
        for (let i = 0; i < quickIcons.length; ++i) {
            let quickBtn = new TButton(this);
            quickBtn.paintBox = this.paintBox;
            quickBtn.ApplyXml(`boundRect="${left}, 0, 25, 25" onClick="true" Transparent="true" Icon="Icon/24x24/${DrGraph.String.GetStringAt(quickIcons[i], ";", 0)}.png" Command="${DrGraph.String.GetStringAt(quickIcons[i], ";", 1)}"`);
            left += 25 + delta;
        }
        this.Height = 90;
        this.Align = NAlign.Top;
    }

    draw(): boolean {
        if (!this.Enabled)
            return false;
        let ctx: CanvasRenderingContext2D = this.prepareGDI()!;
        this.Brush.Apply(ctx);
        ctx.fillRect(this.absLeft, this.absTop, this.Width, this.Height);
        let activePage = this.ActivePage;
        if (activePage)
            activePage.draw();

        let left = this.absLeft + 200;
        let top = this.absTop + 15;
        let delta = 15;

        this.sheetHeaderRange = []
        let pageIndex = 0;
        this.Font.Apply(ctx);
        this.FSubControls.forEach((control) => {
            let sheet: TTabSheet | null = DrGraph.dynamic_cast(TTabSheet, control);
            if (sheet) {
                let str = sheet.Title;
                let txtWidth = ctx.measureText(str).width;
                if (pageIndex++ == this.ActivePageIndex) {
                    ctx.fillStyle = "white";
                    ctx.fillRect(left, this.absTop - 2, txtWidth + delta * 2, 30);
                	this.Font.Apply(ctx);
                }
                ctx.fillText(str, left + delta, top);
                this.sheetHeaderRange.push(new TPoint(left, txtWidth + delta * 2));
                left += txtWidth + delta * 2;
            }
            let btn: TButton | null = DrGraph.dynamic_cast(TButton, control);
            if (btn)
                btn.draw();
        })
        return true;
    }

    NewTab(caption: string): TRibbonTab {
        let tab = new TRibbonTab(this);
        tab.Title = caption;
        tab.Top = 28;
        tab.Height = this.Height - tab.Top;
        tab.Align = NAlign.Bottom;
        tab.Visible = false;
        return tab;
    }
}

Ribbon主要管理各Tab，增加一个appButton以及多个快捷按钮。
appButton暂以【DrGraph脑图】随便命名
快捷按钮先设置为Save、Undo、Redo
以上后续均应通过配置实现。

RibbonTab

弱化Tab处理，目前先支持单工具栏，后续再实现为多工具栏模式。

export class TRibbonTab extends TTabSheet {
    caption: string = "Noname";
    toolBarPanel: TPanel;

    constructor(parent: TContainer | null) {
        super(parent);
        this.SetBounds(0, 0, 300, 100);
        this.Visible = false;
        this.toolBarPanel = new TToolBar(this);
        this.toolBarPanel.Height = 63;
        this.toolBarPanel.Align = NAlign.Bottom;
        this.Align = NAlign.Client;
    }
}

ToolBar

export class TToolBar extends TPanel {
    constructor(parent: TContainer | null) {
        super(parent);
        this.AutoArrange = true;
    }

    ReAlign() {
        let restRect = this.BoundRect_Screen;
        restRect = restRect.offset(-restRect.left, -restRect.top);
        var helper = new DrCPP.cpp.THelper();
        helper.AlignPos("init", restRect.width, restRect.height);
        this.FSubControls.forEach((control) => {
            if (control.Visible) {
                let pos = helper.AlignPos("append", control.Width, control.Height);
                if (pos >= 0) {
                    control.Top = Math.floor(pos / 10000);
                    control.Left = pos % 10000;
                }
            }
        })
        helper.delete();
        this.FitAll();
    }

    doDraw(ctx: CanvasRenderingContext2D) {
        super.doDraw(ctx);
    }
}

Button

临时凑合，TButton类应该是写得最垃圾，需要大幅度完善。

export class TButton extends TControl {
    caption: string = "";
    icon: string = "";
    mouseOverColor: string = ""
    iconImage: HTMLImageElement | null = null;
    msgHint: string = "";
    checked: boolean = false;
    style: NButtonStyle = NButtonStyle.Default;
    modalResult: NModalResult = NModalResult.None;
    glyphPos: NGlyphPos = NGlyphPos.Left;

    constructor(parent: TContainer | null) {
        super(parent);
        this.Brush.Gradient([0, 0, 100, 50]).AddColorStop("#EEEEEE", "#CCCCCC");
        this.ApplyXml(`"width="100" height="25" mouseOverColor="#FFDDDD" Font.Size="15"`);
    }

    doDraw(ctx: CanvasRenderingContext2D) {
        if (this.Brush.FillStyle != NBrushFillStyle.None) {
            this.Brush.Apply(ctx);
            DrGraph.TCanvas.Rectangle(ctx, this.BoundRect_Screen, DrGraph.DRAW_FILL);
        }
        if (this.isMouseIn && this.mouseOverColor.length) {
            let color = new TColor(this.mouseOverColor);
            ctx.fillStyle = color.toString();
            DrGraph.TCanvas.Rectangle(ctx, this.BoundRect_Screen, DrGraph.DRAW_FILL);
        }
        if (this.checked) {
            this.Brush.Clone().load(`2|${this.absLeft}, ${this.absTop}, ${this.absLeft + this.Width}, ${this.absTop + this.Height}|3|2|2|0,#FBC06E|1,white`) //SetColor("#FBC06E")
                .Apply(ctx);
            DrGraph.TCanvas.Rectangle(ctx, this.BoundRect_Screen.offset(0, -3), DrGraph.DRAW_FILL);
        }

        this.Font.align = NFontAlign.Left;
        this.Font.baseline = NFontBaseline.Middle;
        this.Font.Apply(ctx);
        let glyphRight = 0, showHeight = 0;
        let offset = 0;
        if (this.icon.length && this.glyphPos != NGlyphPos.OnlyText) {
            if (this.iconImage == null) {
                this.iconImage = new Image;
                this.iconImage.src = this.icon;
            }
            glyphRight = this.iconImage.width;
            showHeight = this.iconImage.height;
            let dstLength = Math.min(this.Height, this.Width);
            if (showHeight > dstLength) {
                let ratio = (dstLength - 10) / showHeight;
                showHeight *= ratio;
                glyphRight *= ratio;
            }
            if (showHeight > 0) {
                offset = (dstLength - showHeight) / 2;
                if (this.isMouseIn && this.Enabled == true)
                    offset -= 1;
                let iconImage = this.iconImage;

                ctx.drawImage(iconImage, this.absLeft + offset, this.absTop + offset, glyphRight, showHeight);
            }
            glyphRight += 5;
        }
        if (this.caption.length > 0) {
            if (this.glyphPos == NGlyphPos.Left || this.glyphPos == NGlyphPos.Right)
                this.Font.align = NFontAlign.Left;
            else
                this.Font.align = NFontAlign.Center;
            this.Font.baseline = NFontBaseline.Middle;
            this.Font.Apply(ctx);
            if (this.glyphPos == NGlyphPos.Left || this.glyphPos == NGlyphPos.Right)
                ctx.fillText(this.caption, this.absLeft + glyphRight, this.absTop + this.Height / 2);
            else {
                let top = this.Height / 2;
                if(this.glyphPos == NGlyphPos.Top)
                    top = (this.Height + showHeight) /  2;
                else if(this.glyphPos == NGlyphPos.Bottom)
                    top = (this.Height - showHeight) / 2;
                ctx.fillText(this.caption, this.absLeft + this.Width / 2, this.absTop + top);
            }
        }
        if (this.msgHint.length) {
            ctx.textAlign = "right";
            DrGraph.TCanvas.DrawNumberText(ctx, this.msgHint, this.absLeft + this.Width - 7, this.absTop + 8);
        }
    }
}

调用

        let ribbon = new TRibbon(this.controlManager);
        ribbon.NewTab("思维");
        ribbon.NewTab("外观");
        ribbon.NewTab("视图");
        ribbon.ActivePageIndex = 1;
        ribbon.ActivePage!.Controls(0).loadFromRes(this, DrGraph.PATH_RES + "MainTool.xml", "mainToolPanel", this.refreshControls.bind(this));

对应的xml

直接用之前的工具栏xml，主要修改Paste按钮为大按钮，Copy、Cut按钮增加Caption，后面的先不处理。

<?xml version='1.0' encoding='gb2312' ?>
<xml desc="UI Control Config by DrGraph">
	<TPanel name="mainToolPanel" autoArrange="true" >
		<TButton name="btnPaste" Icon="Icon/32x32/EditPaste.png" Width="36" Height="36" Caption="剪贴" glyphPos="Top" Transparent="true" onClick="true" Tag="1" Command="Edit.Paste" Hint="粘贴"/>
		<TButton name="btnCopy" Icon="Icon/24x24/EditCopy.png" Caption="复制" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Copy" Hint="复制" />
		<TButton name="btnCut" Icon="Icon/24x24/EditCut.png" Caption="剪切" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Cut" Hint="剪切" />
		<TButton name="btnDelete2" Icon="Icon/24x24/Delete2.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Delete" />
		<TButton name="btnFormatBrush" Icon="Icon/24x24/EditFormat.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.FormatBrush" Hint="格式刷" />
		<TButton_DropDown name="btnZoom" btnMain.Icon="Icon/24x24/ZoomIn.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.ZoomIn" Hint="放大" >
			<TButton name="btnZoomIn" Icon="Icon/24x24/ZoomIn.png" Caption="放大" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.ZoomIn" />
			<TButton name="btnZoomOut" Icon="Icon/24x24/ZoomOut.png" Caption="缩小" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.ZoomOut" />
		</TButton_DropDown>
		<TButton_DropDown name="btnFlip" btnMain.Icon="Icon/24x24/FlipX.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" listPanel.RowHeight="30" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.FlipX" >
			<TButton name="btnFlipX" Icon="Icon/24x24/FlipX.png" Caption="水平翻转" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.FlipX" />
			<TButton name="btnFlipY" Icon="Icon/24x24/FlipY.png" Caption="垂直翻转" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.FlipY" />
			<TButton name="btnRotate90" Icon="Icon/24x24/Rotate90.png" Caption="顺时针旋转90度" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Rotate90" />
			<TButton name="btnRotate180" Icon="Icon/24x24/Rotate180.png" Caption="旋转180度" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Rotate180" />
			<TButton name="btnRotateN90" Icon="Icon/24x24/RotateN90.png" Caption="逆时针旋转90度" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Rotate270" />
		</TButton_DropDown>
		<TButton_DropDown name="btnAlign" btnMain.Icon="Icon/24x24/AlignBottom.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignLeft" >
			<TButton name="btnAlignLeft" Icon="Icon/24x24/AlignLeft.png" Caption="左端对齐" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignLeft" />
			<TButton name="btnAlignCenterX" Icon="Icon/24x24/AlignCenterX.png" Caption="水平居中" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignCenterX" />
			<TButton name="btnAlignRight" Icon="Icon/24x24/AlignRight.png" Caption="右端对齐" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignRight" />
			<TButton name="btnAlignEqualX" Icon="Icon/24x24/AlignEqualX.png" Caption="水平等距排列" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignEqualX" />
			<TButton name="btnAlignTop" Icon="Icon/24x24/AlignTop.png" Caption="顶端对齐" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignTop" />
			<TButton name="btnAlignBottom" Icon="Icon/24x24/AlignBottom.png" Caption="底端对齐" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignBottom" />
			<TButton name="btnAlignCenterY" Icon="Icon/24x24/AlignCenterY.png" Caption="垂直居中" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignCenterY" />
			<TButton name="btnAlignEqualY" Icon="Icon/24x24/AlignEqualY.png" Caption="垂直等距排列" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignEqualY" />
			<TButton name="btnAlignCenter" Icon="Icon/24x24/AlignCenter.png" Caption="窗口居中" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.AlignCenter" />
		</TButton_DropDown>
		<TButton_DropDown name="btnLevel" btnMain.Icon="Icon/24x24/LevelDown.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LevelDown" >
			<TButton name="btnLevelDown" Icon="Icon/24x24/LevelDown.png" Caption="下移一层" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LevelDown" />
			<TButton name="btnLevelBottom" Icon="Icon/24x24/LevelBottom.png" Caption="置于底层" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LevelGround" />
			<TButton name="btnLevelTop" Icon="Icon/24x24/LevelTop.png" Caption="置于顶层" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LevelTopest" />
			<TButton name="btnLevelUp" Icon="Icon/24x24/LevelUp.png" Caption="上移一层" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LevelUp" />
			<TButton name="btnLockX" Icon="Icon/24x24/LockX.png" Caption="水平锁定" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LockX" />
			<TButton name="btnLockXY" Icon="Icon/24x24/LockY.png" Caption="垂直锁定" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.LockY" />
		</TButton_DropDown>
		<TButton name="btnDeGroup" Icon="Icon/24x24/DeGroup.png" Hint="分解" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.DeGroup" />
		<TButton name="btnGroup" Icon="Icon/24x24/Group.png" Hint="组合" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Group" />
		<TButton name="splitter1" Width="2" Height="60" FillColor="#F0F0F0" />
		<TButton name="btnInsertLine" Icon="Icon/24x24/Meta_Line.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Line" />
		<TButton name="btnInsertRect" Icon="Icon/24x24/Meta_Rectangle.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Rectangle" />
		<TButton name="btnInsertEllipse" Icon="Icon/24x24/Meta_Ellipse.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Ellipse" />
		<TButton name="btnInsertCircle" Icon="Icon/24x24/Meta_Circle.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Circle" />
		<TButton name="btnInsertCurve" Icon="Icon/24x24/Meta_Curve.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Curve" />
		<TButton name="btnInsertText" Icon="Icon/24x24/Meta_Text.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Text" />
		<TButton name="btnInsertImage" Icon="Icon/24x24/Meta_Image.png" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Image" />
		<TButton_DropDown name="btnInsertPolygons" btnMain.Icon="Icon/24x24/Meta_Polygon.png" listPanel.RowHeight="40" listPanel.fontSize="14" rowCount="15" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon" >
			<TButton name="btnInsertPolygon" Icon="Icon/24x24/Meta_Polygon.png" Caption="多边形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.Polygon" />
			<TButton name="btnInsertLines" Icon="Icon/24x24/Meta_Polygon2.png" Caption="多线段" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.Lines" />
			<TButton name="btnInsertPolygon3" Icon="Icon/24x24/Meta_Polygon3.png" Caption="等边三角形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.3" />
			<TButton name="btnInsertPolygon4" Icon="Icon/24x24/Meta_Polygon4.png" Caption="正方形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.4" />
			<TButton name="btnInsertPolygon5" Icon="Icon/24x24/Meta_Polygon5.png" Caption="正五边形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.5" />
			<TButton name="btnInsertPolygon6" Icon="Icon/24x24/Meta_Polygon6.png" Caption="正六边形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.6" />
			<TButton name="btnInsertPolygon8" Icon="Icon/24x24/Meta_Polygon8.png" Caption="正八边形" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.8" />
			<TButton name="btnInsertPolygon5" Icon="Icon/24x24/Meta_Polygon5N.png" Caption="正五角星" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.-5" />
			<TButton name="btnInsertPolygon6" Icon="Icon/24x24/Meta_Polygon7N.png" Caption="正七角星" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.-7" />
			<TButton name="btnInsertPolygon8" Icon="Icon/24x24/Meta_Polygon8N.png" Caption="正八角星" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.-8" />
			<TButton name="btnInsertPolygon8" Icon="Icon/24x24/Meta_Polygon9N.png" Caption="正九角星" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Polygon.-9" />
		</TButton_DropDown>
		<TButton name="splitter2" Width="2" Height="60" FillColor="#F0F0F0" />
		<TButton_DropDown name="btnBeginArrow" btnMain.Icon="Icon/24x24/Arrow1.png" listPanel.RowHeight="40" listPanel.fontSize="14" rowCount="13" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.1" >
			<TButton name="btnStyleArrow1" Icon="Icon/24x24/Arrow1.png" Caption="无箭头" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.1" />
			<TButton name="btnStyleArrow2" Icon="Icon/24x24/Arrow2.png" Caption="箭头2" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.2" />
			<TButton name="btnStyleArrow3" Icon="Icon/24x24/Arrow3.png" Caption="箭头3" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.3" />
			<TButton name="btnStyleArrow4" Icon="Icon/24x24/Arrow4.png" Caption="箭头4" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.4" />
			<TButton name="btnStyleArrow5" Icon="Icon/24x24/Arrow5.png" Caption="箭头5" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.5" />
			<TButton name="btnStyleArrow6" Icon="Icon/24x24/Arrow6.png" Caption="箭头6" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.6" />
			<TButton name="btnStyleArrow7" Icon="Icon/24x24/Arrow7.png" Caption="箭头7" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.7" />
			<TButton name="btnStyleArrow8" Icon="Icon/24x24/Arrow8.png" Caption="箭头8" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.8" />
			<TButton name="btnStyleArrow9" Icon="Icon/24x24/Arrow9.png" Caption="箭头9" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.9" />
			<TButton name="btnStyleArrow10" Icon="Icon/24x24/Arrow10.png" Caption="箭头10" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.10" />
			<TButton name="btnStyleArrow11" Icon="Icon/24x24/Arrow11.png" Caption="箭头11" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.11" />
			<TButton name="btnStyleArrow12" Icon="Icon/24x24/Arrow12.png" Caption="箭头12" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.BeginArrow.12" />
		</TButton_DropDown>
		<TButton_DropDown name="btnEndArrow" btnMain.Icon="Icon/24x24/Arrow1.png" listPanel.RowHeight="40" listPanel.fontSize="14" rowCount="13" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.1" >
			<TButton name="btnStyleArrow1" Icon="Icon/24x24/Arrow1.png" Caption="无箭头" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.1" />
			<TButton name="btnStyleArrow2" Icon="Icon/24x24/Arrow2.png" Caption="箭头2" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.2" />
			<TButton name="btnStyleArrow3" Icon="Icon/24x24/Arrow3.png" Caption="箭头3" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.3" />
			<TButton name="btnStyleArrow4" Icon="Icon/24x24/Arrow4.png" Caption="箭头4" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.4" />
			<TButton name="btnStyleArrow5" Icon="Icon/24x24/Arrow5.png" Caption="箭头5" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.5" />
			<TButton name="btnStyleArrow6" Icon="Icon/24x24/Arrow6.png" Caption="箭头6" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.6" />
			<TButton name="btnStyleArrow7" Icon="Icon/24x24/Arrow7.png" Caption="箭头7" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.7" />
			<TButton name="btnStyleArrow8" Icon="Icon/24x24/Arrow8.png" Caption="箭头8" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.8" />
			<TButton name="btnStyleArrow9" Icon="Icon/24x24/Arrow9.png" Caption="箭头9" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.9" />
			<TButton name="btnStyleArrow10" Icon="Icon/24x24/Arrow10.png" Caption="箭头10" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.10" />
			<TButton name="btnStyleArrow11" Icon="Icon/24x24/Arrow11.png" Caption="箭头11" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.11" />
			<TButton name="btnStyleArrow12" Icon="Icon/24x24/Arrow12.png" Caption="箭头12" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.EndArrow.12" />
		</TButton_DropDown>
		<TButton_DropDown name="btnConnType" btnMain.Icon="Icon/24x24/Conn_RightAngle.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.ConnectType.RightAngle" >
			<TButton name="btnConnTypeBezier" Icon="Icon/24x24/Meta_Bezier.png" Caption="贝塞尔曲线" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.ConnectType.Bezier" />
			<TButton name="btnConnTypeLine" Icon="Icon/24x24/Meta_Line.png" Caption="直线段" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.ConnectType.Line" />
			<TButton name="btnConnTypeRightAngle" Icon="Icon/24x24/Conn_RightAngle.png" Caption="直角折线" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.ConnectType.RightAngle" />
		</TButton_DropDown>
		<TButton_DropDown name="btnPriority" btnMain.Icon="Icon/24x24/PriorityConnection.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.Priority.Connection" >
			<TButton name="btnPriorityModel" Icon="Icon/24x24/PriorityModel.png" Caption="模型点优先" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.Priority.Model" />
			<TButton name="btnPriorityConn" Icon="Icon/24x24/PriorityConnection.png" Caption="连接点优先" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Param.Priority.Connection" />
			<TButton name="btnPriorityHelp" Icon="Icon/24x24/PriorityHelp.png" Caption="查看对象信息" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Edit.Help" />
		</TButton_DropDown>
		<TButton_DropDown name="btnMark" btnMain.Icon="Icon/24x24/Mark.png" listPanel.RowHeight="40" listPanel.fontSize="14" dropDownColor="#3388FF" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.Points_Length" >
			<TButton name="btnMarkPointsLength" Icon="Icon/24x24/MarkPointsLength.png" Caption="两点长度" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.PointsLength" />
			<TButton name="btnMarkPointsHorz" Icon="Icon/24x24/MarkPointsHorz.png" Caption="两点水平" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.PointsHorz" />
			<TButton name="btnMarkPointsVert" Icon="Icon/24x24/MarkPointsVert.png" Caption="两点垂直" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.PointsVert" />
			<TButton name="btnMarkLineLength" Icon="Icon/24x24/MarkLineLength.png" Caption="线段长度" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.LineLength" />
			<TButton name="btnMarkLineHorz" Icon="Icon/24x24/MarkLineHorz.png" Caption="线段水平" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.LineHorz" />
			<TButton name="btnMarkLineVert" Icon="Icon/24x24/MarkLineVert.png" Caption="线段垂直" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.LineVert" />
			<TButton name="btnPriorityHelp" Icon="Icon/24x24/MarkAngle.png" Caption="角度标注" Width="30" Height="30" Transparent="true" onClick="true" Tag="1" Command="Insert.Mark.Angle" />
		</TButton_DropDown>
	</TPanel>
</xml>

运行效果

在这里插入图片描述

下一步工作

初步达到预期，后续需要做模块化工作，主要包括以下几点：

丰富Ribbon中的各界面要素，比如下拉框、Gallery等
完全可配置化
BackView
主题皮肤

最后

以上就是善良眼睛为你收集整理的BS版图形系统 - Ribbon工具栏初步组件实现调用运行效果下一步工作的全部内容，希望文章能够帮你解决BS版图形系统 - Ribbon工具栏初步组件实现调用运行效果下一步工作所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：DrGraph
浏览次数：74 次浏览
发布日期：2023-12-30 07:35:55
本文链接：https://www.kaopuke.com/article/k-p-k_13_u_23_ocfz_13_zkw.html

BS版图形系统 - Ribbon工具栏初步组件实现调用运行效果下一步工作

概述

BS版图形系统 - Ribbon工具栏初步

组件实现

Ribbon

RibbonTab

ToolBar

Button

调用

对应的xml

运行效果

下一步工作

最后

评论列表共有 0 条评论

发表评论取消回复

BS版图形系统 - Ribbon工具栏初步组件实现调用运行效果下一步工作

概述

BS版图形系统 - Ribbon工具栏初步

组件实现

Ribbon

RibbonTab

ToolBar

Button

调用

对应的xml

运行效果

下一步工作

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
