vis 绘制二叉树

96 阅读 0 评论 64 点赞

我是靠谱客的博主哭泣身影，这篇文章主要介绍vis 绘制二叉树，现在分享给大家，希望可以做个参考。

原文链接: vis 绘制二叉树

上一篇: vis 入门

下一篇: python常用库

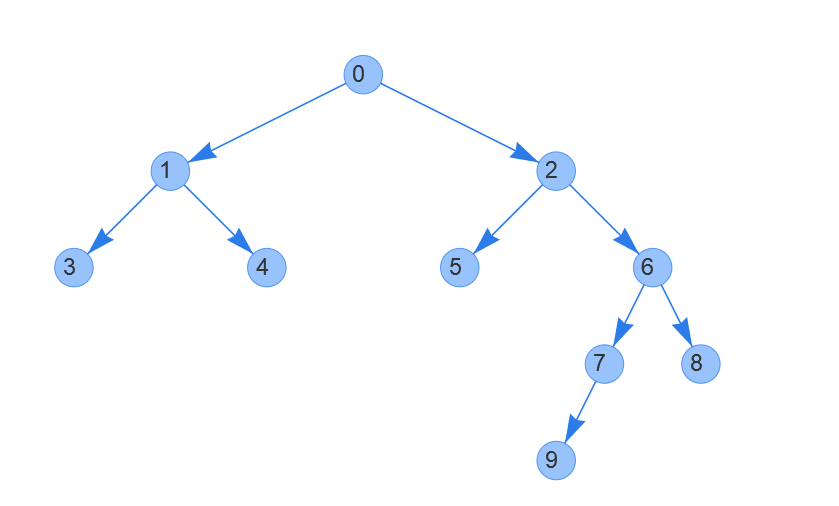

使用vis 绘制二叉树

复制代码

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <link rel="stylesheet" href="css/uikit.min.css">
    <link rel="stylesheet" href="css/bootstrap.min.css">
    <title>迷宫寻路</title>
    <script src="js/jquery-3.2.1.js"></script>
    <script src="js/bootstrap.js"></script>
    <script src="js/vue.js"></script>
    <script src="js/uikit.min.js"></script>
    <script src="js/maze.js"></script>
    <script src="js/vue-router.js"></script>
    <script src="js/moment-with-locales.js"></script>
    <script src="js/vis/vis.js"></script>
    <link href="js/vis/vis-network.min.css" rel="stylesheet" type="text/css"/>

</head>
<body>
<div class="container">
    <div id="mynetwork" style="width: 1200px;height: 800px;border: 1px solid lightgrey"></div>
</div>

function pow(x, y) {
        if (y == 0)
            return 1
        let ans = 1
        while (y-- && y > 0)
            ans *= x
        return ans
    }

//                0
    //             1      2
    //           3  4   5  6
    var height = 60    //树的层高
    var width = 30      //树最下层节点相邻的距离
    var level = getLevel(head)  //树的最大层高,根节点在第一层
    var nodes = []
    var edges = []

//    x右,y下
    //递归遍历,设置节点和距离
    function dfs(h, lv) {
        if (h == null)
            return
        console.log('h.x:' + h.x)
        console.log('h.y:' + h.y)
        if (h.left != null) {
            h.left.y = h.y + height
            h.left.x = h.x - pow(2, level - lv - 1) * width
            nodes.push({
                id: h.left.val, label: '' + h.left.val, x: h.left.x, y: h.left.y
            })
//            nodes.push({
//                    id: h.left.val, label: '' + h.left.val, x: h.left.x, y: h.left.y,
//                    fixed: {x: true, y: true}
//                    fixed: {x: true, y: false}

edges.push({from: h.val, to: h.left.val, arrows: 'to'})
            dfs(h.left, lv + 1)
        }
        if (h.right != null) {
            h.right.y = h.y + height
            h.right.x = h.x + pow(2, level - lv - 1) * width

nodes.push({
                id: h.right.val, label: '' + h.right.val, x: h.right.x, y: h.right.y,
            })
//            nodes.push({
//                id: h.right.val, label: '' + h.right.val, x: h.right.x, y: h.right.y,
//                fixed: {x: true, y: true}})
//                fixed: {x: true, y: false}
//            })

edges.push({from: h.val, to: h.right.val, arrows: 'to'})
            dfs(h.right, lv + 1)
        }
    }

function draw() {
        var head = create() //获取一棵树

if (head == null)
            return
        level = getLevel(head)
        nodes.push({id: head.val, label: '' + head.val, x: 0, y: 0, fixed: {x: false, y: false}})
//        nodes.push({id: head.val, label: '' + head.val, x: 0, y: 0, fixed: {x: true, y: false}})

head.x = 0
        head.y = 0
        dfs(head, 1)
        for (let i in nodes)
            console.log(nodes[i])

for (let i in edges)
            console.log(edges[i])

var container = document.getElementById('mynetwork');
        var data = {
            nodes: nodes,
            edges: edges
        };
        var options = {
            nodes: {
                shape: 'circle',
            },
            physics: {
                enabled: false,
            }

};
        network = new vis.Network(container, data, options);
    }

function Node(val = 0, left = null, right = null) {
        this.val = val
        this.left = left
        this.right = right
    }

function create() {
        var head = new Node(0)
        head.left = new Node(1)
        head.right = new Node(2)
        head.left.left = new Node(3)
        head.left.right = new Node(4)
        head.right.left = new Node(5)
        head.right.right = new Node(6)
        head.right.right.left = new Node(7)
        head.right.right.right = new Node(8)
        head.right.right.left.left=new Node(9)
        return head
    }

//中序递归遍历数树
    function show(head) {
        console.log(head)
        if (head != null) {
            console.log(head.val)
            show(head.left)
            show(head.right)
        }

}

//获取树高
    function getLevel(head) {
        if (head == null) return 0

var maxLevel = 1

//根节点在第1层
        dfs(head, 1)

function dfs(h, lv) {
            if (h != null) {
                maxLevel = Math.max(lv, maxLevel)
                dfs(h.left, lv + 1)
                dfs(h.right, lv + 1)
            }
        }

return maxLevel
    }

var head = create()
    console.log(pow(2, 10))
    draw()
</script>
</body>
</html>
