承接上一谈

OpenJDK源码赏析之一：漫谈java的历史渊源_星空_AZ的博客-CSDN博客

JAVA从启动到第一个函数执行的发生的流程：

WinMain->JLI_Launch->JVMInit->NewThread->JavaMain->initializateJVM->CreatJavaVM->LoadMainClass->GetStaticMethodID

看一个程序首先要找它的启动入口

OpenJDK的如下目录有着main程序的启动入口：

打开后是程序的入口，main的函数如下：

复制代码

int WINAPI
WinMain(HINSTANCE inst, HINSTANCE previnst, LPSTR cmdline, int cmdshow)
{
    int margc;
    char** margv;
    const jboolean const_javaw = JNI_TRUE;

__initenv = _environ;

#else /* JAVAW */
int
main(int argc, char **argv)
{
    int margc;
    char** margv;
    const jboolean const_javaw = JNI_FALSE;
#endif /* JAVAW */
#ifdef _WIN32
    {
        int i = 0;
        if (getenv(JLDEBUG_ENV_ENTRY) != NULL) {
            printf("Windows original main args:n");
            for (i = 0 ; i < __argc ; i++) {
                printf("wwwd_args[%d] = %sn", i, __argv[i]);
            }
        }
    }
    JLI_CmdToArgs(GetCommandLine());
    margc = JLI_GetStdArgc();
    // add one more to mark the end
    margv = (char **)JLI_MemAlloc((margc + 1) * (sizeof(char *)));
    {
        int i = 0;
        StdArg *stdargs = JLI_GetStdArgs();
        for (i = 0 ; i < margc ; i++) {
            margv[i] = stdargs[i].arg;
        }
        margv[i] = NULL;
    }
#else /* *NIXES */
    margc = argc;
    margv = argv;
#endif /* WIN32 */
    return JLI_Launch(margc, margv,
                   sizeof(const_jargs) / sizeof(char *), const_jargs,
                   sizeof(const_appclasspath) / sizeof(char *), const_appclasspath,
                   FULL_VERSION,
                   DOT_VERSION,
                   (const_progname != NULL) ? const_progname : *margv,
                   (const_launcher != NULL) ? const_launcher : *margv,
                   (const_jargs != NULL) ? JNI_TRUE : JNI_FALSE,
                   const_cpwildcard, const_javaw, const_ergo_class);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
int WINAPI
WinMain(HINSTANCE inst, HINSTANCE previnst, LPSTR cmdline, int cmdshow)
{
    int margc;
    char** margv;
    const jboolean const_javaw = JNI_TRUE;

    __initenv = _environ;

#else /* JAVAW */
int
main(int argc, char **argv)
{
    int margc;
    char** margv;
    const jboolean const_javaw = JNI_FALSE;
#endif /* JAVAW */
#ifdef _WIN32
    {
        int i = 0;
        if (getenv(JLDEBUG_ENV_ENTRY) != NULL) {
            printf("Windows original main args:n");
            for (i = 0 ; i < __argc ; i++) {
                printf("wwwd_args[%d] = %sn", i, __argv[i]);
            }
        }
    }
    JLI_CmdToArgs(GetCommandLine());
    margc = JLI_GetStdArgc();
    // add one more to mark the end
    margv = (char **)JLI_MemAlloc((margc + 1) * (sizeof(char *)));
    {
        int i = 0;
        StdArg *stdargs = JLI_GetStdArgs();
        for (i = 0 ; i < margc ; i++) {
            margv[i] = stdargs[i].arg;
        }
        margv[i] = NULL;
    }
#else /* *NIXES */
    margc = argc;
    margv = argv;
#endif /* WIN32 */
    return JLI_Launch(margc, margv,
                   sizeof(const_jargs) / sizeof(char *), const_jargs,
                   sizeof(const_appclasspath) / sizeof(char *), const_appclasspath,
                   FULL_VERSION,
                   DOT_VERSION,
                   (const_progname != NULL) ? const_progname : *margv,
                   (const_launcher != NULL) ? const_launcher : *margv,
                   (const_jargs != NULL) ? JNI_TRUE : JNI_FALSE,
                   const_cpwildcard, const_javaw, const_ergo_class);
}

可以看到最后运行一个JLI_Launch的函数，JLI的全称为Java Native Interface，是java调用非java代码的接口，这个函数在java.c中，找到java.c中该函数的位置

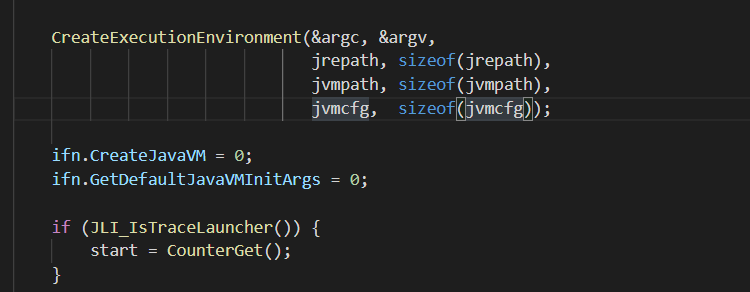

看到 CreateExecutionEnvironment，为创建执行环境

跳转到该函数实现位置

其实现了以下几个功能

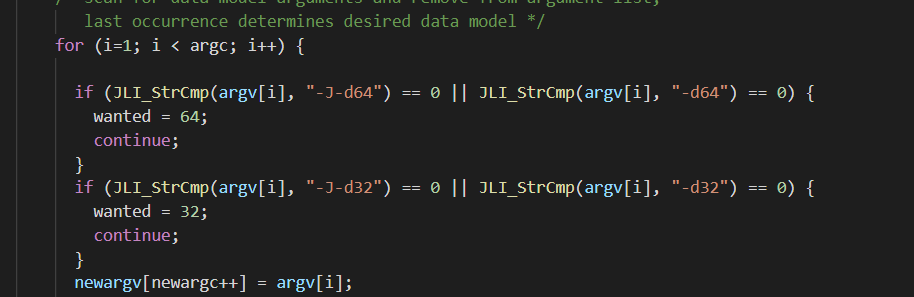

①判断环境为32位或者64位

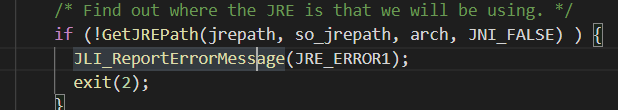

②得到JRE的路径

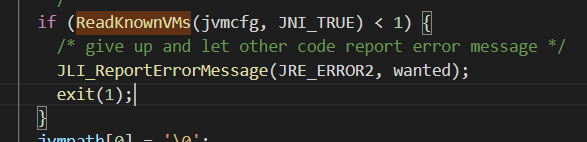

③ReadKnownVms()得到JVM.cfg文件（该文件为java的配置文件）

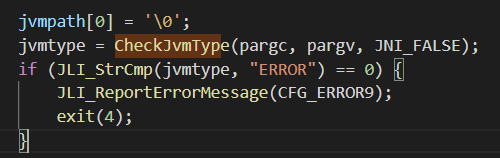

④CheckJvmType确认当前的jvm类型

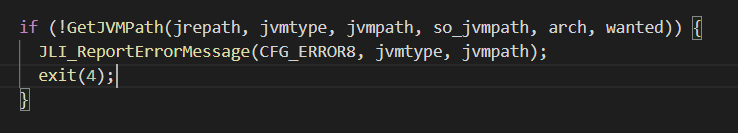

⑤GetJVMPath根据上一步确定的JVM类型，找到对应的JVM.dll文件

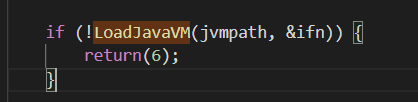

继续回到java.c中的JLI_Launch函数，下面执行LoadJavaVM

跳转到该函数其实现了加载dll库，并绑定函数可以调用dll中的

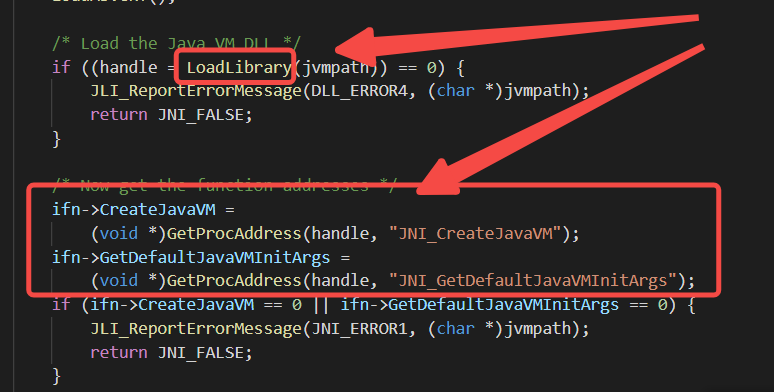

LoadLibrary链接到DLL库（LoadLibrary为加载动态链接库），此库为jvm.dll

把JVM.dll文件中定义的函数JNI_CreateJavaVM和JNI_GetDefaultJavaVMInitArgs的指针绑定到InvocationFunctions变量的CreateJavaVM和GetDefaultJavaVMInitArgs函数指针变量上；

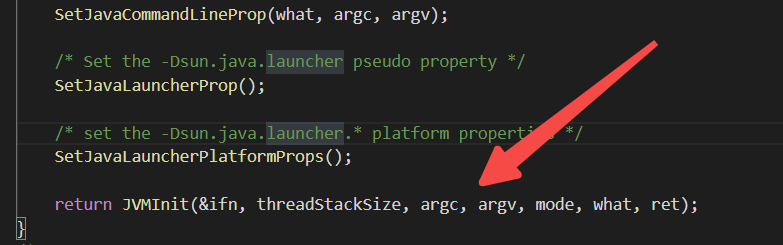

当装载好虚拟机所需要的环境之后，回到JLI_Launch函数最后一步要执行的JVMInit

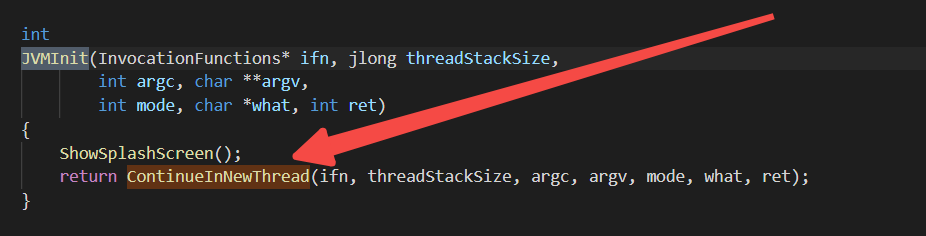

跳转到JVMInit后，开始通过ContinueInNewThread创建新的Java进程

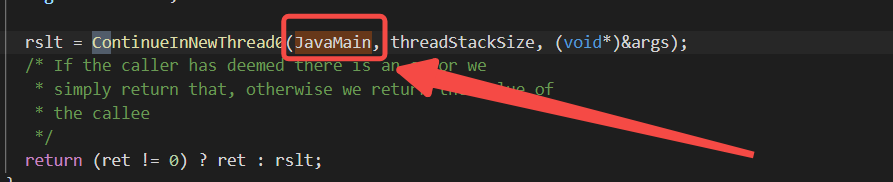

在ContinueInNewThread下有个函数ContinueInNewThread0，执行了当前的主方法JavaMain

在JavaMain中有一个InitializeJVM

初始化虚拟机

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/*
 * Initializes the Java Virtual Machine. Also frees options array when
 * finished.
 */
static jboolean
InitializeJVM(JavaVM **pvm, JNIEnv **penv, InvocationFunctions *ifn)
{
    JavaVMInitArgs args;
    jint r;

    memset(&args, 0, sizeof(args));
    args.version  = JNI_VERSION_1_2;
    args.nOptions = numOptions;
    args.options  = options;
    args.ignoreUnrecognized = JNI_FALSE;

    if (JLI_IsTraceLauncher()) {
        int i = 0;
        printf("JavaVM args:n    ");
        printf("version 0x%08lx, ", (long)args.version);
        printf("ignoreUnrecognized is %s, ",
               args.ignoreUnrecognized ? "JNI_TRUE" : "JNI_FALSE");
        printf("nOptions is %ldn", (long)args.nOptions);
        for (i = 0; i < numOptions; i++)
            printf("    option[%2d] = '%s'n",
                   i, args.options[i].optionString);
    }

    r = ifn->CreateJavaVM(pvm, (void **)penv, &args);
    JLI_MemFree(options);
    return r == JNI_OK;
}

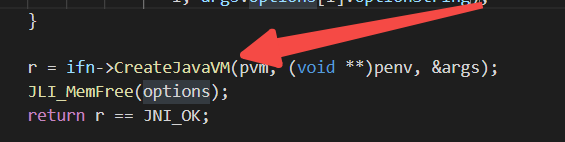

最后有CreatJavaVM，初始化虚拟机

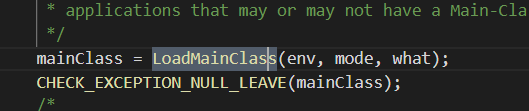

最后创建Java虚拟机进程后，回到JavaMain函数下面有这么一行：

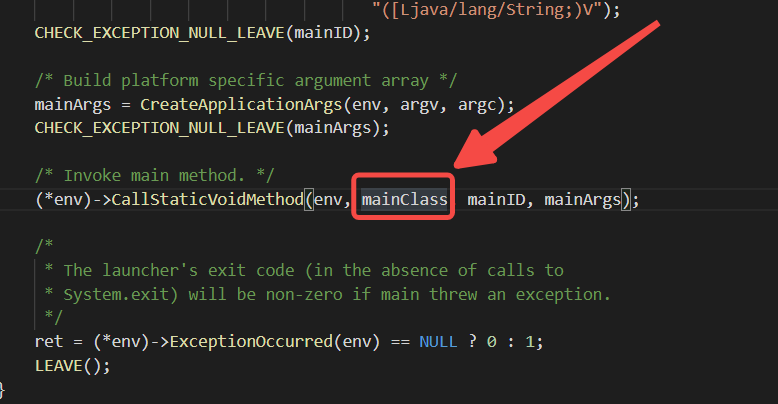

把mainClass赋值为我们写的调用的主函数，以下为LoadMainClass源码

复制代码

/*
 * Loads a class and verifies that the main class is present and it is ok to
 * call it for more details refer to the java implementation.
* 加载一个类并验证主类是否存在，可以调用它以获取更多详细信息，请参阅java实现。
 */

static jclass
LoadMainClass(JNIEnv *env, int mode, char *name)
{
    jmethodID mid;
    jstring str;
    jobject result;
    jlong start, end;
    jclass cls = GetLauncherHelperClass(env);
    NULL_CHECK0(cls);
    if (JLI_IsTraceLauncher()) {
        start = CounterGet();
    }
    NULL_CHECK0(mid = (*env)->GetStaticMethodID(env, cls,
                "checkAndLoadMain",
                "(ZILjava/lang/String;)Ljava/lang/Class;"));

str = NewPlatformString(env, name);
    result = (*env)->CallStaticObjectMethod(env, cls, mid, USE_STDERR, mode, str);

if (JLI_IsTraceLauncher()) {
        end   = CounterGet();
        printf("%ld micro seconds to load main classn",
               (long)(jint)Counter2Micros(end-start));
        printf("----%s----n", JLDEBUG_ENV_ENTRY);
    }

return (jclass)result;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
/*
 * Loads a class and verifies that the main class is present and it is ok to
 * call it for more details refer to the java implementation.
* 加载一个类并验证主类是否存在，可以调用它以获取更多详细信息，请参阅java实现。
 */


static jclass
LoadMainClass(JNIEnv *env, int mode, char *name)
{
    jmethodID mid;
    jstring str;
    jobject result;
    jlong start, end;
    jclass cls = GetLauncherHelperClass(env);
    NULL_CHECK0(cls);
    if (JLI_IsTraceLauncher()) {
        start = CounterGet();
    }
    NULL_CHECK0(mid = (*env)->GetStaticMethodID(env, cls,
                "checkAndLoadMain",
                "(ZILjava/lang/String;)Ljava/lang/Class;"));

    str = NewPlatformString(env, name);
    result = (*env)->CallStaticObjectMethod(env, cls, mid, USE_STDERR, mode, str);

    if (JLI_IsTraceLauncher()) {
        end   = CounterGet();
        printf("%ld micro seconds to load main classn",
               (long)(jint)Counter2Micros(end-start));
        printf("----%s----n", JLDEBUG_ENV_ENTRY);
    }

    return (jclass)result;
}
