arcgis在配合数据驱动下制作动态表格及生成拐点坐标表

71 阅读 0 评论 47 点赞

我是靠谱客的博主明亮悟空，这篇文章主要介绍arcgis在配合数据驱动下制作动态表格及生成拐点坐标表，现在分享给大家，希望可以做个参考。

本文以打印宗地图为例，展示在arcgis下使用数据驱动工具生成和打印宗地图

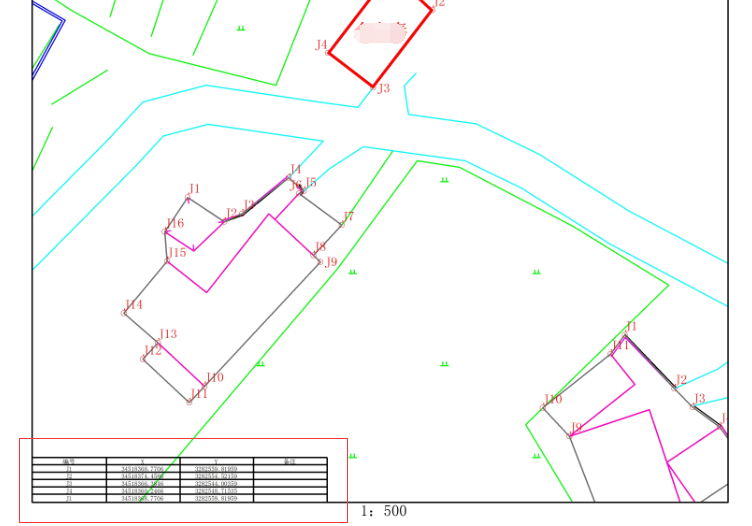

最后展示初步的效果图：图框可以修改和自定义

一、标注出每个面的界址点号

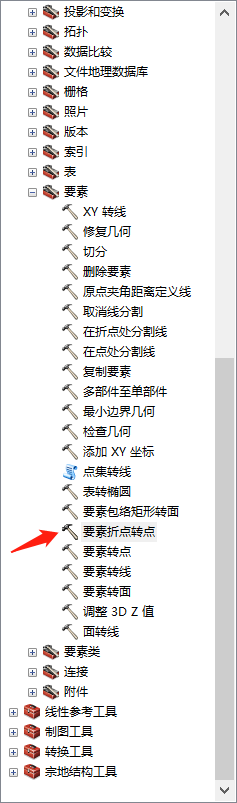

1、打开宗地地块需要标注各个拐点的坐标，面状图形暂时不知道如何直接标注出各拐点，因此使用数据管理工具——要素——折点转点，创建拐点；

2、但是由于该工具会将J1 计算两次，以下参考图，会显示的拐点数目为5，所以我们先对面状图形进行计算拐点数目，新建个字段，名称为拐点数，运用字段计算器计算出来：

代码块：

def MySub(feat):
partnum = 0
partcount = feat.partCount
pntcount = 0
while partnum < partcount:
part = feat.getPart(partnum)
pnt = part.next()
while pnt:
pntcount += 1
pnt = part.next()
if not pnt:
pnt = part.next()
partnum += 1
return pntcount

下面的表达式：MySub(!shape!)

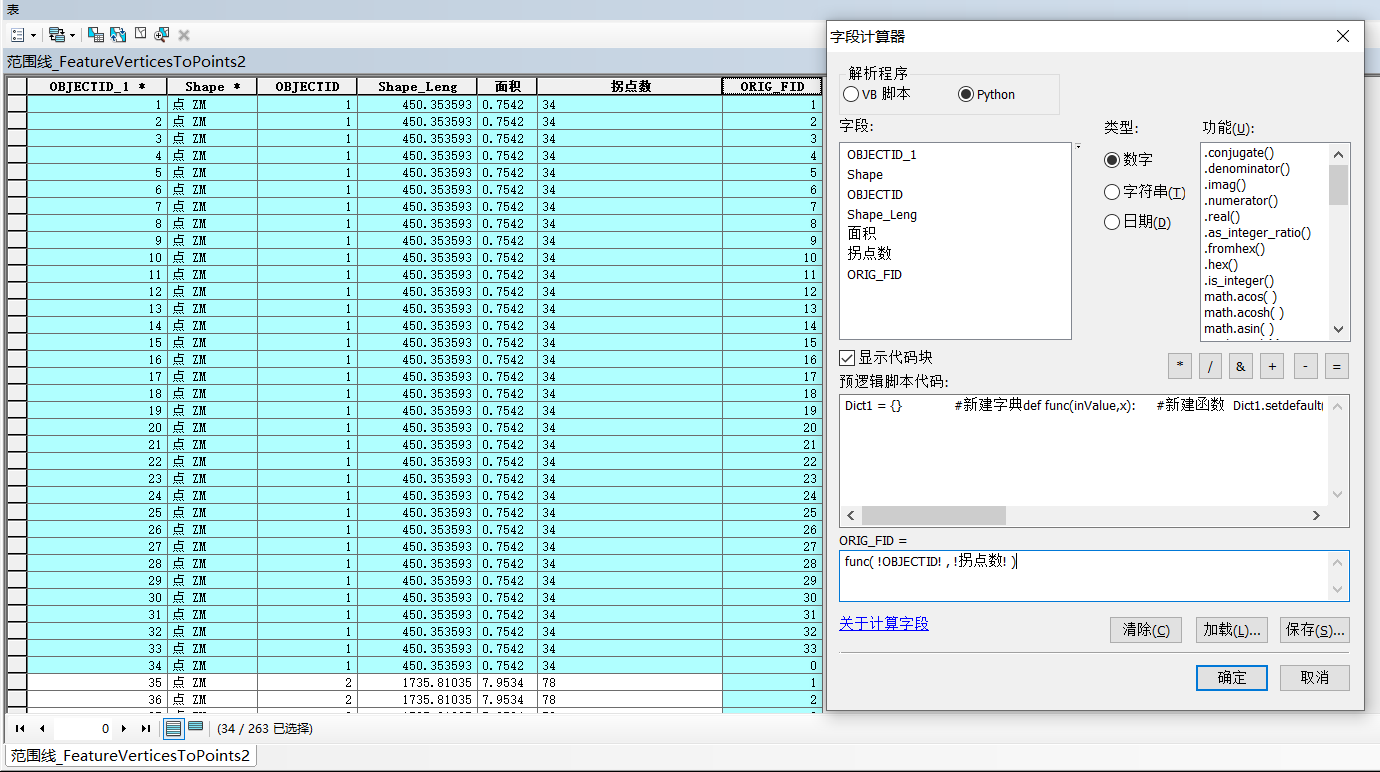

3、然后执行折点转点工具，并对点要素进行从1开始的编号：并将多出的一个点剔除将其标出来000000，同样使用字段计算器：

Dict1 = {} #新建字典
def func(inValue,x): #新建函数
Dict1.setdefault(inValue,0) #设置字典的默认值从0开始
Dict1[inValue]= Dict1[inValue]+1 #值+1
if Dict1[inValue]==int(x):
return "00000" #返回值
else:
return Dict1[inValue]

inValue为各个面的转换前的ID值,X为刚才计算的拐点数

这里我队转点后的点要素中ORIG_FID字段进行计算，在预逻辑里面贴入公式，运行func函数，传入OBJECTID和拐点数两个参数变行了

最后便可以标注出各个拐点的坐标如图,然后使用数据驱动，设置拐点图层的显示，在属性的页面定义查询，只显示属性值一致的拐点

二、在页面布局中制作动态的表格

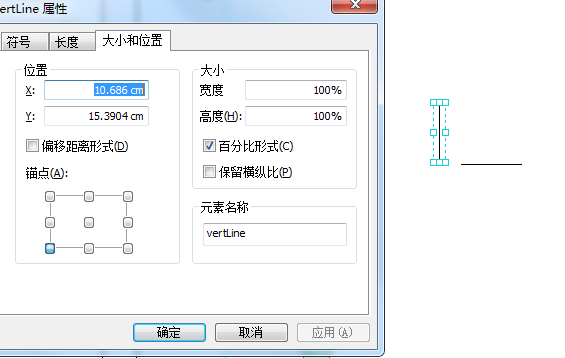

1、制作表格必须要有垂直线和水平线，arcpy下无法访问绘图工具，因此只能手动绘制一条水平线和一条垂直线并命名为(horzLine（水平线）和vertLine（垂直线）)和一个文本txt 取名为tableText，文本锚点设置在正中，字体大小根据情况自定，我设置为5左右

下面是定义制止表格的代码

复制代码

mxd = arcpy.mapping.MapDocument(r"current")
horzLine = arcpy.mapping.ListLayoutElements(mxd, "GRAPHIC_ELEMENT", "horzLine")[0]
vertLine = arcpy.mapping.ListLayoutElements(mxd, "GRAPHIC_ELEMENT", "vertLine")[0]
tableText = arcpy.mapping.ListLayoutElements(mxd, "TEXT_ELEMENT", "TableText")[0]
def maketable(horzLine,vertLine,tableText,numRow):
    numRows =numRow
    rowHeight = 0.2
    fieldNames = ["X", "Y", "编号"]
    numColumns = 4
    colWidth = 2
    upperX = 1.0
    upperY = 1.0
    vertLine.elementPositionX = upperX
    vertLine.elementPositionY = upperY
    vertLine.elementHeight =  (rowHeight * numRows) + rowHeight  #纵线的长度
    x=1
    for vert in range(1, numColumns+1):
       x = x + colWidth
       vert_clone = vertLine.clone("_clone")
       vert_clone.elementPositionX = x
    horzLine.elementPositionX = upperX
    horzLine.elementPositionY = upperY
    horzLine.elementWidth = numColumns * colWidth
    y=1
    for horz in range(1, numRows+2):
       temp_horz = horzLine.clone("_clone")
       y = y + rowHeight
       temp_horz.elementPositionY = y
    tableText.elementPositionY=rowHeight * (numRows+1)-0.1+1
    tableText.elementPositionX=2
    tableText.text=fieldNames[2]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text=fieldNames[0]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text=fieldNames[1]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text="备注"
    tableText.clone("_clone")

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
mxd = arcpy.mapping.MapDocument(r"current")
horzLine = arcpy.mapping.ListLayoutElements(mxd, "GRAPHIC_ELEMENT", "horzLine")[0]
vertLine = arcpy.mapping.ListLayoutElements(mxd, "GRAPHIC_ELEMENT", "vertLine")[0]
tableText = arcpy.mapping.ListLayoutElements(mxd, "TEXT_ELEMENT", "TableText")[0]
def maketable(horzLine,vertLine,tableText,numRow):
    numRows =numRow
    rowHeight = 0.2
    fieldNames = ["X", "Y", "编号"]
    numColumns = 4
    colWidth = 2
    upperX = 1.0
    upperY = 1.0
    vertLine.elementPositionX = upperX
    vertLine.elementPositionY = upperY
    vertLine.elementHeight =  (rowHeight * numRows) + rowHeight  #纵线的长度
    x=1
    for vert in range(1, numColumns+1):
       x = x + colWidth
       vert_clone = vertLine.clone("_clone")
       vert_clone.elementPositionX = x
    horzLine.elementPositionX = upperX
    horzLine.elementPositionY = upperY
    horzLine.elementWidth = numColumns * colWidth
    y=1
    for horz in range(1, numRows+2):
       temp_horz = horzLine.clone("_clone")
       y = y + rowHeight
       temp_horz.elementPositionY = y
    tableText.elementPositionY=rowHeight * (numRows+1)-0.1+1
    tableText.elementPositionX=2
    tableText.text=fieldNames[2]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text=fieldNames[0]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text=fieldNames[1]
    tableText.clone("_clone")
    tableText.elementPositionX=tableText.elementPositionX+2
    tableText.text="备注"
    tableText.clone("_clone")

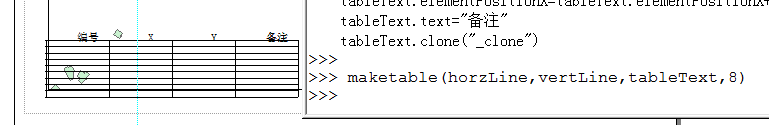

运行maketable(horzLine,vertLine,tableText,numRow) ,其中numRow为需要的行数在右下角生成表格

然后需要将各拐点的坐标值写入该表格内：贴入代码，这段代码先访问数据驱动的页面，然后获取到该页面的地块，计算其XY坐标值然后插入表格内，导出该页的JPG，并删除表格，继续下一页，再次创建表格，计算坐标，写入坐标，导出JPG

复制代码

rowHeight = 0.2
colWidth = 2
for pageNum in range(8, 12):
  mxd.dataDrivenPages.currentPageID = pageNum
  a=mxd.dataDrivenPages.pageRow.getValue ("ID")
  for elm in arcpy.mapping.ListLayoutElements(mxd, wildcard="*_clone*"):
             elm.delete()
  with arcpy.da.SearchCursor('E:xxxxZDZD.shp', ["SHAPE@","ID"]) as cursor:
     for row in cursor:
        if a == row[1]:
          for pts in row[0]:
             numRows=pts.count
             maketable(horzLine,vertLine,tableText,numRows)
             n=0
             tableText.elementPositionY=rowHeight * (numRows+1)-0.1+1
             tableText.elementPositionX=2
             m=rowHeight * (numRows+1)-0.1+1
             list1=[]

             for pt in pts:
                 n=n+1
                 if n < pts.count:
                   textBH='J'+str(n)
                   textX=str(pt.X)
                   textY=str(pt.Y)
                 else:
                   textBH='J1'
                   textX=str(pt.X)
                   textY=str(pt.Y)

                 #print(textX,textY)

                 z=2
                 m=m-rowHeight
                 tableText.elementPositionY=m
                 tableText.text=textBH
                 tableText.clone("_clone")
                 tableText.elementPositionX=tableText.elementPositionX+2
                 tableText.text=textX
                 tableText.clone("_clone")
                 tableText.elementPositionX=tableText.elementPositionX+2
                 tableText.text=textY
                 tableText.clone("_clone")

                 z=2
                 tableText.elementPositionX=z
                 arcpy.mapping.ExportToJPEG(mxd, path_2+str(a) + ".jpg",resolution=400)
