概述

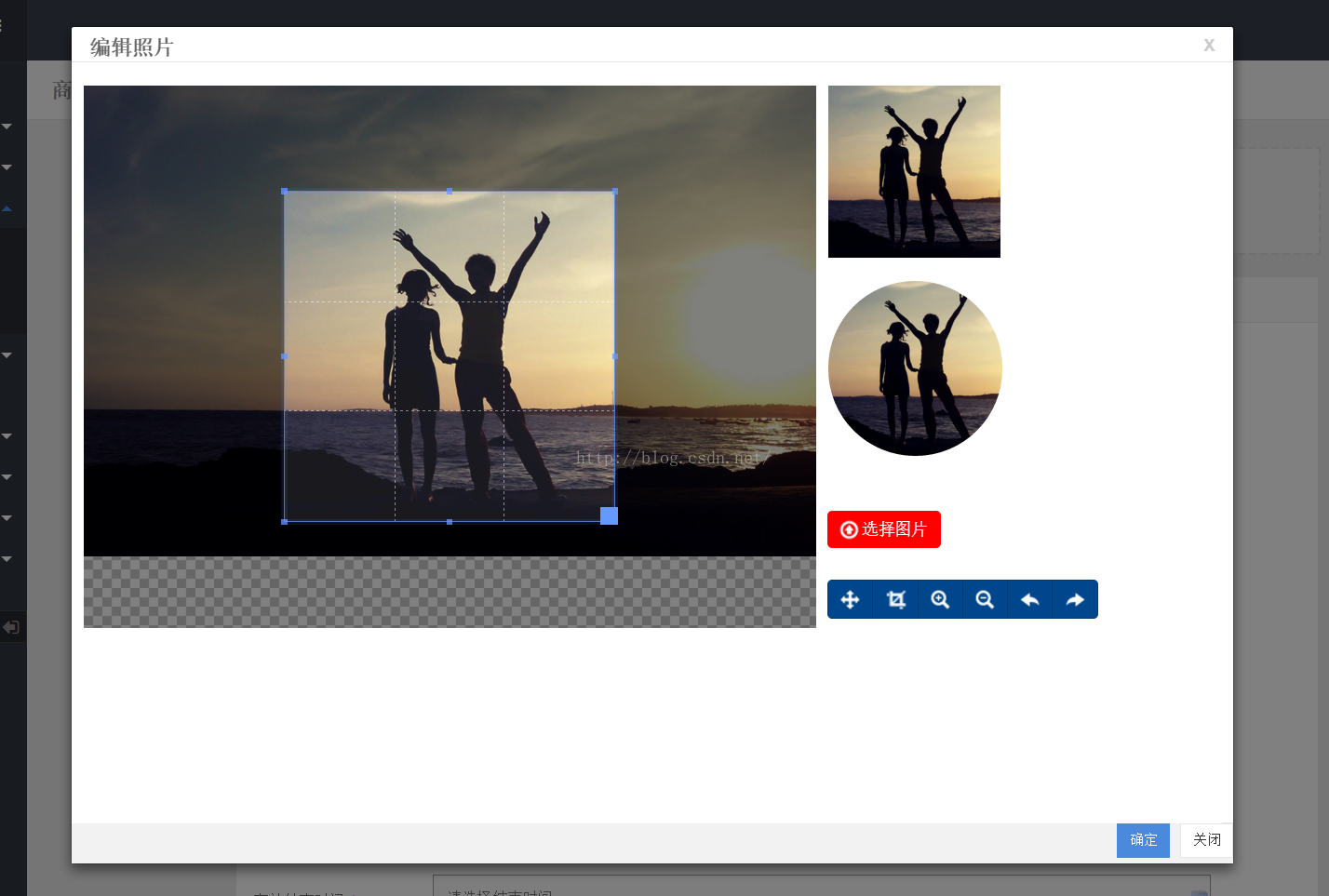

效果图预览：

用到的图片剪裁插件：http://www.htmleaf.com/jQuery/Image-Effects/201504211716.html

前段ui框架：bootstrap3

java后端框架：spring + mybstis

说明：如果前端ui用的不是bootstrap的框架，则调过第一步，直接将第二步的页面地址作为弹出框的地址即可，然后在做修改

1.首先说一下bootstrap的模态框：

一般的打开模态框要在页面上隐藏一段html代码然后用$("#Id").modal('show')显示模态框或者$("#Id").modal('hide')隐藏模态框，本人觉得有点麻烦，没有easyui这样的直接用js代码打开方便，所以我对这个模态框进行了封装。来实现直接用js打开的效果。原理很简单就是应以自定义一个jquery的方法，传递一些设置的参数，然后js动态生成html代码然后将代码追加到页面的body后面，然后在调用$("#Id").modal('show')方法来打开模态框。模态框里面的内容是动态的所以就需要一个url地址加载页面的内容。下面来看js代码

bootstrap-utils.js

jQuery.extend({
   //模态弹出框
   openModel:function(options){
       var defaults={//设置默认参数
               title:'',//模态框的标题
               width:'100%',//模态框的默认宽度
               height:$(window).height()-130+"px",//模态框的默认高度，默认取浏览器的可视高度
               showOkButton:true,//是否显示确定按钮
               id:"model_js",//模态框id
               frameId:"modal_iframe",//iframeId
               okButtonContent:"确定",//确定按钮显示的内容
               cancelButtonContent:"关闭"//取消按钮显示的内容
       }
       var opts = $.extend(defaults,options);
       var str = "";
       str+="<div class='modal fade' id='"+opts.id+"' tabindex='-1' role='basic' aria-hidden='true'>";
       str+="   <div class='modal-dialog'>";
       str+="       <div class='modal-content'>";
       if(opts.title != ""){
           str+="       <div class='modal-header' style='height:30px;'>";
           str+="           <button type='button' class='close' data-dismiss='modal' aria-hidden='true' style='margin-top:-10px;'>x</button>";
           str+="           <h3 class='modal-title' style='margin-top:-10px;'><b>"+opts.title+"</b></h3>";
           str+="       </div>";
       }
       str+="           <div class='modal-body' style='padding:0px;'>";
       str+="           </div>";
       str+="           <div class='modal-footer' style='height:35px;padding:0px;'>";
       if(opts.showOkButton){
           str+="               <button type='button' class='btn btn-primary btn-sm' οnclick='"+opts.ok+"();'>"+opts.okButtonContent+"</button>";
       }
       str+="               <button type='button' class='btn btn-default btn-sm' data-dismiss='modal'>"+opts.cancelButtonContent+"</button>";
       str+="           </div>";
       str+="       </div>";
       str+="   </div>";
       str+="</div>";

//如果当前页面不选在当前id的模态框才追加模态框html

       if($("body").find("#"+opts.id+"").length == 0){
           $("body").append(str);
       }else{
           $("body").find("#"+opts.id+"").remove();
           $("body").append(str);
       }

//如果参数传递的宽度或者高度不是px格式的则加上px

var height = (opts.height+"").indexOf("px") >= 0 ? opts.height : opts.height+"px";
var width = (opts.width+"").indexOf("px") >= 0 || (opts.width+"").indexOf("%") >= 0 ? opts.width : opts.width+"px";

//设置页面iframe的地址

$("#"+opts.id+"").find(".modal-body").html("<iframe name='"+opts.frameId+"' style='width:99%;height:"+height+";border:0px;' scrolling='yes' src='"+opts.url+"'></iframe>");
$("#"+opts.id+"").find(".modal-dialog").css({"width":width,"height":height});

//显示模态框

$("#"+opts.id+"").modal("show");
}
});

下面来看调用方式：

$.openModel({
   url:'editPhoto.jsp',
   frameId:'bLogoFrame',
   id:'bLogoModel',
   width:900,
   ok:'getCropData'//点击确定按钮执行的函数
});

2.下面来看editPhoto.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%
request.setAttribute("ctx", request.getContextPath());
%>
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">

function getData(){
   var result= $('#cropper-img').cropper("getCroppedCanvas");
   data=result.toDataURL('image/jpeg',1);//获取剪裁的图片并且转为base64格式
    $("#data").val(data);//将剪裁后的base64代码保存的隐藏域中

$("#isValidate").val(1);//设置是否校验通过

}

</script>
</head>
<body οnlοad="javascript:$('#cropper-img').cropper('setAspectRatio',1);">
<input style="display:none;" id="getData" οnclick="getData();" type="button" value="确定"/>
<input id="isValidate" type="hidden" value="0"/>
<input id="picName" type="hidden" value=""/>
<input id="data" type="hidden" value=""/>
<table style="margin-top:20px;">
   <tr style="height:200px;">
       <td rowspan="3">
           <div class="img-container" style="width:630px;height:400px;margin-left:0px;">

                <c:choose>
                   <c:when test="${url != null and url !='' }">
                   <img id="cropper-img" src="${url }">
                   </c:when>
                   <c:otherwise>
                   <img id="cropper-img" src="${ctx }/res/img/upimg.jpg">
                   </c:otherwise>
               </c:choose>
             </div>
       </td>
       <td>
           <div class="docs-preview clearfix">
              <div class="img-preview preview-lg"></div>
            </div>
           <div class="docs-preview clearfix">
              <div class="img-preview preview-lg div_photo"></div>
            </div>
       </td>
   </tr>
   <tr style="height:20px;">
       <td>
           <div class="btn-group">
              <label class="btn btn-primary btn-upload" style="border:0px;background-color:red;" for="inputImage" title="Upload image file">
                <input class="sr-only" id="inputImage" name="file" type="file" accept="image/*">
                <span class="docs-tooltip pull-left" data-toggle="tooltip" title="选择文件">
                  <span class="icon icon-upload"></span>
                </span>
                <span class="pull-right"> 选择图片</span>
              </label>
            </div>
       </td>
   </tr>
   <tr style="height:20px;">
       <td>
           <div class="btn-group">
              <button class="btn btn-primary" data-method="setDragMode" data-option="move" type="button" title="移动">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("setDragMode", "move")">
                  <span class="icon icon-move"></span>
                </span>
              </button>
              <button class="btn btn-primary" data-method="setDragMode" data-option="crop" type="button" title="裁剪">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("setDragMode", "crop")">
                  <span class="icon icon-crop"></span>
                </span>
              </button>
              <button class="btn btn-primary" data-method="zoom" data-option="0.1" type="button" title="放大">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("zoom", 0.1)">
                  <span class="icon icon-zoom-in"></span>
                </span>
              </button>
              <button class="btn btn-primary" data-method="zoom" data-option="-0.1" type="button" title="缩小">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("zoom", -0.1)">
                  <span class="icon icon-zoom-out"></span>
                </span>
              </button>
              <button class="btn btn-primary" data-method="rotate" data-option="-45" type="button" title="向左旋转">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("rotate", -45)">
                  <span class="icon icon-rotate-left"></span>
                </span>
              </button>
              <button class="btn btn-primary" data-method="rotate" data-option="45" type="button" title="向右旋转">
                <span class="docs-tooltip" data-toggle="tooltip" title="$().cropper("rotate", 45)">
                  <span class="icon icon-rotate-right"></span>
                </span>
              </button>
            </div>
       </td>
   </tr>
</table>
</body>
</html>

说明：如果前端ui用的不是bootstrap，那么为了避免样式的冲突可以用iframe的方式

例如：<a href="editPhotoInit.jsp">编辑头像</a>

editPhotoInit.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
String serviceId = request.getParameter("serviceId");
%>
<iframe src="<%=path %>/editPhoto.jsp?serviceId=<%=serviceId %>" style="width:99%;height:100%;border:0px;overflow:hidden;"></iframe>

然后在用第三步的方法取iframe对象里的属性

3.点击确定按钮的时候在页面上显示剪裁后的图片

第一步中我们讲到打开模态框的方式为：

$.openModel({
   url:'editPhoto.jsp',
   frameId:'bLogoFrame',
   id:'bLogoModel',
   width:900,
   ok:'getCropData'//点击确定按钮执行的函数
});

点击ok按钮后执行的函数

function getCropData(){
            var obj = $(window.frames["bLogoFrame"].document);//获取当前模态框内容的iframe对象，id即为上面设置的iframeId.
            obj.find("#getData").click();//因为不能直接获取子页面的方法和属性，所以就用间接的点击按钮或者链接的方法，然后再获取隐藏域的内容，方法有点笨，有好的方法可以修改
            var isValidate = obj.find("#isValidate").val();//校验图片大小及尺寸，1.为校验通过，0.为不通过
            if(isValidate == 1){
                var data = obj.find("#data").val();//获取剪裁后的base64图片
                $("#logo").attr("src",data);//直接将剪裁后的base64图片显示在img控件中
                var pos = data.indexOf("4")+2;
                data = data.substring(pos, data.length - pos);//去掉Base64:开头的标识字符
                $("#pic").val(data);//设置项后台提交的隐藏域的值，去掉base64开头的标示字符后的值

//设置表单中图片为校验通过

                if(data != null && data != ""){
                    $("#addBusinessForm").bootstrapValidator('updateStatus', 'pic', 'VALID');
                }
                $("#bLogoModel").modal('hide');//关闭模态框
            }
}

如果用封装的方法打开模态框，获取模态框的值都需要这样取（获取iframe对象，然后在获取 iframe对象中的元素，属性或者方法只能用间接的方法取），但是我觉得还是比在页面中直接写模态框的代码还是简单可许多呢。

4.上传图片

在第三不我们已经把剪裁后的base64的并且去掉了头部的标示信息的数据已经放到隐藏域中了，需要注意的是，base64的图片格式的数据一般来说都比较大，一般的post传递按理说是不受长度限制的，但是有时候后还是会出现问题，后台取不到值为null的情况，所以我们采用

formData+ajax的方式进行表单提交，下面来看代码

为提交表单的按钮绑定事件

$("#submitForm").click(function(){
     var $form = $("#myForm");//获取当前form对象
     var bv = $form.data('bootstrapValidator');//获取bootstrap表单校验对象
   var formData = new FormData($form[0]);//转换成formData对象

//可以为formData添加数据，例如：formData.append("file", $("#file_upload")[0].files[0]);

bv.validate();//校验表单

    if(bv.isValid()){
                  $(obj).addClass('disabled');//置提交按钮为不可用，防止多次点击
                  $.ajax({
                      url : $form.attr('action'), //获取form表单的提交地址
                      type : 'POST',
                      async: false,
                      data : formData,
                      /**
                       * 必须false才会避开jQuery对 formdata 的默认处理
                       * XMLHttpRequest会对 formdata 进行正确的处理
                       */
                      processData : false,
                      /**
                       *必须false才会自动加上正确的Content-Type
                       */
                      contentType : false,
                      success : function(data) {
                          var id = data.id;
                          var opType = data.opType;//操作类型，1.编辑，0.添加
                         if(data.result == "1"){
                                 alert("提交成功");
                          }else{
                                alert(data.message);//显示错误信息
                             $(obj).removeClass('disabled');
                          }
                      },error:function(){
                           alert("网络异常，请重试！");
                             $(obj).removeClass('disabled');
                      }
                  });
     }else{
                  alert("表单数据不完整！");
     }

});

后端代码，上传到七牛（与阿里云类似），如果上传到本地请查看第五步：

//获取上传到七牛的图片地址

String fileBusLogoPath = new QiniuUpload().base64Upload(‘前段传过来的base64格式’, ‘upload/photo/logo’);

说明：upload/photo/logo为logo上传地址，可以配置到属性配置文件中

比如：

systemConfig.properties

#七牛访问地址
qiniuUrl:http://7xsrph.com2.z0.glb.qiniucdn.com
#文件上传根目录
base_path:D:/image/
#商家logo上传地址
logo_path:upload/logo/
#商家二维码大小
qrcode_size:1000

怎么获取属性配置文件的值呢，这个需要在框架启动的时候把属性配置文件的值读取到java对象中，在spring配置文件的配置加如下代码：

spring.xml

    <bean id="configBean" class="com.util.CustomizedPropertyConfigurer">
       <property name="locations">
           <list>
               <value>classpath:systemConfig.properties</value>
           </list>
       </property>

</bean>

CustomizedPropertyConfigurer.java

import java.util.HashMap;
import java.util.Map;
import java.util.Properties;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.beans.factory.config.PropertyPlaceholderConfigurer;

public class CustomizedPropertyConfigurer extends PropertyPlaceholderConfigurer {

    private static Map<String, Object> ctxPropertiesMap;

    @Override
    protected void processProperties(ConfigurableListableBeanFactory beanFactory,
            Properties props)throws BeansException {

        super.processProperties(beanFactory, props);
        //load properties to ctxPropertiesMap
        ctxPropertiesMap = new HashMap<String, Object>();
        for (Object key : props.keySet()) {
            String keyStr = key.toString();
            String value = props.getProperty(keyStr);
            ctxPropertiesMap.put(keyStr, value);
        }
    }

    //static method for accessing context properties
    public static Object getContextProperty(String name) {
        return ctxPropertiesMap.get(name);
    }

}

这样就可以通过CustomizedPropertyConfigurer类来获取属性配置文件的值

上传代码可以改为：

//获取logo上传路径

String logoPath = (String)CustomizedPropertyConfigurer.getContextProperty("logo_path");

String fileBusLogoPath = new QiniuUpload().base64Upload(‘前段传过来的base64格式’,logoPath);

然后将 fileBusLogoPath这个地址更新到数据库字段中，数据库保存的字段格式为：upload/logo/201605231403202561.jpg

显示给页面要拼接上七牛的访问地址：

图片完整的路径为：

String qiniuUrl = (String)CustomizedPropertyConfigurer.getContextProperty("qiniuUrl");

String logUrl = qiniuUrl+"/"+fileBusLogoPath;//图片完整路径

七牛上传工具类：QiniuUpload.java

import java.awt.image.BufferedImage;
import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.net.URL;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;

import javax.imageio.ImageIO;

import sun.misc.BASE64Decoder;

import com.qiniu.common.QiniuException;
import com.qiniu.http.Response;
import com.qiniu.storage.UploadManager;
import com.qiniu.util.Auth;

public class QiniuUpload {
   private final String accessKey = "";
   private final String secretKey = "";
   private final String bucketname = "test";
   private final String qiniuUrl = "http://7xsrph.com2.z0.glb.qiniucdn.com";//七牛地址
   //密钥配置
    Auth auth = Auth.create(accessKey, secretKey);
    //创建上传对象
    UploadManager uploadManager = new UploadManager();

    //简单上传，使用默认策略，只需要设置上传的空间名就可以了
   public String getUpToken(){
        return auth.uploadToken(bucketname);
   }
   /**
   * 字节流上传
   * @param bytes
   * @param filePath
   * @return
   * @throws IOException
   */
   public String upload(byte[] bytes,String filePath) throws IOException{
        try {

           String fileName = filePath+getFileName();
           //调用put方法上传
           Response res = uploadManager.put(bytes, fileName, getUpToken());
           return fileName;
          } catch (QiniuException e) {
              Response r = e.response;
              // 请求失败时打印的异常的信息
              System.out.println(r.toString());
              try {
                  //响应的文本信息
                  System.out.println(r.bodyString());
              } catch (QiniuException e1) {
                  //ignore
              }
          }
       return null;
   }
   /**
   * base64格式图片上传
   * @param base64
   * @param filePath
   * @return
   * @throws IOException
   */
   public String base64Upload(String base64,String filePath) throws IOException{
       try {
           BASE64Decoder decoder = new BASE64Decoder();
           // Base64解码
            byte[] bytes = decoder.decodeBuffer(base64);
            for (int i = 0; i < bytes.length; ++i) {
                if (bytes[i] < 0) {// 调整异常数据
                    bytes[i] += 256;
                }
            }
           String fileName = filePath+getFileName();
           //调用put方法上传
           Response res = uploadManager.put(bytes, fileName, getUpToken());
           return fileName;
       } catch (QiniuException e) {
           Response r = e.response;
           // 请求失败时打印的异常的信息
           System.out.println(r.toString());
           try {
               //响应的文本信息
               System.out.println(r.bodyString());
           } catch (QiniuException e1) {
               //ignore
           }
       }
       return null;
   }
   /**
   * 创建待logo的二维码
   * @param filePath
   * @param text
   * @return
   * @throws IOException
   */
   public String createQrcode(String filePath,String text) throws IOException{
       try {
//           fileBusLogoPath.replace(".", "_qrCode.")
           URL url = new URL(qiniuUrl+"/"+filePath);
//            URLConnection conn = url.openConnection();
//            urlcon.connect();         //获取连接

           BufferedImage bufferedImg = ImageIO.read(url);
           int width = bufferedImg.getWidth();

           String fileName = filePath.replace(".", "_qrCode.");
           BufferedImage bi = null;
           BufferedImage logo = null;

           logo = ImageUtils.resizeImage1(bufferedImg,100, 0.9f, true);
           bi = QrCodeUtil.createQrCode(logo,text,width,width);

           ByteArrayOutputStream os = new ByteArrayOutputStream();
           ImageIO.write(bi, "jpg", os);
           //调用put方法上传
           Response res = uploadManager.put(os.toByteArray(),fileName, getUpToken());
           System.out.println(res.toString());
           return fileName;
       } catch (QiniuException e) {
           Response r = e.response;
           // 请求失败时打印的异常的信息
           System.out.println(r.toString());
           try {
               //响应的文本信息
               System.out.println(r.bodyString());
           } catch (QiniuException e1) {
               //ignore
           }
       }
       return null;
   }
   /**
   * 获取时间格式的文件名称
   * @return
   */
   private String getFileName(){
       SimpleDateFormat df = new SimpleDateFormat("yyyyMMddHHmmss");
       String now = df.format(new Date());
       //生成五位随机数字
       Random random = new Random();
        int rannum = (int) (random.nextDouble() * (99999 - 10000 + 1)) + 10000;// 获取5位随机数
       String fileName = now+rannum+".jpg";
       return fileName;
   }
   /**
   * 文件转byte[]
   * @param filePath
   * @return
   */
   public static byte[] File2byte(String filePath)
    {
        byte[] buffer = null;
        try
        {
            File file = new File(filePath);
            FileInputStream fis = new FileInputStream(file);
            ByteArrayOutputStream bos = new ByteArrayOutputStream();
            byte[] b = new byte[1024];
            int n;
            while ((n = fis.read(b)) != -1)
            {
                bos.write(b, 0, n);
            }
            fis.close();
            bos.close();
            buffer = bos.toByteArray();
        }
        catch (FileNotFoundException e)
        {
            e.printStackTrace();
        }
        catch (IOException e)
        {
            e.printStackTrace();
        }
        return buffer;
    }
   public static void main(String args[]) throws IOException{
       URL url = new URL("http://imgz.we-going.com/service/1453884689193.jpg");
       BufferedImage bufferedImg = ImageIO.read(url);
       int width = bufferedImg.getWidth();
//        new QiniuUpload().upload(File2byte("D:/image/upload/photo/business/2016/4/2016040923532026335.jpg"),"");
//        new QiniuUpload().createQrcode("D:/image/upload/photo/business/2016/4/2016040923532026335.jpg","http://www.baidu.com");
   }

}

二维码工具类：QrCodeUtil.java

import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.Graphics2D;
import java.awt.geom.RoundRectangle2D;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.HashMap;
import java.util.Map;

import javax.imageio.ImageIO;

import com.google.zxing.BarcodeFormat;
import com.google.zxing.EncodeHintType;
import com.google.zxing.MultiFormatWriter;
import com.google.zxing.WriterException;
import com.google.zxing.common.BitMatrix;
import com.google.zxing.qrcode.decoder.ErrorCorrectionLevel;

/**
* 二维生成工具类，返回图片流或生成文件
* @author ZYL
*
*/
public class QrCodeUtil {
   public static void main(String[] args) throws WriterException
    {
        String content = "766EBCD59621E305170616BA3D3DAC32";
        String filePath = "D:/qrCode.jpg";
        BufferedImage logo = null;
        try
        {
            File file=new File("D://logo.png");
            InputStream is=new FileInputStream(file);
            logo = ImageIO.read(is);

//           String path= "http://112.126.83.175/laiqu/head/20150612/SERVICE_HEAD_PHOTO_576_20150612123514641.png";
//           URL url = new URL(path);
//           HttpURLConnection conn = (HttpURLConnection) url.openConnection();
//          logo = ImageIO.read(conn.getInputStream());
            logo = ImageUtils.resizeImage1(logo,80, 0.9f, true);
           createQrCode(logo,content,500,500,filePath);
        }
        catch (Exception e)
        {
            e.printStackTrace();
        }
    }
   public static void createQrCode(BufferedImage logo,String content,int width,int height,String filePath){
       try {
           if(width == 0){width = 500;}
           if(height == 0){height = 500;}
           QrCodeUtil zp = new QrCodeUtil();
           BufferedImage bi = null;
            BufferedImage bim = zp.Encode_QR_CODE(content, BarcodeFormat.QR_CODE, width, height, zp.getDecodeHintType());
            if(logo != null){
               bi = zp.LogoMatrix(bim, logo);
            }else{
               bi = bim;
            }
           ImageIO.write(bi, "jpeg", new File(filePath));
       } catch (Exception e) {
           // TODO: handle exception
           e.printStackTrace();
       }
   }
   public static BufferedImage createQrCode(BufferedImage logo,String content,int width,int height){
       try {
           if(width == 0){width = 500;}
           if(height == 0){height = 500;}
           QrCodeUtil zp = new QrCodeUtil();
           BufferedImage bi = null;
            BufferedImage bim = zp.Encode_QR_CODE(content, BarcodeFormat.QR_CODE, width, height, zp.getDecodeHintType());
            if(logo != null){
               bi = zp.LogoMatrix(bim, logo);

            }else{
                return bim;
            }
//            parseQR_CODEImage(bi);
            return bi;
       } catch (Exception e) {
           // TODO: handle exception
           e.printStackTrace();
       }
       return null;
   }

   /**
   * 设置 logo
   * @param matrixImage 源二维码图片
   * @return 返回带有logo的二维码图片
   * @throws IOException
   */
     public BufferedImage LogoMatrix(BufferedImage matrixImage,BufferedImage logo_) throws IOException{
       /**
          * 读取二维码图片，并构建绘图对象
          */
         Graphics2D g2 = matrixImage.createGraphics();

       int matrixWidth = matrixImage.getWidth();
       int matrixHeigh = matrixImage.getHeight();

         /**
          * 读取Logo图片
          */
         BufferedImage logo = logo_;

         //开始绘制图片
         g2.drawImage(logo,matrixWidth/5*2,matrixHeigh/5*2, matrixWidth/5, matrixHeigh/5, null);//绘制
         BasicStroke stroke = new BasicStroke(5,BasicStroke.CAP_ROUND,BasicStroke.JOIN_ROUND);
         g2.setStroke(stroke);// 设置笔画对象
         //指定弧度的圆角矩形
         RoundRectangle2D.Float round = new RoundRectangle2D.Float(matrixWidth/5*2, matrixHeigh/5*2, matrixWidth/5, matrixHeigh/5,20,20);
         g2.setColor(Color.white);
         g2.draw(round);// 绘制圆弧矩形

         g2.dispose();
         matrixImage.flush() ;
         return matrixImage ;
     }

    /**
     * 生成二维码bufferedImage图片
     *
     * @param content
     *            编码内容
     * @param barcodeFormat
     *            编码类型
     * @param width
     *            图片宽度
     * @param height
     *            图片高度
     * @param hints
     *            设置参数
     * @return
     */
    public BufferedImage Encode_QR_CODE(String content, BarcodeFormat barcodeFormat, int width, int height, Map<EncodeHintType, ?> hints)
    {
        MultiFormatWriter multiFormatWriter = null;
        BitMatrix bm = null;
        BufferedImage image = null;
        try
        {
            multiFormatWriter = new MultiFormatWriter();

            // 参数顺序分别为：编码内容，编码类型，生成图片宽度，生成图片高度，设置参数
            bm = multiFormatWriter.encode(content, barcodeFormat, width, height, hints);

            int w = bm.getWidth();
            int h = bm.getHeight();
            image = new BufferedImage(w, h, BufferedImage.TYPE_INT_RGB);

            // 开始利用二维码数据创建Bitmap图片，分别设为黑（0xFFFFFFFF）白（0xFF000000）两色
            for (int x = 0; x < w; x++)
            {
                for (int y = 0; y < h; y++)
                {
                    image.setRGB(x, y, bm.get(x, y) ? 0xFF000000 : 0xFFFFFFFF);
                }
            }
        }
        catch (WriterException e)
        {
            e.printStackTrace();
        }
        return image;
    }

    /**
     * 设置二维码的格式参数
     *
     * @return
     */
    public Map<EncodeHintType, Object> getDecodeHintType()
    {
        // 用于设置QR二维码参数
        Map<EncodeHintType, Object> hints = new HashMap<EncodeHintType, Object>();
        // 设置QR二维码的纠错级别（H为最高级别）具体级别信息
        hints.put(EncodeHintType.ERROR_CORRECTION, ErrorCorrectionLevel.H);
        // 设置编码方式
        hints.put(EncodeHintType.CHARACTER_SET, "utf-8");
//        hints.put(EncodeHintType.MAX_SIZE, 350);
//        hints.put(EncodeHintType.MIN_SIZE, 100);
       hints.put(EncodeHintType.MARGIN, 0);//设置二维码边的空度，非负数

        return hints;
    }
}

图片处理工具类：ImageUtils.java

import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.GraphicsConfiguration;
import java.awt.GraphicsDevice;
import java.awt.GraphicsEnvironment;
import java.awt.HeadlessException;
import java.awt.Image;
import java.awt.Rectangle;
import java.awt.Transparency;
import java.awt.geom.Ellipse2D;
import java.awt.image.BufferedImage;
import java.awt.image.ConvolveOp;
import java.awt.image.Kernel;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Iterator;
import java.util.Random;

import javax.imageio.ImageIO;
import javax.imageio.ImageReadParam;
import javax.imageio.ImageReader;
import javax.imageio.stream.ImageInputStream;
import javax.swing.ImageIcon;

import sun.misc.BASE64Decoder;
import sun.misc.BASE64Encoder;

import com.sun.image.codec.jpeg.ImageFormatException;
import com.sun.image.codec.jpeg.JPEGCodec;
import com.sun.image.codec.jpeg.JPEGImageEncoder;

/**
* @作者王建明
* @创建日期 2012-6-16
* @创建时间下午02:35:31
* @版本号 V 1.0
*/
public class ImageUtils {
    public String path = "";

    public ImageUtils(String path) {
        this.path = path;
    }

    public void change(int size) {
        compressImg(new File(path), size, null);
    }

    /**
     * @param oldfile
     * @param size
     * @param newfile
     * @return
     * @描述 —— 将oldfile的图片文件等比例压缩为size的newfile文件
     */
    public static File compressImg(File oldfile, int size, File newfile) {
        if(!newfile.exists())
            try {
                newfile.createNewFile();
            } catch (IOException e1) {
                // TODO Auto-generated catch block
                //e1.printStackTrace();
                System.out.println("无法创建文件！！！");
                return null;
            }
        BufferedImage bi;
        try {
            System.out.println("正在压缩:" + oldfile.getName());
            bi = ImageIO.read(new FileInputStream(oldfile));
            int width = bi.getWidth();
            int height = bi.getHeight();
            if (width > size || height > size) {
                Image image;
                if (width > height) {
                    height = (int) (bi.getHeight() / (bi.getWidth() * 1d) * size);
                    image = bi.getScaledInstance(size, height,
                            Image.SCALE_DEFAULT);
                } else {
                    width = (int) (bi.getWidth() / (bi.getHeight() * 1d) * size);
                    image = bi.getScaledInstance(width, size,
                            Image.SCALE_DEFAULT);
                }
                ImageIO.write(toBufferedImage(image), "jpg",
                        new FileOutputStream(newfile));
                System.out.println("压缩完成:" + newfile.getName());
                return newfile;
            } else {
                System.out.println("无须压缩:" + oldfile.getName());
                return oldfile;
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    public static BufferedImage toBufferedImage(Image image) {
        if (image instanceof BufferedImage) {
            return (BufferedImage) image;
        }
        image = new ImageIcon(image).getImage();
        BufferedImage bimage = null;
        GraphicsEnvironment ge = GraphicsEnvironment
                .getLocalGraphicsEnvironment();
        try {
            int transparency = Transparency.TRANSLUCENT;
            GraphicsDevice gs = ge.getDefaultScreenDevice();
            GraphicsConfiguration gc = gs.getDefaultConfiguration();
            bimage = gc.createCompatibleImage(image.getWidth(null), image
                    .getHeight(null), transparency);
        } catch (HeadlessException e) {
        }
        if (bimage == null) {
            int type = BufferedImage.TYPE_INT_RGB;
            bimage = new BufferedImage(image.getWidth(null), image
                    .getHeight(null), type);
        }
        Graphics g = bimage.createGraphics();
        g.drawImage(image, 0, 0, null);
        g.dispose();
        return bimage;
    }

    /**
     * @return
     * @描述 —— 生成随机名字，不可能重复(用于文件的命名)
     */
    public static String getRandomName() {
        Random r = new Random();
        SimpleDateFormat sdf = new SimpleDateFormat("yyyyMMdd_HHmmssSSS");
        StringBuffer sb = new StringBuffer();
        sb.append(r.nextInt(100));
        sb.append(r.nextInt(100));
        sb.append("_");
        sb.append(sdf.format(new Date()));
        sb.append("_");
        sb.append(r.nextInt(100));
        sb.append(r.nextInt(100));
        return sb.toString();
    }

    /**
     * @param inputFile源文件
     * @param outFile生成文件
     * @param width指定宽度
     * @param height指定高度
     * @param proportion是否等比例操作
     * @return
     * @描述 —— 是否等比例缩放图片
     */
    public static boolean compressPic(String inputFile, String outFile,
                                      int width, int height, boolean proportion) {
        try {
            // 获得源文件
            File file = new File(inputFile);
            if (!file.exists()) {
                return false;
            }
            Image img = ImageIO.read(file);
            // 判断图片格式是否正确
            if (img.getWidth(null) == -1) {
                return false;
            } else {
                int newWidth;
                int newHeight;
                // 判断是否是等比缩放
                if (proportion == true) {
                    // 为等比缩放计算输出的图片宽度及高度
                    double rate1 = ((double) img.getWidth(null))
                            / (double) width + 0.1;
                    double rate2 = ((double) img.getHeight(null))
                            / (double) height + 0.1;
                    // 根据缩放比率大的进行缩放控制
                    double rate = rate1 > rate2 ? rate1 : rate2;
                    newWidth = (int) (((double) img.getWidth(null)) / rate);
                    newHeight = (int) (((double) img.getHeight(null)) / rate);
                } else {
                    newWidth = width; // 输出的图片宽度
                    newHeight = height; // 输出的图片高度
                }

                // 如果图片小于目标图片的宽和高则不进行转换
                /*
                 * if (img.getWidth(null) < width && img.getHeight(null) <
                 * height) { newWidth = img.getWidth(null); newHeight =
                 * img.getHeight(null); }
                 */
                BufferedImage tag = new BufferedImage((int) newWidth,
                        (int) newHeight, BufferedImage.TYPE_INT_RGB);

                // Image.SCALE_SMOOTH 的缩略算法生成缩略图片的平滑度的,优先级比速度高生成的图片质量比较好但速度慢
                tag.getGraphics().drawImage(
                        img.getScaledInstance(newWidth, newHeight,
                                Image.SCALE_SMOOTH), 0, 0, null);
                FileOutputStream out = new FileOutputStream(outFile);
                // JPEGImageEncoder可适用于其他图片类型的转换
                JPEGImageEncoder encoder = JPEGCodec.createJPEGEncoder(out);
                encoder.encode(tag);
                out.close();
            }
        } catch (IOException ex) {
            ex.printStackTrace();
        }
        return true;
    }

    /**
     * @param srcFile源文件
     * @param outFile输出文件
     * @param x坐标
     * @param y坐标
     * @param width宽度
     * @param height高度
     * @return
     * @描述 —— 裁剪图片
     */
    public static boolean cutPic(String srcFile, String outFile, int x, int y,
                                 int width, int height) {
        FileInputStream is = null;
        ImageInputStream iis = null;
        try {
            // 如果源图片不存在
            if (!new File(srcFile).exists()) {
                return false;
            }

            // 读取图片文件
            is = new FileInputStream(srcFile);

            // 获取文件格式
            String ext = srcFile.substring(srcFile.lastIndexOf(".") + 1);

            // ImageReader声称能够解码指定格式
            Iterator<ImageReader> it = ImageIO.getImageReadersByFormatName(ext);
            ImageReader reader = it.next();

            // 获取图片流
            iis = ImageIO.createImageInputStream(is);

            // 输入源中的图像将只按顺序读取
            reader.setInput(iis, true);

            // 描述如何对流进行解码
            ImageReadParam param = reader.getDefaultReadParam();

            // 图片裁剪区域
            Rectangle rect = new Rectangle(x, y, width, height);

            // 提供一个 BufferedImage，将其用作解码像素数据的目标
            param.setSourceRegion(rect);

            // 使用所提供的 ImageReadParam 读取通过索引 imageIndex 指定的对象
            BufferedImage bi = reader.read(0, param);

            // 保存新图片
            File tempOutFile = new File(outFile);
            if (!tempOutFile.exists()) {
                tempOutFile.mkdirs();
            }
            ImageIO.write(bi, ext, new File(outFile));
            return true;
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        } finally {
            try {
                if (is != null) {
                    is.close();
                }
                if (iis != null) {
                    iis.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
                return false;
            }
        }
    }

    /**
     * @param doubleValue
     * @return
     * @描述 —— 将浮点型数据保留整数位转换成int型
     */
    public static Integer getRoundIntFromDouble(Double doubleValue) {
        return Integer.parseInt(String.valueOf(Math.round(doubleValue)));
    }

    public static String GetImageStr(String imgFilePath) {// 将图片文件转化为字节数组字符串，并对其进行Base64编码处理
        byte[] data = null;

        // 读取图片字节数组
        try {
            InputStream in = new FileInputStream(imgFilePath);
            data = new byte[in.available()];
            in.read(data);
            in.close();
        } catch (IOException e) {
            e.printStackTrace();
        }

        // 对字节数组Base64编码
        BASE64Encoder encoder = new BASE64Encoder();
        return encoder.encode(data);// 返回Base64编码过的字节数组字符串
    }

    public static byte[] GenerateImage(String imgStr) {// 对字节数组字符串进行Base64解码并生成图片
        if (imgStr == null) // 图像数据为空
            return null;
        BASE64Decoder decoder = new BASE64Decoder();
        try {
            // Base64解码
            byte[] bytes = decoder.decodeBuffer(imgStr);
            for (int i = 0; i < bytes.length; ++i) {
                if (bytes[i] < 0) {// 调整异常数据
                    bytes[i] += 256;
                }
            }
           return bytes;
        } catch (Exception e) {
            return null;
        }
    }
    public static boolean GenerateImage(String imgStr, String imgFilePath) {// 对字节数组字符串进行Base64解码并生成图片
        if (imgStr == null) // 图像数据为空
            return false;
        BASE64Decoder decoder = new BASE64Decoder();
        try {
            // Base64解码
            byte[] bytes = decoder.decodeBuffer(imgStr);
            for (int i = 0; i < bytes.length; ++i) {
                if (bytes[i] < 0) {// 调整异常数据
                    bytes[i] += 256;
                }
            }
            // 生成jpeg图片
            OutputStream out = new FileOutputStream(imgFilePath);
            out.write(bytes);
            out.flush();
            out.close();
            return true;
        } catch (Exception e) {
            return false;
        }
    }
    //将base64图片剪裁成圆形
    public static boolean cutImgToRound(String image,String url){
       if(image == null){
           return false;
       }
       try {
           BufferedImage bi1 = null;
            BASE64Decoder decoder = new BASE64Decoder();
            // Base64解码
            byte[] bytes = decoder.decodeBuffer(image);
            for (int i = 0; i < bytes.length; ++i) {
                if (bytes[i] < 0) {// 调整异常数据
                    bytes[i] += 256;
                }
            }
            ByteArrayInputStream in = new ByteArrayInputStream(bytes);    //将b作为输入流；
            bi1 = ImageIO.read(in);
            // 根据需要是否使用 BufferedImage.TYPE_INT_ARGB
            BufferedImage bi2 = new BufferedImage(bi1.getWidth(), bi1.getHeight(),
                    BufferedImage.TYPE_INT_RGB);
            Ellipse2D.Double shape = new Ellipse2D.Double(0, 0, bi1.getWidth(), bi1
                    .getHeight());
            Graphics2D g2 = bi2.createGraphics();
            g2.setBackground(Color.WHITE);
            g2.fill(new Rectangle(bi2.getWidth(), bi2.getHeight()));
            g2.setClip(shape);
            // 使用 setRenderingHint 设置抗锯齿
            g2.drawImage(bi1, 0, 0, null);
            g2.dispose();
            ImageIO.write(bi2, "jpg", new File(url));
           return true;
       } catch (Exception e) {
           // TODO: handle exception
           return false;
       }
    }
    /*public static void cutImgToRound(String imageUrl,String url){
       BufferedImage bi1 = null;
       try {
           bi1 = ImageIO.read(new File(imageUrl));
       } catch (IOException e1) {
           // TODO Auto-generated catch block
           e1.printStackTrace();
       }
        // 根据需要是否使用 BufferedImage.TYPE_INT_ARGB
        BufferedImage bi2 = new BufferedImage(bi1.getWidth(), bi1.getHeight(),
                BufferedImage.TYPE_INT_RGB);
        Ellipse2D.Double shape = new Ellipse2D.Double(0, 0, bi1.getWidth(), bi1
                .getHeight());
        Graphics2D g2 = bi2.createGraphics();
        g2.setBackground(Color.WHITE);
        g2.fill(new Rectangle(bi2.getWidth(), bi2.getHeight()));
        g2.setClip(shape);
        // 使用 setRenderingHint 设置抗锯齿
        g2.drawImage(bi1, 0, 0, null);
        g2.dispose();
        try {
            ImageIO.write(bi2, "jpg", new File(url));
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }*/
    //生成二维码
    public static void createQrCode(String imageUrl,String url,String size,String text){
       try {
           int qrCodeSize = 100;
           if(StringUtil.isNorBlank(size)){
               qrCodeSize = Integer.parseInt(size);
           }
           BufferedImage bi = null;
           BufferedImage logo = null;
           logo = ImageUtils.resizeImage1(ImageIO.read(new File(imageUrl)),100, 0.9f, true);
           bi = QrCodeUtil.createQrCode(logo,text,qrCodeSize,qrCodeSize);
           ImageIO.write(bi, "jpg", new File(url));
       } catch (IOException e) {
           // TODO Auto-generated catch block
           e.printStackTrace();
       }
    }
    /**
   * 等比缩放图片
   *
   * @param originalFile 源文件
   * @param newLength 新的长度
   * @param quality 照片质量（介于0~1之间）
   * @param lengthFlag 长度标识（1、true newLength表示新图片宽；2、false newLength表示新图片高）
   * @throws IOException
   */
   public static BufferedImage resizeImage1(BufferedImage originalFile,int newLength, float quality, boolean lengthFlag) throws IOException {

       FileOutputStream out = null;
       try {
           if (quality > 1) {
               throw new IllegalArgumentException("Quality has to be between 0 and 1");
           }

           Image i = (Image)originalFile;
           Image resizedImage = null;

           int iWidth = i.getWidth(null);
           int iHeight = i.getHeight(null);

           if (lengthFlag) {
               resizedImage = i.getScaledInstance(newLength, (newLength * iHeight) / iWidth, Image.SCALE_SMOOTH);
           } else {
               resizedImage = i.getScaledInstance((newLength * iWidth) / iHeight, newLength, Image.SCALE_SMOOTH);
           }

           // This code ensures that all the pixels in the image are loaded.
           Image temp = new ImageIcon(resizedImage).getImage();

           // Create the buffered image.
           BufferedImage bufferedImage = new BufferedImage(temp.getWidth(null), temp.getHeight(null), BufferedImage.TYPE_INT_RGB);

           // Copy image to buffered image.
           Graphics g = bufferedImage.createGraphics();

           // Clear background and paint the image.
           g.setColor(Color.white);
           g.fillRect(0, 0, temp.getWidth(null), temp.getHeight(null));
           g.drawImage(temp, 0, 0, null);
           g.dispose();

           // Soften.
           float softenFactor = 0.05f;
           float[] softenArray = { 0, softenFactor, 0, softenFactor, 1 - (softenFactor * 4), softenFactor, 0, softenFactor, 0 };
           Kernel kernel = new Kernel(3, 3, softenArray);
           ConvolveOp cOp = new ConvolveOp(kernel, ConvolveOp.EDGE_NO_OP, null);
           bufferedImage = cOp.filter(bufferedImage, null);

           return bufferedImage;
       } catch (ImageFormatException ex) {
           System.out.println(ex.getMessage());
       } finally {
           if (out != null) {
               out.close();
           }
       }
       return null;
   }
   public static byte[] File2byte(String filePath)
    {
        byte[] buffer = null;
        try
        {
            File file = new File(filePath);
            FileInputStream fis = new FileInputStream(file);
            ByteArrayOutputStream bos = new ByteArrayOutputStream();
            byte[] b = new byte[1024];
            int n;
            while ((n = fis.read(b)) != -1)
            {
                bos.write(b, 0, n);
            }
            fis.close();
            bos.close();
            buffer = bos.toByteArray();
        }
        catch (FileNotFoundException e)
        {
            e.printStackTrace();
        }
        catch (IOException e)
        {
            e.printStackTrace();
        }
        return buffer;
    }
   public static void main(String[] args) {
       createQrCode("D://image/upload/photo/business/2016/4/2016040115190854796.jpg","D://aa.png","400","http://www.baidi.com");
   }
}

5.上传到本地

获取文件上传根目录：

String basePath = (String)CustomizedPropertyConfigurer.getContextProperty("base_path");

//获取logo上传路径

String logoPath = (String)CustomizedPropertyConfigurer.getContextProperty("logo_path");

Calendar cal = Calendar.getInstance();
//查询年/月
String endPath = cal.get(Calendar.YEAR) + "/" + (cal.get(Calendar.MONTH) + 1);

//上传图片并得到图片地址

String fileBusLogoPath = FileUpload.Base64Upload(basePath+logoPath+endPath, record.getPic());

保存fileBusLogoPath到数据库

图片上传工具类：FileUpload.java

import java.io.File;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Random;

public class FileUpload {
   public static String Base64Upload(String basePath,String base64File){
       SimpleDateFormat df = new SimpleDateFormat("yyyyMMddHHmmss");
       String now = df.format(new Date());
       //生成五位随机数字
       Random random = new Random();
        int rannum = (int) (random.nextDouble() * (99999 - 10000 + 1)) + 10000;// 获取5位随机数
       String fileName = now+rannum+".jpg";
        File file =new File(basePath);
        //如果文件夹不存在则创建
        if(!file .exists() && !file .isDirectory())
        {
            file.mkdirs();
        }
       ImageUtils.GenerateImage(base64File, basePath+"/"+fileName);
       return basePath+"/"+fileName;
   }
}
