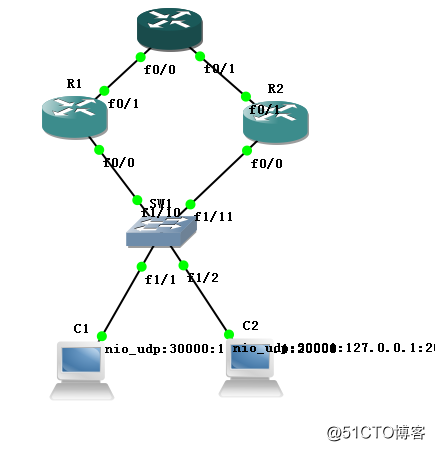

思科HSRP和VRRP双组双备
R1#conf t
R1(config)#int fa0/1
R1(config-if)#ip add 13.0.0.1 255.255.255.0
R1(config-if)#no shut
R1(config-if)#exit
R1(config)#
*Mar 1 00:02:10.087: %LINK-3-UPDOWN: Interface FastEthernet0/1, changed state to up
*Mar 1 00:02:11.095: %LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/1, changed state to up
R1(config)#ip ro
R1(config)#ip route 0.0.0.0 0.0.0.0 13.0.0.3
R1(config)#int fa0/0
R1(config-if)#ip add 192.168.10.10 255.255.255.0
R1(config-if)#no shut
R1(config-if)#standby 1 ip 192.168.10.1配置一个虚拟的ip地址
R1(config-if)#standby 1 priority 120优先级
R1(config-if)#standby 1 preempt抢占
R1(config-if)#standby 1 track fa0/1跟踪上行口
R1(config-if)#
*Mar 1 00:09:14.259: %CDP-4-DUPLEX_MISMATCH: duplex mismatch discovered on FastEthernet0/0 (not full duplex),
R1(config-if)#end
R1#show standby brief 看HSRP状态
P indicates configured to preempt.
|
Interface Grp Pri P State Active Standby Virtual IP
Fa0/0 1 120 P Active local unknown 192.168.10.1
R1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R1(config)#def
R1(config)#defa
R1(config)#default int
R1(config)#default interface fa0/0
R1(config-if)#no shut
R1(config-if)#int fa0/0.10
R1(config-subif)#encapsulation dot1Q 10
R1(config-subif)#ip add 192.168.10.01 255.255.255.0
R1(config-subif)#no shut
R1(config-subif)#standby 1 ip 192.168.10.1
R1(config-subif)#standby 1 preempt
R1(config-subif)#standby 1 track
R1(config-subif)#standby 1 track fa0/1
R1(config-subif)#exit
R1(config)#end
R1#show standby brief
R1(config)#int fa0/0.20
R1(config-subif)#en
R1(config-subif)#encapsulation d
R1(config-subif)#encapsulation dot1Q 20
R1(config-subif)#ip add 192.168.20.10 255.255.255.0
R1(config-subif)#no shut
R1(config-subif)#vrrp 1 ip 192.168.20.1
R1(config-subif)#vrrp 1 preempt抢占
R1(config-subif)# vrrp 1 priority 95低优先级

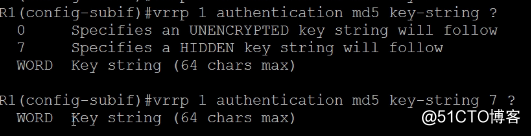

R1(config-subif)#vrrp 1 authentication md5 key-string7
vrrp比hsrp更安全 Vrrp可以进行身份验证
R1#show vrrp brief
Interface Grp Pri Time Own Pre State Master addr Group addr
Fa0/0.20 1 95 3628 Y Backup 192.168.20.20 192.168.20.1
R2#conf t
R2(config)#int fa0/1
R2(config-if)#ip add 23.0.0.2 255.255.255.0
R2(config-if)#no shut
R2(config-if)#exit
R2(config)#ip route 0.0.0.0 0.0.0.0 23.0.0.3
R2(config)#do p 1.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.1, timeout is 2 seconds:
.!!!!
R2(config)#int fa0/0
R2(config-if)#ip add 192.168.10.20 255.255.255.0
R2(config-if)#no shut
R2(config-if)#do p 192.168.10.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.10.10, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 20/27/32 ms
R2(config-if)#st
R2(config-if)#standby
R2(config-if)#standby 1 ip 192.168.10.1
R2(config-if)#standby 1 priority 115比上行口低
R2(config-if)#standby 1 preempt
不用跟踪上行口 已经是备用的
R2(config-if)#end
R2#show standby brief看HSRP状态
P indicates configured to preempt.
|
Interface Grp Pri P State Active Standby Virtual IP
Fa0/0 1 115 P Standby 192.168.10.10 local 192.168.10.1
R2(config)#int fa0/0
R2(config-if)# default int fa0/0
R2(config)#int fa0/0
R2(config-if)#no shut
R2(config-if)#int fa0/0.10
R2(config-subif)#encapsulation dot1Q 10
R2(config-subif)#ip add 192.168.10.20 255.255.255.0
R2(config-subif)#no shut
R2(config-subif)#standby 1 ip 192.168.10.1
R2(config-subif)#standby 1 priority 95
R2(config-subif)#standby 1 preempt
R2(config-subif)#standby 1 preempt

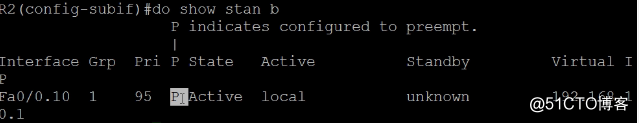

R2(config-subif)#do show stan b
P indicates configured to preempt.
|
Interface Grp Pri P State Active Standby Virtual IP
Fa0/0.10 1 95 P Active local unknown 192.168.10.1
R2(config-subif)#exit
R2(config)#end
R2#show ip int b
Interface IP-Address OK? Method Status Protocol
FastEthernet0/0 unassigned YES TFTP up up
FastEthernet0/0.10 192.168.10.20 YES manual up up
FastEthernet0/1 23.0.0.2 YES manual up up
R2#conf t
R2(config)#int fa0/0.20
R2(config-subif)#encapsulation dot1Q 20
R2(config-subif)#ip add 192.168.20.20 255.255.255.0
R2(config-subif)#vrrp 1 ip 192.168.20.1
R2(config-subif)#vrrp 1 preempt抢占
R2(config)#track 1 int fa0/1 line-protocol建track对象
R2(config)#int fa0/0.20
R2(config-subif)#vrrp 1 track 1
R2 vrrp已经配置完成
R2#show vrrp brief
Interface Grp Pri Time Own Pre State Master addr Group addr
Fa0/0.20 1 100 3609 Y Master 192.168.20.20 192.168.20.1
R3(config)#int fa0/0
R3(config-if)#ip add 13.0.0.3 255.255.255.0
R3(config-if)#no shut
R3(config-if)#int fa0/1
R3(config-if)#ip add 23.0.0.3 255.255.255.0
R3(config-if)# no shut
R3(config-if)#exit
R3(config)#int loo 0
R3(config-if)#ip add 1.1.1.1 255.255.255.0
R3(config-if)#ip route 192.168.10.0 255.255.255.0 13.0.0.1配制回城路由
R3(config)#ip route 192.168.10.0 255.255.255.0 23.0.0.2 10上面挂了走这个路由
R3(config)#end
R3#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/24 is subnetted, 1 subnets
C 1.1.1.0 is directly connected, Loopback0
S 192.168.10.0/24 [1/0] via 13.0.0.1
23.0.0.0/24 is subnetted, 1 subnets
C 23.0.0.0 is directly connected, FastEthernet0/1
13.0.0.0/24 is subnetted, 1 subnets
C 13.0.0.0 is directly connected, FastEthernet0/0
R3#conft
R3(config)#ip route 192.168.20.0 255.255.255.0 23.0.0.2做路由
R3(config)#ip route 192.168.20.0 255.255.255.0 13.0.0.1 10比1大就行
R3(config)#int fa0/1
R3(config-if)#shut
R4(config)#
R4(config)#vlan 10
R4(config-vlan)#vlan 20
R4(config-vlan)#int ran fa1/10 -11
R4(config-if-range)#switchport mode trunk
R4(config-if-range)#exit
R4(config)#int fa1/1
R4(config-if)#switchport access vlan 10
R4(config-if)#int fa1/2
R4(config-if)#switchport access vlan 20

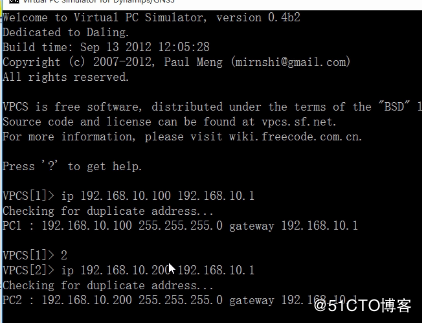

PC的配置
验证：

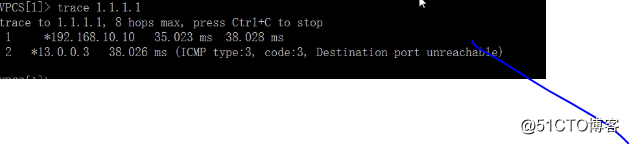

C1从那边走的
C2从那边走的
把R2和R3的fa0/1 shut

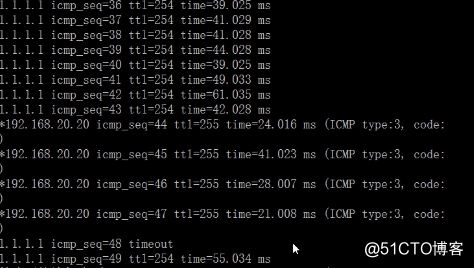

看shut之后c2怎么走
