如果有了瓦片可以忽略掉这一步。瓦片下载程序 提取码: rl1w
一、下载地图瓦片,
制作离线地图的步骤:

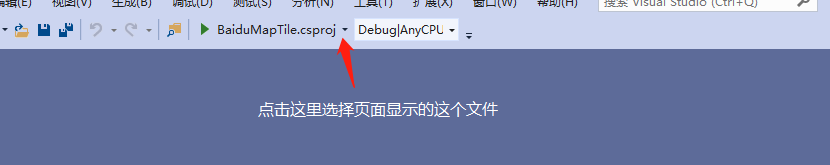

1、用Visual Studio打开解压的目录,这里使用的Visual Studio 2019

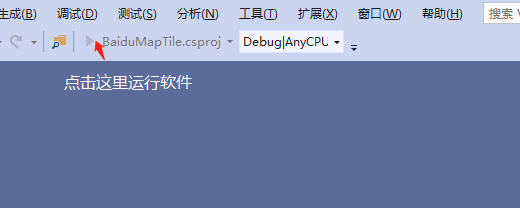

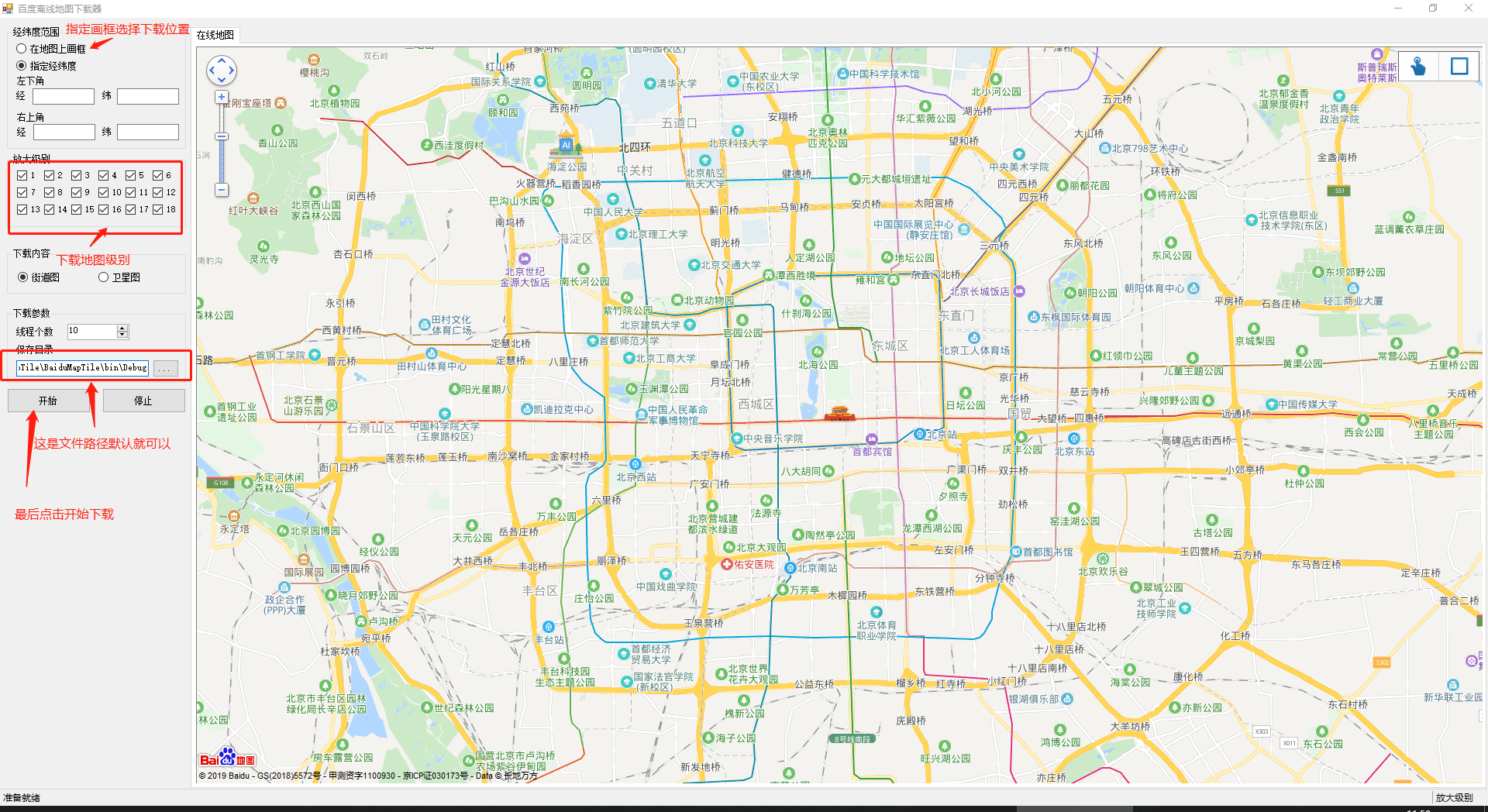

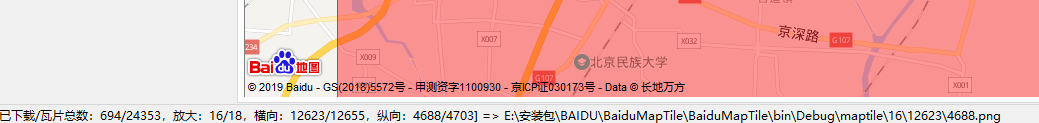

2、运行项目,下载瓦片地图,默认会在BaiduMapTilebinDebug下创建maptile目录,瓦片地图就保存在这个目录中
3、测试地图数据将瓦片地图所在的目录maptile移到BaiduMapTilebinDebughtml目录下,打开离线街道地图.html
如果单纯的使用离线地图,现在这样就可以了
瓦片计算和下载的关键代码在 TileDownloader.cs 中
二、vue地图配置
1、将现在的资源文件images、js、css文件都放到static目录下
2、在index.html文件中引入资源文件
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18<!DOCTYPE html> <html> <head> <meta charset="utf-8"> <meta name="viewport" content="width=device-width,initial-scale=1.0"> <title>Bmap-outline-test</title> <script type="text/javascript" src="static/js/apiv2.0_street.js"></script> <script type="text/javascript" src="static/js/AreaRestriction.js"></script> <script type="text/javascript" src="static/js/DrawingManager_one_rect.js"></script> <link rel="stylesheet" href="static/style/DrawingManager.css" /> </head> <body> <div id="app"></div> <!-- built files will be auto injected --> </body> </html>
3、页面应用
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34<template> <div> <div style="width:100%;height:100%;border:1px solid gray;position:absolute;" id="mapShow"></div> </div> </template> <script> export default { name: "Bmap-outline", data() { return { map: null } }, mounted() { this.baiduMap() }, methods: { baiduMap() { let that = this that.map = new BMap.Map("mapShow",{mapType: BMAP_NORMAL_MAP}); let point = new BMap.Point(116.404, 39.915); that.map.centerAndZoom(point,6); that.map.addControl(new BMap.NavigationControl()); that.map.enableScrollWheelZoom(); that.map.enableKeyboard(); } } } </script> <style scoped lang="scss"> </style>
注意
:地图资源过大可能导致vue项目内存溢出所以最好使用nginx反向代理地图资源路径。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12server { listen 7070; server_name localhost; location / { root E:BaiduMapTileBaiduMapTilebinDebugmaptile;#离线瓦片地图 } error_page 500 502 503 504 /50x.html; location = /50x.html { root html; } }

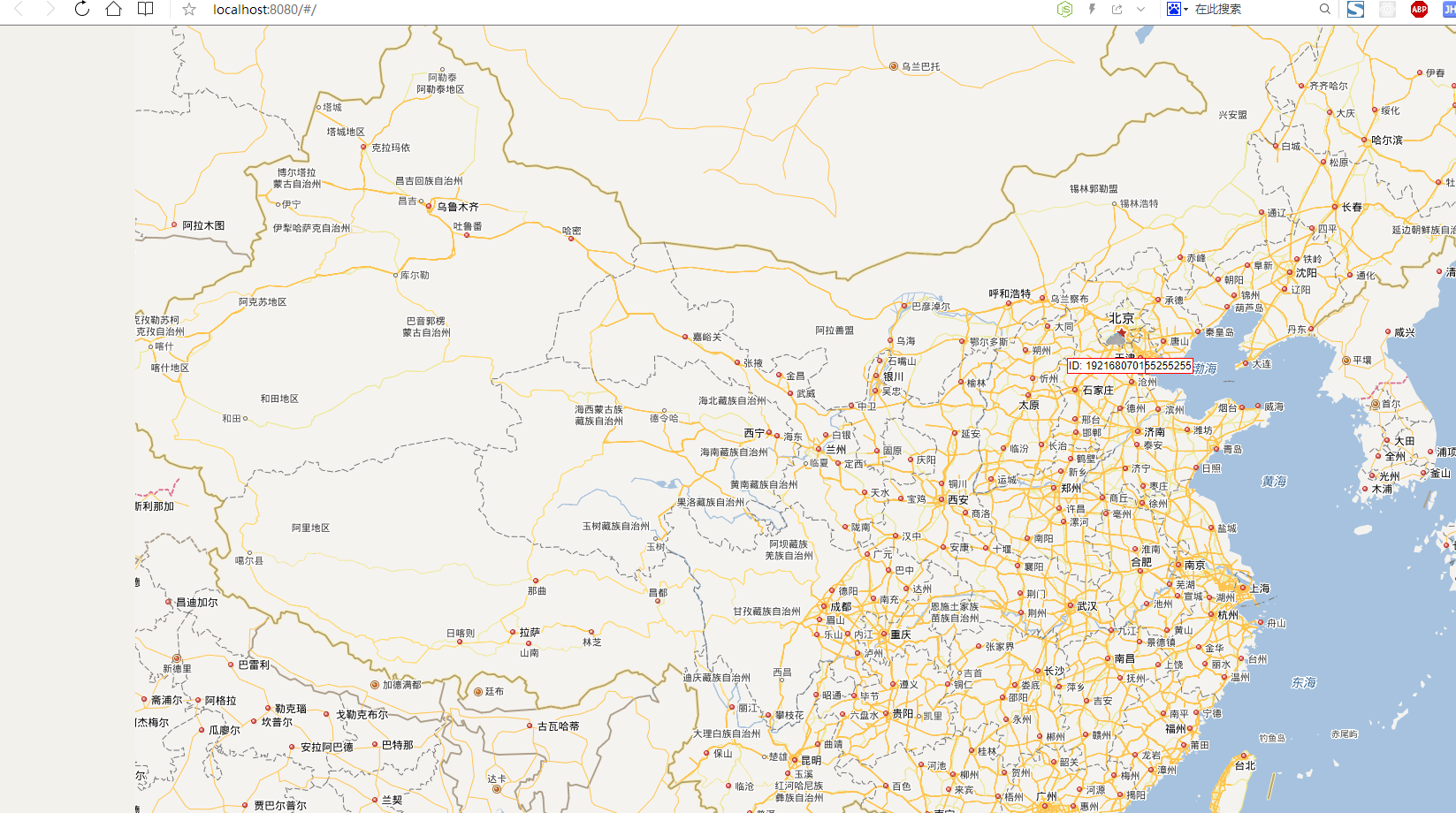

这样就vue+离线地图就做好了
