1. 整合监控页面

1. 新建一个模块 ：springcloud-03-consumer-dept-hystrix-dashboard

2. 导入依赖

   <?xml version="1.0" encoding="UTF-8"?>
   <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   		 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
   	<modelVersion>4.0.0</modelVersion>
   	<groupId>com.demo</groupId>
   	<version>0.0.1-SNAPSHOT</version>
   	<parent>
   		<artifactId>Demo_SpringCloud</artifactId>
   		<groupId>org.demo</groupId>
   		<version>1.0-SNAPSHOT</version>
   	</parent>

   	<artifactId>springcloud-03-consumer-dept-hystrix-dashboard</artifactId>
   	<properties>
   		<java.version>1.8</java.version>
   	</properties>

   	<dependencies>
   		<!--实体类-->
   		<dependency>
   			<groupId>org.demo</groupId>
   			<artifactId>SpringCloud-01-API-8080</artifactId>
   			<version>1.0-SNAPSHOT</version>
   		</dependency>
   		<!--web 启动-->
   		<dependency>
   			<groupId>org.springframework.boot</groupId>
   			<artifactId>spring-boot-starter-web</artifactId>
   		</dependency>
   		<!--热部署-->
   		<dependency>
   			<groupId>org.springframework.boot</groupId>
   			<artifactId>spring-boot-devtools</artifactId>
   		</dependency>

   		<!--ribbon-->
   		<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-ribbon -->
   		<dependency>
   			<groupId>org.springframework.cloud</groupId>
   			<artifactId>spring-cloud-starter-ribbon</artifactId>
   			<version>1.4.7.RELEASE</version>
   		</dependency>
   		<!--Eureka 服务提供者-->
   		<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-eureka -->
   		<dependency>
   			<groupId>org.springframework.cloud</groupId>
   			<artifactId>spring-cloud-starter-eureka</artifactId>
   			<version>1.4.7.RELEASE</version>
   		</dependency>
   		<!-- hystrix -->
   		<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->
   		<dependency>
   			<groupId>org.springframework.cloud</groupId>
   			<artifactId>spring-cloud-starter-hystrix</artifactId>
   			<version>1.4.7.RELEASE</version>
   		</dependency>
   		<!--监控页面-->
   		<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-netflix-hystrix-dashboard -->
   		<dependency>
   			<groupId>org.springframework.cloud</groupId>
   			<artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
   			<version>2.2.0.RELEASE</version>
   		</dependency>


   	</dependencies>

   	<build>
   		<plugins>
   			<plugin>
   				<groupId>org.springframework.boot</groupId>
   				<artifactId>spring-boot-maven-plugin</artifactId>
   			</plugin>
   		</plugins>
   	</build>

   </project>


3. 编写 yml

   server:
     port: 9010


4. 在主启动类上添加启动监控的注解

   //开启监控页面
   @EnableHystrixDashboard


5. 确保服务端有以下依赖

   <!--actuator 完善监控信息-->
   	<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-actuator -->
   	<dependency>
   		<groupId>org.springframework.boot</groupId>
   		<artifactId>spring-boot-starter-actuator</artifactId>
   	</dependency>
   <!-- hystrix -->
   	<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-hystrix -->
   	<dependency>
   		<groupId>org.springframework.cloud</groupId>
   		<artifactId>spring-cloud-starter-hystrix</artifactId>
   		<version>1.4.7.RELEASE</version>
   	</dependency>


6. 启动该项目

   访问 ： http://localhost:9010/hystrix



2. 配置监控

1. 修改服务端的主启动类

   添加开启熔断开关的注解

   增加一个 Dashboard 的 Bean，并注册

   @SpringBootApplication
   //在配置过这个注解后，服务启动会自动注册到 Eureka Server
   @EnableEurekaClient
   //开启服务发现
   @EnableDiscoveryClient
   //开启熔断开关
   @EnableCircuitBreaker
   public class Springcloud02ProviderDept8081Application {

   	public static void main(String[] args) {
   		SpringApplication.run(Springcloud02ProviderDept8081Application.class, args);
   	}

   	/**
   	 * 增加一个 Dashboard 的 Bean
   	 * 固定的代码
   	 */
   	@Bean
   	public ServletRegistrationBean HystrixMetricsStreamServlet(){
   		ServletRegistrationBean registrationBean = new ServletRegistrationBean(new HystrixMetricsStreamServlet());
   		//添加路径
   		registrationBean.addUrlMappings("/actuator/hystrix.stream");
   		return registrationBean;
   	}
   }



2. 修改服务端的控制层

   在所有需要监控的接口上面加上注解

   @HystrixCommand


3. 启动集群

   访问 ： http://localhost:9010/hystrix

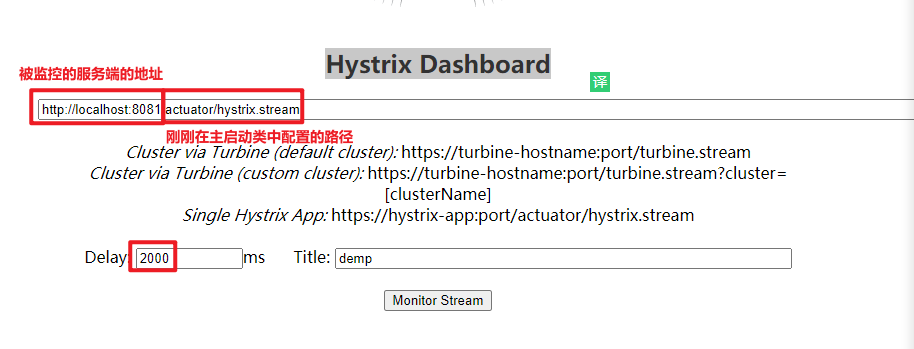

4. Hystrix Dashboard 页面填入信息

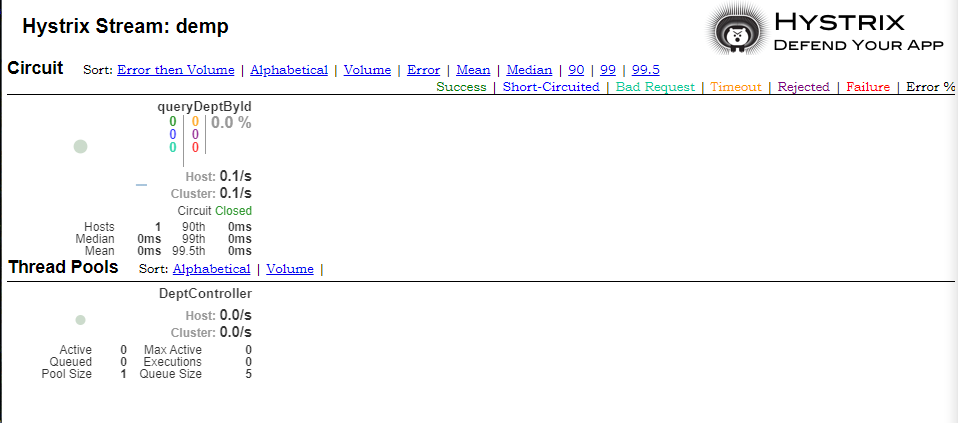

5. 进入监控页面


   注： 如果一直显示 Loading ，发送一个查询请求再看一下

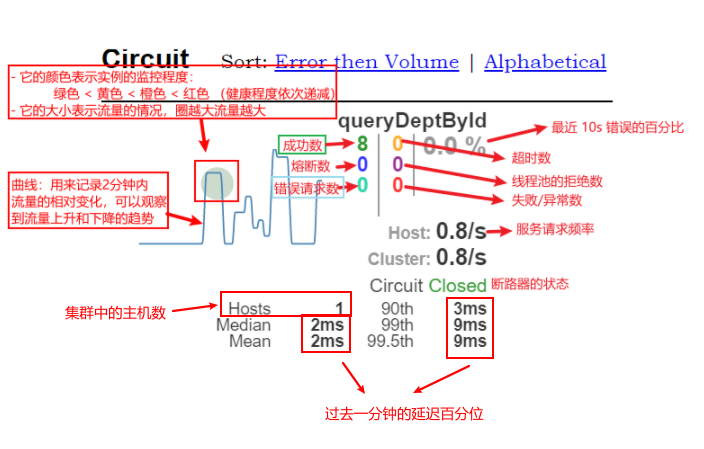

3. 监控中心各项信息介绍
