http

先看看配置文件中http的定义，地址走/usr/local/nginx/conf/nginx.conf

配置文件

http {
    include       mime.types;
    server {
        listen       80;
        server_name  localhost;
        location / {
            root   html;
            index  index.html index.htm;
        }
    }
}

模块定义

首先看看http的模块的定义

ngx_module_t  ngx_http_module = {
    NGX_MODULE_V1,
    &ngx_http_module_ctx,                  /* module context */
    ngx_http_commands,                     /* module directives */
    NGX_CORE_MODULE,                       /* module type */
    NULL,                                  /* init master */
    NULL,                                  /* init module */
    NULL,                                  /* init process */
    NULL,                                  /* init thread */
    NULL,                                  /* exit thread */
    NULL,                                  /* exit process */
    NULL,                                  /* exit master */
    NGX_MODULE_V1_PADDING
};
static ngx_command_t  ngx_http_commands[] = {

    { ngx_string("http"),
      NGX_MAIN_CONF|NGX_CONF_BLOCK|NGX_CONF_NOARGS,
      ngx_http_block, //实现的set方法
      0,
      0,
      NULL },

      ngx_null_command
};

上面可以看到是命中http命令之后，初始化配置文件的方法ngx_http_block。

结构体定义

ngx_http_module_t

typedef struct {
    ngx_int_t   (*preconfiguration)(ngx_conf_t *cf);
    ngx_int_t   (*postconfiguration)(ngx_conf_t *cf);

    void       *(*create_main_conf)(ngx_conf_t *cf);
    char       *(*init_main_conf)(ngx_conf_t *cf, void *conf);

    void       *(*create_srv_conf)(ngx_conf_t *cf);
    char       *(*merge_srv_conf)(ngx_conf_t *cf, void *prev, void *conf);

    void       *(*create_loc_conf)(ngx_conf_t *cf);
    char       *(*merge_loc_conf)(ngx_conf_t *cf, void *prev, void *conf);
} ngx_http_module_t;

可以看出来 ngx_http_module_t 都是抽象类的方法，比较类似的第一个参数都是ngx_conf_t的指针

ngx_http_conf_ctx_t

typedef struct {
    void        **main_conf;
    void        **srv_conf;
    void        **loc_conf;
} ngx_http_conf_ctx_t;

比较简单都是 类型为void的二级指针。

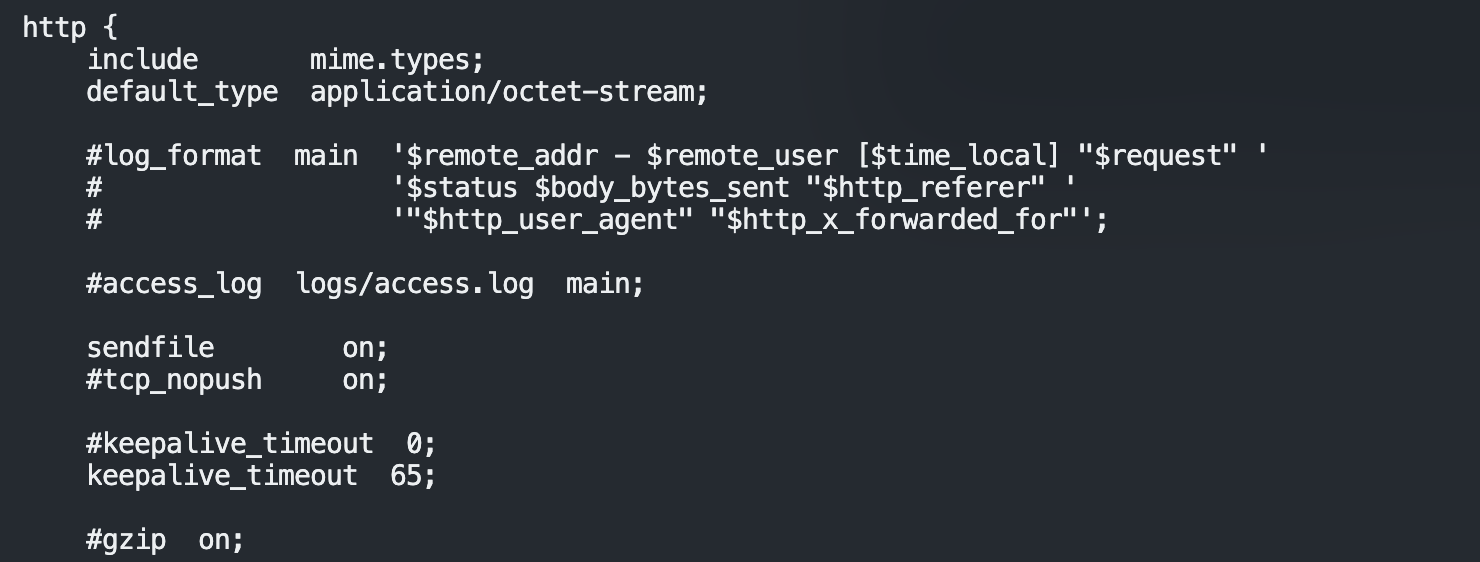

然后 main_conf 就是http 里面的公共部分，比如 include，sendfile，keepalive_timeout等等。如图：

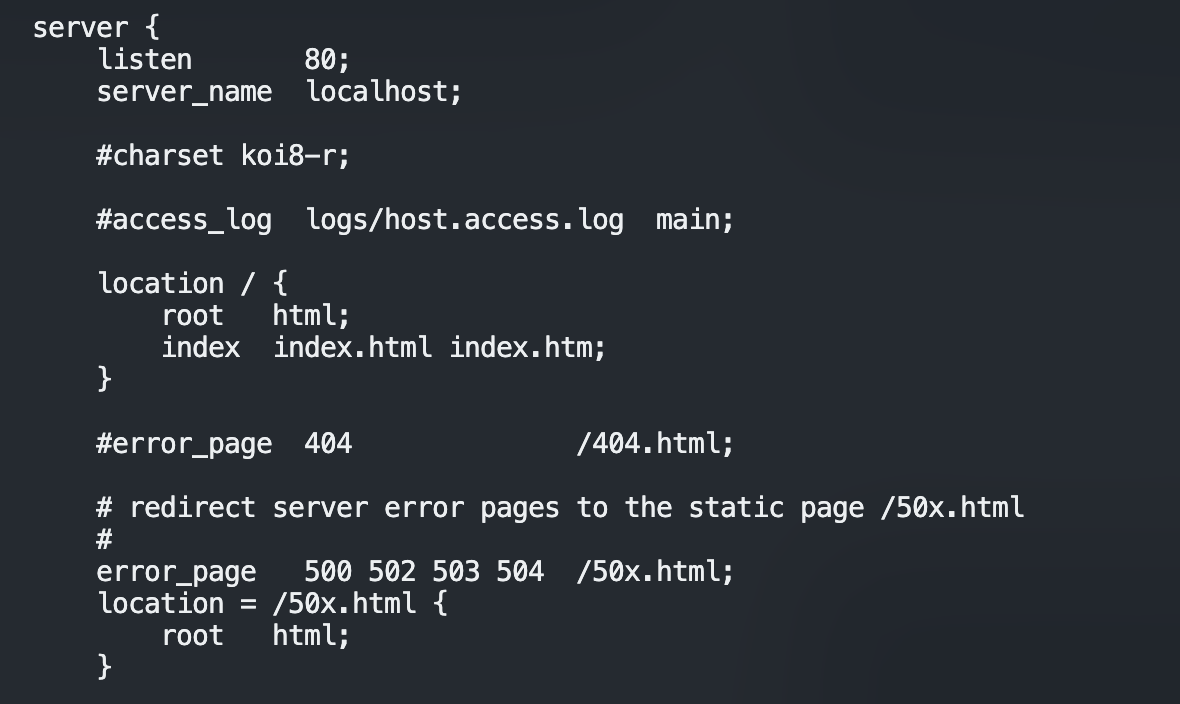

然后srv_conf ，就是server 如图:

ngx_http_core_loc_conf_t

其实也就是ngx_http_core_loc_conf_s，看一下ngx_http_core_loc_conf_s的定义，如图

struct ngx_http_core_loc_conf_s {
    ngx_str_t     name;          /* location name */

#if (NGX_PCRE)
    ngx_http_regex_t  *regex;
#endif

    unsigned      noname:1;   /* "if () {}" block or limit_except */
    unsigned      lmt_excpt:1;
    unsigned      named:1;

    unsigned      exact_match:1;
    unsigned      noregex:1;

    unsigned      auto_redirect:1;
#if (NGX_HTTP_GZIP)
    unsigned      gzip_disable_msie6:2;
    unsigned      gzip_disable_degradation:2;
#endif

    ngx_http_location_tree_node_t   *static_locations;
#if (NGX_PCRE)
    ngx_http_core_loc_conf_t       **regex_locations;
#endif

    /* pointer to the modules' loc_conf */
    void        **loc_conf;

    uint32_t      limit_except;
    void        **limit_except_loc_conf;

    ngx_http_handler_pt  handler;

    /* location name length for inclusive location with inherited alias */
    size_t        alias;
    ngx_str_t     root;                    /* root, alias */
    ngx_str_t     post_action;

    ngx_array_t  *root_lengths;
    ngx_array_t  *root_values;

    ngx_array_t  *types;
    ngx_hash_t    types_hash;
    ngx_str_t     default_type;

    off_t         client_max_body_size;    /* client_max_body_size */
    off_t         directio;                /* directio */
    off_t         directio_alignment;      /* directio_alignment */

    size_t        client_body_buffer_size; /* client_body_buffer_size */
    size_t        send_lowat;              /* send_lowat */
    size_t        postpone_output;         /* postpone_output */
    size_t        limit_rate;              /* limit_rate */
    size_t        limit_rate_after;        /* limit_rate_after */
    size_t        sendfile_max_chunk;      /* sendfile_max_chunk */
    size_t        read_ahead;              /* read_ahead */
    size_t        subrequest_output_buffer_size;
                                           /* subrequest_output_buffer_size */

    ngx_msec_t    client_body_timeout;     /* client_body_timeout */
    ngx_msec_t    send_timeout;            /* send_timeout */
    ngx_msec_t    keepalive_timeout;       /* keepalive_timeout */
    ngx_msec_t    lingering_time;          /* lingering_time */
    ngx_msec_t    lingering_timeout;       /* lingering_timeout */
    ngx_msec_t    resolver_timeout;        /* resolver_timeout */

    ngx_resolver_t  *resolver;             /* resolver */

    time_t        keepalive_header;        /* keepalive_timeout */

    ngx_uint_t    keepalive_requests;      /* keepalive_requests */
    ngx_uint_t    keepalive_disable;       /* keepalive_disable */
    ngx_uint_t    satisfy;                 /* satisfy */
    ngx_uint_t    lingering_close;         /* lingering_close */
    ngx_uint_t    if_modified_since;       /* if_modified_since */
    ngx_uint_t    max_ranges;              /* max_ranges */
    ngx_uint_t    client_body_in_file_only; /* client_body_in_file_only */

    ngx_flag_t    client_body_in_single_buffer;
                                           /* client_body_in_singe_buffer */
    ngx_flag_t    internal;                /* internal */
    ngx_flag_t    sendfile;                /* sendfile */
    ngx_flag_t    aio;                     /* aio */
    ngx_flag_t    aio_write;               /* aio_write */
    ngx_flag_t    tcp_nopush;              /* tcp_nopush */
    ngx_flag_t    tcp_nodelay;             /* tcp_nodelay */
    ngx_flag_t    reset_timedout_connection; /* reset_timedout_connection */
    ngx_flag_t    absolute_redirect;       /* absolute_redirect */
    ngx_flag_t    server_name_in_redirect; /* server_name_in_redirect */
    ngx_flag_t    port_in_redirect;        /* port_in_redirect */
    ngx_flag_t    msie_padding;            /* msie_padding */
    ngx_flag_t    msie_refresh;            /* msie_refresh */
    ngx_flag_t    log_not_found;           /* log_not_found */
    ngx_flag_t    log_subrequest;          /* log_subrequest */
    ngx_flag_t    recursive_error_pages;   /* recursive_error_pages */
    ngx_uint_t    server_tokens;           /* server_tokens */
    ngx_flag_t    chunked_transfer_encoding; /* chunked_transfer_encoding */
    ngx_flag_t    etag;                    /* etag */

#if (NGX_HTTP_GZIP)
    ngx_flag_t    gzip_vary;               /* gzip_vary */

    ngx_uint_t    gzip_http_version;       /* gzip_http_version */
    ngx_uint_t    gzip_proxied;            /* gzip_proxied */

#if (NGX_PCRE)
    ngx_array_t  *gzip_disable;            /* gzip_disable */
#endif
#endif

#if (NGX_THREADS || NGX_COMPAT)
    ngx_thread_pool_t         *thread_pool;
    ngx_http_complex_value_t  *thread_pool_value;
#endif

#if (NGX_HAVE_OPENAT)
    ngx_uint_t    disable_symlinks;        /* disable_symlinks */
    ngx_http_complex_value_t  *disable_symlinks_from;
#endif

    ngx_array_t  *error_pages;             /* error_page */

    ngx_path_t   *client_body_temp_path;   /* client_body_temp_path */

    ngx_open_file_cache_t  *open_file_cache;
    time_t        open_file_cache_valid;
    ngx_uint_t    open_file_cache_min_uses;
    ngx_flag_t    open_file_cache_errors;
    ngx_flag_t    open_file_cache_events;

    ngx_log_t    *error_log;

    ngx_uint_t    types_hash_max_size;
    ngx_uint_t    types_hash_bucket_size;

    ngx_queue_t  *locations;

#if 0
    ngx_http_core_loc_conf_t  *prev_location;
#endif
};

可以看出来这个ngx_http_core_loc_conf_s还是比较长的，不过可以看出来这个就是对配置文件 http 里面的解析。

ngx_http_core_srv_conf_t

typedef struct {
    /* array of the ngx_http_server_name_t, "server_name" directive */
    ngx_array_t                 server_names;

    /* server ctx */
    ngx_http_conf_ctx_t        *ctx;

    ngx_str_t                   server_name;

    size_t                      connection_pool_size;
    size_t                      request_pool_size;
    size_t                      client_header_buffer_size;

    ngx_bufs_t                  large_client_header_buffers;

    ngx_msec_t                  client_header_timeout;

    ngx_flag_t                  ignore_invalid_headers;
    ngx_flag_t                  merge_slashes;
    ngx_flag_t                  underscores_in_headers;

    unsigned                    listen:1;
#if (NGX_PCRE)
    unsigned                    captures:1;
#endif

    ngx_http_core_loc_conf_t  **named_locations;
} ngx_http_core_srv_conf_t;

ngx_http_core_main_conf_t

先看看定义

typedef struct {
    ngx_array_t                servers;         /* ngx_http_core_srv_conf_t */

    ngx_http_phase_engine_t    phase_engine;

    ngx_hash_t                 headers_in_hash;

    ngx_hash_t                 variables_hash;

    ngx_array_t                variables;         /* ngx_http_variable_t */
    ngx_array_t                prefix_variables;  /* ngx_http_variable_t */
    ngx_uint_t                 ncaptures;

    ngx_uint_t                 server_names_hash_max_size;
    ngx_uint_t                 server_names_hash_bucket_size;

    ngx_uint_t                 variables_hash_max_size;
    ngx_uint_t                 variables_hash_bucket_size;

    ngx_hash_keys_arrays_t    *variables_keys;

    ngx_array_t               *ports;

    ngx_http_phase_t           phases[NGX_HTTP_LOG_PHASE + 1];
} ngx_http_core_main_conf_t;

流程分析

在/nginx-1.14.2/src/http/ngx_http.c目录下，看一下对于http命令的解析，如下：

static ngx_command_t  ngx_http_commands[] = {

    { ngx_string("http"),
      NGX_MAIN_CONF|NGX_CONF_BLOCK|NGX_CONF_NOARGS,
      ngx_http_block,
      0,
      0,
      NULL },

      ngx_null_command
};

然后看一下ngx_http_block的解析,这里我们看到

static char *
ngx_http_block(ngx_conf_t *cf, ngx_command_t *cmd, void *conf)
{
    char                        *rv;
    ngx_uint_t                   mi, m, s;
    ngx_conf_t                   pcf;
    ngx_http_module_t           *module;

    //核心的配置文件
    ngx_http_conf_ctx_t         *ctx;
    ngx_http_core_loc_conf_t    *clcf;
    ngx_http_core_srv_conf_t   **cscfp;
    ngx_http_core_main_conf_t   *cmcf;

    //判断
    if (*(ngx_http_conf_ctx_t **) conf) {
        return "is duplicate";
    }

    /* the main http context */

    //分配内存 也是当前的上下文
    ctx = ngx_pcalloc(cf->pool, sizeof(ngx_http_conf_ctx_t));
    if (ctx == NULL) {
        return NGX_CONF_ERROR;
    }

    //进行赋值 利用指针指向地址
    *(ngx_http_conf_ctx_t **) conf = ctx;


    /* count the number of the http modules and set up their indices */
    //计算当前http模块的数值
    ngx_http_max_module = ngx_count_modules(cf->cycle, NGX_HTTP_MODULE);


    /* the http main_conf context, it is the same in the all http contexts */

    //内存池中分配内存 main_conf
    ctx->main_conf = ngx_pcalloc(cf->pool,
                                 sizeof(void *) * ngx_http_max_module);
    if (ctx->main_conf == NULL) {
        return NGX_CONF_ERROR;
    }


    /*
     * the http null srv_conf context, it is used to merge
     * the server{}s' srv_conf's
     */

    //内存池中分配内存 srv_conf
    ctx->srv_conf = ngx_pcalloc(cf->pool, sizeof(void *) * ngx_http_max_module);
    if (ctx->srv_conf == NULL) {
        return NGX_CONF_ERROR;
    }


    /*
     * the http null loc_conf context, it is used to merge
     * the server{}s' loc_conf's
     */

     //内存池中分配内存 loc_conf
    ctx->loc_conf = ngx_pcalloc(cf->pool, sizeof(void *) * ngx_http_max_module);
    if (ctx->loc_conf == NULL) {
        return NGX_CONF_ERROR;
    }


    /*
     * create the main_conf's, the null srv_conf's, and the null loc_conf's
     * of the all http modules
     */

    for (m = 0; cf->cycle->modules[m]; m++) {
        if (cf->cycle->modules[m]->type != NGX_HTTP_MODULE) {
            continue;
        }
        module = cf->cycle->modules[m]->ctx;
        mi = cf->cycle->modules[m]->ctx_index;

        /*
        接下来进行初始化 类型为 http模块的文件 符合的有
        ngx_http_core_modul
        ngx_http_log_module
        ngx_http_upstream_module
        ngx_http_limit_req_module等等
        注意不是赋值只是把初始化的配置文件的指针 赋给文件数组 例如 ctx->main_conf
        */

        if (module->create_main_conf) {
            ctx->main_conf[mi] = module->create_main_conf(cf);
            if (ctx->main_conf[mi] == NULL) {
                return NGX_CONF_ERROR;
            }
        }

        /*
        同上初始化 每个模块的 ctx->srv_conf
        */
        if (module->create_srv_conf) {
            ctx->srv_conf[mi] = module->create_srv_conf(cf);
            if (ctx->srv_conf[mi] == NULL) {
                return NGX_CONF_ERROR;
            }
        }

        /*
        同上初始化 每个模块的 ctx->loc_conf
        */
        if (module->create_loc_conf) {
            ctx->loc_conf[mi] = module->create_loc_conf(cf);
            if (ctx->loc_conf[mi] == NULL) {
                return NGX_CONF_ERROR;
            }
        }
    }

    //赋值临时配置文件
    pcf = *cf;

    cf->ctx = ctx;

    for (m = 0; cf->cycle->modules[m]; m++) {
        if (cf->cycle->modules[m]->type != NGX_HTTP_MODULE) {
            continue;
        }
        /*
          调用preconfiguration
          比如 ngx_http_core_module_ctx 中的 ngx_http_core_preconfiguration方法
          用途 主要为了初始化cf中的main_conf的variables_keys变量
          详见当前目录的ngx_http_variables.c中的ngx_http_variables_add_core_vars变量
        */
        module = cf->cycle->modules[m]->ctx;

        if (module->preconfiguration) {
            if (module->preconfiguration(cf) != NGX_OK) {
                return NGX_CONF_ERROR;
            }
        }
    }

    /* parse inside the http{} block */

    cf->module_type = NGX_HTTP_MODULE;
    cf->cmd_type = NGX_HTTP_MAIN_CONF;

    /*
    继续解析剩下的配置
    server {
        listen       80;
        server_name  127.0.0.1;
        location / {
            root   html;
            index  index.html index.htm;
        }
    }
    */

    //继续解析配置
    rv = ngx_conf_parse(cf, NULL);

    if (rv != NGX_CONF_OK) {
        goto failed;
    }

这里看到我们这里是到ngx_conf_parse，因为接下来解析剩下来的配置，剩下来的配置说完说ngx_conf_parse剩下的配置.
然后server的配置解析详见接下来的篇章，详见 【nginx读取配置文件http模块之server】

最后

以上就是踏实钢铁侠为你收集整理的【nginx读取配置文件http模块】http的全部内容，希望文章能够帮你解决【nginx读取配置文件http模块】http所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
