mealy状态机序列检测器设计

100 阅读 0 评论 66 点赞

我是靠谱客的博主机智铃铛，这篇文章主要介绍mealy状态机序列检测器设计，现在分享给大家，希望可以做个参考。

设计一个序列检测器。要求检测器连续收到串行码1110后，输出检测标志1，否则输出0。
Mealy型状态机输出是由现状态和输入决定。
状态机设计步骤：
1.分析设计要求，列出全部可能状态；
2.画出状态转移图；
3.用Verilog hdl描述状态机，编写testbench验证。

复制代码

`timescale 1ns / 1ps
module mealy(
        input  wire  clk,
        input  wire  rst_n,
        input  wire  A,
        output reg   K
 );
parameter S1 = 6'b00_0001;
 parameter S2 = 6'b00_0010;
 parameter S3 = 6'b00_0100;
 parameter S4 = 6'b00_1000;
 parameter S5 = 6'b01_0000;
 parameter S6 = 6'b10_0000;

 reg [5:0] Curr_st;
 reg [5:0] Next_st;

// always @*
//       Curr_st = Next_st;
 always @(posedge clk or negedge rst_n)
        if(rst_n == 1'b0)
               Curr_st <= S1;
        else
            case(Curr_st)
                  S1:if(A == 1'b1)
                           Curr_st <= S2;
                     else
                           Curr_st <= S1;
                  S2:if(A == 1'b1)
                           Curr_st <= S3;
                     else
                           Curr_st <= S2;
                  S3:if(A == 1'b1)
                           Curr_st <= S4;
                      else
                           Curr_st <= S1;
                  S4:if(A == 1'b0)
                           Curr_st <= S5;
                  S5:if(A == 1'b1)
                           Curr_st <= S6;
                      else
                           Curr_st <= S1;
                  S6:Curr_st <= S1;
                  default:Curr_st <= S1;
           endcase

 always @(posedge clk or negedge rst_n)
     if(rst_n == 1'b0)
             K <= 1'b0;
      else if(Curr_st == S5 && A == 1'b1)
            K <= 1'b1;
      else
            K <= 1'b0 ;
endmodule

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
`timescale 1ns / 1ps
module mealy(
        input  wire  clk,
        input  wire  rst_n,
        input  wire  A,
        output reg   K
 );
parameter S1 = 6'b00_0001;
 parameter S2 = 6'b00_0010;
 parameter S3 = 6'b00_0100;
 parameter S4 = 6'b00_1000;
 parameter S5 = 6'b01_0000;
 parameter S6 = 6'b10_0000;

 reg [5:0] Curr_st;
 reg [5:0] Next_st;

// always @*
//       Curr_st = Next_st;
 always @(posedge clk or negedge rst_n)
        if(rst_n == 1'b0)
               Curr_st <= S1;
        else
            case(Curr_st)
                  S1:if(A == 1'b1)
                           Curr_st <= S2;
                     else
                           Curr_st <= S1;
                  S2:if(A == 1'b1)
                           Curr_st <= S3;
                     else
                           Curr_st <= S2;
                  S3:if(A == 1'b1)
                           Curr_st <= S4;
                      else
                           Curr_st <= S1;
                  S4:if(A == 1'b0)
                           Curr_st <= S5;
                  S5:if(A == 1'b1)
                           Curr_st <= S6;
                      else
                           Curr_st <= S1;
                  S6:Curr_st <= S1;
                  default:Curr_st <= S1;
           endcase

 always @(posedge clk or negedge rst_n)
     if(rst_n == 1'b0)
             K <= 1'b0;
      else if(Curr_st == S5 && A == 1'b1)
            K <= 1'b1;
      else
            K <= 1'b0 ;
endmodule

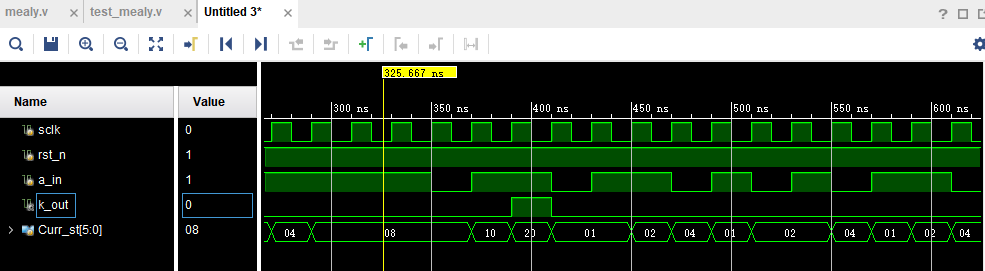

testbench文件

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
`timescale 1ns / 1ps
 module test_mealy();
        reg sclk,rst_n;
        reg a_in;
        wire k_out;
 initial begin
        sclk =0;
        rst_n=0;
        #100  rst_n=1;
end
initial begin
        #200;
        rand_bit();
 end

always #10 sclk <= ~sclk;
mealy   mealy_inst(
       .clk           (sclk),
       .rst_n         (rst_n),
       .A              (a_in),
       .K             (k_out)
 );
 task   rand_bit();
       integer i;
       begin
                for(i=0;i<255;i=i+1)
                begin
                      @(posedge sclk)
                      a_in <= {$random} %2;
                end
       end
endtask
endmodule
