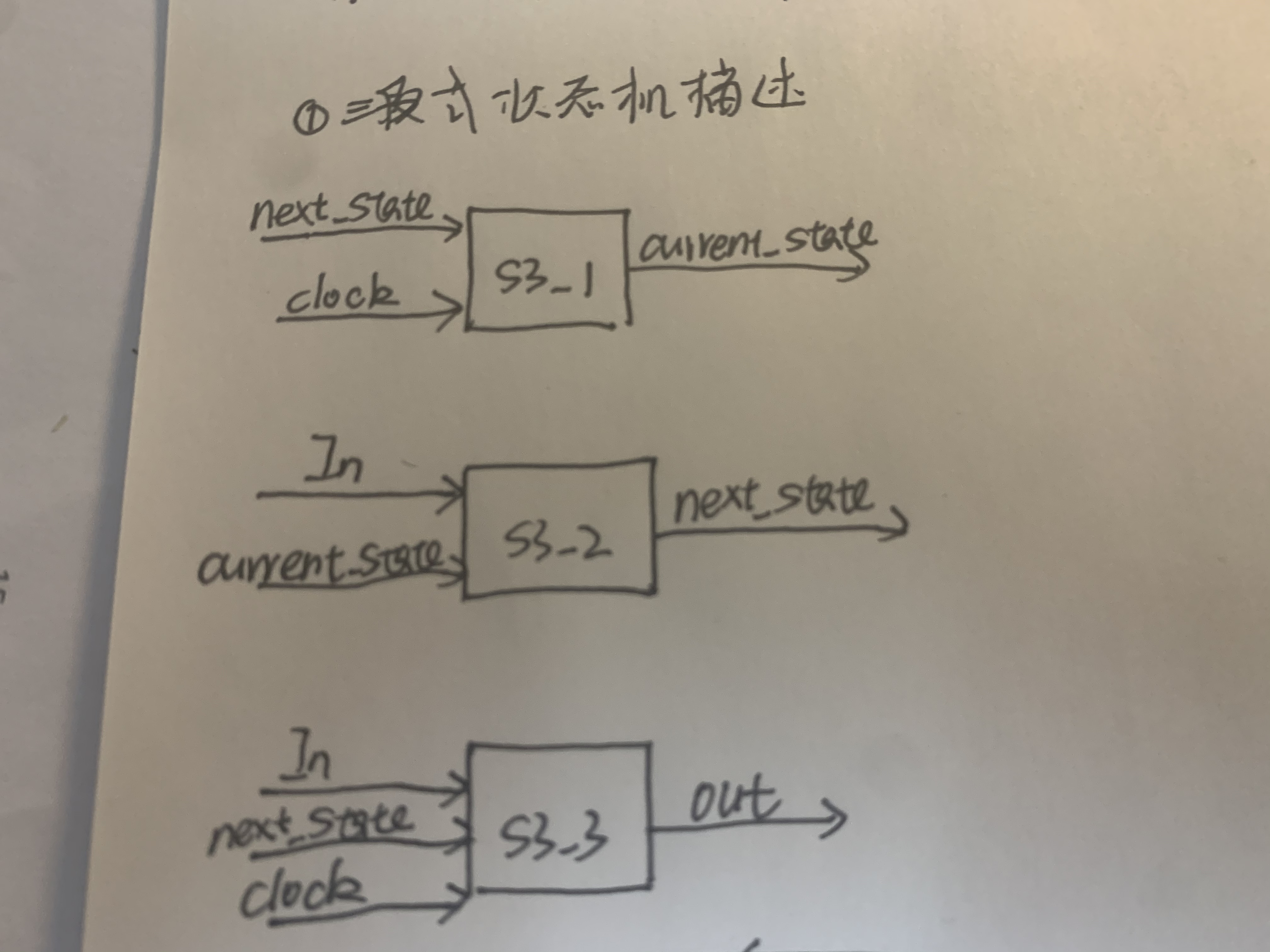

3段状态机设计序列检测器

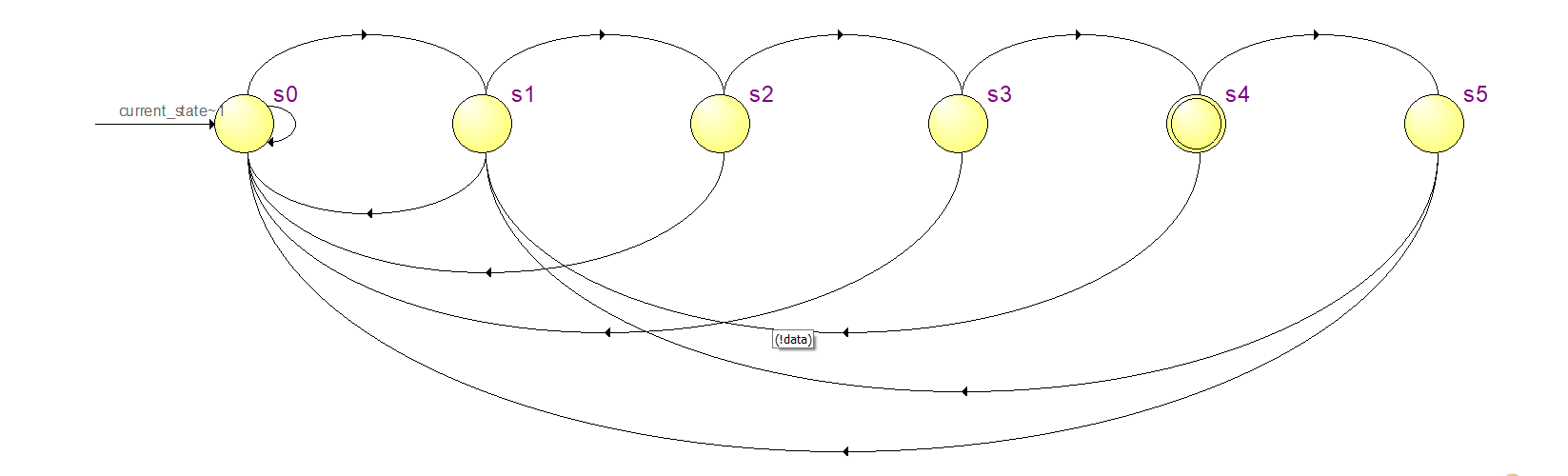

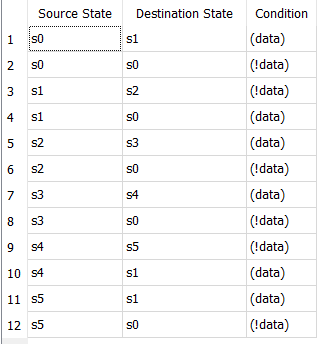

1、用3段状态机设计，请给出序列检测码“10110”的检测状态图和verilog code

2.代码实现

/*----------------------------------------------
Filename: sequential_detector.v
Function: 检测输入数据中的存在的10110序列
Date: 2021-7-25
----------------------------------------------*/
module sequential_detector(clk, rst_n, data, out);
	//输入输出端口定义
	input clk, rst_n, data;

	output reg out;	//完成标志位：1

	reg	[2:0]next_state, current_state;	//定义下一状态、当前状态寄存器

	//状态编码
	parameter s0 = 3'b000, s1 = 3'b001, s2 = 3'b010, s3 = 3'b011,
			  s4 = 3'b100, s5 = 3'b101;

	//第一个进程，同步时序always模块，格式化描述次态寄存器迁移到现态寄存器
	always@(posedge clk or negedge rst_n)
		begin	:	FSM_3_1_CN
			if(rst_n == 1'b0)
				current_state <= s0;
			else
				current_state <= next_state;
		end

	//第二个进程，组合逻辑always模块，描述状态转移条件判断
	always@(*)
	begin	:	FSM_3_2_ON
		next_state = 3'bx;
		case(current_state)
			s0: begin
					if(data == 1'b1) next_state = s1;
					else next_state = s0;
				end
			s1: begin
					if(data == 1'b0) next_state = s2;
					else next_state = s0;
				end
			s2:  begin
					if(data == 1'b1) next_state = s3;
					else next_state = s0;
				end
			s3: begin
					if(data == 1'b1) next_state = s4;
					else next_state = s0;
				end
			s4: begin
					if(data == 1'b0) next_state = s5;
					else next_state = s1;
				end
			s5: begin
					if(data == 1'b0) next_state = s0;
					else  next_state = s1;
				end
			default: next_state = s0;
		endcase
	end

	//第三个进程，同步时序always模块，格式化描述次态寄存器输出
	always@(posedge clk or negedge rst_n)
	begin	:	FSM_3_3_CN
		if(rst_n == 1'b0)
		out<= 1'b0;
		case(next_state)
				s0: out <= 1'b0;
				s1: out <= 1'b0;
				s2: out <= 1'b0;
				s3: out <= 1'b0;
				s4: out <= 1'b0;
				s5: out <= 1'b1;

				default: out <= 1'b0;
			endcase
		end
endmodule

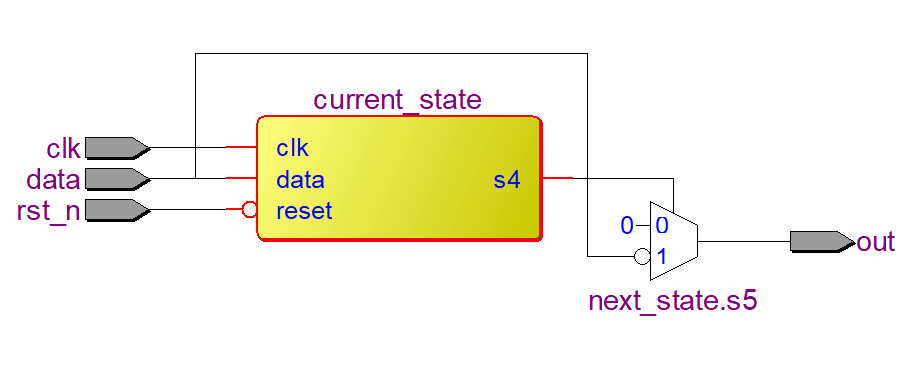

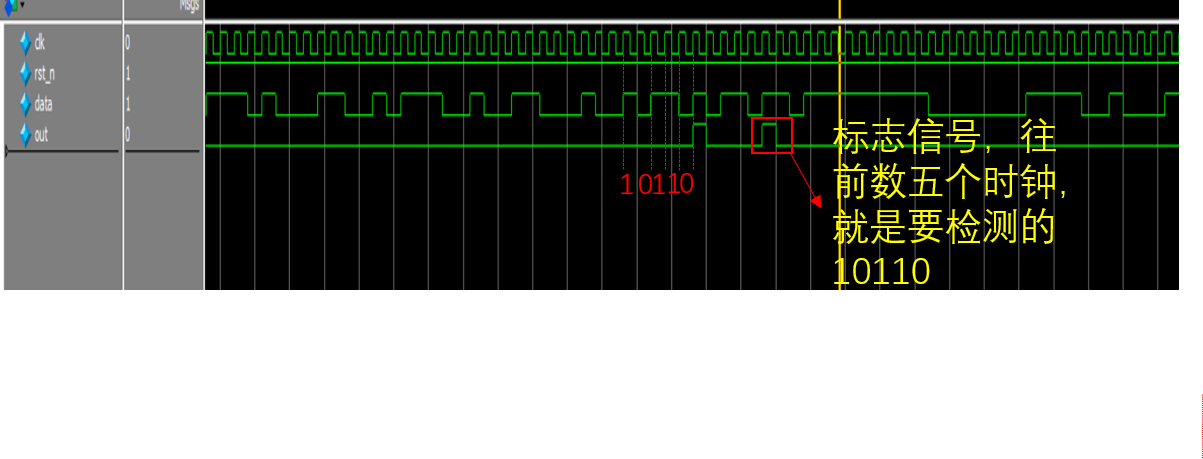

3、tb文件

/*---------------------------------------------
Filename: sequential_detector_tb.v
Function: 测试sequential_detector模块逻辑功能
Date: 2021-7-25
---------------------------------------------*/
`timescale 1ns/1ns
module sequential_detector_tb();

	//定义要观察的的信号
	reg clk, rst_n, data;
	wire  out;

	//实例化调用序列检测器模块
	sequential_detector sequential_detector_inst(
		.clk(clk),
		.rst_n(rst_n),
		.data(data),
		.out(out)
		);

	//产生是时钟信号
	initial  clk = 1'b1;
	always   #10 clk = ~clk;

	initial begin
		rst_n = 1'b0;
		data  = 1'b0;

	#200 rst_n = 1'b1;

	forever begin
			#20	data = {$random} % 2;	// 01
			  end
	end


endmodule
