laravel+echarts根据时间进行分天，小时，月进行图表显示

• 需求
• 可以选择时间区间，可以选择年份，快捷选择时间段三天、一周，可以选择精度，如；分，时，天，月，年来统计图表

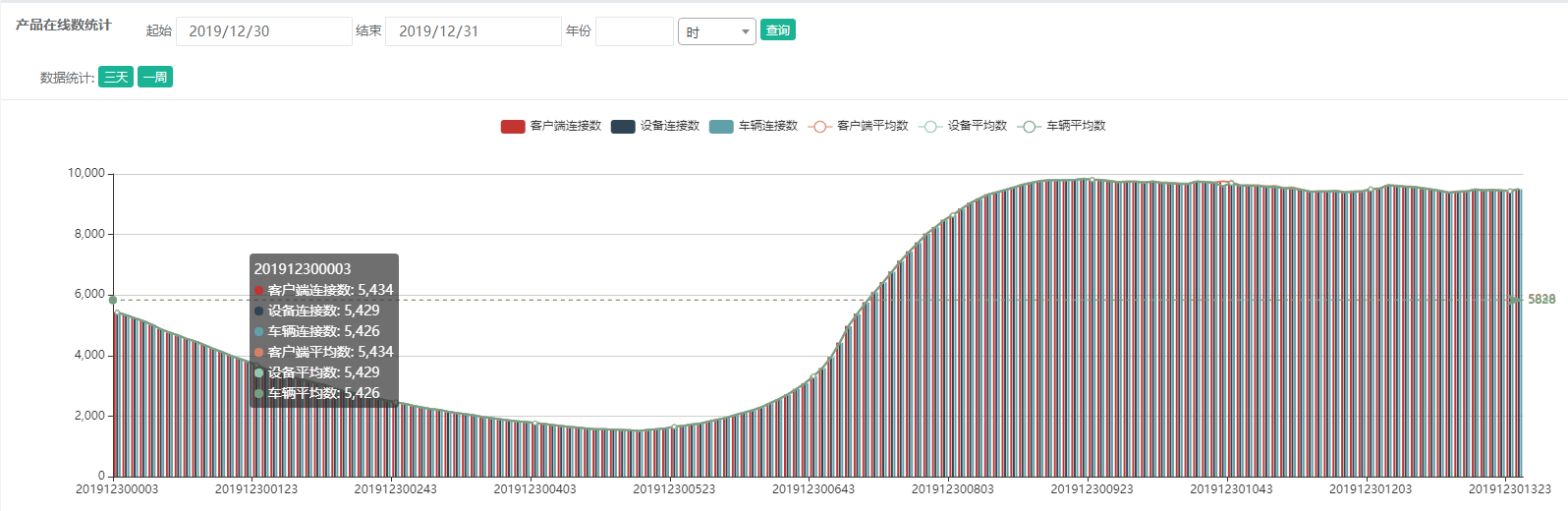

• 前端图表

 var alldata = null
            $('#date_select2').click(function () {
                var d0 =$('#date0').val()
                var d1 =$('#date1').val()
                var year = $('#year').val()
                var per = $('#precision').val()

                $.get('/hwtc/online/get_online_ajax',{d0:d0,d1:d1,year:year,per:per}).done(function (data) {
                    alldata =data
                    get_echarts()
                });

            })
            $('.qdate').click(function () {
                var per = $('#precision').val()
                var type = $(this).data('date')
                $.get('/hwtc/online/get_online_ajax',{type:type,per:per}).done(function (data) {
                    alldata =data
                    get_echarts()
                });
            })
            function one_echarts() {
                $.get('/hwtc/online/get_online_ajax').done(function (data) {
                    alldata =data
                    get_echarts()
                });
            }
            one_echarts()

            function get_echarts() {
                var myChart = echarts.init(document.getElementById('procode'));
                option = {
                    tooltip : {
                        trigger: 'axis',
                        axisPointer : {            // 坐标轴指示器，坐标轴触发有效
                            type : 'shadow'        // 默认为直线，可选为：'line' | 'shadow'
                        }
                    },
                    legend: {
                        data:['客户端连接数','设备连接数','车辆连接数','客户端平均数','设备平均数','车辆平均数']
                    },
                    grid: {
                        left: '3%',
                        right: '4%',
                        bottom: '3%',
                        containLabel: true
                    },
                    xAxis : [
                        {
                            type : 'category',
                            data : alldata.category
                        }
                    ],
                    yAxis : [
                        {
                            type : 'value'
                        }
                    ],
                    series : [
                        {
                            name:'客户端连接数',
                            type:'bar',
                            data:alldata.max_amount_client
                        }, {
                            name:'设备连接数',
                            type:'bar',
                            data:alldata.max_amount_device
                        },
                        {
                            name:'车辆连接数',
                            type:'bar',
                            data:alldata.max_amount_vin
                        },
                        {
                            name:'客户端平均数',
                            type:'line',
                            data:alldata.avg_amount_client,
                            markLine: {
                                precision:0,
                                data: [
                                    {type: 'average', name: '平均值'}
                                ]
                            }
                        }, {
                            name:'设备平均数',
                            type:'line',
                            data:alldata.avg_amount_device,
                            markLine: {
                                precision:0,
                                data: [
                                    {type: 'average', name: '平均值'}
                                ]
                            }
                        },
                        {
                            name:'车辆平均数',
                            type:'line',
                            data:alldata.avg_amount_vin,
                            markLine: {
                                precision:0,
                                data: [
                                    {type: 'average', name: '平均值'}
                                ]
                            }
                        }


                    ]
                };
                myChart.setOption(option
);

• 后台数据用到上一篇写到的，mysql根据时间日期进行分组统计查询了

 public function get_online_ajax(Request $request){
        //默认页
            $d0 = strtotime(date('Y-m-d',time()));
            $d1 =strtotime(date('Y-m-d',strtotime('+1 day',time()))) ;
            $per = $this->get_per(2);//小时

        //快捷
        if ($request->has('type')){
            if ($request->type ==3){
                $d0 = strtotime(date('Y-m-d',strtotime('-2 day',time()))) ;
            }else{
                $d0 = strtotime(date('Y-m-d',strtotime('-6 day',time()))) ;
            }
            $d1 =strtotime(date('Y-m-d',strtotime('+1 day',time()))) ;
            $per = $this->get_per($request->per);
        }
        if ($request->has('d0')){
            $d0 = strtotime($request->d0);
            $d1 = strtotime($request->d1);
            $per = $this->get_per($request->per);
        }
        if ($request->has('year') and $request->year!=''){
            $d0 = $request->year."-01-01";
            $d0 = strtotime($d0);
            $d1 = $request->year."-12-31";
            $d1 = strtotime($d1);
            $per = $this->get_per($request->per);
        }

        $datas = DB::connection('mysql_online')->select("SELECT  from_unixtime(sampletime,'{$per}') per,MAX(amount_client),MAX(amount_device),MAX(amount_vin),ROUND(AVG(amount_client)) as avg_amount_client,ROUND(AVG(amount_device)) as avg_amount_device,ROUND(AVG(amount_vin)) as avg_amount_vin FROM tb_stats_online where sampletime>{$d0} and sampletime<{$d1}  GROUP BY per
" );
        $datas = collect($datas);
        $category = $datas->pluck('per')->toArray();
        $max_amount_client =$datas->pluck('MAX(amount_client)')->toArray();
        $max_amount_device =$datas->pluck('MAX(amount_device)')->toArray();
        $max_amount_vin =$datas->pluck('MAX(amount_vin)')->toArray();
        $avg_amount_client = $datas->pluck('avg_amount_client')->toArray();
        $avg_amount_device = $datas->pluck('avg_amount_device')->toArray();
        $avg_amount_vin = $datas->pluck('avg_amount_vin')->toArray();

        return response()->json(compact('category','max_amount_client','max_amount_device','max_amount_vin','avg_amount_client','avg_amount_device','avg_amount_vin'));


    }

    private function get_per($per){
        $per_data =[
            '-1'=>'%Y%m%d%H',
            '1'=>'%Y%m%d%H%i',
            '2'=>'%Y%m%d%H',
            '3'=>'%Y%m%d',
            '4'=>'%Y%m',
            '5'=>'%Y',
        ];
        if(isset($per_data[$per])){
            return $per_data[$per];
        }else{
            return $per_data[3];
        }

    }
