SpringBoot中整合knife4j接口文档

一、界面鉴赏

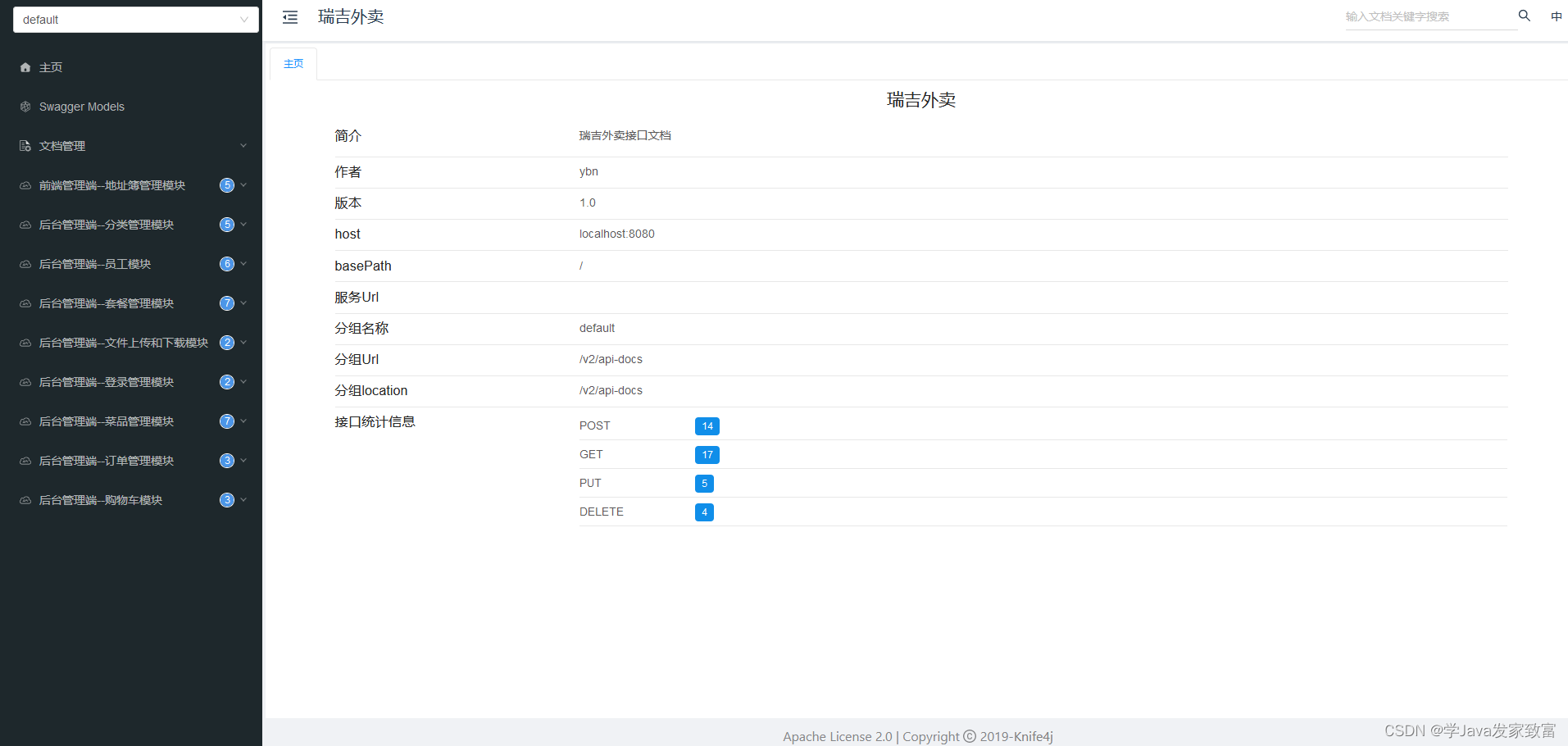

1、首页

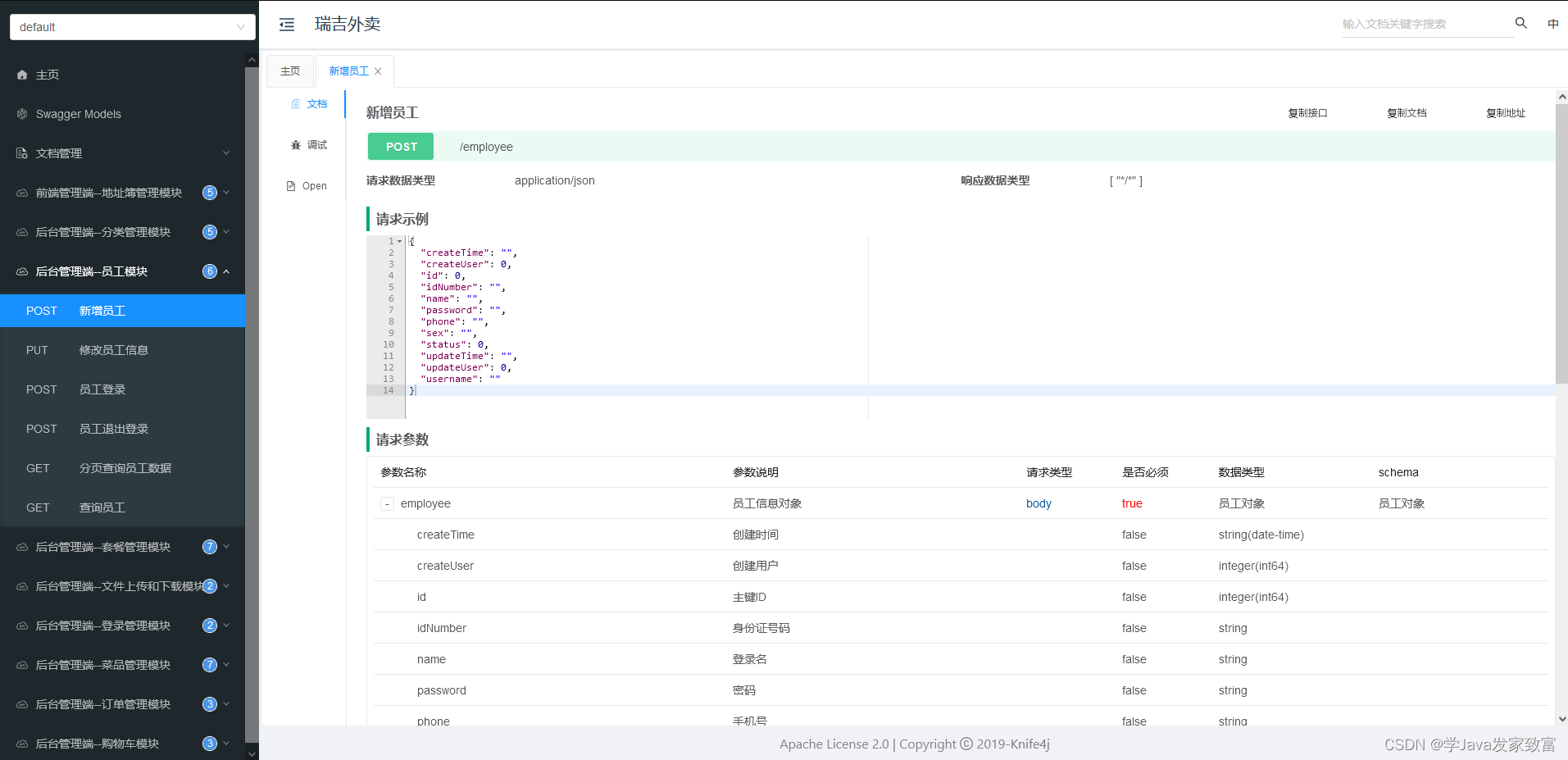

2、接口文档

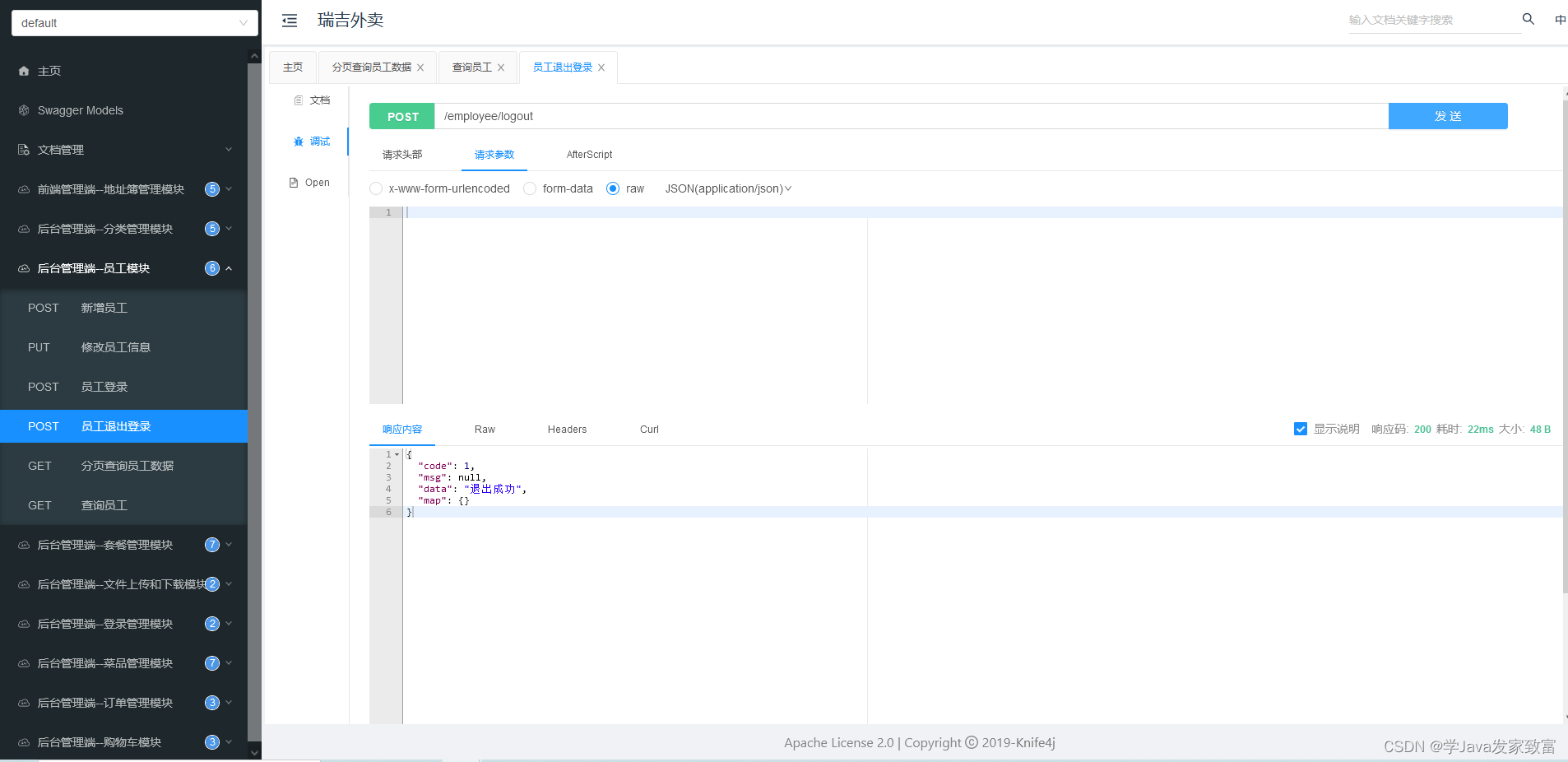

3、调试

二、整合 knife4j

1、引入 maven 依赖

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>3.0.2</version>
        </dependency>

<!-- 避免版本冲突 -->
<dependency>
    <groupId>com.google.guava</groupId>
    <artifactId>guava</artifactId>
    <version>29.0-jre</version>
</dependency>

一般情况我们只需要引入 knife4j 的依赖即可，但是有时会出现 guava 的版本冲突，所以，我们把 guava 一起引入进来

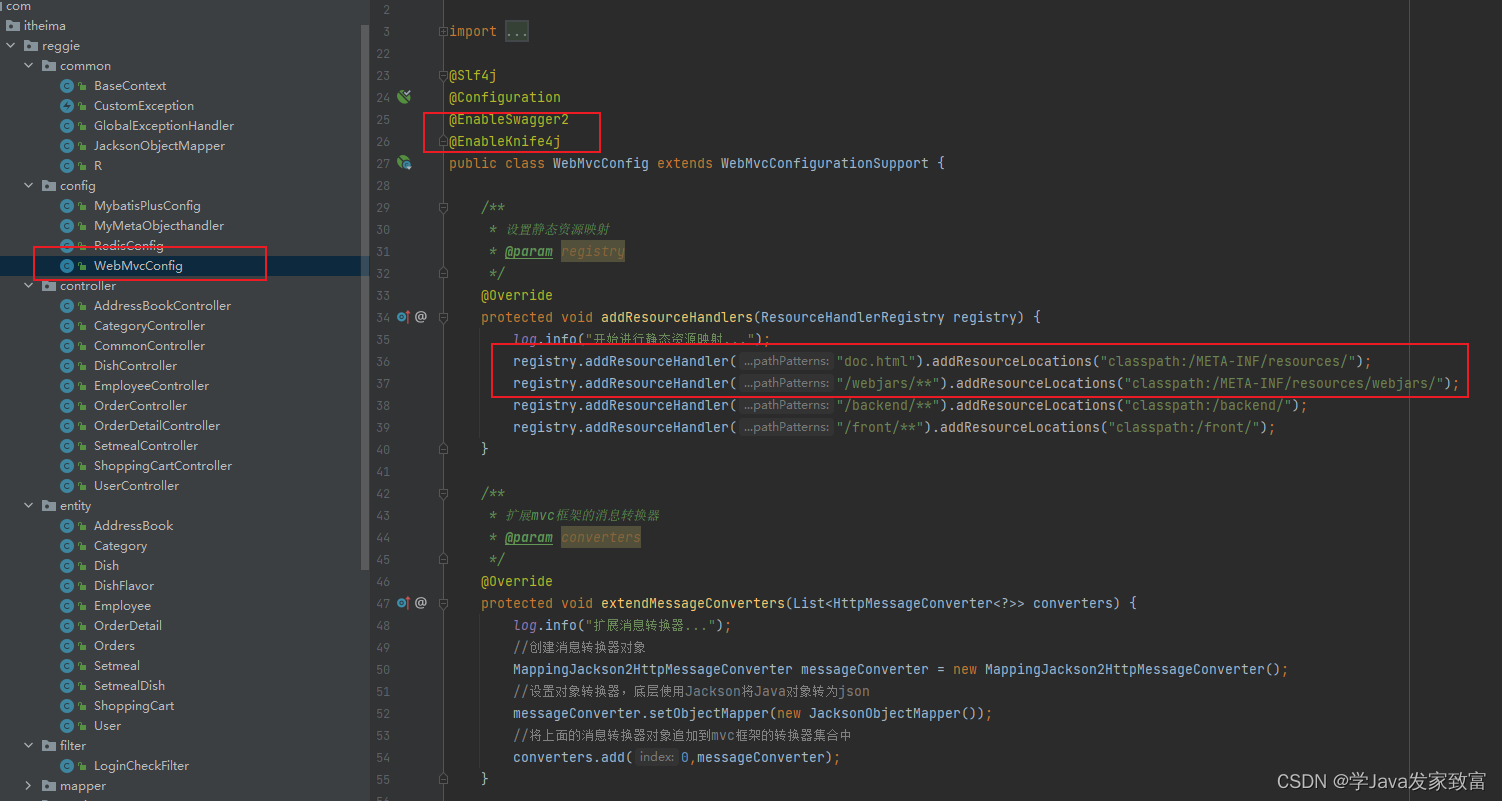

2、knife4j 配置文件

package com.itheima.reggie.config;

import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import com.itheima.reggie.common.JacksonObjectMapper;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.converter.HttpMessageConverter;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.List;

@Slf4j
@Configuration
@EnableSwagger2
@EnableKnife4j
public class WebMvcConfig extends WebMvcConfigurationSupport {

    /**
     * 设置静态资源映射
     * @param registry
     */
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        log.info("开始进行静态资源映射...");
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
        registry.addResourceHandler("/backend/**").addResourceLocations("classpath:/backend/");
        registry.addResourceHandler("/front/**").addResourceLocations("classpath:/front/");
    }

    /**
     * 扩展mvc框架的消息转换器
     * @param converters
     */
    @Override
    protected void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
        log.info("扩展消息转换器...");
        //创建消息转换器对象
        MappingJackson2HttpMessageConverter messageConverter = new MappingJackson2HttpMessageConverter();
        //设置对象转换器，底层使用Jackson将Java对象转为json
        messageConverter.setObjectMapper(new JacksonObjectMapper());
        //将上面的消息转换器对象追加到mvc框架的转换器集合中
        converters.add(0,messageConverter);
    }

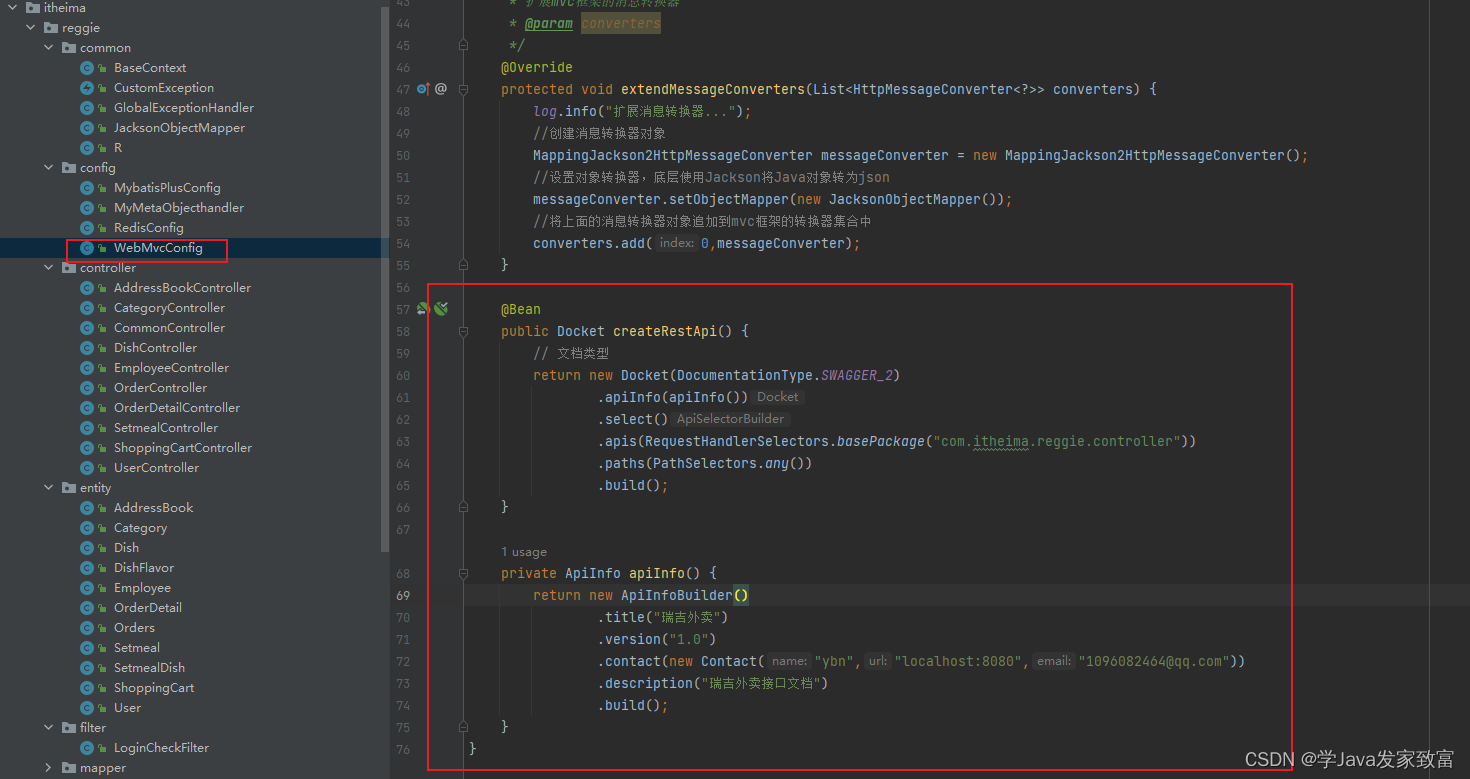

    @Bean
    public Docket createRestApi() {
        // 文档类型
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.itheima.reggie.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("瑞吉外卖")
                .version("1.0")
                .contact(new Contact("ybn","localhost:8080","1096082464@qq.com"))
                .description("瑞吉外卖接口文档")
                .build();
    }
}

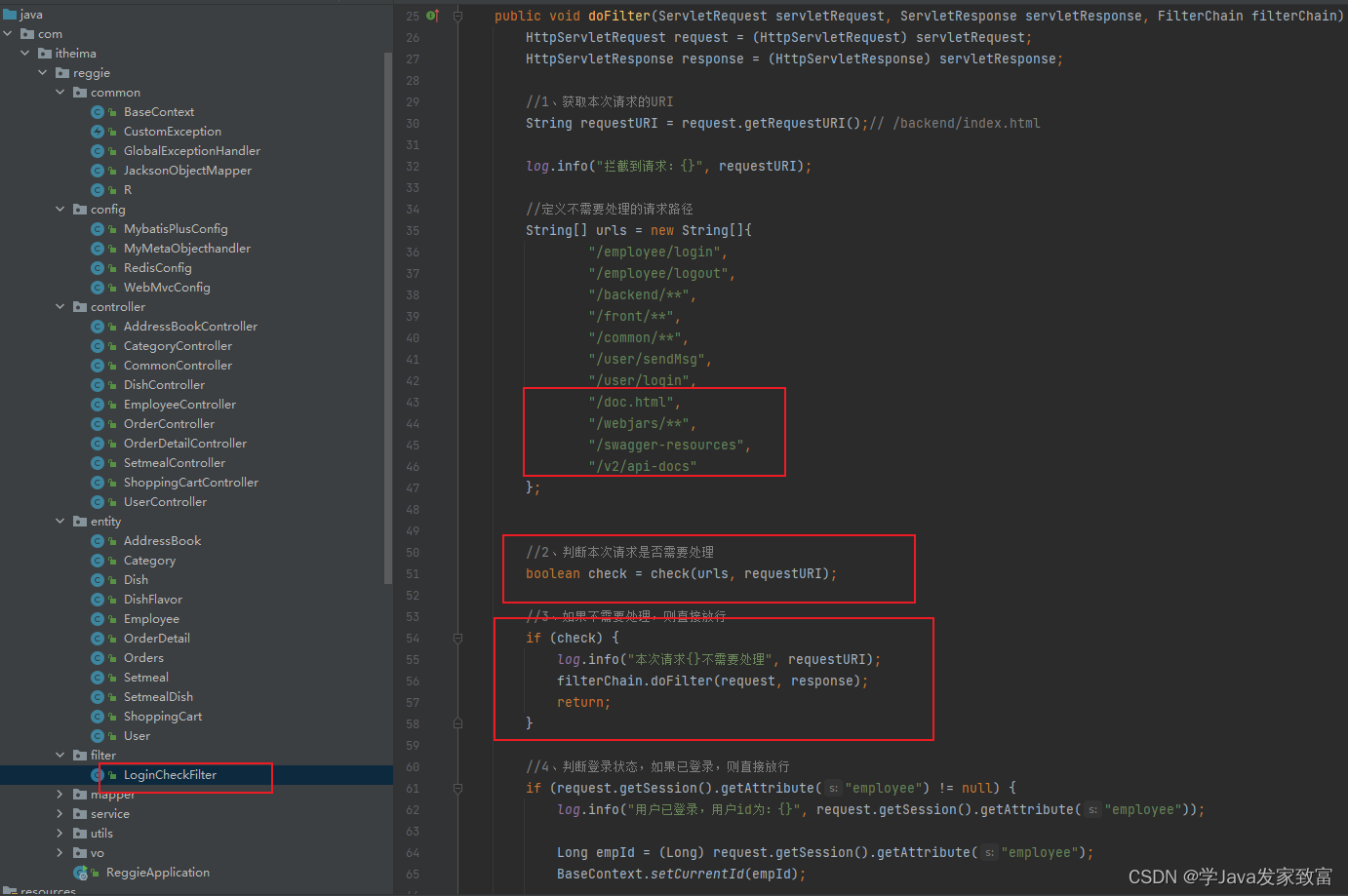

拦截器，放开请求

package com.itheima.reggie.filter;

import com.alibaba.fastjson.JSON;
import com.itheima.reggie.common.BaseContext;
import com.itheima.reggie.common.R;
import lombok.extern.slf4j.Slf4j;
import org.springframework.util.AntPathMatcher;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 检查用户是否已经完成登录
 */
@WebFilter(filterName = "loginCheckFilter", urlPatterns = "/*")
@Slf4j
public class LoginCheckFilter implements Filter {
    //路径匹配器，支持通配符
    public static final AntPathMatcher PATH_MATCHER = new AntPathMatcher();

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest) servletRequest;
        HttpServletResponse response = (HttpServletResponse) servletResponse;

        //1、获取本次请求的URI
        String requestURI = request.getRequestURI();// /backend/index.html

        log.info("拦截到请求：{}", requestURI);

        //定义不需要处理的请求路径
        String[] urls = new String[]{
                "/employee/login",
                "/employee/logout",
                "/backend/**",
                "/front/**",
                "/common/**",
                "/user/sendMsg",
                "/user/login",
                "/doc.html",
                "/webjars/**",
                "/swagger-resources",
                "/v2/api-docs"
        };


        //2、判断本次请求是否需要处理
        boolean check = check(urls, requestURI);

        //3、如果不需要处理，则直接放行
        if (check) {
            log.info("本次请求{}不需要处理", requestURI);
            filterChain.doFilter(request, response);
            return;
        }

        //4、判断登录状态，如果已登录，则直接放行
        if (request.getSession().getAttribute("employee") != null) {
            log.info("用户已登录，用户id为：{}", request.getSession().getAttribute("employee"));

            Long empId = (Long) request.getSession().getAttribute("employee");
            BaseContext.setCurrentId(empId);

            filterChain.doFilter(request, response);
            return;
        }

        /*
         * 移动端用户
         */
        if (request.getSession().getAttribute("user") != null) {
            log.info("用户已登录，用户id为：{}", request.getSession().getAttribute("user"));

            Long userId = (Long) request.getSession().getAttribute("user");
            BaseContext.setCurrentId(userId);

            filterChain.doFilter(request, response);
            return;
        }

        log.info("用户未登录");
        //5、如果未登录则返回未登录结果，通过输出流方式向客户端页面响应数据
        response.getWriter().write(JSON.toJSONString(R.error("NOTLOGIN")));
        return;

    }

    /**

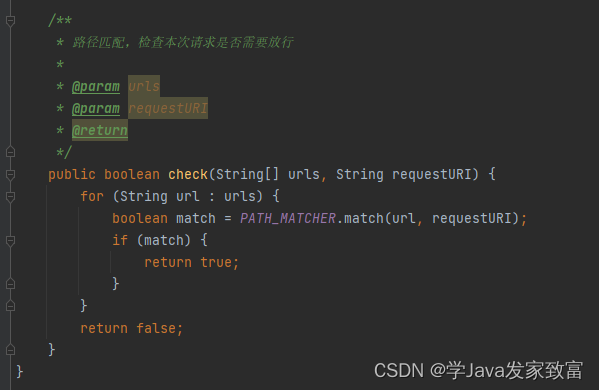

     * 路径匹配，检查本次请求是否需要放行
     *
     * @param urls
     * @param requestURI
     * @return
     */
    public boolean check(String[] urls, String requestURI) {
        for (String url : urls) {
            boolean match = PATH_MATCHER.match(url, requestURI);
            if (match) {
                return true;
            }
        }
        return false;
    }
}

4、访问文档

启动项目，访问路径

http://localhost:8080/doc.html

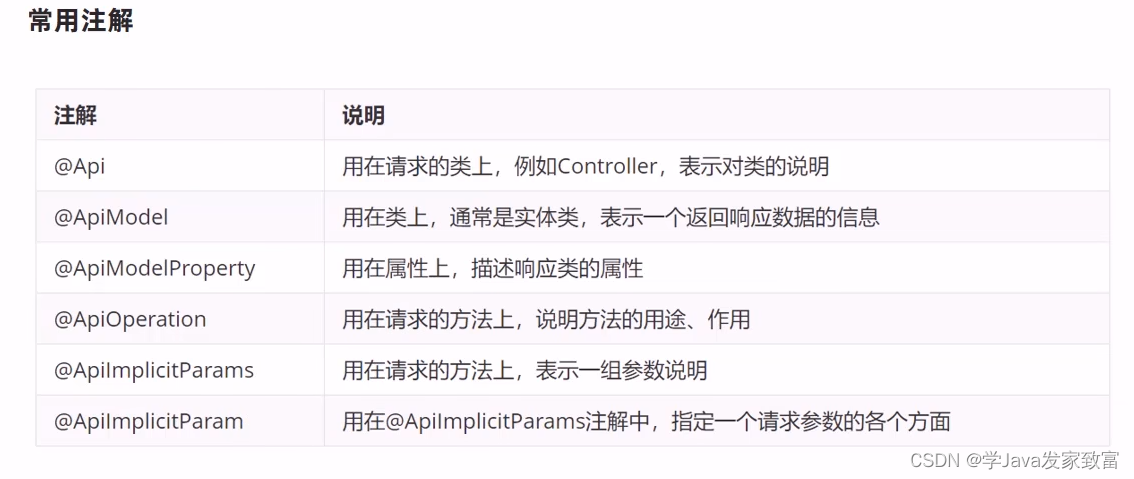

三、使用

使用注解的方式与 swagger2 是一样的

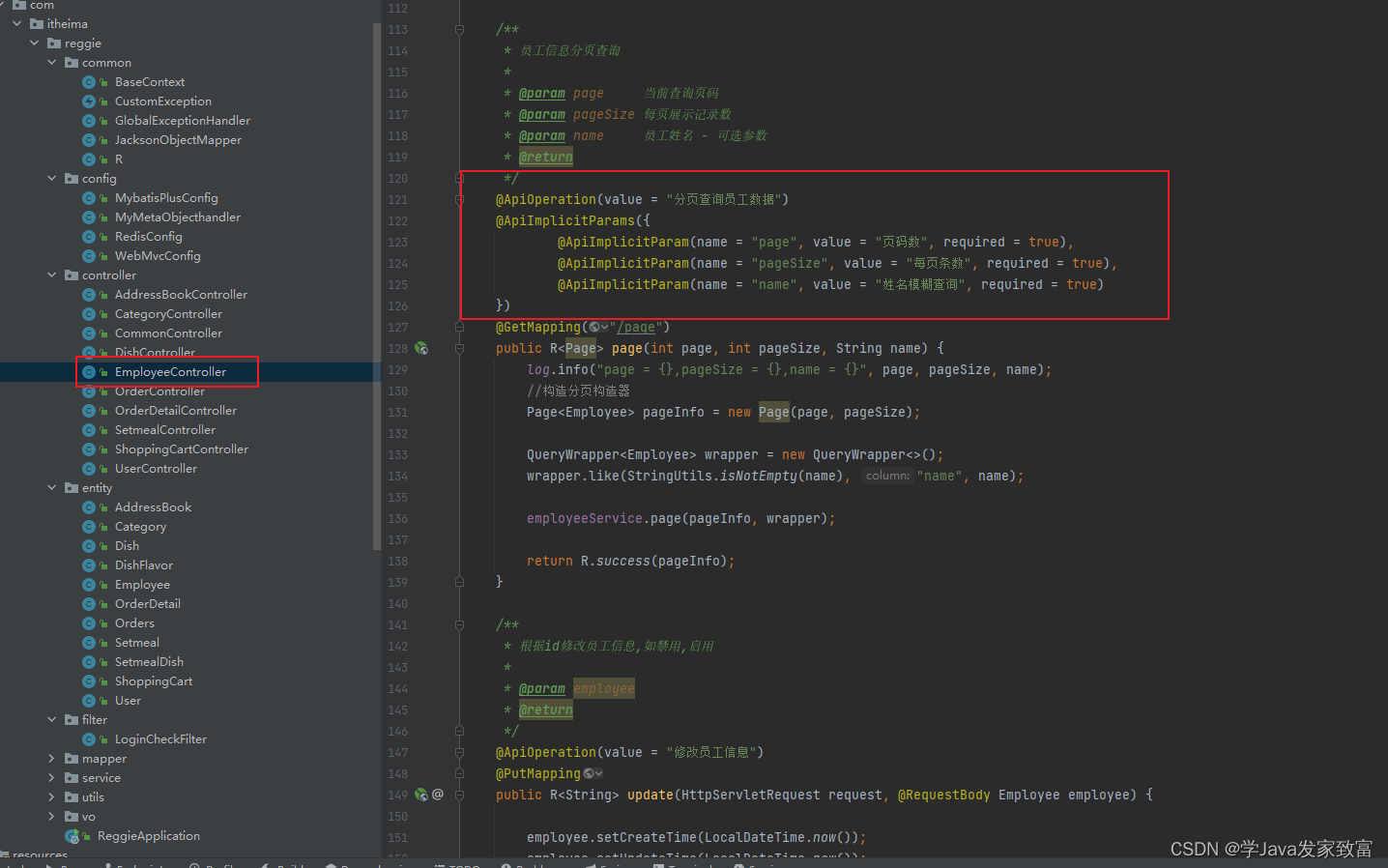

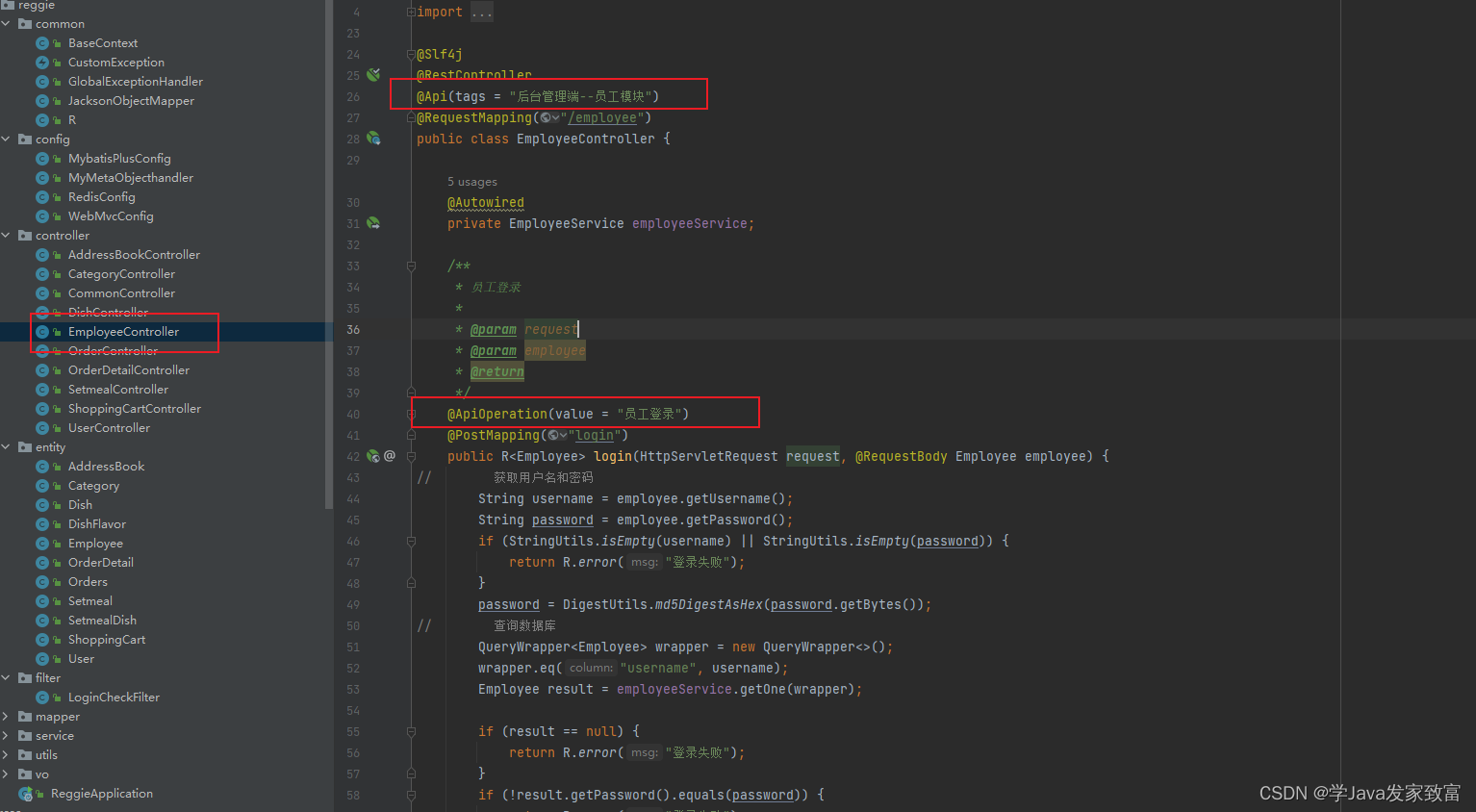

1、controller

@Api，整个类的注释
@ApiOperation，方法上的注释
@ApiImplicitParams，参数列表的注释
@ApiImplicitParam，每一个参数的注释

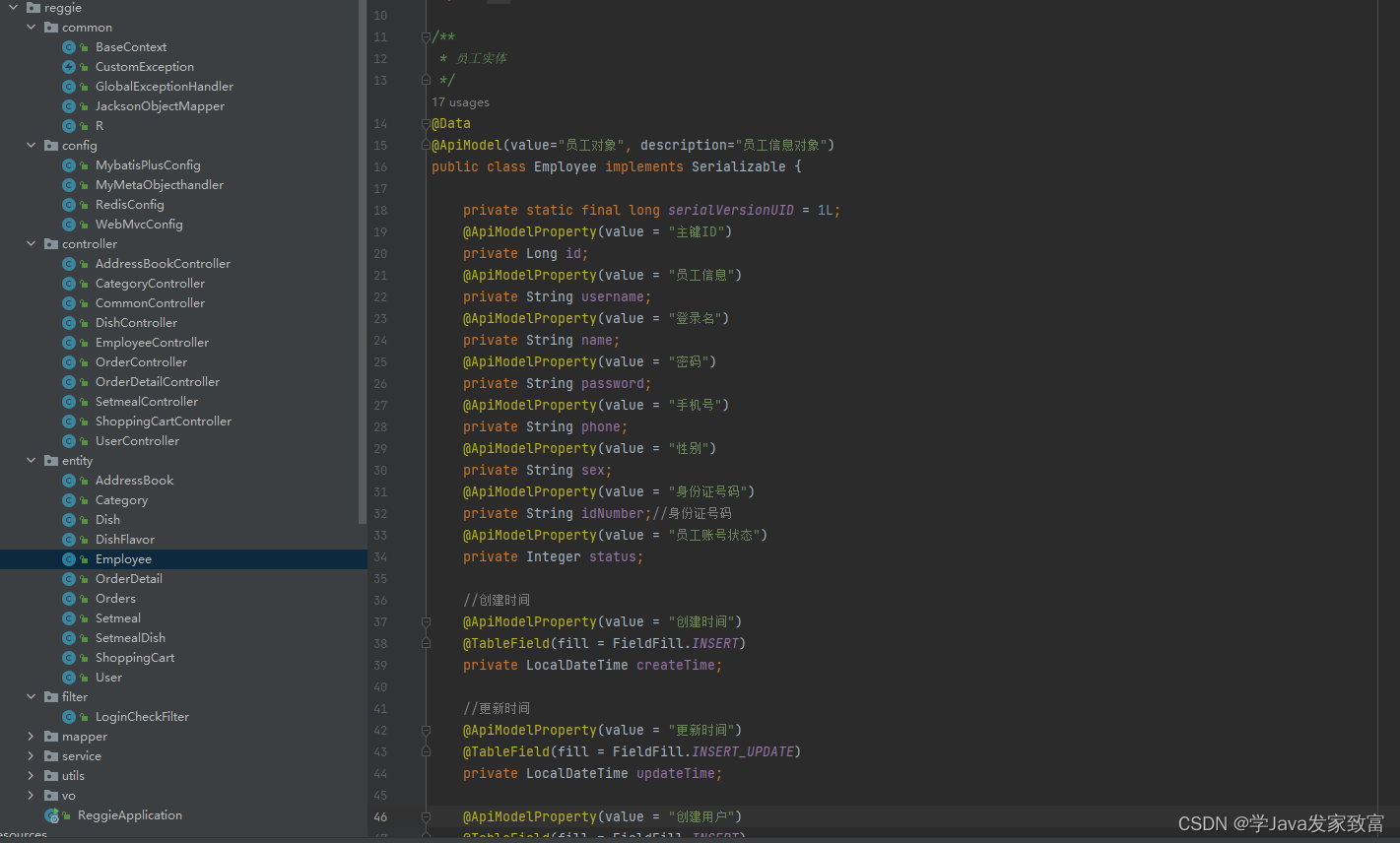

2、实体类

@ApiModel，实体类的注解
@ApiModelProperty，字段的注解

如有不足之处，请留言指出，谢谢！
