Flutter中的Scaffold组件

概述

在开始说明Scaffold组件之前，先大致讲述一下Material Design风格。Material Design也成为纸墨设计风格，是由Google退出的全新的设计语言，这种设计语言旨在为手机、平板电脑、台式机和其他平台提供更一致、更广泛的外观和感觉，它是一种非常有质感的设计风格，并会提供一些默认的交互动画。

Scaffold实现了基本的Material Design布局。只要是在Material Design中定义过的单个界面实现的布局元素，都可以使用Scaffold来绘制。

Scaffold属性

Scaffold常用的属性如下：

源码

class Scaffold extends StatefulWidget {
  const Scaffold({
    Key key,
    this.appBar,
    this.body,
    this.floatingActionButton,
    this.floatingActionButtonLocation,
    this.floatingActionButtonAnimator,
    this.persistentFooterButtons,
    this.drawer,
    this.endDrawer,
    this.bottomNavigationBar,
    this.bottomSheet,
    this.backgroundColor,
    this.resizeToAvoidBottomPadding,
    this.resizeToAvoidBottomInset,
    this.primary = true,
    this.drawerDragStartBehavior = DragStartBehavior.start,
    this.extendBody = false,
    this.drawerScrimColor,
  }) : assert(primary != null),
       assert(extendBody != null),
       assert(drawerDragStartBehavior != null),
       super(key: key);

  final bool extendBody;
  final PreferredSizeWidget appBar;
  final Widget body;
  final Widget floatingActionButton;
  final FloatingActionButtonLocation floatingActionButtonLocation;
  final FloatingActionButtonAnimator floatingActionButtonAnimator;
  final List<Widget> persistentFooterButtons;
  final Widget drawer;
  final Widget endDrawer;
  final Color drawerScrimColor;
  final Color backgroundColor;
  final Widget bottomNavigationBar;
  final Widget bottomSheet;
  @Deprecated('Use resizeToAvoidBottomInset to specify if the body should resize when the keyboard appears')
  final bool resizeToAvoidBottomPadding;
  final bool resizeToAvoidBottomInset;
  final bool primary;
  final DragStartBehavior drawerDragStartBehavior;
  static ScaffoldState of(BuildContext context, { bool nullOk = false }) {
    assert(nullOk != null);
    assert(context != null);
    final ScaffoldState result = context.ancestorStateOfType(const TypeMatcher<ScaffoldState>());
    if (nullOk || result != null)
      return result;
    throw FlutterError(
      'Scaffold.of() called with a context that does not contain a Scaffold.n'
      'No Scaffold ancestor could be found starting from the context that was passed to Scaffold.of(). '
      'This usually happens when the context provided is from the same StatefulWidget as that '
      'whose build function actually creates the Scaffold widget being sought.n'
      'There are several ways to avoid this problem. The simplest is to use a Builder to get a '
      'context that is "under" the Scaffold. For an example of this, please see the '
      'documentation for Scaffold.of():n'
      '  https://docs.flutter.io/flutter/material/Scaffold/of.htmln'
      'A more efficient solution is to split your build function into several widgets. This '
      'introduces a new context from which you can obtain the Scaffold. In this solution, '
      'you would have an outer widget that creates the Scaffold populated by instances of '
      'your new inner widgets, and then in these inner widgets you would use Scaffold.of().n'
      'A less elegant but more expedient solution is assign a GlobalKey to the Scaffold, '
      'then use the key.currentState property to obtain the ScaffoldState rather than '
      'using the Scaffold.of() function.n'
      'The context used was:n'
      '  $context'
    );
  }

  static ValueListenable<ScaffoldGeometry> geometryOf(BuildContext context) {
    final _ScaffoldScope scaffoldScope = context.inheritFromWidgetOfExactType(_ScaffoldScope);
    if (scaffoldScope == null)
      throw FlutterError(
        'Scaffold.geometryOf() called with a context that does not contain a Scaffold.n'
        'This usually happens when the context provided is from the same StatefulWidget as that '
        'whose build function actually creates the Scaffold widget being sought.n'
        'There are several ways to avoid this problem. The simplest is to use a Builder to get a '
        'context that is "under" the Scaffold. For an example of this, please see the '
        'documentation for Scaffold.of():n'
        '  https://docs.flutter.io/flutter/material/Scaffold/of.htmln'
        'A more efficient solution is to split your build function into several widgets. This '
        'introduces a new context from which you can obtain the Scaffold. In this solution, '
        'you would have an outer widget that creates the Scaffold populated by instances of '
        'your new inner widgets, and then in these inner widgets you would use Scaffold.geometryOf().n'
        'The context used was:n'
        '  $context'
      );

    return scaffoldScope.geometryNotifier;
  }
  static bool hasDrawer(BuildContext context, { bool registerForUpdates = true }) {
    assert(registerForUpdates != null);
    assert(context != null);
    if (registerForUpdates) {
      final _ScaffoldScope scaffold = context.inheritFromWidgetOfExactType(_ScaffoldScope);
      return scaffold?.hasDrawer ?? false;
    } else {
      final ScaffoldState scaffold = context.ancestorStateOfType(const TypeMatcher<ScaffoldState>());
      return scaffold?.hasDrawer ?? false;
    }
  }

  @override
  ScaffoldState createState() => ScaffoldState();
}

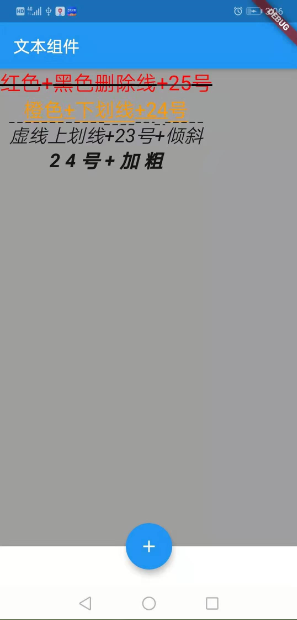

示例

class TextDemo extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return new Scaffold(
      appBar: new AppBar(
        title: new Text('文本组件'),
      ),
      backgroundColor: Colors.grey,
      bottomNavigationBar: BottomAppBar(
        child: Container(
          height: 50.0,
        ),
      ),
      floatingActionButton: FloatingActionButton(
        onPressed: () {},
        tooltip: '增加',
        child: Icon(Icons.add),
      ),
      floatingActionButtonLocation: FloatingActionButtonLocation.centerDocked,
      body: new Column(
        children: <Widget>[
          new Text(
            '红色+黑色删除线+25号',
            style: new TextStyle(
                color: const Color(0xffff0000),
                decoration: TextDecoration.lineThrough,
                decorationColor: const Color(0xff000000),
                fontSize: 25.0),
          ),
          new Text(
            '橙色+下划线+24号',
            style: new TextStyle(
              color: const Color(0xffff9900),
              decoration: TextDecoration.underline,
              fontSize: 24.0,
            ),
          ),
          new Text(
            '虚线上划线+23号+倾斜',
            style: new TextStyle(
              decoration: TextDecoration.overline,
              decorationStyle: TextDecorationStyle.dashed,
              fontSize: 23.0,
              fontStyle: FontStyle.italic,
            ),
          ),
          new Text(
            '24号+加粗',
            style: new TextStyle(
              fontSize: 23.0,
              fontStyle: FontStyle.italic,
              fontWeight: FontWeight.bold,
              letterSpacing: 6.0,
            ),
          )
        ],
      ),
    );
  }
}

最后

以上就是复杂芒果为你收集整理的Flutter中的Scaffold组件的全部内容，希望文章能够帮你解决Flutter中的Scaffold组件所遇到的程序开发问题。
