概述

1、docker 部署

1.1、docker部署nginx

（1）搜索nginx版本

	docker search nginx

（2）下拉对应版本的nginx
默认为最新版本

	docker pull nginx

（3）部署容器

	[root@localhost /] docker run --name nginx_test -p 80:80
		-v ~/nginx/conf/conf.d:/ect/nginx/conf.d
		-v ~/nginx/conf/nginx.conf:/etc/nginx/nginx.conf
		-v ~/nginx/html:/usr/share/nginx/html
		-v ~/nginx/logs:/var/log/nginx
		-d nginx

挂载文件：conf.d、nginx.conf、html文件、log/nginx日志文件
挂载地址：~/nginx/conf/（自定义位置方便修改）

（4）容器操作

	#启动容器
	docker start nginx_test
	#关闭容器
	docker stop nginx_test
	#重启容器
	docker restart nginx_test
	# 删除容器
	docker rm nginx_test # 一定要关闭容器后才能删除
	# 容器改名
	docker rename nginx_text nginx01 # 原名 nginx_test 改名 nginx01

（5）修改配置文件

1.2、docker 部署keepalived

（1）搜索keepalived版本

	docker search keepalived

（2）拉取keepalived版本
有不同的版本，根据需求选择，推荐使用人数较多的一个版本 alterway/keepalived

	docker pull alterway/keepalived

（3）部署容器
可以通过 ip address 查看网卡，设置绑定的网卡

		docker run --cap-add=NET_ADMIN --cap-add=NET_BROADCAST --cap-add=NET_RAW --net=host --name keepalive_test
		-v /etc/localtime:/etc/localtime
		-e KEEPALIVED_INTERFACE='ens33'
		-e KEEPALIVED_STATE='MASTER'
		-e KEEPALIVED_ROUTER_ID='51'
		-e KEEPALIVED_UNICAST_PEERS="#PYTHON2BASH['192.168.137.3','192.168.137.4']"
		-e KEEPALIVED_VIRTUAL_IPS='192.168.137.150'
	 	-d alterway/keepalived

       KEEPALIVED_INTERFACE='ens33' # 绑定网卡 ens33
       192.168.137.3,192.168.137.4 # 服务器 IP
       192.168.137.150 # 虚拟ip
        以上操作需要在多台服务器部署

2、linux直接部署

2.1、linux部署nginx

nginx官网下载地址

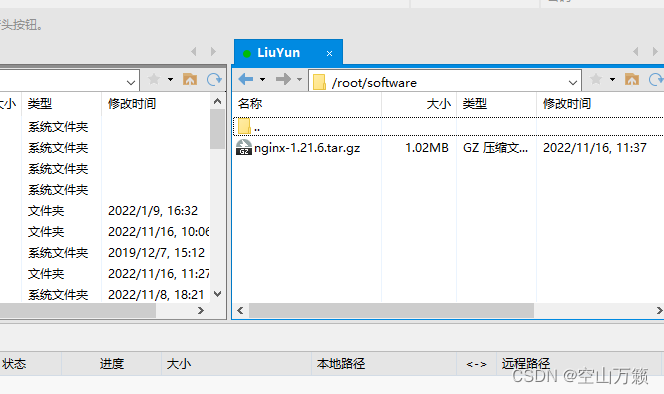

（1）通过xftp发送至linux服务器中
xftp 截图 !
（2）解压缩nginx.tar.gz文件
在当前目录，将 nginx-1.21.6.tar.gz 文件解压为 nginx 文件

	tar -zcvf nginx-1.21.6.tar.gz nginx

（3）yum安装nginx依赖
1.基础依赖： gcc 、openssl-devel、pcre-devel、zlib-devel

	 yum install -y gcc openssl-devel pcre-devel zlib-devel

Nginx的依赖包介绍安装

2.安装nginx的相关依赖

	yum -y install gcc zlib zlib-devel pcre-devel openssl openssl-devel

3.在nginx安装目录下执行如下指令：

	./configure --prefix=/usr/local/nginx
	make && make install

（4）nginx操作

	# 启动nginx
	/usr/local/nginx/sbin/nginx
	# 关闭	此方式相当于先查出nginx进程id再使用kill命令强制杀掉进程。
	/usr/local/nginx/sbin/nginx -s stop
	# 重启
	/usr/local/nginx/sbin/nginx -s reload
	# 停止 此方式停止步骤是待nginx进程处理任务完毕进行停止。
	/usr/local/nginx/sbin/nginx -s quit

2.2、linux部署keepalived

（1）下载 keepalived
keepalived官网下载
（2）解压缩 .tar.gz文件

	tar -zcvf keepalived-2.2.7.tar.gz keepalived-2.2.7

在 keepalived-2.2.7 文件夹中执行
./configure --prefix=/usr/local/keepalived
make && make install
文件会安装到 /usr/local/keepalived 文件夹下面

源文链接：Linux下Keepalived安装与配置

完成后会在以下路径生成：
/usr/local/etc/keepalived/keepalived.conf
/usr/local/etc/sysconfig/keepalived
/usr/local/sbin/keepalived

（3）初始化以及启动

# keepalived启动脚本变量引用文件，默认文件路径是/etc/sysconfig/，也可以不做软链接，直接修改启动脚本中文件路径即可（安装目录下）
[root@localhost /]# cp /usr/local/keepalived/etc/sysconfig/keepalived  /etc/sysconfig/keepalived

# 将keepalived主程序加入到环境变量（安装目录下）
[root@localhost /]# cp /usr/local/keepalived/sbin/keepalived /usr/sbin/keepalived

# keepalived启动脚本（源码目录下），放到/etc/init.d/目录下就可以使用service命令便捷调用
[root@localhost /]# cp /usr/local/src/keepalived-2.0.7/keepalived/etc/init.d/keepalived  /etc/init.d/keepalived

# 将配置文件放到默认路径下
[root@localhost /]# mkdir /etc/keepalived
[root@localhost /]# cp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf

加为系统服务：chkconfig –add keepalived
启动、关闭、重启：service keepalived start/stop/restart

启动时，若报错显示:

	Job for keepalived.service failed because the control process exited with error code. See "systemctl status keepalived.service" and "journalctl -xe" for details.

解决方法： 源文链接解决keepalived启动错误
/usr/sbin/ 中的keepalived软链接有问题，需要删除，然后重新从keepalived/sbin/目录中
将keepalived文件创建软链接到/usr/sbin目录

	rm /usr/sbin/keepalived
	ln -s /usr/local/keepalived/sbin/keepalived /usr/sbin/

再次启动就能成功服务 systemctl start keepalived

（4）修改配置文件
keepalived.conf

global_defs {
   router_id Nginx_01
}
vrrp_script check_nginx {
	script "/etc/keepalived/check_nginx.sh"
	interval 2
    weight -5
    fall 3
    rise 2
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51
    priority 150
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
     192.168.90.200
    }
    track_script {
    	check_nginx
    }
}
