NVIDIA TX2开发板的I2C(IIC)通信

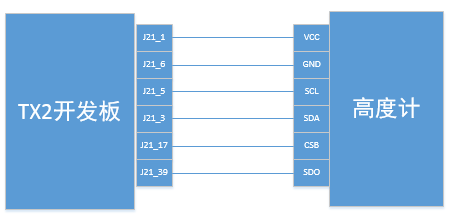

1
i2cdetect -y -r -a 1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
#include <stdio.h>
#include <stdint.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/ioctl.h>
#include "i2c.h"
#include <linux/i2c-dev.h>


#define BMP280_ADD 0x76     //高度计的地址
#define DIG_START 0x88      //温度补偿寄存器的起始地址
#define TEMP_START 0xFA     //温度测量寄存器的起始地址

#define DIGP_START 0X8E     //压强补偿寄存器的起始地址
#define PRESS_START 0XF7    //压强测量寄存器的起始地址

#define CTRL_MEAS 0xF4      //选择模式控制寄存器的地址



#define TEMP_ONLY_NORMAL_MODE 0xFF  // 111 111 11    对寄存器的读写方式

int32_t t_fine=0;

//向特定的寄存器写值，用于设置读写方式
int writeReg(int pt, unsigned char add, char value){
        unsigned char w_buff[2];
        w_buff[0] = add;
        w_buff[1] = value;
        if (write(pt, w_buff, 2) != 2){
                perror("Failed write to device");
                return 1;
        }
        return 0;
}

//从特定的寄存器中读取数据，先写地址寻找这个寄存器，然后读取寄存器中的内容
int readReg(int pt, unsigned char s_add, char buf[], int size){
        char writeBuff[1] = {s_add};
        if(write(pt, writeBuff, 1)!=1) {
                perror("Failed to reset the read addressn");
                return 1;
        }
        if(read(pt, buf, size)!=size){
                perror("Failed to read in the buffern");
                return 1;
        }
        return 0;
}

//温度补偿
float myFunc(int32_t adc_T, unsigned short dig_T1, short dig_T2, short dig_T3){
        double var1, var2, T;
        var1 = (((double)adc_T)/16384.0-((double)dig_T1)/1024.0)*((double)dig_T2);
        var2 = ((((double)adc_T)/131072.0-((double)dig_T1)/8192.0)*(((double)adc_T)/131072.0-((double)dig_T1)/8192.0))*((double)dig_T3);
        t_fine =(int32_t)(var1+var2);
	T = (var1+var2)/5120.0;
        return T;
}

//压强补偿
float myFunc_p(int32_t adc_P,unsigned short dig_P1,short dig_P2,short dig_P3,short dig_P4,short dig_P5,short dig_P6,short dig_P7,short dig_P8,short dig_P9)
{
	double var1,var2,p;
	if(t_fine==0)
		printf("t_fine is 0!The pressure measurement is not right!Please check temperament measurementn");
	var1 = ((double)t_fine/2.0)-64000.0;
	var2 = var1 * var1 * ((double)dig_P6) / 32768.0;
	var2 = var2 + var1 * ((double)dig_P5) * 2.0;
	var2 = (var2/4.0)+(((double)dig_P4) * 65536.0);
	var1 = (((double)dig_P3) * var1 * var1 / 524288.0 + ((double)dig_P2) * var1) / 524288.0;
	var1 = (1.0 + var1 / 32768.0)*((double)dig_P1);
	if (var1 == 0.0)
		return 0; // avoid exception caused by division by zero
	p=1048576.0-(double)adc_P;
	p=(p-(var2/4096.0))*6250.0/var1;
	var1=((double)dig_P9)*p*p/2147483648.0;
	var2=p*((double)dig_P8)/32768.0;
	p = p+(var1+var2+((double)dig_P7))/16.0;
	return p;

}


int main(){
        int file;
        if((file=open("/dev/i2c-1", O_RDWR)) < 0) {     //以只读方式打开i2c地址
                perror("failed to open the busn");
                return 1;
        }
        if(ioctl(file, I2C_SLAVE, BMP280_ADD) < 0) {    //让高度计作为IIC从设备
                perror("Failed to connect to the sensorn");
                return 1;
        }

        char dig_buff[6];    // temperament compensation data
        char tmp_buff[3];    // temperament data
	char digp_buff[18];  // pressure compensation data
	char pre_buff[3];    //pressure data

        if(writeReg(file, CTRL_MEAS, TEMP_ONLY_NORMAL_MODE)==1){
                return 1;
        }
	//读取温度计的值
        if(readReg(file, DIG_START, dig_buff, 6)==1){
                return 1;
        }
        if(readReg(file, TEMP_START, tmp_buff, 3)==1){
                return 1;
        }
	//读取压强的值

        if(readReg(file, DIGP_START, digp_buff, 18)==1){
                return 1;
        }
        if(readReg(file, PRESS_START, pre_buff, 3)==1){
                return 1;
        }

	close(file);

        printf("temperament:n");
        int i;
        for (i=0; i<6; i++){
                printf("%02x ",dig_buff[i]);
        }
        printf("n");
        for (i=0; i<3; i++){
                printf("%02x ",tmp_buff[i]);
        }
	printf("n");
        printf("pressure:n");
	for (i=0;i<18;i++){
		printf("%02x ",digp_buff[i]);
	}
	printf("n");
	for(i=0;i<3;i++){
		printf("%02x ",pre_buff[i]);
	}
	printf("n");
	//temperament
        int adc_T = ((tmp_buff[0]<<16)|(tmp_buff[1]<<8)|(tmp_buff[2]))>>4;
        //pressure
	int adc_P = ((pre_buff[0]<<16)|(pre_buff[1]<<8)|(pre_buff[2]))>>4;

	// for temperament
        unsigned short dig_T1 = (dig_buff[1]<<8)|(dig_buff[0]);
        short dig_T2 = (dig_buff[3]<<8)|(dig_buff[2]);
        short dig_T3 = (dig_buff[5]<<8)|(dig_buff[4]);

	// for pressure
        unsigned short dig_P1 = (digp_buff[1]<<8)|(digp_buff[0]);
        short dig_P2 = (digp_buff[3]<<8)|(digp_buff[2]);
        short dig_P3 = (digp_buff[5]<<8)|(digp_buff[4]);
        short dig_P4 = (digp_buff[7]<<8)|(digp_buff[6]);
        short dig_P5 = (digp_buff[9]<<8)|(digp_buff[8]);
        short dig_P6 = (digp_buff[11]<<8)|(digp_buff[10]);
        short dig_P7 = (digp_buff[13]<<8)|(digp_buff[12]);
        short dig_P8 = (digp_buff[15]<<8)|(digp_buff[14]);
        short dig_P9 = (digp_buff[17]<<8)|(digp_buff[16]);

	printf("adc_T is : %d n", adc_T);
        printf("dig_T1 is : %d n", dig_T1);
        printf("dig_T2 is : %d n", dig_T2);
        printf("dig_T3 is : %d n", dig_T3);
        printf("Temperature is : %f DegCn", myFunc(adc_T, dig_T1, dig_T2, dig_T3));

	printf("adc_P is : %d n", adc_P);
        printf("dig_P1 is : %d n", dig_P1);
        printf("dig_P2 is : %d n", dig_P2);
        printf("dig_P3 is : %d n", dig_P3);
        printf("dig_P4 is : %d n", dig_P4);
        printf("dig_P5 is : %d n", dig_P5);
        printf("dig_P6 is : %d n", dig_P6);
        printf("dig_P7 is : %d n", dig_P7);
        printf("dig_P8 is : %d n", dig_P8);
        printf("dig_P9 is : %d n", dig_P9);
	printf("pressure is :%f KPan",myFunc_p(adc_P,dig_P1,dig_P2,dig_P3,dig_P4,dig_P5,dig_P6,dig_P7,dig_P8,dig_P9)/1000.0);

	return 0;
}
