STM32Cube MX USB虚拟U盘+FATFS+W25Q128

110 阅读 0 评论 73 点赞

我是靠谱客的博主奋斗小懒虫，这篇文章主要介绍STM32Cube MX USB虚拟U盘+FATFS+W25Q128，现在分享给大家，希望可以做个参考。

第一次写CSDN，把这两天做的一个小实验记个笔记。写的不好请见谅，有错误欢迎指正，欢迎讨论。在做之前也参考其他博主的一些文章Carry_王的博客
USB基本概念不做介绍，不懂的可以先去了解，主要说明实现过程。

一、硬件

STM32F407 开发板，包括外部FLASH w25q128 （16MB）
通过USB数据线连接板子USB SLAVE接口与PC端

二、实现内容

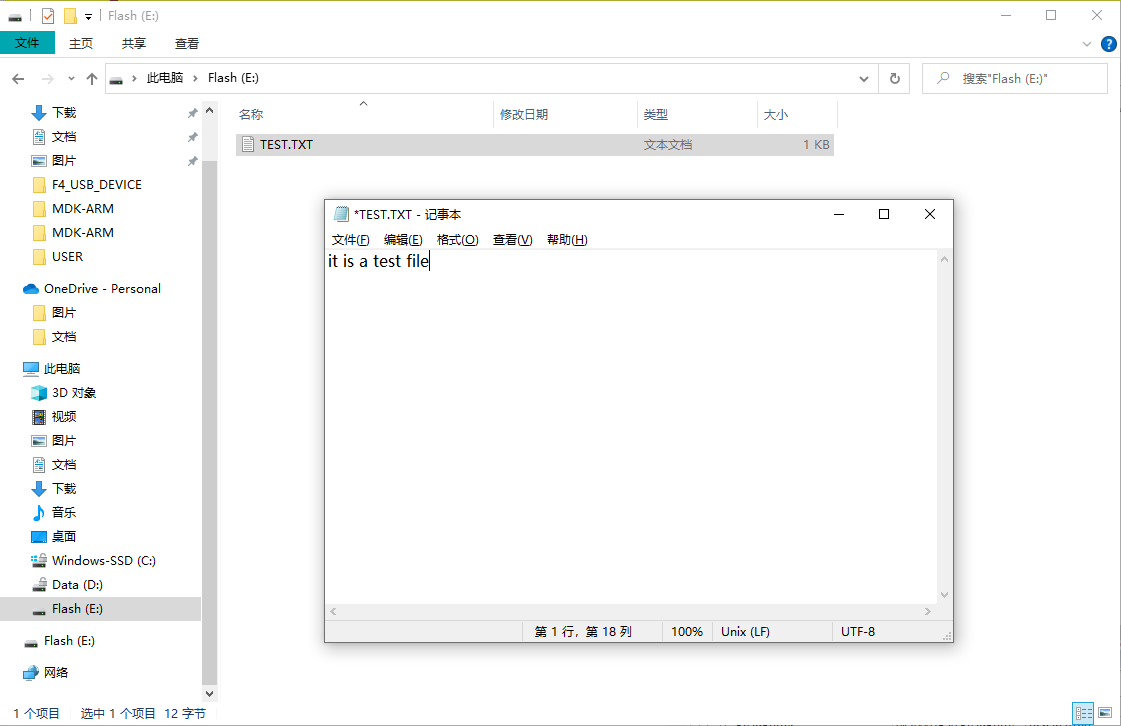

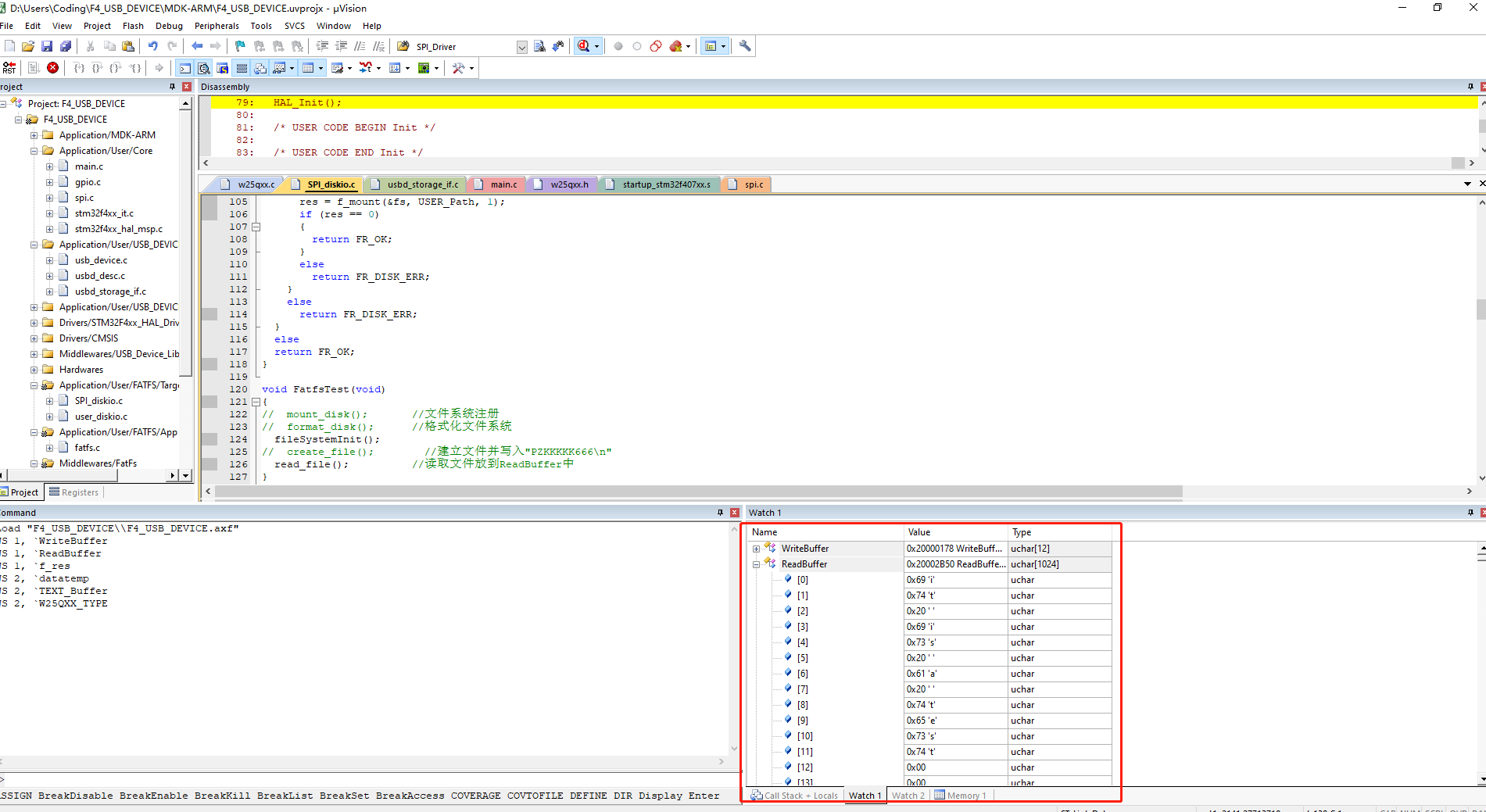

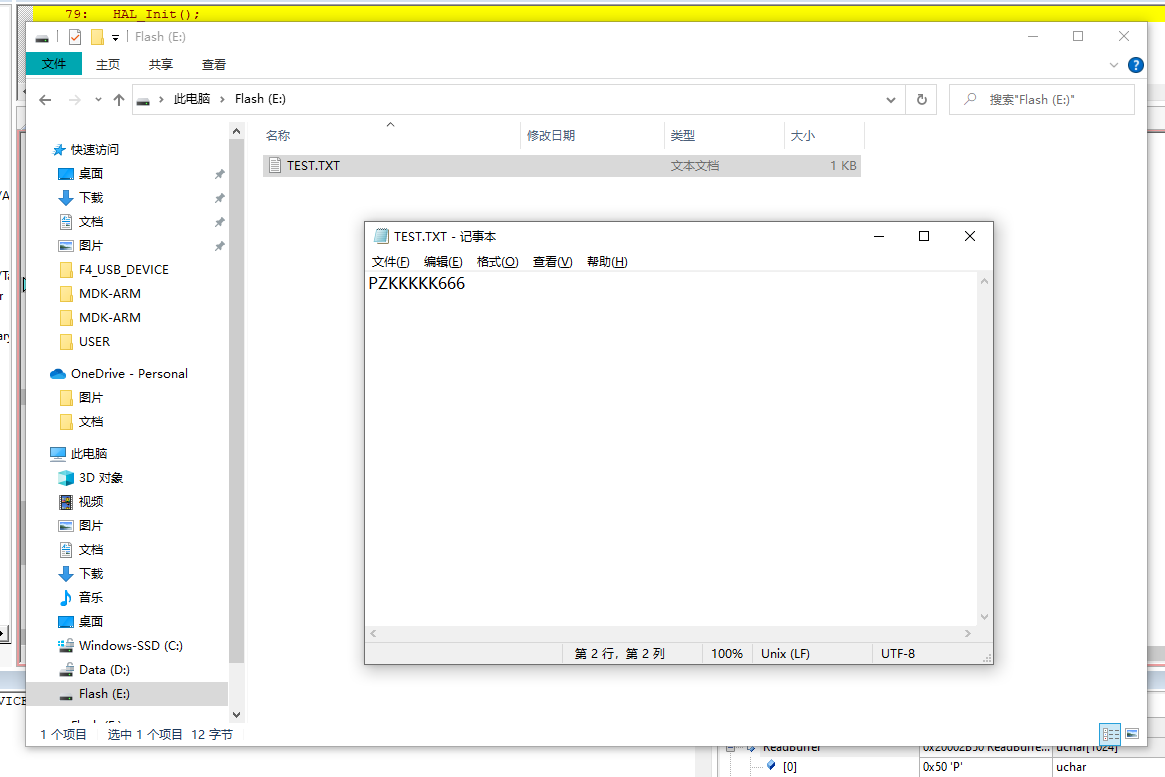

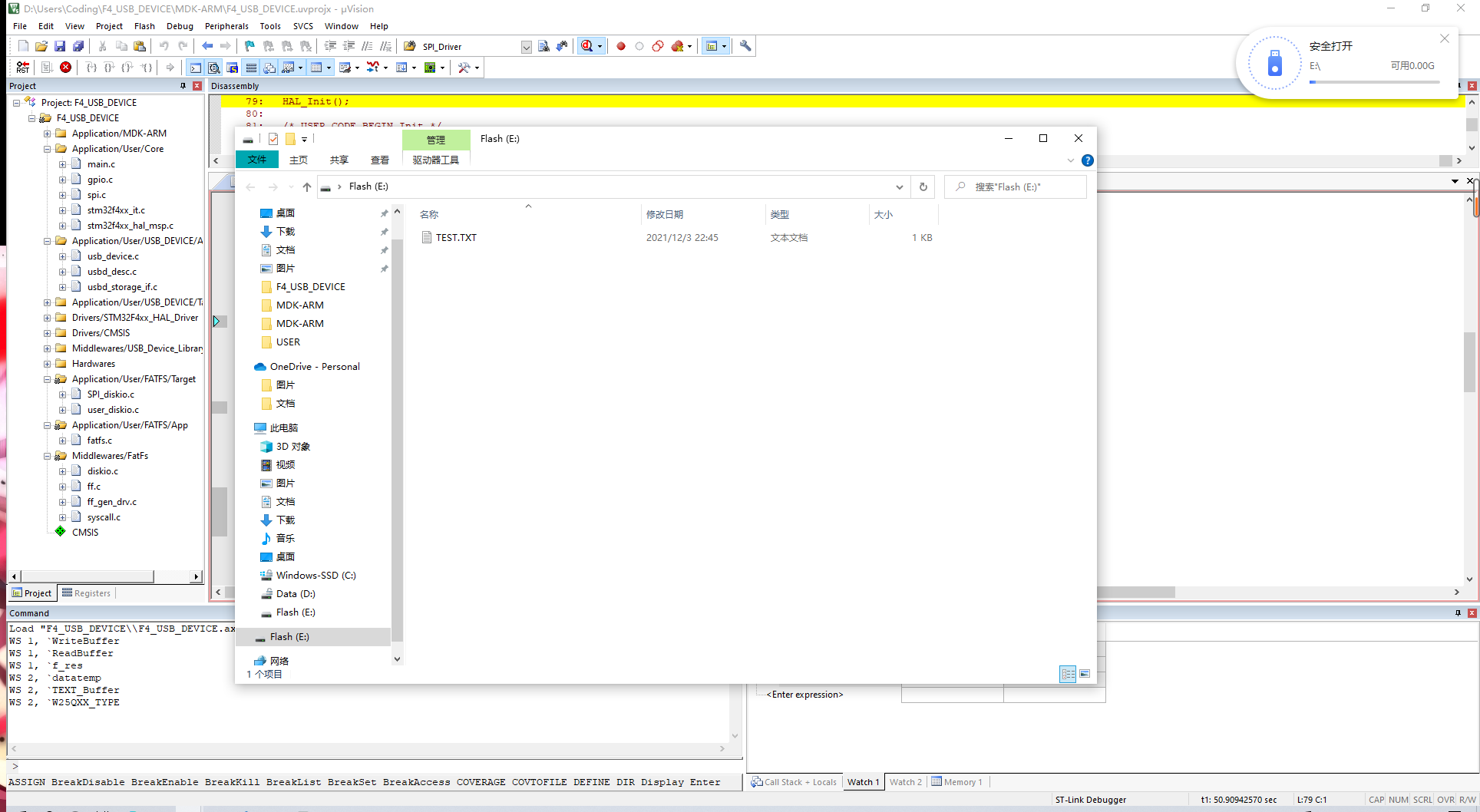

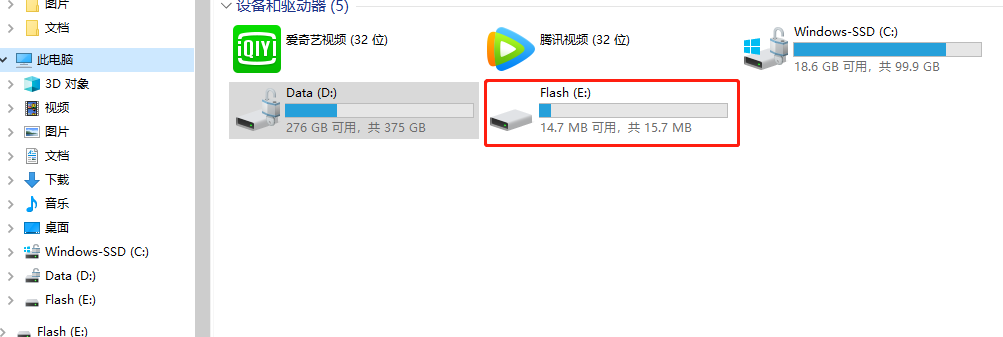

片外FLASH虚拟U盘，利用文件系统对FLASH芯片进行读写操作，同时PC端也可对U盘内文件进行操作。后面测试结果会有详细说明。下面直接上具体操作。

三、CubeMX配置

STM32CubeMX版本6.3.0

1.选择芯片

STM32F407ZGTX

2.RCC和SYS

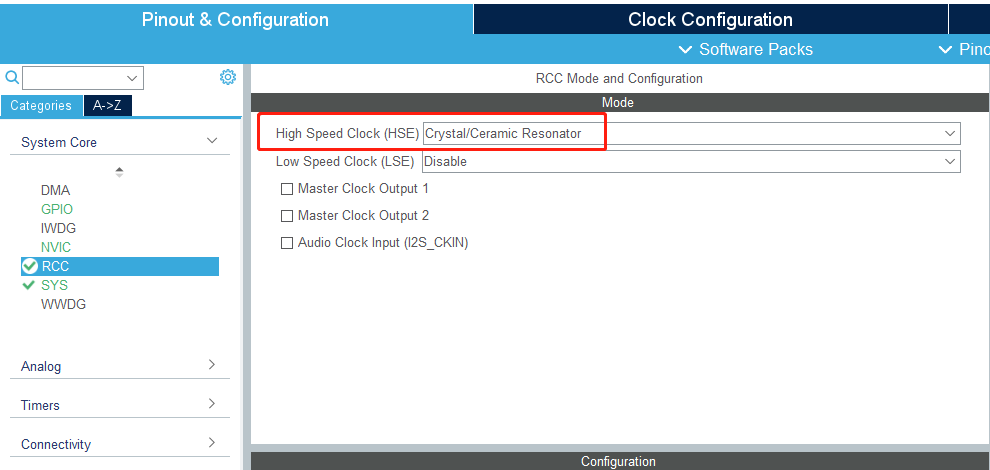

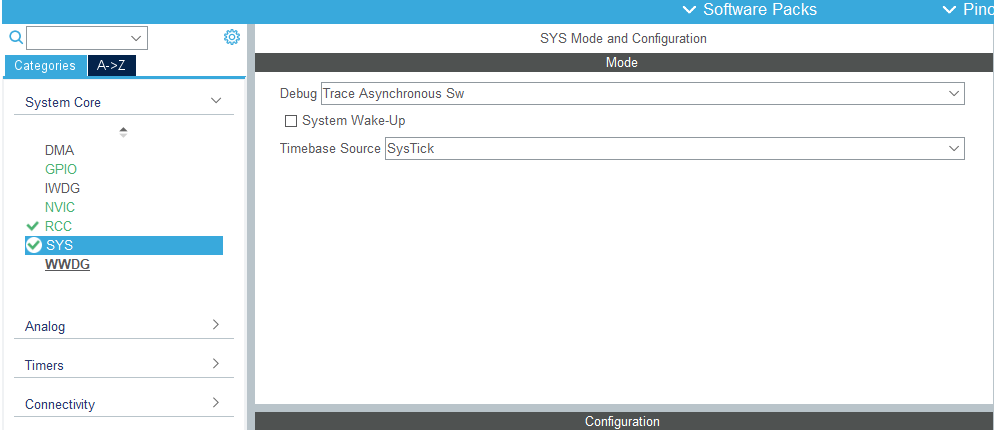

在这里插入图片描述

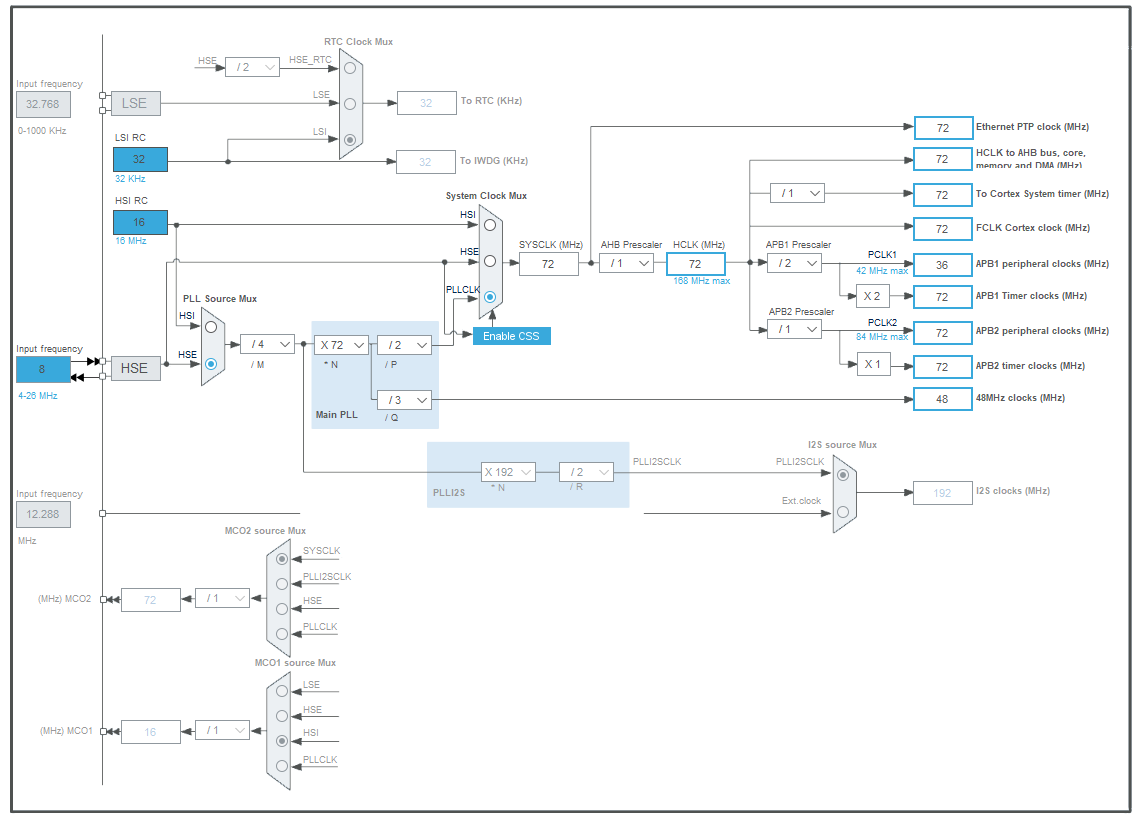

3.时钟树配置 在这里插入图片描述
4.SPI

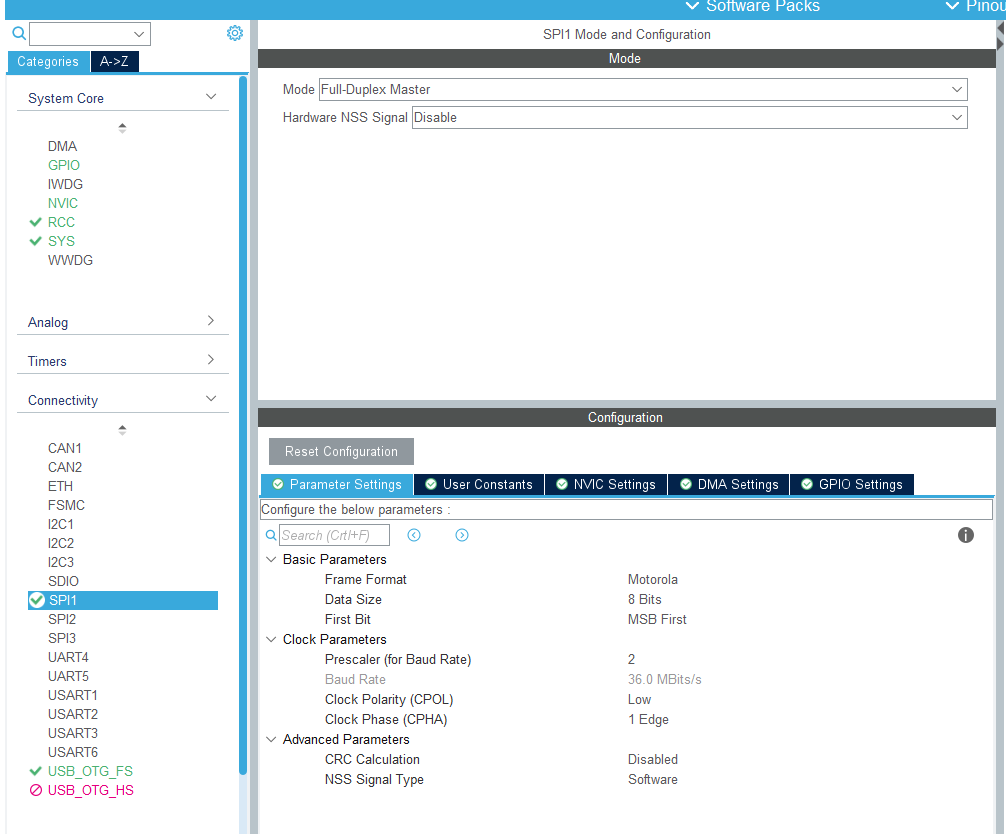

请添加图片描述

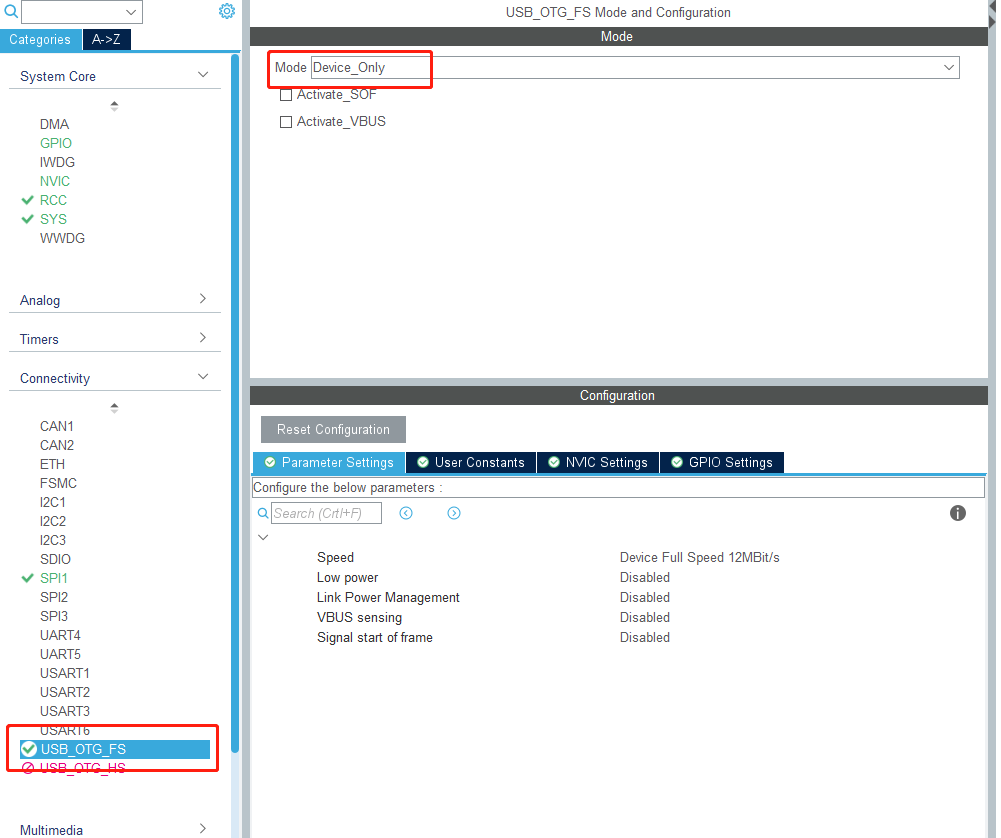

5.USB_OTG_FS(默认即可）
模式选择 Device_Only

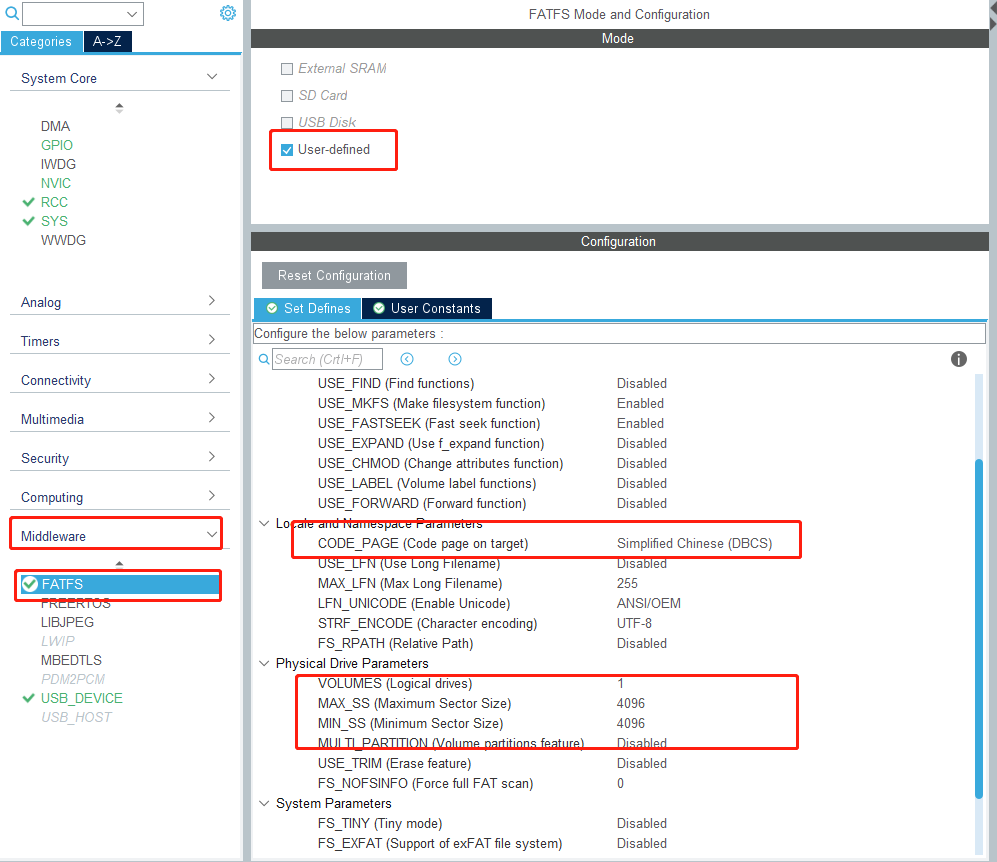

6.FATFS
修改过的地方已经标出，按照图配置即可

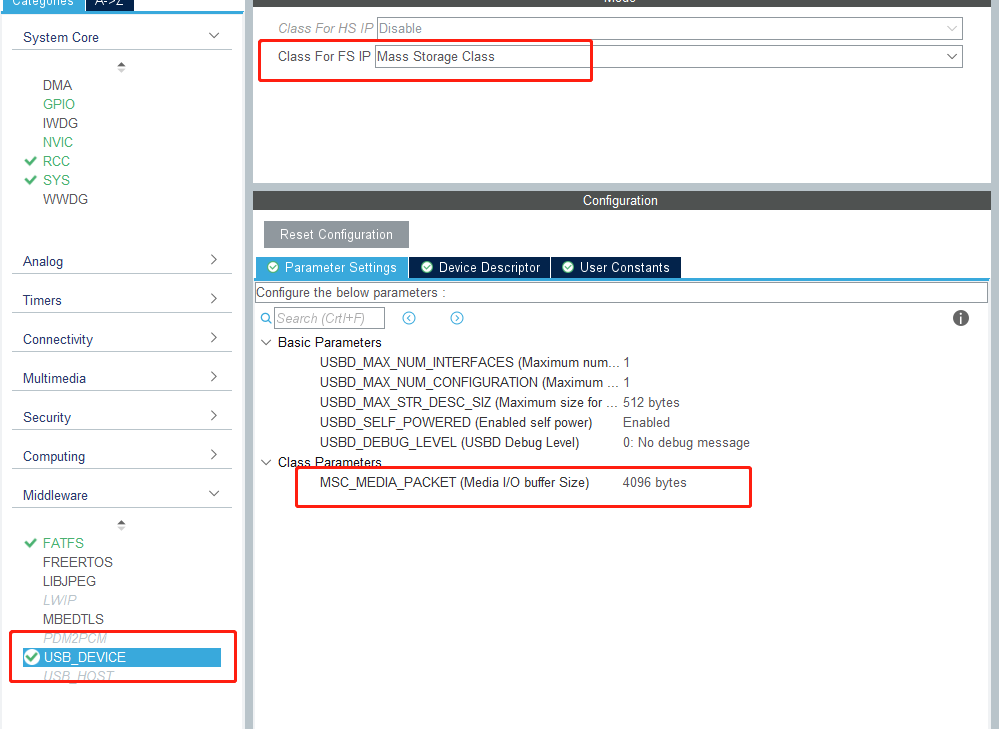

7.USB_DEVICE
请添加图片描述

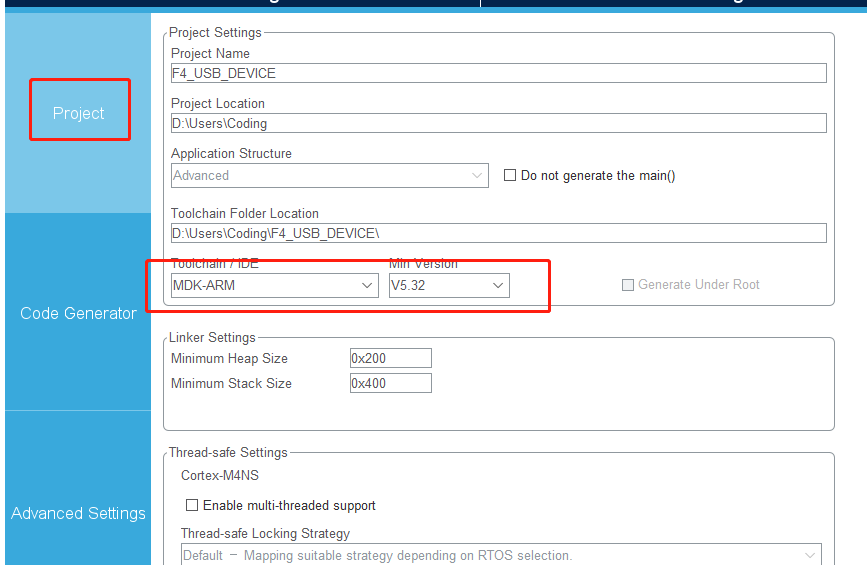

8.生成代码

四、代码修改

CubeMX创建基础工程生成代码，直接打开。
1.首先添加Flash芯片的驱动文件，直接把我的贴出来，注释比较详细
w25qxx.c

复制代码

#include "w25qxx.h"
#include "spi.h"
#include "stm32f4xx_hal_gpio.h"
#include "stm32f4xx_hal_def.h"

uint16_t W25QXX_TYPE=W25Q128;	//默认是W25Q128
uint8_t SPI1_ReadWriteByte(uint8_t TxData);
//4Kbytes为一个Sector
//16个扇区为1个Block
//W25Q128
//容量为16M字节,共有512个Block,4096个Sector

//初始化SPI FLASH的IO口
HAL_StatusTypeDef W25QXX_Init(void)
{
	HAL_StatusTypeDef r = HAL_ERROR;
  uint8_t temp;
	W25QXX_CS_H();			                  //SPI FLASH不选中
//	MX_SPI1_Init();		   			            //初始化SPI
//	SPI1_SetSpeed(SPI_BAUDRATEPRESCALER_4); //设置为21M时钟,高速模式
	W25QXX_TYPE=W25QXX_ReadID();	        //读取FLASH ID.
    if(W25QXX_TYPE==W25Q128)                //SPI FLASH为W25Q256
    {
        temp=W25QXX_ReadSR(3);              //读取状态寄存器3，判断地址模式
        if((temp&0X01)==0)			          //如果不是4字节地址模式,则进入4字节地址模式
				{
					W25QXX_CS_L(); 			                //选中
					SPI1_ReadWriteByte(W25X_Enable4ByteAddr);//发送进入4字节地址模式指令
					W25QXX_CS_H();       		        //取消片选
				}
				r = HAL_OK;;
    }
		return r;
}

//读取W25QXX的状态寄存器，W25QXX一共有3个状态寄存器
//状态寄存器1：
//BIT7  6   5   4   3   2   1   0
//SPR   RV  TB BP2 BP1 BP0 WEL BUSY
//SPR:默认0,状态寄存器保护位,配合WP使用
//TB,BP2,BP1,BP0:FLASH区域写保护设置
//WEL:写使能锁定
//BUSY:忙标记位(1,忙;0,空闲)
//默认:0x00
//状态寄存器2：
//BIT7  6   5   4   3   2   1   0
//SUS   CMP LB3 LB2 LB1 (R) QE  SRP1
//状态寄存器3：
//BIT7      6    5    4   3   2   1   0
//HOLD/RST  DRV1 DRV0 (R) (R) WPS ADP ADS
//regno:状态寄存器号，范:1~3
//返回值:状态寄存器值
uint8_t W25QXX_ReadSR(uint8_t regno)
{
	uint8_t byte=0,command=0;
    switch(regno)
    {
        case 1:
            command=W25X_ReadStatusReg1;    //读状态寄存器1指令
            break;
        case 2:
            command=W25X_ReadStatusReg2;    //读状态寄存器2指令
            break;
        case 3:
            command=W25X_ReadStatusReg3;    //读状态寄存器3指令
            break;
        default:
            command=W25X_ReadStatusReg1;
            break;
    }
	W25QXX_CS_L();                            //使能器件
	SPI1_ReadWriteByte(command);            //发送读取状态寄存器命令
	byte=SPI1_ReadWriteByte(0Xff);          //读取一个字节
	W25QXX_CS_H();                            //取消片选
	return byte;
}
//写W25QXX状态寄存器
void W25QXX_Write_SR(uint8_t regno,uint8_t sr)
{
    uint8_t command=0;
    switch(regno)
    {
        case 1:
            command=W25X_WriteStatusReg1;    //写状态寄存器1指令
            break;
        case 2:
            command=W25X_WriteStatusReg2;    //写状态寄存器2指令
            break;
        case 3:
            command=W25X_WriteStatusReg3;    //写状态寄存器3指令
            break;
        default:
            command=W25X_WriteStatusReg1;
            break;
    }
	W25QXX_CS_L();                            //使能器件
	SPI1_ReadWriteByte(command);            //发送写取状态寄存器命令
	SPI1_ReadWriteByte(sr);                 //写入一个字节
	W25QXX_CS_H();                            //取消片选
}
//W25QXX写使能
//将WEL置位
void W25QXX_Write_Enable(void)
{
	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_WriteEnable);   //发送写使能
	W25QXX_CS_H();                            //取消片选
}
//W25QXX写禁止
//将WEL清零
void W25QXX_Write_Disable(void)
{
	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_WriteDisable);  //发送写禁止指令
	W25QXX_CS_H();                            //取消片选
}

//读取芯片ID
//返回值如下:
//0XEF13,表示芯片型号为W25Q80
//0XEF14,表示芯片型号为W25Q16
//0XEF15,表示芯片型号为W25Q32
//0XEF16,表示芯片型号为W25Q64
//0XEF17,表示芯片型号为W25Q128
//0XEF18,表示芯片型号为W25Q256
uint16_t W25QXX_ReadID(void)
{
	uint16_t Temp = 0;
	W25QXX_CS_L();
	SPI1_ReadWriteByte(0x90);//发送读取ID命令
	SPI1_ReadWriteByte(0x00);
	SPI1_ReadWriteByte(0x00);
	SPI1_ReadWriteByte(0x00);
	Temp|=SPI1_ReadWriteByte(0xFF)<<8;
	Temp|=SPI1_ReadWriteByte(0xFF);
	W25QXX_CS_H();
	return Temp;
}
//读取SPI FLASH
//在指定地址开始读取指定长度的数据
//pBuffer:数据存储区
//ReadAddr:开始读取的地址(24bit)
//NumByteToRead:要读取的字节数(最大65535)
void W25QXX_Read(uint8_t* pBuffer,uint32_t ReadAddr,uint16_t NumByteToRead)
{
 	uint16_t i;
	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_ReadData);      //发送读取命令
    if(W25QXX_TYPE==W25Q256)                //如果是W25Q256的话地址为4字节的，要发送最高8位
    {
        SPI1_ReadWriteByte((uint8_t)((ReadAddr)>>24));
    }
    SPI1_ReadWriteByte((uint8_t)((ReadAddr)>>16));   //发送24bit地址
    SPI1_ReadWriteByte((uint8_t)((ReadAddr)>>8));
    SPI1_ReadWriteByte((uint8_t)ReadAddr);
    for(i=0;i<NumByteToRead;i++)
	{
        pBuffer[i]=SPI1_ReadWriteByte(0XFF);    //循环读数
    }
	W25QXX_CS_H();
}
//SPI在一页(0~65535)内写入少于256个字节的数据
//在指定地址开始写入最大256字节的数据
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大256),该数不应该超过该页的剩余字节数!!!
void W25QXX_Write_Page(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
 	uint16_t i;
    W25QXX_Write_Enable();                  //SET WEL
	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_PageProgram);   //发送写页命令
    if(W25QXX_TYPE==W25Q256)                //如果是W25Q256的话地址为4字节的，要发送最高8位
    {
        SPI1_ReadWriteByte((uint8_t)((WriteAddr)>>24));
    }
    SPI1_ReadWriteByte((uint8_t)((WriteAddr)>>16)); //发送24bit地址
    SPI1_ReadWriteByte((uint8_t)((WriteAddr)>>8));
    SPI1_ReadWriteByte((uint8_t)WriteAddr);
    for(i=0;i<NumByteToWrite;i++)SPI1_ReadWriteByte(pBuffer[i]);//循环写数
	W25QXX_CS_H();                            //取消片选
	W25QXX_Wait_Busy();					   //等待写入结束
}
//无检验写SPI FLASH
//必须确保所写的地址范围内的数据全部为0XFF,否则在非0XFF处写入的数据将失败!
//具有自动换页功能
//在指定地址开始写入指定长度的数据,但是要确保地址不越界!
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大65535)
//CHECK OK
void W25QXX_Write_NoCheck(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
	uint16_t pageremain;
	pageremain=256-WriteAddr%256; //单页剩余的字节数
	if(NumByteToWrite<=pageremain)pageremain=NumByteToWrite;//不大于256个字节
	while(1)
	{
		W25QXX_Write_Page(pBuffer,WriteAddr,pageremain);
		if(NumByteToWrite==pageremain)break;//写入结束了
	 	else //NumByteToWrite>pageremain
		{
			pBuffer+=pageremain;
			WriteAddr+=pageremain;

NumByteToWrite-=pageremain;			  //减去已经写入了的字节数
			if(NumByteToWrite>256)pageremain=256; //一次可以写入256个字节
			else pageremain=NumByteToWrite; 	  //不够256个字节了
		}
	};
}
//写SPI FLASH
//在指定地址开始写入指定长度的数据
//该函数带擦除操作!
//pBuffer:数据存储区
//WriteAddr:开始写入的地址(24bit)
//NumByteToWrite:要写入的字节数(最大65535)
uint8_t W25QXX_BUFFER[4096];
void W25QXX_Write(uint8_t* pBuffer,uint32_t WriteAddr,uint16_t NumByteToWrite)
{
	uint32_t secpos;
	uint16_t secoff;
	uint16_t secremain;
 	uint16_t i;
	uint8_t * W25QXX_BUF;
   	W25QXX_BUF=W25QXX_BUFFER;
 	secpos=WriteAddr/4096;//扇区地址
	secoff=WriteAddr%4096;//在扇区内的偏移
	secremain=4096-secoff;//扇区剩余空间大小
// 	printf("ad:%X,nb:%Xrn",WriteAddr,NumByteToWrite);//测试用
 	if(NumByteToWrite<=secremain)secremain=NumByteToWrite;//不大于4096个字节
	while(1)
	{
		W25QXX_Read(W25QXX_BUF,secpos*4096,4096);//读出整个扇区的内容
		for(i=0;i<secremain;i++)//校验数据
		{
			if(W25QXX_BUF[secoff+i]!=0XFF)
				break;//需要擦除
		}
		if(i<secremain)//需要擦除
		{
			W25QXX_Erase_Sector(secpos);//擦除这个扇区
			for(i=0;i<secremain;i++)	   //复制
			{
				W25QXX_BUF[i+secoff]=pBuffer[i];
			}
			W25QXX_Write_NoCheck(W25QXX_BUF,secpos*4096,4096);//写入整个扇区

}else
		    W25QXX_Write_NoCheck(pBuffer,WriteAddr,secremain);//写已经擦除了的,直接写入扇区剩余区间.
		if(NumByteToWrite==secremain)
			break;//写入结束了
		else//写入未结束
		{
			secpos++;//扇区地址增1
			secoff=0;//偏移位置为0

pBuffer+=secremain;  //指针偏移
			WriteAddr+=secremain;//写地址偏移
		   	NumByteToWrite-=secremain;				//字节数递减
			if(NumByteToWrite>4096)
				secremain=4096;	//下一个扇区还是写不完
			else
				secremain=NumByteToWrite;			//下一个扇区可以写完了
		}
	};
}
//擦除整个芯片
//等待时间超长...
void W25QXX_Erase_Chip(void)
{
    W25QXX_Write_Enable();                  //SET WEL
    W25QXX_Wait_Busy();
  	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_ChipErase);        //发送片擦除命令
	W25QXX_CS_H();                            //取消片选
	W25QXX_Wait_Busy();   				   //等待芯片擦除结束
}
//擦除一个扇区
//Dst_Addr:扇区地址 根据实际容量设置
//擦除一个扇区的最少时间:150ms
void W25QXX_Erase_Sector(uint32_t Dst_Addr)
{
	//监视falsh擦除情况,测试用
 	//printf("fe:%xrn",Dst_Addr);
 	Dst_Addr*=4096;
    W25QXX_Write_Enable();                  //SET WEL
    W25QXX_Wait_Busy();
  	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_SectorErase);   //发送扇区擦除指令
    if(W25QXX_TYPE==W25Q256)                //如果是W25Q256的话地址为4字节的，要发送最高8位
    {
        SPI1_ReadWriteByte((uint8_t)((Dst_Addr)>>24));
    }
    SPI1_ReadWriteByte((uint8_t)((Dst_Addr)>>16));  //发送24bit地址
    SPI1_ReadWriteByte((uint8_t)((Dst_Addr)>>8));
    SPI1_ReadWriteByte((uint8_t)Dst_Addr);
	W25QXX_CS_H();                            //取消片选
    W25QXX_Wait_Busy();   				    //等待擦除完成
}
//等待空闲
void W25QXX_Wait_Busy(void)
{
	while((W25QXX_ReadSR(1)&0x01)==0x01);   // 等待BUSY位清空
}
//进入掉电模式
void W25QXX_PowerDown(void)
{
  	W25QXX_CS_L();                            //使能器件
    SPI1_ReadWriteByte(W25X_PowerDown);     //发送掉电命令
	W25QXX_CS_H();                            //取消片选
    HAL_Delay(3);                            //等待TPD
}
//唤醒
void W25QXX_WAKEUP(void)
{
  	W25QXX_CS_L();                                //使能器件
    SPI1_ReadWriteByte(W25X_ReleasePowerDown);  //  send W25X_PowerDown command 0xAB
	W25QXX_CS_H();                                //取消片选
    HAL_Delay(3);                                //等待TRES1
}

//SPI1 读写一个字节
//TxData:要写入的字节
//返回值:读取到的字节
uint8_t SPI1_ReadWriteByte(uint8_t TxData)
{
    uint8_t Rxdata;
    HAL_SPI_TransmitReceive(&hspi1,&TxData,&Rxdata,1, 1000);
   	return Rxdata;          		    //返回收到的数据
}
