Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码

71 阅读 0 评论
我是靠谱客的博主 活泼背包，最近开发中收集的这篇文章主要介绍Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

Android简易音乐重构MVVM Java版 -搭建项目（八）

  • 关于
  • 新版本配置
    • 网易云音乐api版本更新
  • 重构代码
    • 新建app类继承Application
    • 项目结构
    • 定义BaseActivity.java
    • 状态栏工具
    • 防恶意多点工具类
    • CrashHandler用于异常处理上报日志

关于

  本篇主要介绍，简易音乐重构，去掉butterkinfe，去掉mvp，精简代码优化逻辑，使用viewbinding和databinding，使用了Navigation导航组件来在部分页面跳转，升级项目版本工程版本，升级引用等等，但是最终我还是没有使用kotlin去重构这个项目，我是很想用kotlin写的，不管是出于个人目前对kotlin的热爱还是google对kotlin的支持，但是看起来目前对我这个moudle感兴趣的人用java的多点，所以这个项目目前还是用java去写，废话到此结束。
  项目框架MVVM+Retrofit+RxJava+LiveData+viewbinding+databing+Navigation导航组件+other

新版本配置

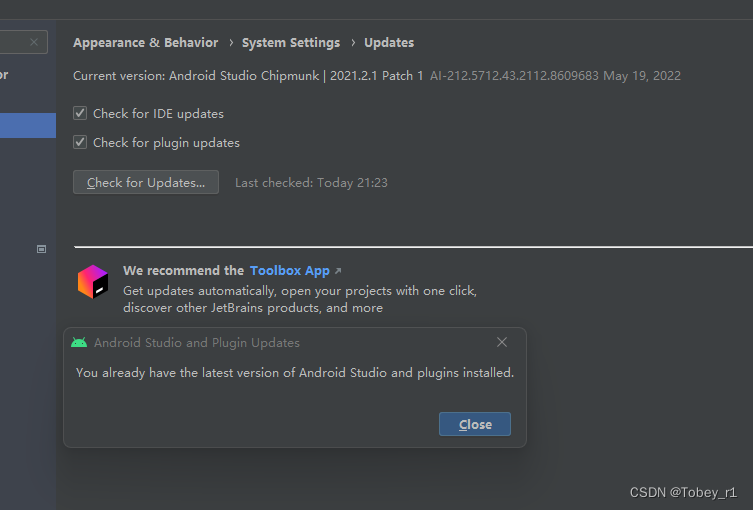

  Android studio 2021.2.1 Patch 1截至2022.6.14来说是稳定版的最新版
在这里插入图片描述

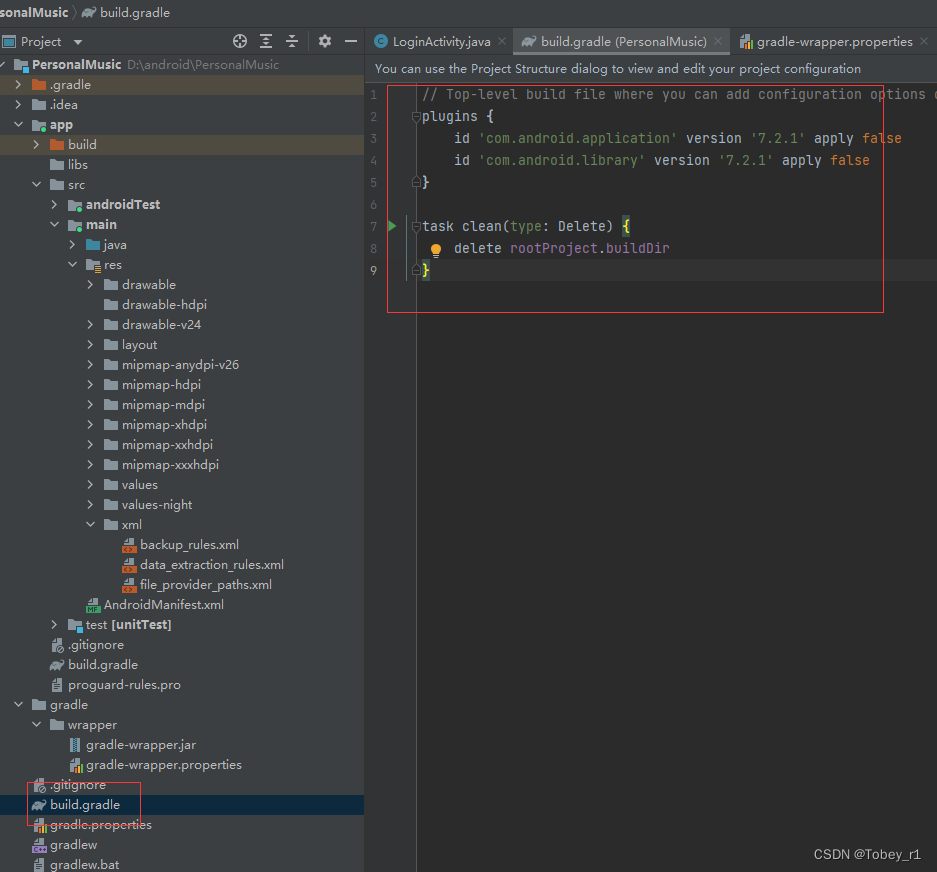

  工程gradle是7.2.1,gradle-wrapper.properties里的gradle是7.3.3：

// Top-level build file where you can add configuration options common to all sub-projects/modules.
plugins {
    id 'com.android.application' version '7.2.1' apply false
    id 'com.android.library' version '7.2.1' apply false
}

task clean(type: Delete) {
    delete rootProject.buildDir
}

#Sat Jun 11 00:50:53 CST 2022
distributionBase=GRADLE_USER_HOME
distributionUrl=https://services.gradle.org/distributions/gradle-7.3.3-bin.zip
distributionPath=wrapper/dists
zipStorePath=wrapper/dists
zipStoreBase=GRADLE_USER_HOME

在这里插入图片描述

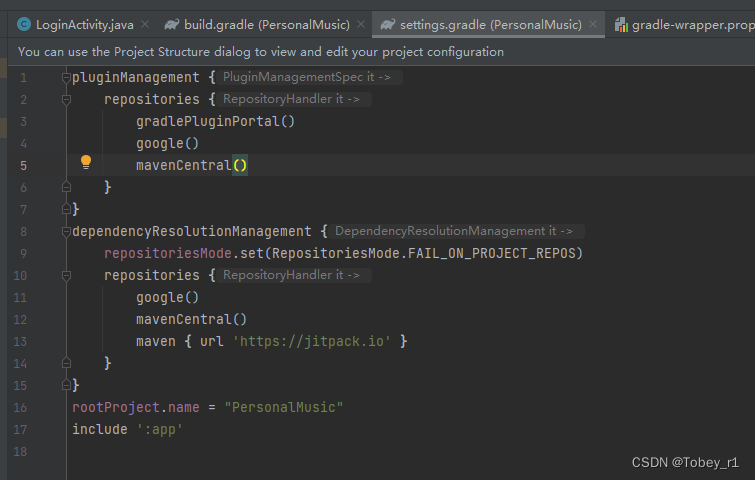

  很多朋友可能会好奇三分的maven仓库啊jitpack库啊跑哪里去了，都跑到settings.gradle里面了:
在这里插入图片描述
  这也是很大一个变动。
  项目目标版本32，最低支持22
  接下来是moudle里面的build的变化，：

android {
    compileSdk 32

    defaultConfig {
        applicationId "com.tobery.personalmusic"
        minSdk 22
        targetSdk 32
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }


    dataBinding{
        enabled true
    }
    viewBinding{
        enabled true
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
    compileOptions {
        sourceCompatibility JavaVersion.VERSION_1_8
        targetCompatibility JavaVersion.VERSION_1_8
    }
}

  三方引用如下：

dependencies {

   implementation 'androidx.appcompat:appcompat:1.3.0'
    implementation 'com.google.android.material:material:1.4.0'
    implementation 'androidx.constraintlayout:constraintlayout:2.0.4'

    // ViewModel
    implementation "androidx.lifecycle:lifecycle-viewmodel:2.4.0"
    implementation "androidx.lifecycle:lifecycle-viewmodel-savedstate:2.4.0"
    //glide引用
    implementation 'com.github.bumptech.glide:glide:4.11.0'
    annotationProcessor 'com.github.bumptech.glide:compiler:4.11.0'
    //网络请求retrofit
    implementation 'com.squareup.retrofit2:retrofit:2.9.0'
    //RxJava
    implementation 'io.reactivex.rxjava2:rxjava:2.1.7'
    //RxAndroid
    implementation 'io.reactivex.rxjava2:rxandroid:2.0.1'
    //Retrofit 支持Rxjava 的支持库
    implementation 'com.jakewharton.retrofit:retrofit2-rxjava2-adapter:1.0.0'
    //rxjava框架
    implementation 'com.trello.rxlifecycle2:rxlifecycle-components:2.1.0'
    implementation 'com.google.code.gson:gson:2.8.6'
    implementation 'com.squareup.retrofit2:converter-gson:2.9.0'
    //音频
    implementation 'com.github.EspoirX:StarrySky:v2.6.5'
    // MultiDex的依赖
    implementation 'androidx.multidex:multidex:2.0.0'
    // Log、吐司打印
    implementation 'com.github.getActivity:ToastUtils:10.3'
    implementation 'com.github.Tobeyr1:DialogLoading:1.0.4'

    //banner
    implementation 'io.github.youth5201314:banner:2.2.2'
    implementation "androidx.viewpager2:viewpager2:1.0.0"
    implementation 'com.github.Tobeyr1:liveDataCallAdapter:1.0.2'

    testImplementation 'junit:junit:4.13.2'
    androidTestImplementation 'androidx.test.ext:junit:1.1.3'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.4.0'
}

  目前的引用就这么多，后续也会有加减。

网易云音乐api版本更新

  api当然不是我做的了，我只是个使用者，GitHub地址，当然了，项目里也提供了可供使用的api网址

重构代码

  （说明）其实项目是重新建的项目，然后对部分copy，大多数重新编写。

新建app类继承Application

public class app extends Application {

    private final CountDownLatch mCountDownLatch = new CountDownLatch(1);

    private static final int CPU_COUNT = Runtime.getRuntime().availableProcessors();

    private static final int CORE_POOL_SIZE = Math.max(2,Math.min(CPU_COUNT-1,4));

    private static app instance;

    @Override
    public void onCreate() {
        super.onCreate();
        instance = this;
        ToastUtils.init(this, new BlackToastStyle());
        CrashHandler.getInstance().init(this);
        ExecutorService pool = Executors.newFixedThreadPool(CORE_POOL_SIZE);
        pool.submit(new Runnable() {
            @Override
            public void run() {
                MultiDex.install(instance);
                mCountDownLatch.countDown();
            }
        });
        pool.submit(new Runnable() {
            @Override
            public void run() {
                StarrySky.init(instance).apply();

            }
        });
        try {
            //如果await之前没有调用countDown那么就会一直阻塞在这里
            mCountDownLatch.await();
        }catch (InterruptedException e){
            e.printStackTrace();
        }
    }
}

项目结构

在这里插入图片描述

  entity文件存放实体类，http则是网络请求的类api等，ui页面viewModel等，util则是一些帮助类等，widget存放的自定义view，暂时这样。

定义BaseActivity.java

public abstract class BaseActivity extends AppCompatActivity {

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        //状态栏工具
        StatusBarUtil.setColor(this,getResources().getColor(R.color.colorPrimary),0);
    }

    @Override
    protected void onPause() {
        super.onPause();

    }
    @Override
    protected void onDestroy() {
        System.gc();
        super.onDestroy();
    }

}

状态栏工具

/**
 * 2019年7月18日13:55:00
 * 沉浸式管理工具类
 */
public class StatusBarUtil {
    public static final String TAG = "StatusBarUtil";
    private static final int DEFAULT_STATUS_BAR_ALPHA = 112;
    private static final int FAKE_STATUS_BAR_VIEW_ID = R.id.statusbarutil_fake_status_bar_view;
    private static final int FAKE_TRANSLUCENT_VIEW_ID = R.id.statusbarutil_translucent_view;
    private static final int TAG_KEY_HAVE_SET_OFFSET = -123;

    /**
     * 设置状态栏颜色
     *
     * @param activity 需要设置的 activity
     * @param color    状态栏颜色值
     */
    public static void setColor(Activity activity, @ColorInt int color) {
        setColor(activity, color, DEFAULT_STATUS_BAR_ALPHA);
    }

    /**
     * 设置状态栏颜色
     * API等级19:Android 4.4 KitKat   API等级20:Android 4.4W   API等级21:Android 5.0 Lollipop
     * API等级22:Android 5.1 Lollipop  API等级23:Android 6.0 Marshmallow   API等级24:Android 7.0 Nougat
     *
     * @param activity       需要设置的activity
     * @param color          状态栏颜色值
     * @param statusBarAlpha 状态栏透明度
     */
    @SuppressLint("ObsoleteSdkInt")
    public static void setColor(Activity activity, @ColorInt int color, @IntRange(from = 0, to = 255) int statusBarAlpha) {
        //21以上
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
            activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            activity.getWindow().setStatusBarColor(calculateStatusColor(color, statusBarAlpha));
            //19到21
        } else if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            //DecorView是顶级View，内部有titlebar和contentParent两个子元素,
            // contentParent的id是content，而我们设置的main.xml布局则是contentParent里面的一个子元素
            ViewGroup decorView = (ViewGroup) activity.getWindow().getDecorView();
            View fakeStatusBarView = decorView.findViewById(FAKE_STATUS_BAR_VIEW_ID);
            if (fakeStatusBarView != null) {
                if (fakeStatusBarView.getVisibility() == View.GONE) {
                    fakeStatusBarView.setVisibility(View.VISIBLE);
                }
                fakeStatusBarView.setBackgroundColor(calculateStatusColor(color, statusBarAlpha));
            } else {
                //第一次加载会先创建并添加
                decorView.addView(createStatusBarView(activity, color, statusBarAlpha));
            }
            setRootView(activity);
        }
    }

    /**
     * 为滑动返回界面设置状态栏颜色
     *
     * @param activity 需要设置的activity
     * @param color    状态栏颜色值
     */
    public static void setColorForSwipeBack(Activity activity, int color) {
        setColorForSwipeBack(activity, color, DEFAULT_STATUS_BAR_ALPHA);
    }

    /**
     * 为滑动返回界面设置状态栏颜色
     *
     * @param activity       需要设置的activity
     * @param color          状态栏颜色值
     * @param statusBarAlpha 状态栏透明度
     */
    public static void setColorForSwipeBack(Activity activity, @ColorInt int color,
                                            @IntRange(from = 0, to = 255) int statusBarAlpha) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            ViewGroup contentView = ((ViewGroup) activity.findViewById(android.R.id.content));
            View rootView = contentView.getChildAt(0);
            int statusBarHeight = getStatusBarHeight(activity);
            if (rootView instanceof CoordinatorLayout) {
                final CoordinatorLayout coordinatorLayout = (CoordinatorLayout) rootView;
                if (Build.VERSION.SDK_INT < Build.VERSION_CODES.LOLLIPOP) {
                    coordinatorLayout.setFitsSystemWindows(false);
                    contentView.setBackgroundColor(calculateStatusColor(color, statusBarAlpha));
                    boolean isNeedRequestLayout = contentView.getPaddingTop() < statusBarHeight;
                    if (isNeedRequestLayout) {
                        contentView.setPadding(0, statusBarHeight, 0, 0);
                        coordinatorLayout.post(new Runnable() {
                            @Override
                            public void run() {
                                coordinatorLayout.requestLayout();
                            }
                        });
                    }
                } else {
                    coordinatorLayout.setStatusBarBackgroundColor(calculateStatusColor(color, statusBarAlpha));
                }
            } else {
                contentView.setPadding(0, statusBarHeight, 0, 0);
                contentView.setBackgroundColor(calculateStatusColor(color, statusBarAlpha));
            }
            setTransparentForWindow(activity);
        }
    }

    /**
     * 设置状态栏纯色 不加半透明效果
     *
     * @param activity 需要设置的 activity
     * @param color    状态栏颜色值
     */
    public static void setColorNoTranslucent(Activity activity, @ColorInt int color) {
        setColor(activity, color, 0);
    }

    /**
     * 设置状态栏颜色(5.0以下无半透明效果,不建议使用)
     *
     * @param activity 需要设置的 activity
     * @param color    状态栏颜色值
     */
    @Deprecated
    public static void setColorDiff(Activity activity, @ColorInt int color) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        transparentStatusBar(activity);
        ViewGroup contentView = (ViewGroup) activity.findViewById(android.R.id.content);
        // 移除半透明矩形,以免叠加
        View fakeStatusBarView = contentView.findViewById(FAKE_STATUS_BAR_VIEW_ID);
        if (fakeStatusBarView != null) {
            if (fakeStatusBarView.getVisibility() == View.GONE) {
                fakeStatusBarView.setVisibility(View.VISIBLE);
            }
            fakeStatusBarView.setBackgroundColor(color);
        } else {
            contentView.addView(createStatusBarView(activity, color));
        }
        setRootView(activity);
    }

    /**
     * 使状态栏半透明
     * 适用于图片作为背景的界面,此时需要图片填充到状态栏
     *
     * @param activity 需要设置的activity
     */
    public static void setTranslucent(Activity activity) {
        setTranslucent(activity, DEFAULT_STATUS_BAR_ALPHA);
    }

    /**
     * 使状态栏半透明
     * 适用于图片作为背景的界面,此时需要图片填充到状态栏
     *
     * @param activity       需要设置的activity
     * @param statusBarAlpha 状态栏透明度
     */
    public static void setTranslucent(Activity activity, @IntRange(from = 0, to = 255) int statusBarAlpha) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        setTransparent(activity);
        addTranslucentView(activity, statusBarAlpha);
    }

    /**
     * 针对根布局是 CoordinatorLayout, 使状态栏半透明
     * 适用于图片作为背景的界面,此时需要图片填充到状态栏
     *
     * @param activity       需要设置的activity
     * @param statusBarAlpha 状态栏透明度
     */
    public static void setTranslucentForCoordinatorLayout(Activity activity, @IntRange(from = 0, to = 255) int statusBarAlpha) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        transparentStatusBar(activity);
        addTranslucentView(activity, statusBarAlpha);
    }

    /**
     * 设置状态栏全透明
     * @param activity 需要设置的activity
     */
    public static void setTransparent(Activity activity) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        transparentStatusBar(activity);
        setRootView(activity);
    }

    /**
     * 使状态栏透明(5.0以上半透明效果,不建议使用)
     * 适用于图片作为背景的界面,此时需要图片填充到状态栏
     * @param activity 需要设置的activity
     */
    @Deprecated
    public static void setTranslucentDiff(Activity activity) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            // 设置状态栏透明
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            setRootView(activity);
        }
    }

    /**
     * 为DrawerLayout 布局设置状态栏变色
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     * @param color        状态栏颜色值
     */
    public static void setColorForDrawerLayout(Activity activity, DrawerLayout drawerLayout, @ColorInt int color) {
        setColorForDrawerLayout(activity, drawerLayout, color, DEFAULT_STATUS_BAR_ALPHA);
    }

    /**
     * 为DrawerLayout 布局设置状态栏颜色,纯色
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     * @param color        状态栏颜色值
     */
    public static void setColorNoTranslucentForDrawerLayout(Activity activity, DrawerLayout drawerLayout, @ColorInt int color) {
        setColorForDrawerLayout(activity, drawerLayout, color, 0);
    }

    /**
     * 为DrawerLayout 布局设置状态栏变色
     * @param activity       需要设置的activity
     * @param drawerLayout   DrawerLayout
     * @param color          状态栏颜色值
     * @param statusBarAlpha 状态栏透明度
     */
    public static void setColorForDrawerLayout(Activity activity, DrawerLayout drawerLayout, @ColorInt int color,
                                               @IntRange(from = 0, to = 255) int statusBarAlpha) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
            activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            activity.getWindow().setStatusBarColor(Color.TRANSPARENT);
        } else {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
        }
        // 生成一个状态栏大小的矩形
        // ic_option_add statusBarView 到布局中
        ViewGroup contentLayout = (ViewGroup) drawerLayout.getChildAt(0);
        View fakeStatusBarView = contentLayout.findViewById(FAKE_STATUS_BAR_VIEW_ID);
        if (fakeStatusBarView != null) {
            if (fakeStatusBarView.getVisibility() == View.GONE) {
                fakeStatusBarView.setVisibility(View.VISIBLE);
            }
            fakeStatusBarView.setBackgroundColor(color);
        } else {
            contentLayout.addView(createStatusBarView(activity, color), 0);
        }
        // 内容布局不是 LinearLayout 时,设置padding top
        if (!(contentLayout instanceof LinearLayout) && contentLayout.getChildAt(1) != null) {
            contentLayout.getChildAt(1)
                    .setPadding(contentLayout.getPaddingLeft(), getStatusBarHeight(activity) + contentLayout.getPaddingTop(),
                            contentLayout.getPaddingRight(), contentLayout.getPaddingBottom());
        }
        // 设置属性
        setDrawerLayoutProperty(drawerLayout, contentLayout);
        addTranslucentView(activity, statusBarAlpha);
    }

    /**
     * 设置 DrawerLayout 属性
     * @param drawerLayout              DrawerLayout
     * @param drawerLayoutContentLayout DrawerLayout 的内容布局
     */
    private static void setDrawerLayoutProperty(DrawerLayout drawerLayout, ViewGroup drawerLayoutContentLayout) {
        ViewGroup drawer = (ViewGroup) drawerLayout.getChildAt(1);
        drawerLayout.setFitsSystemWindows(false);
        drawerLayoutContentLayout.setFitsSystemWindows(false);
        drawerLayoutContentLayout.setClipToPadding(true);
        drawer.setFitsSystemWindows(false);
    }

    /**
     * 为DrawerLayout 布局设置状态栏变色(5.0以下无半透明效果,不建议使用)
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     * @param color        状态栏颜色值
     */
    @Deprecated
    public static void setColorForDrawerLayoutDiff(Activity activity, DrawerLayout drawerLayout, @ColorInt int color) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            // 生成一个状态栏大小的矩形
            ViewGroup contentLayout = (ViewGroup) drawerLayout.getChildAt(0);
            View fakeStatusBarView = contentLayout.findViewById(FAKE_STATUS_BAR_VIEW_ID);
            if (fakeStatusBarView != null) {
                if (fakeStatusBarView.getVisibility() == View.GONE) {
                    fakeStatusBarView.setVisibility(View.VISIBLE);
                }
                fakeStatusBarView.setBackgroundColor(calculateStatusColor(color, DEFAULT_STATUS_BAR_ALPHA));
            } else {
                // ic_option_add statusBarView 到布局中
                contentLayout.addView(createStatusBarView(activity, color), 0);
            }
            // 内容布局不是 LinearLayout 时,设置padding top
            if (!(contentLayout instanceof LinearLayout) && contentLayout.getChildAt(1) != null) {
                contentLayout.getChildAt(1).setPadding(0, getStatusBarHeight(activity), 0, 0);
            }
            // 设置属性
            setDrawerLayoutProperty(drawerLayout, contentLayout);
        }
    }

    /**
     * 为 DrawerLayout 布局设置状态栏透明
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     */
    public static void setTranslucentForDrawerLayout(Activity activity, DrawerLayout drawerLayout) {
        setTranslucentForDrawerLayout(activity, drawerLayout, DEFAULT_STATUS_BAR_ALPHA);
    }

    /**
     * 为 DrawerLayout 布局设置状态栏透明
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     */
    public static void setTranslucentForDrawerLayout(Activity activity, DrawerLayout drawerLayout,
                                                     @IntRange(from = 0, to = 255) int statusBarAlpha) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        setTransparentForDrawerLayout(activity, drawerLayout);
        addTranslucentView(activity, statusBarAlpha);
    }

    /**
     * 为 DrawerLayout 布局设置状态栏透明
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     */
    public static void setTransparentForDrawerLayout(Activity activity, DrawerLayout drawerLayout) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
            activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            activity.getWindow().setStatusBarColor(Color.TRANSPARENT);
        } else {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
        }

        ViewGroup contentLayout = (ViewGroup) drawerLayout.getChildAt(0);
        // 内容布局不是 LinearLayout 时,设置padding top
        if (!(contentLayout instanceof LinearLayout) && contentLayout.getChildAt(1) != null) {
            contentLayout.getChildAt(1).setPadding(0, getStatusBarHeight(activity), 0, 0);
        }

        // 设置属性
        setDrawerLayoutProperty(drawerLayout, contentLayout);
    }

    /**
     * 为 DrawerLayout 布局设置状态栏透明(5.0以上半透明效果,不建议使用)
     * @param activity     需要设置的activity
     * @param drawerLayout DrawerLayout
     */
    @Deprecated
    public static void setTranslucentForDrawerLayoutDiff(Activity activity, DrawerLayout drawerLayout) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            // 设置状态栏透明
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            // 设置内容布局属性
            ViewGroup contentLayout = (ViewGroup) drawerLayout.getChildAt(0);
            contentLayout.setFitsSystemWindows(true);
            contentLayout.setClipToPadding(true);
            // 设置抽屉布局属性
            ViewGroup vg = (ViewGroup) drawerLayout.getChildAt(1);
            vg.setFitsSystemWindows(false);
            // 设置 DrawerLayout 属性
            drawerLayout.setFitsSystemWindows(false);
        }
    }

    /**
     * 为头部是 ImageView 的界面设置状态栏全透明
     * @param activity       需要设置的activity
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTransparentForImageView(Activity activity, View needOffsetView) {
        setTranslucentForImageView(activity, 0, needOffsetView);
    }

    /**
     * 为头部是 ImageView 的界面设置状态栏透明(使用默认透明度)
     * @param activity       需要设置的activity
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTranslucentForImageView(Activity activity, View needOffsetView) {
        setTranslucentForImageView(activity, DEFAULT_STATUS_BAR_ALPHA, needOffsetView);
    }

    /**
     * 为头部是 ImageView 的界面设置状态栏透明
     * @param activity       需要设置的activity
     * @param statusBarAlpha 状态栏透明度
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTranslucentForImageView(Activity activity, @IntRange(from = 0, to = 255) int statusBarAlpha,
                                                  View needOffsetView) {
        if (Build.VERSION.SDK_INT < Build.VERSION_CODES.KITKAT) {
            return;
        }
        setTransparentForWindow(activity);
        addTranslucentView(activity, statusBarAlpha);
        if (needOffsetView != null) {
            Object haveSetOffset = needOffsetView.getTag(TAG_KEY_HAVE_SET_OFFSET);
            if (haveSetOffset != null && (Boolean) haveSetOffset) {
                return;
            }
            ViewGroup.MarginLayoutParams layoutParams = (ViewGroup.MarginLayoutParams) needOffsetView.getLayoutParams();
            layoutParams.setMargins(layoutParams.leftMargin, layoutParams.topMargin + getStatusBarHeight(activity),
                    layoutParams.rightMargin, layoutParams.bottomMargin);
            needOffsetView.setTag(TAG_KEY_HAVE_SET_OFFSET, true);
        }
    }

    /**
     * 为 fragment 头部是 ImageView 的设置状态栏透明
     * @param activity       fragment 对应的 activity
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTranslucentForImageViewInFragment(Activity activity, View needOffsetView) {
        setTranslucentForImageViewInFragment(activity, DEFAULT_STATUS_BAR_ALPHA, needOffsetView);
    }

    /**
     * 为 fragment 头部是 ImageView 的设置状态栏透明
     * @param activity       fragment 对应的 activity
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTransparentForImageViewInFragment(Activity activity, View needOffsetView) {
        setTranslucentForImageViewInFragment(activity, 0, needOffsetView);
    }

    /**
     * 为 fragment 头部是 ImageView 的设置状态栏透明
     * @param activity       fragment 对应的 activity
     * @param statusBarAlpha 状态栏透明度
     * @param needOffsetView 需要向下偏移的 View
     */
    public static void setTranslucentForImageViewInFragment(Activity activity, @IntRange(from = 0, to = 255) int statusBarAlpha,
                                                            View needOffsetView) {
        setTranslucentForImageView(activity, statusBarAlpha, needOffsetView);
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT && Build.VERSION.SDK_INT < Build.VERSION_CODES.LOLLIPOP) {
            clearPreviousSetting(activity);
        }
    }

    /**
     * 隐藏伪状态栏 View
     * @param activity 调用的 Activity
     */
    public static void hideFakeStatusBarView(Activity activity) {
        ViewGroup decorView = (ViewGroup) activity.getWindow().getDecorView();
        View fakeStatusBarView = decorView.findViewById(FAKE_STATUS_BAR_VIEW_ID);
        if (fakeStatusBarView != null) {
            fakeStatusBarView.setVisibility(View.GONE);
        }
        View fakeTranslucentView = decorView.findViewById(FAKE_TRANSLUCENT_VIEW_ID);
        if (fakeTranslucentView != null) {
            fakeTranslucentView.setVisibility(View.GONE);
        }
    }

    @TargetApi(Build.VERSION_CODES.KITKAT)
    private static void clearPreviousSetting(Activity activity) {
        ViewGroup decorView = (ViewGroup) activity.getWindow().getDecorView();
        View fakeStatusBarView = decorView.findViewById(FAKE_STATUS_BAR_VIEW_ID);
        if (fakeStatusBarView != null) {
            decorView.removeView(fakeStatusBarView);
            ViewGroup rootView = (ViewGroup) ((ViewGroup) activity.findViewById(android.R.id.content)).getChildAt(0);
            rootView.setPadding(0, 0, 0, 0);
        }
    }

    /**
     * 添加半透明矩形条
     * @param activity       需要设置的 activity
     * @param statusBarAlpha 透明值
     */
    private static void addTranslucentView(Activity activity, @IntRange(from = 0, to = 255) int statusBarAlpha) {
        ViewGroup contentView = (ViewGroup) activity.findViewById(android.R.id.content);
        View fakeTranslucentView = contentView.findViewById(FAKE_TRANSLUCENT_VIEW_ID);
        if (fakeTranslucentView != null) {
            if (fakeTranslucentView.getVisibility() == View.GONE) {
                fakeTranslucentView.setVisibility(View.VISIBLE);
            }
            fakeTranslucentView.setBackgroundColor(Color.argb(statusBarAlpha, 0, 0, 0));
        } else {
            contentView.addView(createTranslucentStatusBarView(activity, statusBarAlpha));
        }
    }

    /**
     * 生成一个和状态栏大小相同的彩色矩形条
     * @param activity 需要设置的 activity
     * @param color    状态栏颜色值
     * @return 状态栏矩形条
     */
    private static View createStatusBarView(Activity activity, @ColorInt int color) {
        return createStatusBarView(activity, color, 0);
    }

    /**
     * 生成一个和状态栏大小相同的半透明矩形条
     * @param activity 需要设置的activity
     * @param color    状态栏颜色值
     * @param alpha    透明值
     * @return 状态栏矩形条
     */
    private static View createStatusBarView(Activity activity, @ColorInt int color, int alpha) {
        // 绘制一个和状态栏一样高的矩形
        View statusBarView = new View(activity);
        LinearLayout.LayoutParams params =
                new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, getStatusBarHeight(activity));
        statusBarView.setLayoutParams(params);
        statusBarView.setBackgroundColor(calculateStatusColor(color, alpha));
        statusBarView.setId(FAKE_STATUS_BAR_VIEW_ID);
        return statusBarView;
    }

    /**
     * 设置根布局参数
     */
    private static void setRootView(Activity activity) {
        ViewGroup parent = (ViewGroup) activity.findViewById(android.R.id.content);
        for (int i = 0, count = parent.getChildCount(); i < count; i++) {
            View childView = parent.getChildAt(i);
            if (childView instanceof ViewGroup) {
                childView.setFitsSystemWindows(true);
                ((ViewGroup) childView).setClipToPadding(true);
            }
        }
    }

    /**
     * 设置透明
     */
    private static void setTransparentForWindow(Activity activity) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            activity.getWindow().setStatusBarColor(Color.TRANSPARENT);
            activity.getWindow()
                    .getDecorView()
                    .setSystemUiVisibility(View.SYSTEM_UI_FLAG_LAYOUT_STABLE | View.SYSTEM_UI_FLAG_LAYOUT_FULLSCREEN);
        } else if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT) {
            activity.getWindow()
                    .setFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS, WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
        }
    }

    /**
     * 使状态栏透明
     */
    @TargetApi(Build.VERSION_CODES.KITKAT)
    private static void transparentStatusBar(Activity activity) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_DRAWS_SYSTEM_BAR_BACKGROUNDS);
            activity.getWindow().clearFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_NAVIGATION);
            activity.getWindow().setStatusBarColor(Color.TRANSPARENT);
        } else {
            activity.getWindow().addFlags(WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS);
        }
    }

    /**
     * 创建半透明矩形 View
     * @param alpha 透明值
     * @return 半透明 View
     */
    private static View createTranslucentStatusBarView(Activity activity, int alpha) {
        // 绘制一个和状态栏一样高的矩形
        View statusBarView = new View(activity);
        LinearLayout.LayoutParams params =
                new LinearLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, getStatusBarHeight(activity));
        statusBarView.setLayoutParams(params);
        statusBarView.setBackgroundColor(Color.argb(alpha, 0, 0, 0));
        statusBarView.setId(FAKE_TRANSLUCENT_VIEW_ID);
        return statusBarView;
    }

    /**
     * 获取状态栏高度
     * @param context context
     * @return 状态栏高度
     */
    public static int getStatusBarHeight(Context context) {
        // 获得状态栏高度
        int resourceId = context.getResources().getIdentifier("status_bar_height", "dimen", "android");
        return context.getResources().getDimensionPixelSize(resourceId);
    }

    /**
     * 计算状态栏颜色
     * @param color color值
     * @param alpha alpha值
     * @return 最终的状态栏颜色
     */
    private static int calculateStatusColor(@ColorInt int color, int alpha) {
        if (alpha == 0) {
            return color;
        }
        float a = 1 - alpha / 255f;
        int red = color >> 16 & 0xff;
        int green = color >> 8 & 0xff;
        int blue = color & 0xff;
        red = (int) (red * a + 0.5);
        green = (int) (green * a + 0.5);
        blue = (int) (blue * a + 0.5);
        return 0xff << 24 | red << 16 | green << 8 | blue;
    }
}

  新增values.xml文件：

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <item name="statusbarutil_fake_status_bar_view" type="id"/>
    <item name="statusbarutil_translucent_view" type="id"/>
</resources>

防恶意多点工具类

public class ClickUtil {
    //两次按钮点击时间间隔不能少于1s
    private static final long MIN_CLICK_DELAY_TIME = 800L;
    private static long lastClickTime;

    public static boolean enableClick() {
        boolean isEnabled = false;
        long curClickTime = System.currentTimeMillis();
        if ((curClickTime - lastClickTime) > MIN_CLICK_DELAY_TIME) {
            isEnabled = true;
        }
        lastClickTime = curClickTime;
        return isEnabled;
    }

}

CrashHandler用于异常处理上报日志

/**
 * @ClassName: CrashHandler
 * @Author: Tobey_r1
 * @CreateDate: 2022/2/16 10:26
 * @Description: UncaughtException处理类,当程序发生Uncaught异常的时候,有该类来接管程序,并记录发送错误报告.需要在Application中注册，为了要在程序启动器就监控整个程序。
 * @UpdateUser: 更新者
 * @UpdateDate: 2022/2/16 10:26
 * @UpdateRemark: 更新说明
 * @Version: 1.0
 */
public class CrashHandler implements Thread.UncaughtExceptionHandler {
    public static final String TAG = CrashHandler.class.getSimpleName();
    //系统默认的UncaughtException处理类
    private Thread.UncaughtExceptionHandler mDefaultHandler;
    //CrashHandler 实例
    private static CrashHandler instance;
    private Context mContext;
    //用来存储设备信息和异常信息
    private Map<String,String> infos = new HashMap<>();
    //用于格式化日期，作为日志文件名的一部分
    @SuppressLint("SimpleDateFormat")
    private DateFormat format = new SimpleDateFormat("yyyy-MM-dd-HH-mm-ss");

    private CrashHandler(){}

    /**
     * @description 单例
     * @return 返回crashhandler实例
     * @author 13115
     * @time 2022/2/16 10:54
     */
    public static CrashHandler getInstance(){
        if (instance == null) {
            synchronized (CrashHandler.class){
                if (instance == null){
                    instance = new CrashHandler();
                }
            }
        }
        return instance;
    }

    /**
     * @description 初始化
     * @param context context
     * @author 13115
     * @time 2022/2/16 11:14
     */
    public void init(Context context){
        mContext = context;
        //获取系统默认的UncaughtException处理器
        mDefaultHandler = Thread.getDefaultUncaughtExceptionHandler();
        //设置该CrashHandler微程序的默认处理器
        Thread.setDefaultUncaughtExceptionHandler(this);
    }

    /**
     * @description 当UncaughtException发生时会转入该函数来处理
     * @return
     * @author 13115
     * @time 2022/2/16 10:40
     */
    @Override
    public void uncaughtException(@NonNull  Thread t, @NonNull  Throwable e) {
        if (!handleException(e)&&mDefaultHandler !=null){
            //如果用户没有处理或者init则让系统默认的异常处理器处理
            mDefaultHandler.uncaughtException(t, e);
        }else {
            try {
                Thread.sleep(3000);
            } catch (InterruptedException interruptedException) {
                interruptedException.printStackTrace();
            }
            //退出程序
            System.exit(1);
        }

    }

    /**
     * @description 自定义错误处理，收集错误信息，上传错误信息
     * @param ex
     * @return true:处理了该异常信息；false：未处理
     * @author 13115
     * @time 2022/2/16 11:22
     */
    private boolean handleException(final Throwable ex){
        if (ex == null) return false;
        //收集设备参数信息
        collectDeviceInfo(mContext);
        //发送错误日志
        //crashReport(ex);
        //Toast提示
        new Thread(){
            @Override
            public void run() {
                Looper.prepare();
                Toast.makeText(mContext,ex==null?"":ex.toString(),Toast.LENGTH_SHORT).show();
                Looper.loop();
                Looper.myLooper().quit();
            }
        }.start();
        return true;
    }

    private void collectDeviceInfo(Context mContext) {
        try {
            PackageManager pm = mContext.getPackageManager();
            PackageInfo pi = pm.getPackageInfo(mContext.getPackageName(),
                    PackageManager.GET_ACTIVITIES);
            if (pi != null) {
                String versionName = pi.versionName == null ? "null"
                        : pi.versionName;
                String versionCode = pi.versionCode + "";
                infos.put("versionName", versionName);
                infos.put("versionCode", versionCode);
            }
        } catch (PackageManager.NameNotFoundException e) {
        }
        infos.put("OS Version:", Build.VERSION.RELEASE);
        infos.put("-", Build.VERSION.SDK_INT+"");
        infos.put("Model:", Build.MODEL);
        infos.put("BRAND:", Build.BRAND);
    }
}

  看了下markdown字数，2.6w字，所以本篇先记录到这，后续文章重构ui以及http模块。有问题欢迎批评指正，觉得不错的也请点个赞谢谢。

最后

以上就是活泼背包为你收集整理的Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码的全部内容，希望文章能够帮你解决Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(47)

相关文章

LiveData与Rxjava结合
LiveData与Rxjava结合
Kotlin 委派(ReadOnlyProperty) 仿造viewModels 写一个viewBindings通过委派机制和Kotlin的函数扩展，仿造viewModels 写一个viewBindings功能，辅助创建ViewBinding,同时在onDestroyView的回收ViewBinding
Kotlin 委派(ReadOnlyProperty) 仿造viewModels 写一个viewBindings通过委派机制和Kotlin的函数扩展，仿造viewModels 写一个viewBindings功能，辅助创建ViewBinding,同时在onDestroyView的回收ViewBinding
LiveData+Retrofit网络请求实战
LiveData+Retrofit网络请求实战
DataBinding+ViewModel+LiveData+Room+Rxjava的使用之一DataBinding
DataBinding+ViewModel+LiveData+Room+Rxjava的使用之一DataBinding
Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码
Android简易音乐重构MVVM Java版 -搭建项目（八）关于新版本配置重构代码
MVVM架构:LiveData,ViewModel,kotlin,kotlin协程,DataBinding等MVVM
MVVM架构:LiveData,ViewModel,kotlin,kotlin协程,DataBinding等MVVM
ViewBinding与Kotlin委托
ViewBinding与Kotlin委托
封装一个koltin版的BaseActivity(包含viewBinding)
封装一个koltin版的BaseActivity(包含viewBinding)

评论列表共有 0 条评论

立即
投稿
返回
顶部
