tensorflow多卡训练

使用tensorflow的小伙伴肯定对GPU不陌生，在科学矩阵计算上，GPU的性能要比CPU快很多，这样会大大减小我们训练模型的时间，但是一个服务器上往往有多卡，如果能多卡共同训练一个模型岂不快哉？在开始学习tensorflow的时候我就注意到os.environ["CUDA_VISIBLE_DEVICES"]参数可以设置多卡，开始我也天真的以为这个参数就可以实现自动多卡训练，可是在做了相关的调研之后发现，简直是‘too young too simple’，从原理上就不对劲，不是这样的，但是当然还是能实现的，只不过不是这么简单而已，废话少说，进入正题

1 背景知识

在正式说多卡训练之前，我们最好能搞懂原理，剩下的只不过都是细枝末节了~
我们肯定用过各种optimizer，比如sgd、adam，我们在使用的时候可能对里面的实现关注的比较少，我们也没有必要关注太多，但是每个optimizer里面都有两个特别重要且一定会实现的函数，那就是今天的主角compute_gradients和apply_gradients。梯度修剪主要避免训练梯度爆炸和消失问题，而这就要用到这两个函数了~
所以一个optimizer的minimizer方法实际操作是计算梯度（compute_gradients）和反向传播（apply_gradients）

1.1 compute_gradients

compute_gradients(
    loss,  # A Tensor containing the value to minimize or a callable taking no arguments which returns the value to minimize. When eager execution is enabled it must be a callable.
    var_list=None, # Optional list or tuple of tf.Variable to update to minimize loss. Defaults to the list of variables collected in the graph under the key GraphKeys.TRAINABLE_VARIABLES.
    gate_gradients=GATE_OP,#How to gate the computation of gradients. Can be GATE_NONE, GATE_OP, or GATE_GRAPH.
    aggregation_method=None,# Specifies the method used to combine gradient terms. Valid values are defined in the class AggregationMethod.
    colocate_gradients_with_ops=False, # If True, try colocating gradients with the corresponding op.
    grad_loss=None   # Optional. A Tensor holding the gradient computed for loss.
)

计算loss中可训练的var_list中的梯度。
相当于minimize()的第一步，返回(gradient, variable)对的list。

1.2 apply_gradients

apply_gradients(
    grads_and_vars,  #List of (gradient, variable) pairs as returned by compute_gradients().
    global_step=None, #Optional Variable to increment by one after the variables have been updated.
    name=None  # Optional name for the returned operation. Default to the name passed to the Optimizer constructor.
)

minimize()的第二部分，返回一个执行梯度更新的ops。

1.3 手写optimizer.minimize()

#Now we apply gradient clipping. For this, we need to get the gradients,
#use the `clip_by_value()` function to clip them, then apply them:
threshold = 1.0
optimizer = tf.train.GradientDescentOptimizer(learning_rate)
grads_and_vars = optimizer.compute_gradients(loss)
#list包括的是：梯度和更新变量的元组对
capped_gvs = [(tf.clip_by_value(grad, -threshold, threshold), var)
             for grad, var in grads_and_vars]
 #执行对应变量的更新梯度操作
training_op = optimizer.apply_gradients(capped_gvs)

伪代码：

lr = tf.minimum(learning_rate, 0.001 / tf.log(999.) * tf.log(tf.cast(self.global_step, tf.float32) + 1))
opt = tf.train.AdamOptimizer(learning_rate = lr, beta1 = 0.8, beta2 = 0.999, epsilon = 1e-7)
grads = self.opt.compute_gradients(loss)
gradients, variables = zip(*grads)
capped_grads, _ = tf.clip_by_global_norm(gradients, config.grad_clip)
train_op = self.opt.apply_gradients( zip(capped_grads, variables),
     						        global_step=self.global_step)

1.4 设备信息

因为multi gpu需要多卡的信息来查看相关变量创建情况，因此可以设置ConfigProto中log_device_placement=True来显示相关的设备log~

# Graph creation.
a = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[2, 3], name='a')
b = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[3, 2], name='b')
c = tf.matmul(a, b)
sess = tf.Session(config=tf.ConfigProto(log_device_placement=True))
# Running the operation.
print(sess.run(c))

result:

The output of TensorFlow GPU device placement logging shown as below:
/job:localhost/replica:0/task:0/device:GPU:0 -> device: 0, name: Tesla K40c, pci bus
id: 0000:05:00.0
b: /job:localhost/replica:0/task:0/device:GPU:0
a: /job:localhost/replica:0/task:0/device:GPU:0
MatMul: /job:localhost/replica:0/task:0/device:GPU:0
[[ 22.  28.]
 [ 49.  64.]]

2.multi GPU

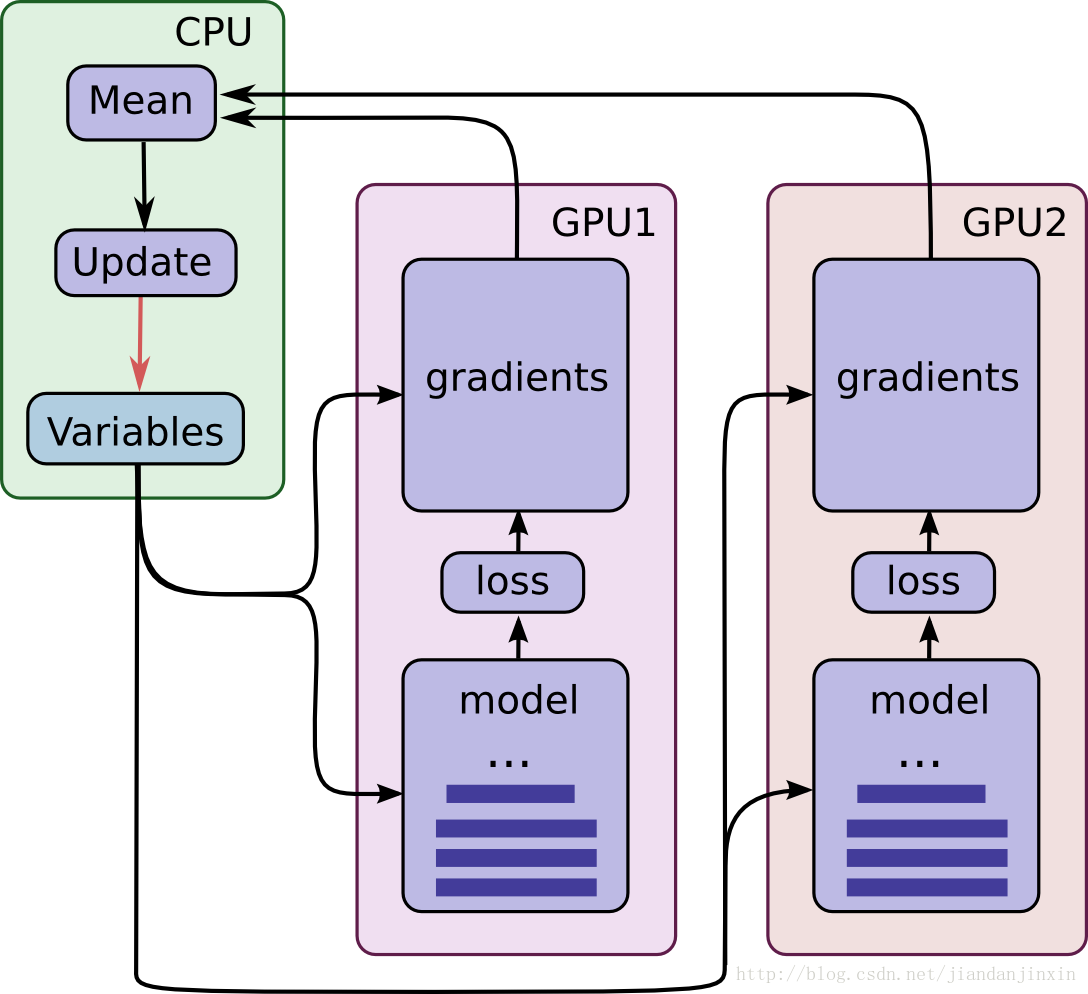

首先贴一张官方的教程图片

可以清楚的看到CPU中保存变量，GPU们计算整个model和gradients，然后把得到的梯度送回CPU中，CPU计算各个GPU送回来梯度的平均值作为本次step的梯度对参数进行更新。从图中我们可以看到只有当所有的GPU完成梯度计算以后，CPU才能求平均值，所以，整个神经网络的迭代速度将取决于最慢的一个GPU，这也就是同步更新。
所以整体思路就是：
1.在各个GPU上计算梯度（compute_gradients）
2.在CPU上计算平均梯度
3.在各个GPU上执行反向传播操作（apply_gradients）

2.1 baseline

直接上代码，对比单卡和多卡训练，下面的demo并不是官方的版本，但是我感觉对于理解很有帮助，可以先撸一下理解下，然后在看后面的官方版本~（完整代码详见git multi_gpu.py）

import sys
import os
import numpy as np
import time
import tensorflow as tf
from tensorflow.examples.tutorials.mnist import input_data

def get_weight_varible(name,shape):
    return tf.get_variable(name, shape=shape,
                       initializer=tf.contrib.layers.xavier_initializer())

def get_bias_varible(name,shape):
    return tf.get_variable(name, shape=shape,
                       initializer=tf.contrib.layers.xavier_initializer())

#filter_shape: [f_h, f_w, f_ic, f_oc]
def conv2d(layer_name, x, filter_shape):
    with tf.variable_scope(layer_name):
        w = get_weight_varible('w', filter_shape)
        b = get_bias_varible('b', filter_shape[-1])
        y = tf.nn.bias_add(tf.nn.conv2d(input=x, filter=w, strides=[1, 1, 1, 1], padding='SAME'), b)
        return y

def pool2d(layer_name, x):
    with tf.variable_scope(layer_name):
        y = tf.nn.max_pool(x, ksize=[1, 2, 2, 1], strides=[1, 2, 2, 1], padding='SAME')
        return y

#inp_shape: [N, L]
#out_shape: [N, L]
def fc(layer_name, x, inp_shape, out_shape):
    with tf.variable_scope(layer_name):
        inp_dim = inp_shape[-1]
        out_dim = out_shape[-1]
        y = tf.reshape(x, shape=inp_shape)
        w = get_weight_varible('w', [inp_dim, out_dim])
        b = get_bias_varible('b', [out_dim])
        y = tf.add(tf.matmul(y, w), b)
        return y

def build_model(x):
    y = tf.reshape(x,shape=[-1, 28, 28, 1])
    #layer 1
    y = conv2d('conv_1', y, [3, 3, 1, 8])
    y = pool2d('pool_1', y)
    #layer 2
    y = conv2d('conv_2', y, [3, 3, 8, 16])
    y = pool2d('pool_2', y)
    #layer fc
    y = fc('fc', y, [-1, 7*7*16], [-1, 10])
    return y


def average_losses(loss):
    tf.add_to_collection('losses', loss)

    # Assemble all of the losses for the current tower only.
    losses = tf.get_collection('losses')

    # Calculate the total loss for the current tower.
    regularization_losses = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)
    total_loss = tf.add_n(losses + regularization_losses, name='total_loss')

    # Compute the moving average of all individual losses and the total loss.
    loss_averages = tf.train.ExponentialMovingAverage(0.9, name='avg')
    loss_averages_op = loss_averages.apply(losses + [total_loss])

    with tf.control_dependencies([loss_averages_op]):
        total_loss = tf.identity(total_loss)
    return total_loss

def average_gradients(tower_grads):
    average_grads = []
    for grad_and_vars in zip(*tower_grads):
        # Note that each grad_and_vars looks like the following:
        #   ((grad0_gpu0, var0_gpu0), ... , (grad0_gpuN, var0_gpuN))
        grads = [g for g, _ in grad_and_vars]
        # Average over the 'tower' dimension.
        grad = tf.stack(grads, 0)
        grad = tf.reduce_mean(grad, 0)

        # Keep in mind that the Variables are redundant because they are shared
        # across towers. So .. we will just return the first tower's pointer to
        # the Variable.
        v = grad_and_vars[0][1]
        grad_and_var = (grad, v)
        average_grads.append(grad_and_var)

    return average_grads

def feed_all_gpu(inp_dict, models, payload_per_gpu, batch_x, batch_y):
    for i in range(len(models)):
        x, y, _, _, _ = models[i]
        start_pos = i * payload_per_gpu
        stop_pos = (i + 1) * payload_per_gpu
        inp_dict[x] = batch_x[start_pos:stop_pos]
        inp_dict[y] = batch_y[start_pos:stop_pos]
    return inp_dict

def single_gpu():
    batch_size = 128
    mnist = input_data.read_data_sets('/tmp/data/mnist',one_hot=True)

    tf.reset_default_graph()
    with tf.Session() as sess:
        with tf.device('/cpu:0'):
            print('build model...')
            print('build model on gpu tower...')
            with tf.device('/gpu:0'):
                x = tf.placeholder(tf.float32, [None, 784])
                y = tf.placeholder(tf.float32, [None, 10])
                pred = build_model(x)
                loss = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(logits=pred, labels=y))
                learning_rate = tf.placeholder(tf.float32, shape=[])
                train_op = tf.train.AdamOptimizer(learning_rate=learning_rate).minimize(loss)
            print('build model on gpu tower done.')

            print('reduce model on cpu...')
            all_y = tf.reshape(y, [-1,10])
            all_pred = tf.reshape(pred, [-1,10])
            correct_pred = tf.equal(tf.argmax(all_y, 1), tf.argmax(all_pred, 1))
            accuracy = tf.reduce_mean(tf.cast(correct_pred, 'float'))
            print('reduce model on cpu done.')

            print('run train op...')
            sess.run(tf.global_variables_initializer())
            lr = 0.01
            for epoch in range(2):
                start_time = time.time()
                total_batch = int(mnist.train.num_examples/batch_size)
                avg_loss = 0.0
                print('n---------------------')
                print('Epoch:%d, lr:%.4f' % (epoch,lr))
                for batch_idx in range(total_batch):
                    batch_x,batch_y = mnist.train.next_batch(batch_size)
                    inp_dict = {}
                    inp_dict[learning_rate] = lr
                    inp_dict[x] = batch_x
                    inp_dict[y] = batch_y
                    _, _loss = sess.run([train_op, loss], inp_dict)
                    avg_loss += _loss
                avg_loss /= total_batch
                print('Train loss:%.4f' % (avg_loss))

                lr = max(lr * 0.7,0.00001)

                total_batch = int(mnist.validation.num_examples / batch_size)
                preds = None
                ys = None
                for batch_idx in range(total_batch):
                    batch_x,batch_y = mnist.validation.next_batch(batch_size)
                    inp_dict = {}
                    inp_dict[x] = batch_x
                    inp_dict[y] = batch_y
                    batch_pred,batch_y = sess.run([all_pred,all_y], inp_dict)
                    if preds is None:
                        preds = batch_pred
                    else:
                        preds = np.concatenate((preds, batch_pred), 0)
                    if ys is None:
                        ys = batch_y
                    else:
                        ys = np.concatenate((ys,batch_y),0)
                val_accuracy = sess.run([accuracy], {all_y:ys, all_pred:preds})[0]
                print('Val Accuracy: %0.4f%%' % (100.0 * val_accuracy))

                stop_time = time.time()
                elapsed_time = stop_time - start_time
                print('Cost time: ' + str(elapsed_time) + ' sec.')
            print('training done.')

            total_batch = int(mnist.test.num_examples / batch_size)
            preds = None
            ys = None
            for batch_idx in range(total_batch):
                batch_x, batch_y = mnist.test.next_batch(batch_size)
                inp_dict = {}
                inp_dict[x] = batch_x
                inp_dict[y] = batch_y
                batch_pred, batch_y = sess.run([all_pred, all_y], inp_dict)
                if preds is None:
                    preds = batch_pred
                else:
                    preds = np.concatenate((preds, batch_pred), 0)
                if ys is None:
                    ys = batch_y
                else:
                    ys = np.concatenate((ys, batch_y), 0)
            test_accuracy = sess.run([accuracy], {all_y: ys, all_pred: preds})[0]
            print('Test Accuracy: %0.4f%%' % (100.0 * test_accuracy))

def multi_gpu(num_gpu):
    batch_size = 128 * num_gpu
    mnist = input_data.read_data_sets('./data',one_hot=True)

    tf.reset_default_graph()
    with tf.Session() as sess:
        with tf.device('/cpu:0'):
            learning_rate = tf.placeholder(tf.float32, shape=[])
            opt = tf.train.AdamOptimizer(learning_rate=learning_rate)

            print('build model...')
            print('build model on gpu tower...')
            models = []
            for gpu_id in range(num_gpu):
                with tf.device('/gpu:%d' % gpu_id):
                    print('tower:%d...'% gpu_id)
                    with tf.name_scope('tower_%d' % gpu_id):
                        with tf.variable_scope('cpu_variables', reuse=gpu_id>0):
                            x = tf.placeholder(tf.float32, [None, 784])
                            y = tf.placeholder(tf.float32, [None, 10])
                            pred = build_model(x)
                            loss = tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits(logits=pred, labels=y))
                            grads = opt.compute_gradients(loss)
                            models.append((x,y,pred,loss,grads))
            print('build model on gpu tower done.')

            print('reduce model on cpu...')
            tower_x, tower_y, tower_preds, tower_losses, tower_grads = zip(*models)
            aver_loss_op = tf.reduce_mean(tower_losses)
            apply_gradient_op = opt.apply_gradients(average_gradients(tower_grads))

            all_y = tf.reshape(tf.stack(tower_y, 0), [-1,10])
            all_pred = tf.reshape(tf.stack(tower_preds, 0), [-1,10])
            correct_pred = tf.equal(tf.argmax(all_y, 1), tf.argmax(all_pred, 1))
            accuracy = tf.reduce_mean(tf.cast(correct_pred, 'float'))
            print('reduce model on cpu done.')

            print('run train op...')
            sess.run(tf.global_variables_initializer())
            lr = 0.01
            for epoch in range(2):
                start_time = time.time()
                payload_per_gpu = batch_size/num_gpu
                total_batch = int(mnist.train.num_examples/batch_size)
                avg_loss = 0.0
                print('n---------------------')
                print('Epoch:%d, lr:%.4f' % (epoch,lr))
                for batch_idx in range(total_batch):
                    batch_x,batch_y = mnist.train.next_batch(batch_size)
                    inp_dict = {}
                    inp_dict[learning_rate] = lr

                    inp_dict = feed_all_gpu(inp_dict, models, payload_per_gpu, batch_x, batch_y)
                    _, _loss = sess.run([apply_gradient_op, aver_loss_op], inp_dict)
                    avg_loss += _loss
                avg_loss /= total_batch
                print('Train loss:%.4f' % (avg_loss))

                lr = max(lr * 0.7,0.00001)

                val_payload_per_gpu = batch_size / num_gpu
                total_batch = int(mnist.validation.num_examples / batch_size)
                preds = None
                ys = None
                for batch_idx in range(total_batch):
                    batch_x,batch_y = mnist.validation.next_batch(batch_size)
                    inp_dict = feed_all_gpu({}, models, val_payload_per_gpu, batch_x, batch_y)
                    batch_pred,batch_y = sess.run([all_pred,all_y], inp_dict)
                    if preds is None:
                        preds = batch_pred
                    else:
                        preds = np.concatenate((preds, batch_pred), 0)
                    if ys is None:
                        ys = batch_y
                    else:
                        ys = np.concatenate((ys,batch_y),0)
                val_accuracy = sess.run([accuracy], {all_y:ys, all_pred:preds})[0]
                print('Val Accuracy: %0.4f%%' % (100.0 * val_accuracy))

                stop_time = time.time()
                elapsed_time = stop_time-start_time
                print('Cost time: ' + str(elapsed_time) + ' sec.')
            print('training done.')

            test_payload_per_gpu = batch_size / num_gpu
            total_batch = int(mnist.test.num_examples / batch_size)
            preds = None
            ys = None
            for batch_idx in range(total_batch):
                batch_x, batch_y = mnist.test.next_batch(batch_size)
                inp_dict = feed_all_gpu({}, models, test_payload_per_gpu, batch_x, batch_y)
                batch_pred, batch_y = sess.run([all_pred, all_y], inp_dict)
                if preds is None:
                    preds = batch_pred
                else:
                    preds = np.concatenate((preds, batch_pred), 0)
                if ys is None:
                    ys = batch_y
                else:
                    ys = np.concatenate((ys, batch_y), 0)
            test_accuracy = sess.run([accuracy], {all_y: ys, all_pred: preds})[0]
            print('Test Accuracy: %0.4f%%nn' % (100.0 * test_accuracy))

def print_time():
    now = int(time.time())
    timeStruct = time.localtime(now)
    strTime = time.strftime("%Y-%m-%d %H:%M:%S", timeStruct)
    print(strTime)
if __name__ == '__main__':
    single_gpu()
    multi_gpu(1)
    #multi_gpu(2)
    #multi_gpu(3)
    #multi_gpu(4)

2.2 官方tutorial

官方教程：git tutorial codes

写在最后

本博小主认为理解差不多了，官方如果4卡加速比大概在2-3倍，但是我在一个LSTM的language model上效果却不太理想，加速比仅能到1.5倍，这里我初步测试感觉是由于CPU和GPU的数据传递导致的，因为在该模型中的最大区别是用了word embedding，并且参数相对多一些，但是具体原因依旧未知，求大佬点播。
这里我也给出相关代码和部分数据，用于探讨，如果有相关的大佬知道原因何在，我们可以共同探讨。代码链接

参考网站：

• tensorflow API:梯度修剪apply_gradients和compute_gradients
• Using GPU in TensorFlow Model – Single & Multiple GPUs
• TensorFlow多GPU并行

最后

以上就是迷路蚂蚁为你收集整理的tensorflow多卡训练的全部内容，希望文章能够帮你解决tensorflow多卡训练所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
