概述

这里写目录标题

1 traefik
- 1.1 准备traefik镜像
- - 1.1.1 拉取alpine
  - 1.1.2 创建entrypoint
  - 1.1.3 创建Dockerfile
  - 1.1.4 生成image
- 1.2 时间更改
- - 1.2.1 创建Dockerfile
  - 1.2.2 构建及推送镜像
- 1.3 准备资源配置清单
- - 1.3.1 RBAC
  - 1.3.2 Daemonset
  - 1.3.3 Service
  - 1.3.4 Ingress
- 1.4 应用配置清单
- 1.5 检查
- 1.6 宿主机端口
2 Ingress的前置负载nginx
3 dns配置
4 检验
4 坑

1 traefik

作为Ingress的controller

1.1 准备traefik镜像

由于时间不同步的问题因此通过Dockerfile构建自己的traefik镜像
对象:h136
traefik版本1.7.30

1.1.1 拉取alpine

下面几个命令完成预先操作

mkdir /data/traefik
cd traefik
docker pull alpine:3.11
docker tag e389ae589224 harbor.od.com/public/alpine:v3.11
docker push harbor.od.com/public/alpine:v3.11

1.1.2 创建entrypoint

vim entrypoint.sh

#!/bin/sh
set -e

# first arg is `-f` or `--some-option`
if [ "${1#-}" != "$1" ]; then
    set -- traefik "$@"
fi

# if our command is a valid Traefik subcommand, let's invoke it through Traefik instead
# (this allows for "docker run traefik version", etc)
if traefik "$1" --help >/dev/null 2>&1
then
    set -- traefik "$@"
else
    echo "= '$1' is not a Traefik command: assuming shell execution." 1>&2
fi

exec "$@"

1.1.3 创建Dockerfile

vim Dockerfile

FROM harbor.od.com/public/alpine:v3.11
RUN echo "Asia/shanghai" > /etc/timezone;ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
RUN apk --no-cache add ca-certificates tzdata
RUN set -ex; apkArch="$(apk --print-arch)"; case "$apkArch" in armhf) arch='arm' ;; aarch64) arch='arm64' ;; x86_64) arch='amd64' ;; *) echo >&2 "error: unsupported architecture: $apkArch"; exit 1 ;; esac; wget --quiet -O /usr/local/bin/traefik "https://github.com/traefik/traefik/releases/download/v1.7.30/traefik_linux-$arch"; chmod +x /usr/local/bin/traefik
COPY entrypoint.sh /
EXPOSE 80
ENTRYPOINT ["/entrypoint.sh"]
CMD ["traefik"]
LABEL org.opencontainers.image.vendor=traefik org.opencontainers.image.url=https://traefik.io org.opencontainers.image.title=Traefik org.opencontainers.image.description=A_modern_reverse-proxy org.opencontainers.image.version=v1.7.30 org.opencontainers.image.documentation=https://docs.traefik.io

1.1.4 生成image

在这里插入代码片

1.2 时间更改

由于从dockerhub拉取的镜像时区是utc的，生产实际还是要用cst因此重新构建一下traefik

1.2.1 创建Dockerfile

vim Dockerfile

FROM harbor.od.com/public/traefik:v1.7.30
RUN ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime;echo "Asia/shanghai" > /etc/timezone

1.2.2 构建及推送镜像

docker build -f /root/hehe/Dockerfile . -t traefik_time
docker tag traefik_time harbor.od.com/public/traefik:v1.7.30-alpine
docker push harbor.od.com/public/traefik:v1.7.30-alpine

1.3 准备资源配置清单

资源配置清单的样例在github的traefik/traefik下，可自行查找

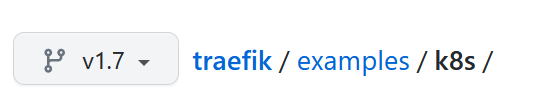

例：安装的是1.7.30版本，对应清单样例在github下面路径(一开始安装的是1.7.2版本但是报错，因此更换了高版本)
在这里插入图片描述

1.3.1 RBAC

vim /data/k8s-yaml/traefik/rbac.yaml

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
rules:
  - apiGroups:
      - ""
    resources:
      - services
      - endpoints
      - secrets
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - extensions
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
    - extensions
    resources:
    - ingresses/status
    verbs:
    - update
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: traefik-ingress-controller
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
  name: traefik-ingress-controller
  namespace: kube-system

1.3.2 Daemonset

vim /data/k8s-yaml/traefik/ds.yaml
注意最后2行的，imagePullSecret用到的regcred-kube-system是在【k8s】集群13一文中创建，创建方法可以去看
下面的TZ和accesslog.fields.names参数设置，可以改变access_log内日志的时间标识为东八区

---
kind: DaemonSet
apiVersion: apps/v1
metadata:
  name: traefik-ingress-controller
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress-lb
spec:
  selector:
    matchLabels:
      k8s-app: traefik-ingress-lb
      name: traefik-ingress-lb
  template:
    metadata:
      labels:
        k8s-app: traefik-ingress-lb
        name: traefik-ingress-lb
    spec:
      serviceAccountName: traefik-ingress-controller
      terminationGracePeriodSeconds: 60
      containers:
      - image: harbor.od.com/public/traefik:v1.7.30-alpine
        name: traefik-ingress-lb
        env:
        - name: TZ
          value: Asia/Shanghai
        ports:
        - name: controller
          containerPort: 80
          hostPort: 81
        - name: admin-web
          containerPort: 8080
        securityContext:
          capabilities:
            drop:
            - ALL
            add:
            - NET_BIND_SERVICE
        args:
        - --api
        - --kubernetes
        - --logLevel=INFO
        - --insecureskipverify=true
        - --kubernetes.endpoint=https://192.168.146.130:7443
        - --accesslog
        - --accesslog.filepath=/var/log/traefik_access.log
        - --accesslog.fields.names="StartLocal=keep StartUTC=drop"
        - --traefiklog
        - --traefiklog.filepath=/var/log/traefik.log
        - --metrics.prometheus
      imagePullSecrets:
        - name: regcred-kube-system
##---
##kind: Service
##apiVersion: v1
##metadata:
##  name: traefik-ingress-service
##  namespace: kube-system
##spec:
##  selector:
##    k8s-app: traefik-ingress-lb
##  ports:
##    - protocol: TCP
##      port: 80
##      name: web
##    - protocol: TCP
##      port: 8080
##      name: admin

1.3.3 Service

vim /data/k8s-yaml/traefik/svc.yaml

kind: Service
apiVersion: v1
metadata:
        name: traefik-ingress-service
        namespace: kube-system
spec:
        selector:
                k8s-app: traefik-ingress-lb
        ports:
                - protocol: TCP
                  port: 80
                  name: controller
                - protocol: TCP
                  port: 8080
                  name: admin-web

1.3.4 Ingress

vim /data/k8s-yaml/traefik/ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
        name: traefik-web-ui
        namespace: kube-system
        annotations:
                kubernetes.io/ingress.class: traefik
                #traefik.frontend.rule.type: PathPrefixStrip
spec:
        rules:
        - host: traefik.od.com
          http:
            paths:
            - path: /
              backend:
                serviceName: traefik-ingress-service
                servicePort: 8080

1.4 应用配置清单

任意kubectl node节点，这里是h134

[root@h134 cert]# kubectl apply -f http://k8s-yaml.od.com/traefik/rbac.yaml
serviceaccount/traefik-ingress-controller created
clusterrole.rbac.authorization.k8s.io/traefik-ingress-controller created
clusterrolebinding.rbac.authorization.k8s.io/traefik-ingress-controller created

[root@h134 cert]# kubectl apply -f http://k8s-yaml.od.com/traefik/ds.yaml
daemonset.apps/traefik-ingress created

[root@h134 cert]# kubectl apply -f http://k8s-yaml.od.com/traefik/svc.yaml
service/traefik-ingress-service created

[root@h134 cert]# kubectl apply -f http://k8s-yaml.od.com/traefik/ingress.yaml
ingress.extensions/traefik-web-ui created

1.5 检查

[root@h134 cert]# kubectl get pods -n kube-system
NAME                       READY   STATUS    RESTARTS   AGE
coredns-65cc6c5f86-ws2ws   1/1     Running   2          7d3h
traefik-ingress-87h5v      1/1     Running   0          4m3s
traefik-ingress-w2krn      1/1     Running   0          4m3s

[root@h134 cert]# kubectl get svc -n kube-system
NAME                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                  AGE
coredns                   ClusterIP   192.168.0.2      <none>        53/UDP,53/TCP,9153/TCP   7d3h
traefik-ingress-service   ClusterIP   192.168.23.208   <none>        80/TCP,8080/TCP          16m

1.6 宿主机端口

在h134、h135上的的监听端口为81，该端口在ds.yaml中定义

2 Ingress的前置负载nginx

对象h132,h133
vim /etc/nginx/conf.d/proxy.conf

upstream default_backend_traefik {
        server 192.168.146.134:81 max_fails=3 fail_timeout=10s;
        server 192.168.146.135:81 max_fails=3 fail_timeout=10s;
}
server {
        server_name *.od.com;
        location / {
                proxy_pass http://default_backend_traefik;
                proxy_set_header Host   $http_host;
                proxy_set_header x-forwarded-for $proxy_add_x_forwarded_for;

        }
}

重启nginx

nginx -s reload

3 dns配置

对象h132
vim /var/named/od.com.zone 添加最后一条A记录

$ORIGIN od.com.
$TTL 600
@       IN SOA  dns.od.com. dnsadmin.od.com. (
                                        2021063104       ; serial
                                        10800      ; refresh
                                        900      ; retry
                                        604800      ; expire
                                        86400 )    ; minimum
        NS      dns.od.com.
$TTL 60
dns   IN       A    192.168.146.132
harbor IN       A    192.168.146.136
k8s-yaml IN      A    192.168.146.136
traefik  IN       A    192.168.146.130

4 检验

现在windows主机的C:WindowsSystem32driversetchosts下添加

192.168.146.130  traefik.od.com

访问traefik页面
http://traefik.od.com/
在这里插入图片描述

4 坑

看traefik docker的日志和认证有关 192.168.146.132 7443

traefik access_log时间问题在ds.yaml中添加TZ=Asia/Shanghai
–accesslog.fields.names=‘StartLocal=keep StartUTC=drop’
