概述

在研究stm32定时器时发现，当进入定时器的中断时，定时器计数器以及中断接收时正常运行的，并没有因为进入中断而停止

具体看以下分析：

定时器初始化代码：

//TIM捕获通道开启宏定义，1：开启 0：关闭
#define  TIM_ICCH1        1
#define  TIM_ICCH2        1
#define  TIM_ICCH3        1
#define  TIM_ICCH4        1

//最小捕获频率：72000000/（120*60000）=10Hz
#define  TIM_ICARR        60000             //重装载寄存器填充值
#define  TIM_ICPSC        720               //分频系数
#define  TIM_ICFIT        0x00              //定时器捕获滤波系数
#define  TIM_OverF        (10-1)            //最大ARR溢出次数

#define  TIM_ICSR         (u16 *)&TIM3->SR   //选择定时器的SR寄存器地址
#define  TIM_ICCCR        (u16 *)&TIM3->CCR1 //选择定时器的CCR寄存器地址

void TIM3_PWMICInit(void)
{
    u8 i=0;

    TIM_TimeBaseInitTypeDef  TIM_TimeBaseInitStruct;
    TIM_ICInitTypeDef  TIM_ICInitStruct;
    NVIC_InitTypeDef  NVIC_InitStruct;
    GPIO_InitTypeDef  GPIO_InitStruct;

    /***********************NVIC配置*****************************/
    NVIC_PriorityGroupConfig(NVIC_PriorityGroup_1);

    NVIC_InitStruct.NVIC_IRQChannel = TIM3_IRQn;
    NVIC_InitStruct.NVIC_IRQChannelCmd = ENABLE;
    NVIC_InitStruct.NVIC_IRQChannelPreemptionPriority = 0;
    NVIC_InitStruct.NVIC_IRQChannelSubPriority = 2;

    NVIC_Init(&NVIC_InitStruct);

    /**********************TIM3 GPIO配置*****************************/
    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB|RCC_APB2Periph_GPIOA, ENABLE);

    GPIO_InitStruct.GPIO_Mode = GPIO_Mode_IPU;
    GPIO_InitStruct.GPIO_Speed = GPIO_Speed_50MHz;

    /**********************初始化TIM3*******************************/
    RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3, ENABLE);

    TIM_TimeBaseInitStruct.TIM_ClockDivision = TIM_CKD_DIV1;
    TIM_TimeBaseInitStruct.TIM_CounterMode = TIM_CounterMode_Up;
    TIM_TimeBaseInitStruct.TIM_Period = TIM_ICARR-1;
    TIM_TimeBaseInitStruct.TIM_Prescaler = TIM_ICPSC-1;

    TIM_TimeBaseInit(TIM3, &TIM_TimeBaseInitStruct);

    /**********************初始化TIM3 IC*******************************/
    TIM_ICInitStruct.TIM_ICFilter = TIM_ICFIT;
    TIM_ICInitStruct.TIM_ICPolarity = TIM_ICPolarity_Falling;
    TIM_ICInitStruct.TIM_ICPrescaler = TIM_ICPSC_DIV1;
    TIM_ICInitStruct.TIM_ICSelection = TIM_ICSelection_DirectTI ;

    if(TIM_ICCH1==1)
    {
      GPIO_InitStruct.GPIO_Pin = GPIO_Pin_6;
      GPIO_Init(GPIOA,&GPIO_InitStruct);
      TIM_ICInitStruct.TIM_Channel = TIM_Channel_1;
      TIM_ICInit(TIM3, &TIM_ICInitStruct);
    }

    if(TIM_ICCH2==1)
    {
      GPIO_InitStruct.GPIO_Pin = GPIO_Pin_7;
      GPIO_Init(GPIOA,&GPIO_InitStruct);
      TIM_ICInitStruct.TIM_Channel = TIM_Channel_2;
      TIM_ICInit(TIM3, &TIM_ICInitStruct);
    }

     if(TIM_ICCH3==1)
       {
      GPIO_InitStruct.GPIO_Pin = GPIO_Pin_0;
      GPIO_Init(GPIOB,&GPIO_InitStruct);
      TIM_ICInitStruct.TIM_Channel = TIM_Channel_3;
      TIM_ICInit(TIM3, &TIM_ICInitStruct);
    }

    if(TIM_ICCH4==1)
    {
      GPIO_InitStruct.GPIO_Pin = GPIO_Pin_1;
      GPIO_Init(GPIOB,&GPIO_InitStruct);
      TIM_ICInitStruct.TIM_Channel = TIM_Channel_4;
      TIM_ICInit(TIM3, &TIM_ICInitStruct);
    }

    TIM_ITConfig(TIM3, TIM_IcChannel,ENABLE);
    TIM_Cmd(TIM3, ENABLE);
    TIM_Ic.Ccr1=0;
}

中断代码：

void TIM3_IRQHandler(void)
{
    u8  j = 0;
    u16 i = 0, *pTimFre, *pTimCcrT, *pTimOver, *pTimSR, *pTimCCR;

	  TIM_Ic.Ccr1++;
	  TIM3->SR = 0;
	  if(TIM_Ic.Ccr1>100)
		{
		        while( (TIM3->SR&0x001f) != 0x001f){}
			 LCD_ClearPart(Clear_ALL,RED);
			while(1);
		}
	  else return;

     ...........（省略）
}

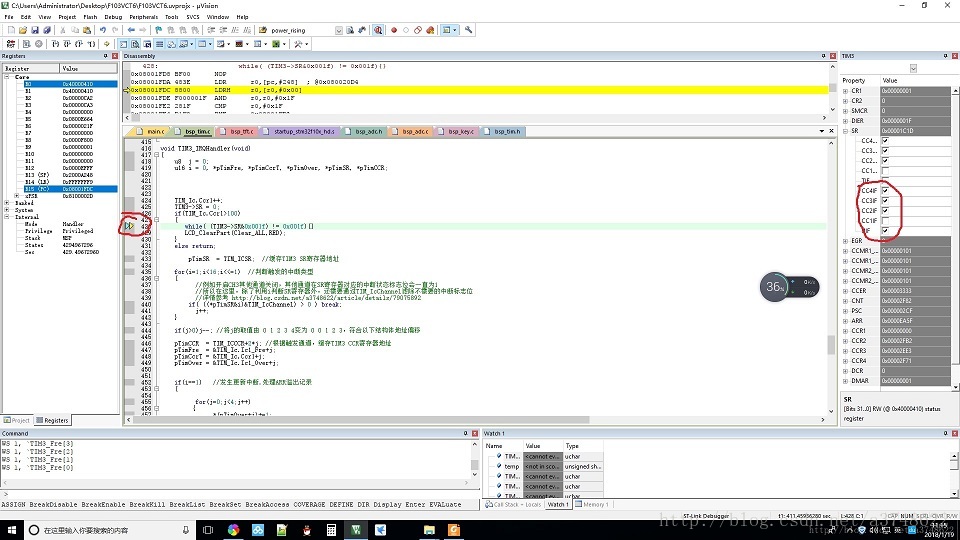

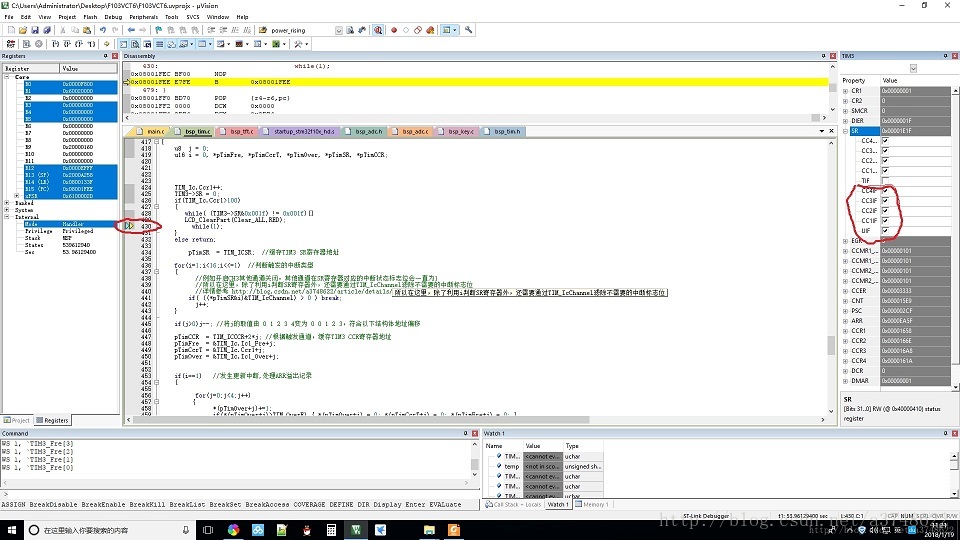

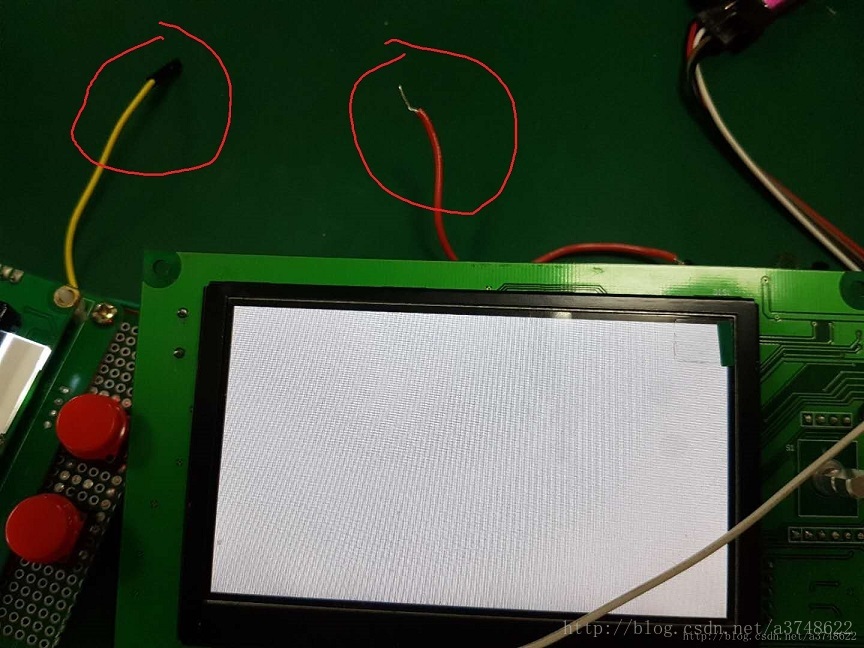

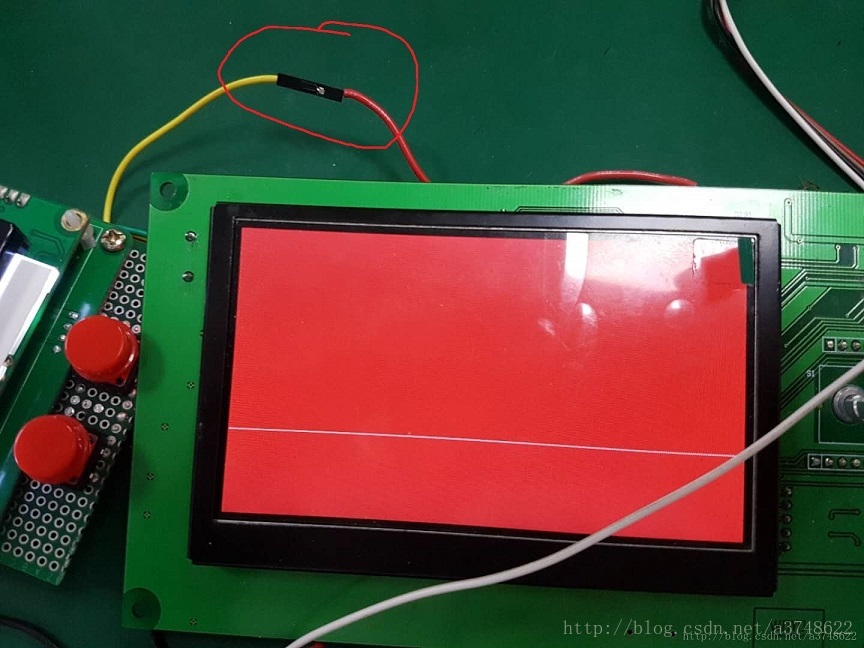

仿真图中，CC1F中断状态位是为0的，其他为1,。这是引文CH1的PWM被断开了，而其他的则是连接。具体看图中黄色与红色

的线：
