IDEA使用Tomcat7插件运行Web项目

1. 选择下面的webapp模板创建web项目

2. 将pom.xml更换为以下内容(jar包适用于SSM项目)

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.chift</groupId>
  <artifactId>BackPorts</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>
  <dependencies>
    <!--Junit-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
    </dependency>
    <!--数据库驱动-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.47</version>
    </dependency>
    <!-- 数据库连接池 -->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.2</version>
    </dependency>
    <!--Servlet - JSP -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <!--Mybatis-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.2</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.2</version>
    </dependency>
    <!--Spring-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.1.9.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>1.18.8</version>
    </dependency>

  </dependencies>


  <build>
    <!--maven插件-->
    <plugins>
      <!--jdk编译插件-->
      <plugin>
        <groupId>org.apache.maven.plugins</groupId>
        <artifactId>maven-compiler-plugin</artifactId>
        <version>3.1</version>
        <configuration>
          <source>1.8</source>
          <target>1.8</target>
          <encoding>utf-8</encoding>
        </configuration>
      </plugin>
      <!--tomcat插件-->
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <!-- tomcat7的插件， 不同tomcat版本这个也不一样 -->
        <artifactId>tomcat7-maven-plugin</artifactId>
        <version>2.1</version>
        <configuration>
          <!-- 通过maven tomcat7:run运行项目时，访问项目的端口号 -->
          <port>8081</port>
          <!-- 项目访问路径  本例：localhost:9090,  如果配置的aa， 则访问路径为localhost:9090/aa-->
          <path>/BackPorts</path>
        </configuration>
      </plugin>
    </plugins>
    <resources>
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>**/*.properties</include>
          <include>**/*.xml</include>
        </includes>
        <filtering>false</filtering>
      </resource>
    </resources>
  </build>
</project>

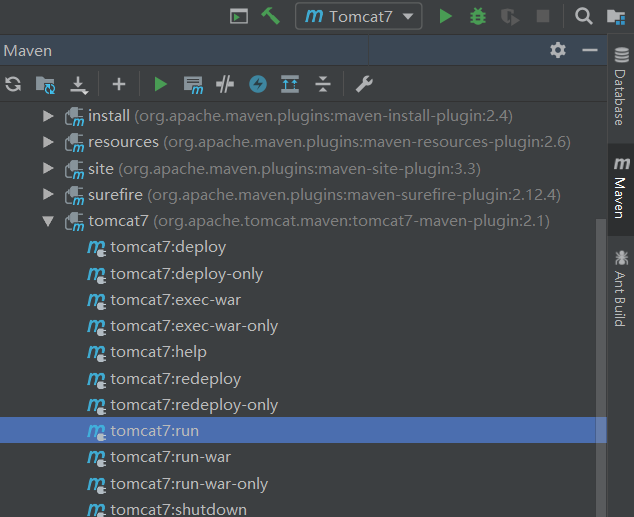

3. 点击tomcat7:run运行项目，OK
4. tomcat7插件报错 Unable to process Jar entry [module-info.class] from Jar [jar:file

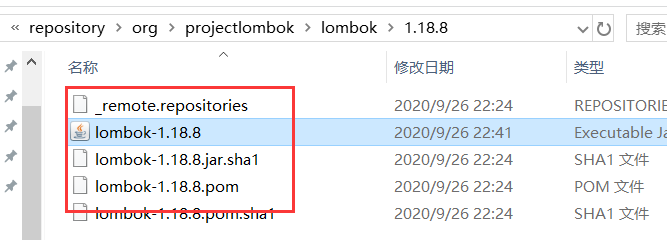

我们只需要去.m2中的maven仓库里找到后面报错的jar包，
然后用压缩文件工具打开，删除里面的module-info.class文件，
就Ok了
列如：Unable to process Jar entry [module-info.class]
E:workspaceznggjctargetznggjc-1.0WEB-INFlib
log4j-api-2.10.0.jar for annotations，

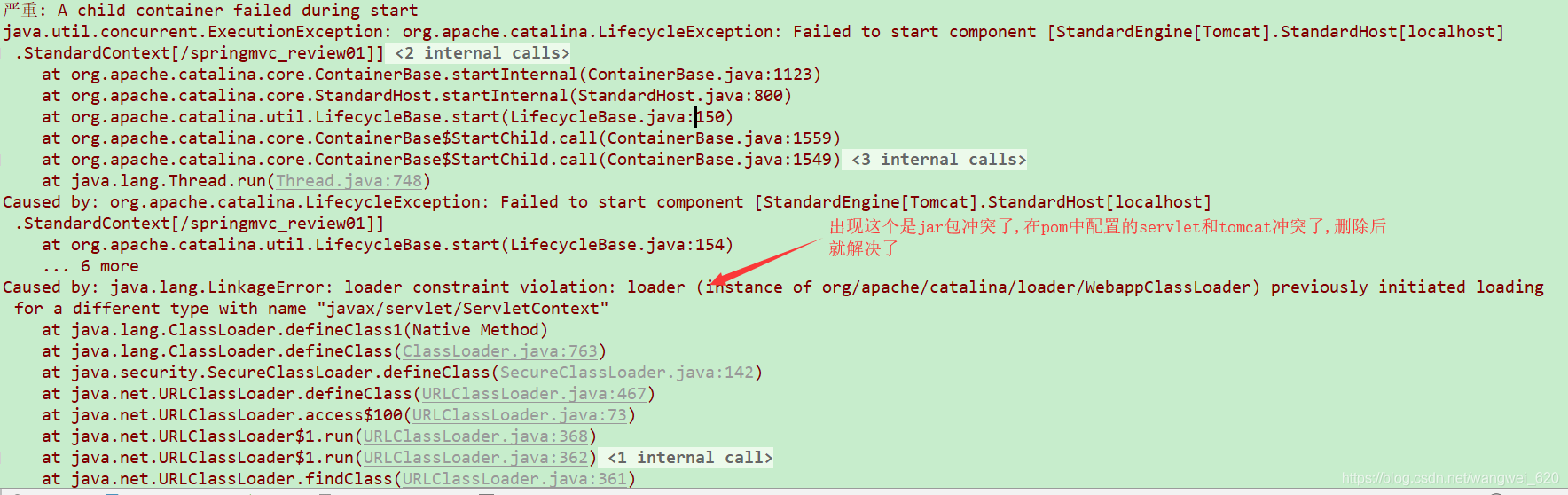

6. tomcat7插件运行springmvc出现错误
   错误如下：

   解决方法：

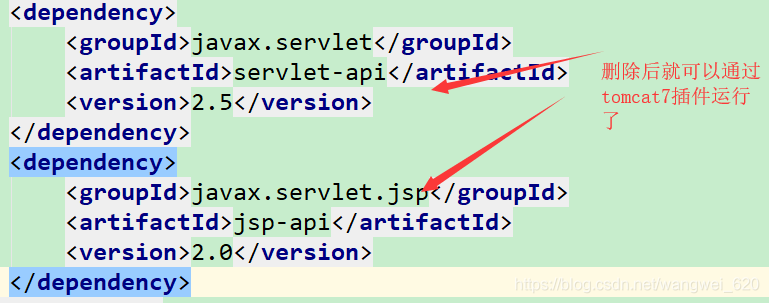

   删除配置的另外两个servlet坐标

7. 在配置SSM的配置文件的时候，别忘了配置web.xml,不然访问不到后端接口

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

  <!--DispatcherServlet-->
  <servlet>
    <servlet-name>DispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
      <param-value>classpath:applicationContext.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>DispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>

  <!--乱码过滤-->
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>

  <session-config>
    <session-timeout>15</session-timeout>
  </session-config>
</web-app>
