概述

　　dubbo服务运行，也就是让生产服务的进程一直启动。如果生产者进程挂掉，也就不存在生产者，消费者不能进行消费。

Dubbo服务运行的三种方式如下:
1、使用Servlet容器运行（Tomcat、Jetty等） -不可用
　　缺点：增加复杂性（端口、管理）
　　浪费资源（内存）
　　需要占用多个端口和内存，这种方式是不可取的

2、自己建立Main方法类运行（Srping容器）
　　缺点：Dobbo本省提供的高级特性没用上，自己的启动类可能有缺陷

3、使用Dubbo框架提供的Main方法类来运行（Spring 容器）建议使用
　　优点：框架本身提供（com.alibaba.dubbo.container.Main），可是现优雅关机（ShutdownHook）。

　　这个不存在缓存，生产者开启或者关闭之后dubbo-admin可以马上感知到。

下面测试方法2和方法3。

1.自建类发布服务:(简单-重要)

pom.xml如下:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>cn.qlq</groupId>
    <artifactId>zookeper</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.8</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.12.0</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.6</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.34.Final</version>
        </dependency>

        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
    </dependencies>
    <build>
        <!-- 配置了很多插件 -->
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

1.1 xml配置格式的发布

provider.xml

<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:dubbo="http://dubbo.apache.org/schema/dubbo" xmlns="http://www.springframework.org/schema/beans"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">

    <!-- 提供方应用信息，用于计算依赖关系 -->
    <dubbo:application name="hello-world-app">
        <!-- 关闭QOS：Quality of Service -->
        <dubbo:parameter key="qos.enable" value="false" />
        <dubbo:parameter key="qos.accept.foreign.ip" value="true" />
        <dubbo:parameter key="qos.port" value="2222" />
    </dubbo:application>

    <!-- 使用multicast广播注册中心暴露服务地址,IP设置: 224.0.0.0 - 239.255.255.255 -->
    <dubbo:registry address="zookeeper://127.0.0.1:2181" />

    <!-- 用dubbo协议在20880端口暴露服务 -->
    <dubbo:protocol name="dubbo" port="20880" />

    <!-- 声明需要暴露的服务接口 -->
    <dubbo:service interface="dubbo.DubboService" ref="demoService" />
    <!-- 和本地bean一样实现服务 -->
    <bean id="demoService" class="dubbo.DubboServiceImpl" />
</beans>

provider.java发布服务:

package dubbo;

import java.io.IOException;
import java.util.concurrent.CountDownLatch;

import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Provider {
    public static void main(String[] args) throws IOException, InterruptedException {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] { "provider.xml" });
        context.start();

        CountDownLatch countDownLatch = new CountDownLatch(1);
        countDownLatch.await();
    }
}

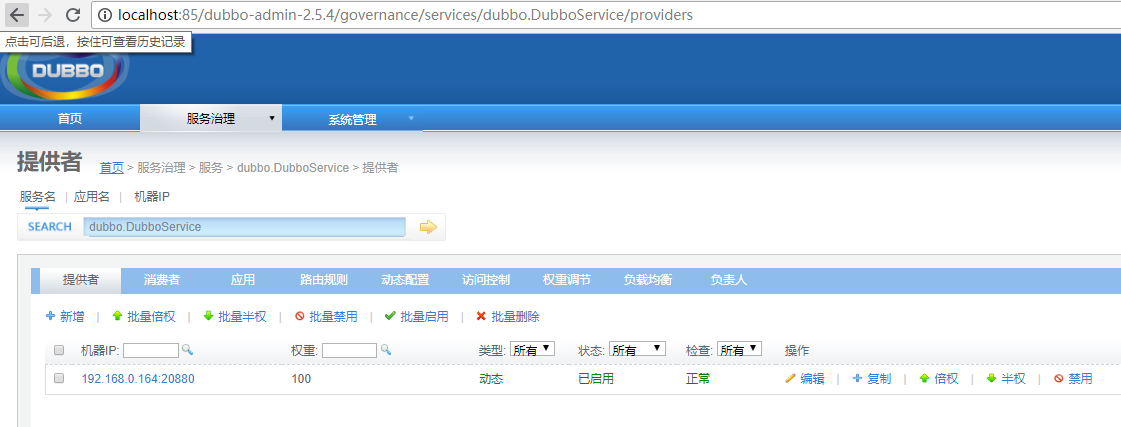

启动之后查看dubbo-admin管理界面:

2.API格式的发布

package dubbo.api;

import java.util.concurrent.CountDownLatch;

import com.alibaba.dubbo.config.ApplicationConfig;
import com.alibaba.dubbo.config.ProtocolConfig;
import com.alibaba.dubbo.config.RegistryConfig;
import com.alibaba.dubbo.config.ServiceConfig;

import dubbo.DubboService;
import dubbo.DubboServiceImpl;

public class Provider {
    public static void main(String[] args) throws InterruptedException {
        CountDownLatch countDownLatch = new CountDownLatch(1);

        // 服务实现
        DubboService dubboService = new DubboServiceImpl();

        // 当前应用配置
        ApplicationConfig application = new ApplicationConfig();
        application.setName("provider");

        // 连接注册中心配置
        RegistryConfig registry = new RegistryConfig();
        registry.setAddress("zookeeper://127.0.0.1:2181");
        registry.setUsername("aaa");
        registry.setPassword("bbb");

        // 服务提供者协议配置
        ProtocolConfig protocol = new ProtocolConfig();
        protocol.setName("dubbo");
        protocol.setPort(12345);
        protocol.setThreads(200);

        // 注意：ServiceConfig为重对象，内部封装了与注册中心的连接，以及开启服务端口
        // 服务提供者暴露服务配置
        ServiceConfig<DubboService> service = new ServiceConfig<DubboService>(); // 此实例很重，封装了与注册中心的连接，请自行缓存，否则可能造成内存和连接泄漏
        service.setApplication(application);
        service.setRegistry(registry); // 多个注册中心可以用setRegistries()
        service.setProtocol(protocol); // 多个协议可以用setProtocols()
        service.setInterface(DubboService.class);
        service.setRef(dubboService);
        service.setVersion("1.0.0");

        // 暴露及注册服务
        service.export();

        countDownLatch.await();
    }
}

3.注解方式的发布

　　参考:https://www.cnblogs.com/qlqwjy/p/10539824.html

补充:自建类打成jar包的方式运行:

修改pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>cn.qlq</groupId>
    <artifactId>zookeper</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.8</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.12.0</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.6</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.34.Final</version>
        </dependency>

        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.9</version>
        </dependency>
    </dependencies>
    <build>
        <!-- 配置了很多插件 -->
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.5.1</version>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <!-- 打包jar文件时，配置manifest文件，加入lib包的jar依赖 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
                <configuration>
                    <classesDirectory>target/classes/</classesDirectory>
                    <archive>
                        <manifest>
                            <mainClass>dubbo.Provider</mainClass>
                            <!-- 打包时 MANIFEST.MF文件不记录的时间戳版本 -->
                            <useUniqueVersions>false</useUniqueVersions>
                            <addClasspath>true</addClasspath>
                            <classpathPrefix>lib/</classpathPrefix>
                        </manifest>
                        <manifestEntries>
                            <Class-Path>.</Class-Path>
                        </manifestEntries>
                    </archive>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
                <executions>
                    <execution>
                        <id>copy-dependencies</id>
                        <phase>package</phase>
                        <goals>
                            <goal>copy-dependencies</goal>
                        </goals>
                        <configuration>
                            <type>jar</type>
                            <includeTypes>jar</includeTypes>
                            <useUniqueVersions>false</useUniqueVersions>
                            <outputDirectory>
                                ${project.build.directory}/lib
                            </outputDirectory>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

　　maven-jar-plugin 可以设置打包的一些信息。设置jar包运行的主类是dubbo.Provider

　　maven-dependency-plugin是打包项目所依赖的jar包，上面配置是生成依赖的jar包到target的lib目录下。

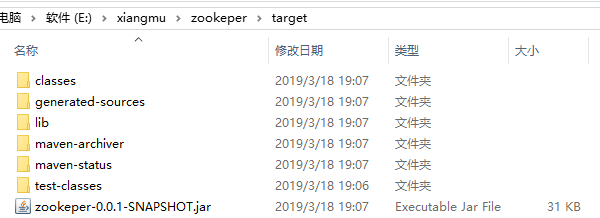

运行maven install命令生成jar包和对应的lib目录:

cmd运行下面命令即可:

E:xiangmuzookepertarget>set classpath=%classpath%;./lib;

E:xiangmuzookepertarget>java -jar zookeper-0.0.1-SNAPSHOT.jar

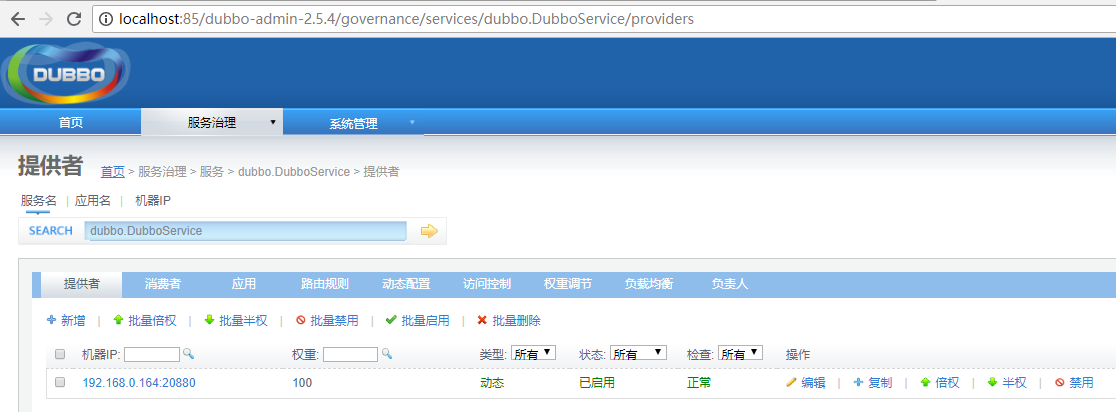

dubbo-admin查看项目:

2. 使用dubbo提供的类来发布

　　使用com.alibaba.dubbo.container.Main类来发布

修改pom.xml即可:

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>cn.qlq</groupId>
    <artifactId>zookeper</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.8</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.12.0</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.6</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.20.0-GA</version>
        </dependency>
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.34.Final</version>
        </dependency>

        <dependency>
            <groupId>com.101tec</groupId>
            <artifactId>zkclient</artifactId>
            <version>0.2</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-framework</artifactId>
            <version>2.12.0</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.16</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>1.7.25</version>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>1.1.11</version>
        </dependency>
    </dependencies>
    <build>
        <!--jar包名称 -->
        <finalName>dubboService</finalName>
        <resources>
            <!--recources文件夹下的所有文件都打进jar包 -->
            <resource>
                <targetPath>${project.build.directory}/classes</targetPath>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
                <includes>
                    <include>**/*.xml</include>
                    <include>**/*.properties</include>
                </includes>
            </resource>

            <!-- 上文有说过，由于我的provider.xml文件不是在META-INF下，这一段代码的作用就是将 provider.xml文件拷贝到META-INF目录下 -->
            <resource>
                <targetPath>${project.build.directory}/classes/META-INF/spring</targetPath>
                <directory>src/main/resources/</directory>
                <filtering>true</filtering>
                <includes>
                    <include>provider.xml</include>
                </includes>
            </resource>
        </resources>

        <pluginManagement>
            <plugins>
                <plugin>
                    <groupId>org.apache.maven.plugins</groupId>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.5.1</version>
                    <configuration>
                        <source>1.7</source>
                        <target>1.7</target>
                        <encoding>UTF-8</encoding>
                    </configuration>
                </plugin>
                <!-- 解决Maven插件在Eclipse内执行了一系列的生命周期引起冲突 -->
                <plugin>
                    <groupId>org.eclipse.m2e</groupId>
                    <artifactId>lifecycle-mapping</artifactId>
                    <version>1.0.0</version>
                    <configuration>
                        <lifecycleMappingMetadata>
                            <pluginExecutions>
                                <pluginExecution>
                                    <pluginExecutionFilter>
                                        <groupId>org.apache.maven.plugins</groupId>
                                        <artifactId>maven-dependency-plugin</artifactId>
                                        <versionRange>[2.0,)</versionRange>
                                        <goals>
                                            <goal>copy-dependencies</goal>
                                        </goals>
                                    </pluginExecutionFilter>
                                    <action>
                                        <ignore />
                                    </action>
                                </pluginExecution>
                            </pluginExecutions>
                        </lifecycleMappingMetadata>
                    </configuration>
                </plugin>
            </plugins>
        </pluginManagement>
        <plugins>
            <!-- 打包jar文件时，配置manifest文件，加入lib包的jar依赖 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
                <configuration>
                    <classesDirectory>target/classes/</classesDirectory>
                    <archive>
                        <manifest>
                            <mainClass>com.alibaba.dubbo.container.Main</mainClass>
                            <!-- 打包时 MANIFEST.MF文件不记录的时间戳版本 -->
                            <useUniqueVersions>false</useUniqueVersions>
                            <addClasspath>true</addClasspath>
                            <classpathPrefix>lib/</classpathPrefix>
                        </manifest>
                        <manifestEntries>
                            <Class-Path>.</Class-Path>
                        </manifestEntries>
                    </archive>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
                <executions>
                    <execution>
                        <id>copy-dependencies</id>
                        <phase>package</phase>
                        <goals>
                            <goal>copy-dependencies</goal>
                        </goals>
                        <configuration>
                            <type>jar</type>
                            <includeTypes>jar</includeTypes>
                            <useUniqueVersions>false</useUniqueVersions>
                            <outputDirectory>
                                ${project.build.directory}/lib
                            </outputDirectory>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

　　${project.build.directory} 构建目录，缺省为target。

运行maven install 或者package打包即可，然后到target目录下运行该jar包:

PS E:xiangmuzookepertarget> java -jar .dubboService.jar
[2019-03-18 18:52:29] Dubbo service server started!

dubbo-admin查看项目:

　　简单的方式还是自己编写类发布服务。

转载于:https://www.cnblogs.com/qlqwjy/p/10554081.html

最后

以上就是灵巧冰淇淋为你收集整理的dubbo服务运行的三种方式的全部内容，希望文章能够帮你解决dubbo服务运行的三种方式所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：java
浏览次数：78 次浏览
发布日期：2023-08-25 01:35:28
本文链接：https://www.kaopuke.com/article/k-p-k_14_uzo_18_f4_13_j_10_4.html

dubbo服务运行的三种方式

概述

1.自建类发布服务:(简单-重要)

1.1 xml配置格式的发布

2.API格式的发布

3.注解方式的发布

补充:自建类打成jar包的方式运行:

2. 使用dubbo提供的类来发布

最后

评论列表共有 0 条评论

发表评论取消回复

dubbo服务运行的三种方式

概述

1.自建类发布服务:(简单-重要)

1.1 xml配置格式的发布

2.API格式的发布

3.注解方式的发布

补充:自建类打成jar包的方式运行:

2. 使用dubbo提供的类来发布

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
