用axis2制作webservice的过程（1）

60 阅读 0 评论 40 点赞

我是靠谱客的博主妩媚丝袜，最近开发中收集的这篇文章主要介绍用axis2制作webservice的过程（1），觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

1）在 http://ws.apache.org/axis2/官网上面下载axis的war文件及axis2的zip包，将解压zip包后的目录放到E:docWork目录下，目录名称修改为axis2，如图：

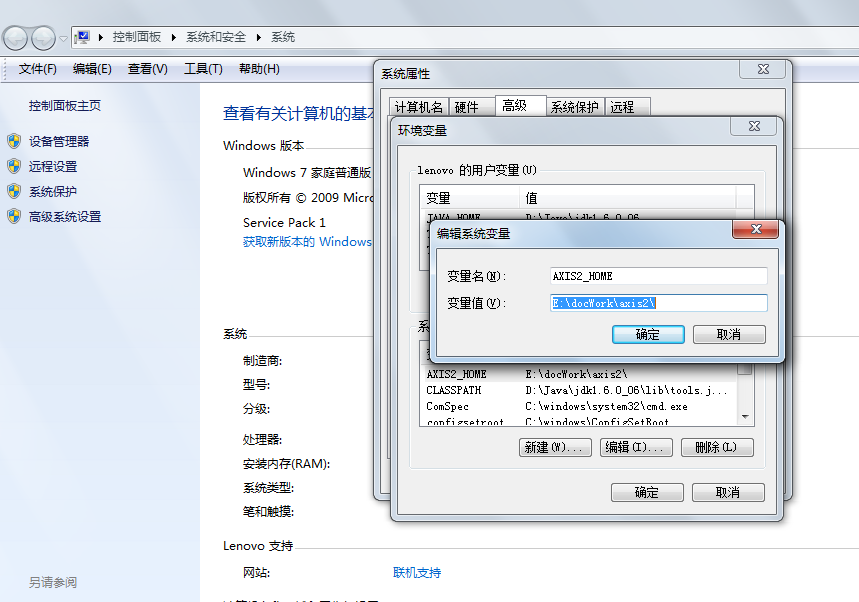

2）设置axis2_home环境变量的值E:docWorkaxis2为：

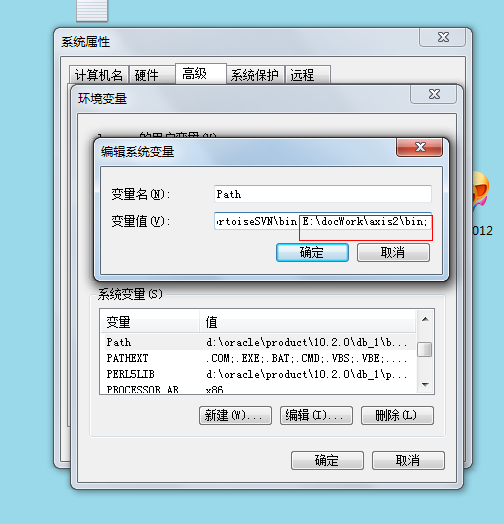

3)将axis2下的bin加入到path路径下面（目的是可以在doc窗口中执行java2wsdl或者其他的一些axis2的命令)：

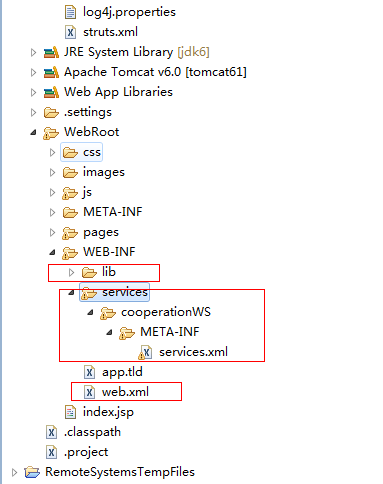

4创建工程enviross，创建如图中所示的目录结构：

CooperationWS.java类的内容：

package com.sw.sqr.webservice.cooperationWS;

import com.sw.sqr.webservice.cooperationWS.service.ICooperationService;
import com.sw.sqr.webservice.cooperationWS.service.imp.CooperationServiceImp;
import com.sw.sqr.webservice.util.WSUtil;

public class CooperationWS {
 private ICooperationService CooperationService = new CooperationServiceImp();

 public CooperationResponse queryStaticPage(CooperationRequest request) {
  CooperationResponse response = new CooperationResponse();
  try {
   CooperationService.getCooperationById(request, response);
   return WSUtil.responseSuccess(response, "查询成功");
  } catch (Exception e) {
   return WSUtil.responseError(response, e);
  }
 }
}

BaseResponseVo.java和BaseRequestVO.java是一个扩展类，现在可以没有任何属性和方法，可根据实际情况进行扩展。
CooperationResponse.java和CooperationRequest.java根据自己所需要的请求参数和返回响应的参数进行设置，
如CooperationResponse类的内容：

package com.sw.sqr.webservice.cooperationWS;
import com.sw.sqr.webservice.response.BaseResponseVO;
public class CooperationResponse extends BaseResponseVO{
 private Integer cooperationId;
 private String cooperationName;
 private String chairManName;
 private String chairManIdCard;
 private String chairManSex ;
 private String chairManEducationLevel;
 public Integer getCooperationId() {
  return cooperationId;
 }
 public void setCooperationId(Integer cooperationId) {
  this.cooperationId = cooperationId;
 }
 public String getCooperationName() {
  return cooperationName;
 }
 public void setCooperationName(String cooperationName) {
  this.cooperationName = cooperationName;
 }
 public String getChairManName() {
  return chairManName;
 }
 public void setChairManName(String chairManName) {
  this.chairManName = chairManName;
 }
 public String getChairManIdCard() {
  return chairManIdCard;
 }
 public void setChairManIdCard(String chairManIdCard) {
  this.chairManIdCard = chairManIdCard;
 }
 public String getChairManSex() {
  return chairManSex;
 }
 public void setChairManSex(String chairManSex) {
  this.chairManSex = chairManSex;
 }
 public String getChairManEducationLevel() {
  return chairManEducationLevel;
 }
 public void setChairManEducationLevel(String chairManEducationLevel) {
  this.chairManEducationLevel = chairManEducationLevel;
 }
}

CooperationRequest类：

package com.sw.sqr.webservice.cooperationWS;

public class CooperationRequest extends BaseRequestVO {
 private String id;//静态页ID
 public String getId() {
  return id;
 }
 public void setId(String id) {
  this.id = id;
 }
}

WSUtil.java是一个工具类：

package com.sw.sqr.webservice.util;

import com.sw.sqr.webservice.response.BaseResponseVO;
import com.sw.sqr.webservice.util.exception.WSBaseException;

// import org.apache.log4j.Logger;
public class WSUtil {
 // private static Logger log = Logger.getLogger(WSUtil.class);
 public static <T extends BaseResponseVO> T responseSuccess(T response, String returnMsg) {
  response.setRespCode(WSConstConfig.SUCCESS);
  response.setRespDesc(returnMsg);
  return response;
 }

 public static <T extends BaseResponseVO> T responseError(T response, Exception e) {
  response.setRespCode(WSConstConfig.OTHER_ERROR);
  response.setRespDesc(e.getMessage() == null ? "操作失败!" : e.getMessage());
  // log.error(e.getMessage(), e);
  return response;
 }

 public static <T extends BaseResponseVO> T responseError(T response, String returnCode, String returnMsg) {
  response.setRespCode(returnCode);
  response.setRespDesc(returnMsg);
  // log.error(returnMsg);
  return response;
 }

 public static <T extends BaseResponseVO> T responseError(T response, WSBaseException e) {
  response.setRespCode(e.getResultCode());
  response.setRespDesc(e.getMessage());
  // log.error(e.getMessage(), e);
  return response;
 }
}

ICooperationService.java接口和 CooperationServiceImp.java实现类：

package com.sw.sqr.webservice.cooperationWS.service.imp;
import com.sw.sqr.webservice.cooperationWS.CooperationRequest;
import com.sw.sqr.webservice.cooperationWS.CooperationResponse;
import com.sw.sqr.webservice.cooperationWS.service.ICooperationService;
public class CooperationServiceImp implements ICooperationService {
 public void getCooperationById(CooperationRequest request, CooperationResponse response) throws Exception {
System.out.println(request.getId());//可以根据webservice传入的request的id属性，进行相应的业务操作，如根据这个id属性值从数据库中取得一条完整的记录，放入response中相应给webservice客户端
                                    //此处因为是演示程序，没有做具体的业务处理。
                response.setChairManEducationLevel("eee");
  response.setChairManIdCard("kkkk");
  response.setChairManName("lll");
  response.setChairManSex("bbbb");
  response.setCooperationId(255);
  response.setCooperationName("cooperationName");
 }
}

5)鉴于日志的篇幅有限，请继续观看本人的日志--- 用axis2制作webservice的过程（2）
