概述

按照向导建立一个新的平台，编译，然后出现如下错误。

makeimg: Creating <...> nlscfg.out because <... > nlscfg.inf doesn't exist.
makeimg: run command: fmerge -nls <....> nlscfg.out <... > nlscfg.inf
Error - cannot open input file C<...> /postproc/nlscfg.inf fmerge for Windows CE (Release)
makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).
makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).

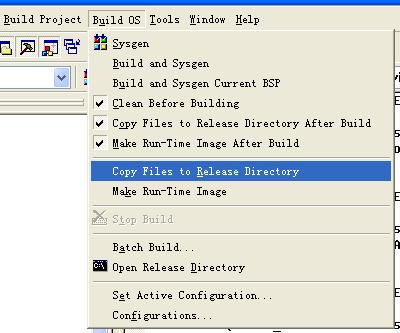

在PB的Menu/ Build OS/ Copy files to release directory手动复制一次，即解决了找不到nlscfg.inf 文件的错误。

然而又出现了：

Error: Could not find file '/WINCE420/PUBLIC/videonimage/RelDir/CIRRUS_EP931X_ARMV4IRelease/kernkitl.exe' on disk
nk.exe /WINCE420/PUBLIC/videonimage/RelDir/CIRRUS_EP931X_ARMV4IRelease/kernkitl.exe NK SH
Error: failed setting line
makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).
makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).
Error PB2505: Error executing #(/WINCE420/PUBLIC/videonimage/RelDir/CIRRUS_EP931X_ARMV4IRelease/)makeimg.exe.

又找不到kernkitl.exe了。

然后我在wince500/目录下搜索“kernkitl.exe”,找到一个原有的，复制到缺少的目录中，再次编译，即通过。
kernkitl.exe是调试用的工具对应的程序。

070329_2440test - 0 error(s), 0 warning(s)

--------------------------------------------------------------------------------
参考资源：

Hi Steve,

are you working under Windows CE V5.0? I had some similar problem and the

only thing I have done was from Platform Builder menu Build OS select Copy

Files to Release directory.

It seems that not all files are in your release directory and causes this

error. I had this problem when I build a new kernel and the buidl process

was stopped buy and error. Hope that will help you.

Best regards,

Mike E.

"steve hutch" < stevehutch @xxxxxxxxxxxxxxxxxxxxxxxxx > escribió en el mensaje

news:6D683C31-E4FF-4158-9FF6-5EDF61458A12@xxxxxxxxxxxxxxxx

> When I try "Make run time image" from platform builder for my application

> get the following error :

> makeimg: Creating < ... > nlscfg.out because < ... > nlscfg.inf doesn't

exist.

> makeimg: run command: fmerge -nls < .... > nlscfg.out < ... > nlscfg.inf

> Error - cannot open input file C < ... > postproc lscfg.inf

> fmerge for Windows CE (Release) (Built on Jan 29 2004 17:34:26)

> makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).

> Can somebody tell me what the reason for this error is and how to overcome

it.

> Thanks

> Steve.

请教Platform创建WinCE内核时遇到的错误

小弟遇到个麻烦，内核在创建完了之后进行BUILD，会出现很多ERROR，请教高手当遇到ERROR的时候怎么定位错误出处和修改。还有就是我在BUILD的时候出现如下ERROR：

regcomp: Overwriting existing value [HKEY_CLASSES_ROOTSSCE.Errors.2.0] "Default" in system registry

regcomp: Overwriting existing value [HKEY_CLASSES_ROOTSSCE.Errors.2.0CLSID] "Default" in system registry

Error: Could not find file 'WINCE420PUBLICvideonimageRelDirCIRRUS_EP931X_ARMV4IReleasekernkitl.exe' on disk

nk.exe WINCE420PUBLICvideonimageRelDirCIRRUS_EP931X_ARMV4IReleasekernkitl.exe NK SH

Error: failed setting line

makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).

Error PB2505: Error executing #(WINCE420PUBLICvideonimageRelDirCIRRUS_EP931X_ARMV4IRelease)makeimg.exe.

希望哪个有经验的高手指点下，这些错误都是什么原因造成的，小弟不胜感激。

-------------------------------------------------------------------------------------------------------------------------
kernkitl.exe是调试用的工具对应的程序，在project/release目录下未找到。

原因可能是：没有选中该项，编译中就未将需要的exe copy到release目录下，makeImage时，就会出错。

简单的确认办法：在以前编译通过的Project，找到这个exe，放到目前project的release目录下，再运行make image。能通过就ok。

-------------------------------------------------------------------------------------------------------------------------
1. 在你的winceXXX/platform目录下搜索“kernkitl.exe”,看看对应平台的kernkitl.exe是否已经存在。
2. 看看在“Build OS”里选中了“copy files to release directory after build”项了没有？
3. 选择“build and sysgen"再试。
3. makeimg: FATAL ERROR: Command returned non-zero exit code 1 (dec).
是因为上面的错误不能生成最终映像的提示信息，将所有错误消除了这个提示自然就没有了。
