概述

第1部分: http://www.cnblogs.com/cgzl/p/8283610.html

第2部分: http://www.cnblogs.com/cgzl/p/8287588.html

请使用这个项目作为练习的开始: https://pan.baidu.com/s/1ggcGkGb

测试的分组

打开Game.Tests里面的BossEnemyShould.cs, 为HaveCorrectPower方法添加一个Trait属性标签:

        [Fact]
        [Trait("Category", "Enemy")]
        public void HaveCorrectPower()
        {
            BossEnemy sut = new BossEnemy();

            Assert.Equal(166.667, sut.SpecialAttackPower, 3);
        }

Trait接受两个参数, 作为测试分类的Name和Value对.

Build项目, Run All Tests, 然后选择选择一下按Traits分组:

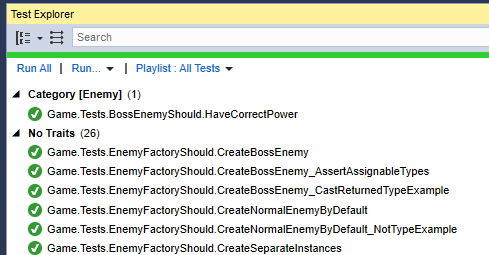

这时, Test Explorer里面的tests将会这样显示:

再打开EnemyFactoryShould.cs, 为CreateNormalEnemyByDefault方法添加Trait属性标签:

        [Fact]
        [Trait("Category", "Enemy")]
        public void CreateNormalEnemyByDefault()
        {
            EnemyFactory sut = new EnemyFactory();

            Enemy enemy = sut.Create("Zombie");

            Assert.IsType<NormalEnemy>(enemy);
        }

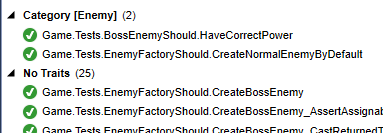

Build, 然后查看Test Explorer:

不同的Category:

修改一下BossEnemyShould.cs里面的HaveCorrectPower方法的Trait属性:

        [Fact]
        [Trait("Category", "Boss")]
        public void HaveCorrectPower()
        {
            BossEnemy sut = new BossEnemy();

            Assert.Equal(166.667, sut.SpecialAttackPower, 3);
        }

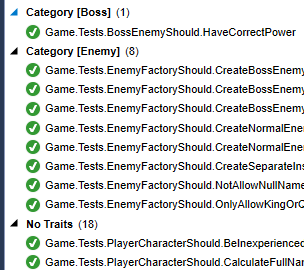

Build之后, 将会看见两个分类:

在Class级别进行分类:

只需要把Trait属性标签移到Class上面即可:

    [Trait("Category", "Enemy")]
    public class EnemyFactoryShould
    {

Build, 查看Test Explorer可以发现EnemyFactoryShould下面所有的Test方法都分类到了Enemy下:

按分类运行测试:

鼠标右键点击分类, Run Selected Tests就会运行该分类下所有的测试:

按Trait搜索:

在Test Explorer中把分类选择到Class:

然后在旁边的Search输入框中输入关键字, 这时下方会有提示菜单:

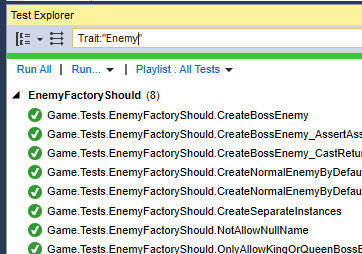

点击Trait, 然后如下图输入, 就会把Enemy分类的测试过滤显示出来:

这种方式同样也可以进行Trait过滤.

使用命令行进行分类测试

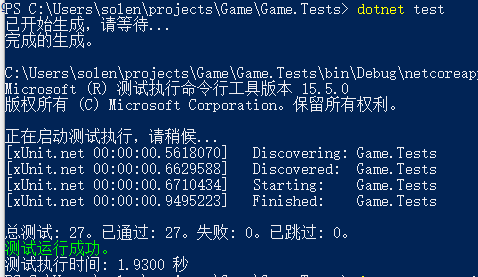

使用命令行进入的Game.Tests, 首先执行命令dotnet test, 这里显示一共有27个tests:

然后, 可以使用命令:

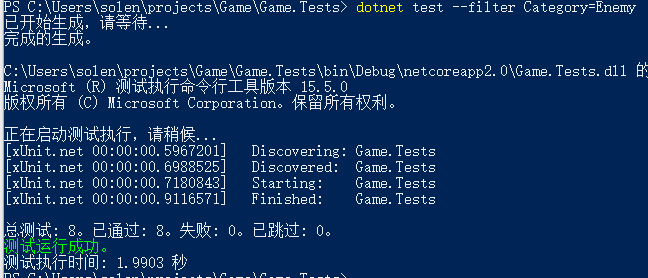

dotnet test --filter Category=Enemy

运行分类为Enemy的tests, 结果如图, 有8个tests:

运行多个分类的tests:

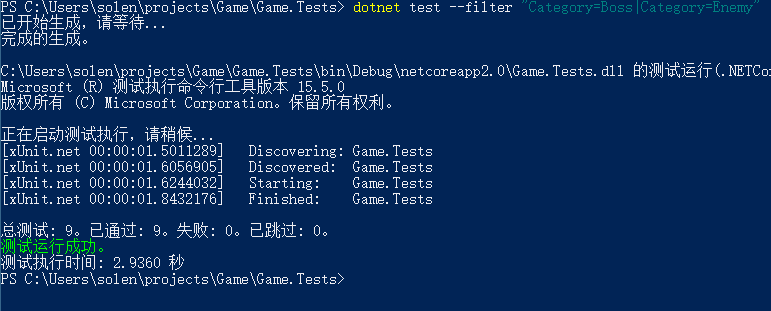

dotnet test --filter "Category=Boss|Category=Enemy"

这句命令会运行分类为Boss或者Enemy的tests, 结果如图:

共有9个tests.

忽略Test

为Fact属性标签设置其Skip属性, 即可忽略该测试, Skip的值为忽略的原因:

        [Fact(Skip = "不需要跑这个测试")]
        public void CreateNormalEnemyByDefault_NotTypeExample()
        {
            EnemyFactory sut = new EnemyFactory();

            Enemy enemy = sut.Create("Zombie");

            Assert.IsNotType<DateTime>(enemy);
        }

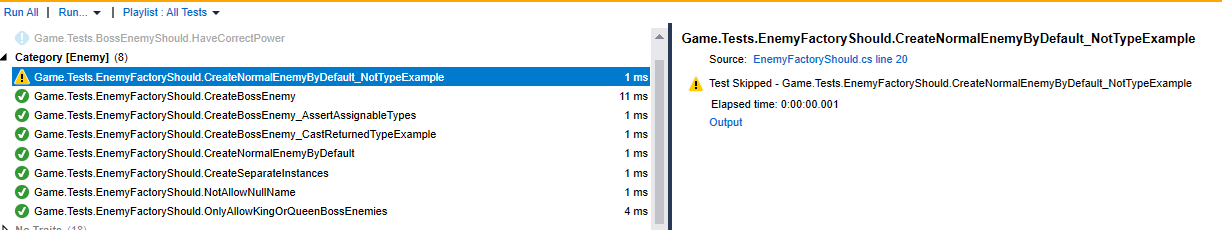

Build, 查看Test Explorer, 选择按Trait分类显示, 然后选中Category[Enemy]运行选中的tests:

从这里可以看到, 上面Skip的test被忽略了.

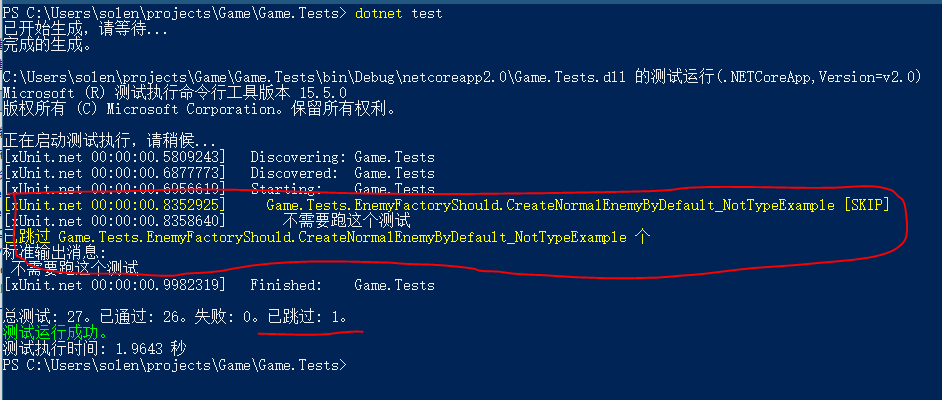

回到命令行, 执行dotnet test:

也可以看到该测试被忽略了, 并且标明了忽略的原因.

打印自定义测试输出信息:

在test中打印信息需要用到ITestOutputHelper的实现类(注意: 这里使用Console.Writeline是无效的), 在BossEnemyShould.cs里面注入这个helper:

using Xunit;
using Xunit.Abstractions;

namespace Game.Tests
{
    public class BossEnemyShould
    {
        private readonly ITestOutputHelper _output;

        public BossEnemyShould(ITestOutputHelper output)
        {
            _output = output;
        }
......

然后在test方法里面这样写即可:

        [Fact]
        [Trait("Category", "Boss")]
        public void HaveCorrectPower()
        {
            _output.WriteLine("正在创建 Boss Enemy");
            BossEnemy sut = new BossEnemy();

            Assert.Equal(166.667, sut.SpecialAttackPower, 3);
        }

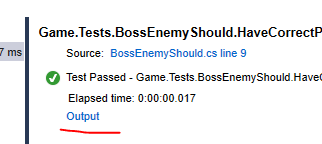

Build, Run Tests, 这时查看测试结果会发现一个output链接:

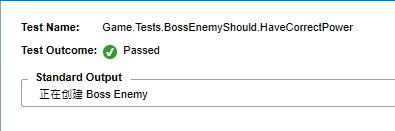

点击这个链接, 就会显示测试的输出信息:

使用命令行:

dotnet test --filter Category=Boss --logger:trx

执行命令后:

可以看到生成了一个TestResults文件夹, 里面是测试的输出文件, 使用编辑器打开, 它是一个xml文件, 内容如下:

<?xml version="1.0" encoding="UTF-8"?>
<TestRun id="9e552b73-0636-46a2-83d9-c19a5892b3ab" name="solen@DELL-RED 2018-02-10 10:27:19" runUser="DELL-REDsolen" xmlns="http://microsoft.com/schemas/VisualStudio/TeamTest/2010">
  <Times creation="2018-02-10T10:27:19.5005784+08:00" queuing="2018-02-10T10:27:19.5005896+08:00" start="2018-02-10T10:27:17.4990291+08:00" finish="2018-02-10T10:27:19.5176327+08:00" />
  <TestSettings name="default" id="610cad4c-1066-417b-a8e6-d30dce78ef4d">
    <Deployment runDeploymentRoot="solen_DELL-RED_2018-02-10_10_27_19" />
  </TestSettings>
  <Results>
    <UnitTestResult executionId="4c6ec739-ccd3-4233-b2bd-8bbde4dfa67f" testId="9e476ed4-3cd9-4f51-aa39-b3d411369979" testName="Game.Tests.BossEnemyShould.HaveCorrectPower" computerName="DELL-RED" duration="00:00:00.0160000" startTime="2018-02-10T10:27:19.2099922+08:00" endTime="2018-02-10T10:27:19.2113656+08:00" testType="13cdc9d9-ddb5-4fa4-a97d-d965ccfc6d4b" outcome="Passed" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" relativeResultsDirectory="4c6ec739-ccd3-4233-b2bd-8bbde4dfa67f">
      <Output>
        <StdOut>正在创建 Boss Enemy</StdOut>
      </Output>
    </UnitTestResult>
  </Results>
  <TestDefinitions>
    <UnitTest name="Game.Tests.BossEnemyShould.HaveCorrectPower" storage="c:userssolenprojectsgamegame.testsbindebugnetcoreapp2.0game.tests.dll" id="9e476ed4-3cd9-4f51-aa39-b3d411369979">
      <Execution id="4c6ec739-ccd3-4233-b2bd-8bbde4dfa67f" />
      <TestMethod codeBase="C:UserssolenprojectsGameGame.TestsbinDebugnetcoreapp2.0Game.Tests.dll" executorUriOfAdapter="executor://xunit/VsTestRunner2/netcoreapp" className="Game.Tests.BossEnemyShould" name="Game.Tests.BossEnemyShould.HaveCorrectPower" />
    </UnitTest>
  </TestDefinitions>
  <TestEntries>
    <TestEntry testId="9e476ed4-3cd9-4f51-aa39-b3d411369979" executionId="4c6ec739-ccd3-4233-b2bd-8bbde4dfa67f" testListId="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
  </TestEntries>
  <TestLists>
    <TestList name="Results Not in a List" id="8c84fa94-04c1-424b-9868-57a2d4851a1d" />
    <TestList name="All Loaded Results" id="19431567-8539-422a-85d7-44ee4e166bda" />
  </TestLists>
  <ResultSummary outcome="Completed">
    <Counters total="1" executed="1" passed="1" failed="0" error="0" timeout="0" aborted="0" inconclusive="0" passedButRunAborted="0" notRunnable="0" notExecuted="0" disconnected="0" warning="0" completed="0" inProgress="0" pending="0" />
    <Output>
      <StdOut>[xUnit.net 00:00:00.5525795]   Discovering: Game.Tests[xUnit.net 00:00:00.6567207]   Discovered:  Game.Tests[xUnit.net 00:00:00.6755272]   Starting:    Game.Tests[xUnit.net 00:00:00.8743059]   Finished:    Game.Tests</StdOut>
    </Output>
  </ResultSummary>
</TestRun>

View Code

在里面某个Output标签内可以看到上面写的测试输出信息.

减少重复的代码

xUnit在执行某个测试类的Fact或Theory方法的时候, 都会创建这个类新的实例, 所以有一些公用初始化的代码可以移动到constructor里面.

打开PlayerCharacterShould.cs, 可以看到每个test方法都执行了new PlayerCharacter()这个动作. 我们应该把这段代码移动到constructor里面:

namespace Game.Tests
{
    public class PlayerCharacterShould
    {
        private readonly PlayerCharacter _playerCharacter;
        private readonly ITestOutputHelper _output;

        public PlayerCharacterShould(ITestOutputHelper output)
        {
　　　　　　　_output = output;
            _output.WriteLine("正在创建新的玩家角色");
            _playerCharacter = new PlayerCharacter();
        }

        [Fact]
        public void BeInexperiencedWhenNew()
        {
            Assert.True(_playerCharacter.IsNoob);
        }

        [Fact]
        public void CalculateFullName()
        {
            _playerCharacter.FirstName = "Sarah";
            _playerCharacter.LastName = "Smith";

            Assert.Equal("Sarah Smith", _playerCharacter.FullName);
......

Build, Run Tests, 都OK, 并且都有output输出信息.

除了集中编写初始化代码, 也可以集中编写清理代码:

这需要该测试类实现IDisposable接口:

public class PlayerCharacterShould: IDisposable
    {

......

        public void Dispose()
        {
            _output.WriteLine($"正在清理玩家{_playerCharacter.FullName}");
        }
}

Build, Run Tests, 然后随便查看一个该类的test的output:

可以看到Dispose()被调用了.

在执行测试的时候共享上下文

上面降到了每个测试方法运行的时候都会创建该测试类新的实例, 可以在constructor里面进行公共的初始化动作.

但是如果初始化的动作消耗资源比较大, 并且时间较长, 那么这种方法就不太好了, 所以下面介绍另外一种方法.

首先在Game项目里面添加类:GameState.cs:

using System;
using System.Collections.Generic;

namespace Game
{
    public class GameState
    {
        public static readonly int EarthquakeDamage = 25;
        public List<PlayerCharacter> Players { get; set; } = new List<PlayerCharacter>();
        public Guid Id { get; } = Guid.NewGuid();

        public GameState()
        {
            CreateGameWorld();
        }

        public void Earthquake()
        {
            foreach (var player in Players)
            {
                player.TakeDamage(EarthquakeDamage);
            }
        }

        public void Reset()
        {
            Players.Clear();
        }

        private void CreateGameWorld()
        {
            // Simulate expensive creation
            System.Threading.Thread.Sleep(2000);
        }
    }
}

View Code

在Game.Tests里面添加类: GameStateShould.cs:

using Xunit;

namespace Game.Tests
{
    public class GameStateShould
    {
        [Fact]
        public void DamageAllPlayersWhenEarthquake()
        {
            var sut = new GameState();

            var player1 = new PlayerCharacter();
            var player2 = new PlayerCharacter();

            sut.Players.Add(player1);
            sut.Players.Add(player2);

            var expectedHealthAfterEarthquake = player1.Health - GameState.EarthquakeDamage;

            sut.Earthquake();

            Assert.Equal(expectedHealthAfterEarthquake, player1.Health);
            Assert.Equal(expectedHealthAfterEarthquake, player2.Health);
        }

        [Fact]
        public void Reset()
        {
            var sut = new GameState();

            var player1 = new PlayerCharacter();
            var player2 = new PlayerCharacter();

            sut.Players.Add(player1);
            sut.Players.Add(player2);

            sut.Reset();

            Assert.Empty(sut.Players);
        }
    }
}

View Code

看一下上面的代码, 里面有一个Sleep 2秒的动作, 所以执行两个测试方法的话每个方法都会执行这个动作, 一共用了这些时间:

为了解决这个问题, 我们首先建立一个类 GameStateFixture.cs, 它需要实现IDisposable接口:

using System;

namespace Game.Tests
{
    public class GameStateFixture : IDisposable
    {
        public GameState State { get; private set; }

        public GameStateFixture()
        {
            State = new GameState();
        }

        public void Dispose()
        {
            // Cleanup
        }
    }
}

然后在GameStateShould类实现IClassFixture接口并带有泛型的类型:

using Xunit;
using Xunit.Abstractions;

namespace Game.Tests
{
    public class GameStateShould : IClassFixture<GameStateFixture>
    {
        private readonly GameStateFixture _gameStateFixture;
        private readonly ITestOutputHelper _output;

        public GameStateShould(GameStateFixture gameStateFixture, ITestOutputHelper output)
        {
            _gameStateFixture = gameStateFixture;
            _output = output;
        }

        [Fact]
        public void DamageAllPlayersWhenEarthquake()
        {
            _output.WriteLine($"GameState Id={_gameStateFixture.State.Id}");

            var player1 = new PlayerCharacter();
            var player2 = new PlayerCharacter();

            _gameStateFixture.State.Players.Add(player1);
            _gameStateFixture.State.Players.Add(player2);

            var expectedHealthAfterEarthquake = player1.Health - GameState.EarthquakeDamage;

            _gameStateFixture.State.Earthquake();

            Assert.Equal(expectedHealthAfterEarthquake, player1.Health);
            Assert.Equal(expectedHealthAfterEarthquake, player2.Health);
        }

        [Fact]
        public void Reset()
        {
            _output.WriteLine($"GameState Id={_gameStateFixture.State.Id}");

            var player1 = new PlayerCharacter();
            var player2 = new PlayerCharacter();

            _gameStateFixture.State.Players.Add(player1);
            _gameStateFixture.State.Players.Add(player2);

            _gameStateFixture.State.Reset();

            Assert.Empty(_gameStateFixture.State.Players);
        }
    }
}

这个注入的_gameStateFixture在运行多个tests的时候只有一个实例. 所以把消耗资源严重的动作放在GameStateFixture里面就可以保证该段代码只运行一次, 并且被所有的test所共享调用. 要注意的是, 因为上述原因, GameStateFixture里面的代码不可以有任何副作用, 也就是说可以影响其他的测试结果.

Build, Run Tests:

可以看到运行时间少了很多, 因为那段Sleep代码只需要运行一次.

再查看一下这个两个tests的output是一样的, 也就是说明确实是只生成了一个GameState实例:

在不同的测试类中共享上下文

上面讲述了如何在一个测试类中不同的测试里共享代码的方法, 而xUnit也可以让我们在不同的测试类中共享上下文.

在Tests项目里建立 GameStateCollection.cs:

using Xunit;

namespace Game.Tests
{
    [CollectionDefinition("GameState collection")]
    public class GameStateCollection : ICollectionFixture<GameStateFixture> {}
}

这个类GameStateCollection需要实现ICollectionFixture<T>接口, 但是它没有具体的实现.

它上面的CollectionDefinition属性标签作用是定义了一个Collection名字叫做GameStateCollection.

再建立TestClass1.cs:

using Xunit;
using Xunit.Abstractions;

namespace Game.Tests
{
    [Collection("GameState collection")]
    public class TestClass1
    {
        private readonly GameStateFixture _gameStateFixture;
        private readonly ITestOutputHelper _output;

        public TestClass1(GameStateFixture gameStateFixture, ITestOutputHelper output)
        {
            _gameStateFixture = gameStateFixture;

            _output = output;
        }

        [Fact]
        public void Test1()
        {
            _output.WriteLine($"GameState ID={_gameStateFixture.State.Id}");
        }

        [Fact]
        public void Test2()
        {
            _output.WriteLine($"GameState ID={_gameStateFixture.State.Id}");
        }
    }
}

和TestClass2.cs:

using Xunit;
using Xunit.Abstractions;

namespace Game.Tests
{
    [Collection("GameState collection")]
    public class TestClass2
    {
        private readonly GameStateFixture _gameStateFixture;
        private readonly ITestOutputHelper _output;

        public TestClass2(GameStateFixture gameStateFixture, ITestOutputHelper output)
        {
            _gameStateFixture = gameStateFixture;

            _output = output;
        }

        [Fact]
        public void Test3()
        {
            _output.WriteLine($"GameState ID={_gameStateFixture.State.Id}");
        }

        [Fact]
        public void Test4()
        {
            _output.WriteLine($"GameState ID={_gameStateFixture.State.Id}");
        }
    }
}
