概述

线程

线程是调度CPU资源的最小单位。java线程与OS线程保持1:1的映射关系，也就是一个java线程会对应操作系统中的一个线程

jdk中定义了线程的6种状态：

NEW，RUNNABLE，BLOCKED，WAITING，TIMED_WAITING，TERMINATED

public enum State {
        /**
         * Thread state for a thread which has not yet started.
         */
        NEW,

        /**
         * Thread state for a runnable thread.  A thread in the runnable
         * state is executing in the Java virtual machine but it may
         * be waiting for other resources from the operating system
         * such as processor.
         */
        RUNNABLE,

        /**
         * Thread state for a thread blocked waiting for a monitor lock.
         * A thread in the blocked state is waiting for a monitor lock
         * to enter a synchronized block/method or
         * reenter a synchronized block/method after calling
         * {@link Object#wait() Object.wait}.
         */
        BLOCKED,

        /**
         * Thread state for a waiting thread.
         * A thread is in the waiting state due to calling one of the
         * following methods:
         * <ul>
         *   <li>{@link Object#wait() Object.wait} with no timeout</li>
         *   <li>{@link #join() Thread.join} with no timeout</li>
         *   <li>{@link LockSupport#park() LockSupport.park}</li>
         * </ul>
         *
         * <p>A thread in the waiting state is waiting for another thread to
         * perform a particular action.
         *
         * For example, a thread that has called <tt>Object.wait()</tt>
         * on an object is waiting for another thread to call
         * <tt>Object.notify()</tt> or <tt>Object.notifyAll()</tt> on
         * that object. A thread that has called <tt>Thread.join()</tt>
         * is waiting for a specified thread to terminate.
         */
        WAITING,

        /**
         * Thread state for a waiting thread with a specified waiting time.
         * A thread is in the timed waiting state due to calling one of
         * the following methods with a specified positive waiting time:
         * <ul>
         *   <li>{@link #sleep Thread.sleep}</li>
         *   <li>{@link Object#wait(long) Object.wait} with timeout</li>
         *   <li>{@link #join(long) Thread.join} with timeout</li>
         *   <li>{@link LockSupport#parkNanos LockSupport.parkNanos}</li>
         *   <li>{@link LockSupport#parkUntil LockSupport.parkUntil}</li>
         * </ul>
         */
        TIMED_WAITING,

        /**
         * Thread state for a terminated thread.
         * The thread has completed execution.
         */
        TERMINATED;
    }

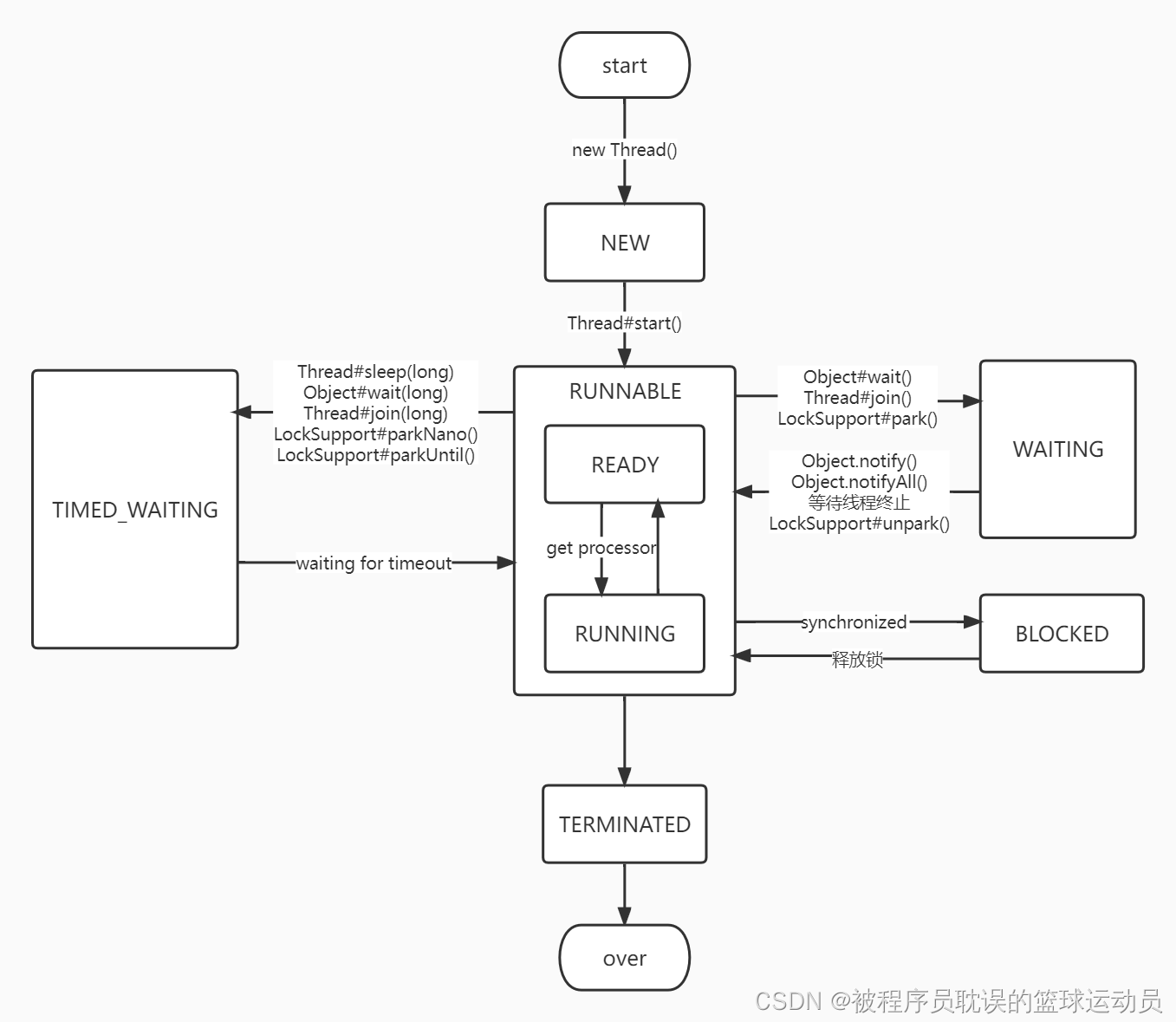

根据jdk Thread State状态及注释，总结线程各种状态的变化：

协程

协程即用户级线程，目的是最大化的发挥硬件性能和提升软件的速度。基本原理：在某个点挂起当前的任务，等任务完成或者到达某个条件时，再还原栈信息并继续执行（整个过程不需要上下文切换）

线程池——ThreadPoolExecutor

线程池：可以直接理解为一个线程缓存。

在java web开发中，如果每个请求都需要创建一个线程去执行任务，并发请求很高，但是每个请求执行时间都非常短，这样就会频繁的创建和销毁线程，将导致系统性能大大降低。

对于这种并发大任务执行时间短的场景，线程池的优势就体现出来了：

1、存活线程重用，减少线程创建和销毁的开销，提高性能

2、提高响应速度。当任务提交后，可以不用等到线程创建就能立即执行

3、提高线程的可管理性。

java线程池7个参数的理解

int corePoolSize——核心线程数，线程池一直存活的线程数量，即使这些线程是空闲状态
int maximumPoolSize——线程池允许的最大线程数
long keepAliveTime——当线程池中线程数量超过核心线程数，多余的线程在终止前等待新任务的最长时间
TimeUnit unit——时间单位
BlockingQueue<Runnable> workQueue——存放任务的阻塞队列，只存放由execute()提交的任务
ThreadFactory threadFactory——线程池使用创建线程的线程工厂
RejectedExecutionHandler handler——拒绝策略。当线程数量和队列容量都满了，使用该handler来处理当前的任务。

    public ThreadPoolExecutor(int corePoolSize,
                              int maximumPoolSize,
                              long keepAliveTime,
                              TimeUnit unit,
                              BlockingQueue<Runnable> workQueue,
                              ThreadFactory threadFactory,
                              RejectedExecutionHandler handler) {
        if (corePoolSize < 0 ||
            maximumPoolSize <= 0 ||
            maximumPoolSize < corePoolSize ||
            keepAliveTime < 0)
            throw new IllegalArgumentException();
        if (workQueue == null || threadFactory == null || handler == null)
            throw new NullPointerException();
        this.corePoolSize = corePoolSize;
        this.maximumPoolSize = maximumPoolSize;
        this.workQueue = workQueue;
        this.keepAliveTime = unit.toNanos(keepAliveTime);
        this.threadFactory = threadFactory;
        this.handler = handler;
    }

线程池状态和数量的说明：

引用ctl是一个并发安全的AtomicInteger计数器，它通过Integer的高三位和低29位维护了线程池的状态（RUNNING,SHUTDOWN,STOP,TIDYING,TERMINATED）和线程的数量，分别通过runStateOf(int)、workerCountOf(int)和ctlOf(int,int)获取线程状态、工作线程数量和Integer的大小。

    private final AtomicInteger ctl = new AtomicInteger(ctlOf(RUNNING, 0));
    private static final int COUNT_BITS = Integer.SIZE - 3;
    private static final int CAPACITY   = (1 << COUNT_BITS) - 1;

    // runState is stored in the high-order bits
    private static final int RUNNING    = -1 << COUNT_BITS; //高三为111
    private static final int SHUTDOWN   =  0 << COUNT_BITS; //高三为000
    private static final int STOP       =  1 << COUNT_BITS; //高三为001
    private static final int TIDYING    =  2 << COUNT_BITS; //高三为010
    private static final int TERMINATED =  3 << COUNT_BITS; //高三为011

    // Packing and unpacking ctl
    private static int runStateOf(int c)     { return c & ~CAPACITY; }
    private static int workerCountOf(int c)  { return c & CAPACITY; }
    private static int ctlOf(int rs, int wc) { return rs | wc; }

线程池核心方法execute()

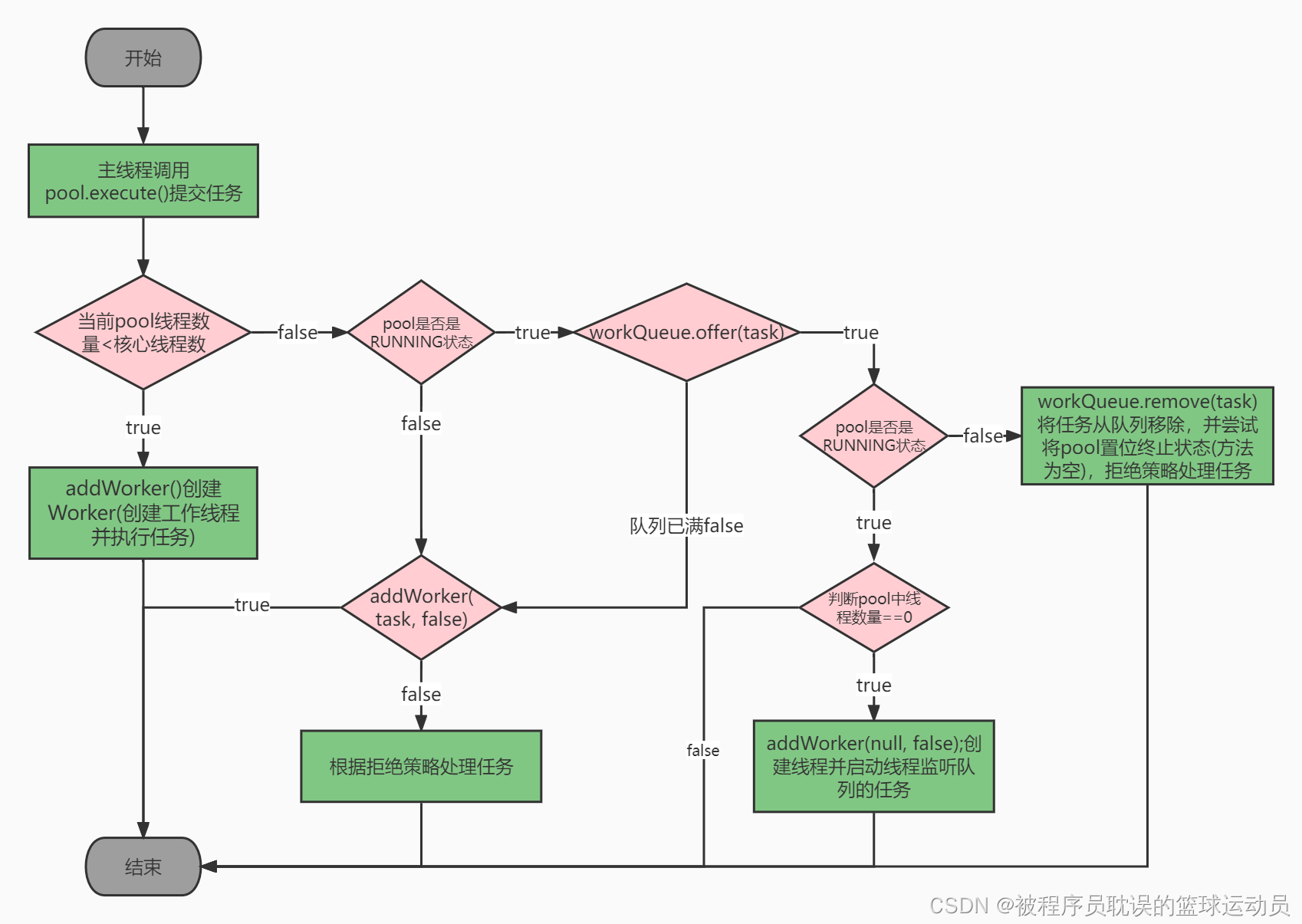

核心代码说明及流程

public void execute(Runnable command) {
        if (command == null)
            throw new NullPointerException();
        int c = ctl.get();
        if (workerCountOf(c) < corePoolSize) {
            if (addWorker(command, true))
                return;
            c = ctl.get();
        }
        if (isRunning(c) && workQueue.offer(command)) {
            int recheck = ctl.get();
            if (! isRunning(recheck) && remove(command))
                reject(command);
            else if (workerCountOf(recheck) == 0)
                addWorker(null, false);
        }
        else if (!addWorker(command, false))
            reject(command);
    }

代码分析——主要分为三步：

1、工作线程数量小于核心线程数，则调用addWorker(Runnable,boolean)创建Worker，并将任务传递进去，通过线程工厂类创建工作线程，启动工作线程去执行该任务。

2、如果工作线程数量大于等于核心线程数，则先判断线程池是否在RUNNING状态，是则尝试将任务丢到队列中，否则直接直接调用addWorker()尝试执行任务

3、如果队列已满（2）中将任务入队失败，则会直接使用设置的任务淘汰策略处理任务

默认有四种淘汰策略：

(1)、AbortPolicy抛异常

(2)、CallerRunsPolicy使用当前线程执行任务

(3)、DiscardOldestPolicy淘汰最老的任务，添加新任务

(4)、DiscardPolicy啥也不干

核心方法addWorker(Runnable, boolean)

主要做了两件核心的事：

1、校验通过后，使用for循环确保线程池中线程数量+1；

2、创建Worker，Worker维护了任务和使用线程工厂创建的线程，并将Worker添加到worker的set集合中维护起来，最后启动线程执行任务。

其他异常情况：线程池是STOP状态或者可以被置为SHUTDOWN状态，该方法将返回false；另外，如果线程工厂创建线程失败、返回null或者抛出异常，将会执行回滚操作，回滚操作包括将worker从集合中移除，线程数量-1。

工作线程类Worker

1、new Worker(Runnable)：维护任务和使用线程工厂创建的线程，并将自己作为一个任务传递给线程。

2、当线程启动后，就会执行run()方法，并执行runWorker(this)方法。

3、runWorker(Worker)：while循环获取任务，如果当前worker中维持的任务不为null，则使用工厂线程执行任务；否则firstTask为null，通过getTask()从队列中获取任务去执行。如果没有获取到任务则退出循环执行processWorkerExit()

private final class Worker extends AbstractQueuedSynchronizer implements Runnable {

    Worker(Runnable firstTask) {
        setState(-1); // inhibit interrupts until runWorker
        this.firstTask = firstTask;
        this.thread = getThreadFactory().newThread(this);
    }

    public void run() {
        runWorker(this);
    }

    final void runWorker(Worker w) {
        Thread wt = Thread.currentThread();
        Runnable task = w.firstTask;
        w.firstTask = null;
        w.unlock(); // allow interrupts
        boolean completedAbruptly = true;
        try {
            while (task != null || (task = getTask()) != null) {
                w.lock();
                // If pool is stopping, ensure thread is interrupted;
                // if not, ensure thread is not interrupted.  This
                // requires a recheck in second case to deal with
                // shutdownNow race while clearing interrupt
                if ((runStateAtLeast(ctl.get(), STOP) ||
                     (Thread.interrupted() &&
                      runStateAtLeast(ctl.get(), STOP))) &&
                    !wt.isInterrupted())
                    wt.interrupt();
                try {
                    beforeExecute(wt, task);
                    Throwable thrown = null;
                    try {
                        task.run();
                    } catch (RuntimeException x) {
                        thrown = x; throw x;
                    } catch (Error x) {
                        thrown = x; throw x;
                    } catch (Throwable x) {
                        thrown = x; throw new Error(x);
                    } finally {
                        afterExecute(task, thrown);
                    }
                } finally {
                    task = null;
                    w.completedTasks++;
                    w.unlock();
                }
            }
            completedAbruptly = false;
        } finally {
            processWorkerExit(w, completedAbruptly);
        }
    }
}

getTask()方法

getTask 方法核心代码

    boolean timed = allowCoreThreadTimeOut || wc > corePoolSize;

    if ((wc > maximumPoolSize || (timed && timedOut))
            && (wc > 1 || workQueue.isEmpty())) {
            if (compareAndDecrementWorkerCount(c))
                return null;
            continue;
    }

    try {
        Runnable r = timed ?
            workQueue.poll(keepAliveTime, TimeUnit.NANOSECONDS) :
            workQueue.take();
        if (r != null)
            return r;
        timedOut = true;
    } catch (InterruptedException retry) {
        timedOut = false;
    }

分析：

allowCoreThreadTimeOut默认为false，只有当线程池线程数量超过核心线程数，就通过timed来标识当前线程是需要超时回收的线程。此时假设线程池线程数量超过核心线程数，调用阻塞队列的workQueue#poll(int, TimeUnit)超时方法来获取任务，如果在超时时间获取到任务，则返回任务；否则表示阻塞任务队列中已经为空了，需要将线程进行回收，执行timedOut = true表示线程需要被清理，而且线程池中存在线程并且队列是空的，通过CAS保证线程池中线程数量减1，并返回空。如果线程池中线程数量没有超过核心线程数，则调用workQueue.take()会一直阻塞在队列中（阻塞是通过条件队列调用await()实现的），直到有新任务被添加到队列中。

processWorkerExit()方法

核心代码

        try {
            completedTaskCount += w.completedTasks;
            workers.remove(w);
        } finally {
            mainLock.unlock();
        }

该方法在前面会处理异常情况，如果执行任务时出现异常则会将线程数量减1，否则不做处理，因为在getTask()方法中已经处理了。随后将完成的任务数+1，将当前工作者线程从工作者线程的集合中移除，这就意味着当前线程生命周期结束，将被jvm垃圾回收器回收。

线程池核心方法submit()和get()

FutureTask

FutureTask实现了RunnableFuture，RunnableFuture分别继承了Future和Runnable。FutureTask封装了任务callable和执行状态state，state用来标识任务执行状态，在get()时用此标识来判断是否阻塞自己，并且还维护了WaitNode构建的单向链表用来记录WAITING状态的线程（CAS头插法）。

submit()方法：将任务封装为FutureTask，并调用execute(Runnable)方法执行任务。如果通过submit()提交Runnable无返回的任务，最后get()将返回null.

    public <T> Future<T> submit(Callable<T> task) {
        if (task == null) throw new NullPointerException();
        RunnableFuture<T> ftask = newTaskFor(task);
        execute(ftask);
        return ftask;
    }

    protected <T> RunnableFuture<T> newTaskFor(Callable<T> callable) {
        return new FutureTask<T>(callable);
    }

    public FutureTask(Callable<V> callable) {
        if (callable == null)
            throw new NullPointerException();
        this.callable = callable;
        this.state = NEW;       // ensure visibility of callable
    }

get()方法：

    public V get() throws InterruptedException, ExecutionException {
        int s = state;
        if (s <= COMPLETING)
            //构建单向链表，记录WAITING线程。
            s = awaitDone(false, 0L);
        //被唤醒后，获取任务执行结果
        return report(s);
    }

最后总结：
