概述

库存服务

本章开始编写库存服务相关的内容，首先把库存的微服务添加到注册中心中，添加配置文件：

spring:
  datasource:
    username: root
    password: 123456
    url: jdbc:mysql://IP地址/mall_wms?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai
    driver-class-name: com.mysql.cj.jdbc.Driver
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
  application:
    name: mall-ware
mybatis-plus:
  mapper-locations: classpath:/mapper/**/*.xml
  global-config:
    db-config:
      id-type: auto
server:
  port: 11000

同时主程序开启注册发现的注解：

package com.lastingwar.mall.ware;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class MallWareApplication {

    public static void main(String[] args) {
        SpringApplication.run(MallWareApplication.class, args);
    }

}

之后启动ware的微服务：
在这里插入图片描述
之后配置网关的路由规则
来到gateway的配置文件：

        #库存服务
        - id: ware_route
          uri: lb://mall-ware
          predicates:
            - Path=/api/ware/**
          filters:
            - RewritePath=/api/(?<segment>.*),/${segment}

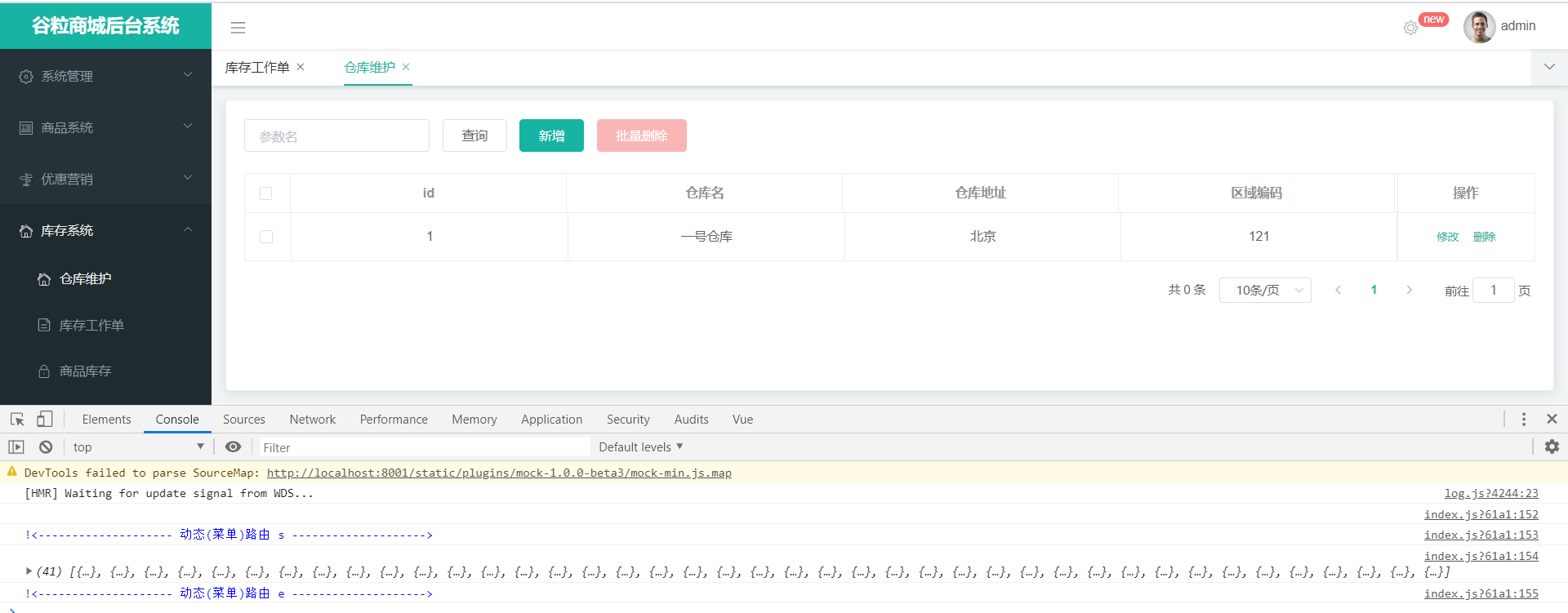

之后重启服务，能够正常访问前端的仓库页面：

在这里插入图片描述
同时逆向生成的代码，使用给出的添加修改删除功能也是可行的。

在这里插入图片描述

添加仓库查询系统

完成仓库维护中的模糊查询功能，来到查询请求对应的响应

@RestController
@RequestMapping("ware/wareinfo")
public class WareInfoController {
    @Autowired
    private WareInfoService wareInfoService;

    /**
     * 列表
     */
    @RequestMapping("/list")
    //@RequiresPermissions("ware:wareinfo:list")
    public R list(@RequestParam Map<String, Object> params){
        PageUtils page = wareInfoService.queryPage(params);

        return R.ok().put("page", page);
    }

进入到对应.queryPage(params)，对方法进行修改，能够携带关键字的模糊查询：

    /**
     *
     * @param params 请求内容
     * @return  携带关键字模糊查询的分页内容
     */

    @Override
    public PageUtils queryPage(Map<String, Object> params) {

        QueryWrapper<WareInfoEntity> wareInfoEntityQueryWrapper = new QueryWrapper<>();
        String key = (String) params.get("key");
        if(!StringUtils.isEmpty(key)){
            wareInfoEntityQueryWrapper.eq("id",key).or()
                    .like("name",key)
                    .or().like("address",key)
                    .or().like("areacode",key);
        }

        IPage<WareInfoEntity> page = this.page(
                new Query<WareInfoEntity>().getPage(params),
                wareInfoEntityQueryWrapper
        );

        return new PageUtils(page);
    }

查询库存

对应前端页面：
在这里插入图片描述
编写对应库存产品的查询功能，对应API文档：

02、查询商品库存
GET
/ware/waresku/list
请求参数
{
   page: 1,//当前页码
   limit: 10,//每页记录数
   sidx: 'id',//排序字段
   order: 'asc/desc',//排序方式
   wareId: 123,//仓库id
   skuId: 123//商品id
}
分页数据

响应数据
{
	"msg": "success",
	"code": 0,
	"page": {
		"totalCount": 0,
		"pageSize": 10,
		"totalPage": 0,
		"currPage": 1,
		"list": [{
			"id": 1,
			"skuId": 1,
			"wareId": 1,
			"stock": 1,
			"skuName": "dd",
			"stockLocked": 1
		}]
	}
}

首先找到对应的controller中：

@RestController
@RequestMapping("ware/waresku")
public class WareSkuController {
    @Autowired
    private WareSkuService wareSkuService;

    /**
     * 列表
     */
    @RequestMapping("/list")
    //@RequiresPermissions("ware:waresku:list")
    public R list(@RequestParam Map<String, Object> params){
        PageUtils page = wareSkuService.queryPage(params);

        return R.ok().put("page", page);
    }

之后进入到.queryPage(params)方法：

    /**
     * 查询对应仓库ID中商品的信息
     * @param params    请求信息
     * @return
     */
    @Override
    public PageUtils queryPage(Map<String, Object> params) {
        /**
         * skuId: 1
         * wareId: 2
         */
        QueryWrapper<WareSkuEntity> queryWrapper = new QueryWrapper<>();
        String skuId = (String) params.get("skuId");
        if(!StringUtils.isEmpty(skuId)){
            queryWrapper.eq("sku_id",skuId);
        }

        String wareId = (String) params.get("wareId");
        if(!StringUtils.isEmpty(wareId)){
            queryWrapper.eq("ware_id",wareId);
        }


        IPage<WareSkuEntity> page = this.page(
                new Query<WareSkuEntity>().getPage(params),
                queryWrapper
        );

        return new PageUtils(page);
    }

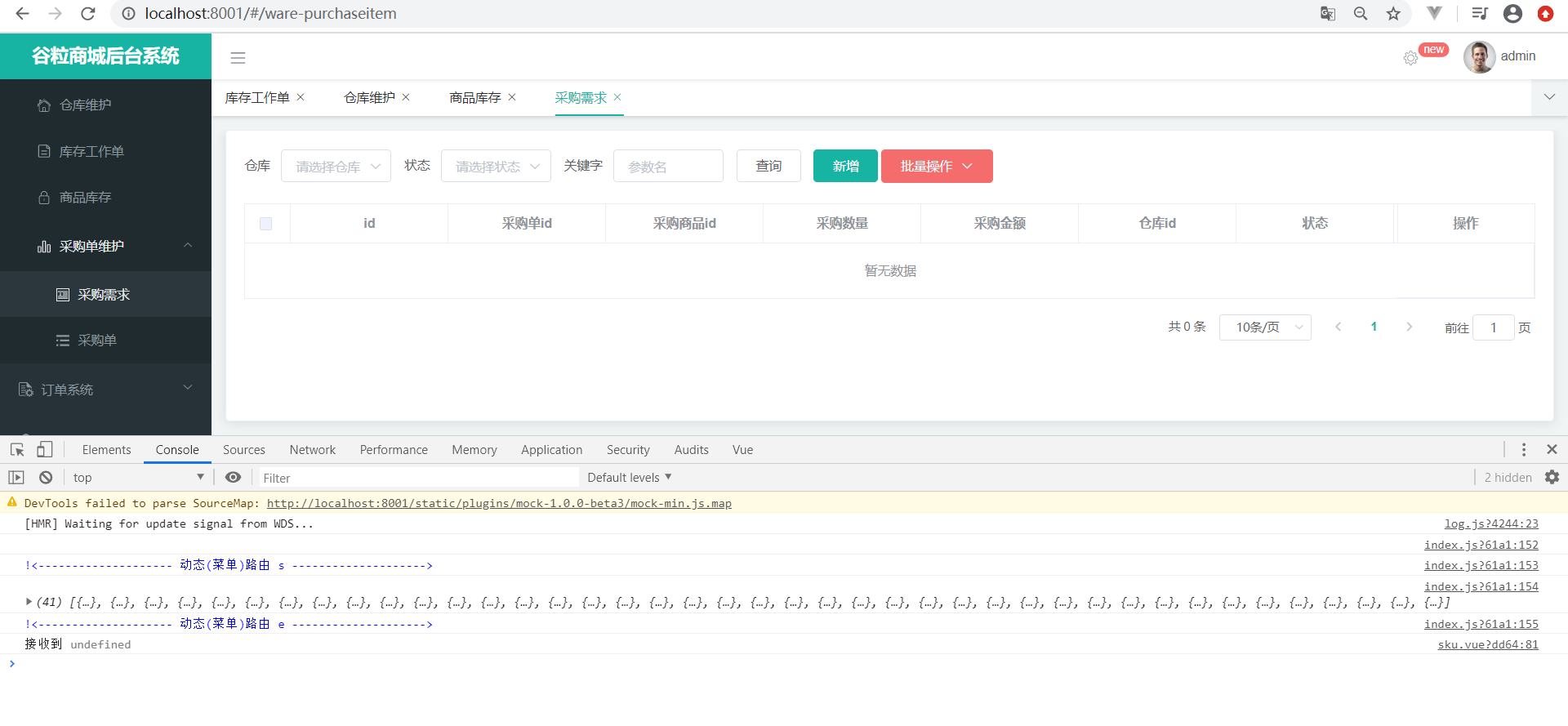

这里库存查询的功能也完成了，库存的商品不能通过新增来添加，需要使用采购单来完成，对应页面：
在这里插入图片描述
首先来完成一个查询采购单的操作，对应API接口文档：

03、查询采购需求
GET
/ware/purchasedetail/list
请求参数
{
   page: 1,//当前页码
   limit: 10,//每页记录数
   sidx: 'id',//排序字段
   order: 'asc/desc',//排序方式
   key: '华为',//检索关键字
   status: 0,//状态
   wareId: 1,//仓库id
}
分页数据

响应数据
{
	"msg": "success",
	"code": 0,
	"page": {
		"totalCount": 0,
		"pageSize": 10,
		"totalPage": 0,
		"currPage": 1,
		"list": [{
			"id": 2,
			"purchaseId": 1,
			"skuId": 1,
			"skuNum": 2,
			"skuPrice": 22.0000,
			"wareId": 1,
			"status": 1
		}]
	}
}

首先对应接口文档来到对应的controller：

@RestController
@RequestMapping("ware/purchasedetail")
public class PurchaseDetailController {
    @Autowired
    private PurchaseDetailService purchaseDetailService;

    /**
     * 列表
     */
    @RequestMapping("/list")
    //@RequiresPermissions("ware:purchasedetail:list")
    public R list(@RequestParam Map<String, Object> params){
        PageUtils page = purchaseDetailService.queryPage(params);

        return R.ok().put("page", page);
    }

之后进入到.queryPage(params)方法进行修改：

    /**
     * 根据请求信息查询采购单
     * @param params
     * @return
     */
    @Override
    public PageUtils queryPage(Map<String, Object> params) {

        /**
         * status: 0,//状态
         *    wareId: 1,//仓库id
         */

        QueryWrapper<PurchaseDetailEntity> queryWrapper = new QueryWrapper<PurchaseDetailEntity>();

        String key = (String) params.get("key");
        if(!StringUtils.isEmpty(key)){
            //purchase_id  sku_id
            queryWrapper.and(w->{
                w.eq("purchase_id",key).or().eq("sku_id",key);
            });
        }

        String status = (String) params.get("status");
        if(!StringUtils.isEmpty(status)){
            //purchase_id  sku_id
            queryWrapper.eq("status",status);
        }

        String wareId = (String) params.get("wareId");
        if(!StringUtils.isEmpty(wareId)){
            //purchase_id  sku_id
            queryWrapper.eq("ware_id",wareId);
        }

        IPage<PurchaseDetailEntity> page = this.page(
                new Query<PurchaseDetailEntity>().getPage(params),
                queryWrapper
        );

        return new PageUtils(page);
    }

合并采购单

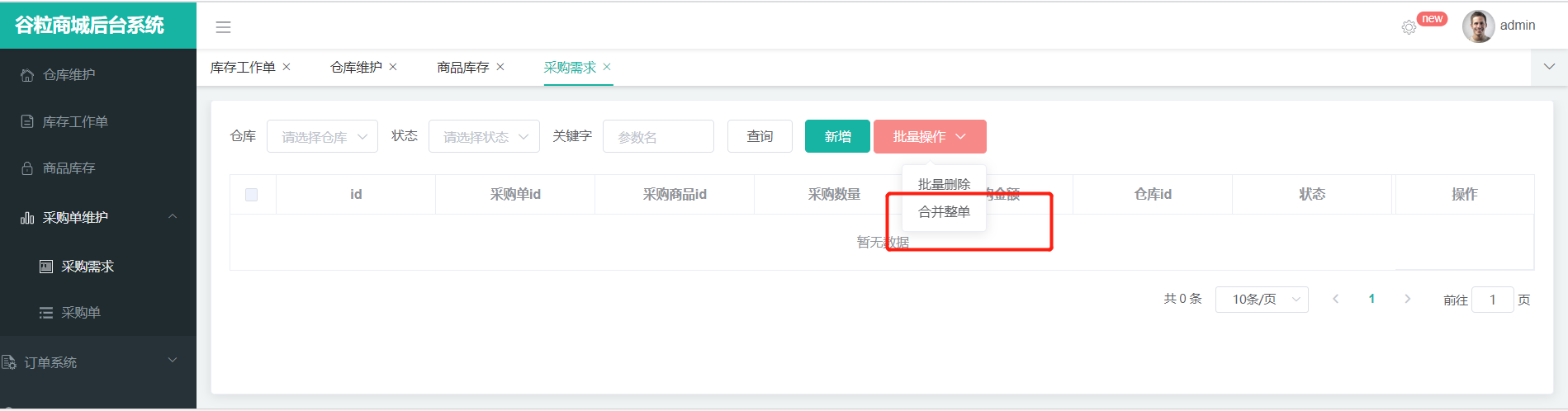

前端页面有一个合并采购单为整单的需求:
在这里插入图片描述

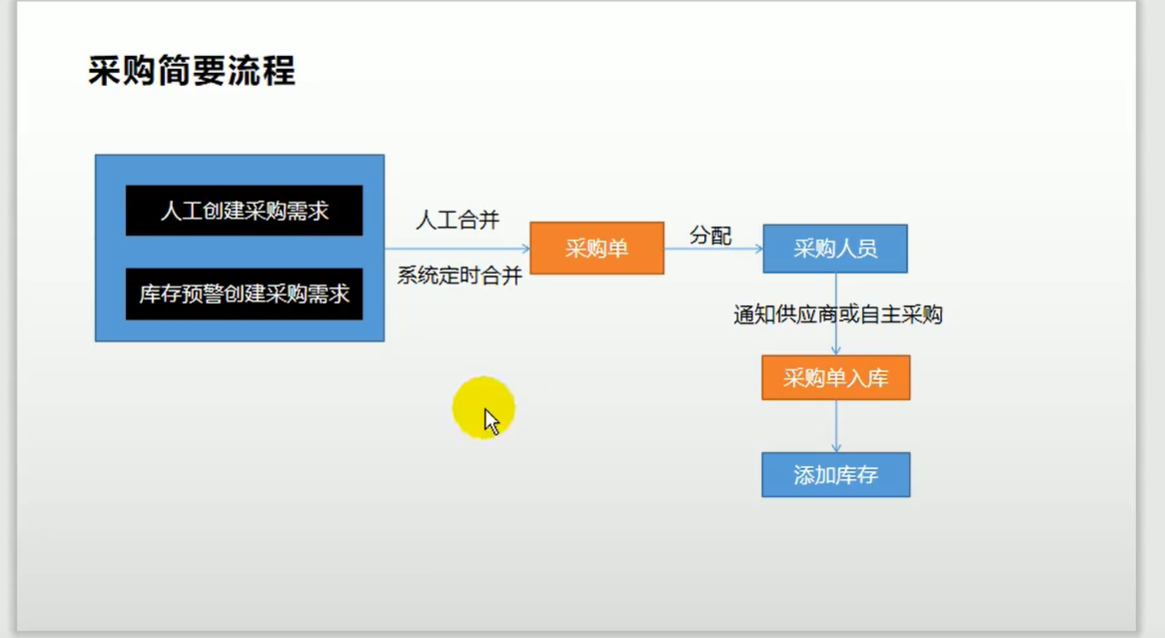

对应操作的逻辑如下：

首先编写查询未合并的采购需求：

05、查询未领取的采购单
GET
/ware/purchase/unreceive/list
请求参数

响应数据
{
	"msg": "success",
	"code": 0,
	"page": {
		"totalCount": 0,
		"pageSize": 10,
		"totalPage": 0,
		"currPage": 1,
		"list": [{
			"id": 1,
			"assigneeId": 1,
			"assigneeName": "aa",
			"phone": "123",
			"priority": 1,
			"status": 1,
			"wareId": 1,
			"amount": 22.0000,
			"createTime": "2019-12-12",
			"updateTime": "2019-12-12"
		}]
	}
}

首先添加/ware/purchase/unreceive/list 请求的响应：


    /**
     * 查询未领取的请求单
     * @param params
     * @return
     */
    @RequestMapping("/unreceive/list")
    //@RequiresPermissions("ware:purchase:list")
    public R unreceivelist(@RequestParam Map<String, Object> params){
        PageUtils page = purchaseService.queryPageUnreceivePurchase(params);

        return R.ok().put("page", page);
    }

之后创建和实现方法：

    /**
     *  查询未领取的采购请求单
     * @param params
     * @return
     */
    @Override
    public PageUtils queryPageUnreceivePurchase(Map<String, Object> params) {
        IPage<PurchaseEntity> page = this.page(
                new Query<PurchaseEntity>().getPage(params),
                new QueryWrapper<PurchaseEntity>().eq("status",0).or().eq("status",1)
        );

        return new PageUtils(page);
    }

至此查询未领取采购的接口就写好了。

合并采购需求

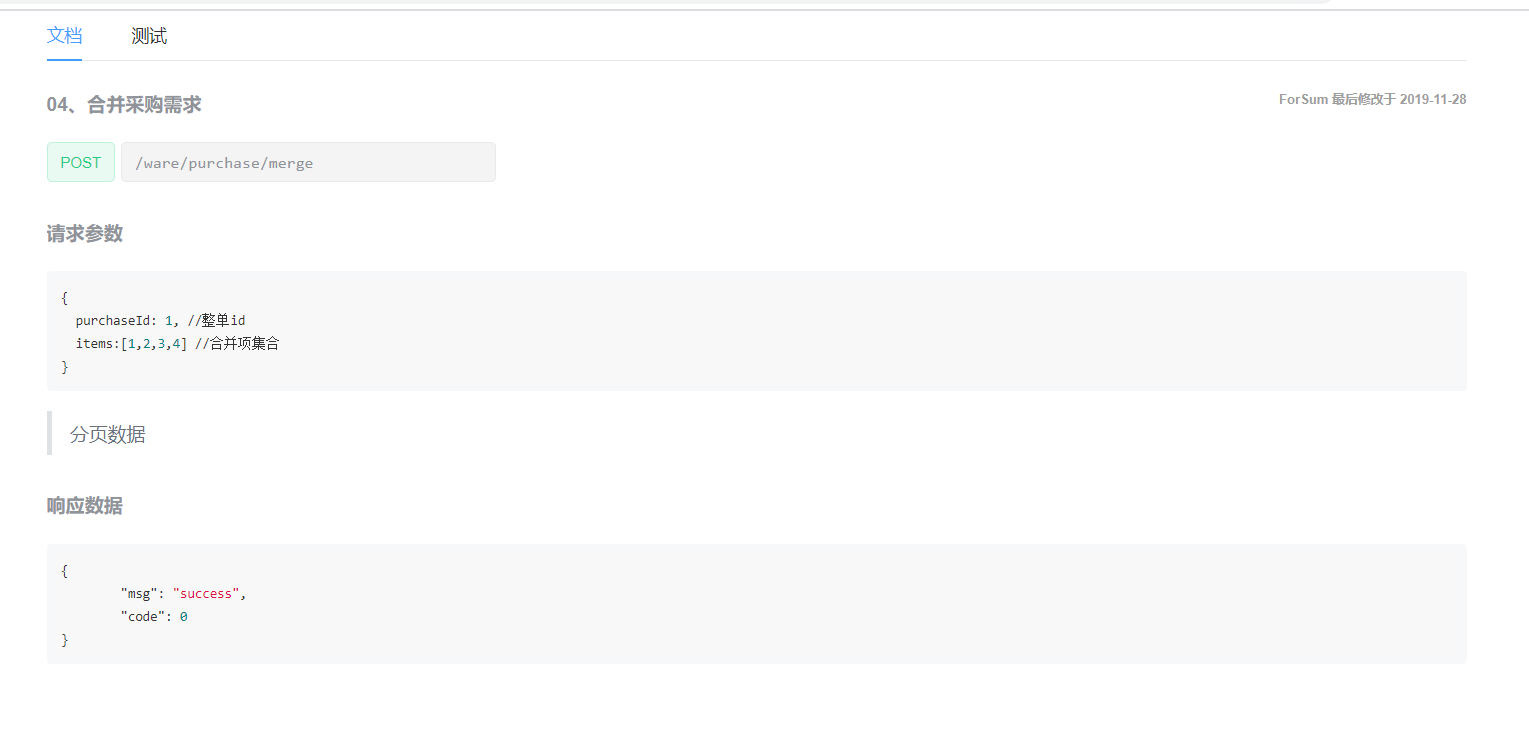

对应的API文档：
在这里插入图片描述
首先添加对应的请求响应：

    /**
     * 合并采购需求
     * @param mergeVo
     * @return
     */
    @PostMapping("/merge")
    public R merge(@RequestBody MergeVo mergeVo){

        purchaseService.mergePurchase(mergeVo);
        return R.ok();
    }

这里需要引入一个Vo来对应请求发送的信息：

package com.lastingwar.mall.ware.vo;

import lombok.Data;

import java.util.List;

@Data
public class MergeVo {

   private Long purchaseId; //整单id
   private List<Long> items;//[1,2,3,4] //合并项集合
}

之后创建和实现方法mergePurchase(mergeVo)：

package com.lastingwar.mall.ware.service.impl;

import com.lastingwar.mall.ware.entity.PurchaseDetailEntity;
import com.lastingwar.mall.ware.service.PurchaseDetailService;
import com.lastingwar.mall.ware.vo.MergeVo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.Date;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;

import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.baomidou.mybatisplus.core.metadata.IPage;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.lastingwar.common.utils.PageUtils;
import com.lastingwar.common.utils.Query;

import com.lastingwar.mall.ware.dao.PurchaseDao;
import com.lastingwar.mall.ware.entity.PurchaseEntity;
import com.lastingwar.mall.ware.service.PurchaseService;
import org.springframework.transaction.annotation.Transactional;


@Service("purchaseService")
public class PurchaseServiceImpl extends ServiceImpl<PurchaseDao, PurchaseEntity> implements PurchaseService {

    @Autowired
    PurchaseDetailService detailService;

    @Override
    public PageUtils queryPage(Map<String, Object> params) {
        IPage<PurchaseEntity> page = this.page(
                new Query<PurchaseEntity>().getPage(params),
                new QueryWrapper<PurchaseEntity>()
        );

        return new PageUtils(page);
    }

    /**
     *  查询未领取的采购请求单
     * @param params
     * @return
     */
    @Override
    public PageUtils queryPageUnreceivePurchase(Map<String, Object> params) {
        IPage<PurchaseEntity> page = this.page(
                new Query<PurchaseEntity>().getPage(params),
                new QueryWrapper<PurchaseEntity>().eq("status",0).or().eq("status",1)
        );

        return new PageUtils(page);
    }

    /**
     * 合并采购单的方法
     * @param mergeVo   采购单ID
     */
    @Transactional
    @Override
    public void mergePurchase(MergeVo mergeVo) {
        Long purchaseId = mergeVo.getPurchaseId();
        if(purchaseId == null){
            //1、新建一个
            PurchaseEntity purchaseEntity = new PurchaseEntity();

            purchaseEntity.setStatus(WareConstant.PurchaseStatusEnum.CREATED.getCode());
            purchaseEntity.setCreateTime(new Date());
            purchaseEntity.setUpdateTime(new Date());
            this.save(purchaseEntity);
            purchaseId = purchaseEntity.getId();
        }

        //TODO 确认采购单状态是0,1才可以合并

        List<Long> items = mergeVo.getItems();
        Long finalPurchaseId = purchaseId;
        List<PurchaseDetailEntity> collect = items.stream().map(i -> {
            PurchaseDetailEntity detailEntity = new PurchaseDetailEntity();

            detailEntity.setId(i);
            detailEntity.setPurchaseId(finalPurchaseId);
            detailEntity.setStatus(WareConstant.PurchaseDetailStatusEnum.ASSIGNED.getCode());
            return detailEntity;
        }).collect(Collectors.toList());


        detailService.updateBatchById(collect);

        PurchaseEntity purchaseEntity = new PurchaseEntity();
        purchaseEntity.setId(purchaseId);
        purchaseEntity.setUpdateTime(new Date());
        this.updateById(purchaseEntity);
    }

}

这里需要引入库存的常量来保存请购单的状态，在common模块下添加常量设置：

package com.lastingwar.common.constant;

public class WareConstant {

    public enum  PurchaseStatusEnum{
        CREATED(0,"新建"),ASSIGNED(1,"已分配"),
        RECEIVE(2,"已领取"),FINISH(3,"已完成"),
        HASERROR(4,"有异常");
        private int code;
        private String msg;

        PurchaseStatusEnum(int code,String msg){
            this.code = code;
            this.msg = msg;
        }

        public int getCode() {
            return code;
        }

        public String getMsg() {
            return msg;
        }
    }


    public enum  PurchaseDetailStatusEnum{
        CREATED(0,"新建"),ASSIGNED(1,"已分配"),
        BUYING(2,"正在采购"),FINISH(3,"已完成"),
        HASERROR(4,"采购失败");
        private int code;
        private String msg;

        PurchaseDetailStatusEnum(int code,String msg){
            this.code = code;
            this.msg = msg;
        }

        public int getCode() {
            return code;
        }

        public String getMsg() {
            return msg;
        }
    }
}
