概述
Java秒杀与抢购模型的架构设计与实现
开发环境:
IntelliJ IDEA + Maven + Workbench
压测工具:
JMeter
使用框架:
Spring Boot + Mybatis + Redis + RabbitMQ
具体内容:
对高并发高负载情形下的应用场景进行分析,以高效地处理资源竞争为目的,设计一个秒杀与抢购模型。
本项目提供了三种解决方案来比较系统的性能:
1.利用MySQL的update行锁实现悲观锁。
2.MySQL加字段version实现乐观锁。
3.基于AtomicInteger的CAS机制;
4.使用Redis作为原子计数器(watch事务+decr操作),RabbitMQ作为消息队列记录用户抢购行为,MySQL做异步存储。
上述四个解决方案均使用了JMeter进行压力与性能测试(实验设置的是10秒内产生3000个请求),分析其吞吐量、平均响应时间、错误率等参数,最后得出相应结论。

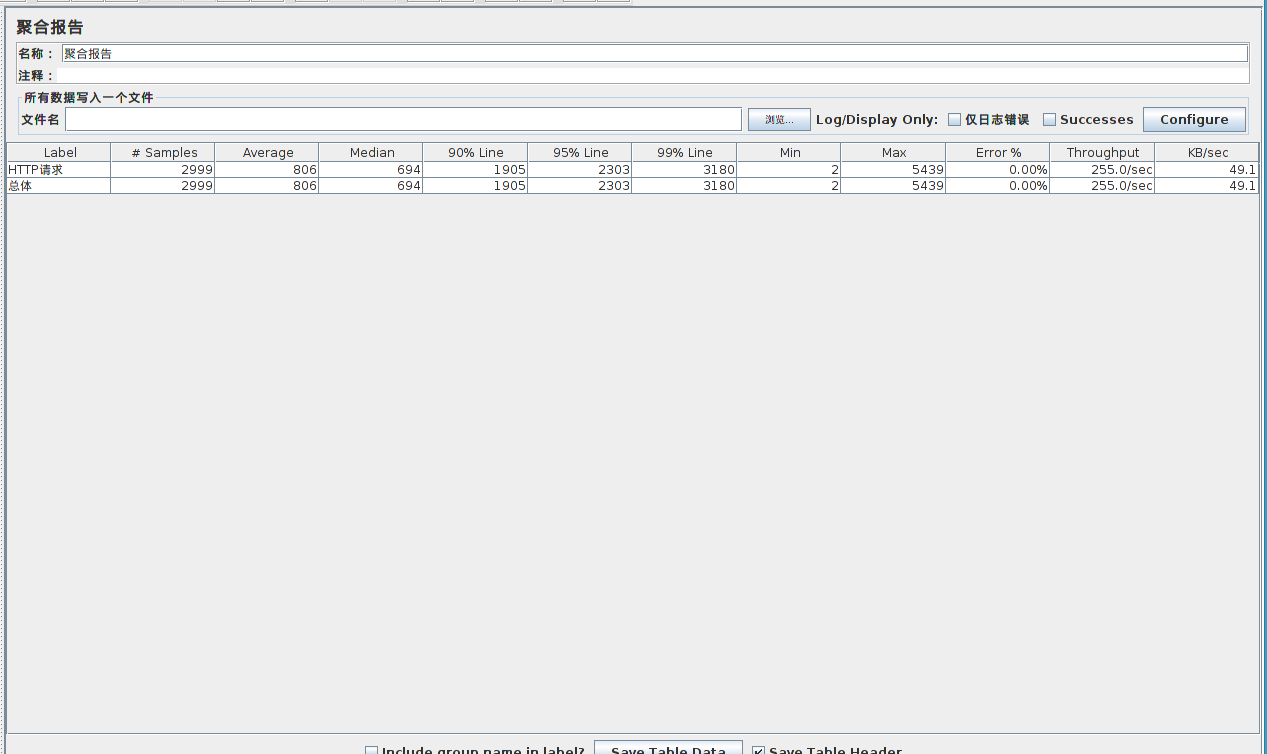

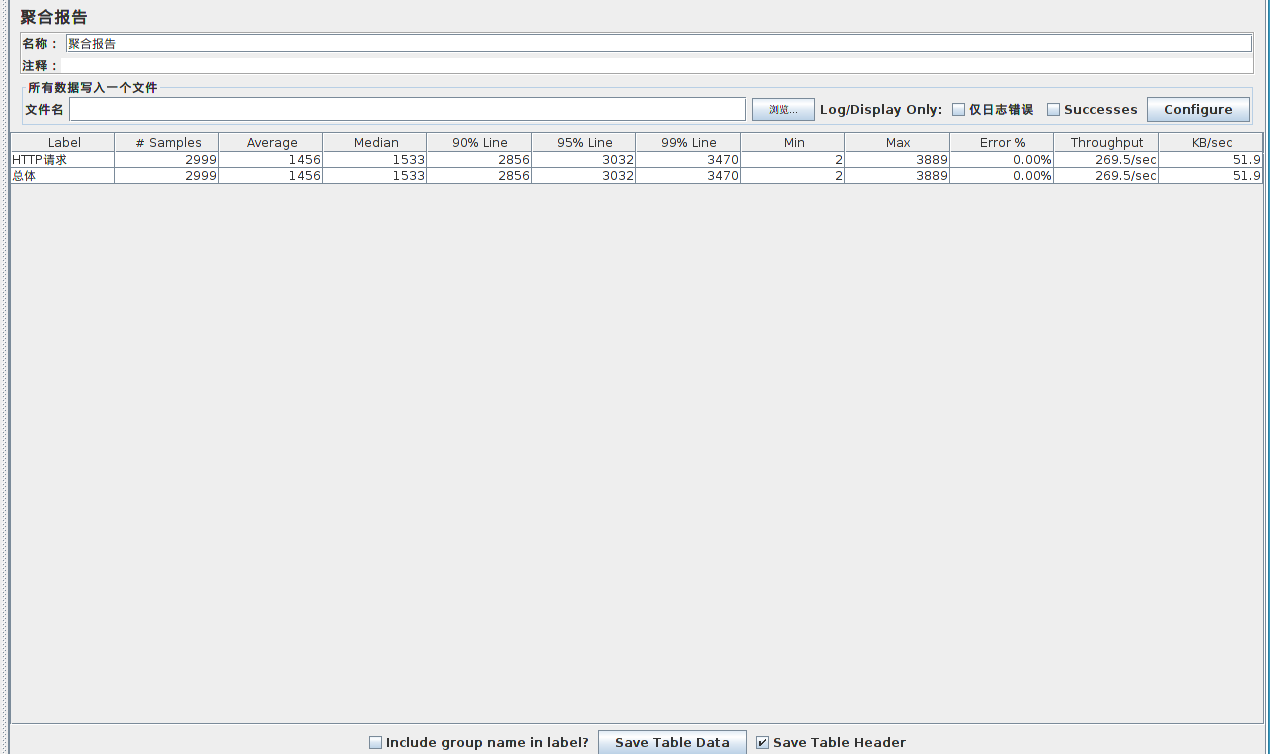

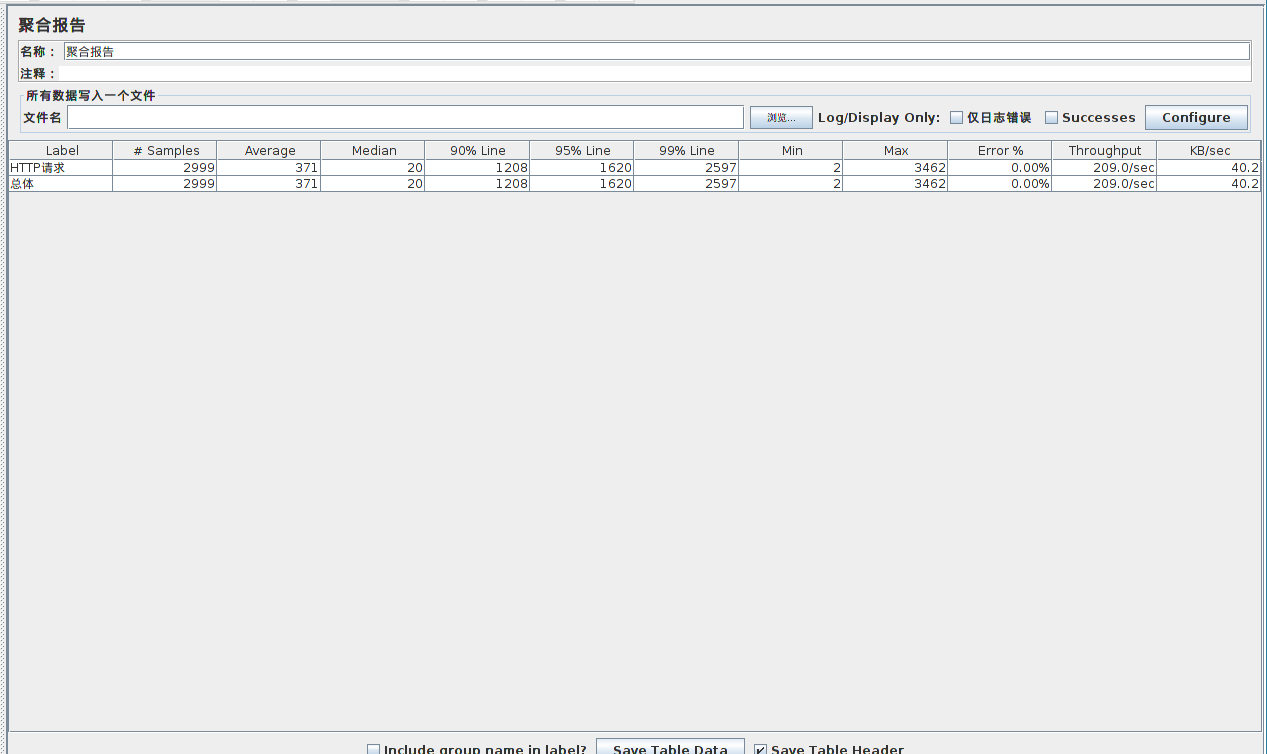

实验结果:
实验结果表明:
四种方案的响应错误率均为零,但是吞吐量不一样,
总体来说第一种和第四种方案的吞吐量相当,平均响应时间也较快;
第三种方案的吞吐量慢于上述两种,CAS机制效果不错。
第二种方案的响应时间最慢,原因是高并发情形下多个线程不断回滚,耗费了大量的CPU资源,导致性能低下。
备注:
1.此项目包含了sql文件,包括表单创建和添加数据。
2.包含了JMeter配置图片与实验结果图片
3.包含了测试数据集:param.txt。第一个参数代表用户ID,第二个参数代表产品ID。
核心代码:
MySQL悲观锁
@Transactional
public SecKillEnum handleByPessLockInMySQL(Map paramMap) {
Jedis jedis = redisCacheHandle.getJedis();
Record record = null;
Integer userId = (Integer) paramMap.get("userId");
Integer productId = (Integer)paramMap.get("productId");
User user = new User(userId);
Product product = secKillMapper.getProductById(productId);
String hasBoughtSetKey = SecKillUtils.getRedisHasBoughtSetKey(product.getProductName());
//判断是否重复购买
boolean isBuy = jedis.sismember(hasBoughtSetKey, user.getId().toString());
if (isBuy){
//重复秒杀
throw new SecKillException(SecKillEnum.REPEAT);
}
boolean secKillSuccess = secKillMapper.updatePessLockInMySQL(product);
if (!secKillSuccess){
//库存不足
throw new SecKillException(SecKillEnum.LOW_STOCKS);
}
//秒杀成功
record = new Record(null,user,product,SecKillEnum.SUCCESS.getCode(),SecKillEnum.SUCCESS.getMessage(),new Date());
log.info(record.toString());
boolean insertFlag = secKillMapper.insertRecord(record);
//插入record成功
if (insertFlag){
long addResult = jedis.sadd(hasBoughtSetKey,user.getId().toString());
if (addResult>0){
log.info("---------秒杀成功");
return SecKillEnum.SUCCESS;
}else {
throw new SecKillException(SecKillEnum.REPEAT);
}
}else {
throw new SecKillException(SecKillEnum.SYSTEM_EXCEPTION);
}
}
MySQL乐观锁
@Transactional
public SecKillEnum handleByPosiLockInMySQL(Map paramMap){
Jedis jedis = redisCacheHandle.getJedis();
Record record = null;
Integer userId = (Integer) paramMap.get("userId");
Integer productId = (Integer)paramMap.get("productId");
User user = new User(userId);
Product product = secKillMapper.getProductById(productId);
String hasBoughtSetKey = SecKillUtils.getRedisHasBoughtSetKey(product.getProductName());
//判断是否重复购买
boolean isBuy = jedis.sismember(hasBoughtSetKey, user.getId().toString());
if (isBuy){
//重复秒杀
throw new SecKillException(SecKillEnum.REPEAT);
}
//库存减一
int lastStock = product.getStock()-1;
if (lastStock>=0){
product.setStock(lastStock);
boolean secKillSuccess = secKillMapper.updatePosiLockInMySQL(product);
if (!secKillSuccess){
//秒杀失败,version被修改
throw new SecKillException(SecKillEnum.FAIL);
}
}else {
//库存不足
throw new SecKillException(SecKillEnum.LOW_STOCKS);
}
record = new Record(null,user,product,SecKillEnum.SUCCESS.getCode(),SecKillEnum.SUCCESS.getMessage(),new Date());
log.info(record.toString());
boolean insertFlag = secKillMapper.insertRecord(record);
//插入record成功
if (insertFlag){
long addResult = jedis.sadd(hasBoughtSetKey,user.getId().toString());
if (addResult>0){
//秒杀成功
return SecKillEnum.SUCCESS;
}else {
//重复秒杀
log.info("---------重复秒杀");
throw new SecKillException(SecKillEnum.REPEAT);
}
}else {
//系统错误
throw new SecKillException(SecKillEnum.SYSTEM_EXCEPTION);
}
}
redis的watch监控
public SecKillEnum handleByRedisWatch(Map paramMap) {
Jedis jedis = redisCacheHandle.getJedis();
Record record = null;
Integer userId = (Integer) paramMap.get("userId");
Integer productId = (Integer)paramMap.get("productId");
User user = new User(userId);
String productName = jedis.get("product_"+productId);
String productStockCacheKey = productName+"_stock";
String hasBoughtSetKey = SecKillUtils.getRedisHasBoughtSetKey(productName);
//watch开启监控
jedis.watch(productStockCacheKey);
//判断是否重复购买,注意这里高并发情形下并不安全
boolean isBuy = jedis.sismember(hasBoughtSetKey, user.getId().toString());
if (isBuy){
//重复秒杀
throw new SecKillException(SecKillEnum.REPEAT);
}
String stock = jedis.get(productStockCacheKey);
if (Integer.parseInt(stock)<=0) {
//库存不足
throw new SecKillException(SecKillEnum.LOW_STOCKS);
}
//开启Redis事务
Transaction tx = jedis.multi();
//库存减一
tx.decrBy(productStockCacheKey,1);
//执行事务
List resultList = tx.exec();
if (resultList == null || resultList.isEmpty()) {
jedis.unwatch();
//watch监控被更改过----物品抢购失败;
throw new SecKillException(SecKillEnum.FAIL);
}
//添加到已买队列
long addResult = jedis.sadd(hasBoughtSetKey,user.getId().toString());
if (addResult>0){
Product product = new Product(productId);
//秒杀成功
record = new Record(null,user,product,SecKillEnum.SUCCESS.getCode(),SecKillEnum.SUCCESS.getMessage(),new Date());
//添加record到rabbitMQ消息队列
rabbitMQSender.send(JSON.toJSONString(record));
//返回秒杀成功
return SecKillEnum.SUCCESS;
}else {
//重复秒杀
//这里抛出RuntimeException异常,redis的decr操作并不会回滚,所以需要手动incr回去
jedis.incrBy(productStockCacheKey,1);
throw new SecKillException(SecKillEnum.REPEAT);
}
}
AtomicInteger的CAS机制
@Transactional
public SecKillEnum handleByAtomicInteger(Map paramMap) {
Jedis jedis = redisCacheHandle.getJedis();
Record record;
Integer userId = (Integer) paramMap.get("userId");
Integer productId = (Integer)paramMap.get("productId");
User user = secKillMapper.getUserById(userId);
Product product = secKillMapper.getProductById(productId);
String hasBoughtSetKey = SecKillUtils.getRedisHasBoughtSetKey(product.getProductName());
//判断是否重复购买
boolean isBuy = jedis.sismember(hasBoughtSetKey, user.getId().toString());
if (isBuy){
log.error("用户:"+user.getUsername()+"重复购买商品"+product.getProductName());
throw new SecKillException(SecKillEnum.REPEAT);
}
AtomicInteger atomicInteger = atomicStock.getAtomicInteger(product.getProductName());
int stock = atomicInteger.decrementAndGet();
if (stock < 0) {
log.error("商品:"+product.getProductName()+"库存不足, 抢购失败!");
throw new SecKillException(SecKillEnum.LOW_STOCKS);
}
long result = jedis.sadd(hasBoughtSetKey,user.getId().toString());
if (result > 0){
record = new Record(null,user,product,SecKillEnum.SUCCESS.getCode(),SecKillEnum.SUCCESS.getMessage(),new Date());
log.info(record.toString());
boolean insertFlag = secKillMapper.insertRecord(record);
if (insertFlag) {
//更改物品库存
secKillMapper.updateByAsynPattern(record.getProduct());
log.info("用户:"+user.getUsername()+"秒杀商品"+product.getProductName()+"成功!");
return SecKillEnum.SUCCESS;
} else {
log.error("系统错误!");
throw new SecKillException(SecKillEnum.SYSTEM_EXCEPTION);
}
} else {
log.error("用户:"+user.getUsername()+"重复秒杀商品"+product.getProductName());
atomicInteger.incrementAndGet();
throw new SecKillException(SecKillEnum.REPEAT);
}
}

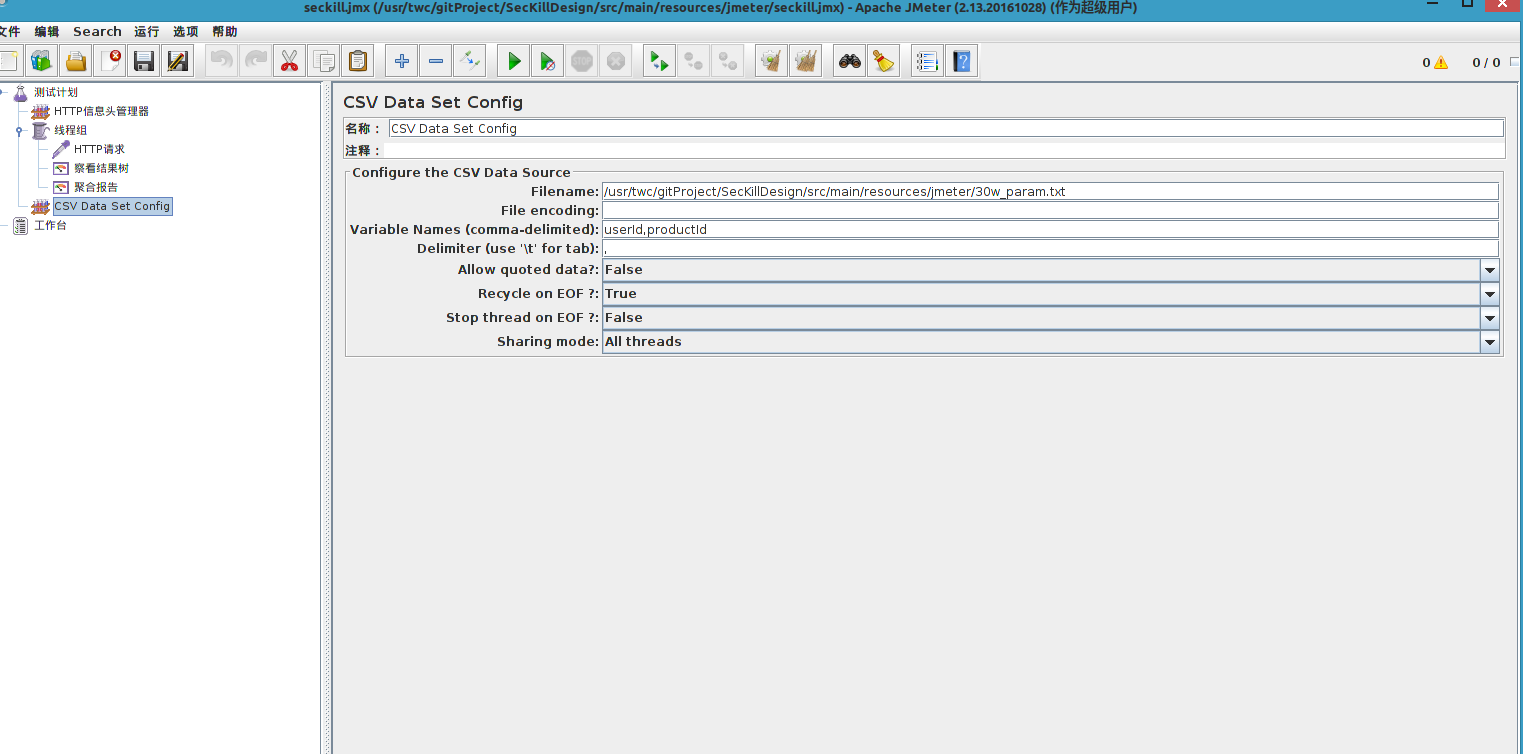

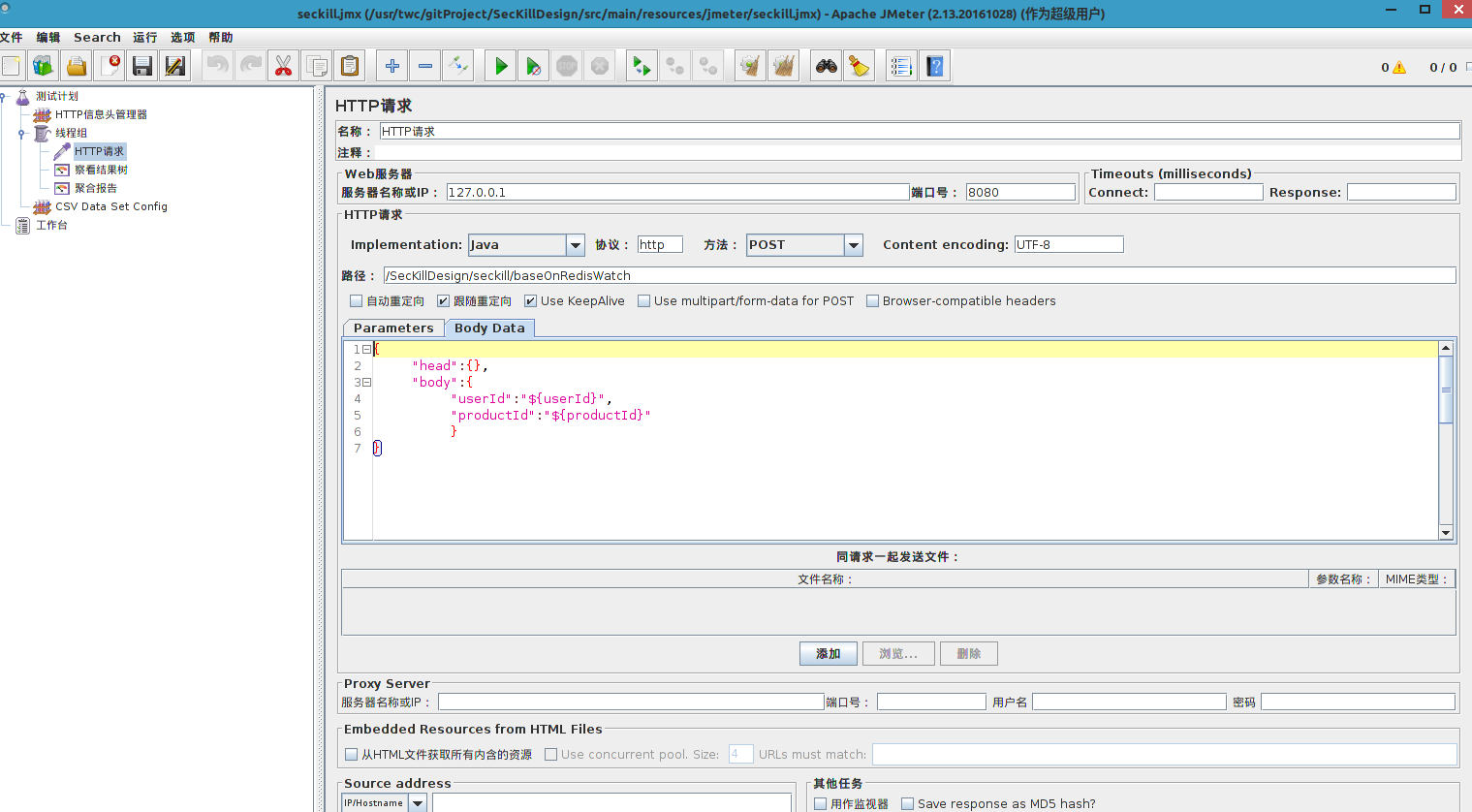

JMeter压测图片:

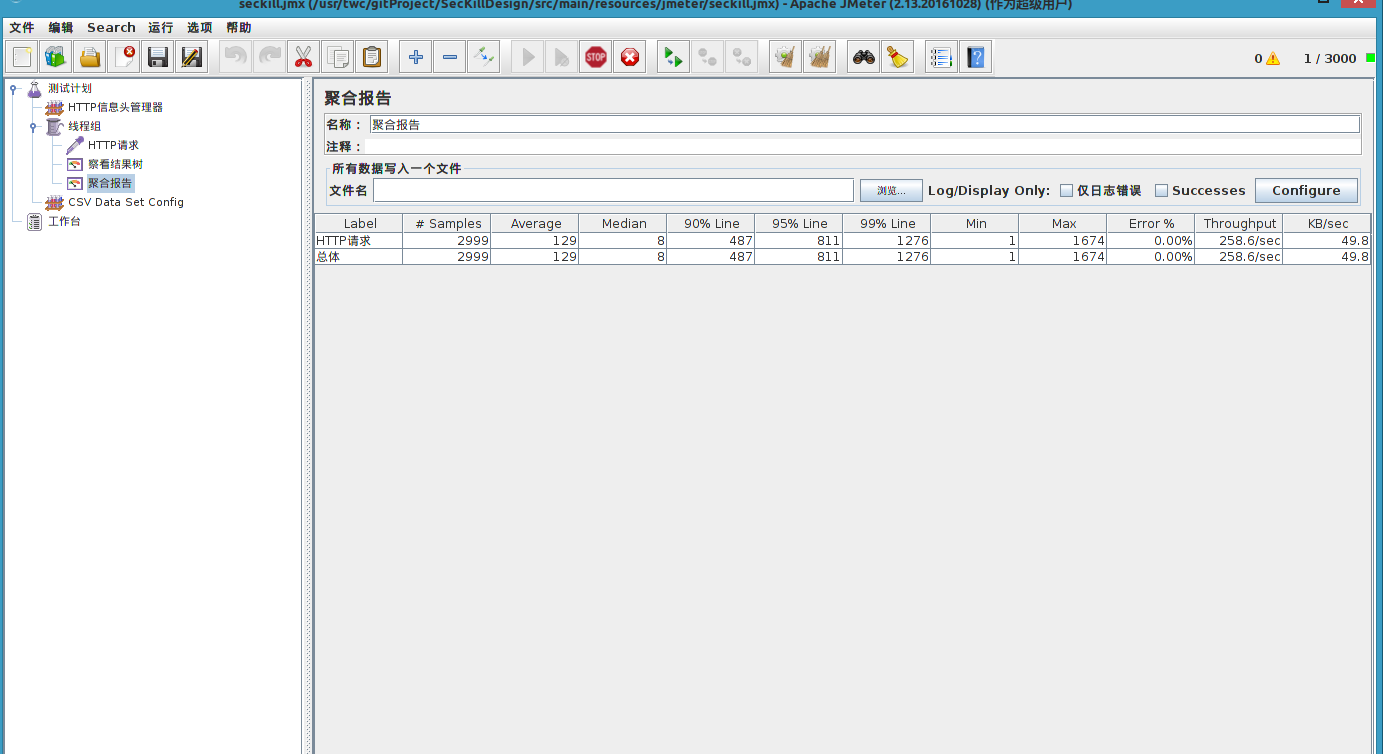

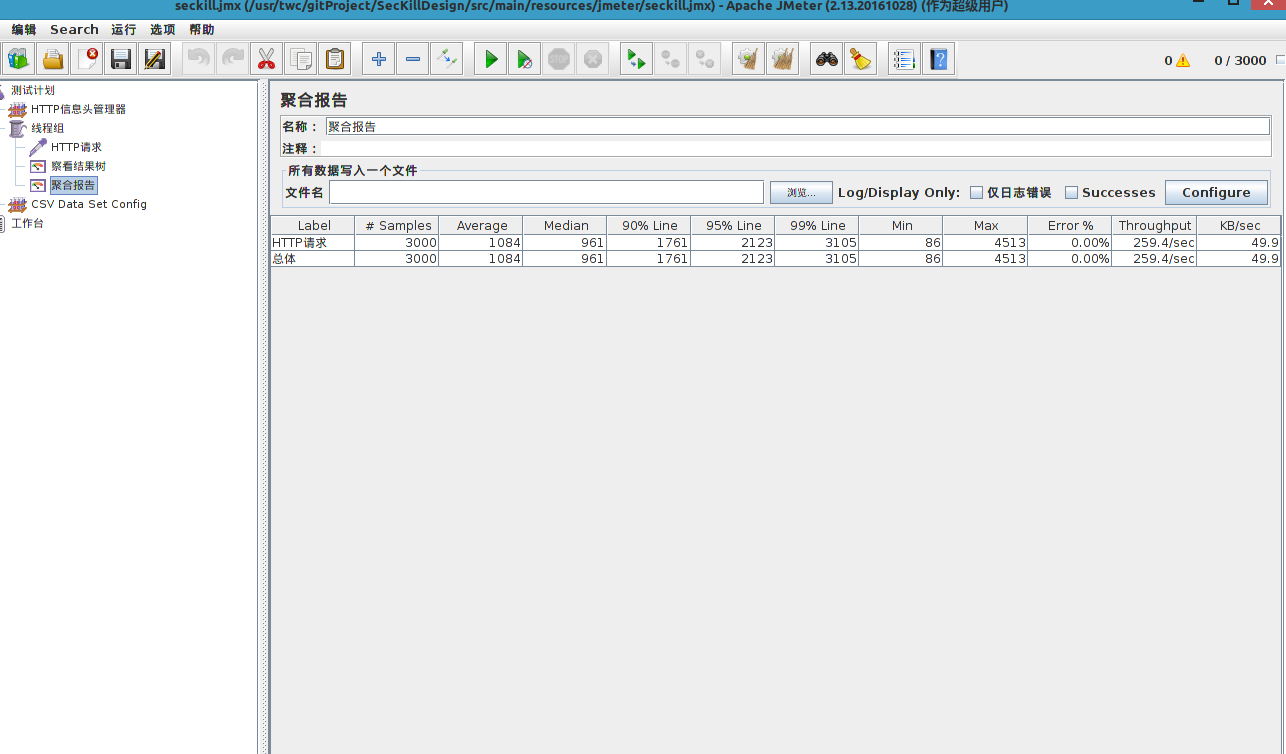

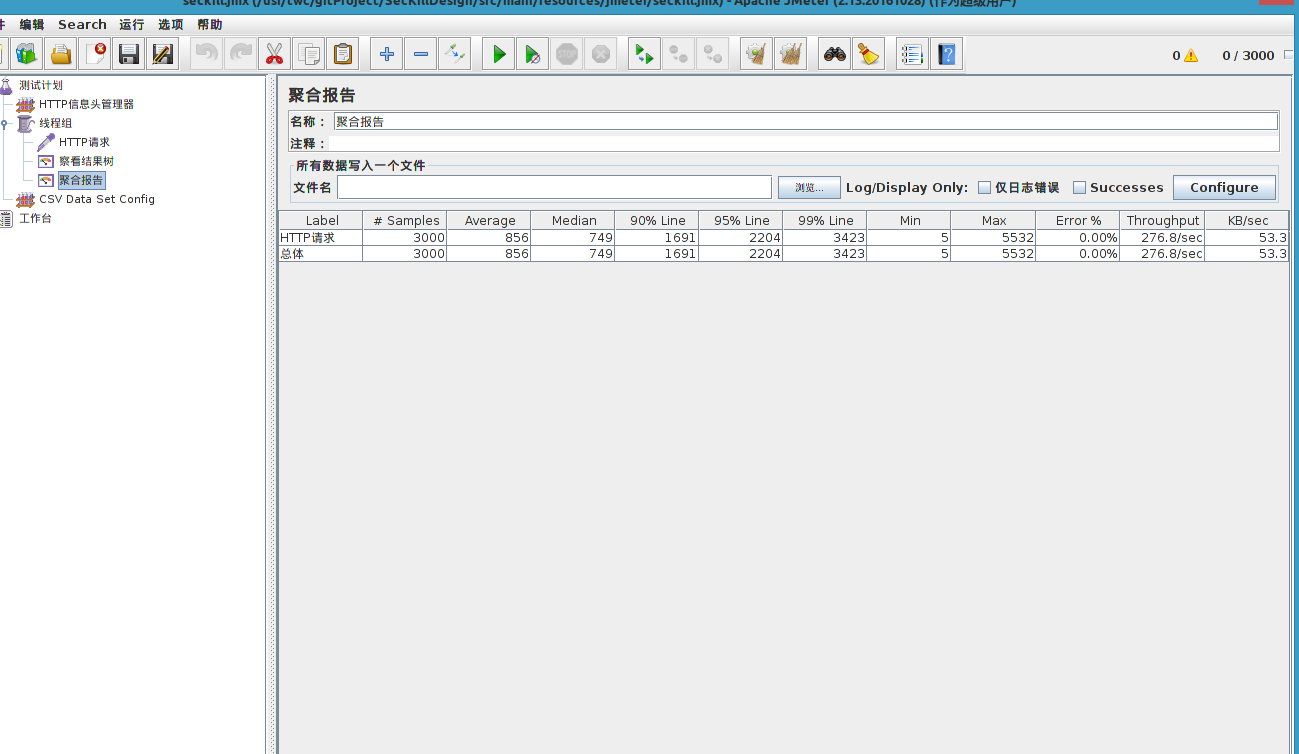

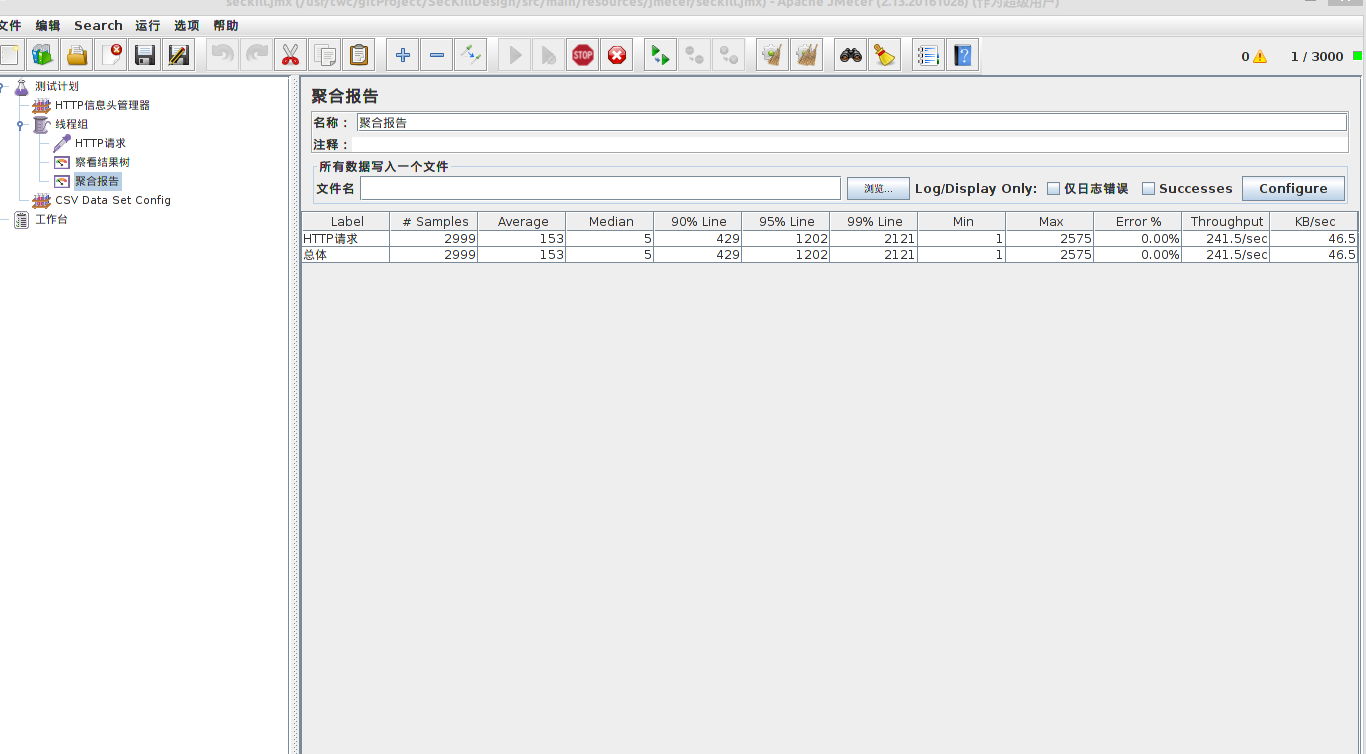

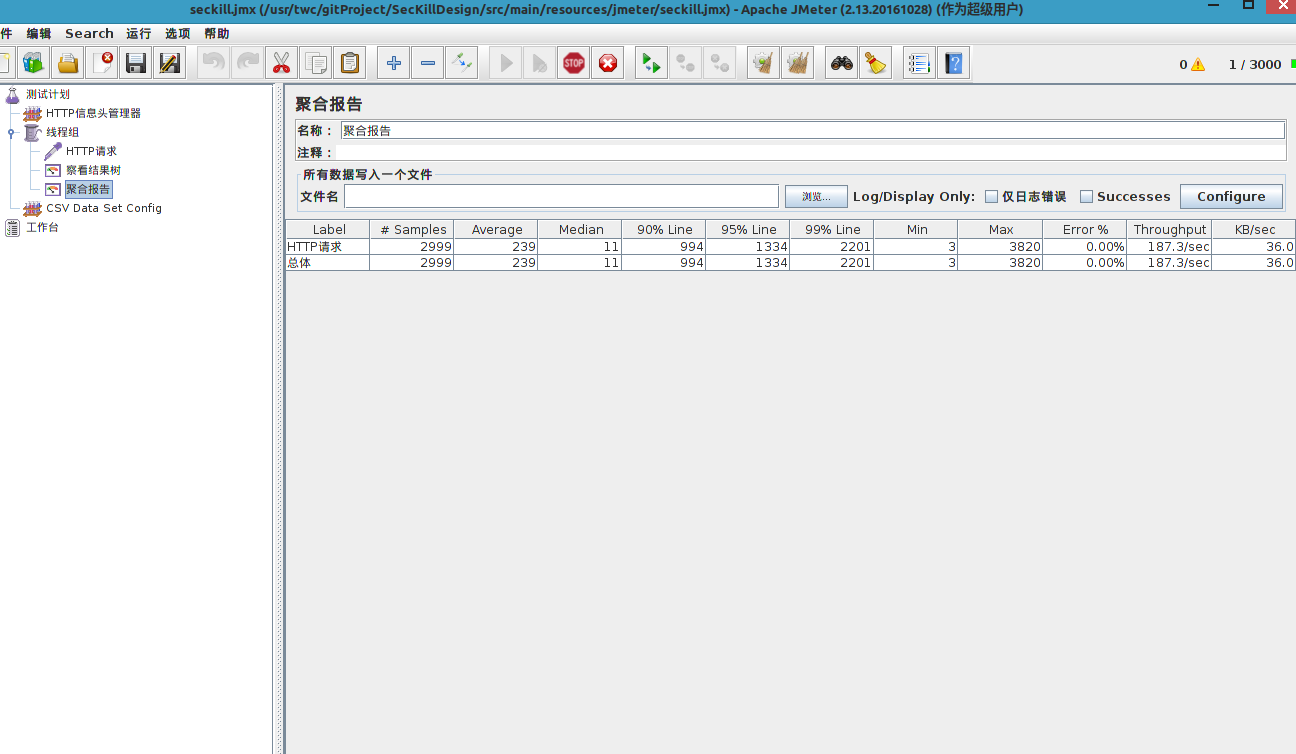

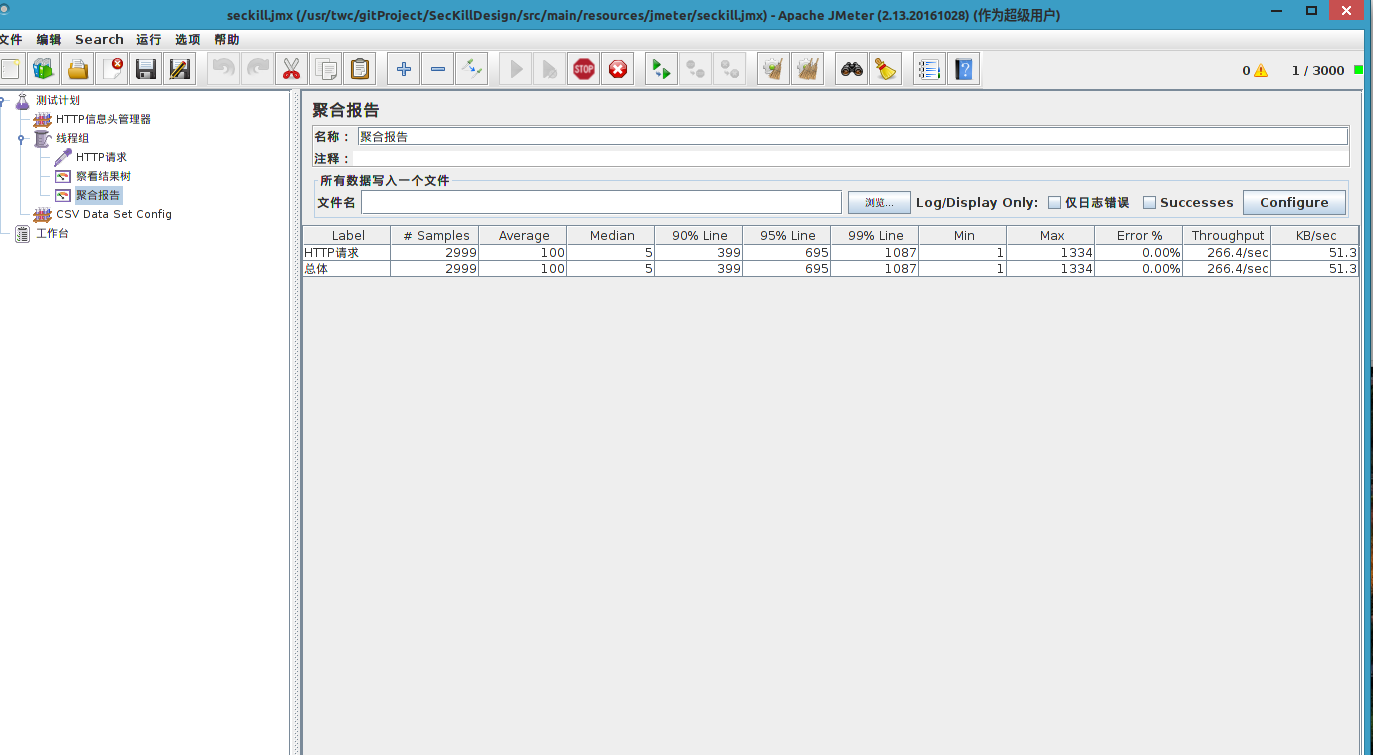

实验结果图片:
MySQL悲观锁
#####################################################################
MySQL乐观锁
#####################################################################
redis的watch监控
#####################################################################
AtomicInteger的CAS机制
