基于Qlearning强化学习的倒立摆控制系统matlab仿真1.算法描述2.仿真效果预览3.MATLAB部分代码预览4.完整MATLAB程序

131 阅读 0 评论 87 点赞

我是靠谱客的博主谨慎小蘑菇，这篇文章主要介绍基于Qlearning强化学习的倒立摆控制系统matlab仿真1.算法描述2.仿真效果预览3.MATLAB部分代码预览4.完整MATLAB程序，现在分享给大家，希望可以做个参考。

1.算法描述

2.仿真效果预览

3.MATLAB部分代码预览

4.完整MATLAB程序

1.算法描述

强化学习通常包括两个实体agent和environment。两个实体的交互如下，在environment的statestst下，agent采取actionatat进而得到rewardrtrt 并进入statest+1st+1。Q-learning的核心是Q-table。Q-table的行和列分别表示state和action的值，Q-table的值Q(s,a)Q(s,a)衡量当前states采取actiona到底有多好。

在每一时刻，智能体观测环境的当下状态并选择一个动作，这会导致环境转移到一个新的状态，与此同时环境会返回给智能体一个奖励，该奖励反映了动作所导致的结果。在倒立摆任务中，每一个时间步的奖励均为+1，但是一旦小车偏离中心超过4.8个单位或者杆的倾斜超过15度，任务就会终止。因此，我们的目标是使得该任务能够尽可能地运行得更久，以便获得更多的收益。原始倒立摆任务中，智能体的输入包含4个实数（位置，速度等），但实际上，神经网络可以直接通过观察场景来完成任务，所以我们可以直接使用以小车为中心的屏幕补丁作为输入。严格来说，我们设计的状态是当前屏幕补丁与上一个屏幕补丁的差值，这使得智能体能够从一张图像中推断出杆的速度。

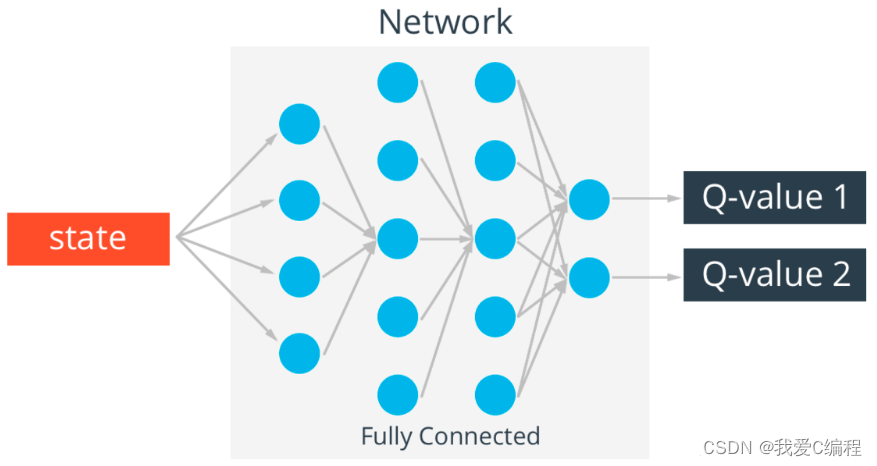

为了训练DQN，我们将使用经验回放池（experience replay memory）来存储智能体所观测到的环境状态转移情况，在之后的训练中我们可以充分利用这些数据。通过对经验回放池中的数据进行随机采样，组成一个批次的转移情况是互不相关（decorrelated）的，这极大地提升了DQN训练的性能和稳定性。

主要步骤如下：

采样得到一个批次的样本，将这些样本对应的张量连接成一个单独的张量；
分别利用策略Q网络与目标Q网络计算与Q(st,at)与V(st+1)=maxaQ(st+1,a) ，利用它们计算损失函数.。另外，如果 s 为终止状态，则令 V(s)=0
更新Q网络参数。目标Q网络的参数每隔一段时间从主Q网络处固定而来，在本例中，我们在每个episode更新一次目标Q网络。

2.仿真效果预览

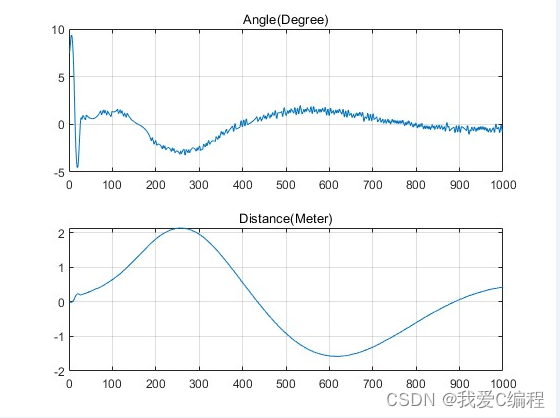

matlab2022a仿真结果如下：

3.MATLAB部分代码预览

复制代码

for trial=1:MaxTr,      %外部循环开始
    count=0;
    failure=0;
    failReason=0;
    lfts = 1;
    newSt = inistate;
    inputs = newSt./NF;
    lc = Initlc;
    la = Initla;

    xhist=newSt;

    %计算newAction
    ha = inputs*wa1;
    g = (1 - exp(-ha))./(1 + exp(-ha));
    va = g*wa2;
    newAction = (1 - exp(-va))./(1 + exp(-va));
    %计算J
    inp=[inputs newAction];
    qc=inp*wc1;
    p = (1 - exp(-qc))./(1 + exp(-qc));
    J=p*wc2;

    Jprev = J;

    while(lfts<Tit),        %内部循环开始

         if (rem(lfts,500)==0),
            disp(['It is ' int2str(lfts) ' time steps now......']);
         end

         %生成控制信号
                if (newAction >= 0)
                    sgnf = 1;
                else
                    sgnf = -1;
                end
                u = Mag*sgnf;		%bang-bang control

		    %Plug in the model
            [T,Xf]=ode45('cartpole_model',[0 tstep],newSt,[],u);
	        a=size(Xf);
	        newSt=Xf(a(1),:);
            inputs=newSt./NF;	%input normalization

                %计算newAction
                ha = inputs*wa1;
                g = (1 - exp(-ha))./(1 + exp(-ha));
                va = g*wa2;
                newAction = (1 - exp(-va))./(1 + exp(-va));
                %calculate new J
                inp=[inputs newAction];
                qc=inp*wc1;
                p = (1 - exp(-qc))./(1 + exp(-qc));
                J=p*wc2;

                xhist=[xhist;newSt];

		    %%===========================================================%%
		    %%求取强化信号r(t),即reinf                                   %%
		    %%===========================================================%%

            if (abs(newSt(1)) > FailTheta)
                reinf = 1;
                failure = 1;
                failReason = 1;
            elseif (abs(newSt(3)) > Boundary)
                reinf = 1;
                failure = 1;
                failReason = 2;
            else
                reinf = 0;
            end

    	    %%================================%%
    	    %% learning rate update scheme    %%
    	    %%================================%%

            if (rem(lfts,5)==0)
                lc = lc - 0.05;
                la = la - 0.05;
            end

      	    if (lc<0.01)
                lc=0.005;
            end

            if (la<0.01)
                la=0.005;
            end

            %%================================================%%
            %% internal weights updating cycles for critnet   %%
            %%================================================%%

            cyc = 0;
            ecrit = alpha*J-(Jprev-reinf);
		    Ec = 0.5 * ecrit^2;
            while (Ec>Tc & cyc<=Ncrit),
                    gradEcJ=alpha*ecrit;
    				%----for the first layer(input to hidden layer)-----------
                    gradqwc1 = [inputs'; newAction];
                    for i=1:N_Hidden,
                        gradJp = wc2(i);
                        gradpq = 0.5*(1-p(i)^2);
                        wc1(:,i) = wc1(:,i) - lc*gradEcJ*gradJp*gradpq*gradqwc1;
                    end
                    %----for the second layer(hidden layer to output)-----------
                    gradJwc2=p';
                    wc2 = wc2- lc*gradEcJ*gradJwc2;
                    %----compute new  J----
                    inp=[inputs newAction];
                    qc=inp*wc1;
                    p = (1 - exp(-qc))./(1 + exp(-qc));
                    J=p*wc2;

                cyc = cyc +1;
                ecrit = alpha*J-(Jprev-reinf);
                Ec = 0.5 * ecrit^2;
            end                                 % end of "while (Ec>0.05 & cyc<=Ncrit)"

            %normalization weights for critical network
                if (max(max(abs(wc1)))>1.5)
                    wc1=wc1/max(max(abs(wc1)));
                end
                if max(max(abs(wc2)))>1.5
                    wc2=wc2/max(max(abs(wc2)));
                end

            %%=============================================%%
            %% internal weights updating cycles for actnet %%
            %%=============================================%%
            cyc = 0;
            eact = J - Uc;
            Ea = 0.5*eact^2;
            while (Ea>Ta & cyc<=Nact),
                graduv = 0.5*(1-newAction^2);
                gradEaJ = eact;
                gradJu = 0;
                   for i=1:N_Hidden,
                       gradJu = gradJu + wc2(i)*0.5*(1-p(i)^2)*wc1(WC_Inputs,i);
                   end
                    %----for the first layer(input to hidden layer)-----------
                    for (i=1:N_Hidden),
                        gradvg = wa2(i);
                        gradgh = 0.5*(1-g(i)^2);
                        gradhwa1 = inputs';
                        wa1(:,i)=wa1(:,i)-la*gradEaJ*gradJu*graduv*gradvg*gradgh*gradhwa1;
                    end
                    %----for the second layer(hidden layer to output)-----------
                    gradvwa2 = g';
                    wa2=wa2-la*gradEaJ*gradJu*graduv*gradvwa2;
                    %----compute new J and newAction-------
                    ha = inputs*wa1;
                    g = (1 - exp(-ha))./(1 + exp(-ha));
                    va = g*wa2;
                    newAction = (1 - exp(-va))./(1 + exp(-va));

                    inp=[inputs newAction];
                    qc=inp*wc1;
                    p = (1 - exp(-qc))./(1 + exp(-qc));
                    J=p*wc2;

                cyc = cyc+1;
                eact = J - Uc;
                Ea = 0.5*eact^2;
            end                       %end of "while (Ea>Ta & cyc<=Nact)"

            if ~failure
                Jprev=J;
            else
                break;                %another trial 即跳出“while(lfts<Tit),”
            end
            lfts=lfts+1;
        end                           %end of "while(lfts<Tit)" 结束内部循环

        msgstr1=['Trial # ' int2str(trial) ' has  ' int2str(lfts) ' time steps.'];
   	    msgstr21=['Trial # ' int2str(trial) ' has successfully balanced for at least '];
   	    msgstr22=[msgstr21 int2str(lfts) ' time steps '];
