基于.net core3.1对接阿里云iot的mqtt协议的源代码（wpf）

通过阿里云的ProductKey，DeviceName，DeviceSecret，RegionId三元组数据，执行以下代码，

app.config文件

<add name="ProductKey" connectionString="a1eAKoQBN"/>
<add name="DeviceName" connectionString="test"/>
<add name="DeviceSecret" connectionString="2d9c5027f05f8e047dba4ef7bd8e24"/>
<add name="RegionId" connectionString="cn-shanghai"/>
<add name="PubTopic" connectionString="user/update"/>
<add name="SubTopic" connectionString="user/get"/>

main文件

using uPLibrary.Networking.M2Mqtt;
using uPLibrary.Networking.M2Mqtt.Messages;
//iot
private static readonly string ProductKey = ConfigurationManager.ConnectionStrings["ProductKey"].ConnectionString;
private static readonly string DeviceName = ConfigurationManager.ConnectionStrings["DeviceName"].ConnectionString;
private static readonly string DeviceSecret = ConfigurationManager.ConnectionStrings["DeviceSecret"].ConnectionString;
private static readonly string RegionId = ConfigurationManager.ConnectionStrings["RegionId"].ConnectionString;
private static readonly string PubTopicUser = "/" + ProductKey + "/" + DeviceName + "/" + ConfigurationManager.ConnectionStrings["PubTopic"].ConnectionString;
private static readonly string SubTopicUser = "/" + ProductKey + "/" + DeviceName + "/" + ConfigurationManager.ConnectionStrings["SubTopic"].ConnectionString;
private static readonly string PubTopic = "/sys/" + ProductKey + "/" + DeviceName + "/" + "thing/event/property/post";
private static readonly string SubTopic = "/sys/" + ProductKey + "/" + DeviceName + "/" + "thing/service/property/set";

IPHostEntry host = Dns.GetHostEntry(Dns.GetHostName());
string clientId = host.AddressList.FirstOrDefault(ip => ip.AddressFamily == System.Net.Sockets.AddressFamily.InterNetwork).ToString();
string t = Convert.ToString(DateTimeOffset.Now.ToUnixTimeMilliseconds());
string signmethod = "hmacmd5";
Dictionary<string, string> dict = new Dictionary<string, string>
{
    { "productKey", ProductKey },
    { "deviceName", DeviceName },
    { "clientId", clientId },
    { "timestamp", t }
};

string mqttBrokerAddress = ProductKey + ".iot-as-mqtt." + RegionId + ".aliyuncs.com";
string mqttClientId = clientId + "|securemode=3,signmethod=" + signmethod + ",timestamp=" + t + "|";
string mqttUserName = DeviceName + "&" + ProductKey;
string mqttPassword = Sign(dict, DeviceSecret, signmethod);

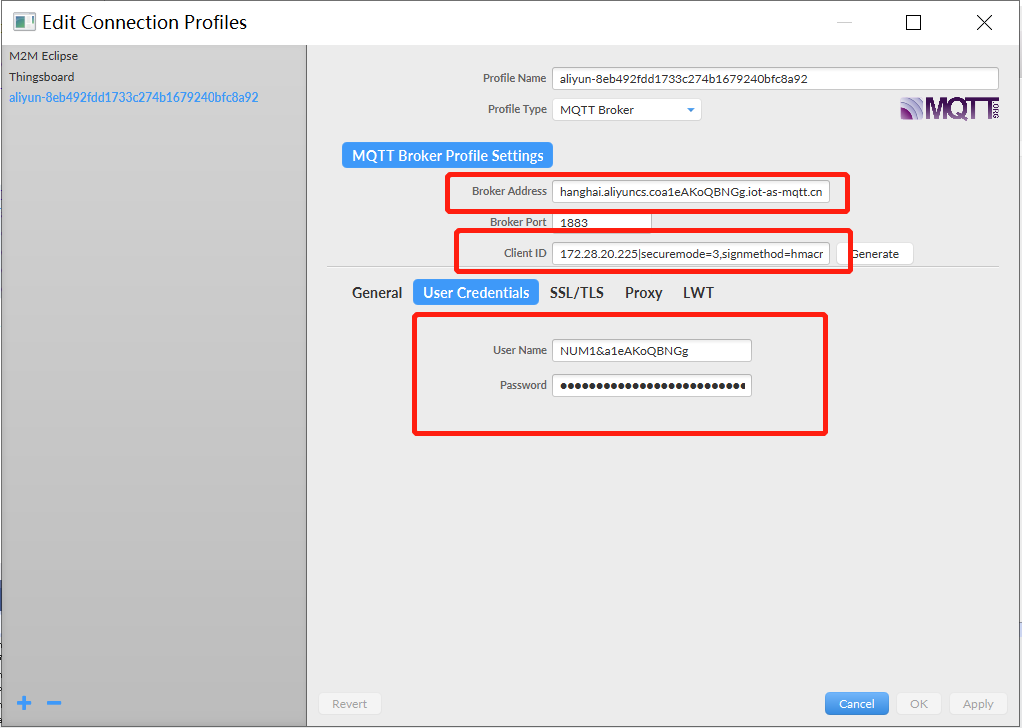

获得BrokerAddress，ClientId，UserName，Password，然后填写到mqtt.fx即可连接

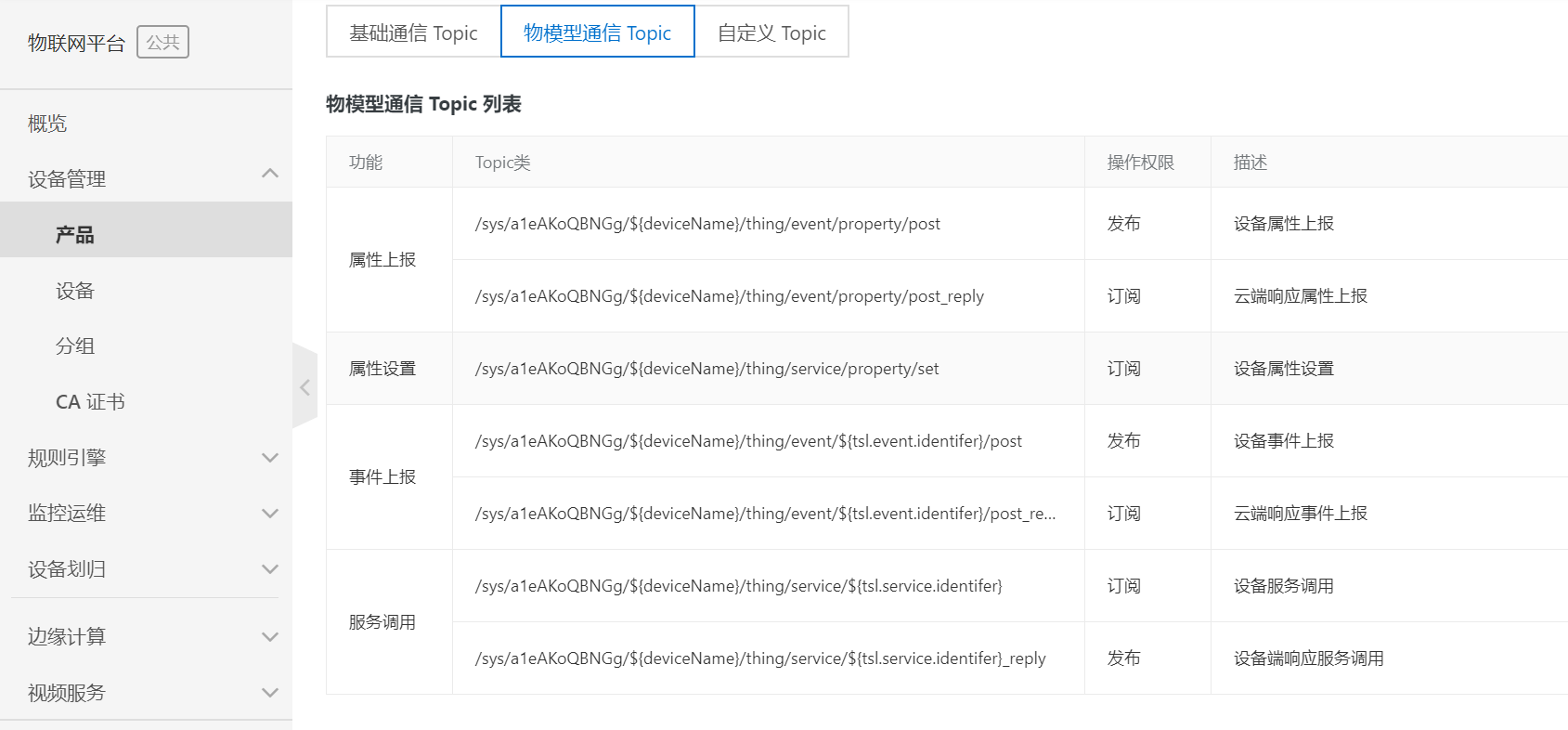

可参考阿里官网的topic

1. 使用参数：securemode=3，不需要对ssl/tls进行设置；
2. 加密方式：使用hmacmd5加密方式；
3. 此处没有上传生成的exe文件。如需其他网关盒子进行对接阿里云平台的资源。
4. github项目拉取：https://github.com/karrem/aliyunIot-mqtt-tool
