 * DataNode is a class (and program) that stores a set of
 * blocks for a DFS deployment.  A single deployment can
 * have one or many DataNodes.  Each DataNode communicates
 * regularly with a single NameNode.  It also communicates
 * with client code and other DataNodes from time to time.
 *
 *  TODO (1)
 * DataNode存储hdfs上的block文件块,在一个文件系统里面可以有有多个datanode
 * 每个datanode周期性的跟namenode进行通信,客户端也可以跟datanode进行交互
 * 同时datanode之间也可以进行相互通信
 *
 * DataNodes store a series of named blocks.  The DataNode
 * allows client code to read these blocks, or to write new
 * block data.  The DataNode may also, in response to instructions
 * from its NameNode, delete blocks or copy blocks to/from other
 * DataNodes.
 *
 * TODO (2)
 * DataNode 存储一些列block datanode允许客户端去读写block
 * DataNode也会去 响应 NameNode发送过来的一些指令
 * 比如:删除block,复制block等操作
 *
 * namenode
 * datanode->namenode
 * 在hdfs里面namenode是不会直接去操作datanode,但是一些指令会携带在心跳中来进行控制datanode
 * eg:
 *    我们有一个block01 这个块有三个副本,假如hadoop03节点宕机了,datanode是不能感知的,但是namenode可以根据心跳来感知
 *    那么这个时候我们需要保持三个副本,那么这个时候namenode就会把同步副本的指令携带在心跳当中来进行发起
 *
 * The DataNode maintains just one critical table:
 *   block-> stream of bytes (of BLOCK_SIZE or less)
 * TODO (3)
 *    datanode管理了一个重要的表:
 *    block-> stream of bytes 看起来像是一些元数据的信息
 *
 *
 * This info is stored on a local disk.  The DataNode
 * reports the table's contents to the NameNode upon startup
 * and every so often afterwards.
 * TODO (4)
 *  这个信息是存储在本地磁盘,DataNode启动的时候会把这些信息
 *  汇报给NameNode,启动了之后也会再去不断的汇报.
 *
 *

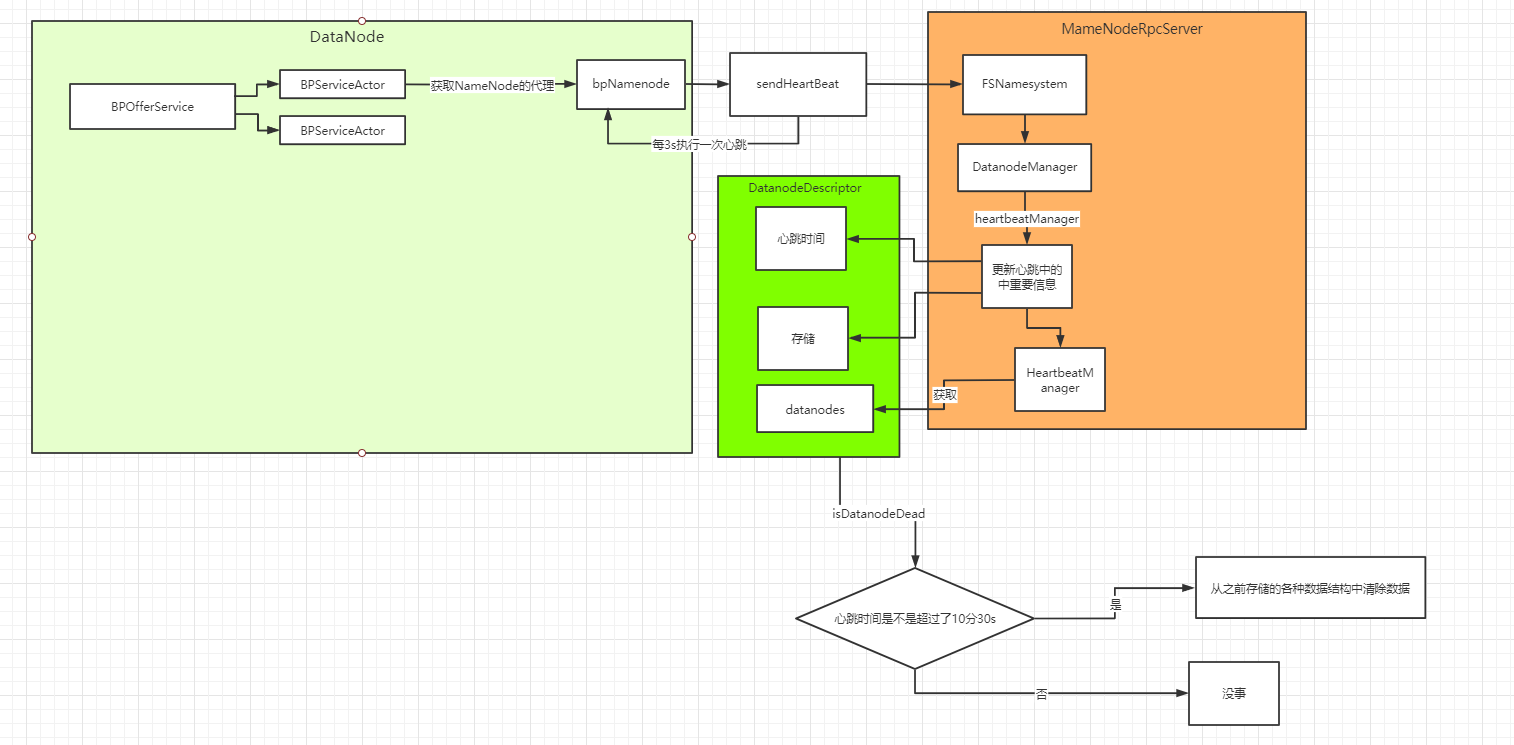

 * DataNodes spend their lives in an endless loop of asking
 * the NameNode for something to do.  A NameNode cannot connect
 * to a DataNode directly; a NameNode simply returns values from
 * functions invoked by a DataNode.
 *
 * TODO (5)
 * DataNode启动了以后会一直去问NameNode自己需要干些什么?心跳
 * NameNode是不能直接去操作DataNode的,DataNode启动了以后,会跟NameNode进行心跳,
 * NameNode接受到了心跳以后,如果需要这个DataNode做什么事情,
 * 就会给DataNode一个返回值(指令),DataNode接受到这些指令以后就知道NamNode想让他做什么事了
 *
 *
 * DataNodes maintain an open server socket so that client code
 * or other DataNodes can read/write data.  The host/port for
 * this server is reported to the NameNode, which then sends that
 * information to clients or other DataNodes that might be interested.
 * TODO (6)
 * DataNode开放了Socket服务,让客户端或者别的DataNode来进行读写数据
 * DataNode启动的时候就会把自己的主机名和端口号汇报给NamNode
 * 也就是说如果Client和DataNode想要去访问某个DataNode,首先要跟NameNode进行通信
 * 从NameNode那获取到目标DataNode的主机名和端口号.
 * 这样才可以访问到对应的DataNode了
 *
 * TODO 总结:
 * 1. 一个集群里面可以有很多个DataNode,这些DataNode就是用来存储数据的.
 * 2. DataNode启动了以后会周期性的跟NameNode进行通信(心跳,块汇报)
 * 3. NameNode不能直接操作DataNode,而是通信心跳返回值指令的方式去操作DataNode
 * 4. DataNode启动以后开放一个Socket的服务(RPC),等待被人去调用它.
 *
 **********************************************************/

1
2
3
4
5
6
7
8
public static void main(String args[]) {
    if (DFSUtil.parseHelpArgument(args, DataNode.USAGE, System.out, true)) {
      System.exit(0);
    }

    secureMain(args, null);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public static void secureMain(String args[], SecureResources resources) {
    int errorCode = 0;
    try {
      StringUtils.startupShutdownMessage(DataNode.class, args, LOG);
      //TODO 初始化DataNode
      DataNode datanode = createDataNode(args, null, resources);
      if (datanode != null) {
        //TODO 阻塞起来,也就是为什么JPS可以看到DataNode
        datanode.join();
      } else {
        errorCode = 1;
      }
    } catch (Throwable e) {
      LOG.fatal("Exception in secureMain", e);
      terminate(1, e);
    } finally {
      // We need to terminate the process here because either shutdown was called
      // or some disk related conditions like volumes tolerated or volumes required
      // condition was not met. Also, In secure mode, control will go to Jsvc
      // and Datanode process hangs if it does not exit.
      LOG.warn("Exiting Datanode");
      terminate(errorCode);
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
 /** Instantiate & Start a single datanode daemon and wait for it to finish.
   *  If this thread is specifically interrupted, it will stop waiting.
   */
  @VisibleForTesting
  @InterfaceAudience.Private
  public static DataNode createDataNode(String args[], Configuration conf,
      SecureResources resources) throws IOException {
    //TODO 实例化DataNode
    DataNode dn = instantiateDataNode(args, conf, resources);
    if (dn != null) {
        //启动后台线程
      dn.runDatanodeDaemon();
    }
    return dn;
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
  /** Instantiate a single datanode object, along with its secure resources.
   * This must be run by invoking{@link DataNode#runDatanodeDaemon()}
   * subsequently.
   */
  public static DataNode instantiateDataNode(String args [], Configuration conf,
      SecureResources resources) throws IOException {
    if (conf == null)
      conf = new HdfsConfiguration();

    if (args != null) {
      // parse generic hadoop options
      GenericOptionsParser hParser = new GenericOptionsParser(conf, args);
      args = hParser.getRemainingArgs();
    }

    if (!parseArguments(args, conf)) {
      printUsage(System.err);
      return null;
    }
    Collection<StorageLocation> dataLocations = getStorageLocations(conf);
    UserGroupInformation.setConfiguration(conf);
    SecurityUtil.login(conf, DFS_DATANODE_KEYTAB_FILE_KEY,
        DFS_DATANODE_KERBEROS_PRINCIPAL_KEY);
    //TODO 重要的代码
    return makeInstance(dataLocations, conf, resources);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
  /**
   * Make an instance of DataNode after ensuring that at least one of the
   * given data directories (and their parent directories, if necessary)
   * can be created.
   * @param dataDirs List of directories, where the new DataNode instance should
   * keep its files.
   * @param conf Configuration instance to use.
   * @param resources Secure resources needed to run under Kerberos
   * @return DataNode instance for given list of data dirs and conf, or null if
   * no directory from this directory list can be created.
   * @throws IOException
   */
  static DataNode makeInstance(Collection<StorageLocation> dataDirs,
      Configuration conf, SecureResources resources) throws IOException {
    LocalFileSystem localFS = FileSystem.getLocal(conf);
    FsPermission permission = new FsPermission(
        conf.get(DFS_DATANODE_DATA_DIR_PERMISSION_KEY,
                 DFS_DATANODE_DATA_DIR_PERMISSION_DEFAULT));
    // 磁盘检查
    DataNodeDiskChecker dataNodeDiskChecker =
        new DataNodeDiskChecker(permission);
    List<StorageLocation> locations =
        checkStorageLocations(dataDirs, localFS, dataNodeDiskChecker);
    DefaultMetricsSystem.initialize("DataNode");

    assert locations.size() > 0 : "number of data directories should be > 0";
    //TODO 创建我们的DataNode
    return new DataNode(conf, locations, resources);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
  /**
   * Create the DataNode given a configuration, an array of dataDirs,
   * and a namenode proxy
   */
  DataNode(final Configuration conf,
           final List<StorageLocation> dataDirs,
           final SecureResources resources) throws IOException {
    super(conf);
...

    try {
      hostName = getHostName(conf);
      LOG.info("Configured hostname is " + hostName);
      //TODO 启动DataNode
      startDataNode(conf, dataDirs, resources);
    } catch (IOException ie) {
      shutdown();
      throw ie;
    }
    final int dncCacheMaxSize =
        conf.getInt(DFS_DATANODE_NETWORK_COUNTS_CACHE_MAX_SIZE_KEY,
            DFS_DATANODE_NETWORK_COUNTS_CACHE_MAX_SIZE_DEFAULT) ;
    datanodeNetworkCounts =
        CacheBuilder.newBuilder()
            .maximumSize(dncCacheMaxSize)
            .build(new CacheLoader<String, Map<String, Long>>() {
              @Override
              public Map<String, Long> load(String key) throws Exception {
                final Map<String, Long> ret = new HashMap<String, Long>();
                ret.put("networkErrors", 0L);
                return ret;
              }
            });
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
/**

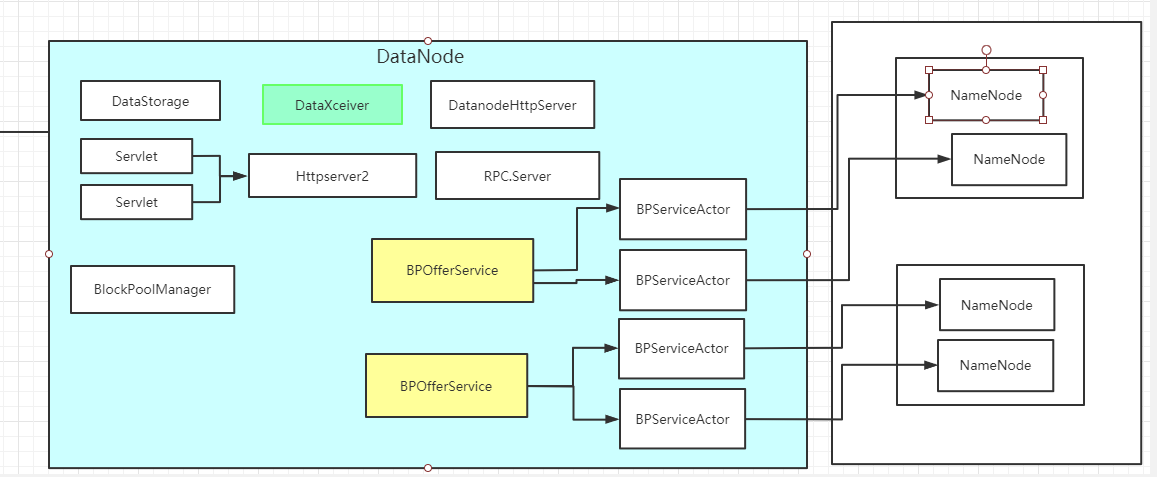

   * This method starts the data node with the specified conf.
   *
   * @param conf - the configuration
   *  if conf's CONFIG_PROPERTY_SIMULATED property is set
   *  then a simulated storage based data node is created.
   *
   * @param dataDirs - only for a non-simulated storage data node
   * @throws IOException
   */
  void startDataNode(Configuration conf,
                     List<StorageLocation> dataDirs,
                     SecureResources resources
                     ) throws IOException {

    // settings global for all BPs in the Data Node
    this.secureResources = resources;
    synchronized (this) {
      this.dataDirs = dataDirs;
    }
    this.conf = conf;
    this.dnConf = new DNConf(conf);
    checkSecureConfig(dnConf, conf, resources);

    this.spanReceiverHost = SpanReceiverHost.getInstance(conf);

    if (dnConf.maxLockedMemory > 0) {
      if (!NativeIO.POSIX.getCacheManipulator().verifyCanMlock()) {
        throw new RuntimeException(String.format(
            "Cannot start datanode because the configured max locked memory" +
            " size (%s) is greater than zero and native code is not available.",
            DFS_DATANODE_MAX_LOCKED_MEMORY_KEY));
      }
      if (Path.WINDOWS) {
        NativeIO.Windows.extendWorkingSetSize(dnConf.maxLockedMemory);
      } else {
        long ulimit = NativeIO.POSIX.getCacheManipulator().getMemlockLimit();
        if (dnConf.maxLockedMemory > ulimit) {
          throw new RuntimeException(String.format(
            "Cannot start datanode because the configured max locked memory" +
            " size (%s) of %d bytes is more than the datanode's available" +
            " RLIMIT_MEMLOCK ulimit of %d bytes.",
            DFS_DATANODE_MAX_LOCKED_MEMORY_KEY,
            dnConf.maxLockedMemory,
            ulimit));
        }
      }
    }
    LOG.info("Starting DataNode with maxLockedMemory = " +
        dnConf.maxLockedMemory);

    // TODO 存储对象
    storage = new DataStorage();

    // global DN settings
    registerMXBean();
    //TODO 初始化DataXceiver
    initDataXceiver(conf);
    //TODO 初始化HttpServer服务
    startInfoServer(conf);
    pauseMonitor = new JvmPauseMonitor(conf);
    pauseMonitor.start();

    // BlockPoolTokenSecretManager is required to create ipc server.
    this.blockPoolTokenSecretManager = new BlockPoolTokenSecretManager();

    // Login is done by now. Set the DN user name.
    dnUserName = UserGroupInformation.getCurrentUser().getShortUserName();
    LOG.info("dnUserName = " + dnUserName);
    LOG.info("supergroup = " + supergroup);
    initIpcServer(conf);

    metrics = DataNodeMetrics.create(conf, getDisplayName());
    metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);

    blockPoolManager = new BlockPoolManager(this);
    blockPoolManager.refreshNamenodes(conf);

    // Create the ReadaheadPool from the DataNode context so we can
    // exit without having to explicitly shutdown its thread pool.
    readaheadPool = ReadaheadPool.getInstance();
    saslClient = new SaslDataTransferClient(dnConf.conf,
        dnConf.saslPropsResolver, dnConf.trustedChannelResolver);
    saslServer = new SaslDataTransferServer(dnConf, blockPoolTokenSecretManager);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
 private void initDataXceiver(Configuration conf) throws IOException {
    // find free port or use privileged port provided
    TcpPeerServer tcpPeerServer;
    if (secureResources != null) {
      tcpPeerServer = new TcpPeerServer(secureResources);
    } else {
      tcpPeerServer = new TcpPeerServer(dnConf.socketWriteTimeout,
          DataNode.getStreamingAddr(conf));
    }
    tcpPeerServer.setReceiveBufferSize(HdfsConstants.DEFAULT_DATA_SOCKET_SIZE);
    streamingAddr = tcpPeerServer.getStreamingAddr();
    LOG.info("Opened streaming server at " + streamingAddr);
    this.threadGroup = new ThreadGroup("dataXceiverServer");

    //TODO 实例化了一个DataXceiverServer 这个东西就是DataNode用来接收客户端和其他DataNode传过来的数据服务
    xserver = new DataXceiverServer(tcpPeerServer, conf, this);

    //设置为后台线程
    this.dataXceiverServer = new Daemon(threadGroup, xserver);
    this.threadGroup.setDaemon(true); // auto destroy when empty

    if (conf.getBoolean(DFSConfigKeys.DFS_CLIENT_READ_SHORTCIRCUIT_KEY,
              DFSConfigKeys.DFS_CLIENT_READ_SHORTCIRCUIT_DEFAULT) ||
        conf.getBoolean(DFSConfigKeys.DFS_CLIENT_DOMAIN_SOCKET_DATA_TRAFFIC,
              DFSConfigKeys.DFS_CLIENT_DOMAIN_SOCKET_DATA_TRAFFIC_DEFAULT)) {
      DomainPeerServer domainPeerServer =
                getDomainPeerServer(conf, streamingAddr.getPort());
      if (domainPeerServer != null) {
        this.localDataXceiverServer = new Daemon(threadGroup,
            new DataXceiverServer(domainPeerServer, conf, this));
        LOG.info("Listening on UNIX domain socket: " +
            domainPeerServer.getBindPath());
      }
    }
    this.shortCircuitRegistry = new ShortCircuitRegistry(conf);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
/**
   * @see DFSUtil#getHttpPolicy(org.apache.hadoop.conf.Configuration)
   * for information related to the different configuration options and
   * Http Policy is decided.
   */
  private void startInfoServer(Configuration conf)
    throws IOException {
    Configuration confForInfoServer = new Configuration(conf);
    confForInfoServer.setInt(HttpServer2.HTTP_MAX_THREADS, 10);

    //NameNode启动的时候也启动了一个httpserver2
    //TODO 用来接收http的请求
    HttpServer2.Builder builder = new HttpServer2.Builder()
      .setName("datanode")
      .setConf(conf).setACL(new AccessControlList(conf.get(DFS_ADMIN, " ")))
      .addEndpoint(URI.create("http://localhost:0"))
      .setFindPort(true);

    this.infoServer = builder.build();

    //TODO 网这个httpserver上面绑定了多个servlet
    this.infoServer.addInternalServlet(null, "/streamFile/*", StreamFile.class);
    this.infoServer.addInternalServlet(null, "/getFileChecksum/*",
        FileChecksumServlets.GetServlet.class);

    this.infoServer.setAttribute("datanode", this);
    this.infoServer.setAttribute(JspHelper.CURRENT_CONF, conf);
    this.infoServer.addServlet(null, "/blockScannerReport",
                               BlockScanner.Servlet.class);
    //启动了httpserver
    this.infoServer.start();
    InetSocketAddress jettyAddr = infoServer.getConnectorAddress(0);

    // SecureDataNodeStarter will bind the privileged port to the channel if
    // the DN is started by JSVC, pass it along.
    ServerSocketChannel httpServerChannel = secureResources != null ?
      secureResources.getHttpServerChannel() : null;

    this.httpServer = new DatanodeHttpServer(conf, jettyAddr, httpServerChannel);
    httpServer.start();
    if (httpServer.getHttpAddress() != null) {
      infoPort = httpServer.getHttpAddress().getPort();
    }
    if (httpServer.getHttpsAddress() != null) {
      infoSecurePort = httpServer.getHttpsAddress().getPort();
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
private void initIpcServer(Configuration conf) throws IOException {
    InetSocketAddress ipcAddr = NetUtils.createSocketAddr(
        conf.getTrimmed(DFS_DATANODE_IPC_ADDRESS_KEY));

    // Add all the RPC protocols that the Datanode implements
    RPC.setProtocolEngine(conf, ClientDatanodeProtocolPB.class,
        ProtobufRpcEngine.class);
    ClientDatanodeProtocolServerSideTranslatorPB clientDatanodeProtocolXlator =
          new ClientDatanodeProtocolServerSideTranslatorPB(this);
    BlockingService service = ClientDatanodeProtocolService
        .newReflectiveBlockingService(clientDatanodeProtocolXlator);
    ipcServer = new RPC.Builder(conf)
        .setProtocol(ClientDatanodeProtocolPB.class)
        .setInstance(service)
        .setBindAddress(ipcAddr.getHostName())
        .setPort(ipcAddr.getPort())
        .setNumHandlers(
            conf.getInt(DFS_DATANODE_HANDLER_COUNT_KEY,
                DFS_DATANODE_HANDLER_COUNT_DEFAULT)).setVerbose(false)
        .setSecretManager(blockPoolTokenSecretManager).build();

    InterDatanodeProtocolServerSideTranslatorPB interDatanodeProtocolXlator =
        new InterDatanodeProtocolServerSideTranslatorPB(this);
    service = InterDatanodeProtocolService
        .newReflectiveBlockingService(interDatanodeProtocolXlator);
    DFSUtil.addPBProtocol(conf, InterDatanodeProtocolPB.class, service,
        ipcServer);

    TraceAdminProtocolServerSideTranslatorPB traceAdminXlator =
        new TraceAdminProtocolServerSideTranslatorPB(this);
    BlockingService traceAdminService = TraceAdminService
        .newReflectiveBlockingService(traceAdminXlator);
    DFSUtil.addPBProtocol(conf, TraceAdminProtocolPB.class, traceAdminService,
        ipcServer);

    LOG.info("Opened IPC server at " + ipcServer.getListenerAddress());

    // set service-level authorization security policy
    if (conf.getBoolean(
        CommonConfigurationKeys.HADOOP_SECURITY_AUTHORIZATION, false)) {
      ipcServer.refreshServiceAcl(conf, new HDFSPolicyProvider());
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
 //TODO 创建了BlockPoolMangaer
    /**
     * BlockPool,一个集群就有一个BlockPool
     * 如果我们是联邦机制,就会有多个namenode,也就是会有多个联邦,一个联邦就是一个blockpool
     * 假设一个集群里面:4个namenode 两个联邦
     * 联邦一:hadoop1(Active) Hadoop2(StandBy) (blockPool是同一个)
     * 联邦二:hadoop2(Active) Hadoop3(StandBy) (blockPool是同一个)
     */
    blockPoolManager = new BlockPoolManager(this);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
void refreshNamenodes(Configuration conf)
      throws IOException {
    LOG.info("Refresh request received for nameservices: " + conf.get
            (DFSConfigKeys.DFS_NAMESERVICES));

    Map<String, Map<String, InetSocketAddress>> newAddressMap = DFSUtil
            .getNNServiceRpcAddressesForCluster(conf);

    synchronized (refreshNamenodesLock) {
      //TODO 重要代码
      doRefreshNamenodes(newAddressMap);
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
 private void doRefreshNamenodes(
      Map<String, Map<String, InetSocketAddress>> addrMap) throws IOException {
    assert Thread.holdsLock(refreshNamenodesLock);

    Set<String> toRefresh = Sets.newLinkedHashSet();
    //联邦id
    Set<String> toAdd = Sets.newLinkedHashSet();
    Set<String> toRemove;

    synchronized (this) {
      // Step 1. For each of the new nameservices, figure out whether
      // it's an update of the set of NNs for an existing NS,
      // or an entirely new nameservice.
      //TODO 通常情况下: HDFS集群的架构是HA架构
      //nameservice(hadoop1 hadoop2)
      for (String nameserviceId : addrMap.keySet()) {
        if (bpByNameserviceId.containsKey(nameserviceId)) {
          toRefresh.add(nameserviceId);
        } else {
          //TODO toAdd里面有多少的联邦,一个联邦就是一个NameService
          toAdd.add(nameserviceId);
        }
      }

      // Step 2. Any nameservices we currently have but are no longer present
      // need to be removed.
      toRemove = Sets.newHashSet(Sets.difference(
          bpByNameserviceId.keySet(), addrMap.keySet()));

      assert toRefresh.size() + toAdd.size() ==
        addrMap.size() :
          "toAdd: " + Joiner.on(",").useForNull("<default>").join(toAdd) +
          "  toRemove: " + Joiner.on(",").useForNull("<default>").join(toRemove) +
          "  toRefresh: " + Joiner.on(",").useForNull("<default>").join(toRefresh);


      // Step 3. Start new nameservices
      if (!toAdd.isEmpty()) {
        LOG.info("Starting BPOfferServices for nameservices: " +
            Joiner.on(",").useForNull("<default>").join(toAdd));
        //TODO 遍历所有的联邦,一个联邦里面会有两个Namnode(HA)
        //toAdd正常的集群,里面其实只有一个值
        for (String nsToAdd : toAdd) {
          ArrayList<InetSocketAddress> addrs =
            Lists.newArrayList(addrMap.get(nsToAdd).values());

          //TODO 重要的关系
          // 一个联邦对应一个BPOfferService
          // 一个联邦里面的一个NameNode就是一个BPServiceActor
          //也就是正常来说一个BPOfferService有两个BPServiceActor
          BPOfferService bpos = createBPOS(addrs);
          bpByNameserviceId.put(nsToAdd, bpos);
          offerServices.add(bpos);
        }
      }
      //TODO 心跳
      startAll();
    }

    // Step 4. Shut down old nameservices. This happens outside
    // of the synchronized(this) lock since they need to call
    // back to .remove() from another thread
    if (!toRemove.isEmpty()) {
      LOG.info("Stopping BPOfferServices for nameservices: " +
          Joiner.on(",").useForNull("<default>").join(toRemove));

      for (String nsToRemove : toRemove) {
        BPOfferService bpos = bpByNameserviceId.get(nsToRemove);
        bpos.stop();
        bpos.join();
        // they will call remove on their own
      }
    }

    // Step 5. Update nameservices whose NN list has changed
    if (!toRefresh.isEmpty()) {
      LOG.info("Refreshing list of NNs for nameservices: " +
          Joiner.on(",").useForNull("<default>").join(toRefresh));

      //遍历所有的
      for (String nsToRefresh : toRefresh) {
        BPOfferService bpos = bpByNameserviceId.get(nsToRefresh);
        ArrayList<InetSocketAddress> addrs =
          Lists.newArrayList(addrMap.get(nsToRefresh).values());
        bpos.refreshNNList(addrs);
      }
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
    //TODO 重要的关系
          // 一个联邦对应一个BPOfferService
          // 一个联邦里面的一个NameNode就是一个BPServiceActor
          //也就是正常来说一个BPOfferService有两个BPServiceActor
          BPOfferService bpos = createBPOS(addrs);

     /**
   * Extracted out for test purposes.
   */
  protected BPOfferService createBPOS(List<InetSocketAddress> nnAddrs) {
    return new BPOfferService(nnAddrs, dn);
  }

1
2
3
4
5
6
7
8
9
10
  BPOfferService(List<InetSocketAddress> nnAddrs, DataNode dn) {
    Preconditions.checkArgument(!nnAddrs.isEmpty(),
        "Must pass at least one NN.");
    this.dn = dn;
    //遍历所有的NamoNode绑定到一个BPServiceActor上
    for (InetSocketAddress addr : nnAddrs) {
      this.bpServices.add(new BPServiceActor(addr, this));
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
  synchronized void startAll() throws IOException {
    try {
      UserGroupInformation.getLoginUser().doAs(
          new PrivilegedExceptionAction<Object>() {
            @Override
            public Object run() throws Exception {
              //TODO 遍历所有的BPOfferService 也就是说遍历所有的联邦
              for (BPOfferService bpos : offerServices) {
                // TODO 重要
                bpos.start();
              }
              return null;
            }
          });
    } catch (InterruptedException ex) {
      IOException ioe = new IOException();
      ioe.initCause(ex.getCause());
      throw ioe;
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
  //This must be called only by blockPoolManager
  void start() {
    //TODO 一个bpServices 里面就会有多个Actor
    for (BPServiceActor actor : bpServices) {
      //TODO DataNode进行注册和心跳
      /**
       * 第一个联邦 hadoop1,hadoop2
       * actor1 -> hadoop1
       * actor2 -> hadoop2
       */
      actor.start();
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
  //This must be called only by BPOfferService
  void start() {
    if ((bpThread != null) && (bpThread.isAlive())) {
      //Thread is started already
      return;
    }
    bpThread = new Thread(this, formatThreadName());
    //设置为后台启动
    bpThread.setDaemon(true); // needed for JUnit testing

    //TODO 启动线程,所以我们接下来观察他的run方法
    bpThread.start();//run
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
try {
      while (true) {
        // init stuff
        try {
          // setup storage
          //TODO 注册核心代码
          //为什么是while true,其实就是我们尽量要保证完成
          connectToNNAndHandshake();
          break;
        } catch (IOException ioe) {
          // Initial handshake, storage recovery or registration failed
          runningState = RunningState.INIT_FAILED;
          if (shouldRetryInit()) {
            // Retry until all namenode's of BPOS failed initialization
            LOG.error("Initialization failed for " + this + " "
                + ioe.getLocalizedMessage());
            //TODO 如果有问题sleep 5秒
            //TODO 再继续尝试
            sleepAndLogInterrupts(5000, "initializing");
          } else {
            runningState = RunningState.FAILED;
            LOG.fatal("Initialization failed for " + this + ". Exiting. ", ioe);
            return;
          }
        }
      }
      //注册结束了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
  private void connectToNNAndHandshake() throws IOException {
    //TODO 获取到namenode的代理
    //RPC的客户端
    // get NN proxy
    bpNamenode = dn.connectToNN(nnAddr);

    // First phase of the handshake with NN - get the namespace
    // info.
    NamespaceInfo nsInfo = retrieveNamespaceInfo();

    // Verify that this matches the other NN in this HA pair.
    // This also initializes our block pool in the DN if we are
    // the first NN connection for this BP.
    //TODO 校验NamespaceInfo的信息
    //TODO datanode -> HA()
    bpos.verifyAndSetNamespaceInfo(nsInfo);

    // Second phase of the handshake with the NN.
    //TODO DataNode注册
    register(nsInfo);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
/**
   * Register one bp with the corresponding NameNode
   * <p>
   * The bpDatanode needs to register with the namenode on startup in order
   * 1) to report which storage it is serving now and
   * 2) to receive a registrationID
   *
   * issued by the namenode to recognize registered datanodes.
   *
   * @param nsInfo current NamespaceInfo
   * @see FSNamesystem#registerDatanode(DatanodeRegistration)
   * @throws IOException
   */
  void register(NamespaceInfo nsInfo) throws IOException {
    // The handshake() phase loaded the block pool storage
    // off disk - so update the bpRegistration object from that info

    //TODO 创建注册信息,也就是自己的信息,例如磁盘什么的块啊
    bpRegistration = bpos.createRegistration();

    LOG.info(this + " beginning handshake with NN");

    while (shouldRun()) {
      try {
        // Use returned registration from namenode with updated fields
        //TODO 调用服务端的registerDatanode方法
        //bpNamenode 其实应该就是代表了NameNode,其实就是服务端的代理
        bpRegistration = bpNamenode.registerDatanode(bpRegistration);

        //TODO 如果执行到着了,说明注册过程已经完成了
        bpRegistration.setNamespaceInfo(nsInfo);
        break;
      } catch(EOFException e) {  // namenode might have just restarted
        LOG.info("Problem connecting to server: " + nnAddr + " :"
            + e.getLocalizedMessage());
        sleepAndLogInterrupts(1000, "connecting to server");
      } catch(SocketTimeoutException e) {  // namenode is busy
        LOG.info("Problem connecting to server: " + nnAddr);
        sleepAndLogInterrupts(1000, "connecting to server");
      }
    }

    LOG.info("Block pool " + this + " successfully registered with NN");
    bpos.registrationSucceeded(this, bpRegistration);

    // random short delay - helps scatter the BR from all DNs
    scheduleBlockReport(dnConf.initialBlockReportDelay);
  }

1
2
3
4
5
6
7
8
9
10
11
  @Override // DatanodeProtocol
  public DatanodeRegistration registerDatanode(DatanodeRegistration nodeReg)
      throws IOException {
      //是否启动起来
    checkNNStartup();
    verifySoftwareVersion(nodeReg);
    //TODO 注册DataNode
    namesystem.registerDatanode(nodeReg);
    return nodeReg;
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
  /**
   * Register Datanode.
   * <p>
   * The purpose of registration is to identify whether the new datanode
   * serves a new data storage, and will report new data block copies,
   * which the namenode was not aware of; or the datanode is a replacement
   * node for the data storage that was previously served by a different
   * or the same (in terms of host:port) datanode.
   * The data storages are distinguished by their storageIDs. When a new
   * data storage is reported the namenode issues a new unique storageID.
   * <p>
   * Finally, the namenode returns its namespaceID as the registrationID
   * for the datanodes.
   * namespaceID is a persistent attribute of the name space.
   * The registrationID is checked every time the datanode is communicating
   * with the namenode.
   * Datanodes with inappropriate registrationID are rejected.
   * If the namenode stops, and then restarts it can restore its
   * namespaceID and will continue serving the datanodes that has previously
   * registered with the namenode without restarting the whole cluster.
   *
   * @see org.apache.hadoop.hdfs.server.datanode.DataNode
   */
  void registerDatanode(DatanodeRegistration nodeReg) throws IOException {
    writeLock();
    try {
      //TODO DataNodeManager 处理关于DataNode的事情
      getBlockManager().getDatanodeManager().registerDatanode(nodeReg);
      checkSafeMode();
    } finally {
      writeUnlock();
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13

        // register new datanode

        //TODO 注册DataNode
        addDatanode(nodeDescr);
        // also treat the registration message as a heartbeat
        // no need to update its timestamp
        // because its is done when the descriptor is created

        //TODO 把注册上来的DataNode加入到HeartbeatManager里面
        //后面进行心跳机制
        heartbeatManager.addDatanode(nodeDescr);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
 /** Add a datanode. */
  //TODO 注册DataNode说白了就是往一堆数据结构立面添加
  void addDatanode(final DatanodeDescriptor node) {
    // To keep host2DatanodeMap consistent with datanodeMap,
    // remove  from host2DatanodeMap the datanodeDescriptor removed
    // from datanodeMap before adding node to host2DatanodeMap.
    synchronized(datanodeMap) {
      //TODO datanode 是否已经拥有过
      host2DatanodeMap.remove(datanodeMap.put(node.getDatanodeUuid(), node));
    }

    //TODO 往拓扑数据结构立面假如一条数据
    networktopology.add(node); // may throw InvalidTopologyException
    //TODO 往内存里面加入一条数据
    host2DatanodeMap.add(node);

    //如果以上内存数据结构立面的数据
    checkIfClusterIsNowMultiRack(node);

    if (LOG.isDebugEnabled()) {
      LOG.debug(getClass().getSimpleName() + ".addDatanode: "
          + "node " + node + " is added to datanodeMap.");
    }
  }

1
2
3
4
5
6
7
8
9
  synchronized void addDatanode(final DatanodeDescriptor d) {
    // update in-service node count
    //往各种数据结构立面存东西
    stats.add(d);
    //往datanodes list结构立面存进去了datanode的信息
    datanodes.add(d);
    d.isAlive = true;
  }

1
2
3
4
5
6
7
8
9
10
  while (shouldRun()) {
        try {
          //TODO 发送心跳
          offerService();
        } catch (Exception ex) {
          LOG.error("Exception in BPOfferService for " + this, ex);
          sleepAndLogInterrupts(5000, "offering service");
        }
      }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
  while (shouldRun()) {
      try {
        final long startTime = monotonicNow();

        //
        // Every so often, send heartbeat or block-report
        //
        //TODO 心跳是每三秒进行一次
        //startTime = 当前时间
        //lastHeartbeat 最后一次心跳时间
        // dnConf.heartBeatInterval = 3*1000L 也就是三秒
        if (startTime - lastHeartbeat >= dnConf.heartBeatInterval) {
          //
          // All heartbeat messages include following info:
          // -- Datanode name
          // -- data transfer port
          // -- Total capacity
          // -- Bytes remaining
          //
          //TODO 重新更新最后一次心跳时间
          lastHeartbeat = startTime;
          if (!dn.areHeartbeatsDisabledForTests()) {

            /**
             * NameNode是不直接跟DataNode进行连接的
             * DataNode发送心跳给NameNode
             * NameNode接受到心跳以后,会返回来一些指令
             * Datanode接收到这些指令以后,根据这些指令做对应的操作
             */
            //TODO 发送心跳,返回来的是NamNode给的响应指令
            HeartbeatResponse resp = sendHeartBeat();
            assert resp != null;
            dn.getMetrics().addHeartbeat(monotonicNow() - startTime);

            // If the state of this NN has changed (eg STANDBY->ACTIVE)
            // then let the BPOfferService update itself.
            //
            // Important that this happens before processCommand below,
            // since the first heartbeat to a new active might have commands
            // that we should actually process.
            bpos.updateActorStatesFromHeartbeat(
                this, resp.getNameNodeHaState());
            state = resp.getNameNodeHaState().getState();

            if (state == HAServiceState.ACTIVE) {
              handleRollingUpgradeStatus(resp);
            }

            long startProcessCommands = monotonicNow();
            if (!processCommand(resp.getCommands()))
              continue;
            long endProcessCommands = monotonicNow();
            if (endProcessCommands - startProcessCommands > 2000) {
              LOG.info("Took " + (endProcessCommands - startProcessCommands)
                  + "ms to process " + resp.getCommands().length
                  + " commands from NN");
            }
          }
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
  HeartbeatResponse sendHeartBeat() throws IOException {
    //TODO 每个三秒就要运行一次
    StorageReport[] reports =
        dn.getFSDataset().getStorageReports(bpos.getBlockPoolId());
    if (LOG.isDebugEnabled()) {
      LOG.debug("Sending heartbeat with " + reports.length +
                " storage reports from service actor: " + this);
    }

    VolumeFailureSummary volumeFailureSummary = dn.getFSDataset()
        .getVolumeFailureSummary();
    int numFailedVolumes = volumeFailureSummary != null ?
        volumeFailureSummary.getFailedStorageLocations().length : 0;

    //TODO 发送心跳,首先是获取到NamNode的代理,发送心跳
    return bpNamenode.sendHeartbeat(bpRegistration,
        reports,
        dn.getFSDataset().getCacheCapacity(),
        dn.getFSDataset().getCacheUsed(),
        dn.getXmitsInProgress(),
        dn.getXceiverCount(),
        numFailedVolumes,
        volumeFailureSummary);
  }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
  @Override // DatanodeProtocol
  public HeartbeatResponse sendHeartbeat(DatanodeRegistration nodeReg,
      StorageReport[] report, long dnCacheCapacity, long dnCacheUsed,
      int xmitsInProgress, int xceiverCount,
      int failedVolumes, VolumeFailureSummary volumeFailureSummary)
      throws IOException {
    checkNNStartup();
    verifyRequest(nodeReg);

    //TODO 处理DataNode发送过来的心跳
    return namesystem.handleHeartbeat(nodeReg, report,
        dnCacheCapacity, dnCacheUsed, xceiverCount, xmitsInProgress,
        failedVolumes, volumeFailureSummary);
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
 HeartbeatResponse handleHeartbeat(DatanodeRegistration nodeReg,
      StorageReport[] reports, long cacheCapacity, long cacheUsed,
      int xceiverCount, int xmitsInProgress, int failedVolumes,
      VolumeFailureSummary volumeFailureSummary) throws IOException {
    readLock();
    try {
      //get datanode commands
      final int maxTransfer = blockManager.getMaxReplicationStreams()
          - xmitsInProgress;
      //TODO NameNode处理DataNode发送古来的心跳
      DatanodeCommand[] cmds = blockManager.getDatanodeManager().handleHeartbeat(
          nodeReg, reports, blockPoolId, cacheCapacity, cacheUsed,
          xceiverCount, maxTransfer, failedVolumes, volumeFailureSummary);

      //create ha status
      final NNHAStatusHeartbeat haState = new NNHAStatusHeartbeat(
          haContext.getState().getServiceState(),
          getFSImage().getLastAppliedOrWrittenTxId());
      //TODO 给DatNode响应
      return new HeartbeatResponse(cmds, haState, rollingUpgradeInfo);
    } finally {
      readUnlock();
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
synchronized (heartbeatManager) {
      synchronized (datanodeMap) {
        DatanodeDescriptor nodeinfo = null;
        try {
          //获取注册的时候DataNode信息
          //TODO 从已有的datanodeMap里面获取注册过来的DataNode信息
          //如果能获取到这个datanodename回事说明以前就注册过
          //如果是第一次里面是没有值的
          nodeinfo = getDatanode(nodeReg);
        } catch(UnregisteredNodeException e) {
          return new DatanodeCommand[]{RegisterCommand.REGISTER};
        }

        // Check if this datanode should actually be shutdown instead.
        if (nodeinfo != null && nodeinfo.isDisallowed()) {
          setDatanodeDead(nodeinfo);
          throw new DisallowedDatanodeException(nodeinfo);
        }

        if (nodeinfo == null || !nodeinfo.isAlive) {
          return new DatanodeCommand[]{RegisterCommand.REGISTER};
        }

        //TODO 更新心跳的重要信息
        heartbeatManager.updateHeartbeat(nodeinfo, reports,
                                         cacheCapacity, cacheUsed,
                                         xceiverCount, failedVolumes,
                                         volumeFailureSummary);

1
2
3
4
5
6
7
8
9
10
11
  synchronized void updateHeartbeat(final DatanodeDescriptor node,
      StorageReport[] reports, long cacheCapacity, long cacheUsed,
      int xceiverCount, int failedVolumes,
      VolumeFailureSummary volumeFailureSummary) {
    stats.subtract(node);
    // TODO 重要代码
    node.updateHeartbeat(reports, cacheCapacity, cacheUsed,
      xceiverCount, failedVolumes, volumeFailureSummary);
    stats.add(node);
  }

1
2
3
4
5
6
7
8
9
10
11
12
  /**
   * Updates stats from datanode heartbeat.
   */
  public void updateHeartbeat(StorageReport[] reports, long cacheCapacity,
      long cacheUsed, int xceiverCount, int volFailures,
      VolumeFailureSummary volumeFailureSummary) {

    updateHeartbeatState(reports, cacheCapacity, cacheUsed, xceiverCount,
        volFailures, volumeFailureSummary);
    heartbeatedSinceRegistration = true;
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
   //TODO 更新存储信息
    setCacheCapacity(cacheCapacity);
    setCacheUsed(cacheUsed);
    setXceiverCount(xceiverCount);
    //TODO 修改上一次的心跳时间
    /**
     * datanode -> namenode心跳 -> 2020/07/05 10:10:10
     * datanode -> namenode心跳 -> 2020/07/05 10:10:11
     *
     * 肯定有一个线程遍历所有节点的心跳时间,用当前时间减去上一次的心跳时间,如果超过某个值,就认为这个datanode挂了
     */
    setLastUpdate(Time.now());
    setLastUpdateMonotonic(Time.monotonicNow());

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
      //TODO 安全模式校验
      setBlockTotal();
      //TODO 启动重要服务
      blockManager.activate(conf);

  public void activate(Configuration conf) {
    //启动了等待复制的线程
    pendingReplications.start();
    //TODO 启动了管理心跳的服务

    datanodeManager.activate(conf);
    this.replicationThread.start();
  }

  void activate(final Configuration conf) {
    //启动了 管理下线datanode的服务
    decomManager.activate(conf);
    //TODO 管理心跳
    heartbeatManager.activate(conf);
  }
  void activate(Configuration conf) {
    heartbeatThread.start();
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
  /** Periodically check heartbeat and update block key */
  private class Monitor implements Runnable {
    private long lastHeartbeatCheck;
    private long lastBlockKeyUpdate;

    @Override
    public void run() {
      // true
      while(namesystem.isRunning()) {
        try {
          final long now = Time.monotonicNow();
          //heartbeatRecheckInterval 30s
          //lastHeartbeatCheck 最后一次心跳检查时间
          if (lastHeartbeatCheck + heartbeatRecheckInterval < now) {
            //TODO 心跳检查
            heartbeatCheck();
            lastHeartbeatCheck = now;
          }
          if (blockManager.shouldUpdateBlockKey(now - lastBlockKeyUpdate)) {
            synchronized(HeartbeatManager.this) {
              for(DatanodeDescriptor d : datanodes) {
                d.needKeyUpdate = true;
              }
            }
            lastBlockKeyUpdate = now;
          }
        } catch (Exception e) {
          LOG.error("Exception while checking heartbeat", e);
        }
        try {
          Thread.sleep(5000);  // 5 seconds
        } catch (InterruptedException ie) {
        }
      }
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
 synchronized(this) {
        //TODO 遍历所有的datanodes
        /**
         * 注册的时候,就是把datanode注册的信息放到了这个数据结构里面
         * 并且刚刚我们修改这个datanode上一次的心跳信息也是修改的这个数据结构里面的DataNode的信息
         */
        for (DatanodeDescriptor d : datanodes) {
          //判断一个datanode是不是挂了
          if (dead == null && dm.isDatanodeDead(d)) {
            stats.incrExpiredHeartbeats();
            dead = d;
          }
          if (d.isStale(dm.getStaleInterval())) {
            numOfStaleNodes++;
          }
          DatanodeStorageInfo[] storageInfos = d.getStorageInfos();
          for(DatanodeStorageInfo storageInfo : storageInfos) {
            if (storageInfo.areBlockContentsStale()) {
              numOfStaleStorages++;
            }

            if (failedStorage == null &&
                storageInfo.areBlocksOnFailedStorage() &&
                d != dead) {
              failedStorage = storageInfo;
            }
          }

        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
/** Is the datanode dead? */
  boolean isDatanodeDead(DatanodeDescriptor node) {
    //这里判断是否datanode是不是死掉了
    /**
     * 2 * heartbeatRecheckInterval 5分钟
     *         + 10 * 1000 * heartbeatIntervalSecond
     * heartbeatRecheckInterval 5分钟
     * heartbeatIntervalSecond 3
     * 也就是决定一个datanode是否宕机的时间是10分30秒
     */
    return (node.getLastUpdateMonotonic() <
            (monotonicNow() - heartbeatExpireInterval));
  }
