概述
https://blog.csdn.net/sinat_33718563/article/details/79964758
新代码：可用，如果不想在老代码上折腾更改，可以直接根据下面的新地址拉取代码。 （注意看Readme）
--------------------更新20180703-----------------
由于以前上传的项目有点点小问题，完整更新项目及说明如下链接。
https://github.com/RongSong1993/YOLOv3-SaveVideo-New/tree/master
---------------------更新20180703---------------------

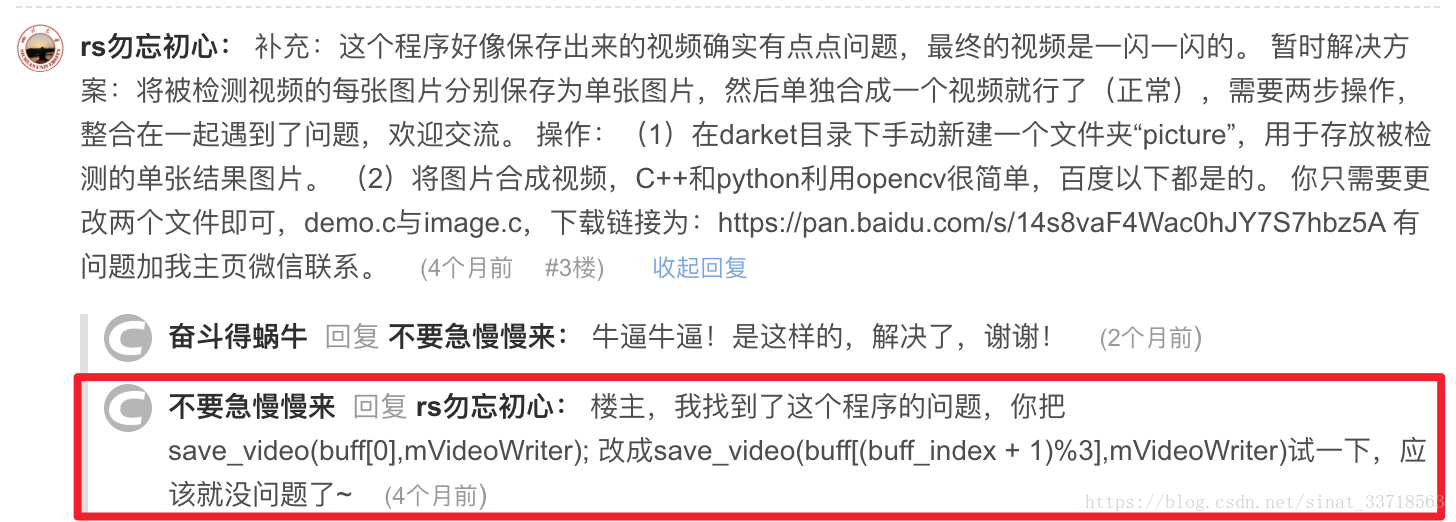

老代码：同样可用，就是保存视频时会闪烁，现在评论区出现了一个解决方案，欢迎大家尝试（拉到文末查看）。
YOLOv3保存检测视频完整项目地址： https://github.com/RongSong1993/YOLOv3_SaveVideo
最近一段时间配置运行了下YOLO3网络，官方项目地址：https://pjreddie.com/darknet/yolo/，整个配置过程比较简单，按照上面那个网站操作就可以了。但是官网项目在测试本地视频或通过摄像头(webcam)获得的视频时，默认是没有保存运行结果的，因此这里主要讲的是如何保存yolo3运行检测的视频结果。有问题可以评论留言，算法没仔细研究，主要是讲述操作流程。
假设你的项目路径为./darknet，需要改动的主要有两个文件，分别是位于./darknet/src/路径下的demo.c和image.c文件。
（1）首先在image.c文件中添加save_video函数的定义，代码及截图位置如下：
-
void save_video(image p, CvVideoWriter *mVideoWriter)
-
{
-
image copy = copy_image(p);
-
if(p.c ==
3) rgbgr_image(copy);
-
int x,y,k;
-
-
IplImage *disp = cvCreateImage(cvSize(p.w,p.h), IPL_DEPTH_8U, p.c);
-
int step = disp->widthStep;
-
for(y =
0; y < p.h; ++y){
-
for(x =
0; x < p.w; ++x){
-
for(k=
0; k < p.c; ++k){
-
disp->imageData[y*step + x*p.c + k] = (
unsigned
char)(get_pixel(copy,x,y,k)*
255);
-
}
-
}
-
}
-
cvWriteFrame(mVideoWriter,disp);
-
cvReleaseImage(&disp);
-
free_image(copy);
-
}

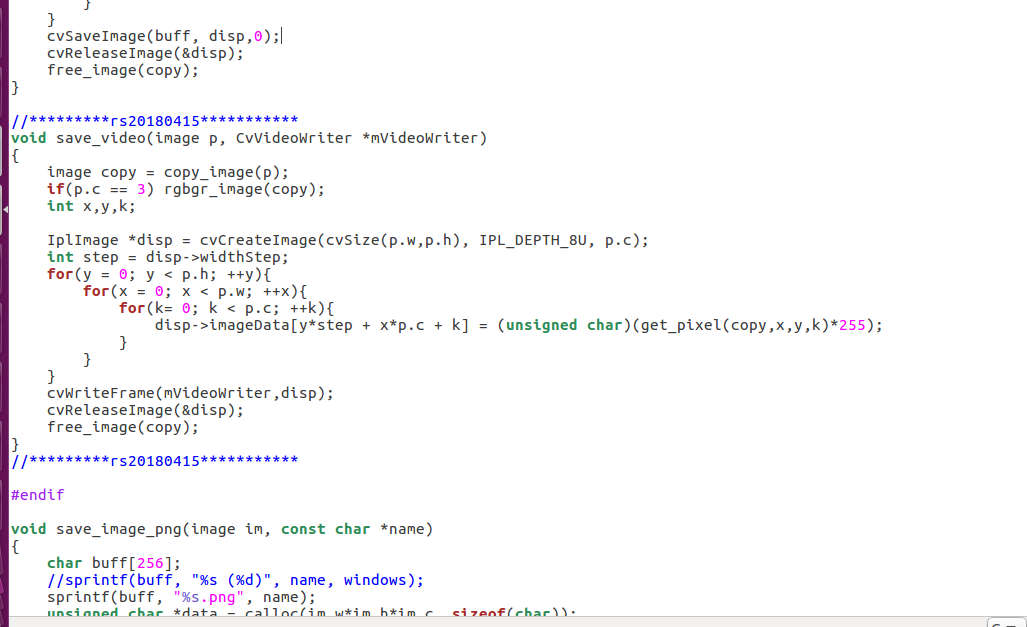

对应位置截图如下：
（2） 然后更改demo.c文件代码，由于改动内容有多处，因此这里帖是完整的demo.c文件代码，每一组//*********rs20180415***********之间代码就是新添加的代码内容，可自行对比，包括设置你输出检测视频的名称和帧率。
-
#include "network.h"
-
#include "detection_layer.h"
-
#include "region_layer.h"
-
#include "cost_layer.h"
-
#include "utils.h"
-
#include "parser.h"
-
#include "box.h"
-
#include "image.h"
-
#include "demo.h"
-
#include <sys/time.h>
-
-
#define DEMO 1
-
-
//*********rs20180415***********
-
#define SAVEVIDEO
-
//*********rs20180415***********
-
-
#ifdef OPENCV
-
-
//*********rs20180415***********
-
#ifdef SAVEVIDEO
-
static CvVideoWriter *mVideoWriter;
-
#endif
-
//*********rs20180415***********
-
-
static
char **demo_names;
-
static image **demo_alphabet;
-
static
int demo_classes;
-
static network *net;
-
static image buff [
3];
-
static image buff_letter[
3];
-
static
int buff_index =
0;
-
static CvCapture * cap;
-
static IplImage * ipl;
-
static
float fps =
0;
-
static
float demo_thresh =
0;
-
static
float demo_hier =
.5;
-
static
int running =
0;
-
-
static
int demo_frame =
3;
-
static
int demo_index =
0;
-
static
float **predictions;
-
static
float *avg;
-
static
int demo_done =
0;
-
static
int demo_total =
0;
-
double demo_time;
-
-
detection *get_network_boxes(network *net, int w, int h, float thresh, float hier, int *map, int relative, int *num);
-
-
int size_network(network *net)
-
{
-
int i;
-
int count =
0;
-
for(i =
0; i < net->n; ++i){
-
layer l = net->layers[i];
-
if(l.type == YOLO || l.type == REGION || l.type == DETECTION){
-
count += l.outputs;
-
}
-
}
-
return count;
-
}
-
-
void remember_network(network *net)
-
{
-
int i;
-
int count =
0;
-
for(i =
0; i < net->n; ++i){
-
layer l = net->layers[i];
-
if(l.type == YOLO || l.type == REGION || l.type == DETECTION){
-
memcpy(predictions[demo_index] + count, net->layers[i].output,
sizeof(
float) * l.outputs);
-
count += l.outputs;
-
}
-
}
-
}
-
-
detection *avg_predictions(network *net, int *nboxes)
-
{
-
int i, j;
-
int count =
0;
-
fill_cpu(demo_total,
0, avg,
1);
-
for(j =
0; j < demo_frame; ++j){
-
axpy_cpu(demo_total,
1./demo_frame, predictions[j],
1, avg,
1);
-
}
-
for(i =
0; i < net->n; ++i){
-
layer l = net->layers[i];
-
if(l.type == YOLO || l.type == REGION || l.type == DETECTION){
-
memcpy(l.output, avg + count,
sizeof(
float) * l.outputs);
-
count += l.outputs;
-
}
-
}
-
detection *dets = get_network_boxes(net, buff[
0].w, buff[
0].h, demo_thresh, demo_hier,
0,
1, nboxes);
-
return dets;
-
}
-
-
void *detect_in_thread(void *ptr)
-
{
-
running =
1;
-
float nms =
.4;
-
-
layer l = net->layers[net->n
-1];
-
float *X = buff_letter[(buff_index+
2)%
3].data;
-
network_predict(net, X);
-
-
/*
-
if(l.type == DETECTION){
-
get_detection_boxes(l, 1, 1, demo_thresh, probs, boxes, 0);
-
} else */
-
remember_network(net);
-
detection *dets =
0;
-
int nboxes =
0;
-
dets = avg_predictions(net, &nboxes);
-
-
-
/*
-
int i,j;
-
box zero = {0};
-
int classes = l.classes;
-
for(i = 0; i < demo_detections; ++i){
-
avg[i].objectness = 0;
-
avg[i].bbox = zero;
-
memset(avg[i].prob, 0, classes*sizeof(float));
-
for(j = 0; j < demo_frame; ++j){
-
axpy_cpu(classes, 1./demo_frame, dets[j][i].prob, 1, avg[i].prob, 1);
-
avg[i].objectness += dets[j][i].objectness * 1./demo_frame;
-
avg[i].bbox.x += dets[j][i].bbox.x * 1./demo_frame;
-
avg[i].bbox.y += dets[j][i].bbox.y * 1./demo_frame;
-
avg[i].bbox.w += dets[j][i].bbox.w * 1./demo_frame;
-
avg[i].bbox.h += dets[j][i].bbox.h * 1./demo_frame;
-
}
-
//copy_cpu(classes, dets[0][i].prob, 1, avg[i].prob, 1);
-
//avg[i].objectness = dets[0][i].objectness;
-
}
-
*/
-
-
-
if (nms >
0) do_nms_obj(dets, nboxes, l.classes, nms);
-
-
printf(
" 33[2J");
-
printf(
" 33[1;1H");
-
printf(
"nFPS:%.1fn",fps);
-
printf(
"Objects:nn");
-
image display = buff[(buff_index+
2) %
3];
-
draw_detections(display, dets, nboxes, demo_thresh, demo_names, demo_alphabet, demo_classes);
-
free_detections(dets, nboxes);
-
-
demo_index = (demo_index +
1)%demo_frame;
-
running =
0;
-
return
0;
-
}
-
-
void *fetch_in_thread(void *ptr)
-
{
-
int status = fill_image_from_stream(cap, buff[buff_index]);
-
letterbox_image_into(buff[buff_index], net->w, net->h, buff_letter[buff_index]);
-
if(status ==
0) demo_done =
1;
-
return
0;
-
}
-
-
void *display_in_thread(void *ptr)
-
{
-
show_image_cv(buff[(buff_index +
1)%
3],
"Demo", ipl);
-
int c = cvWaitKey(
1);
-
if (c !=
-1) c = c%
256;
-
if (c ==
27) {
-
demo_done =
1;
-
return
0;
-
}
else
if (c ==
82) {
-
demo_thresh +=
.02;
-
}
else
if (c ==
84) {
-
demo_thresh -=
.02;
-
if(demo_thresh <=
.02) demo_thresh =
.02;
-
}
else
if (c ==
83) {
-
demo_hier +=
.02;
-
}
else
if (c ==
81) {
-
demo_hier -=
.02;
-
if(demo_hier <=
.0) demo_hier =
.0;
-
}
-
return
0;
-
}
-
-
void *display_loop(void *ptr)
-
{
-
while(
1){
-
display_in_thread(
0);
-
}
-
}
-
-
void *detect_loop(void *ptr)
-
{
-
while(
1){
-
detect_in_thread(
0);
-
}
-
}
-
-
void demo(char *cfgfile, char *weightfile, float thresh, int cam_index, const char *filename, char **names, int classes, int delay, char *prefix, int avg_frames, float hier, int w, int h, int frames, int fullscreen)
-
{
-
//demo_frame = avg_frames;
-
image **alphabet = load_alphabet();
-
demo_names = names;
-
demo_alphabet = alphabet;
-
demo_classes = classes;
-
demo_thresh = thresh;
-
demo_hier = hier;
-
printf(
"Demon");
-
net = load_network(cfgfile, weightfile,
0);
-
set_batch_network(net,
1);
-
pthread_t detect_thread;
-
pthread_t fetch_thread;
-
-
srand(
2222222);
-
-
int i;
-
demo_total = size_network(net);
-
predictions =
calloc(demo_frame,
sizeof(
float*));
-
for (i =
0; i < demo_frame; ++i){
-
predictions[i] =
calloc(demo_total,
sizeof(
float));
-
}
-
avg =
calloc(demo_total,
sizeof(
float));
-
-
if(filename){
-
printf(
"video file: %sn", filename);
-
cap = cvCaptureFromFile(filename);
-
//*********rs20180415***********
-
#ifdef SAVEVIDEO
-
if(cap){
-
int mfps = cvGetCaptureProperty(cap,CV_CAP_PROP_FPS);
//local video file，needn't change
-
mVideoWriter=cvCreateVideoWriter(
"Output.avi",CV_FOURCC(
'M',
'J',
'P',
'G'),mfps,cvSize(cvGetCaptureProperty(cap,CV_CAP_PROP_FRAME_WIDTH),cvGetCaptureProperty(cap,CV_CAP_PROP_FRAME_HEIGHT)),
1);
-
}
-
#endif
-
//*********rs20180415***********
-
}
else{
-
cap = cvCaptureFromCAM(cam_index);
-
//*********rs20180415***********
-
#ifdef SAVEVIDEO
-
if(cap){
-
//int mfps = cvGetCaptureProperty(cap,CV_CAP_PROP_FPS); //webcam video file，need change.
-
int mfps =
25;
//the output video FPS，you can set here.
-
mVideoWriter=cvCreateVideoWriter(
"Output_webcam.avi",CV_FOURCC(
'M',
'J',
'P',
'G'),mfps,cvSize(cvGetCaptureProperty(cap,CV_CAP_PROP_FRAME_WIDTH),cvGetCaptureProperty(cap,CV_CAP_PROP_FRAME_HEIGHT)),
1);
-
}
-
#endif
-
//*********rs20180415***********
-
if(w){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FRAME_WIDTH, w);
-
}
-
if(h){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FRAME_HEIGHT, h);
-
}
-
if(frames){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FPS, frames);
-
}
-
}
-
-
if(!cap) error(
"Couldn't connect to webcam.n");
-
-
buff[
0] = get_image_from_stream(cap);
-
buff[
1] = copy_image(buff[
0]);
-
buff[
2] = copy_image(buff[
0]);
-
buff_letter[
0] = letterbox_image(buff[
0], net->w, net->h);
-
buff_letter[
1] = letterbox_image(buff[
0], net->w, net->h);
-
buff_letter[
2] = letterbox_image(buff[
0], net->w, net->h);
-
ipl = cvCreateImage(cvSize(buff[
0].w,buff[
0].h), IPL_DEPTH_8U, buff[
0].c);
-
-
int count =
0;
-
if(!prefix){
-
cvNamedWindow(
"Demo", CV_WINDOW_NORMAL);
-
if(fullscreen){
-
cvSetWindowProperty(
"Demo", CV_WND_PROP_FULLSCREEN, CV_WINDOW_FULLSCREEN);
-
}
else {
-
cvMoveWindow(
"Demo",
0,
0);
-
cvResizeWindow(
"Demo",
1352,
1013);
-
}
-
}
-
-
demo_time = what_time_is_it_now();
-
-
while(!demo_done){
-
buff_index = (buff_index +
1) %
3;
-
if(pthread_create(&fetch_thread,
0, fetch_in_thread,
0)) error(
"Thread creation failed");
-
if(pthread_create(&detect_thread,
0, detect_in_thread,
0)) error(
"Thread creation failed");
-
if(!prefix){
-
//*********rs20180415***********
-
#ifdef SAVEVIDEO
-
save_video(buff[
0],mVideoWriter);
-
#endif
-
//*********rs20180415***********
-
fps =
1./(what_time_is_it_now() - demo_time);
-
demo_time = what_time_is_it_now();
-
display_in_thread(
0);
-
}
else{
-
char name[
256];
-
sprintf(name,
"%s_%08d", prefix, count);
-
//*********rs20180415***********
-
#ifdef SAVEVIDEO
-
save_video(buff[
0],mVideoWriter);
-
#else
-
save_image(buff[(buff_index +
1)%
3], name);
-
#endif
-
//*********rs20180415***********
-
}
-
pthread_join(fetch_thread,
0);
-
pthread_join(detect_thread,
0);
-
++count;
-
}
-
}
-
-
/*
-
void demo_compare(char *cfg1, char *weight1, char *cfg2, char *weight2, float thresh, int cam_index, const char *filename, char **names, int classes, int delay, char *prefix, int avg_frames, float hier, int w, int h, int frames, int fullscreen)
-
{
-
demo_frame = avg_frames;
-
predictions = calloc(demo_frame, sizeof(float*));
-
image **alphabet = load_alphabet();
-
demo_names = names;
-
demo_alphabet = alphabet;
-
demo_classes = classes;
-
demo_thresh = thresh;
-
demo_hier = hier;
-
printf("Demon");
-
net = load_network(cfg1, weight1, 0);
-
set_batch_network(net, 1);
-
pthread_t detect_thread;
-
pthread_t fetch_thread;
-
-
srand(2222222);
-
-
if(filename){
-
printf("video file: %sn", filename);
-
cap = cvCaptureFromFile(filename);
-
}else{
-
cap = cvCaptureFromCAM(cam_index);
-
-
if(w){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FRAME_WIDTH, w);
-
}
-
if(h){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FRAME_HEIGHT, h);
-
}
-
if(frames){
-
cvSetCaptureProperty(cap, CV_CAP_PROP_FPS, frames);
-
}
-
}
-
-
if(!cap) error("Couldn't connect to webcam.n");
-
-
layer l = net->layers[net->n-1];
-
demo_detections = l.n*l.w*l.h;
-
int j;
-
-
avg = (float *) calloc(l.outputs, sizeof(float));
-
for(j = 0; j < demo_frame; ++j) predictions[j] = (float *) calloc(l.outputs, sizeof(float));
-
-
boxes = (box *)calloc(l.w*l.h*l.n, sizeof(box));
-
probs = (float **)calloc(l.w*l.h*l.n, sizeof(float *));
-
for(j = 0; j < l.w*l.h*l.n; ++j) probs[j] = (float *)calloc(l.classes+1, sizeof(float));
-
-
buff[0] = get_image_from_stream(cap);
-
buff[1] = copy_image(buff[0]);
-
buff[2] = copy_image(buff[0]);
-
buff_letter[0] = letterbox_image(buff[0], net->w, net->h);
-
buff_letter[1] = letterbox_image(buff[0], net->w, net->h);
-
buff_letter[2] = letterbox_image(buff[0], net->w, net->h);
-
ipl = cvCreateImage(cvSize(buff[0].w,buff[0].h), IPL_DEPTH_8U, buff[0].c);
-
-
int count = 0;
-
if(!prefix){
-
cvNamedWindow("Demo", CV_WINDOW_NORMAL);
-
if(fullscreen){
-
cvSetWindowProperty("Demo", CV_WND_PROP_FULLSCREEN, CV_WINDOW_FULLSCREEN);
-
} else {
-
cvMoveWindow("Demo", 0, 0);
-
cvResizeWindow("Demo", 1352, 1013);
-
}
-
}
-
-
demo_time = what_time_is_it_now();
-
-
while(!demo_done){
-
buff_index = (buff_index + 1) %3;
-
if(pthread_create(&fetch_thread, 0, fetch_in_thread, 0)) error("Thread creation failed");
-
if(pthread_create(&detect_thread, 0, detect_in_thread, 0)) error("Thread creation failed");
-
if(!prefix){
-
fps = 1./(what_time_is_it_now() - demo_time);
-
demo_time = what_time_is_it_now();
-
display_in_thread(0);
-
}else{
-
char name[256];
-
sprintf(name, "%s_%08d", prefix, count);
-
save_image(buff[(buff_index + 1)%3], name);
-
}
-
pthread_join(fetch_thread, 0);
-
pthread_join(detect_thread, 0);
-
++count;
-
}
-
}
-
*/
-
#else
-
void demo(char *cfgfile, char *weightfile, float thresh, int cam_index, const char *filename, char **names, int classes, int delay, char *prefix, int avg, float hier, int w, int h, int frames, int fullscreen)
-
{
-
fprintf(
stderr,
"Demo needs OpenCV for webcam images.n");
-
}
-
#endif

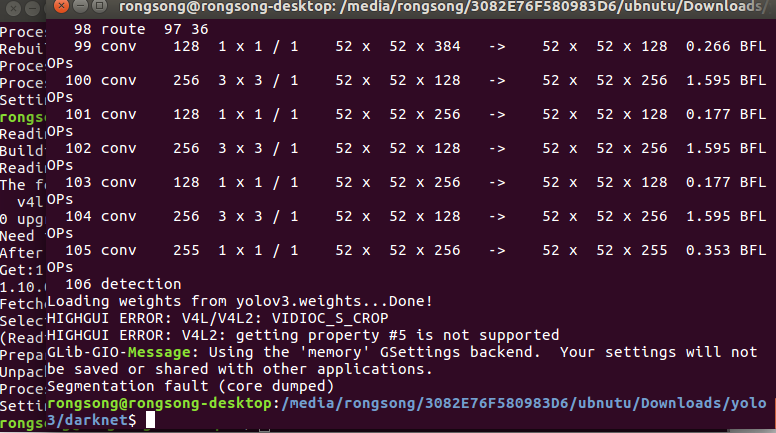

我在运行的过程，碰到了很多问题，比如在通过摄像头实时检测时，遇到了下面这个问题，这个错误不致命，就是可执行检测但是保存不了检测视频，错误提示如下：
HIGHGUI ERROR： V4L/V4L2：VIDIOC_S_CROP
HIGHGUI ERROR： V4L/V4L2：getting property #5 is not supported
GLib-GIOMessage: Using the 'memory' GSettings backend. Your settings will not be saved or shared with other applications.
解决办法：
（1）第一个问题
HIGHGUI ERROR： V4L/V4L2：VIDIOC_S_CROP
HIGHGUI ERROR： V4L/V4L2：getting property #5 is not supported
我自己测试了下，是代码问题，上面给的代码已更改，主要在通过摄像头获取视频帧率时采用了：//int mfps = cvGetCaptureProperty(cap,CV_CAP_PROP_FPS); 指令，这样是不行的，测试本地时可以，所以这里给帧率设置了一个常数：int mfps = 25;可以结合demo.c文件对应着看，给了相应的注释。
（2）第二个问题
GLib-GIOMessage: Using the 'memory' GSettings backend. Your settings will not be saved or shared with other applications.
需要添加一个路径，操作如下：
在ubuntu终端执行：
sudo gedit /etc/profile
然后在打开的文件内(需要sudo权限)添加下面内容：
export GIO_EXTRA_MODULES=/usr/lib/x86_64-linux-gnu/gio/modules/
最后是上面的更改立即生效：
source .bashrc
补充：这个程序好像保存出来的视频确实有点点问题，最终的视频是一闪一闪的。暂时解决方案：将被检测视频的每张图片分别保存为单张图片，然后单独合成一个视频就行了（正常），需要两步操作，整合在一起遇到了问题，欢迎交流。
操作：（1）在darket目录下手动新建一个文件夹“picture”，用于存放被检测的单张结果图片。
（2）将图片合成视频，C++和python利用opencv很简单，百度以下都是的。你只需要更改两个文件即可，demo.c与image.c，下载链接为：https://pan.baidu.com/s/14s8vaF4Wac0hJY7S7hbz5A
有问题加我主页微信联系。
补充：20181021，新上传的代码可用。老代码也可用，就是保存的视频有点点闪烁，评论区貌似出现了一个解决方法，大家可以尝试下。（我自己工作了，现在没有这个实验环境）
参考：https://blog.csdn.net/hrsstudy/article/details/60876451
最后
以上就是诚心纸飞机为你收集整理的（转）yolov3运行及保存检测视频（包括摄像头）的全部内容，希望文章能够帮你解决（转）yolov3运行及保存检测视频（包括摄像头）所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
