前言关于如何使用树莓派将设备上云，我前一篇博客有详细介绍了。这里我主要记录SX1268模块点对点通信的使用和如何通过串口发送和接收数据并上传到阿里云物联网平台

SX1268模块在使用之前需要对它进行配置一些参数：

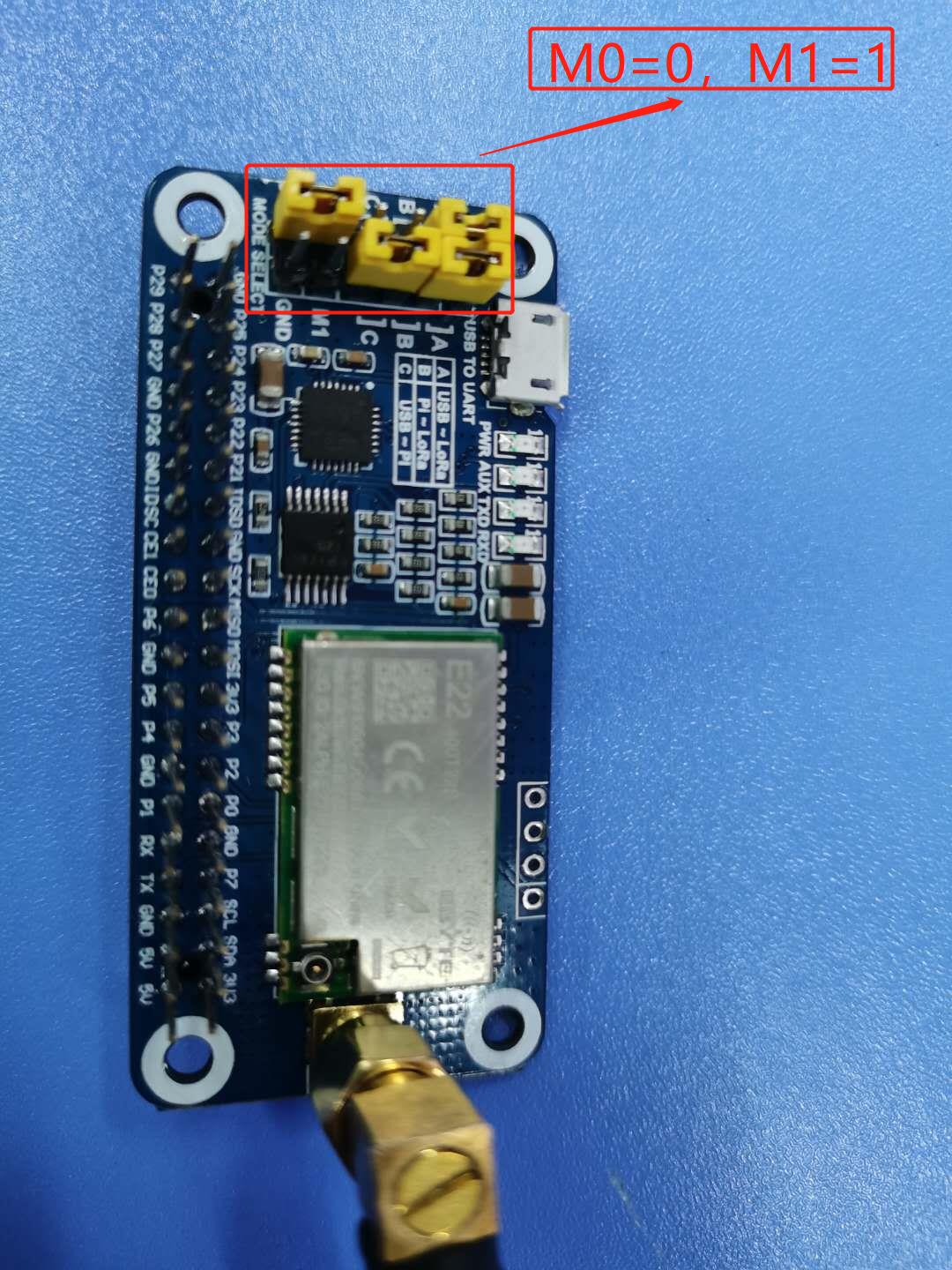

1、首先将SX1268模块的工作模式设置为配置模式：M0 = 0，M1 = 1
然后使用usb线连接到PC机，打开串口
2、在串口监视器输入以下命令：

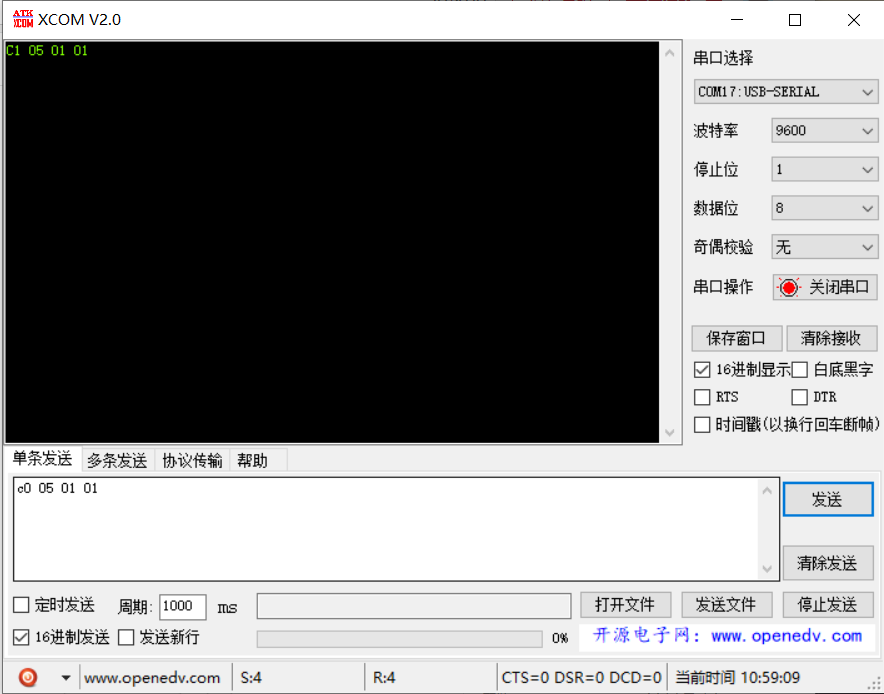

c1 05 01 01

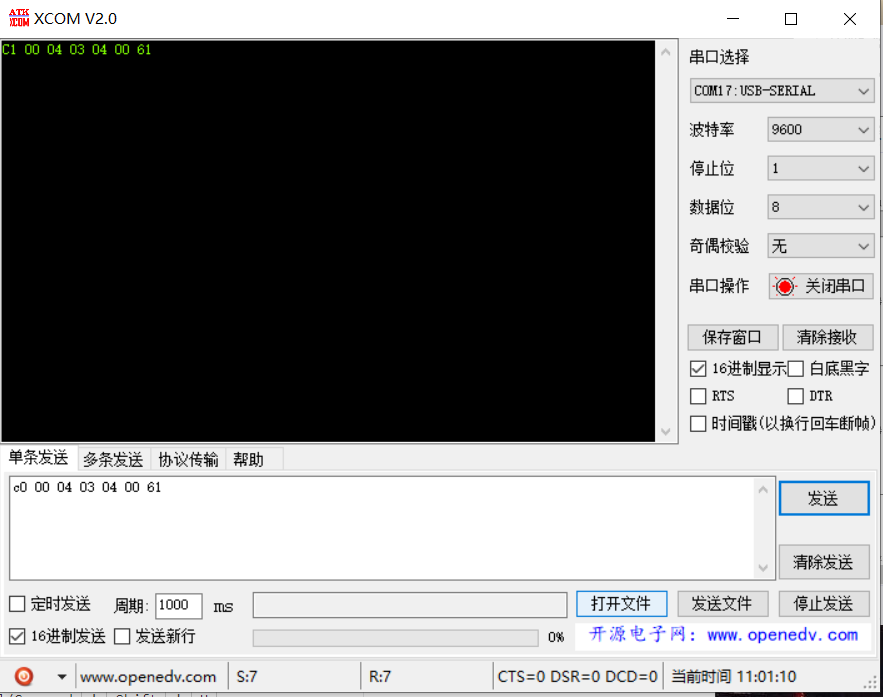

c1 00 04 03 04 00 61

!我这里配置信道为01，模块地址为0x0304、网络地址为0x00、串口为9600 8N1、空速为1.2K，俩个SX1268模块配置的参数都要相同。配置好之后，这俩个模块就可以正常的通过串口收发数据了。

3、配置好之后就接线，PC机通过usb线接一个SX1268模块，树莓派端直接把SX1268模块插进去就行，进入exmaple示例代码中的thing_alinkk.py文件中，修改设备三元组和把串口通信程序加进去，完整代码在下面，运行成功之后就可以通过PC端串口监视器看到树莓派发过来的数据，PC端发送数据过去之后在树莓派上面可以正常打印出来，而且在阿里云物联网平台上面也可以看到是有数据上传过来了的。

完整代码。

import sys
import re
from linkkit import linkkit
import threading
import traceback
import inspect
import time
import logging
import serial      #串口通信引入的包



# config log
__log_format = '%(asctime)s-%(process)d-%(thread)d - %(name)s:%(module)s:%(funcName)s - %(levelname)s - %(message)s'
logging.basicConfig(format=__log_format)


class CustomerThing(object):
    def __init__(self):
        self.__linkkit = linkkit.LinkKit(
            host_name="cn-shanghai",
            product_key="xxxxxxxx",                #修改设备三元组
            device_name="xxxxxxxxxxxxx",
            device_secret="xxxxxxxxxxxxxxxxxxxxxxx"  )
        self.__linkkit.enable_logger(logging.DEBUG)
        self.__linkkit.on_device_dynamic_register = self.on_device_dynamic_register
        self.__linkkit.on_connect = self.on_connect
        self.__linkkit.on_disconnect = self.on_disconnect
        self.__linkkit.on_topic_message = self.on_topic_message
        self.__linkkit.on_subscribe_topic = self.on_subscribe_topic
        self.__linkkit.on_unsubscribe_topic = self.on_unsubscribe_topic
        self.__linkkit.on_publish_topic = self.on_publish_topic
        self.__linkkit.on_thing_enable = self.on_thing_enable
        self.__linkkit.on_thing_disable = self.on_thing_disable
        self.__linkkit.on_thing_event_post = self.on_thing_event_post
        self.__linkkit.on_thing_prop_post = self.on_thing_prop_post
        self.__linkkit.on_thing_prop_changed = self.on_thing_prop_changed
        self.__linkkit.on_thing_call_service = self.on_thing_call_service
        self.__linkkit.on_thing_raw_data_post = self.on_thing_raw_data_post
        self.__linkkit.on_thing_raw_data_arrived = self.on_thing_raw_data_arrived
        self.__linkkit.thing_setup("tsl.json")
        self.__linkkit.config_device_info("Eth|03ACDEFF0032|Eth|03ACDEFF0031")
        self.__call_service_request_id = 0


    def on_device_dynamic_register(self, rc, value, userdata):
        if rc == 0:
            print("dynamic register device success, value:" + value)
        else:
            print("dynamic register device fail, message:" + value)

    def on_connect(self, session_flag, rc, userdata):
        print("on_connect:%d,rc:%d,userdata:" % (session_flag, rc))

    def on_disconnect(self, rc, userdata):
        print("on_disconnect:rc:%d,userdata:" % rc)

    def on_topic_message(self, topic, payload, qos, userdata):
        print("on_topic_message:" + topic + " payload:" + str(payload) + " qos:" + str(qos))
        pass

    def on_subscribe_topic(self, mid, granted_qos, userdata):
        print("on_subscribe_topic mid:%d, granted_qos:%s" %
              (mid, str(','.join('%s' % it for it in granted_qos))))
        pass

    def on_unsubscribe_topic(self, mid, userdata):
        print("on_unsubscribe_topic mid:%d" % mid)
        pass

    def on_publish_topic(self, mid, userdata):
        print("on_publish_topic mid:%d" % mid)

    def on_thing_prop_changed(self, params, userdata):
        print("on_thing_prop_changed params:" + str(params))

    def on_thing_enable(self, userdata):
        print("on_thing_enable")

    def on_thing_disable(self, userdata):
        print("on_thing_disable")

    def on_thing_event_post(self, event, request_id, code, data, message, userdata):
        print("on_thing_event_post event:%s,request id:%s, code:%d, data:%s, message:%s" %
              (event, request_id, code, str(data), message))
        pass

    def on_thing_prop_post(self, request_id, code, data, message,userdata):
        print("on_thing_prop_post request id:%s, code:%d, data:%s message:%s" %
              (request_id, code, str(data), message))

    def on_thing_raw_data_arrived(self, payload, userdata):
        print("on_thing_raw_data_arrived:%s" % str(payload))

    def on_thing_raw_data_post(self, payload, userdata):
        print("on_thing_raw_data_post: %s" % str(payload))

    def on_thing_call_service(self, identifier, request_id, params, userdata):
        print("on_thing_call_service identifier:%s, request id:%s, params:%s" %
              (identifier, request_id, params))
        self.__call_service_request_id = request_id
        pass

    def user_loop(self):
        self.__linkkit.connect_async()
        tips = "1: disconnectn" +
               "2 connect&loopn" +
               "3 subscribe topicn" +
               "4 unsubscribe topicn" +
               "5 public topicn" +
               ""
        while True:
            # 获得接受缓冲区字符
            count = ser.inWaiting()
            if count != 0:
                #读取内容并显示
                recv = ser.read(count)
                print("receive data is : " + str(recv)+'n')

                #将串口接受到的数据（字节型）转换成字符串
                str0 = str(recv)
                #对b''进行替换
                str1 = re.sub("b","",str0)
                str2 = re.sub("'","",str1)
                int1 = int(str2)
                print(int1)

               #将整形变量int1上传到阿里云中，标识符为WaterLevel
                prop_data = {
                "WaterLevel": int1
                }
                self.__linkkit.thing_post_property(prop_data)









if __name__ == "__main__":
    #打开串口
    ser = serial.Serial('/dev/ttyS0', 9600)
    if ser.isOpen == False:
        ser.open()   #打开串口
    custom_thing = CustomerThing()
    custom_thing.user_loop()
