• 设备端 ==> 物影子 （Update)

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/update/accepted

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/update/rejected

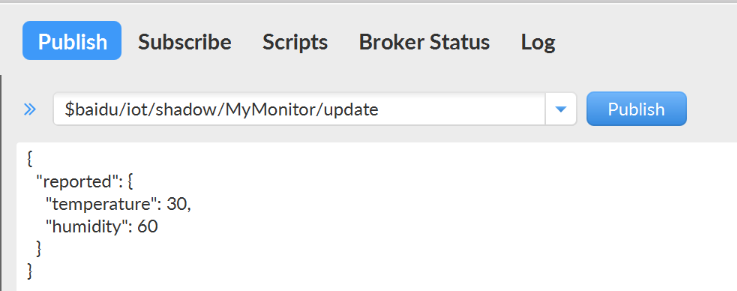

设备==>IOT Hub ：Publish : $baidu/iot/shadow/MyMonitor/update

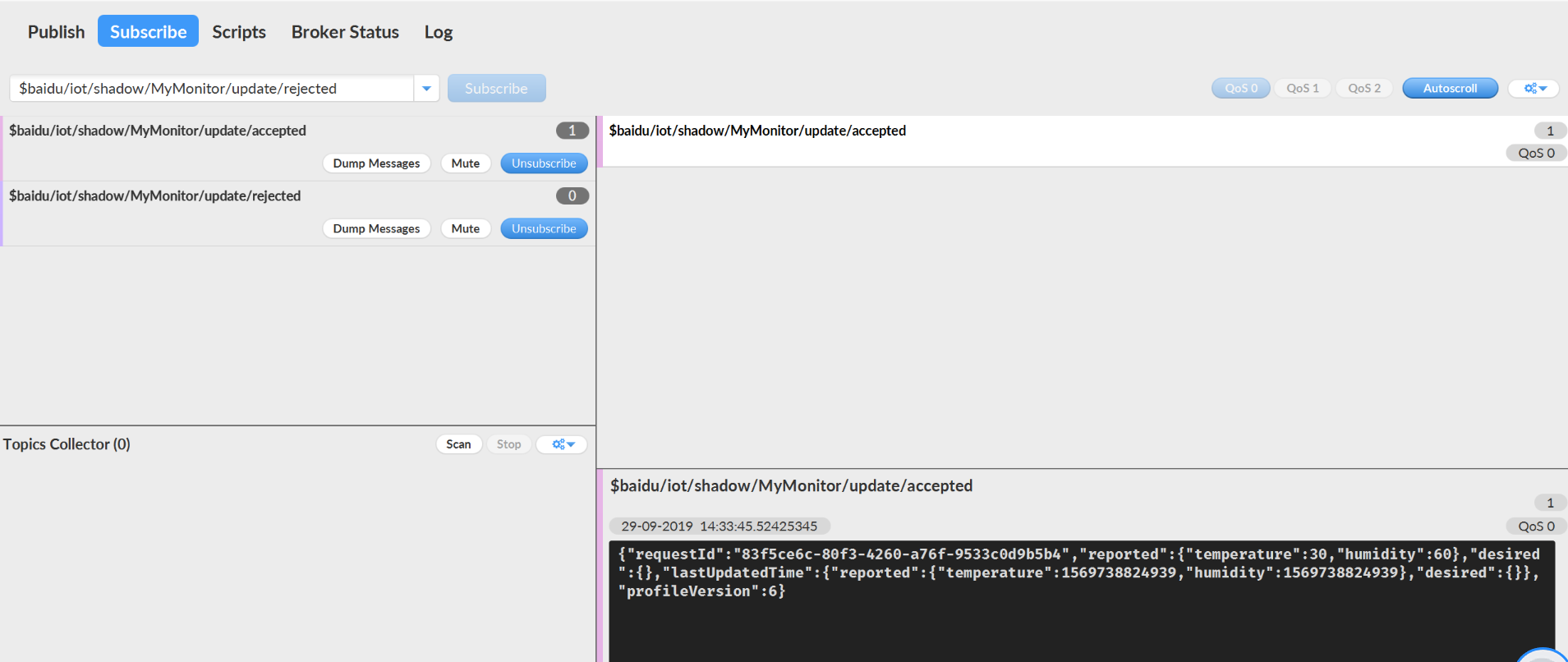

IOT Hub==>设备 ：$baidu/iot/shadow/MyMonitor/update/accepted (If succeeded)

IOT Hub==>设备 ：$baidu/iot/shadow/MyMonitor/update/rejected(If failed)

{

     "requestId":"83f5ce6c-80f3-4260-a76f-9533c0d9b5b4",

     "reported":

          {"temperature":30,"humidity":60},

     "desired":

          {},

     "lastUpdatedTime":

         {

                 "reported":

                        {"temperature":1569738824939,"humidity":1569738824939},

                  "desired":{}

          },

     "profileVersion":6

}

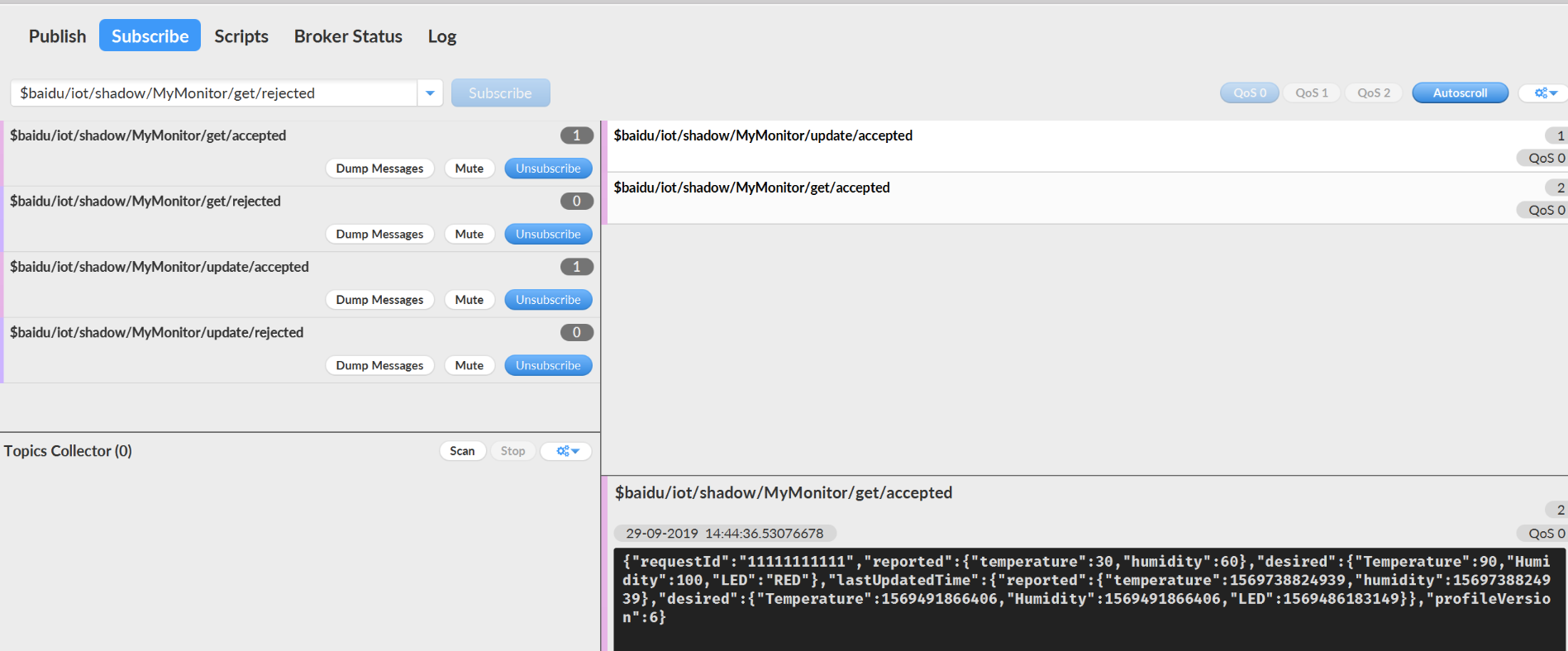

• 设备端 ==> 物影子 （Get)

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/get/accepted

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/get/rejected

设备==>IOT Hub : Publish : $baidu/iot/shadow/MyMonitor/get

IOT Hub==>设备 ： $baidu/iot/shadow/MyMonitor/get/accepted （If succeeded）

IOT Hub==>设备 : $baidu/iot/shadow/MyMonitor/get/rejected (If failed)

{"requestId":"11111111111",

"reported":{"temperature":30,"humidity":60},

"desired":{"Temperature":90,"Humidity":100,"LED":"RED"},

"lastUpdatedTime":{

    "reported":{"temperature":1569738824939,"humidity":1569738824939},

    "desired":{"Temperature":1569491866406,"Humidity":1569491866406,"LED":1569486183149}},

"profileVersion":6}

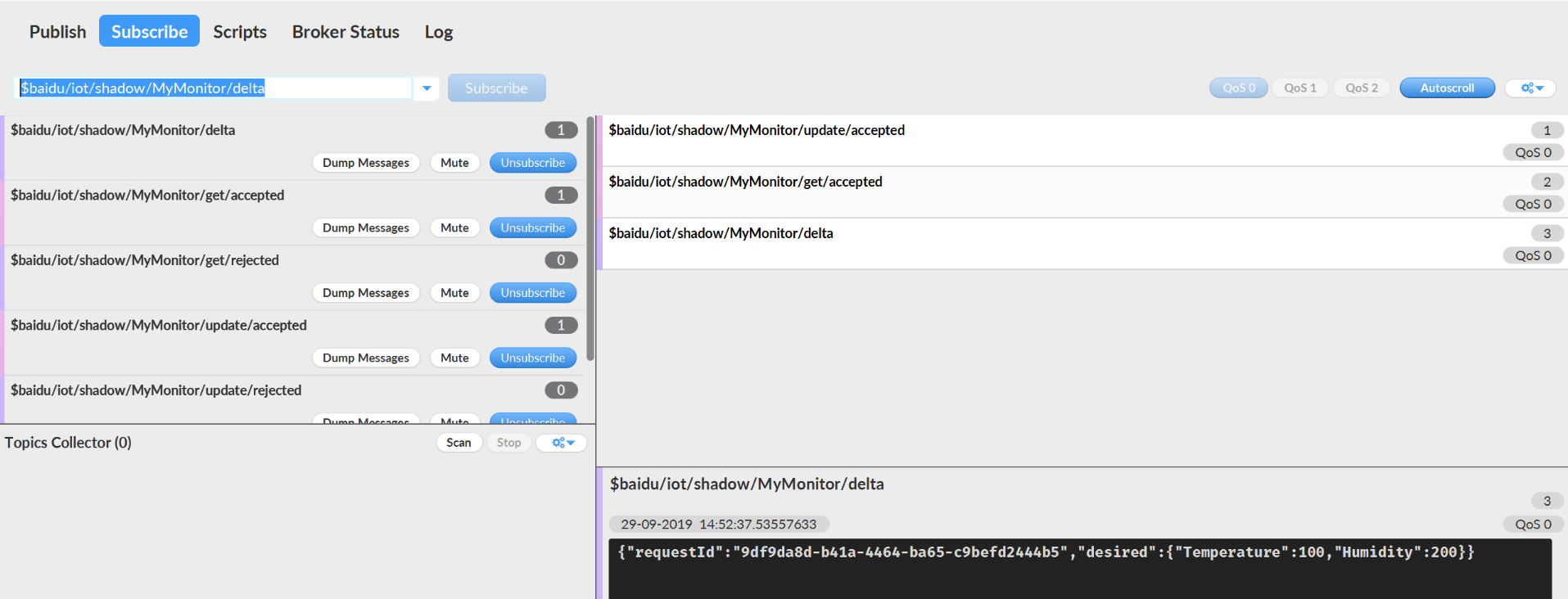

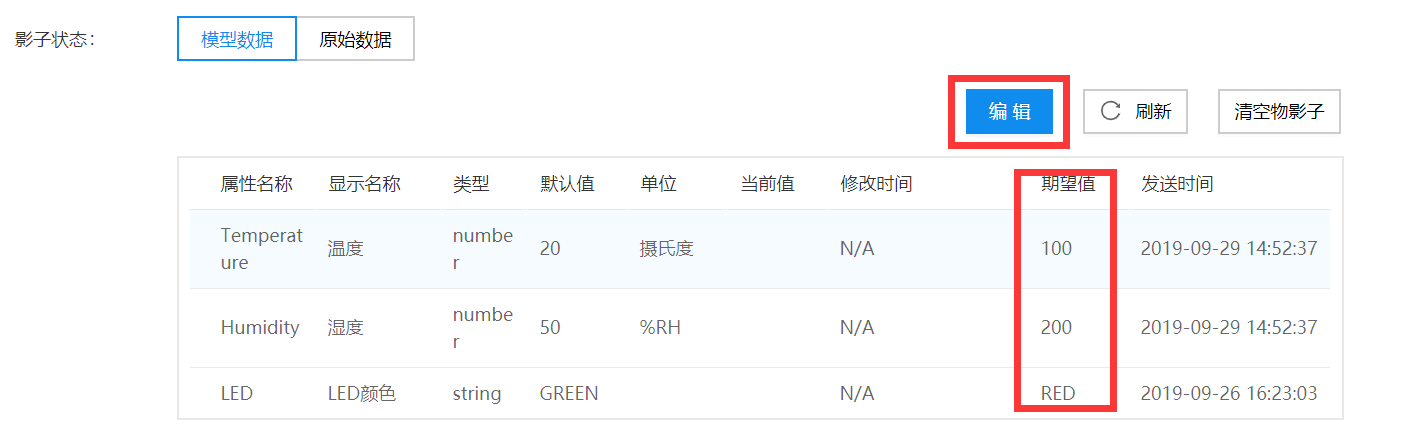

• 物影子 ==> 设备 反控

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/delta

{"requestId":"9df9da8d-b41a-4464-ba65-c9befd2444b5","desired":{"Temperature":100,"Humidity":200}}

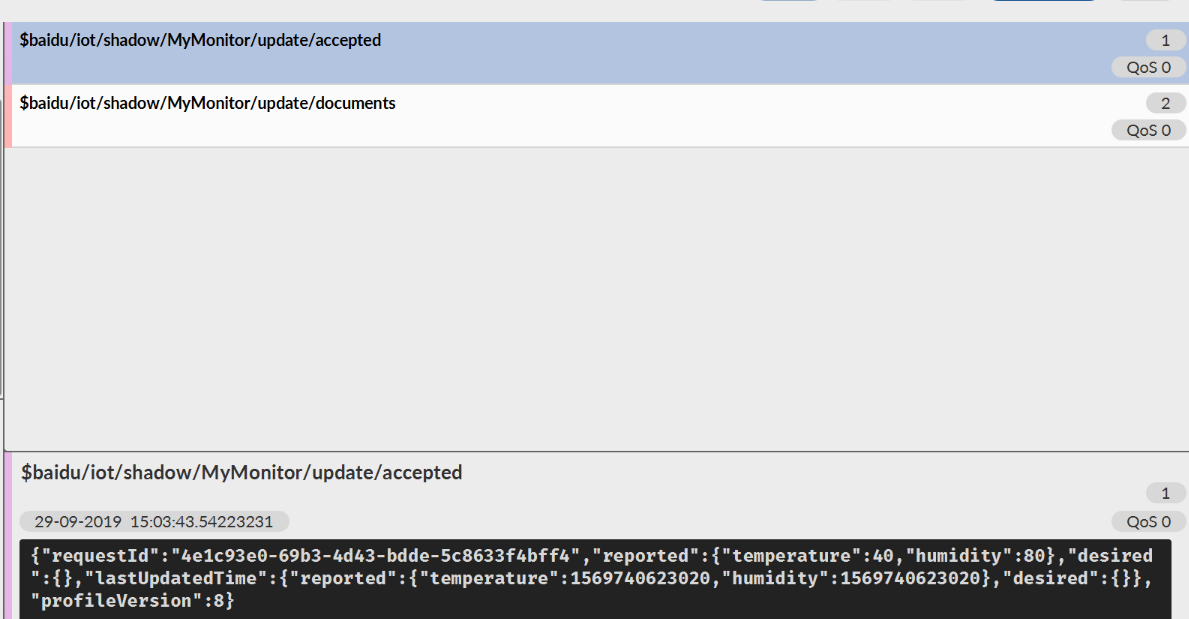

• 订阅设备影子的变化

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/update/documents

设备==>IOT Hub ：Publish : $baidu/iot/shadow/MyMonitor/update

{"requestId":"4e1c93e0-69b3-4d43-bdde-5c8633f4bff4",

"reported":{"temperature":40,"humidity":80},

"desired":{},

"lastUpdatedTime":{"reported":{"temperature":1569740623020,"humidity":1569740623020},"desired":{}},

"profileVersion":8}

{"requestId":"4e1c93e0-69b3-4d43-bdde-5c8633f4bff4",

"current":{"temperature":40,"humidity":80},

"previous":{"temperature":30,"humidity":60},

"profileVersion":8}

• 订阅设备快照

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/update/snapshot

设备==>IOT Hub ：Publish : $baidu/iot/shadow/MyMonitor/update

Result :

• $baidu/iot/shadow/MyMonitor/update/accepted

{"requestId":"295fc2e4-4fed-4170-89df-ef24e1618b8b",

"reported":{"temperature":50,"humidity":90},

"desired":{},

"lastUpdatedTime":{"reported":{"temperature":1569740990594,"humidity":1569740990594},"desired":{}},

"profileVersion":9}

• $baidu/iot/shadow/MyMonitor/update/documents

{"requestId":"295fc2e4-4fed-4170-89df-ef24e1618b8b",

"current":{"temperature":50,"humidity":90},

"previous":{"temperature":40,"humidity":80},

"profileVersion":9}

• $baidu/iot/shadow/MyMonitor/update/snapshot

{"requestId":"295fc2e4-4fed-4170-89df-ef24e1618b8b",

"profileVersion":9,

"reported":{"temperature":50,"humidity":90},

"lastUpdatedTime":{"reported":{"temperature":1569740990594,"humidity":1569740990594}}}

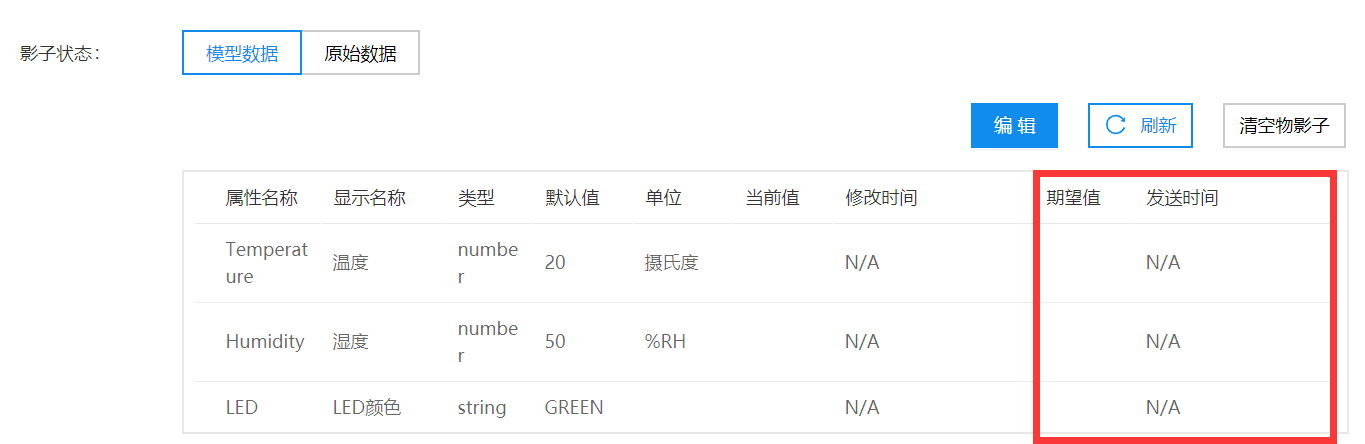

• 清空设备影子

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/delete/accepted

设备==>IOT Hub : Subscribe : $baidu/iot/shadow/MyMonitor/delete/rejected

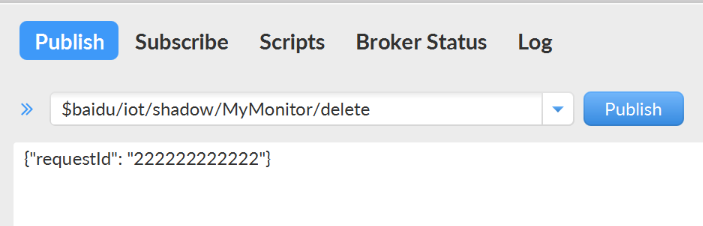

设备==>IOT Hub : Publish ： $baidu/iot/shadow/MyMonitor/delete

pub $baidu/iot/shadow/myDeviceName/delete

{"requestId": "{requestId}"}

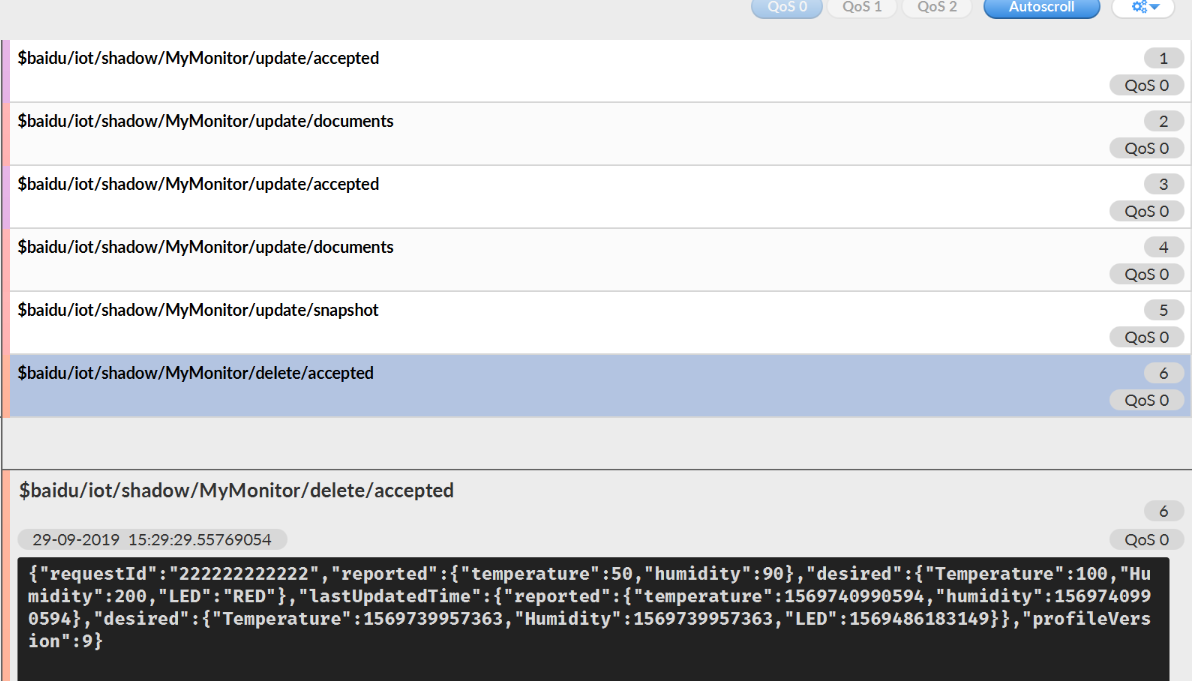

{"requestId":"222222222222",

"reported":{"temperature":50,"humidity":90},

"desired":{"Temperature":100,"Humidity":200,"LED":"RED"},

"lastUpdatedTime":{

    "reported":{"temperature":1569740990594,"humidity":1569740990594},

    "desired":{"Temperature":1569739957363,"Humidity":1569739957363,"LED":1569486183149}},

"profileVersion":9}

Note.1 : 清空物影子，并不是删除物影子，仅仅是删除Reported & Desired属性值。

Note.2 : IOT Hub不会对Update操作的payload，对比物影子对应的物模型做meta级别校验，比如update涉及的属性名大小写，属性名不存在与物模型meta中，等等。仅仅做消息格式的检查。

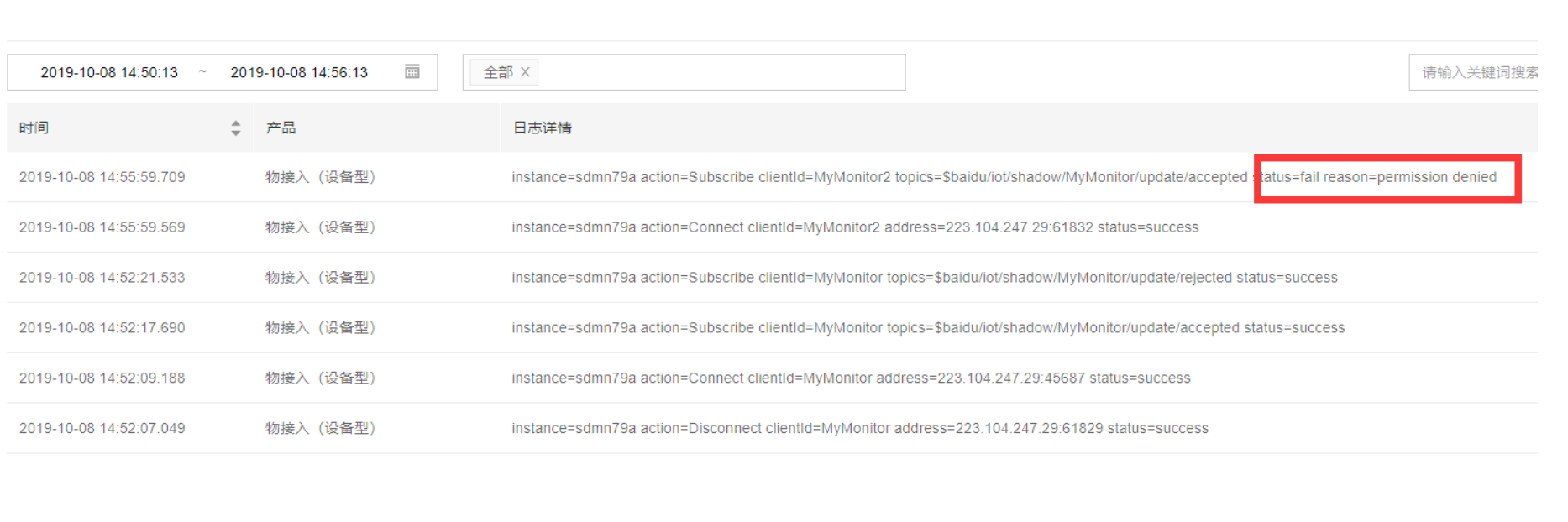

Note.3 : 只有同一个物影子的不同Client，才允许订阅Update/accepted & rejected事件。
