树莓派使用mosquitto库搭建客户端将SHT20采样的温湿度上报阿里云

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
/*********************************************************************************
 *      Copyright:  (C) 2020 makun<1394987689@qq.com>
 *                  All rights reserved.
 *
 *       Filename:  mosquitto_pub.c
 *    Description:  This file
 *
 *        Version:  1.0.0(2020年07月08日)
 *         Author:  makun <1394987689@qq.com>
 *      ChangeLog:  1, Release initial version on "2020年07月08日 22时30分04秒"
 *
 ********************************************************************************/


#include <stdio.h>
#include <errno.h>
#include <unistd.h>
#include <libgen.h>
#include <getopt.h>
#include <string.h>
#include <mosquitto.h>
#include <stdlib.h>

#include "conf.h"
#include "cJSON.h"
#include "sht20.h"

#define  PROG_VERSION "1.0.0"
#define  PATH_INT "./mqtt_aly_conf.ini"

int get_temp_humidity(int fd, float *temp, float *humidity);
void pub_conn_callback(struct mosquitto *mosq, void *obj, int rc);
static void  print_usage( char *progname)
{
    printf("Usage  %s [option]...n", progname);
    printf("%s is makun studi MQTT daemon program running on RaspberryPin", progname);

    printf("-p (--port):   the port of the server you want to connectn");
    printf("-h (--host):   the hostname of the server you want to connectn");
    printf("-u (--user):   the username of the clientn");
    printf("-P (--passwd): the passwd of the client youn");
    printf("-i (--clientid): the clientid of the usern");
    printf("-t (--topic):  the topic of the client you want to pubn");
    printf("-H (--help): Display this help informationn");
    printf("-v (--version): Display the program versionn");

    printf("%s  Version %sn", progname, PROG_VERSION);
    return ;
}

int main (int argc, char **argv)
{
    char         *host = NULL;
    int          port ;
    char         *clientid = NULL;
    char         *user = NULL;
    char         *passwd = NULL;
    char         *topic = NULL;
    int          rv = -1;
    int          opt= -1;
    char         *progname = NULL;
    bool         session = true;
    mqtt_ctx_t   mqtt;

    struct mosquitto *mosq = NULL;


    struct option long_options[]= {
        {"host", required_argument, NULL, 'h'},
        {"port", required_argument, NULL, 'p'},
        {"user", required_argument, NULL, 'u'},
        {"passwd",required_argument, NULL,'P'},
        {"topic", required_argument, NULL, 't'},
        {"clientid", required_argument, NULL, 'i'},
        {"help", no_argument, NULL, 'H'},
        {"version", no_argument, NULL, 'v'},
        {0, 0, 0, 0}
    };

    progname = (char *)basename(argv[0]);

    while( (opt = getopt_long(argc, argv,"h:p:u:P:i:tHv", long_options,NULL)) != -1)
    {
        switch (opt)
        {
            case 'h':
                host = optarg;
                break;
            case 'p':
                port = atoi(optarg);
                break;
            case 'u':
                user = optarg;
                break;
            case 'P':
                passwd = optarg;
                break;
            case 'i':
                clientid = optarg;
            case 't':
                topic = optarg;
                break;
            case 'v':
                printf("%s Version %sn",progname, PROG_VERSION);
                return 0;
            case 'H':
                print_usage(progname);
                return 0;
            default:
                break;
        }
    }

    rv=set_mqtt_conf(PATH_INT, host, port, clientid, user,passwd, topic);
    if(rv < 0)
    {
        printf("set mqtt conf is failure %dn", rv);
        return -1;
    }

    memset(&mqtt, 0, sizeof(mqtt));

    rv = gain_mqtt_conf(PATH_INT, &mqtt);
    if(rv < 0)
    {
        printf("gain mqtt conf failure %dn", rv);
        return -2;
    }

    /*必须在任何其他mosquitto功能之前调用*/
    mosquitto_lib_init();

    /*创建一个新的mosquitto客户端实例,第二个参数为true，代理清除断开连接时的所有消息和订阅*/
    mosq = mosquitto_new(mqtt.clientid,session, (void *)&mqtt );
    if(!mosq)
    {
        printf("mosquitto new failure: %sn", strerror(errno));
        goto cleanup;
    }

    printf("Create mosquitto successfulyn");

    /*设置连接回调，当代理发送CONNACK消息以响应连接时，将调用此方法*/
    mosquitto_connect_callback_set(mosq, pub_conn_callback);


    /*配置mosquitto实例的用户名和密码*/
    if( mosquitto_username_pw_set(mosq, mqtt.username,mqtt.passwd) !=MOSQ_ERR_SUCCESS)
    {
        printf("mosquitto username and passwd failure:%sn",strerror(errno));
        goto cleanup;
    }

    while(1)
    {
        /*连接MQTT代理*/
        if(mosquitto_connect(mosq, mqtt.hostname, mqtt.port, mqtt.keepalive) != MOSQ_ERR_SUCCESS )
        {
            printf("mosquitto connect server failure:%sn",strerror(errno));
            continue;
            sleep(1);
        }

        /*无线阻塞循环调用loop*/
        mosquitto_loop_forever(mosq, -1, 1 );
        sleep(10);
    }

cleanup:
    printf("program will exitn");
    mosquitto_destroy(mosq);
    mosquitto_lib_cleanup();

    return 0;

}

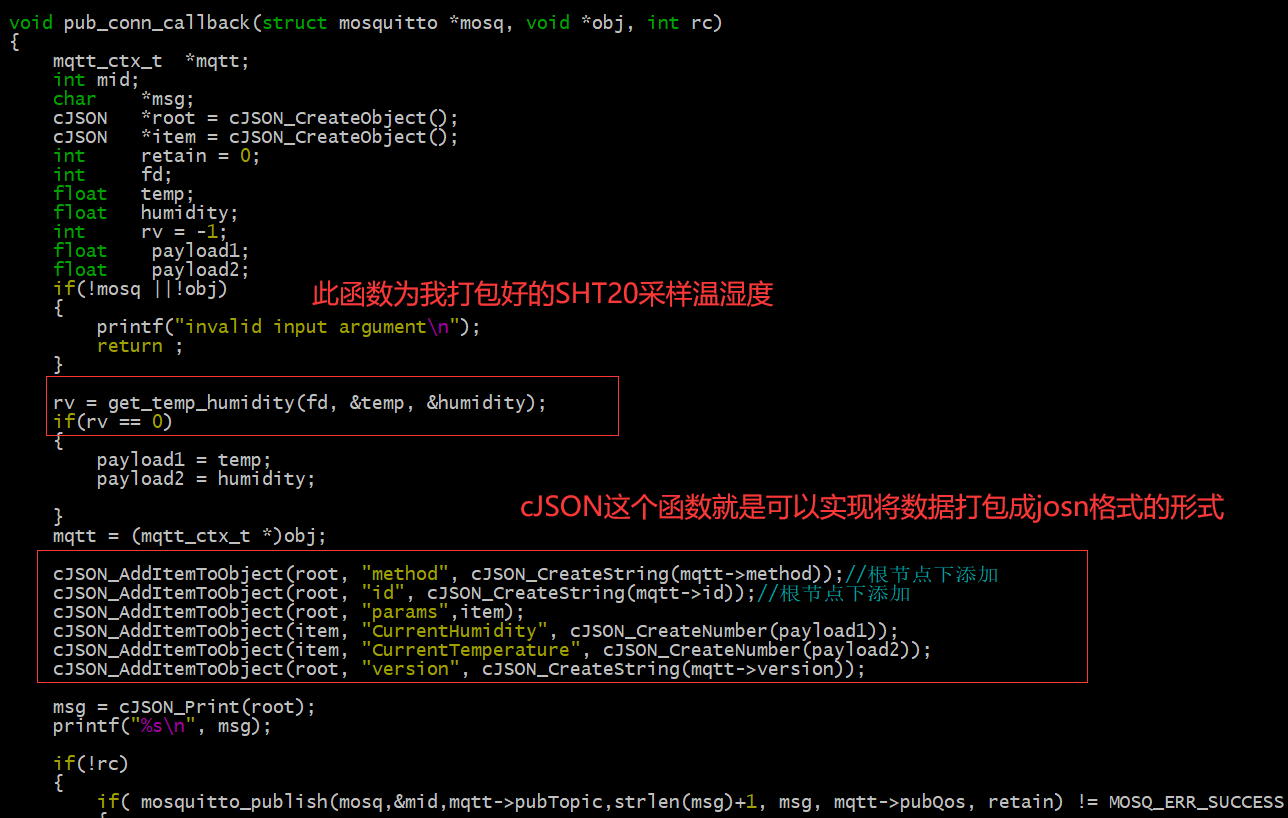

void pub_conn_callback(struct mosquitto *mosq, void *obj, int rc)
{
    mqtt_ctx_t  *mqtt;
    int mid;
    char    *msg;
    cJSON   *root = cJSON_CreateObject();
    cJSON   *item = cJSON_CreateObject();
    int     retain = 0;
    int     fd;
    float   temp;
    float   humidity;
    int     rv = -1;
    float    payload1;
    float    payload2;
    if(!mosq ||!obj)
    {
        printf("invalid input argumentn");
        return ;
    }

    rv = get_temp_humidity(fd, &temp, &humidity);
    if(rv == 0)
    {
        payload1 = temp;
        payload2 = humidity;

    }
    mqtt = (mqtt_ctx_t *)obj;

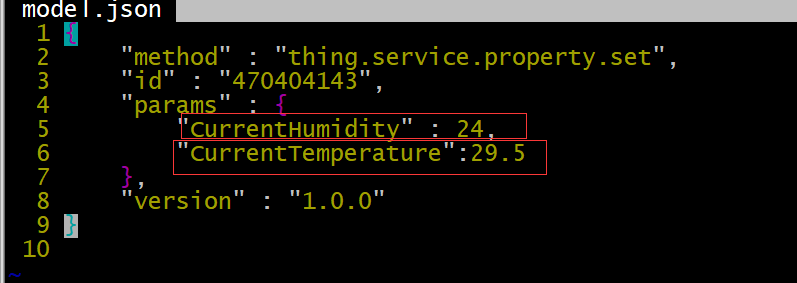

    cJSON_AddItemToObject(root, "method", cJSON_CreateString(mqtt->method));//根节点下添加
    cJSON_AddItemToObject(root, "id", cJSON_CreateString(mqtt->id));//根节点下添加
    cJSON_AddItemToObject(root, "params",item);
    cJSON_AddItemToObject(item, "CurrentHumidity", cJSON_CreateNumber(payload1));
    cJSON_AddItemToObject(item, "CurrentTemperature", cJSON_CreateNumber(payload2));
    cJSON_AddItemToObject(root, "version", cJSON_CreateString(mqtt->version));

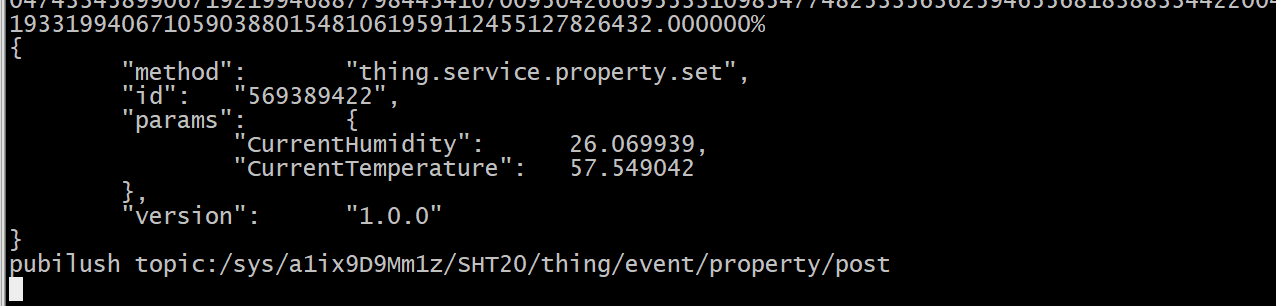

    msg = cJSON_Print(root);
    printf("%sn", msg);

    if(!rc)
    {
        if( mosquitto_publish(mosq,&mid,mqtt->pubTopic,strlen(msg)+1, msg, mqtt->pubQos, retain) != MOSQ_ERR_SUCCESS )
        {
            printf("Mosq_Publish() error: %sn", strerror(errno));
            return ;
        }
        printf("pubilush topic:%sn",mqtt->pubTopic) ;
    }
    mosquitto_disconnect(mosq) ;

}

int get_temp_humidity(int fd, float *temp, float *humidity)
{
    uint8_t      serialnumber[8];
    fd = sht2x_init();
    if(fd < 0)
    {
        printf("SHT2x initialize failuren");
        return 1;
    }

    if( sht2x_softreset(fd) < 0 )
    {
        printf("SHT2x softreset failuren");
        return 2;
    }
    if( sht2x_get_serialnumber(fd, serialnumber, 8) < 0)
    {
        printf("SHT2x get serial number failuren");
        return 3;
    }
    if( sht2x_get_temp_humidity(fd, &temp, &humidity) < 0 )
    {
        printf("SHT2x get get temperature and relative humidity failuren");
        return 3;
    }
    printf("Temperature=%lf ℃ relative humidity=%lf%n", temp, humidity);

    return 0;
    close(fd);
}
