数字逻辑课程设计电子钟

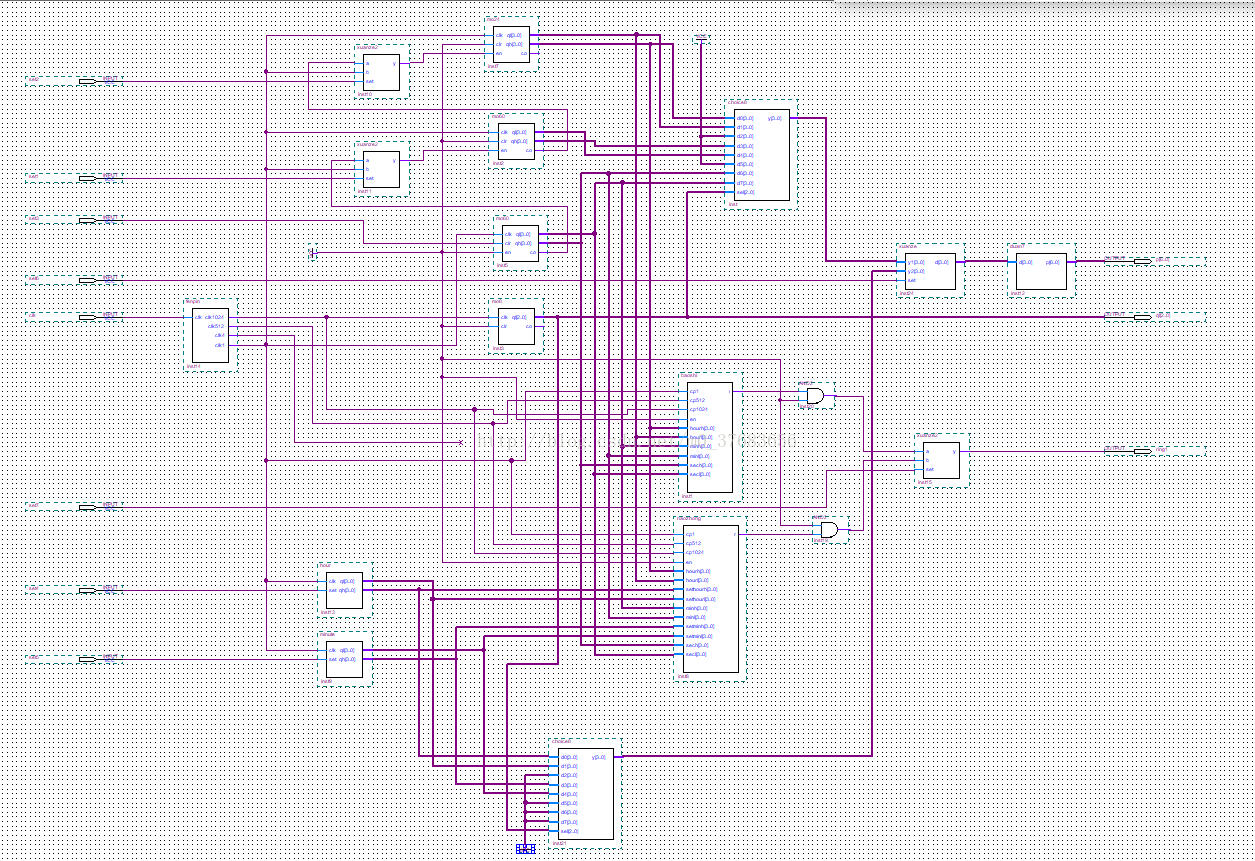

(1)     模8计数器

library ieee;

use ieee.std_logic_1164.all;

useieee.std_logic_unsigned.all;

entity mo8 is

port(

           clk,clr:in std_logic;

           ql:out std_logic_vector(2 downto 0);

           co:out std_logic);

end mo8;

architecture rtl of mo8 is

signal qcl :std_logic_vector(2 downto 0);

begin

           process(clk)

           begin

                    if(clr='0') then

                             qcl<="000";

                    elsif(clk'event and clk='1') then

                             if(qcl="111") then

                                      qcl<="000";co<='1';

                             else

                                       qcl<=qcl+'1';co<='0';

                             end if;

                    end if;

                    ql<=qcl;

           end process;

end rtl;

(2)     模24计数器

library ieee;

use ieee.std_logic_1164.all;

useieee.std_logic_unsigned.all;

entity mo24 is

port(

           clk,clr:in std_logic;

           en:in std_logic;

           ql,qh:out std_logic_vector(3 downto 0);

           co:out std_logic);

end mo24;

architecture rtl of mo24 is

signal qcl:std_logic_vector(3 downto 0);

signal qch:std_logic_vector(3 downto 0);

begin

           process(clk)

           begin

            if(clr='0')then

                    qcl<="0000";qch<="0000";

           elsif(clk'event and clk='1')then

                    co<='0';

                    if(en='1' and qch="0010"andqcl="0011")then

                             qcl<="0000";qch<="0000";co<='1';

                    else

                             if(en='1' andqcl<"1001")then

                                       qcl<=qcl+'1';

                             elsif(en='1' andqcl="1001")then

                                       qch<=qch+'1';qcl<="0000";

                             end if;

                    end if;

            end if;

           qh<=qch;ql<=qcl;

end process;

end rtl;

(3)     模60计数器

library ieee;

use ieee.std_logic_1164.all;

useieee.std_logic_unsigned.all;

entity mo60 is

port(

           clk,clr:in std_logic;

           en:in std_logic;

           ql,qh:out std_logic_vector(3 downto 0);

           co:out std_logic);

end mo60;

architecture rtl of mo60 is

signal qcl:std_logic_vector(3 downto 0);

signal qch:std_logic_vector(3 downto 0);

begin

           process(clk)

           begin

            if(clr='0')then

                    qcl<="0000";qch<="0000";

           elsif(clk'event and clk='1')then

                    co<='0';

                    if(en='1' and qch="0101"andqcl="1001")then

                             qcl<="0000";qch<="0000";co<='1';

                    else

                             if(en='1' andqcl<"1001")then

                                       qcl<=qcl+'1';

                             elsif(en='1' andqcl="1001")then

                                       qch<=qch+'1';qcl<="0000";

                             end if;

                    end if;

            end if;

           qh<=qch;ql<=qcl;

end process;

end rtl;

(4)     分频器

library ieee;

use ieee.std_logic_1164.all;

use ieee.std_logic_arith.all;

useieee.std_logic_unsigned.all;

entity fenpin is

port(

clk:in std_logic;

clk1024,clk512,clk4,clk1:out std_logic);

end fenpin;

architecture rtl of fenpin is

signal ql:std_logic_vector(9downto 0);

begin

process(clk)

begin

           if(clk'event and clk='1')then

                    if(ql="1111111111")then

                             ql<="0000000000";

                    else

                             ql<=ql+1;

                    end if;

           end if;

end process;

clk1024<=clk;

clk512<=ql(0);

clk4<=ql(8);

clk1<=ql(9);

end rtl;

(5)     闹钟

library ieee;

use ieee.std_logic_1164.all;

entity naozhong is

port(

cp1,cp512,cp1024,en:in std_logic;

hourh,hourl,sethourh,sethourl:in std_logic_vector(3 downto 0);

minh,minl,setminh,setminl:in std_logic_vector(3 downto 0);

sech,secl:in std_logic_vector(3 downto 0);

r:out std_logic);

end naozhong;

architecture rtl of naozhongis

begin

process(en,hourh,hourl,sethourh,sethourl,minh,minl,setminh,setminl,cp1,cp512,cp1024)

           begin

           if(en='1')then

                    if(hourh=sethourh and hourl=sethourl andminh=setminh and minl=setminl)then

                             if(cp1='1')then

                                       r<=cp512;

                             else

                                       r<=cp1024;

                             end if;

                    end if;

           end if;

end process;

end rtl;

(6)     整点报时

library ieee;

use ieee.std_logic_1164.all;

entity baoshi is

port(

cp1,cp512,cp1024,en:in std_logic;

hourh,hourl,minh,minl,sech,secl:in std_logic_vector(3 downto 0);

r:out std_logic);

end baoshi;

architecture rtl of baoshi is

begin

process(cp1,cp512,cp1024,en,hourh,hourl,minh,minl,sech,secl)

begin

           if(en='1')then

                    if(minh="0101" andminl="1001" and sech="0101")then

                             if(secl="0001" orsecl="0011" or secl="0101" or secl="0111")then

                                       r<=cp512;

                             elsif(secl="1001")then

                                       r<=cp1024;

                             else

                                       r<='0';

                             end if;

                    end if;

    end if;

end process;

end rtl;

(7)     定闹钟

Hour：

library ieee;

use ieee.std_logic_1164.all;

useieee.std_logic_unsigned.all;

entity hour is

port(

           clk:in std_logic;

           set:in std_logic;

           ql,qh:out std_logic_vector(3 downto 0));

end hour;

architecture rtl of hour is

signal qcl:std_logic_vector(3downto 0);

signal qch:std_logic_vector(3downto 0);

begin

process(clk)

begin

           if(set='1')then

                    if(clk'event and clk='1')then

                             if(qch="0101" andqcl="1001")then

                                       qch<="0000";qcl<="0000";

                             else

                                       if(qcl="1001")then

                                                qch<=qch+'1';qcl<="0000";

                                       elsif(qcl<"1001")then

                                                qcl<=qcl+'1';

                                       end if;

                             end if;

                    end if;

           end if;

qh<=qch;ql<=qcl;

end process;

end rtl;

Minutes：

library ieee;

use ieee.std_logic_1164.all;

useieee.std_logic_unsigned.all;

entity minute is

port(

clk:in std_logic;

set:in std_logic;

ql,qh:out std_logic_vector(3 downto 0));

end minute;

architecture rtl of minute is

signal qcl:std_logic_vector(3downto 0);

signal qch:std_logic_vector(3downto 0);

begin

process(clk)

begin

if(set='1')then

           if(clk'event and clk='1')then

                    if(qch="0101" andqcl="1001")then

                             qch<="0000";qcl<="0000";

                    else

                             if(qcl="1001")then

                                       qch<=qch+'1';qcl<="0000";

                             elsif(qcl<"1001")then

                                       qcl<=qcl+'1';

                             end if;

                    end if;

           end if;

end if;

ql<=qcl;qh<=qch;

end process;

end rtl;

(8)     二选一

A：

library ieee;

use ieee.std_logic_1164.all;

entity xuanze2 is

port(

a,b:in std_logic;

set:in std_logic;

y: out std_logic);

end xuanze2;

architecture rtl of xuanze2 is

begin

           process(a,b,set)

           begin

                    if(set='1')then

                             y<=a;

                    else

                             y<=b;

                    end if;

           end process;

end rtl;

B：

library ieee;

use ieee.std_logic_1164.all;

entity xuanze is

port(

y1:in std_logic_vector(3 downto 0);

y2:in std_logic_vector(3 downto 0);

set:in std_logic;

d:out std_logic_vector(3 downto 0));

end xuanze;

architecture rtl of xuanze is

begin

process(y1,y2,set)

begin

           if(set='1')then

                    d<=y1;

           else

                    d<=y2;

           end if;

end process;

end rtl;

(9)     七段译码器

library ieee;

use ieee.std_logic_1164.all;

entity duan7 is

port(

                    d :in std_logic_vector(3 downto 0);

                    p:out std_logic_vector(6 downto 0));

end duan7;

architecture rtl of duan7 is

begin

process(d)

begin

           case d is

                    when"0000"=>p<="1111110";

                    when"0001"=>p<="0110000";

                    when"0010"=>p<="1101101";

                    when"0011"=>p<="1111001";

                    when "0100"=>p<="0110011";

                    when"0101"=>p<="1011011";

                    when"0110"=>p<="1011111";

                    when"0111"=>p<="1110000";

                    when"1000"=>p<="1111111";

                    when"1001"=>p<="1111011";

                    when others =>p<="0000001";

           end case;

end process;

end rtl;

(10)   八选一选择器

library ieee;

use ieee.std_logic_1164.all;

entity choice8 is

port(

           d0,d1,d2,d3,d4,d5,d6,d7:in std_logic_vector(3 downto 0);

           sel:in std_logic_vector(2 downto 0);

           y:out std_logic_vector(3 downto 0));

end choice8;

architecture rtl of choice8 is

begin

process(sel)

begin

           case sel is

                    when "000"=>y<=d0;

                    when "001"=>y<=d1;

                    when "010"=>y<=d2;

                    when "011"=>y<=d3;

                    when "100"=>y<=d4;

                    when "101"=>y<=d5;

                    when "110"=>y<=d6;

                    when "111"=>y<=d7;

                    when others =>y<="0000";

           end case;

end process;

end rtl;
