往期进行了登录界面的设置，这篇将介绍对温湿度获取上位机以及上报数据库的主界面。

4.WPF上位机开发

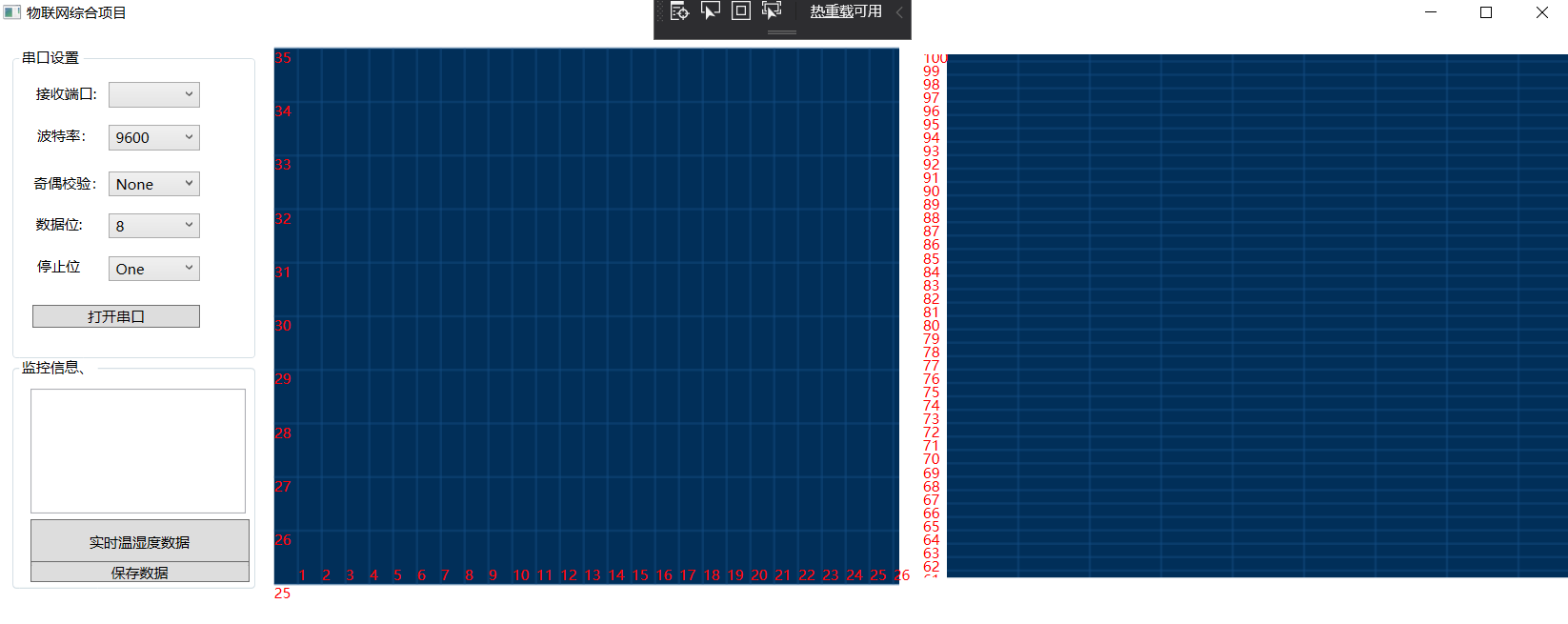

界面展示

贴上界面代码

<Window x:Class="IntegratedPJ75.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:IntegratedPJ75" xmlns:Demo_3_4_WpfControlLibrary="clr-namespace:Demo_3_4_WpfControlLibrary;assembly=Demo_3_4_WpfControlLibrary"
        mc:Ignorable="d"
        Title="物联网综合项目" Height="536" Width="1338">
    <Grid x:Name="LayoutRoot" Margin="4,4,4,4">
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>
        <GroupBox Header="监控信息、" Height="195" Width="206" Margin="10,0,0,25" VerticalAlignment="Bottom" RenderTransformOrigin="-0.141,0.559"
                  HorizontalAlignment="Left">
            <Grid Margin="10,0,0,0">
                <TextBox x:Name="txtStaus" Height="105" Margin="0,10,3,0" TextWrapping="Wrap" Text="" VerticalAlignment="Top"/>
                <Button x:Name="BtnReceive" Click="BtnReceive_Click" Content="实时温湿度数据" Margin="0,120,0,14" />
                <Button x:Name="BtnSave" Click="BtnSave_Click" Content="保存数据" Margin="0,155,0,0" />
            </Grid>

        </GroupBox>
        <GroupBox Header="串口设置" HorizontalAlignment="Left" VerticalAlignment="Top" Height="262" Width="206" Margin="10,10,0,0">
            <Grid HorizontalAlignment="Left" Width="196" Margin="0,0,0,0">
                <Label Content="接收端口:" HorizontalAlignment="Left" Margin="10,10,0,0" VerticalAlignment="Top"/>
                <ComboBox x:Name="cmbPort" HorizontalAlignment="Left" Margin="76,13,0,0" VerticalAlignment="Top" Width="77"/>
                <Label Content="数据位:" HorizontalAlignment="Left" Margin="10,120,0,0" VerticalAlignment="Top"/>
                <ComboBox x:Name="cmbDataBits" HorizontalAlignment="Left" Margin="76,123,0,0" VerticalAlignment="Top" Width="77">
                    <ListBoxItem Content="8"/>
                    <ListBoxItem Content="7"/>
                    <ListBoxItem Content="6"/>
                    <ListBoxItem Content="5"/>
                </ComboBox>
                <Label Content="奇偶校验：" HorizontalAlignment="Left" Margin="8,85,0,0" VerticalAlignment="Top"/>
                <ComboBox x:Name="cmbParity" HorizontalAlignment="Left" Margin="76,88,0,0" VerticalAlignment="Top" Width="77">
                    <ListBoxItem Content="None"/>
                    <ListBoxItem Content="Odd"/>
                    <ListBoxItem Content="Even"/>
                </ComboBox>
                <Label Content="波特率：" HorizontalAlignment="Left" Margin="11,45,0,0" VerticalAlignment="Top" RenderTransformOrigin="0.328,2.2"/>
                <ComboBox x:Name="cmbBaudRate" HorizontalAlignment="Left" Margin="76,49,0,0" VerticalAlignment="Top" Width="77"
                          RenderTransformOrigin="-0.351,3.905">

                    <ListBoxItem Content="9600"/>
                    <ListBoxItem Content="19200"/>
                    <ListBoxItem Content="38400"/>
                    <ListBoxItem Content="57600"/>
                    <ListBoxItem Content="115200"/>
                </ComboBox>
                <Label Content="停止位" HorizontalAlignment="Left" Margin="11,155,0,0" VerticalAlignment="Top"
                       RenderTransformOrigin="-0.351,3.905"/>
                <ComboBox x:Name="cmbStopBits" HorizontalAlignment="Left" Margin="76,159,0,0" VerticalAlignment="Top" Width="77">
                    <ListBoxItem Content="One"/>
                    <ListBoxItem Content="Two"/>
                    <ListBoxItem Content="OnePointFive"/>
                    <ListBoxItem Content="None"/>
                </ComboBox>
                <Button x:Name="btnOpen" Click="btnOpen_Click_1" Content="打开串口" HorizontalAlignment="Left" Margin="12,200,0,0"
                        VerticalAlignment="Top" Width="141"/>
            </Grid>
        </GroupBox>
        <Demo_3_4_WpfControlLibrary:CurveControl x:Name="CurveCtr" Margin="221,5,0,0" Height="462" VerticalAlignment="Top"
                                                 HorizontalAlignment="left" Width="545"/>
        <Demo_3_4_WpfControlLibrary:BarControl x:Name="BarCtr" Margin="776,16,-19,35" HorizontalAlignment="left" Width="565"/>

    </Grid>



</Window>

逻辑部分代码

using Modbus.Device;
using System;
using System.Collections.Generic;
using System.Data.SqlClient;
using System.IO.Ports;
using System.Linq;
using System.Security.Cryptography;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

using Visifire.Charts;
using Visifire.Commons;


namespace IntegratedPJ75
{
    /// <summary>
    /// MainWindow.xaml 的交互逻辑
    /// </summary>
    public partial class MainWindow : Window
    {
        //存储温湿度数据
        double temp = 0;
        double hum = 0;
        double num;
        private static IModbusMaster master;
        //写寄存器数组
        private ushort[] registerBuffer;
        //串口对象实例化
        SerialPort com = new SerialPort();

        public MainWindow()
        {
            InitializeComponent();
            //UserLogin userlogin = new UserLogin();
            //userlogin.Show();
            this.Loaded += MainWindow_Loaded;//添加窗体加载事件

        }





        /// <summary>
        /// 窗体加载事件
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        Thread timer;//声明线程变量
        void MainWindow_Loaded(object sender, RoutedEventArgs e)
        {
            //获取本机所以串口名字
            string[] strPortName = SerialPort.GetPortNames();
            //将本机所有串口名称赋值给cmbPort控件
            cmbPort.ItemsSource = strPortName;
            //下拉框初始化
            //如果本串口数量不为0，则将cmbPort的Item第一个索引
            if (strPortName.Length > 0) cmbPort.SelectedIndex = 0;
            //将波特率下拉框cmbBaudRate的Item第一个索引
            cmbBaudRate.SelectedIndex = 0;
            cmbDataBits.SelectedIndex = 0;
            cmbStopBits.SelectedIndex = 0;
            cmbParity.SelectedIndex = 0;

            CurveCtr.DrawBackground();//绘制背景
            BarCtr.DrawBackground();
            timer = new Thread(new ThreadStart(() => //线程实例化
            {
                while (true)
                {
                    try
                    {
                        Dispatcher.Invoke(new Action(() =>
                        {
                            CurveCtr.DrawLine(temp);//绘制温度折线
                            BarCtr.DrawLine(hum);//绘制温度直方图
                        }));

                    }
                    catch
                    {

                    }
                    Thread.Sleep(700);
                }
            }));
            timer.Start();
        }
        private void Windows_Closing_1(object sender, System.ComponentModel.CancelEventArgs e)
        {
            timer.Abort();//关闭线程
            timer = null;
        }
        /// <summary>
        /// 打开按钮点击事件
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnOpen_Click_1(object sender, RoutedEventArgs e)
        {
            //如果按钮内容是“打开串口”则进行打开串口否则关闭串口操作
            if (btnOpen.Content.ToString() == "打开串口")
                //尝试打开，出错则在界面进行提示
                try
                {
                    //判断串口是否打开
                    if (!com.IsOpen)
                    {
                        //设置串口参数
                        com.PortName = cmbPort.Text;//串口号
                        com.BaudRate = int.Parse(cmbBaudRate.Text);//波特率
                        com.DataBits = int.Parse(cmbDataBits.Text);//数据位
                        switch (cmbStopBits.SelectedIndex)//停止位
                        {
                            case 0:
                                com.StopBits = StopBits.One; break;
                            case 1:
                                com.StopBits = StopBits.Two; break;
                            case 2:
                                com.StopBits = StopBits.OnePointFive; break;
                            case 3:
                                com.StopBits = StopBits.None; break;

                        }
                        switch (cmbParity.SelectedIndex)//奇偶检验
                        {
                            case 0: com.Parity = Parity.None; break;
                            case 1: com.Parity = Parity.Odd; break;
                            case 2: com.Parity = Parity.Even; break;

                        }
                        //设置串口参数
                        master = ModbusSerialMaster.CreateRtu(com);
                        com.Open();//打开串口
                    }
                    //设置按钮内容为关闭串口
                    btnOpen.Content = "关闭串口";
                    //界面显示信息“串口打开”
                    txtStaus.Text = "串口已打开！n";
                }
                catch
                {
                    txtStaus.Text = "串口打开错误或串口不存在！";

                }

            else //关闭串口
            {
                try
                {
                    if (com.IsOpen)
                    {
                        com.Close();//关闭串口
                    }
                    btnOpen.Content = "打开串口";
                    txtStaus.Text = "串口已关闭!";
                }
                catch
                {
                    txtStaus.Text = "串口关闭错误或串口不存在！";
                }

            }
        }
        private void BtnReceive_Click(Object sender, RoutedEventArgs e)
        {
            txtStaus.Clear();

            if (com.IsOpen == false)
            {
                txtStaus.AppendText("请打开串口！！！rn");
            }
            else
            {
                //读取数据



                registerBuffer = master.ReadHoldingRegisters(1, 0, 2);
                temp = registerBuffer[0] / 10.0;
                txtStaus.AppendText("温度:" + temp + " ");
                hum = registerBuffer[1] / 10.0;
                txtStaus.AppendText("湿度:" + hum + "tn");


            }


        }
        Chart chart;                                            // Chart object


        private void BtnSave_Click(object sender, RoutedEventArgs e)
        {
            string connString = @"Data Source=(localdb)ProjectsV13;Initial Catalog=MySchool;Integrated Security=True;Pooling=False;";
            try
            {
                using (SqlConnection conn = new SqlConnection(connString))
                {
                    conn.Open();//打开数据库连接
                    string sqlSel = String.Format("SELECT MAX(Id) FROM TempHumData");
                    SqlCommand commSel = new SqlCommand(sqlSel, conn); //创建command对象
                    //num全局变量，新增数据的Id编号
                    object i = commSel.ExecuteScalar();//add
                    if (!(commSel.ExecuteScalar() == System.DBNull.Value))
                    {
                        num = (int)commSel.ExecuteScalar();
                        num++;
                    }
                    else
                    {
                        num = 1;
                    }
                    //Sql语句，插入数据
                    string sqlIns = String.Format("INSERT INTO TempHumData(Id,time,temp,hum)" +
                        "VALUES('{0}','{1}','{2}','{3}')", num, DateTime.Now, temp, hum);
                    SqlCommand commIns = new SqlCommand(sqlIns, conn);//创建command对象
                    int n = commIns.ExecuteNonQuery();//执行添加命令，返回值为更新的行数
                    if (n > 0)
                    {
                        txtStaus.AppendText("数据保存成功！！！" + "rn");
                    }
                    else
                    {
                        txtStaus.AppendText("数据保存失败！！！" + "rn");
                    }
                }
            }
            catch (Exception ex)
            {

                txtStaus.AppendText(ex.Message + "rn");
            }
        }
    }
}

 注意：需要引用第三方的图形库Demo_3_4_WpfControlLibrary

下载地址：链接：https://pan.baidu.com/s/1sw3-MazR4hSXsJGjayJ1QA
提取码：yb09

至此WPF主界面已经完成，可以使用串口虚拟软件模拟数据运行。

下一节将开发APS.net网页数据管理端口。感兴趣可以查看第三章。
