从模拟到数字
本文整理自网络、《匠人手记》等书籍文章

模拟电路低通滤波时域、频域
软件低通滤波

典型电路

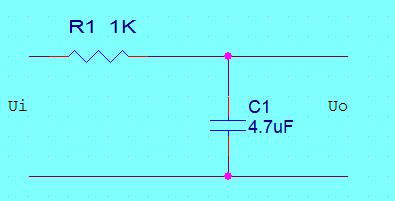

这里写图片描述
图1 典型RC电路
直流、交流、脉冲信号都可以用它

时域

电容电流：

I c = d q d t = d ( C ∙ U o ) d t = C d U o d t

假设电容初始电压值为0
R=1000Ω
C=4.7uF
Ui=1V
t=0.0001~0.1s
τ=RC
Vc(τ)=0.632

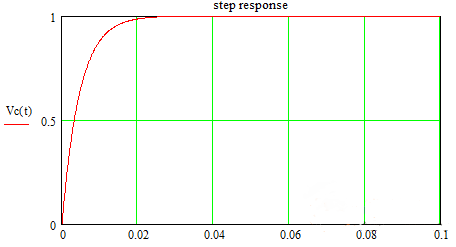

这里写图片描述

图2 一阶 RC系统的阶跃响应曲线

频域

u1=Ui；u2=Uo；
以电容电压作为输出，电路的网络函数为：

H (j ω) = U 2 U 1 = 1 j ω C R + 1 j ω C = 1 1 + j ω R C

ωc即为截止频率；

幅值和相角函数：

| H (j ω) | = 1 1 + ( ω ω c ) 2 --------\sqrt

θ (ω) = - a r c t a n ω ω c

各变量取值：
R=1000Ω
C=4.7uF

j = - 1 ---\sqrt

θ(fc)=-45

f=0.001、1、…….100000

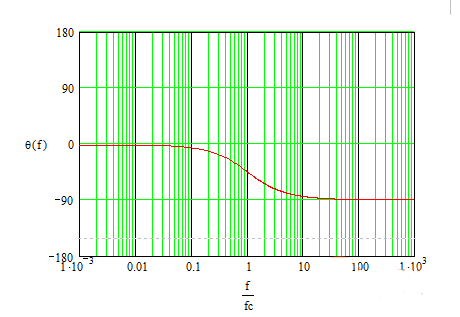

幅频和相频特性图：
这里写图片描述
图3

图4

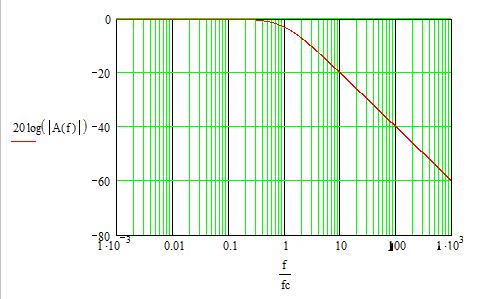

幅频特性图的对数表示：

图5

-当ω<ωc时，幅值是平行于坐标的直线，基本无衰减；

-当ω>>ωc时，是斜率与-20dB/十倍频成比例的一条直线；　

-当ω=ωc时，增益衰减至0.707，即-3dB，相位滞后45度，对应低通滤波器，该频率通常被称为截止频率。

缺点：
采用这种模拟滤波器抑制低频干扰时，要求滤波器有较大的时间常数和高精度的RC网络，增大时间常数要求增大R值，其漏电流也随之增大，从而降低了滤波效果；

软件上的一阶低通滤波

优点：

-采用数字滤波算法来实现动态的RC滤波，则能很好的克服模拟滤波器的缺点；
-在模拟常数要求较大的场合这种算法显得更为实用；
-其对于周期干扰有良好的抑制作用，
-比较节省RAM空间

缺点

-不足之处是带来了相位滞后，导致灵敏度低；
-同时它不能滤除频率高于采样频率的二分之一（称为奈奎斯特频率）的干扰（例如采样频率为100Hz，则它不能滤除50Hz以上的干扰信号）对于高于奈奎斯特频率的干扰信号，应该采用模拟滤波器。
-对没有乘、除法运算指令的单片机来说，程序运算工作量较大

基本滤波算法：

算法由来：
频率分析中一阶RC低通滤波在S域的传递函数：

V o u t V i n = 1 R C s + 1, (s = j ω)

带入S域传递函数中：

Y ( z ) X ( z ) = 1 R C 1 - z \land ( - 1 ) T + 1 = T R C ( 1 - z \land ( - 1 ) ) + T

通过Z变换把S域的传递函数转化成时域的差分方程，分析可得到

一阶RC数字滤波的基本算法

X为输入，Y为滤波后得输出值，则：

Y (n) = a * X (n) + (1 - a) * Y (n - 1)

a为与RC值有关的一个参数，称为滤波系数，其值决定新采样值在本次滤波结果中所占的权重，其值通常远小于1，当采样间隔t足够小的时候，

a = t R C

-滤波系数越小，滤波结果越平稳，但是灵敏度越低；

-滤波系数越大，灵敏度越高，但是滤波结果越不稳定

-本次输出值主要取决于上次滤波输出值，当前采样值对本次输出贡献比较小，起到修正作用；

-截止频率：

f l = a 2 π t

例如：t=0.5s (f=2Hz), a=1/32
则fl=(1/32)/(2*3.14*0.5)=0.01Hz;

基本程序：

按照一阶滤波的基本原理与公式写程序，如下：

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
/*程序中整数运算比小数运算快，为加快程序的处理速度，为计算方便，a取一整数，1-a用256-a来代替，a则取0~255,代表新采样值在滤波结果中的权重（也可将1-a的基数改为100-a，计算结果做相应处理，这里不做说明）*/

#define a 128

char value; //上次滤波值
char filter()
{
    char new_value;
    new_value=get_ad();//本次采样值
    return(256-a)*value/256+a*new_value/256；
}

 1
2
3
4
5
6
7
8
9
10
11

程序初步优化

减少乘、除的运算次数以提高运算速度。
具体优化办法：
先将新采样值与上次滤波结果进行比较，然后根据比较采用不同的公式计算，这样程序的运算效率提高了一倍；
化解基本公式可得:

当 X n < Y (n - 1) 时 ， Y n = Y (n - 1) - (Y (n - 1) - X n) \times a \div 256;

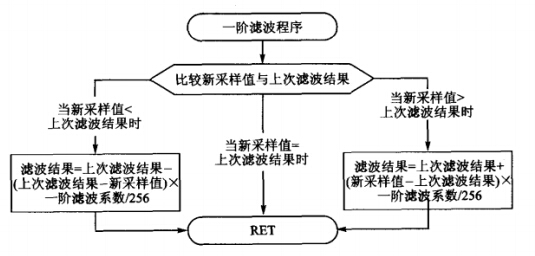

流程图：
这里写图片描述

程序：

复制代码

/*入口：NEW_DATA 新采样值
 OLD_DATA 上次滤波结果
 k 滤波系数(0~255)(代表在滤波结果中的权重)
 出口： 本次滤波结果
 */
 char filter_1(char NEW_DATA,char OLD_DATA,char k)
{
 int result;
 if(NEW_DATA<OLD_DATA)
 {
 result=OLD_DATA-NEW_DATA;
 result=result*k;
 result=result+128;//+128是为了四色五入
 result=result/256;
