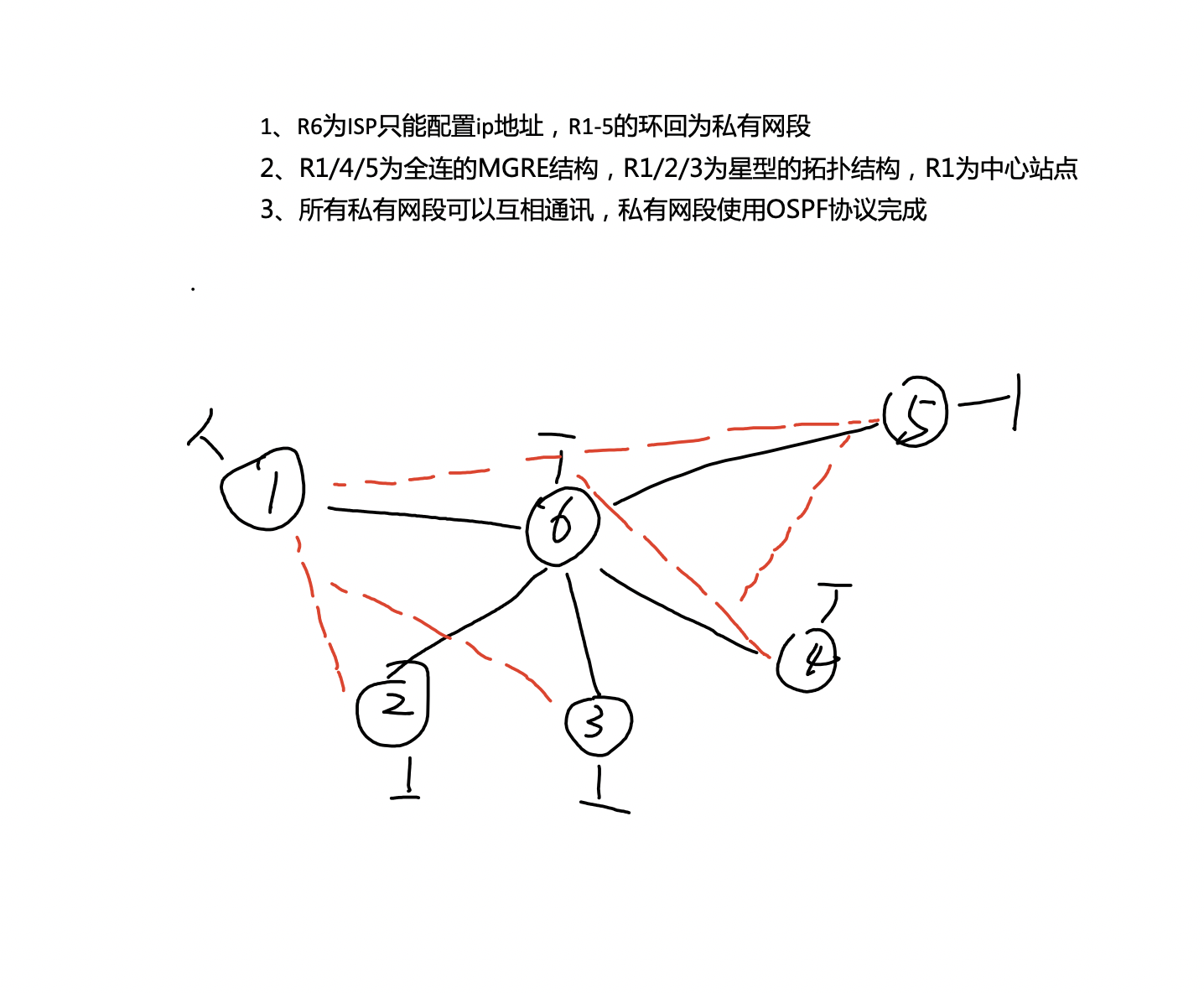

拓扑设计

配置
AR1
interface GigabitEthernet0/0/0

interface GigabitEthernet0/0/1
ip address 61.1.1.1 255.255.255.0

interface GigabitEthernet0/0/2
ip address 16.1.1.1 255.255.255.0

interface NULL0

interface LoopBack0
ip address 192.168.1.1 255.255.255.0

interface Tunnel0/0/0
ip address 10.1.1.1 255.255.255.0
tunnel-protocol gre p2mp
source 16.1.1.1
ospf network-type broadcast
nhrp entry multicast dynamic
nhrp network-id 100

interface Tunnel0/0/1
ip address 10.1.2.1 255.255.255.0
tunnel-protocol gre p2mp
source 61.1.1.1
ospf network-type broadcast
nhrp entry multicast dynamic
nhrp network-id 100
nhrp entry 10.1.2.2 56.1.1.1 register
nhrp entry 10.1.2.3 46.1.1.1 register

ospf 1
area 0.0.0.0
network 10.1.1.1 0.0.0.0
network 10.1.2.1 0.0.0.0
network 192.168.1.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 16.1.1.2
ip route-static 0.0.0.0 0.0.0.0 61.1.1.2

AR2
interface GigabitEthernet0/0/2
ip address 26.1.1.1 255.255.255.0

interface NULL0

interface LoopBack0
ip address 192.168.2.1 255.255.255.0

interface Tunnel0/0/0
ip address 10.1.1.2 255.255.255.0
tunnel-protocol gre p2mp
source GigabitEthernet0/0/2
ospf network-type broadcast
ospf dr-priority 0
nhrp network-id 100
nhrp entry 10.1.1.1 16.1.1.1 register

ospf 1
area 0.0.0.0
network 10.1.1.1 0.0.0.0
network 10.1.1.2 0.0.0.0
network 10.1.2.1 0.0.0.0
network 192.168.1.1 0.0.0.0
network 192.168.2.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 26.1.1.2
AR3
interface GigabitEthernet0/0/2
ip address 36.1.1.1 255.255.255.0

interface NULL0

interface LoopBack0
ip address 192.168.3.1 255.255.255.0

interface Tunnel0/0/0
ip address 10.1.1.3 255.255.255.0
tunnel-protocol gre p2mp
source GigabitEthernet0/0/2
ospf network-type broadcast
ospf dr-priority 0
nhrp network-id 100
nhrp entry 10.1.1.1 16.1.1.1 register

ospf 1
area 0.0.0.0
network 10.1.1.3 0.0.0.0
network 192.168.3.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 36.1.1.2

AR4
interface GigabitEthernet0/0/2
ip address 46.1.1.1 255.255.255.0

interface NULL0

interface LoopBack0
ip address 192.168.4.1 255.255.255.0

interface Tunnel0/0/0
ip address 10.1.2.3 255.255.255.0
tunnel-protocol gre p2mp
source 46.1.1.1
ospf network-type broadcast
nhrp entry multicast dynamic
nhrp network-id 100
nhrp entry 10.1.2.1 61.1.1.1 register
nhrp entry 10.1.2.2 56.1.1.1 register

ospf 1
area 0.0.0.0
network 10.1.2.2 0.0.0.0
network 10.1.2.3 0.0.0.0
network 192.168.4.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 46.1.1.2

AR5
interface GigabitEthernet0/0/2
ip address 56.1.1.1 255.255.255.0

interface NULL0

interface LoopBack0
ip address 192.168.5.1 255.255.255.0

interface Tunnel0/0/0
ip address 10.1.2.2 255.255.255.0
tunnel-protocol gre p2mp
source 56.1.1.1
ospf network-type broadcast
nhrp entry multicast dynamic
nhrp network-id 100
nhrp entry 10.1.2.1 61.1.1.1 register
nhrp entry 10.1.2.3 46.1.1.1 register

ospf 1
area 0.0.0.0
network 10.1.2.2 0.0.0.0
network 192.168.5.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 56.1.1.2

AR6
interface GigabitEthernet0/0/0
ip address 16.1.1.2 255.255.255.0

interface GigabitEthernet0/0/1
ip address 26.1.1.2 255.255.255.0

interface GigabitEthernet0/0/2
ip address 36.1.1.2 255.255.255.0

interface GigabitEthernet2/0/0
ip address 61.1.1.2 255.255.255.0

interface GigabitEthernet3/0/0
ip address 46.1.1.2 255.255.255.0

interface GigabitEthernet4/0/0
ip address 56.1.1.2 255.255.255.0

interface NULL0

interface LoopBack0
ip address 6.6.6.6 255.255.255.0

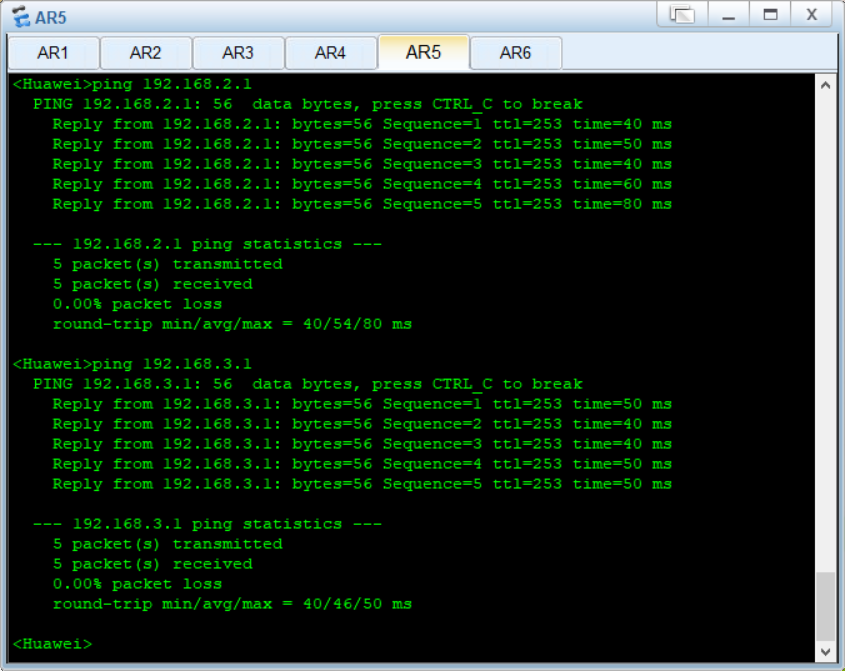

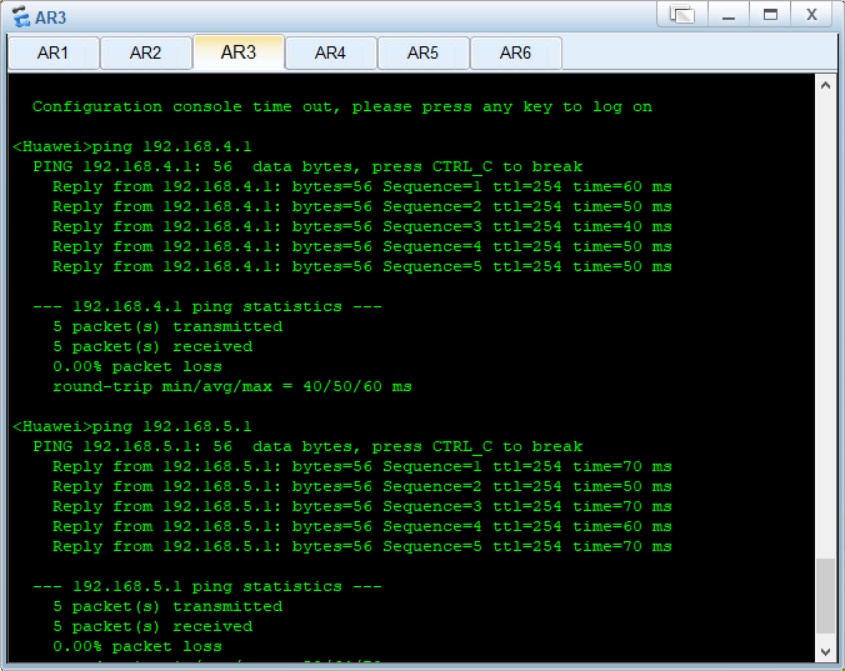

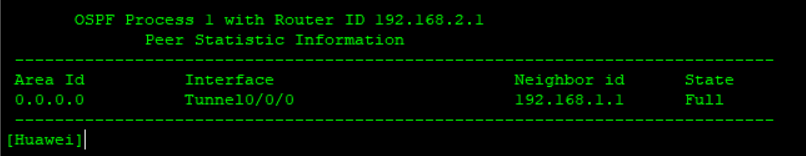

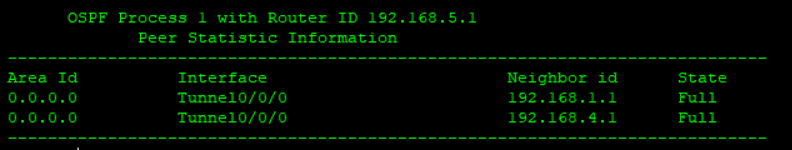

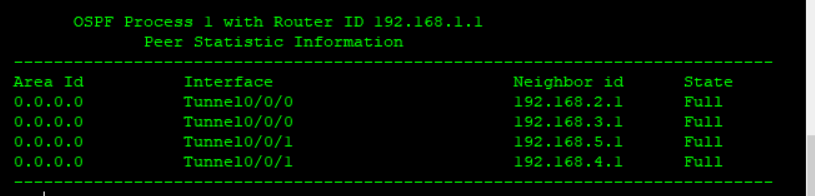

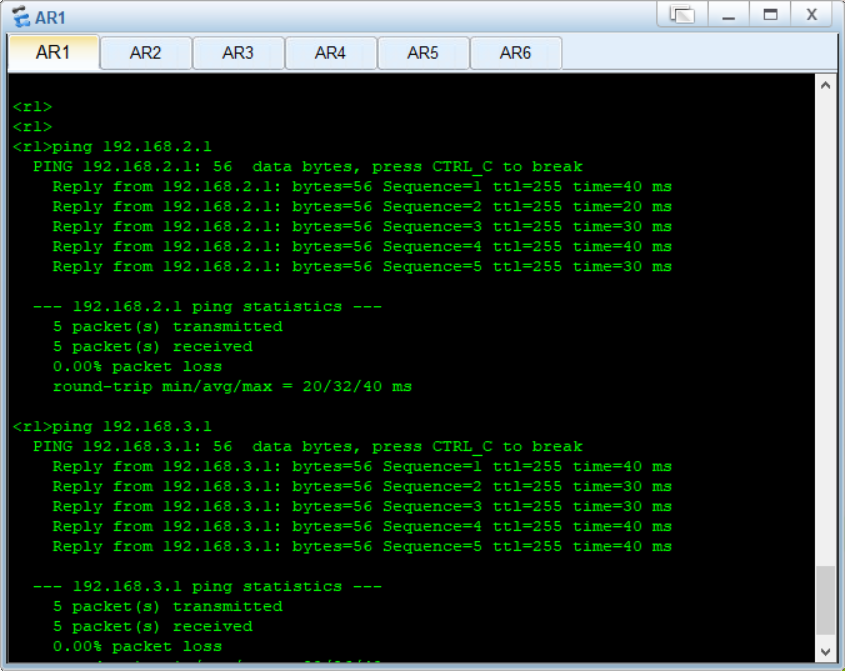

测试
