S905X3 平台调试1000M 网络PHY IC IP1001C

119 阅读 0 评论 79 点赞

我是靠谱客的博主灵巧书包，这篇文章主要介绍S905X3 平台调试1000M 网络PHY IC IP1001C，现在分享给大家，希望可以做个参考。

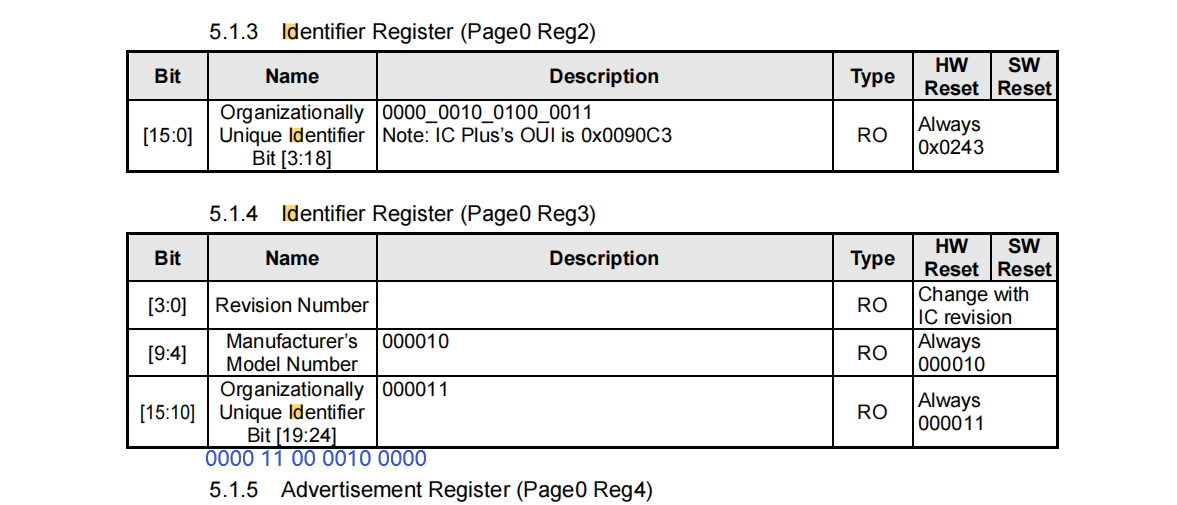

IP1001C 规格书

通过以上从规格书里面或者的ID 寄存器我们得到IP1001C 的ID 为

0x02430c54

0x02430c20

接下来我们需要移植驱动

因为IP1001C 属于ICPLUS

所以我们可以参考内核目录下原本的驱动将IP1001C 相关的驱动和初始化部分添加进icplus.c 这样既可以做到兼容之前的驱动，也使我们移植能够省去不少时间

common/drivers/net/phy/icplus.c

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
/*
* Driver for ICPlus PHYs
*
* Copyright (c) 2007 Freescale Semiconductor, Inc.
*
* This program is free software; you can redistribute
it and/or modify it
* under
the terms of
the GNU General
Public License as published by the
* Free Software Foundation;
either version 2 of the
License, or (at your
* option) any later version.
*
*/
#include <linux/kernel.h>
#include <linux/string.h>
#include <linux/errno.h>
#include <linux/unistd.h>
#include <linux/interrupt.h>
#include <linux/init.h>
#include <linux/delay.h>
#include <linux/netdevice.h>
#include <linux/etherdevice.h>
#include <linux/skbuff.h>
#include <linux/spinlock.h>
#include <linux/mm.h>
#include <linux/module.h>
#include <linux/mii.h>
#include <linux/ethtool.h>
#include <linux/phy.h>
#include <asm/io.h>
#include <asm/irq.h>
#include <asm/uaccess.h>
MODULE_DESCRIPTION("ICPlus IP175C/IP101A/IP101G/IC1001 PHY drivers");
MODULE_AUTHOR("Michael Barkowski");
MODULE_LICENSE("GPL");
/* IP101A/G - IP1001 */
#define IP10XX_SPEC_CTRL_STATUS
16
/* Spec. Control Register */
#define IP1001_RXPHASE_SEL
(1<<0)
/* Add delay on RX_CLK */
#define IP1001_TXPHASE_SEL
(1<<1)
/* Add delay on TX_CLK */
#define IP1001_SPEC_CTRL_STATUS_2
20
/* IP1001 Spec. Control Reg 2 */
#define IP1001_APS_ON
11
/* IP1001 APS Mode
bit */
#define IP101A_G_APS_ON
2
/* IP101A/G APS Mode bit */
#define IP101A_G_IRQ_CONF_STATUS
0x11
/* Conf Info IRQ & Status Reg */
#define IP101A_G_IRQ_PIN_USED
(1<<15) /* INTR pin used */
#define IP101A_G_IRQ_DEFAULT
IP101A_G_IRQ_PIN_USED
static int ip175c_config_init(struct phy_device *phydev)
{
int err, i;
static int full_reset_performed;
if (full_reset_performed == 0) {
/* master reset */
err = mdiobus_write(phydev->mdio.bus, 30, 0, 0x175c);
if (err < 0)
return err;
/* ensure no bus delays overlap reset period */
err = mdiobus_read(phydev->mdio.bus, 30, 0);
/* data sheet specifies reset period is 2 msec */
mdelay(2);
/* enable IP175C mode */
err = mdiobus_write(phydev->mdio.bus, 29, 31, 0x175c);
if (err < 0)
return err;
/* Set MII0 speed and duplex (in PHY mode) */
err = mdiobus_write(phydev->mdio.bus, 29, 22, 0x420);
if (err < 0)
return err;
/* reset switch ports */
for (i = 0; i < 5; i++) {
err = mdiobus_write(phydev->mdio.bus, i,
MII_BMCR, BMCR_RESET);
if (err < 0)
return err;
}
for (i = 0; i < 5; i++)
err = mdiobus_read(phydev->mdio.bus, i, MII_BMCR);
mdelay(2);
full_reset_performed = 1;
}
if (phydev->mdio.addr != 4) {
phydev->state = PHY_RUNNING;
phydev->speed = SPEED_100;
phydev->duplex = DUPLEX_FULL;
phydev->link = 1;
netif_carrier_on(phydev->attached_dev);
}
return 0;
}
static int ip1xx_reset(struct phy_device *phydev)
{
int bmcr;
/* Software Reset PHY */
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= BMCR_RESET;
bmcr = phy_write(phydev, MII_BMCR, bmcr);
if (bmcr < 0)
return bmcr;
do {
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
} while (bmcr & BMCR_RESET);
return 0;
}
static int ip1001_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP1001_SPEC_CTRL_STATUS_2);
if (c < 0)
return c;
c |= IP1001_APS_ON;
c = phy_write(phydev, IP1001_SPEC_CTRL_STATUS_2, c);
if (c < 0)
return c;
if (phy_interface_is_rgmii(phydev)) {
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
if (c < 0)
return c;
c &= ~(IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
if (phydev->interface == PHY_INTERFACE_MODE_RGMII_ID)
c |= (IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_RXID)
c |= IP1001_RXPHASE_SEL;
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_TXID)
c |= IP1001_TXPHASE_SEL;
c = phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
if (c < 0)
return c;
}
return 0;
}
static int ip101a_g_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* INTR pin used: speed/link/duplex will cause an interrupt */
c = phy_write(phydev, IP101A_G_IRQ_CONF_STATUS, IP101A_G_IRQ_DEFAULT);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
c |= IP101A_G_APS_ON;
return phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
}
static int ip175c_read_status(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_read_status(phydev);
else
/* Don't need to read status for switch ports */
phydev->irq = PHY_IGNORE_INTERRUPT;
return 0;
}
static int ip175c_config_aneg(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_config_aneg(phydev);
return 0;
}
static int ip101a_g_ack_interrupt(struct phy_device *phydev)
{
int err = phy_read(phydev, IP101A_G_IRQ_CONF_STATUS);
if (err < 0)
return err;
return 0;
}
static struct phy_driver icplus_driver[] = {
{
.phy_id
= 0x02430d80,
.name
= "ICPlus IP175C",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES,
.config_init
= &ip175c_config_init,
.config_aneg
= &ip175c_config_aneg,
.read_status
= &ip175c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430d90,
.name
= "ICPlus IP1001",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c54,
.name
= "ICPlus IP101A/G",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.flags
= PHY_HAS_INTERRUPT,
.ack_interrupt
= ip101a_g_ack_interrupt,
.config_init
= &ip101a_g_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
} };
module_phy_driver(icplus_driver);
static struct mdio_device_id __maybe_unused icplus_tbl[] = {
{ 0x02430d80, 0x0ffffff0 },
{ 0x02430d90, 0x0ffffff0 },
{ 0x02430c54, 0x0ffffff0 },
{ }
};
MODULE_DEVICE_TABLE(mdio, icplus_tbl);

这是原始驱动，现在我们为了支持IP1001C 将IP1001C 的驱动部分合成进来

复制代码

/*
* Driver for ICPlus PHYs
*
* Copyright (c) 2007 Freescale Semiconductor, Inc.
*
* This program is free software; you can redistribute
it and/or modify it
* under
the terms of
the GNU General
Public License as published by the
* Free Software Foundation;
either version 2 of the
License, or (at your
* option) any later version.
*
*/
#include <linux/kernel.h>
#include <linux/string.h>
#include <linux/errno.h>
#include <linux/unistd.h>
#include <linux/interrupt.h>
#include <linux/init.h>
#include <linux/delay.h>
#include <linux/netdevice.h>
#include <linux/etherdevice.h>
#include <linux/skbuff.h>
#include <linux/spinlock.h>
#include <linux/mm.h>
#include <linux/module.h>
#include <linux/mii.h>
#include <linux/ethtool.h>
#include <linux/phy.h>
#include <asm/io.h>
#include <asm/irq.h>
#include <asm/uaccess.h>
MODULE_DESCRIPTION("ICPlus IP175C/IP101A/IP101G/IC1001/IP1001C PHY drivers");
MODULE_AUTHOR("Michael Barkowski");
MODULE_LICENSE("GPL");
/* IP101A/G - IP1001 */
#define IP10XX_SPEC_CTRL_STATUS
16
/* Spec. Control Register */
#define IP1001_RXPHASE_SEL
(1<<0)
/* Add delay on RX_CLK */
#define IP1001_TXPHASE_SEL
(1<<1)
/* Add delay on TX_CLK */
#define IP1001_SPEC_CTRL_STATUS_2
20
/* IP1001 Spec. Control Reg 2 */
#define IP1001_APS_ON
11
/* IP1001 APS Mode
bit */
#define IP101A_G_APS_ON
2
/* IP101A/G APS Mode bit */
#define IP101A_G_IRQ_CONF_STATUS
0x11
/* Conf Info IRQ & Status Reg */
#define IP101A_G_IRQ_PIN_USED
(1<<15) /* INTR pin used */
#define IP101A_G_IRQ_DEFAULT
IP101A_G_IRQ_PIN_USED
//Sam add for IP1001C
#define IP1001C_MMD_CTRL
0x0D
#define IP1001C_MMD_DATA
0x0E
#define IP1001C_EXT_STATUS
0x0F
#define IP1001C_SPEC_CTRL_STATUS
0x10
#define IP1001C_APS_ON
(0x1 << 7)
#define IP1001C_PAGE_SEL
0x14
#define REG_MODE_FIBER
0x01
#define REG_MODE_TP
0x02
#define REG_MODE_AUTO
0x03
static void ip1001c_write_mmd(
struct phy_device *phydev, unsigned int reg, unsigned short val)
{
phy_write(phydev, IP1001C_MMD_CTRL, 0x001F);
phy_write(phydev, IP1001C_MMD_DATA, reg);
phy_write(phydev, IP1001C_MMD_CTRL, 0x401F);
phy_write(phydev, IP1001C_MMD_DATA, val);
phy_write(phydev, IP1001C_MMD_CTRL, 0x0000);
//to avoid broadcast write
}
static void set_reg_mode(struct phy_device *phydev, unsigned char rmode)
{
phy_write(phydev, IP1001C_PAGE_SEL, 0);
switch (rmode)
{
case REG_MODE_FIBER:
ip1001c_write_mmd(phydev, 0x031B, 0x0000);
break;
case REG_MODE_TP:
ip1001c_write_mmd(phydev, 0x031B, 0x0100);
break;
case REG_MODE_AUTO:
ip1001c_write_mmd(phydev, 0x031B, 0x0A00);
break;
}
}
static unsigned char get_reg_mode(struct phy_device *phydev)
{
int ext_satus;
phy_write(phydev, IP1001C_PAGE_SEL, 0);
ext_satus = phy_read(phydev, IP1001C_EXT_STATUS);
if (ext_satus & 0x3000)
//link at TP port
{
return (unsigned char)REG_MODE_TP;
}
else
//link at Fiber port
{
return (unsigned char)REG_MODE_FIBER;
}
}
static int ip175c_config_init(struct phy_device *phydev)
{
int err, i;
static int full_reset_performed;
if (full_reset_performed == 0) {
/* master reset */
err = mdiobus_write(phydev->mdio.bus, 30, 0, 0x175c);
if (err < 0)
return err;
/* ensure no bus delays overlap reset period */
err = mdiobus_read(phydev->mdio.bus, 30, 0);
/* data sheet specifies reset period is 2 msec */
mdelay(2);
/* enable IP175C mode */
err = mdiobus_write(phydev->mdio.bus, 29, 31, 0x175c);
if (err < 0)
return err;
/* Set MII0 speed and duplex (in PHY mode) */
err = mdiobus_write(phydev->mdio.bus, 29, 22, 0x420);
if (err < 0)
return err;
/* reset switch ports */
for (i = 0; i < 5; i++) {
err = mdiobus_write(phydev->mdio.bus, i,
MII_BMCR, BMCR_RESET);
if (err < 0)
return err;
}
for (i = 0; i < 5; i++)
err = mdiobus_read(phydev->mdio.bus, i, MII_BMCR);
mdelay(2);
full_reset_performed = 1;
}
if (phydev->mdio.addr != 4) {
phydev->state = PHY_RUNNING;
phydev->speed = SPEED_100;
phydev->duplex = DUPLEX_FULL;
phydev->link = 1;
netif_carrier_on(phydev->attached_dev);
}
return 0;
}
static int ip1xx_reset(struct phy_device *phydev)
{
int bmcr;
/* Software Reset PHY */
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= BMCR_RESET;
bmcr = phy_write(phydev, MII_BMCR, bmcr);
if (bmcr < 0)
return bmcr;
do {
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
} while (bmcr & BMCR_RESET);
return 0;
}
static int ip1001c_reset(struct phy_device *phydev)
{
int i, bmcr;
for (i=0; i < 2; i++)
{
if (i==0)
set_reg_mode(phydev, REG_MODE_FIBER);
else
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
// Software Reset PHY
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= BMCR_RESET;
bmcr = phy_write(phydev, MII_BMCR, bmcr);
if (bmcr < 0)
return bmcr;
do {
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
} while (bmcr & BMCR_RESET);
}
return 0;
}
static int ip1001_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP1001_SPEC_CTRL_STATUS_2);
if (c < 0)
return c;
c |= IP1001_APS_ON;
c = phy_write(phydev, IP1001_SPEC_CTRL_STATUS_2, c);
if (c < 0)
return c;
if (phy_interface_is_rgmii(phydev)) {
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
if (c < 0)
return c;
c &= ~(IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
if (phydev->interface == PHY_INTERFACE_MODE_RGMII_ID)
c |= (IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_RXID)
c |= IP1001_RXPHASE_SEL;
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_TXID)
c |= IP1001_TXPHASE_SEL;
c = phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
if (c < 0)
return c;
}
return 0;
}
static int ip1001c_config_init(struct phy_device *phydev)
{
int c;
c = ip1001c_reset(phydev);
if (c < 0)
return c;
set_reg_mode(phydev, REG_MODE_TP);
//enable Auto Power Saving mode
phy_write(phydev, IP1001C_PAGE_SEL, 0x0000);
c = phy_read(phydev, IP1001C_SPEC_CTRL_STATUS);
if (c >= 0)
{
c |= IP1001C_APS_ON;
phy_write(phydev, IP1001C_SPEC_CTRL_STATUS, c);
}
phy_write(phydev, 0x10, 0x3BA8);
phy_write(phydev, 0x1C, 0xEC40);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0002);
phy_write(phydev, 0x10, 0x5A09);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0003);
phy_write(phydev, 0x10, 0xC0CF);
phy_write(phydev, 0x18, 0x3C38);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0004);
phy_write(phydev, 0x1A, 0x0608);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0010);
phy_write(phydev, 0x1D, 0xB000);
phy_write(phydev, 0x1E, 0xB2B2);
phy_write(phydev, 0x1F, 0x7AB2);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0000);
phy_write(phydev, 0x00, 0x1340);
set_reg_mode(phydev, REG_MODE_FIBER);
phy_write(phydev, 0x15, 0x2470);
set_reg_mode(phydev, REG_MODE_AUTO);
return 0;
}
static int ip101a_g_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* INTR pin used: speed/link/duplex will cause an interrupt */
c = phy_write(phydev, IP101A_G_IRQ_CONF_STATUS, IP101A_G_IRQ_DEFAULT);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
c |= IP101A_G_APS_ON;
return phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
}
static int ip175c_read_status(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_read_status(phydev);
else
/* Don't need to read status for switch ports */
phydev->irq = PHY_IGNORE_INTERRUPT;
return 0;
}
static int ip1001c_read_status(struct phy_device *phydev)
{
int err;
int bmcr;
int lpa;
unsigned char mode = 0;
phy_write(phydev, IP1001C_PAGE_SEL, 0);
if (get_reg_mode(phydev) == REG_MODE_FIBER)
set_reg_mode(phydev, REG_MODE_FIBER);
else
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
/* Update the link, but return if there was an error */
err = genphy_update_link(phydev);
if (err)
return err;
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
if (bmcr & BMCR_FULLDPLX)
phydev->duplex = DUPLEX_FULL;
else
phydev->duplex = DUPLEX_HALF;
if (bmcr & BMCR_SPEED1000)
phydev->speed = SPEED_1000;
else if (bmcr & BMCR_SPEED100)
phydev->speed = SPEED_100;
else
phydev->speed = SPEED_10;
phydev->pause = 0;
phydev->asym_pause = 0;
lpa = phy_read(phydev, MII_LPA);
if (lpa < 0)
{
return lpa;
}
if (mode == REG_MODE_TP)
//link at TP port
{
if (phydev->duplex == DUPLEX_FULL)
{
phydev->pause = lpa & LPA_PAUSE_CAP ? 1 : 0;
phydev->asym_pause = lpa & LPA_PAUSE_ASYM ? 1 : 0;
}
}
else
//link at Fiber port
{
if (phydev->speed == SPEED_1000)
{
phydev->pause = lpa & LPA_1000XPAUSE ? 1 : 0;
phydev->asym_pause = lpa & LPA_1000XPAUSE_ASYM ? 1 : 0;
}
}
set_reg_mode(phydev, REG_MODE_AUTO);
return 0;
}
static int ip175c_config_aneg(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_config_aneg(phydev);
return 0;
}
static int ip1001c_config_aneg(struct phy_device *phydev)
{
int bmcr, adv;
int err;
set_reg_mode(phydev, REG_MODE_FIBER);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
if (AUTONEG_ENABLE != phydev->autoneg)
{
phydev->pause = 0;
phydev->asym_pause = 0;
bmcr = 0;
if (SPEED_1000 == phydev->speed)
bmcr |= BMCR_SPEED1000;
else if (SPEED_100 == phydev->speed)
bmcr |= BMCR_SPEED100;
if (DUPLEX_FULL == phydev->duplex)
bmcr |= BMCR_FULLDPLX;
err = phy_write(phydev, MII_BMCR, bmcr);
if (err < 0)
return err;
}
else
{
phydev->advertising &= phydev->supported;
adv = phy_read(phydev, MII_ADVERTISE);
if (adv < 0)
return adv;
adv &= ~(ADVERTISE_1000XPAUSE | ADVERTISE_1000XPSE_ASYM);
if (phydev->advertising & ADVERTISED_Pause)
adv |= ADVERTISE_1000XPAUSE;
if (phydev->advertising & ADVERTISED_Asym_Pause)
adv |= ADVERTISE_1000XPSE_ASYM;
err = phy_write(phydev, MII_ADVERTISE, adv);
if (err < 0)
return err;
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= (BMCR_SPEED1000 | BMCR_SPEED100 | BMCR_FULLDPLX |
BMCR_ANENABLE | BMCR_ANRESTART);
err = phy_write(phydev, MII_BMCR, bmcr);
if (err < 0)
return err;
}
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
err = genphy_config_aneg(phydev);
set_reg_mode(phydev, REG_MODE_AUTO);
return err;
}
static int ip101a_g_ack_interrupt(struct phy_device *phydev)
{
int err = phy_read(phydev, IP101A_G_IRQ_CONF_STATUS);
if (err < 0)
return err;
return 0;
}
static struct phy_driver icplus_driver[] = {
{
.phy_id
= 0x02430d80,
.name
= "ICPlus IP175C",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES,
.config_init
= &ip175c_config_init,
.config_aneg
= &ip175c_config_aneg,
.read_status
= &ip175c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430d90,
.name
= "ICPlus IP1001",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c50,
.name
= "ICPlus IP1001C FX PHY",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001c_config_init,
.config_aneg
= &ip1001c_config_aneg,
.read_status
= &ip1001c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c20,
.name
= "ICPlus IP1001C GPHY",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001c_config_init,
.config_aneg
= &ip1001c_config_aneg,
.read_status
= &ip1001c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c54,
.name
= "ICPlus IP101A/G",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.flags
= PHY_HAS_INTERRUPT,
.ack_interrupt
= ip101a_g_ack_interrupt,
.config_init
= &ip101a_g_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
} };
module_phy_driver(icplus_driver);
static struct mdio_device_id __maybe_unused icplus_tbl[] = {
{ 0x02430d80, 0x0ffffff0 },
{ 0x02430d90, 0x0ffffff0 },
{ 0x02430c50, 0x0ffffff0 },
{ 0x02430c20, 0x0ffffff0 },
{ 0x02430c54, 0x0ffffff0 },
{ }
};
MODULE_DEVICE_TABLE(mdio, icplus_tbl);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
/*
* Driver for ICPlus PHYs
*
* Copyright (c) 2007 Freescale Semiconductor, Inc.
*
* This program is free software; you can redistribute
it and/or modify it
* under
the terms of
the GNU General
Public License as published by the
* Free Software Foundation;
either version 2 of the
License, or (at your
* option) any later version.
*
*/
#include <linux/kernel.h>
#include <linux/string.h>
#include <linux/errno.h>
#include <linux/unistd.h>
#include <linux/interrupt.h>
#include <linux/init.h>
#include <linux/delay.h>
#include <linux/netdevice.h>
#include <linux/etherdevice.h>
#include <linux/skbuff.h>
#include <linux/spinlock.h>
#include <linux/mm.h>
#include <linux/module.h>
#include <linux/mii.h>
#include <linux/ethtool.h>
#include <linux/phy.h>
#include <asm/io.h>
#include <asm/irq.h>
#include <asm/uaccess.h>
MODULE_DESCRIPTION("ICPlus IP175C/IP101A/IP101G/IC1001/IP1001C PHY drivers");
MODULE_AUTHOR("Michael Barkowski");
MODULE_LICENSE("GPL");
/* IP101A/G - IP1001 */
#define IP10XX_SPEC_CTRL_STATUS
16
/* Spec. Control Register */
#define IP1001_RXPHASE_SEL
(1<<0)
/* Add delay on RX_CLK */
#define IP1001_TXPHASE_SEL
(1<<1)
/* Add delay on TX_CLK */
#define IP1001_SPEC_CTRL_STATUS_2
20
/* IP1001 Spec. Control Reg 2 */
#define IP1001_APS_ON
11
/* IP1001 APS Mode
bit */
#define IP101A_G_APS_ON
2
/* IP101A/G APS Mode bit */
#define IP101A_G_IRQ_CONF_STATUS
0x11
/* Conf Info IRQ & Status Reg */
#define IP101A_G_IRQ_PIN_USED
(1<<15) /* INTR pin used */
#define IP101A_G_IRQ_DEFAULT
IP101A_G_IRQ_PIN_USED
//Sam add for IP1001C
#define IP1001C_MMD_CTRL
0x0D
#define IP1001C_MMD_DATA
0x0E
#define IP1001C_EXT_STATUS
0x0F
#define IP1001C_SPEC_CTRL_STATUS
0x10
#define IP1001C_APS_ON
(0x1 << 7)
#define IP1001C_PAGE_SEL
0x14
#define REG_MODE_FIBER
0x01
#define REG_MODE_TP
0x02
#define REG_MODE_AUTO
0x03
static void ip1001c_write_mmd(
struct phy_device *phydev, unsigned int reg, unsigned short val)
{
phy_write(phydev, IP1001C_MMD_CTRL, 0x001F);
phy_write(phydev, IP1001C_MMD_DATA, reg);
phy_write(phydev, IP1001C_MMD_CTRL, 0x401F);
phy_write(phydev, IP1001C_MMD_DATA, val);
phy_write(phydev, IP1001C_MMD_CTRL, 0x0000);
//to avoid broadcast write
}
static void set_reg_mode(struct phy_device *phydev, unsigned char rmode)
{
phy_write(phydev, IP1001C_PAGE_SEL, 0);
switch (rmode)
{
case REG_MODE_FIBER:
ip1001c_write_mmd(phydev, 0x031B, 0x0000);
break;
case REG_MODE_TP:
ip1001c_write_mmd(phydev, 0x031B, 0x0100);
break;
case REG_MODE_AUTO:
ip1001c_write_mmd(phydev, 0x031B, 0x0A00);
break;
}
}
static unsigned char get_reg_mode(struct phy_device *phydev)
{
int ext_satus;
phy_write(phydev, IP1001C_PAGE_SEL, 0);
ext_satus = phy_read(phydev, IP1001C_EXT_STATUS);
if (ext_satus & 0x3000)
//link at TP port
{
return (unsigned char)REG_MODE_TP;
}
else
//link at Fiber port
{
return (unsigned char)REG_MODE_FIBER;
}
}
static int ip175c_config_init(struct phy_device *phydev)
{
int err, i;
static int full_reset_performed;
if (full_reset_performed == 0) {
/* master reset */
err = mdiobus_write(phydev->mdio.bus, 30, 0, 0x175c);
if (err < 0)
return err;
/* ensure no bus delays overlap reset period */
err = mdiobus_read(phydev->mdio.bus, 30, 0);
/* data sheet specifies reset period is 2 msec */
mdelay(2);
/* enable IP175C mode */
err = mdiobus_write(phydev->mdio.bus, 29, 31, 0x175c);
if (err < 0)
return err;
/* Set MII0 speed and duplex (in PHY mode) */
err = mdiobus_write(phydev->mdio.bus, 29, 22, 0x420);
if (err < 0)
return err;
/* reset switch ports */
for (i = 0; i < 5; i++) {
err = mdiobus_write(phydev->mdio.bus, i,
MII_BMCR, BMCR_RESET);
if (err < 0)
return err;
}
for (i = 0; i < 5; i++)
err = mdiobus_read(phydev->mdio.bus, i, MII_BMCR);
mdelay(2);
full_reset_performed = 1;
}
if (phydev->mdio.addr != 4) {
phydev->state = PHY_RUNNING;
phydev->speed = SPEED_100;
phydev->duplex = DUPLEX_FULL;
phydev->link = 1;
netif_carrier_on(phydev->attached_dev);
}
return 0;
}
static int ip1xx_reset(struct phy_device *phydev)
{
int bmcr;
/* Software Reset PHY */
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= BMCR_RESET;
bmcr = phy_write(phydev, MII_BMCR, bmcr);
if (bmcr < 0)
return bmcr;
do {
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
} while (bmcr & BMCR_RESET);
return 0;
}
static int ip1001c_reset(struct phy_device *phydev)
{
int i, bmcr;
for (i=0; i < 2; i++)
{
if (i==0)
set_reg_mode(phydev, REG_MODE_FIBER);
else
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
// Software Reset PHY
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= BMCR_RESET;
bmcr = phy_write(phydev, MII_BMCR, bmcr);
if (bmcr < 0)
return bmcr;
do {
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
} while (bmcr & BMCR_RESET);
}
return 0;
}
static int ip1001_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP1001_SPEC_CTRL_STATUS_2);
if (c < 0)
return c;
c |= IP1001_APS_ON;
c = phy_write(phydev, IP1001_SPEC_CTRL_STATUS_2, c);
if (c < 0)
return c;
if (phy_interface_is_rgmii(phydev)) {
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
if (c < 0)
return c;
c &= ~(IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
if (phydev->interface == PHY_INTERFACE_MODE_RGMII_ID)
c |= (IP1001_RXPHASE_SEL | IP1001_TXPHASE_SEL);
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_RXID)
c |= IP1001_RXPHASE_SEL;
else if (phydev->interface == PHY_INTERFACE_MODE_RGMII_TXID)
c |= IP1001_TXPHASE_SEL;
c = phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
if (c < 0)
return c;
}
return 0;
}
static int ip1001c_config_init(struct phy_device *phydev)
{
int c;
c = ip1001c_reset(phydev);
if (c < 0)
return c;
set_reg_mode(phydev, REG_MODE_TP);
//enable Auto Power Saving mode
phy_write(phydev, IP1001C_PAGE_SEL, 0x0000);
c = phy_read(phydev, IP1001C_SPEC_CTRL_STATUS);
if (c >= 0)
{
c |= IP1001C_APS_ON;
phy_write(phydev, IP1001C_SPEC_CTRL_STATUS, c);
}
phy_write(phydev, 0x10, 0x3BA8);
phy_write(phydev, 0x1C, 0xEC40);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0002);
phy_write(phydev, 0x10, 0x5A09);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0003);
phy_write(phydev, 0x10, 0xC0CF);
phy_write(phydev, 0x18, 0x3C38);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0004);
phy_write(phydev, 0x1A, 0x0608);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0010);
phy_write(phydev, 0x1D, 0xB000);
phy_write(phydev, 0x1E, 0xB2B2);
phy_write(phydev, 0x1F, 0x7AB2);
phy_write(phydev, IP1001C_PAGE_SEL, 0x0000);
phy_write(phydev, 0x00, 0x1340);
set_reg_mode(phydev, REG_MODE_FIBER);
phy_write(phydev, 0x15, 0x2470);
set_reg_mode(phydev, REG_MODE_AUTO);
return 0;
}
static int ip101a_g_config_init(struct phy_device *phydev)
{
int c;
c = ip1xx_reset(phydev);
if (c < 0)
return c;
/* INTR pin used: speed/link/duplex will cause an interrupt */
c = phy_write(phydev, IP101A_G_IRQ_CONF_STATUS, IP101A_G_IRQ_DEFAULT);
if (c < 0)
return c;
/* Enable Auto Power Saving mode */
c = phy_read(phydev, IP10XX_SPEC_CTRL_STATUS);
c |= IP101A_G_APS_ON;
return phy_write(phydev, IP10XX_SPEC_CTRL_STATUS, c);
}
static int ip175c_read_status(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_read_status(phydev);
else
/* Don't need to read status for switch ports */
phydev->irq = PHY_IGNORE_INTERRUPT;
return 0;
}
static int ip1001c_read_status(struct phy_device *phydev)
{
int err;
int bmcr;
int lpa;
unsigned char mode = 0;
phy_write(phydev, IP1001C_PAGE_SEL, 0);
if (get_reg_mode(phydev) == REG_MODE_FIBER)
set_reg_mode(phydev, REG_MODE_FIBER);
else
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
/* Update the link, but return if there was an error */
err = genphy_update_link(phydev);
if (err)
return err;
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
if (bmcr & BMCR_FULLDPLX)
phydev->duplex = DUPLEX_FULL;
else
phydev->duplex = DUPLEX_HALF;
if (bmcr & BMCR_SPEED1000)
phydev->speed = SPEED_1000;
else if (bmcr & BMCR_SPEED100)
phydev->speed = SPEED_100;
else
phydev->speed = SPEED_10;
phydev->pause = 0;
phydev->asym_pause = 0;
lpa = phy_read(phydev, MII_LPA);
if (lpa < 0)
{
return lpa;
}
if (mode == REG_MODE_TP)
//link at TP port
{
if (phydev->duplex == DUPLEX_FULL)
{
phydev->pause = lpa & LPA_PAUSE_CAP ? 1 : 0;
phydev->asym_pause = lpa & LPA_PAUSE_ASYM ? 1 : 0;
}
}
else
//link at Fiber port
{
if (phydev->speed == SPEED_1000)
{
phydev->pause = lpa & LPA_1000XPAUSE ? 1 : 0;
phydev->asym_pause = lpa & LPA_1000XPAUSE_ASYM ? 1 : 0;
}
}
set_reg_mode(phydev, REG_MODE_AUTO);
return 0;
}
static int ip175c_config_aneg(struct phy_device *phydev)
{
if (phydev->mdio.addr == 4) /* WAN port */
genphy_config_aneg(phydev);
return 0;
}
static int ip1001c_config_aneg(struct phy_device *phydev)
{
int bmcr, adv;
int err;
set_reg_mode(phydev, REG_MODE_FIBER);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
if (AUTONEG_ENABLE != phydev->autoneg)
{
phydev->pause = 0;
phydev->asym_pause = 0;
bmcr = 0;
if (SPEED_1000 == phydev->speed)
bmcr |= BMCR_SPEED1000;
else if (SPEED_100 == phydev->speed)
bmcr |= BMCR_SPEED100;
if (DUPLEX_FULL == phydev->duplex)
bmcr |= BMCR_FULLDPLX;
err = phy_write(phydev, MII_BMCR, bmcr);
if (err < 0)
return err;
}
else
{
phydev->advertising &= phydev->supported;
adv = phy_read(phydev, MII_ADVERTISE);
if (adv < 0)
return adv;
adv &= ~(ADVERTISE_1000XPAUSE | ADVERTISE_1000XPSE_ASYM);
if (phydev->advertising & ADVERTISED_Pause)
adv |= ADVERTISE_1000XPAUSE;
if (phydev->advertising & ADVERTISED_Asym_Pause)
adv |= ADVERTISE_1000XPSE_ASYM;
err = phy_write(phydev, MII_ADVERTISE, adv);
if (err < 0)
return err;
bmcr = phy_read(phydev, MII_BMCR);
if (bmcr < 0)
return bmcr;
bmcr |= (BMCR_SPEED1000 | BMCR_SPEED100 | BMCR_FULLDPLX |
BMCR_ANENABLE | BMCR_ANRESTART);
err = phy_write(phydev, MII_BMCR, bmcr);
if (err < 0)
return err;
}
set_reg_mode(phydev, REG_MODE_TP);
phy_write(phydev, IP1001C_PAGE_SEL, 0);
err = genphy_config_aneg(phydev);
set_reg_mode(phydev, REG_MODE_AUTO);
return err;
}
static int ip101a_g_ack_interrupt(struct phy_device *phydev)
{
int err = phy_read(phydev, IP101A_G_IRQ_CONF_STATUS);
if (err < 0)
return err;
return 0;
}
static struct phy_driver icplus_driver[] = {
{
.phy_id
= 0x02430d80,
.name
= "ICPlus IP175C",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES,
.config_init
= &ip175c_config_init,
.config_aneg
= &ip175c_config_aneg,
.read_status
= &ip175c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430d90,
.name
= "ICPlus IP1001",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c50,
.name
= "ICPlus IP1001C FX PHY",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001c_config_init,
.config_aneg
= &ip1001c_config_aneg,
.read_status
= &ip1001c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c20,
.name
= "ICPlus IP1001C GPHY",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_GBIT_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.config_init
= &ip1001c_config_init,
.config_aneg
= &ip1001c_config_aneg,
.read_status
= &ip1001c_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
}, {
.phy_id
= 0x02430c54,
.name
= "ICPlus IP101A/G",
.phy_id_mask
= 0x0ffffff0,
.features
= PHY_BASIC_FEATURES | SUPPORTED_Pause |
SUPPORTED_Asym_Pause,
.flags
= PHY_HAS_INTERRUPT,
.ack_interrupt
= ip101a_g_ack_interrupt,
.config_init
= &ip101a_g_config_init,
.config_aneg
= &genphy_config_aneg,
.read_status
= &genphy_read_status,
.suspend
= genphy_suspend,
.resume
= genphy_resume,
} };
module_phy_driver(icplus_driver);
static struct mdio_device_id __maybe_unused icplus_tbl[] = {
{ 0x02430d80, 0x0ffffff0 },
{ 0x02430d90, 0x0ffffff0 },
{ 0x02430c50, 0x0ffffff0 },
{ 0x02430c20, 0x0ffffff0 },
{ 0x02430c54, 0x0ffffff0 },
{ }
};
MODULE_DEVICE_TABLE(mdio, icplus_tbl);

将驱动移植合成后，进行编译，当然添加进来的函数，可能编译有问题，请视情况进行驱动的更改

更改后重现编译驱动

开机加载：

复制代码

Starting kernel ...
uboot time: 2976857 us
[
0.000000@0] Booting Linux on physical CPU 0x0
[
0.000000@0] Linux version 4.9.113 (yxt-rd01@yxtrd01-Super-Server) (gcc version 6.3.1 20170109 (Linaro GCC 6.3-2017.02) ) #1 SMP PREEMPT Mon Aug 23 17:56:15 CST 2021
[
0.000000@0] CPU: ARMv7 Processor [411fd050] revision 0 (ARMv7), cr=10c5383d
[
0.000000@0] CPU: div instructions available: patching division code
[
0.000000@0] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[
0.000000@0] Machine model: Amlogic
[
0.000000@0] 07400000 - 07500000,
1024 KB, ramoops@0x07400000
[
0.000000@0] 05000000 - 05400000,
4096 KB, linux,secmon
[
0.000000@0] df800000 - e0000000,
8192 KB, linux,meson-fb
[
0.000000@0] 78000000 - 80000000,
131072 KB, linux,ion-dev
[
0.000000@0] ee000000 - f0800000,
40960 KB, linux,di_cma
[
0.000000@0] Reserved memory: regions without no-map are not yet supported
[
0.000000@0] 64c00000 - 78000000,
315392 KB, linux,codec_mm_cma
[
0.000000@0] f0900000 - f0900000,
0 KB, linux,codec_mm_reserved
[
0.000000@0] ea000000 - ee000000,
65536 KB, linux,vdin0_cma
[
0.000000@0] e6000000 - ea000000,
65536 KB, linux,vdin1_cma
[
0.000000@0] e4000000 - e6000000,
32768 KB, linux,vm0_cma
[
0.000000@0] cma: Reserved 8 MiB at 0xe3800000
[
0.000000@0] Memory policy: Data cache writealloc
[
0.000000@0] psci: probing for conduit method from DT.
[
0.000000@0] psci: PSCIv1.0 detected in firmware.
[
0.000000@0] psci: Using standard PSCI v0.2 function IDs
[
0.000000@0] psci: MIGRATE_INFO_TYPE not supported.
[
0.000000@0] psci: SMC Calling Convention v1.1
[
0.000000@0] percpu: Embedded 15 pages/cpu @ee167000 s32140 r8192 d21108 u61440
[
0.000000@0] Built 1 zonelists in Zone order, mobility grouping on.
Total pages: 983554
[
0.000000@0] Kernel command line: init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xff803000 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 hdr_policy=0 hdr_priority= otg_device=0 reboot_mode_android=normal logo=osd0,loaded,0x3d800000 vout=1080p60hz,enable panel_type=lcd_1 lcd_ctrl=0x00000000 hdmitx=,444,8bit hdmimode=1080p60hz hdmichecksum=0xcbc80000 dolby_vision_on=0 frac_rate_policy=1 hdmi_read_edid=1 cvbsmode=576cvbs osd_reverse=0 video_reverse=0 irq_check_en=0 androidboot.selinux=permissive androidboot.firstboot=0 jtag=disable androidboot.hardware=amlogic androidboot.bootloader=U-Boot 2015.01 androidboot.build.expect.baseband=N/A androidboot.serialno=1234567890 mac=90:0e:b3:2c:ea:da androidboot.mac=90:0e:b3:2c:ea:da androidboot.oem.key1=ATV00104319 androidboot.rpmb_state=0 ro rootwait skip_initramfs androidboot.dtbo_idx=0 --cmdline root=/dev/mmcblk0p18 buildvariant=userdebug
[
0.000000@0] am_vecm: boot hdr_policy: 0
[
0.000000@0] fb: osd0
[
0.000000@0] fb: loaded
[
0.000000@0] fb: 0x3d800000
[
0.000000@0] vout: 1080p60hz
[
0.000000@0] vout: enable: 1
[
0.000000@0] lcd: panel_type: lcd_1
[
0.000000@0] lcd: lcd_ctrl: 0x00000000
[
0.000000@0] vout: get hdmimode: 1080p60hz
[
0.000000@0] vout: get hdmi checksum: 0xcbc80000
[
0.000000@0] get_dolby_on: 0
[
0.000000@0] hdmitx: hdmitx boot frac_rate_policy: 1
[
0.000000@0] vout: get cvbsmode: 576cvbs
[
0.000000@0] vpp_axis_reverse: bootargs is 0
[
0.000000@0] DI: di_read_canvas_reverse: bootargs is 0.
[
0.000000@0] vdin_get_video_reverse: bootargs is 0.
[
0.000000@0] phlock_phase_config: bootargs is 0.
[
0.000000@0] PID hash table entries: 4096 (order: 2, 16384 bytes)
[
0.000000@0] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[
0.000000@0] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[
0.000000@0] Memory: 3211120K/3940352K available (14336K kernel code, 1336K rwdata, 5108K rodata, 1024K init, 1395K bss, 57488K reserved, 671744K cma-reserved, 2487296K highmem)
[
0.000000@0] Virtual kernel memory layout:
[
0.000000@0]
vector
: 0xffff0000 - 0xffff1000
(
4 kB)
[
0.000000@0]
fixmap
: 0xffc00000 - 0xfff00000
(3072 kB)
[
0.000000@0]
vmalloc : 0xf0800000 - 0xff800000
( 240 MB)
[
0.000000@0]
lowmem
: 0xc0000000 - 0xf0000000
( 768 MB)
[
0.000000@0]
pkmap
: 0xbfe00000 - 0xc0000000
(
2 MB)
[
0.000000@0]
modules : 0xbc000000 - 0xbfe00000
(
62 MB)
[
0.000000@0]
.text : 0xc0108000 - 0xc1000000
(15328 kB)
[
0.000000@0]
.init : 0xc1600000 - 0xc1700000
(1024 kB)
[
0.000000@0]
.data : 0xc1700000 - 0xc184e2e8
(1337 kB)
[
0.000000@0]
.bss : 0xc1850000 - 0xc19ace84
(1396 kB)
[
0.000000@0] zone:Normal, spaned pages:196352, total:196352
[
0.000000@0] zone:HighMem, spaned pages:788736, total:985088
[
0.000000@0] page_trace_pre_work, trace buffer:edc00000, size:3c2000, used:edfc2000, end:ee000000
[
0.000000@0] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[
0.000000@0] Preemptible hierarchical RCU implementation.
[
0.000000@0] Build-time adjustment of leaf fanout to 32.
[
0.000000@0] RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[
0.000000@0] RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=4
[
0.000000@0] NR_IRQS:16 nr_irqs:16 16
[
0.000000@0] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[
0.000000@0] g12a_aoclkc_init: register ao clk ok!
[
0.000000@0] Meson chip version = RevB (2B:B - 1:0)
[
0.000000@0] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[
0.000000@0] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[
0.000000@0] meson_g12a_gpu_init: register meson gpu clk
[
0.000000@0] meson_g12a_media_init: register meson media clk
[
0.000000@0] meson_g12a_misc_init: register amlogic g12a misc clks
[
0.000000@0] meson_g12a_misc_init: done.
[
0.000000@0] g12a_clkc_init initialization complete
[
0.000000@0] sm1 clk probe ok
[
0.000000@0] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[
0.000000@0] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[
0.000005@0] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[
0.000017@0] Switching to timer-based delay loop, resolution 41ns
[
0.000063@0] meson_bc_timer: mclk->mux_reg =f080c190,mclk->reg =f080e194
[
0.000719@0] Console: colour dummy device 80x30
[
0.000746@0] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[
0.000765@0] pid_max: default: 32768 minimum: 301
[
0.000823@0] thread_stack_cache_init, vmap:c012a980, bitmap:c0130400, cache page:e3400
[
0.000837@0] thread_stack_cache_init, allocation vm area:c012c180, addr:bc000000, size:3001000
[
0.000908@0] Security Framework initialized
[
0.000921@0] SELinux:
Initializing.
[
0.001011@0] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes)
[
0.001027@0] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes)
[
0.001835@0] CPU: Testing write buffer coherency: ok
[
0.001880@0] ftrace: allocating 44814 entries in 132 pages
[
0.087742@0] sched-energy: CPU device node has no sched-energy-costs
[
0.087763@0] CPU0: update cpu_capacity 1024
[
0.087772@0] CPU0: thread 0, cpu 0, socket 0, mpidr 81000000
[
0.087802@0] Setting up static identity map for 0x200000 - 0x200058
[
0.132505@0] secmon: can't fine clear_range
[
0.180429@1] CPU1: update cpu_capacity 1024
[
0.180434@1] CPU1: thread 0, cpu 1, socket 0, mpidr 81000100
[
0.212538@2] CPU2: update cpu_capacity 1024
[
0.212543@2] CPU2: thread 0, cpu 2, socket 0, mpidr 81000200
[
0.244661@3] CPU3: update cpu_capacity 1024
[
0.244665@3] CPU3: thread 0, cpu 3, socket 0, mpidr 81000300
[
0.244779@0] Brought up 4 CPUs
[
0.244810@0] SMP: Total of 4 processors activated (192.00 BogoMIPS).
[
0.244818@0] CPU: All CPU(s) started in SVC mode.
[
0.245754@0] addr:bc045cce is in kernel, size fix 4096->10, data:mode=0755
[
0.245901@0] devtmpfs: initialized
[
0.279236@0] VFP support v0.3: implementor 41 architecture 3 part 40 variant 5 rev 2
[
0.279780@0] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[
0.279807@0] futex hash table entries: 1024 (order: 4, 65536 bytes)
[
0.280025@0] pinctrl core: initialized pinctrl subsystem
[
0.281370@0] NET: Registered protocol family 16
[
0.285491@0] DMA: preallocated 256 KiB pool for atomic coherent allocations
[
0.285506@0] schedtune: init normalization constants...
[
0.285515@0] schedtune: no energy model data
[
0.285523@0] schedtune: disabled!
[
0.300359@0] cpuidle: using governor menu
[
0.300483@0] register canvas platform driver
[
0.300534@0] register rdma platform driver
[
0.304238@0] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[
0.304253@0] hw-breakpoint: maximum watchpoint size is 8 bytes.
[
0.304689@0] clkmsr: clkmsr: driver init
[
0.304700@0] codec_mm_module_init
[
0.304751@0] media_configs_system_init
[
0.305106@0] aml_watch_point_probe, in, wp:4
[
0.306026@0] pstore: using zlib compression
[
0.306721@0] console [pstore-1] enabled
[
0.306766@0] pstore: Registered ramoops as persistent store backend
[
0.306780@0] ramoops: attached 0x100000@0x7400000, ecc: 0/0
[
0.306794@0] ramoops: ramoops_io_en:0 1 old:0x0 ftrace_size:0x40000
[
0.309632@0] aml_iomap: amlogic iomap probe done
[
0.310388@0] vpu: driver version: v20190329(10-sm1)
[
0.310407@0] vpu: load vpu_clk: 666666667Hz(7)
[
0.310633@0] vpu: clktree_init
[
0.310722@0] vpu: vpu_probe OK
[
0.316853@0] clkmsr: msr_clk_reg0=f09c0004,msr_clk_reg2=f09c200c
[
0.316879@0] clkmsr: msr_ring_reg0=f09c45fc
[
0.320933@0] audio_clocks: audio_clocks_probe done
[
0.324951@0] aml_snd_reg_map[0], reg:ff661000, size:400
[
0.324987@0] aml_snd_reg_map[1], reg:ff660000, size:1000
[
0.325015@0] aml_snd_reg_map[2], reg:ff661400, size:400
[
0.325043@0] aml_snd_reg_map[3], reg:ff662000, size:1000
[
0.325070@0] aml_snd_reg_map[4], reg:ffd01000, size:1000
[
0.325097@0] aml_snd_reg_map[5], reg:ff661800, size:400
[
0.325127@0] aml_snd_reg_map[6], reg:ff661c00, size:104
[
0.325152@0] aml_snd_reg_map[7], reg:ff664000, size:104
[
0.325162@0] amlogic auge_snd_iomap probe done
[
0.327899@0] aml_vdac_config_probe: cpu_id:6, name:meson-sm1-vdac
[
0.328172@0] aml_vdac_probe: ok
[
0.328393@0] canvas_probe reg=ff638000,size=2000
[
0.328422@0] canvas maped reg_base =f09d8000
[
0.339273@0] rdma_probe,cpu_type:1, ver:0, len:8
[
0.339580@0] rdma_register, rdma_table_addr f0ad1000 rdma_table_addr_phy e3840000 reg_buf ed718000
[
0.339598@0] rdma_register success, handle 1 table_size 32768
[
0.339611@0] set_rdma_handle video rdma handle = 1.
[
0.339657@0] classs created ok
[
0.339681@0] classs file created ok
[
0.345338@0] cvbs_out: cvbsout_probe, cpu_id:6,name:meson-sm1-cvbsout
[
0.345533@0] cvbs_out: find performance_pal config
[
0.345557@0] cvbs_out: clk path:0x0
[
0.345570@0] vout: vout1: register server: cvbs_vout_server
[
0.345584@0] cvbs_out: register cvbs module server ok
[
0.345594@0] vout: vout2: register server: cvbs_vout2_server
[
0.345607@0] cvbs_out: register cvbs module vout2 server ok
[
0.345622@0] cvbs_out: chrdev devno 264241152 for disp
[
0.345939@0] cvbs_out: create cdev cvbs
[
0.345953@0] cvbs_out: cvbsout_probe OK
[
0.346817@0] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[
0.346951@0] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[
0.346963@0] codec_mm_probe ok
[
0.350222@0] earc_platform_probe
[
0.350341@0] regmap_resource, rx_cmdc, start:0xff663800, size:0x400
[
0.350472@0] regmap_resource, rx_dmac, start:0xff663c00, size:0x200
[
0.350586@0] regmap_resource, rx_top, start:0xff663e00, size:0x200
[
0.350658@0] EARC ff663800.earc: Can't get earc gate
[
0.350940@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350959@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350977@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350992@0] EARC ff663800.earc: Check whether support eARC TX
[
0.351039@0] EARC ff663800.earc: platform get irq earc_tx failed, Check whether support eARC TX
[
0.351053@0] earc_platform_probe, irq_earc_rx:48, irq_earc_tx:-6
[
0.351505@3] earc_rx_isr EARCRX_CMDC_IDLE1
[
0.351537@0] earc_platform_probe, register soc platform
[
0.688078@0] vgaarb: loaded
[
0.688466@0] SCSI subsystem initialized
[
0.688856@0] usbcore: registered new interface driver usbfs
[
0.688949@0] usbcore: registered new interface driver hub
[
0.689060@0] usbcore: registered new device driver usb
[
0.689226@0] Linux video capture interface: v2.00
[
0.689383@0] pps_core: LinuxPPS API ver. 1 registered
[
0.689395@0] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[
0.689433@0] PTP clock support registered
[
0.690399@0] secmon: reserve_mem_size:0x300000
[
0.690554@0] secmon secmon: assigned reserved memory node linux,secmon
[
0.690910@0] secmon: get page:ee27f000, 5000
[
0.690926@0] secmon: share in base: 0xc50fe000, share out base: 0xc50ff000
[
0.690938@0] secmon: phy_in_base: 0x50fe000, phy_out_base: 0x50ff000
[
0.691314@0] fb: osd_init_module
[
0.691977@0] fb: viu vsync irq: 58
[
0.692007@0] fb: viu2 vsync irq: 67
[
0.692145@0] 0x000000d8:Y=d8,U=0,V=0
[
0.692157@0] 0x000000d9:Y=d9,U=0,V=0
[
0.692168@0] 0x000000da:Y=da,U=0,V=0
[
0.692180@0] 0x000000db:Y=db,U=0,V=0
[
0.692190@0] 0x000000dc:Y=dc,U=0,V=0
[
0.692202@0] 0x000000dd:Y=dd,U=0,V=0
[
0.692628@0] fb: osd_rdma_init: rdma_table p=0xe3848000,op=0xe3848000 , v=0xf0ada000
[
0.692705@0] rdma_register, rdma_table_addr f0adc000 rdma_table_addr_phy e3849000 reg_buf ed7c6000
[
0.692721@0] rdma_register success, handle 2 table_size 4096
[
0.692734@0] fb: osd_rdma_init:osd rdma handle = 2.
[
0.692759@0] fb: mem_size: 0x800000
[
0.692769@0] fb: mem_size: 0x1980000
[
0.692779@0] fb: mem_size: 0x100000
[
0.692789@0] fb: mem_size: 0x100000
[
0.692799@0] fb: mem_size: 0x800000
[
0.692883@0] meson-fb fb: assigned reserved memory node linux,meson-fb
[
0.692897@0] fb: reserved memory base:0xdf800000, size:800000
[
0.693332@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.693350@0] fb: init fbdev bpp is:32
[
0.695375@0] fb: set osd0 reverse as NONE
[
0.695402@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.702629@0] fb: osd probe OK
[
0.703686@0] hdmitx: system: amhdmitx_probe start
[
0.703701@0] hdmitx: system: Ver: 20190815
[
0.703741@0] hdmitx: system: hdmitx_device.chip_type : 12
[
0.703794@0] hdmitx: system: not find match pwr-ctl
[
0.703846@0] hdmitx: system: not find drm_amhdmitx
[
0.703888@0] hdmitx: system: hpd irq = 51
[
0.704012@0] hdmitx: system: hdcp22_tx_skp failed to probe
[
0.704030@0] hdmitx: system: hdcp22_tx_esm failed to probe
[
0.704672@0] hdmitx: hdmitx20: Mapped PHY: 0xffd00000
[
0.704702@0] hdmitx: hdmitx20: Mapped PHY: 0xff634400
[
0.704726@0] hdmitx: hdmitx20: Mapped PHY: 0xff900000
[
0.704746@0] hdmitx: hdmitx20: Mapped PHY: 0xff800000
[
0.704763@0] hdmitx: hdmitx20: Mapped PHY: 0xff63c000
[
0.704777@0] hdmitx: hdmitx20: Mapped PHY: 0xffd00000
[
0.704792@0] hdmitx: hdmitx20: Mapped PHY: 0xff608000
[
0.704808@0] hdmitx: hdmitx20: Mapped PHY: 0xff600000
[
0.704823@0] hdmitx: hdmitx20: Mapped PHY: 0xffe01000
[
0.704843@0] hdmitx: hw: alread display in uboot 0x10
[
0.704882@0] hdmitx: hw: avmute set to 1
[
0.704897@0] vout: vout1: register server: hdmitx_vout_server
[
0.704910@0] vout: vout2: register server: hdmitx_vout2_server
[
0.705757@0] hdmitx: system: fmt_attr 444,8bit
[
0.705917@0] hdmitx: system: amhdmitx_probe end
[
0.706913@0] lcd: driver version: 20200102(8-sm1)
[
0.713270@0] lcd: detect mode: tablet, fr_auto_policy: 0, key_valid: 0
[
0.713290@0] lcd: detect resume_type: 0
[
0.713557@0] lcd: lcd_clktree_probe
[
0.713571@0] lcd: status: 0
[
0.713585@0] vout: vout1: register server: lcd_vout_server
[
0.713599@0] vout: vout2: register server: lcd_vout2_server
[
0.713613@0] lcd: lcd_get_config from dts
[
0.713634@0] lcd: no range_setting
[
0.713721@0] lcd: P070ACB_FT, mipi, 8bit, 600x1024
[
0.713743@0] lcd: pixel_clk = 49.434MHz, bit_rate = 395.472MHz
[
0.714151@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.714165@0] fb: current vmode=invalid, cmd: 0x20000
[
0.714178@0] lcd: lcd_probe ok
[
0.714707@0] vout: create vout attribute OK
[
0.714916@0] vout: vout_fops_create OK
[
0.714931@0] vout: vout1: register server: nulldisp_vout_server
[
0.715080@0] vout: tvout monitor interval:500(ms), timeout cnt:20
[
0.715113@0] hdmitx: hdmitx_set_current_vmode[4726]
[
0.715124@0] hdmitx: system: recalc before 1080p60hz 60 1
[
0.715136@0] hdmitx: system: recalc after 1080p60hz 2997 50
[
0.715145@0] hdmitx: alread display in uboot
[
0.715156@0] vout: init mode 1080p60hz set ok
[
0.715167@0] vout: aml_tvout_mode_monitor
[
0.715185@0] vout: aml_vout_probe OK
[
0.716686@0] chip type:0x2b
[
0.717298@0] MEMORY:[100000+f0800000]
[
0.717316@0] ramdump_probe, storage device:data
[
0.717327@0] NO valid ramdump args:0 0
[
0.717354@0] ramdump_probe, set sticky to 8f09
[
0.717587@0] VFD Driver
[
0.717901@0] sm1628_init+++++++++++
[
0.717912@0] ---MDrv_FrontPnl_Init---.
[
0.717923@0] ---MDrv_TM1623_Init---++++++++++++.
[
0.717945@0] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.718005@0] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.718060@0] ---MDrv_TM1623_ShowBoot---++++++++++++.
[
0.728303@1] ---MDrv_TM1623_Write_Adr_Data---++++++++++++.
[
0.728350@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728416@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728480@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728541@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728601@1] ---hardware_init---0++++++++++++.
[
0.728614@1] vfd_ioremap--------sync time--------------
[
0.728709@1] power vfd key(116) registed.
[
0.728722@1] volumn-up vfd key(114) registed.
[
0.728733@1] volumn-down vfd key(115) registed.
[
0.728743@1] menu vfd key(139) registed.
[
0.728755@1] up vfd key(402) registed.
[
0.728766@1] down vfd key(403) registed.
[
0.728777@1] enter vfd key(28) registed.
[
0.728920@1] device_create_file completed
[
0.729276@1] input: vfd_keypad as /devices/platform/meson-vfd/input/input0
[
0.729293@1] input_register_device completed
[
0.729317@1] vfd config major:244
[
0.730673@1] Advanced Linux Sound Architecture Driver Initialized.
[
0.731665@1] Bluetooth: Core ver 2.22
[
0.731801@1] NET: Registered protocol family 31
[
0.731816@1] Bluetooth: HCI device and connection manager initialized
[
0.731841@1] Bluetooth: HCI socket layer initialized
[
0.731861@1] Bluetooth: L2CAP socket layer initialized
[
0.731913@1] Bluetooth: SCO socket layer initialized
[
0.732803@1] NetLabel: Initializing
[
0.732820@1] NetLabel:
domain hash size = 128
[
0.732829@1] NetLabel:
protocols = UNLABELED CIPSOv4
[
0.732917@1] NetLabel:
unlabeled traffic allowed by default
[
0.738516@1] clocksource: Switched to clocksource arch_sys_counter
[
0.824196@1] VFS: Disk quotas dquot_6.6.0
[
0.824289@1] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[
0.832603@3] hdmitx: edid: EDID Parser:
[
0.832640@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832650@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832661@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832692@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832711@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832721@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832731@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832742@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832752@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832773@3] [RX]-up_phy_addr = 1
[
0.832807@3] hdmitx: edid: get dtd0 vic: 19
[
0.832821@3] hdmitx: hdmitx: get PMT vic: 16
[
0.832836@3] hdmitx: edid: find IEEEOUT
[
0.832880@3] hdmitx: edid: check sum valid
[
0.832891@3] hdmitx: edid: check sum valid
[
0.832907@3] hdmitx: edid: check sum valid
[
0.832917@3] hdmitx: edid: check sum valid
[
0.832948@3] hdmitx: edid: blk0 raw data
[
0.832996@3] hdmitx: edid:
[
0.832996@3] 00ffffffffffff004c2d630b47324b300a18010380301b782ad111a55555a028
[
0.832996@3] 0d5054bfef80714f81c0810081809500a9c0b3000101023a801871382d40582c
[
0.832996@3] 4500dd0c1100001e011d007251d01e206e285500dd0c1100001e000000fd0032
[
0.832996@3] 4b1e5111000a202020202020000000fc00533232443339300a202020202001cb
[
0.832996@3]
[
0.832996@3]
[
0.833020@3] hdmitx: edid: blk1 raw data
[
0.833064@3] hdmitx: edid:
[
0.833064@3] 02031af14690041f131203230907078301000066030c00100080011d00bc52d0
[
0.833064@3] 1e20b8285540dd0c1100001e8c0ad090204031200c405500dd0c110000188c0a
[
0.833064@3] d08a20e02d10103e9600dd0c1100001800000000000000000000000000000000
[
0.833064@3] 00000000000000000000000000000000000000000000000000000000000000c8
[
0.833064@3]
[
0.833064@3]
[
0.833092@3] hdmitx: system: update rx hdr info 0
[
0.833816@0] hdmitx: system: irq 80000002 0
[
0.833832@0] earc_hdmitx_hpdst, plugin
[
0.842196@1] dtv_dmd:[amldtvdemod..]aml_dtvdemod_init.
[
0.843384@1] NET: Registered protocol family 2
[
0.844250@1] TCP established hash table entries: 8192 (order: 3, 32768 bytes)
[
0.844325@1] TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
[
0.844407@1] TCP: Hash tables configured (established 8192 bind 8192)
[
0.844520@1] UDP hash table entries: 512 (order: 2, 16384 bytes)
[
0.844571@1] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[
0.844806@1] NET: Registered protocol family 1
[
0.848199@1] wifi: power_on_pin_OD = 0;
[
0.848244@1] aml_wifi wifi: [wifi_dev_probe] no power_on_pin2
[
0.848519@1] aml_wifi wifi: [pwm_double_channel_conf_dt] wifi pwm dt ok
[
0.848561@1] aml_wifi wifi: [pwm_double_channel_conf] wifi pwm conf ok
[
0.848576@1] aml_wifi wifi: [wifi_dev_probe] dhd_static_buf setup
[
0.848588@1] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem(): 100.10.545.3
[
0.849652@1] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem prealloc ok
[
0.849671@1] aml_wifi wifi: [wifi_dev_probe] interrupt_pin=483
[
0.849684@1] aml_wifi wifi: [wifi_dev_probe] irq_num=0, irq_trigger_type=1
[
0.849697@1] aml_wifi wifi: [wifi_dev_probe] power_on_pin=482
[
0.849710@1] aml_wifi wifi: [wifi_dev_probe] clock_32k_pin=0
[
0.850116@1] aml_wifi wifi: [wifi_setup_dt] wifi_setup_dt
[
0.850293@1] aml_wifi wifi: [wifi_setup_dt] irq num is:(79)
[
0.850309@1] aml_wifi wifi: [wifi_setup_dt] interrupt_pin(483)
[
0.850343@1] aml_wifi wifi: [wifi_setup_dt] power_on_pin(482)
[
0.856639@1] enable_pmuserenr_all() start
[
0.856683@1] enable_pmuserenr_all() end
[
0.856720@1] hw perfevents: clusterb_enabled = 0
[
0.856737@1] hw perfevents: cpumasks 0xf, 0x0
[
0.856797@1] hw perfevents: cluster A irq = 25
[
0.856949@1] hw perfevents: enabled with armv7_cortex_a15 PMU driver, 7 counters available
[
0.862789@1] audit: initializing netlink subsys (disabled)
[
0.862911@1] audit: type=2000 audit(0.800:1): initialized
[
0.864497@2] workingset: timestamp_bits=30 max_order=20 bucket_order=0
[
0.877131@2] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[
0.877353@0] clear:29c00000, free:29c00000, tick:150445 us
[
0.877590@2] exFAT: Version 1.2.9
[
0.879154@2] Registering sdcardfs 0.1
[
0.879476@2] ntfs: driver 2.1.32 [Flags: R/O].
[
0.879869@2] jffs2: version 2.2. (NAND) (SUMMARY)
?2001-2006 Red Hat, Inc.
[
0.880860@2] fuse init (API version 7.26)
[
0.887915@0] NET: Registered protocol family 38
[
0.887939@0] Key type asymmetric registered
[
0.887952@0] Asymmetric key parser 'x509' registered
[
0.888175@0] bounce: pool size: 64 pages
[
0.888473@0] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 241)
[
0.888489@0] io scheduler noop registered (default)
[
0.888500@0] io scheduler deadline registered
[
0.888537@0] io scheduler cfq registered
[
0.902914@1] random: fast init done
[
0.902972@1] random: crng init done
[
0.917950@0] brd: module loaded
[
0.925875@0] loop: module loaded
[
0.926970@0] zram: Added device: zram0
[
0.927419@0] mtdoops: mtd device (mtddev=name/number) must be supplied
[
0.928645@0] libphy: Fixed MDIO Bus: probed
[
0.929071@0] tun: Universal TUN/TAP device driver, 1.6
[
0.929084@0] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[
0.930209@0]
REG0:Addr = f0c3e540
[
0.930235@0]
ee eth reset:Addr = f0cf9008
[
0.930260@0] ----auto_cali_idx 255
[
0.931097@0] meson6-dwmac ff3f0000.ethernet: no reset control found
[
0.931117@0] stmmac - user ID: 0x11, Synopsys ID: 0x37
[
0.931127@0]
Ring mode enabled
[
0.931141@0]
DMA HW capability register supported
[
0.931154@0]
Normal descriptors
[
0.931165@0]
RX Checksum Offload Engine supported
[
0.931175@0] COE Type 2
[
0.931186@0]
TX Checksum insertion supported
[
0.931195@0]
Wake-Up On Lan supported
[
0.931273@0]
Enable RX Mitigation via HW Watchdog Timer
[
0.934375@0] libphy: stmmac: probed
[
0.934395@0] eth%d: PHY ID 02430c20 at 2 IRQ POLL (stmmac-0:02) active
[
0.936413@0] PPP generic driver version 2.4.2
[
0.936694@0] PPP BSD Compression module registered
[
0.936710@0] PPP Deflate Compression module registered
[
0.936738@0] PPP MPPE Compression module registered
[
0.936751@0] NET: Registered protocol family 24
[
0.936911@0] usbcore: registered new interface driver asix
[
0.937027@0] usbcore: registered new interface driver ax88179_178a
[
0.937119@0] usbcore: registered new interface driver cdc_ether
[
0.937197@0] usbcore: registered new interface driver net1080
[
0.937269@0] usbcore: registered new interface driver cdc_subset
[
0.937340@0] usbcore: registered new interface driver zaurus
[
0.937438@0] usbcore: registered new interface driver cdc_ncm
[
0.938316@0] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[
0.938333@0] ehci-pci: EHCI PCI platform driver
[
0.938430@0] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[
0.938465@0] ohci-pci: OHCI PCI platform driver
[
0.939382@0] usbcore: registered new interface driver cdc_acm
[
0.939399@0] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[
0.939496@0] usbcore: registered new interface driver usb-storage
[
0.939653@0] usbcore: registered new interface driver usbserial
[
0.939724@0] usbcore: registered new interface driver pl2303
[
0.939805@0] usbserial: USB Serial support registered for pl2303
[
0.940352@0] mousedev: PS/2 mouse device common for all mice
[
0.940902@0] usbcore: registered new interface driver xpad
[
0.941082@0] i2c /dev entries driver
[
0.941413@0] IR NEC protocol handler initialized
[
0.941428@0] IR RC5(x/sz) protocol handler initialized
[
0.941440@0] IR RC6 protocol handler initialized
[
0.941452@0] IR JVC protocol handler initialized
[
0.941462@0] IR Sony protocol handler initialized
[
0.941473@0] IR SANYO protocol handler initialized
[
0.941483@0] IR Sharp protocol handler initialized
[
0.941496@0] IR MCE Keyboard/mouse protocol handler initialized
[
0.941507@0] IR XMP protocol handler initialized
[
0.941641@0] usbcore: registered new interface driver uvcvideo
[
0.941653@0] USB Video Class driver (1.1.1)
[
0.941744@0] usbcore: registered new interface driver cx231xx
[
0.941760@0] md: linear personality registered for level -1
[
0.942450@0] device-mapper: ioctl: 4.35.0-ioctl (2016-06-23) initialised: dm-devel@redhat.com
[
0.942678@0] device-mapper: verity-avb: AVB error handler initialized with vbmeta device:
[
0.942695@0] Bluetooth: HCI UART driver ver 2.3
[
0.942708@0] Bluetooth: HCI UART protocol H4 registered
[
0.943075@0] cpuidle: enable-method property 'psci' found operations
[
0.943300@0] cpuidle: enable-method property 'psci' found operations
[
0.943445@0] cpuidle: enable-method property 'psci' found operations
[
0.943628@0] cpuidle: enable-method property 'psci' found operations
[
0.945313@0] ledtrig-cpu: registered to indicate activity on CPUs
[
0.945898@0] hidraw: raw HID events driver (C) Jiri Kosina
[
0.946459@0] usbcore: registered new interface driver usbhid
[
0.946473@0] usbhid: USB HID core driver
[
0.946734@0] ashmem: initialized
[
0.948293@0] value of voltage_tolerance 0
[
0.948316@0] meson_cpufreq_init:don't find the node <dynamic_gp1_clk>
[
0.948328@0] value of gp1_clk_target 0
[
0.949780@0] cpu cpu0: meson_cpufreq_init: CPU 0 initialized
[
0.952475@0] ff803000.serial: clock gate not found
[
0.952527@0] meson_uart ff803000.serial: ==uart0 reg addr = f0cfd000
[
0.952593@0] ff803000.serial: ttyS0 at MMIO 0xff803000 (irq = 36, base_baud = 1500000) is a meson_uart
[
0.952613@0] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 0 to 115200
[
1.021022@3] earc_rx_isr EARCRX_CMDC_IDLE2
[
1.360262@0] hdmitx: system: ###plugin!
[
1.360264@0] ###hdmi turn on!
[
1.503145@0] hdmitx: edid: EDID Parser:
[
1.503149@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503153@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503156@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503163@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503168@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503170@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503173@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503174@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503175@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503183@0] [RX]-up_phy_addr = 1
[
1.503194@0] hdmitx: edid: get dtd0 vic: 19
[
1.503198@0] hdmitx: hdmitx: get PMT vic: 16
[
1.503202@0] hdmitx: edid: find IEEEOUT
[
1.503224@0] hdmitx: edid: check sum valid
[
1.503225@0] hdmitx: edid: check sum valid
[
1.503230@0] hdmitx: edid: check sum valid
[
1.503231@0] hdmitx: edid: check sum valid
[
1.503235@0] hdmitx: edid: blk0 raw data
[
1.503259@0] hdmitx: edid:
[
1.503259@0] 00ffffffffffff004c2d630b47324b300a18010380301b782ad111a55555a028
[
1.503259@0] 0d5054bfef80714f81c0810081809500a9c0b3000101023a801871382d40582c
[
1.503259@0] 4500dd0c1100001e011d007251d01e206e285500dd0c1100001e000000fd0032
[
1.503259@0] 4b1e5111000a202020202020000000fc00533232443339300a202020202001cb
[
1.503259@0]
[
1.503259@0]
[
1.503264@0] hdmitx: edid: blk1 raw data
[
1.503286@0] hdmitx: edid:
[
1.503286@0] 02031af14690041f131203230907078301000066030c00100080011d00bc52d0
[
1.503286@0] 1e20b8285540dd0c1100001e8c0ad090204031200c405500dd0c110000188c0a
[
1.503286@0] d08a20e02d10103e9600dd0c1100001800000000000000000000000000000000
[
1.503286@0] 00000000000000000000000000000000000000000000000000000000000000c8
[
1.503286@0]
[
1.503286@0]
[
1.503290@0] hdmitx: system: update physcial size: 480 270
[
1.503296@0] hdmitx: hw: set audio
[
1.503303@0] hdmitx: hw: hdmitx tx_aud_src = 0
[
1.503315@0] hdmitx: fs = 0, cd = 4, tmds_clk = 148352
[
1.503319@0] hdmitx: hw: aud_n_para = 5824
[
1.503327@0] hdmitx: hw: set channel status
[
3.741081@2] console [ttyS0] enabled
[
3.745313@2] meson_uart ffd24000.serial: ==uart1 reg addr = f0eae000
[
3.751171@2] ffd24000.serial: ttyS1 at MMIO 0xffd24000 (irq = 50, base_baud = 1500000) is a meson_uart
[
3.762608@2] amlogic-new-usb2-v2 ffe09000.usb2phy: USB2 phy probe:phy_mem:0xffe09000, iomap phy_base:0xf0ee2000
[
3.771313@2] amlogic-new-usb3-v2 ffe09080.usb3phy: USB3 phy probe:phy_mem:0xffe09080, iomap phy_base:0xf0eed080
[
3.782067@2] meson-g12a-pinctrl pinctrl@ff634480: pin GPIOZ_0 already requested by ff3f0000.ethernet; cannot claim for ffd1f000.i2c
[
3.792645@2] meson-g12a-pinctrl pinctrl@ff634480: pin-1 (ffd1f000.i2c) status -22
[
3.800175@2] meson-g12a-pinctrl pinctrl@ff634480: could not request pin 1 (GPIOZ_0) from group i2c0_sda_z0
on device pinctrl-meson
[
3.812048@2] meson-i2c ffd1f000.i2c: Error applying setting, reverse things back
[
3.819509@2] meson-i2c: probe of ffd1f000.i2c failed with error -22
[
3.828012@2] Error: Driver 'meson_reset' is already registered, aborting...
[
3.833660@2] aml_dma ff63e000.aml_dma: Aml dma
[
3.839597@2] aml_aes_dma ff63e000.aml_dma:aml_aes: Aml AES_dma
[
3.846511@2] aml_sha_dma ff63e000.aml_dma:aml_sha: Aml SHA1/SHA224/SHA256 dma
[
3.850938@2] meson-remote: Driver init
[
3.854436@2] meson-remote: remote_probe
[
3.858163@2] meson-remote ff808040.rc: protocol = 0x1
[
3.863279@2] meson-remote ff808040.rc: led_blink = 1
[
3.868290@2] meson-remote ff808040.rc: led_blink_frq
= 100
[
3.874010@2] meson-remote ff808040.rc: platform_data irq =49
[
3.879687@2] meson-remote ff808040.rc: custom_number = 3
[
3.885053@2] meson-remote ff808040.rc: ptable->map_size = 50
[
3.890740@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-1
[
3.897937@2] meson-remote ff808040.rc: ptable->custom_code = 0xfb04
[
3.904259@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
3.910417@2] meson-remote ff808040.rc: fn_key_scancode not config yet
[
3.916913@2] meson-remote ff808040.rc: cursor_left_scancode not config yet
[
3.923842@2] meson-remote ff808040.rc: cursor_right_scancode not config yet
[
3.930864@2] meson-remote ff808040.rc: cursor_up_scancode not config yet
[
3.937622@2] meson-remote ff808040.rc: cursor_down_scancode not config yet
[
3.944557@2] meson-remote ff808040.rc: cursor_ok_scancode not config yet
[
3.951344@2] meson-remote ff808040.rc: ptable->map_size = 44
[
3.957034@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-2
[
3.964232@2] meson-remote ff808040.rc: ptable->custom_code = 0xfe01
[
3.970559@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
3.976739@2] meson-remote ff808040.rc: ptable->map_size = 17
[
3.982431@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-3
[
3.989623@2] meson-remote ff808040.rc: ptable->custom_code = 0xbd02
[
3.995952@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
4.002104@2] meson-remote ff808040.rc: fn_key_scancode not config yet
[
4.008602@2] meson-remote ff808040.rc: cursor_left_scancode not config yet
[
4.015535@2] meson-remote ff808040.rc: cursor_right_scancode not config yet
[
4.022556@2] meson-remote ff808040.rc: cursor_up_scancode not config yet
[
4.029316@2] meson-remote ff808040.rc: cursor_down_scancode not config yet
[
4.036247@2] meson-remote ff808040.rc: cursor_ok_scancode not config yet
[
4.043015@2] meson-remote ff808040.rc: default protocol = 0x1 and id = 0
[
4.049769@2] meson-remote ff808040.rc: reg=0x0, val=0x1f40190
[
4.055575@2] meson-remote ff808040.rc: reg=0x4, val=0x12c00c8
[
4.061384@2] meson-remote ff808040.rc: reg=0x8, val=0x960050
[
4.067104@2] meson-remote ff808040.rc: reg=0xc, val=0x480028
[
4.072821@2] meson-remote ff808040.rc: reg=0x10, val=0x70fa0013
[
4.078805@2] meson-remote ff808040.rc: reg=0x18, val=0x8616800
[
4.084695@2] meson-remote ff808040.rc: reg=0x1c, val=0x9f00
[
4.090337@2] meson-remote ff808040.rc: reg=0x20, val=0x0
[
4.095703@2] meson-remote ff808040.rc: reg=0x24, val=0x0
[
4.101075@2] meson-remote ff808040.rc: reg=0x28, val=0x0
[
4.107777@2] input: aml_keypad as /devices/platform/ff808040.rc/input/input1
[
4.114939@2] meson-remote: IR XMP protocol handler initialized
[
4.123591@2] ion_dev soc:ion_dev: assigned reserved memory node linux,ion-dev
[
4.127211@2] ge2d: ge2d_init_module
[
4.130538@2] ge2d: ge2d_dev major:235
[
4.134168@2] ge2d: clock source clk_ge2d_gate ed399f40
[
4.139304@2] ge2d: clock clk_ge2d source ed5eeb40
[
4.143919@2] ge2d: clock source clk_vapb_0 ed5ee9c0
[
4.148832@2] ge2d: ge2d init clock is 500000000 HZ, VPU clock is 666666656 HZ
[
4.156142@2] ge2d: ge2d clock is 499 MHZ
[
4.160020@2] ge2d: find address resource
[
4.164019@2] ge2d: map io source 0xff940000,size=65536 to 0xf1010000
[
4.170409@2] ge2d: reserved mem init failed
[
4.174662@2] ge2d: ge2d: pdev=ed6ec800, irq=57, clk=ed399f40
[
4.180417@2] ge2d: ge2d start monitor
[
4.184205@3] ge2d: ge2d workqueue monitor start
[
4.184726@2] [tsync_pcr_init]init success.
[
4.184959@2] amvideom vsync irq: 58
[
4.185001@2] create_ge2d_work_queue video task ok
[
4.185740@2] hdmitx: hdcp: hdmitx_hdcp_init
[
4.186379@2] vout: vout2: create vout2 attribute OK
[
4.186516@2] vout: vout2: vout2_fops_create OK
[
4.186707@2] vout: vout2: clktree_init
[
4.186712@2] vout: vout2: register server: nulldisp_vout2_server
[
4.186846@2] vout: vout2: init mode null set ok
[
4.186848@2] vout: vout2: aml_vout2_probe OK
[
4.186980@2] DI: di_module_init ok.
[
4.187211@2] DI: di_probe:
[
4.187215@2] DI: di_probe: major 509
[
4.187440@2] deinterlace deinterlace: assigned reserved memory node linux,di_cma
[
4.187447@2] di:flag_cma=1
[
4.187451@2] DI: CMA size 0x2800000.
[
4.187472@2] pre_irq:77
[
4.187483@2] post_irq:78
[
4.187486@2] DI: di_probe allocate rdma channel 0.
[
4.187493@2] di_get_vpu_clkb: get clk vpu error.
[
4.187497@2] DI: vpu clkb <334000000, 667000000>
[
4.187530@2] get clkb rate:333333328
[
4.187538@2] DI:enable vpu clkb.
[
4.187555@2] 0x000000e1:Y=e1,U=0,V=0
[
4.187558@2] 0x000000e2:Y=e2,U=0,V=0
[
4.187560@2] 0x000000e3:Y=e3,U=0,V=0
[
4.187561@2] 0x000000f0:Y=f0,U=0,V=0
[
4.187563@2] 0x000000f1:Y=f1,U=0,V=0
[
4.187565@2] 0x000000f2:Y=f2,U=0,V=0
[
4.187568@2] 0x000000f3:Y=f3,U=0,V=0
[
4.187569@2] 0x000000f4:Y=f4,U=0,V=0
[
4.187571@2] 0x000000f5:Y=f5,U=0,V=0
[
4.187573@2] 0x000000f6:Y=f6,U=0,V=0
[
4.187581@2] 0x000000f7:Y=f7,U=0,V=0
[
4.187583@2] 0x000000f8:Y=f8,U=0,V=0
[
4.187584@2] 0x000000f9:Y=f9,U=0,V=0
[
4.187586@2] 0x000000fa:Y=fa,U=0,V=0
[
4.187589@2] 0x000000fb:Y=fb,U=0,V=0
[
4.187590@2] 0x000000fc:Y=fc,U=0,V=0
[
4.187598@2] 0x000000fd:Y=fd,U=0,V=0
[
4.187600@2] 0x000000fe:Y=fe,U=0,V=0
[
4.187602@2] 0x000000ff:Y=ff,U=0,V=0
[
4.187603@2] 0x0000003a:Y=3a,U=0,V=0
[
4.187605@2] 0x0000003b:Y=3b,U=0,V=0
[
4.187607@2] 0x0000003c:Y=3c,U=0,V=0
[
4.187611@2] 0x0000003d:Y=3d,U=0,V=0
[
4.187612@2] 0x0000003e:Y=3e,U=0,V=0
[
4.187614@2] 0x0000003f:Y=3f,U=0,V=0
[
4.187617@2] DI: support multi decoding 61~62~63.
[
4.187827@2] DI: di_probe:Di use HRTIMER
[
4.187972@2] DI: di_probe:ok
[
4.188036@2] dim:dim_module_init
[
4.188402@2] dim:dim_module_init finish
[
4.188405@2] dil:dil_init.
[
4.188644@2] dil:dil_init ok.
[
4.188677@2] vdin_drv_init: major 508
[
4.192962@2] rdma_register, rdma_table_addr f1007000 rdma_table_addr_phy e384a000 reg_buf c93ae600
[
4.192966@2] rdma_register success, handle 3 table_size 512
[
4.192969@2] vdin_drv_probe:vdin.0 rdma hanld 3.
[
4.193253@2] vdin vdin0: assigned reserved memory node linux,vdin0_cma
[
4.193256@2]
[
4.193256@2]
vdin memory resource done.
[
4.193261@2] vdin0 cma_mem_size = 64 MB
[
4.193265@2] vdin0 irq: 55 rdma irq: 2
[
4.193269@2] set_canvas_manual = 0
[
4.193300@2] get fclk_div5 err
[
4.193304@2] vdin_drv_probe: vdin cannot get msr clk !!!
[
4.193331@2] vdin_drv_probe: driver initialized ok
[
4.193430@2] rdma_register, rdma_table_addr f1009000 rdma_table_addr_phy e384b000 reg_buf c93aea00
[
4.193433@2] rdma_register success, handle 4 table_size 512
[
4.193437@2] vdin_drv_probe:vdin.1 rdma hanld 4.
[
4.193654@2] vdin vdin1: assigned reserved memory node linux,vdin1_cma
[
4.193656@2]
[
4.193656@2]
vdin memory resource done.
[
4.193661@2] vdin1 cma_mem_size = 64 MB
[
4.193664@2] vdin1 irq: 56 rdma irq:
videosync_create_instance dev_s ed055c00,dev_s->dev ed076f00
[
4.199991@0] videosync_create_instance reg videosync.0
[
4.200074@0] aml_vecm_init:module init
[
4.200080@1] videosync_thread started
[
4.200454@0]
[
4.200454@0]
VECM probe start
[
4.200785@0] Can't find
detect_colorbar.
[
4.200788@0] Can't find
detect_face.
[
4.200790@0] Can't find
detect_corn.
[
4.200792@0] Can't find
wb_sel.
[
4.200794@0] hdr:Can't find
cfg_en_osd_100.
[
4.200802@0] amlogic, vecm
[
4.200802@0] vlock dt support: 1
[
4.200804@0] vlock dt new_fsm: 0
[
4.200806@0] vlock dt hwver: 0
[
4.200808@0] vlock dt phlock_en: 0
[
4.200811@0] Can't find
vlock_en.
[
4.200812@0] Can't find
vlock_mode.
[
4.200816@0] Can't find
vlock_pll_m_limit.
[
4.200818@0] Can't find
vlock_line_limit.
[
4.200838@0] lcd vlock_en=1, vlock_mode=0x4
[
4.200848@0] param_config vlock_en:1 md=0x4
[
4.200853@0] vlock: maxLine 524,maxPixel 1715
[
4.200856@0] vlock_status_init vlock_en:1
[
4.200859@0] pixel_probe: vpp probe func error!
[
4.200866@0] aml_vecm_probe: ok
[
4.200931@0] amdolby_vision_init:module init
[
4.201367@0]
[
4.201367@0]
amdolby_vision probe start & ver: 20181220
[
4.201375@0]
[
4.201375@0]
cpu_id=2 tvmode=0
[
4.201548@0] dolby_vision_init_receiver(dvel)
[
4.201553@0] dolby_vision_init_receiver: dvel
[
4.201753@0] amdolby_vision_probe: ok
[
4.201762@0] g12 dovi disable in uboot
[
4.201829@0] prime_sl module init
[
4.202448@0] vm_init .
[
4.203609@0] meson-mmc: mmc driver version: 3.02, 2017-05-15: New Emmc Host Controller
[
4.204615@0] meson-mmc: >>>>>>>>hostbase f1042000, dmode
[
4.204908@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
4.204911@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
4.206772@0] hdmitx: hdmitx_set_drm_pkt: tf=1, cf=1, colormetry=0
[
4.252231@0] meson-mmc: meson_mmc_probe() : success!
[
4.257368@1] meson-mmc: >>>>>>>>hostbase f10cc000, dmode
[
4.257429@1] meson-mmc: gpio_cd = 1ca
[
4.298547@1] meson-mmc: meson_mmc_probe() : success!
[
4.299896@0] meson-mmc: >>>>>>>>hostbase f1156000, dmode
[
4.300172@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
4.300177@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
4.341331@0] meson-aml-mmc ffe07000.emmc: divider requested rate 200000000 != actual rate 199999997: ret=0
[
4.341336@0] meson-mmc: actual_clock :199999997, HHI_nand: 0x80
[
4.341339@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000245
[
4.341345@0] meson-mmc: Data 1 aligned delay is 0
[
4.341349@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.342573@1] meson-mmc: meson_mmc_probe() : success!
[
4.343071@1] amlogic mtd driver init
[
4.344228@2] aml_vrtc rtc: rtc core: registered aml_vrtc as rtc0
[
4.344445@2] input: aml_vkeypad as /devices/platform/rtc/input/input2
[
4.345647@2] cectx ff80023c.aocec: cec driver date:2020/03/16:reduece no msg in sleep time
[
4.345647@2]
[
4.345906@2] cectx ff80023c.aocec: compatible:amlogic, aocec-sm1
[
4.345909@2] cectx ff80023c.aocec: cecb_ver:0x2
[
4.345912@2] cectx ff80023c.aocec: line_reg:0x1
[
4.345914@2] cectx ff80023c.aocec: line_bit:0x3
[
4.345917@2] cectx ff80023c.aocec: ee_to_ao:0x1
[
4.346085@2] input: cec_input as /devices/virtual/input/input3
[
4.346226@2] cectx ff80023c.aocec: not find 'port_num'
[
4.346230@2] cectx ff80023c.aocec: using cec:1
[
4.346259@2] cectx ff80023c.aocec: no hdmirx regs
[
4.346262@2] cectx ff80023c.aocec: no hhi regs
[
4.347560@2] irq cnt:2, a:54, b53
[
4.347954@0] cectx ff80023c.aocec: wakeup_reason:0x0
[
4.348188@0] cectx ff80023c.aocec: cev val1: 0x0;val2: 0x0
[
4.348223@0] cectx ff80023c.aocec: aml_cec_probe success end
[
4.349531@0] unifykey: storage in base: 0xc5000000
[
4.349534@0] unifykey: storage out base: 0xc5040000
[
4.349536@0] unifykey: storage block base: 0xc5080000
[
4.349554@0] unifykey: probe done!
[
4.349649@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.349653@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 0, window start 0, size 5
[
4.349658@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.351733@0] unifykey: no efuse-version set, use default value: -1
[
4.351755@0] unifykey: key unify config unifykey-num is 18
[
4.352147@0] unifykey: key unify fact unifykey-num is 18
[
4.352182@0] unifykey: unifykey_devno: 1f200000
[
4.352786@2] unifykey: device unifykeys created ok
[
4.352841@2] unifykey: aml_unifykeys_init done!
[
4.353064@2] meson ts init
[
4.353118@2] tsensor id: 0
[
4.353254@2] tsensor trim info: 0xfa0080a2!
[
4.353258@2] tsensor hireboot: 0xc0ff2ae0
[
4.353339@2] meson ts init
[
4.353357@2] tsensor id: 1
[
4.353455@2] tsensor trim info: 0xfa0080a9!
[
4.353457@2] tsensor hireboot: 0xc0ff2ae0
[
4.353592@2] audio_dsp: [dsp]register dsp to char divece(257)
[
4.353773@2] amaudio: amaudio: driver amaudio init!
[
4.354283@2] amaudio: amaudio_init - amaudio: driver amaudio succuess!
[
4.355148@2] amlkaraoke init success!
[
4.355371@2] sysled: module init
[
4.355560@2] sysled: cust gpio register
[
4.355717@2] meson_wdt ffd0f0d0.watchdog: start watchdog
[
4.355720@2] meson_wdt ffd0f0d0.watchdog: creat work queue for watch dog
[
4.356035@2] meson_wdt ffd0f0d0.watchdog: AML Watchdog Timer probed done
[
4.356745@2] amlogic rfkill init
[
4.356925@2] enter bt_probe of_node
[
4.356945@2] not get gpio_en
[
4.356952@2] not get gpio_btwakeup
[
4.356958@2] power on valid level is high
[
4.356958@2] bt: power_on_pin_OD = 0;
[
4.356960@2] bt: power_off_flag = 1;
[
4.356963@2] dis power down = 0;
[
4.357514@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.357518@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 1, window start 0, size 5
[
4.357523@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.365072@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.365077@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 2, window start 0, size 5
[
4.365081@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.371228@0] meson-mmc: emmc: adj_win: < 0 2 3 4 >
[
4.371233@0] meson-mmc: emmc: best_win_start =2, best_win_size =4
[
4.371238@0] meson-mmc: emmc: sd_emmc_regs->gclock=0x10000245,sd_emmc_regs->gadjust=0x42000
[
4.371241@0] meson-mmc: delay1:0x0, delay2:0x0
[
4.371394@0] emmc: new HS200 MMC card at address 0001
[
4.371935@0] emmc: clock 199999997, 8-bit-bus-width
[
4.371935@0]
[
4.371935@0] mmcblk0: emmc:0001 BWBD3R 29.1 GiB
[
4.372135@0] mmcblk0boot0: emmc:0001 BWBD3R partition 1 4.00 MiB
[
4.372329@0] mmcblk0boot1: emmc:0001 BWBD3R partition 2 4.00 MiB
[
4.372526@0] mmcblk0rpmb: emmc:0001 BWBD3R partition 3 4.00 MiB
[
4.373449@0] meson-mmc: Enter aml_emmc_partition_ops
[
4.374063@0] meson-mmc: [mmc_read_partition_tbl] mmc read partition OK!
[
4.374066@0] meson-mmc: add_emmc_partition
[
4.374253@0] meson-mmc: [mmcblk0p01]
bootloader
offset 0x000000000000, size 0x000000400000
[
4.374422@0] meson-mmc: [mmcblk0p02]
reserved
offset 0x000002400000, size 0x000004000000
[
4.374610@0] meson-mmc: [mmcblk0p03]
cache
offset 0x000006c00000, size 0x000046000000
[
4.374755@0] meson-mmc: [mmcblk0p04]
env
offset 0x00004d400000, size 0x000000800000
[
4.374894@0] meson-mmc: [mmcblk0p05]
logo
offset 0x00004e400000, size 0x000000800000
[
4.375030@0] meson-mmc: [mmcblk0p06]
recovery
offset 0x00004f400000, size 0x000001800000
[
4.375179@0] meson-mmc: [mmcblk0p07]
misc
offset 0x000051400000, size 0x000000800000
[
4.375322@0] meson-mmc: [mmcblk0p08]
dtbo
offset 0x000052400000, size 0x000000800000
[
4.375468@0] meson-mmc: [mmcblk0p09]
cri_data
offset 0x000053400000, size 0x000000800000
[
4.375609@0] meson-mmc: [mmcblk0p10]
param
offset 0x000054400000, size 0x000001000000
[
4.375751@0] meson-mmc: [mmcblk0p11]
boot
offset 0x000055c00000, size 0x000001000000
[
4.375899@0] meson-mmc: [mmcblk0p12]
rsv
offset 0x000057400000, size 0x000001000000
[
4.376045@0] meson-mmc: [mmcblk0p13]
metadata
offset 0x000058c00000, size 0x000001000000
[
4.376197@0] meson-mmc: [mmcblk0p14]
vbmeta
offset 0x00005a400000, size 0x000000200000
[
4.376339@0] meson-mmc: [mmcblk0p15]
tee
offset 0x00005ae00000, size 0x000002000000
[
4.376491@0] meson-mmc: [mmcblk0p16]
vendor
offset 0x00005d600000, size 0x000046000000
[
4.376647@0] meson-mmc: [mmcblk0p17]
odm
offset 0x0000a3e00000, size 0x000008000000
[
4.376795@0] meson-mmc: [mmcblk0p18]
system
offset 0x0000ac600000, size 0x000050000000
[
4.376955@0] meson-mmc: [mmcblk0p19]
product
offset 0x0000fce00000, size 0x000008000000
[
4.377109@0] meson-mmc: [mmcblk0p20]
data
offset 0x000105600000, size 0x000642600000
[
4.377130@0] card key: card_blk_probe.
[
4.377136@0] emmc_key_init:183 emmc key lba_start:0x12020,lba_end:0x12220
[
4.377140@0] emmc key: emmc_key_init:205 ok.
[
4.379090@0] meson-mmc: amlmmc_dtb_init: register dtb chardev
[
4.379090@0] meson-mmc: calc f22493e0, store f22493e0
[
4.380968@0] meson-mmc: calc f22493e0, store f22493e0
[
4.380973@0] meson-mmc: total valid 2
[
4.381272@0] meson-mmc: amlmmc_dtb_init: register dtb chardev OK
[
4.381272@0] meson-mmc: Exit aml_emmc_partition_ops OK.
[
4.386644@2] request_irq error ret=-22
[
4.386690@2] dev_pm_set_wake_irq failed: -22
[
4.387636@2] dmc_monitor_probe
[
4.387815@2] page_trace_module_init, create sysfs failed
[
4.388801@2] atv_demod: aml_atvdemod_init: OK, atv demod version: V2.15.
[
4.388980@2] defendkey ff630218.defendkey: Reserved memory is not enough!
[
4.388993@2] defendkey: probe of ff630218.defendkey failed with error -22
[
4.389296@0] bl40: bl40 probe
[
4.389730@1] usbcore: registered new interface driver snd-usb-audio
[
4.391204@1] aml_codec_T9015 ff632000.t9015: aml_T9015_audio_codec_probe
[
4.391228@1] T9015 acodec used by auge, tdmout:1
[
4.394197@1] asoc debug: aml_audio_controller_probe-130
[
4.394885@1] aml_tdm_platform_probe, tdm ID = 0, lane_cnt = 2
[
4.394912@1] snd_tdm ff660000.audiobus:tdm@0: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.394976@1] snd_tdm ff660000.audiobus:tdm@0: neither mclk_pad nor mclk2pad set
[
4.395104@1] aml_tdm_platform_probe(), share en = 1
[
4.395104@1] No channel mask node Channel_Mask
[
4.395375@1] aml_tdm_platform_probe, tdm ID = 1, lane_cnt = 8
[
4.395463@1] TDM id 1 samesource_sel:3
[
4.395477@1] snd_tdm ff660000.audiobus:tdm@1: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.395786@1] TDM id 1 output clk enable:1
[
4.395817@1] aml_tdm_platform_probe(), share en = 1
[
4.395817@1] No channel mask node Channel_Mask
[
4.395840@1] TDM id 1 tuning clk enable:1
[
4.396035@1] aml_tdm_platform_probe, tdm ID = 2, lane_cnt = 4
[
4.396058@1] snd_tdm ff660000.audiobus:tdm@2: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.396256@1] aml_tdm_platform_probe(), share en = 1
[
4.396256@1] No channel mask node Channel_Mask
[
4.397527@1] Spdif id 0 tuning clk enable:1
[
4.397536@1] aml_spdif_platform_probe, register soc platform
[
4.397653@1] aml_spdif_platform_probe, register soc platform
[
4.398528@1] default set lane_mask_in as all lanes.
[
4.398533@1] aml_pdm_platform_probe pdm filter mode from dts:1
[
4.398545@1] aml_pdm_platform_probe, register soc platform
[
4.399027@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 0, irqs toddr 37, frddr 41
[
4.399054@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 1, irqs toddr 38, frddr 42
[
4.399080@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 2, irqs toddr 39, frddr 43
[
4.399106@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 3, irqs toddr 40, frddr 44
[
4.399638@1] datain_src:4, datain_chnum:2, datain_chumask:3
[
4.399642@1] datalb_src:1, datalb_chnum:2, datalb_chmask:3
[
4.399644@1] datain_lane_mask:0x1, datalb_lane_mask:0x1
[
4.399647@1] datalb_format: 1, chmask for lanes: 0x3
[
4.399885@1] loopback_platform_probe, p_loopback->id:0 register soc platform
[
4.400922@1] effect_platform_probe, line:569
[
4.401064@1] eqdrc_clk_set, src pll:399999993, clk:199999997
[
4.401070@1] effect_platform_probe
module:1, lane_mask:1, ch_mask:3
[
4.402136@1] vad_platform_probe vad data source sel:4, level:1
[
4.402320@1] input: vad_keypad as /devices/platform/soc/ff660000.audiobus/ff660000.audiobus:vad/input/input4
[
4.403207@0] Register vad
[
4.502629@1] meson-mmc: card IN
[
4.606921@1] meson-mmc: Uart in
[
4.614861@0] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[
4.614865@0] snd_tdm ff660000.audiobus:tdm@1: ASoC: Failed to add I2SIn CLK: -16
[
4.614868@0] aml_dai_tdm_probe, failed add snd tdm controls
[
4.614877@0] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[
4.614883@0] snd_tdm ff660000.audiobus:tdm@2: ASoC: Failed to add I2SIn CLK: -16
[
4.614885@0] aml_dai_tdm_probe, failed add snd tdm controls
[
4.614890@0] aml_dai_spdif_probe
[
4.614909@0] aml_dai_spdif_probe
[
4.614913@0] asoc debug: earc_dai_probe
[
4.614951@0] master_mode(1), binv(1), finv(0) out_skew(2), in_skew(3)
[
4.615711@0] asoc-aml-card auge_sound: multicodec <-> TDM-A mapping ok
[
4.615753@0] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[
4.616354@0] asoc-aml-card auge_sound: multicodec <-> TDM-B mapping ok
[
4.616384@0] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[
4.616976@0] asoc-aml-card auge_sound: dummy <-> TDM-C mapping ok
[
4.617498@0] asoc-aml-card auge_sound: dummy <-> ff660000.audiobus:pdm mapping ok
[
4.618122@0] asoc-aml-card auge_sound: dummy <-> SPDIF mapping ok
[
4.618546@0] asoc-aml-card auge_sound: dummy <-> SPDIF-B mapping ok
[
4.618552@0] asoc earc_dai_set_fmt, 0x4000, ed721d90
[
4.619162@0] asoc-aml-card auge_sound: dummy <-> ff663800.earc mapping ok
[
4.622983@0] snd_card_add_kcontrols card:ecc81010
[
4.623058@0] eq/drc v1 function enable
[
4.623065@0] no node audio_effect for eq/drc info!
[
4.623067@0] Failed to add audio effects v1 controls
[
4.623270@0] GACT probability NOT on
[
4.623282@0] Mirror/redirect action on
[
4.623289@0] u32 classifier
[
4.623291@0]
Actions configured
[
4.623296@0] Netfilter messages via NETLINK v0.30.
[
4.623532@0] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[
4.623801@0] ctnetlink v0.93: registering with nfnetlink.
[
4.624492@2] xt_time: kernel timezone is -0000
[
4.624575@2] ipip: IPv4 and MPLS over IPv4 tunneling driver
[
4.625041@2] IPv4 over IPsec tunneling driver
[
4.637878@2] ip_tables: (C) 2000-2006 Netfilter Core Team
[
4.638023@2] arp_tables: arp_tables: (C) 2002 David S. Miller
[
4.649267@2] Initializing XFRM netlink socket
[
4.649746@2] NET: Registered protocol family 10
[
4.650842@2] mip6: Mobile IPv6
[
4.650867@2] ip6_tables: (C) 2000-2006 Netfilter Core Team
[
4.667114@0] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[
4.668091@0] NET: Registered protocol family 17
[
4.668114@0] NET: Registered protocol family 15
[
4.668139@0] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[
4.668245@0] Bluetooth: RFCOMM TTY layer initialized
[
4.668253@0] Bluetooth: RFCOMM socket layer initialized
[
4.668273@0] Bluetooth: RFCOMM ver 1.11
[
4.668281@0] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[
4.668284@0] Bluetooth: BNEP filters: protocol multicast
[
4.668294@0] Bluetooth: BNEP socket layer initialized
[
4.668297@0] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[
4.668305@0] Bluetooth: HIDP socket layer initialized
[
4.668328@0] l2tp_core: L2TP core driver, V2.0
[
4.668346@0] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[
4.668347@0] l2tp_ip: L2TP IP encapsulation support (L2TPv3)
[
4.668367@0] l2tp_netlink: L2TP netlink interface
[
4.668395@0] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3)
[
4.668416@0] l2tp_debugfs: L2TP debugfs support
[
4.668420@0] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3)
[
4.668457@0] NET: Registered protocol family 35
[
4.668508@0] Key type dns_resolver registered
[
4.670907@0] Registering SWP/SWPB emulation handler
[
4.670924@0] disable EAS feature
[
4.702251@0] registered taskstats version 1
[
4.713815@0] dwc3 ff500000.dwc3: Configuration mismatch. dr_mode forced to host
[
4.716592@0] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[
4.716613@0] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[
4.716996@0] xhci-hcd xhci-hcd.0.auto: hcc params 0x0228fe6c hci version 0x110 quirks 0x20010010
[
4.717047@0] xhci-hcd xhci-hcd.0.auto: irq 29, io mem 0xff500000
[
4.717853@2] hub 1-0:1.0: USB hub found
[
4.717887@2] hub 1-0:1.0: 2 ports detected
[
4.718312@2] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[
4.718323@2] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[
4.718407@2] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[
4.718811@1] meson-mmc: JTAG in
[
4.719052@0] hub 2-0:1.0: USB hub found
[
4.719079@0] hub 2-0:1.0: 1 port detected
[
4.723859@0] aml_vrtc rtc: setting system clock to 2015-01-01 00:27:01 UTC (1420072021)
[
4.724320@0] dwc_otg: usb0: type: 2 speed: 0, config: 0, dma: 0, id: 0, phy: ffe09000, ctrl: 0
[
4.724323@0] dwc_otg_driver_probe host only, not probe usb_otg!!!
[
4.725004@0] lcd extern: key_valid: 0
[
4.725007@0] lcd extern: lcd_extern_get_config from dts
[
4.725020@0] lcd extern: error: failed to get extern_5
[
4.725062@0] lcd extern: aml_lcd_extern_probe ok
[
4.725619@0] bl: chip type/name: (8-sm1)
[
4.725622@0] bl: key_valid: 0
[
4.725625@0] bl: aml_bl_config_load from dts
[
4.725632@0] bl: load: backlight_0
[
4.725642@0] bl error: failed to get bl_power_attr
[
4.725651@0] bl: bl pwm_port: PWM_F(5)
[
4.725656@0] bl: find bl_pwm_en_sequence_reverse: 0
[
4.725660@0] bl: name
= backlight_pwm
[
4.725664@0] bl: method
= pwm(1)
[
4.725739@0] bl: register pwm_ch(5) 0xed0a20f0
[
4.726077@2] bl: probe OK
[
4.727117@2] meson_cdev probe
[
4.727206@2] meson_cdev index: 0
[
4.727400@2] meson_cdev index: 1
[
4.727406@2] cpucore_cooling_register, max_cpu_core_num:4
[
4.727531@2] meson_cdev index: 2
[
4.727558@2] meson_cdev index: 3
[
4.727601@2] find tzd id: 0
[
4.727735@2] find tzd id: 0
[
4.727781@2] meson_cdev probe done
[
4.728012@2] gxbb_pm: enter meson_pm_probe!
[
4.728028@2] no vddio3v3_en pin
[
4.728029@2] pm-meson aml_pm: Can't get switch_clk81
[
4.728064@2] gxbb_pm: meson_pm_probe done
[
4.728566@2] ALSA device list:
[
4.728570B
6.418816@0] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 115200 to 115200
[
6.526551@0] prepare_namespace() wait 79
[
6.526627@0] md: Waiting for all devices to be available before autodetect
[
6.531884@0] md: If you don't use raid, use raid=noautodetect
[
6.538587@2] md: Autodetecting RAID arrays.
[
6.541909@2] md: Scanned 0 and added 0 devices.
[
6.546536@2] md: autorun ...
[
6.549463@2] md: ... autorun DONE.
[
6.553830@2] EXT4-fs (mmcblk0p18): couldn't mount as ext3 due to feature incompatibilities
[
6.561646@2] EXT4-fs (mmcblk0p18): couldn't mount as ext2 due to feature incompatibilities
[
6.572417@2] EXT4-fs (mmcblk0p18): mounted filesystem without journal. Opts: (null)
[
6.577327@2] VFS: Mounted root (ext4 filesystem) readonly on device 179:18.
[
6.585825@0] devtmpfs: mounted
[
6.588235@0] Freeing unused kernel memory: 1024K
[
6.612711@2] init: init first stage started!
[
6.613519@2] init: Using Android DT directory /proc/device-tree/firmware/android/
[
6.623735@0] init: [libfs_mgr]fs_mgr_read_fstab_default(): failed to find device default fstab
[
6.682567@0] EXT4-fs (mmcblk0p17): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.687482@0] init: [libfs_mgr]__mount(source=/dev/block/odm,target=/odm,type=ext4)=0: Success
[
6.698033@0] EXT4-fs (mmcblk0p19): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.705639@0] init: [libfs_mgr]__mount(source=/dev/block/product,target=/product,type=ext4)=0: Success
[
6.717547@0] EXT4-fs (mmcblk0p16): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.724860@0] init: [libfs_mgr]__mount(source=/dev/block/vendor,target=/vendor,type=ext4)=0: Success
[
6.734250@0] init: Skipped setting INIT_AVB_VERSION (not in recovery mode)
[
6.741186@0] init: Loading SELinux policy
[
6.931120@0] audit: type=1403 audit(1420072023.708:2): policy loaded auid=4294967295 ses=4294967295
[
6.934849@0] selinux: SELinux: Loaded policy from /odm/etc/selinux/precompiled_sepolicy
[
6.934849@0]
[
6.952462@0] selinux: SELinux: Loaded file_contexts
[
6.952462@0]
[
6.958104@2] init: init second stage started!
[
6.984142@0] init: Using Android DT directory /proc/device-tree/firmware/android/
[
6.991698@0] selinux: SELinux: Loaded file_contexts
[
6.991698@0]
[
6.992699@0] init: Running restorecon...
[
7.004122@0] init: waitid failed: No child processes
[
7.009848@0] init: Couldn't load property file '/odm/default.prop': open() failed: No such file or directory: No such file or directory
[
7.020033@0] init: Created socket '/dev/socket/property_service', mode 666, user 0, group 0
[
7.025881@0] init: Forked subcontext for 'u:r:vendor_init:s0' with pid 2534
[
7.032778@0] init: Forked subcontext for 'u:r:vendor_init:s0' with pid 2535
[
7.039243@0] init: Parsing file /init.rc...
[
7.135566@0] ueventd: ueventd started!
[
7.140062@0] selinux: SELinux: Loaded file_contexts
[
7.140062@0]
[
7.141282@0] ueventd: Parsing file /ueventd.rc...
[
7.141395@2] mali_kbase: loading out-of-tree module taints kernel.
[
7.145846@2] mali ffe40000.bifrost: Continuing without Mali regulator control
[
7.145936@2] mali ffe40000.bifrost: max pp is 2
[
7.145941@2] mali ffe40000.bifrost: set min pp to default 1
[
7.145943@2] mali ffe40000.bifrost: min pp is 1
[
7.145946@2] mali ffe40000.bifrost: set min clk default to 0
[
7.145949@2] mali ffe40000.bifrost: min clk
is 0
[
7.145966@2] mali ffe40000.bifrost: hiu io source
0xf15ad000
[
7.145976@2] mali ffe40000.bifrost: hiu io source
0xf15af000
[
7.145980@2] mali ffe40000.bifrost: num of pp used most of time 1
[
7.145986@2] mali ffe40000.bifrost: clock dvfs cfg table size is 6
[
7.146073@2] mali ffe40000.bifrost: max clk set 4
[
7.146076@2] mali ffe40000.bifrost: max clk
is 4
[
7.146082@2] mali ffe40000.bifrost: turbo clk set to 5
[
7.146085@2] mali ffe40000.bifrost: turbo clk
is 5
[
7.146089@2] mali ffe40000.bifrost: default clk set to 4
[
7.146091@2] mali ffe40000.bifrost: default clk
is 4
[
7.146097@2] mali ffe40000.bifrost: ====================0====================
[
7.146097@2] clk_freq= 285714285, clk_parent=fclk_div7, voltage=1150, keep_count=5, threshod=<100 190>, clk_sample=285
[
7.146102@2] mali ffe40000.bifrost: ====================1====================
[
7.146102@2] clk_freq= 400000000, clk_parent=fclk_div5, voltage=1150, keep_count=5, threshod=<152 207>, clk_sample=400
[
7.146106@2] mali ffe40000.bifrost: ====================2====================
[
7.146106@2] clk_freq= 500000000, clk_parent=fclk_div4, voltage=1150, keep_count=5, threshod=<180 220>, clk_sample=500
[
7.146111@2] mali ffe40000.bifrost: ====================3====================
[
7.146111@2] clk_freq= 666666666, clk_parent=fclk_div3, voltage=1150, keep_count=5, threshod=<210 236>, clk_sample=666
[
7.146117@2] mali ffe40000.bifrost: ====================4====================
[
7.146117@2] clk_freq= 846000000, clk_parent=
gp0_pll, voltage=1150, keep_count=5, threshod=<230 255>, clk_sample=846
[
7.146121@2] mali ffe40000.bifrost: ====================5====================
[
7.146121@2] clk_freq= 846000000, clk_parent=
gp0_pll, voltage=1150, keep_count=5, threshod=<230 255>, clk_sample=846
[
7.146125@2] mali ffe40000.bifrost: clock dvfs table size is 6
[
7.147636@2] mali_plat=bf05e2d8
[
7.147975@2] find tzd id: 0
[
7.148046@2] gpu cooling register okay with err=0
[
7.148229@2] find tzd id: 0
[
7.148259@2] gpu core cooling register okay with err=0
[
7.148290@2] shader_present=1, tiler_present=1, l2_present=1
[
7.148371@2] Mali_pwr_on:gpu_irq : 200
[
7.148747@2] hrtimer: interrupt took 18084 ns
[
7.149236@2] mali ffe40000.bifrost: GPU identified as 0x3 arch 7.0.9 r0p0 status 0
[
7.152920@2] mali ffe40000.bifrost: Probed as mali0
[
7.311846@2] ATBM: register atbm8881 demod driver version: V2.01 (Linux version 4.9.113-arm Jan 17 2020 17:28:22).
[
7.312451@2] ATBM: [atbm8881_fe..] probe ok.
[
7.356187@2] PPMGRVPP: info: RegisterTB_Function: gfunc
(null), func: bf0b3000, ver:TB detect: v2016.11.15a *** [ Tue Mar 19 19:21:39 CST 2019]-[ renjiang.han]-[* master]-[67f03d41e0612a58d1edd96db9bc8b92de1a59b1]-[Date: Wed Jul 4 00:44:57 2018 +0800]-[2]
[
7.437294@2] ueventd: Parsing file /vendor/ueventd.rc...
[
7.441701@2] ueventd: /vendor/ueventd.rc: 110: /sys/ lines must have 5 entries
[
7.448042@2] ueventd: Parsing file /odm/ueventd.rc...
[
7.453080@2] ueventd: Unable to read config file '/odm/ueventd.rc': open() failed: No such file or directory
[
7.463090@2] ueventd: Parsing file /ueventd.amlogic.rc...
[
7.468397@2] ueventd: Unable to read config file '/ueventd.amlogic.rc': open() failed: No such file or directory
[
7.985256@2] ueventd: Coldboot took 0.503 seconds
[
7.999586@1] audit: type=1400 audit(1420072024.776:3): avc:
denied
{ write } for
pid=1 comm="init" name="alignment" dev="proc" ino=4026531967 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.013467@1] audit: type=1400 audit(1420072024.788:4): avc:
denied
{ open } for
pid=1 comm="init" path="/proc/cpu/alignment" dev="proc" ino=4026531967 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.059223@2] audit: type=1400 audit(1420072024.836:5): avc:
denied
{ write } for
pid=2534 comm="init" name="watermark_scale_factor" dev="proc" ino=11571 scontext=u:r:vendor_init:s0 tcontext=u:object_r:proc_vm_writable:s0 tclass=file permissive=1
[
8.099260@1] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[
8.162307@2] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.309055@2] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.309055@2]
[
8.309813@2] e2fsck: /dev/block/data: clean, 2439/1643376 files, 285712/6563328 blocks
[
8.309813@2]
[
8.321114@2] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[
8.334035@3] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.341888@3] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[
8.350306@2] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.407972@1] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.407972@1]
[
8.408736@1] e2fsck: /dev/block/cache: clean, 14/71712 files, 13057/286720 blocks
[
8.408736@1]
[
8.419090@3] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[
8.427710@3] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.437763@3] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[
8.445925@3] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.502090@1] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.502090@1]
[
8.502882@1] e2fsck: /dev/block/metadata: clean, 12/4096 files, 1166/4096 blocks
[
8.502882@1]
[
8.513195@3] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[
8.521010@3] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.572970@3] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.572970@3]
[
8.573733@3] e2fsck: Pass 1: Checking inodes, blocks, and sizes
[
8.573733@3]
[
8.581366@3] e2fsck: Pass 2: Checking directory structure
[
8.581366@3]
[
8.588461@3] e2fsck: Pass 3: Checking directory connectivity
[
8.588461@3]
[
8.597197@3] EXT4-fs (mmcblk0p10): Ignoring removed nomblk_io_submit option
[
8.605528@0] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.657288@0] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[
8.660701@0] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.671054@0] init: 10 output lines suppressed due to ratelimiting
[
8.685524@0] register clk_set_setting cpu[43]
[
8.690740@0] Registered firmware driver success.
[
8.692380@0] Try to load video/h264_enc.bin
...
[
8.696961@0] load firmware size : 76288, Name : video/h264_enc.bin.
[
8.701767@0] Try to load video/video_ucode.bin
...
[
8.725382@3] load firmware size : 1816576, Name : video/video_ucode.bin.
[
8.756041@3] audit: type=1400 audit(1420072025.532:6): avc:
denied
{ read } for
pid=3092 comm="imageserver" name="vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.772401@3] audit: type=1400 audit(1420072025.552:7): avc:
denied
{ write } for
pid=3092 comm="imageserver" name="vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.776140@2] Amlogic A/V streaming port init
[
8.779364@0] get gate demux control ok ed7fae80
[
8.779382@0] get gate parser_top control ok ed7fa780
[
8.779413@0] get gate vdec control ok ed7fab80
[
8.779446@0] get gate clk_81 control ok ed7fa2c0
[
8.779485@0] get gate clk_vdec_mux control ok ed7fa400
[
8.779529@0] get gate clk_hcodec_mux control ok ed7fac40
[
8.779580@0] get gate clk_hevc_mux control ok ed7fa800
[
8.779636@0] get gate clk_hevcb_mux control ok ed7fa7c0
[
8.779658@0] get gate ahbarb0 control ok ed7faa40
[
8.779667@0] get gate asyncfifo control failed
(null)
[
8.801825@2] ammvdec_h264 module init
[
8.834614@2] ammvdec_mpeg12 module init
[
8.843713@2] ammvdec_mpeg4_driver_init_module
[
8.860670@3] audit: type=1400 audit(1420072025.640:8): avc:
denied
{ open } for
pid=3092 comm="imageserver" path="/dev/vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.874079@2] amvenc_avc_probe -- reserved memory config fail.
[
8.874082@2] amvenc_avc - cma memory pool size: 60 MB
[
8.874106@2] encode_wq_init.
[
8.874112@2] encode start monitor.
[
8.874228@0] encode workqueue monitor start.
[
8.879560@2] vpu_init
[
8.879828@2] vpu_probe
[
8.879832@2] HevcEnc reserved memory config fail.
[
8.879834@2] HevcEnc - cma memory pool size: 64 MB
[
8.879859@2] HevcEnc - wave420l_irq: 65
[
8.879929@2] vpu base address get from platform driver physical base addr=0xff610000, virtual base=0xf27cc000
[
8.880223@2] success to probe vpu device with video memory from cma
[
8.913457@2] audit: type=1400 audit(1420072025.684:9): avc:
denied
{ setattr } for
pid=1 comm="init" name="slabinfo" dev="proc" ino=4026532028 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.962740@3] audit: type=1400 audit(1420072025.740:10): avc:
denied
{ ioctl } for
pid=3092 comm="imageserver" path="/dev/vndbinder" dev="tmpfs" ino=14820 ioctlcmd=0x6209 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.988968@0] logd.auditd: start
[
9.128221@0] type=1400 audit(1420072025.904:11): avc: denied { setattr } for pid=2534 comm="init" name="droidota" dev="mmcblk0p20" ino=654085 scontext=u:r:vendor_init:s0 tcontext=u:object_r:update_data_file:s0 tclass=dir permissive=1
[
9.147708@0] type=1400 audit(1420072025.904:11): avc: denied { setattr } for pid=2534 comm="init" name="droidota" dev="mmcblk0p20" ino=654085 scontext=u:r:vendor_init:s0 tcontext=u:object_r:update_data_file:s0 tclass=dir permissive=1
[
9.164329@0] type=1400 audit(1420072025.904:12): avc: denied { setattr } for pid=2534 comm="init" name="log" dev="mmcblk0p20" ino=130822 scontext=u:r:vendor_init:s0 tcontext=u:object_r:log_file:s0 tclass=dir permissive=1
[
9.183966@0] type=1400 audit(1420072025.904:12): avc: denied { setattr } for pid=2534 comm="init" name="log" dev="mmcblk0p20" ino=130822 scontext=u:r:vendor_init:s0 tcontext=u:object_r:log_file:s0 tclass=dir permissive=1
[
9.203313@0] type=1400 audit(1420072025.924:13): avc: denied { setattr } for pid=2534 comm="init" name="media" dev="mmcblk0p20" ino=392452 scontext=u:r:vendor_init:s0 tcontext=u:object_r:media_rw_data_file:s0 tclass=dir permissive=1
[
9.231089@2] aml dvb init
[
9.283446@2] nn is disable,should not do probe continue
[
9.331154@0] logd.daemon: reinit
[
9.749313@3] healthd: BatteryTemperaturePath not found
[
9.749357@3] healthd: BatteryCycleCountPath not found
[
9.849979@3] unifykey: amlkey_init_gen() enter!
[
9.854856@3] emmc_key_read:114, read ok
[
9.854899@3] unifykey: amlkey_init_gen() storagekey_info.buffer=c5080000, storagekey_info.size = 40000!
[
9.869359@3] android.hardware.health@2.0-impl: wakealarm_init: timerfd_create failed
[
9.870674@3] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
9.875141@2] fb: osd_open, 1507, fb_index=0,fb_rmem_size=26738688
[
9.875266@2] fb: osd_open, 1507, fb_index=1,fb_rmem_size=1048576
[
9.875301@2] fb: osd_open, 1507, fb_index=2,fb_rmem_size=1048576
[
9.875474@2] fb: vpu clkc clock is 199 MHZ
[
9.875485@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 18
[
9.875488@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 22
[
9.875490@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 54
[
9.875498@2] fb: osd_open, 1507, fb_index=3,fb_rmem_size=8388608
[
9.956362@3] VID: VD1 off
[
9.957600@3] hdmitx: system: set hdcp_pwr 1
[
9.987153@2] vfm_map_store:rm default
[
9.988241@2] vfm_map_store:add default decoder ppmgr deinterlace amvideo
[
10.004617@3] hdmitx: system: restore hdcp_pwr 0
[
10.006208@2] file system registered
[
10.007695@1] hdmitx: system: sname = 1080p60hz
[
10.011819@1] hdmitx: system: char_clk = 148500
[
10.015628@2] assign_ffs_buffer FFS_BUFFER_MAX=100!!!
[
10.022655@1] hdmitx: system: cd = 4
[
10.023095@3] cpufreq_interactive: cpufreq_hmp_boost_start()
[
10.023097@3] cpufreq_interactive: no need to active hmp boost!
[
10.042858@1] hdmitx: system: cs = 2
[
10.046597@1] hdmitx: RX tmds clk: 150
Calc clk: 148
[
10.091487@3] dhd_module_init: in Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
10.096449@3] ======== dhd_wlan_init_plat_data ========
[
10.101752@3] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=79, oob_irq_flags=0x418
[
10.109170@3] dhd_wlan_init_gpio: WL_REG_ON=-1
[
10.113617@3] dhd_wifi_platform_load: Enter
[
10.117766@3] Power-up adapter 'DHD generic adapter'
[
10.122659@3] wifi_platform_set_power = 1, delay: 200 msec
[
10.128266@3] ======== PULL WL_REG_ON(-1) HIGH! ========
[
10.133557@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Disable! 482
[
10.340442@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Enable! 482
[
10.603277@2] aml_tdm_open
[
10.604916@1] aml_spdif_open
[
10.606204@2] aml_spdif_close
[
10.607166@2] aml_tdm_open
[
10.614265@1] earc_dai_startup
[
10.614304@1] asoc debug: earc_open
[
10.615920@1] earc_dai_shutdown
[
10.618593@1] asoc debug: earc_close
[
10.622664@1] aml_tdm_open
[
10.623432@2] type=1400 audit(1420072025.924:13): avc: denied { setattr } for pid=2534 comm="init" name="media" dev="mmcblk0p20" ino=392452 scontext=u:r:vendor_init:s0 tcontext=u:object_r:media_rw_data_file:s0 tclass=dir permissive=1
[
10.623465@2] type=1400 audit(1420072027.400:14): avc: denied { create } for pid=3284 comm="HwBinder:3284_1" scontext=u:r:hal_audio_default:s0 tcontext=u:r:hal_audio_default:s0 tclass=netlink_kobject_uevent_socket permissive=1
[
10.623991@2] type=1400 audit(1420072027.400:14): avc: denied { create } for pid=3284 comm="HwBinder:3284_1" scontext=u:r:hal_audio_default:s0 tcontext=u:r:hal_audio_default:s0 tclass=netlink_kobject_uevent_socket permissive=1
[
10.846558@1] wifi_platform_bus_enumerate device present 1
[
10.846595@1] ======== Card detection to detect SDIO card! ========
[
10.854045@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.859234@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.866996@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.872231@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.883259@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.885239@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.910575@1] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
10.910689@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
10.936457@1] sdio: queuing unknown CIS tuple 0x80 (2 bytes)
[
10.941534@1] sdio: queuing unknown CIS tuple 0x80 (7 bytes)
[
10.944883@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
10.950560@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
11.052076@1] meson-aml-mmc ffe03000.sdio: divider requested rate 150000000 != actual rate 142857141: ret=0
[
11.056297@1] meson-mmc: actual_clock :142857141, HHI_nand: 0x80
[
11.062230@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000247
[
11.069279@1] meson-mmc: Data 1 aligned delay is 0
[
11.074007@1] meson-mmc: sdio: clk 142857141 tuning start
[
11.088115@1] meson-mmc: sdio: adj_win: < 0 2 3 4 5 6 >
[
11.088148@1] meson-mmc: sdio: best_win_start =2, best_win_size =6
[
11.093921@1] meson-mmc: sdio: sd_emmc_regs->gclock=0x10000247,sd_emmc_regs->gadjust=0x52000
[
11.102370@1] meson-mmc: delay1:0x0, delay2:0x0
[
11.112886@1] sdio: new ultra high speed SDR104 SDIO card at address 0001
[
11.114160@1] sdio: clock 142857141, 4-bit-bus-width
[
11.120154@3] meson-mmc: [sdio_reinit] finish
[
11.140240@3] bcmsdh_register: register client driver
[
11.140462@3] bcmsdh_sdmmc_probe: Enter num=1
[
11.144214@3] bcmsdh_sdmmc_probe: Enter num=2
[
11.148362@3] bus num (host idx)=2, slot num (rca)=1
[
11.153279@3] found adapter info 'DHD generic adapter'
[
11.158428@3] Wifi: bcmdhd_mem_prealloc: sectoin 3, size 139264
[
11.164332@3] succeed to alloc static buf
[
11.168273@3] Wifi: bcmdhd_mem_prealloc: sectoin 4, size 0
[
11.173855@3] sdioh_attach: set sd_f2_blocksize 256
[
11.178689@3] sdioh_attach: sd clock rate = 0
[
11.183607@3] dhdsdio_probe : no mutex held. set lock
[
11.188297@3] F1 signature read @0x18000000=0x17014354
[
11.199442@2] F1 signature OK, socitype:0x1 chip:0x4354 rev:0x1 pkg:0x0
[
11.201209@3] DHD: dongle ram size is set to 786432(orig 786432) at 0x180000
[
11.207587@3] Wifi: bcmdhd_mem_prealloc: sectoin 7, size 25064
[
11.213282@3] [dhd] dhd_conf_set_chiprev : chip=0x4354, chiprev=1
[
11.219398@3] Wifi: bcmdhd_mem_prealloc: sectoin 0, size 10320
[
11.225892@3] Wifi: bcmdhd_mem_prealloc: sectoin 5, size 65536
[
11.231434@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.239387@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.247775@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.256184@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.264599@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.273011@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.281410@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.289834@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.298403@3] Wifi: bcmdhd_mem_prealloc: sectoin 19, size 65652
[
11.304122@3] Wifi: bcmdhd_mem_prealloc: sectoin 20, size 262144
[
11.310130@3] Wifi: bcmdhd_mem_prealloc: sectoin 22, size 65536
[
11.315977@3] dhd_log_dump_init: kernel log buf size = 512KB; logdump_prsrv_tailsize = 80KB; limit prsrv tail size to = 76KB
[
11.327154@3] dhd_log_dump_init : Try to allocate memory total(4194304) special(8192)
[
11.334959@3] Wifi: bcmdhd_mem_prealloc: sectoin 15, size 4194304
[
11.341765@3] Wifi: bcmdhd_mem_prealloc: sectoin 16, size 8192
[
11.346967@3] dhd_attach(): thread:dhd_watchdog_thread:d64 started
[
11.353115@2] dhd_attach(): thread:dhd_dpc:d65 started
[
11.358288@2] dhd_attach(): thread:dhd_rxf:d66 started
[
11.363219@2] dhd_deferred_work_init: work queue initialized
[
11.368878@2] dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -> mode 2
[
11.375612@2] get_mem_val_from_file: File [/data/vendor/misc/wifi/.memdump.info] doesn't exist
[
11.384135@2] dhd_get_memdump_info: MEMDUMP ENABLED = 3
[
11.389352@2] Wifi: bcmdhd_mem_prealloc: sectoin 1, size 10300
[
11.395156@2] Wifi: bcmdhd_mem_prealloc: sectoin 2, size 65536
[
11.401051@2] dhdsdio_probe_init: making DHD_BUS_DOWN
[
11.406214@2] sdioh_cis_read: func_cis_ptr[0]=0x10ac
[
11.428211@0] Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
11.432540@0] Register interface [wlan0]
MAC: 90:b6:86:6d:af:e1
[
11.432540@0]
[
11.439226@0] dhd_dbg_detach_pkt_monitor, 2099
[
11.443530@0] dhd_bus_devreset: == Power OFF ==
[
11.448456@3] dhd_bus_stop: making DHD_BUS_DOWN
[
11.452520@3] bcmsdh_oob_intr_unregister: Enter
[
11.456960@3] bcmsdh_oob_intr_unregister: irq is not registered
[
11.462871@3] dhd_bus_devreset: making dhdpub up FALSE
[
11.467960@3] dhd_txglom_enable: enable 0
[
11.471941@3] dhd_bus_devreset: making DHD_BUS_DOWN
[
11.476808@3] dhd_bus_devreset:
WLAN OFF DONE
[
11.481311@3] wifi_platform_set_power = 0, delay: 0 msec
[
11.486532@3] ======== PULL WL_REG_ON(-1) LOW! ========
[
11.486558@0] vout: aml_tvout_mode_work: monitor_timeout
[
11.497016@3] dhd_ifname: ifidx 16 out of range
[
11.501498@3] <if_bad>: set cur_etheraddr failed
[
11.506091@3] dhd_ifname: ifidx 16 out of range
[
11.510616@3] dhd_register_if: _dhd_set_mac_address() failed
[
11.517221@3] Register interface [wlan1]
MAC: 92:b6:86:6d:af:e1
[
11.517221@3]
[
11.523881@3] dhdsdio_probe : the lock is released.
[
11.528958@3] dhd_module_init: Exit err=0
[
11.537571@3] vout: vout_io_open
console:/ $ [
11.595832@2] [DI] load 0x3e00 pq table len 424 later.
[
11.629702@2] read descriptors
[
11.629746@2] read strings
[
12.023273@3] init: Could not find service hosting interface vendor.amlogic.hardware.hdmicec@1.0::IDroidHdmiCEC/default
[
12.035405@3] vout: vout_io_open
[
12.035440@3] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[
12.038679@3] vout: vout_io_release
[
12.586979@0] capability: warning: `main' uses 32-bit capabilities (legacy support in use)
[
12.671163@0] avc open
[
12.671190@0] amvenc_avc
check CMA pool success, max instance: 3.
[
12.675838@0] allocating phys 0x64c00000, size 20480k, wq:eb808800.
[
12.680457@0] amvenc_avc
memory config success, buff start:0x64c00000, size is 0x1400000, wq:eb808800.
[
12.690033@0] avc release, wq:eb808800
[
12.693538@0] remove
encode_work_queue eb808800 success, _destroy_encode_work_queue line 3724.
[
12.702673@0] [+] vpu_open
[
12.708017@0] allocating phys 0x64c00000, virt addr 0x0, size 65536k
[
12.711507@0] [-] vpu_open, ret: 0
[
12.714600@0] vpu_release
[
12.717190@0] vpu_free_buffers
[
12.720196@0] vpu_free_instances
[
12.723387@0] vpu_release, s_video_memory 0x64c00000
[
13.973324@1] early_suspend_state=0
[
15.159500@1] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.162433@1] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.197871@2] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.397473@3] type=1400 audit(1420072029.004:20): avc: denied { net_admin } for pid=3279 comm="HwBinder:3279_2" capability=12 scontext=u:r:hdmicecd:s0 tcontext=u:r:hdmicecd:s0 tclass=capability permissive=1
[
15.412155@3] type=1400 audit(1420072032.172:21): avc: denied { read } for pid=3553 comm="android.ui" name="state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.431888@3] type=1400 audit(1420072032.172:21): avc: denied { read } for pid=3553 comm="android.ui" name="state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.450838@3] type=1400 audit(1420072032.184:22): avc: denied { read open } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.475609@3] type=1400 audit(1420072032.184:22): avc: denied { read open } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.500137@3] type=1400 audit(1420072032.184:23): avc: denied { getattr } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.950421@1] acc_open
[
15.950459@1] acc_release
[
16.220665@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.224457@3] eth0: device MAC address 90:0e:b3:2c:ea:da
[
16.317145@3] meson6-dwmac ff3f0000.ethernet eth0: fail to init PTP.
[
16.328178@1] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[
16.328556@1] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.337912@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.380357@0] video_inuse return 0,set 1
[
16.380797@0] is_reset=0
[
16.381283@0] The fw has been loaded.
[
16.384979@0] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
16.396466@0] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
16.398649@0] [LOCAL], the fw (h264_multi) will be loaded.
[
16.404530@1] ppmgr local_init
[
16.406845@1] di_receiver_event_fun: vframe provider reg ppmgr
[
16.413671@1] DI: reg f
[
16.415271@0] ppmgr local_init
[
16.415316@2] PPMGRVPP: info: y5fld[0] is NULL!
[
16.423368@0] vdec->port_flag=0x102, port_flag=0x10b
[
16.450156@2] aml_tdm_open
[
16.451205@3] hdmitx: audio: aout notify format CT_PCM
[
16.452357@3] hdmitx: hw: set audio
[
16.454851@2] PPMGRVPP: info: tb first frame type: 0
[
16.456353@2] PPMGRVPP: info: tb cma memory 64e80000, size 18000, item 8
[
16.456459@2] DI: di_wr_cue_int:finish
[
16.456462@2] di: di_init_buf -S
[
16.456483@2] di: di_init_buf -E
[
16.478017@3] hdmitx: hw: hdmitx tx_aud_src = 0
[
16.483339@3] hdmitx: fs = 3, cd = 4, tmds_clk = 148352
[
16.487732@3] hdmitx: hw: aud_n_para = 5824
[
16.491845@0] di_cma_alloc:alloc 10 buffer use 36 ms(4294683688~4294683724)
[
16.496886@2] pre_de_buf_config:4294683728ms 1th source change: 0x0/0/0/0=>0x9000/1920/1080/0
[
16.502430@0] video first pts = bba
[
16.510939@2] hdmitx: hw: set channel status
[
16.515111@2] hdmitx: audio: Audio Type: PCM
[
16.519383@2] hdmitx: audio: set audio param
[
16.519998@0] videosync_open
[
16.520033@0] omx need drop 0
[
16.546434@3] videosync_open
[
16.554032@2] asoc-aml-card auge_sound: tdm playback enable
[
16.555317@3] fb: osd[0] enable: 1 scale:0x10001 (HwBinder:3295_1)
[
16.560272@0] fb: osd[0] enable: 1 scale:0x10001 (HwBinder:3295_1)
[
16.569710@2] fb: free_scale_switch to fb0, mode: 0x10001
[
16.571814@0] fb: set logo loaded
[
16.691700@0] sdcardfs version 2.0
[
16.691738@0] sdcardfs: dev_name -> /data/media
[
16.695592@0] sdcardfs: options -> fsuid=1023,fsgid=1023,multiuser,derive_gid,default_normal,mask=6,userid=0,gid=1015
[
16.710084@0] sdcardfs: mnt -> ea9a1e10
[
16.710222@0] sdcardfs: mounted on top of /data/media type ext4
[
16.716676@0] Remount options were mask=23,gid=9997 for vfsmnt ea9a1310.
[
16.726020@0] sdcardfs : options - debug:1
[
16.726052@0] sdcardfs : options - gid:9997
[
16.730728@0] sdcardfs : options - mask:23
[
16.739492@0] Remount options were mask=7,gid=9997 for vfsmnt ea9a0610.
[
16.740995@0] sdcardfs : options - debug:1
[
16.744870@0] sdcardfs : options - gid:9997
[
16.749588@0] sdcardfs : options - mask:7
[
17.149543@3] dhd_open: Enter wlan0
[
17.149596@3] dhd_open : no mutex held. set lock
[
17.152487@3]
[
17.152487@3] Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
17.162905@3] [dhd-wlan0] wl_android_wifi_on : in g_wifi_on=0
[
17.169399@3] wifi_platform_set_power = 1, delay: 200 msec
[
17.173989@3] ======== PULL WL_REG_ON(-1) HIGH! ========
[
17.179150@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Disable! 482
[
17.399343@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Enable! 482
[
17.870864@0] BT_RADIO going: on
[
17.870906@0] AML_BT: going ON
[
18.094567@1] sdio_reset_comm():
[
18.094759@1] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
18.097939@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000023c
[
18.130637@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
18.130754@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000023c
[
18.157543@0] sdio: queuing unknown CIS tuple 0x80 (2 bytes)
[
18.163342@1] sdio: queuing unknown CIS tuple 0x80 (7 bytes)
[
18.166244@3] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
18.183637@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
18.287061@0] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 0 to 9600
[
18.289999@1] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 9600
[
18.297895@0] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 115200
[
18.312938@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[
18.321629@3] meson-aml-mmc ffe03000.sdio: divider requested rate 150000000 != actual rate 142857141: ret=0
[
18.326082@3] meson-mmc: actual_clock :142857141, HHI_nand: 0x80
[
18.331837@3] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000247
[
18.338882@3] meson-mmc: Data 1 aligned delay is 0
[
18.343830@3] meson-mmc: sdio: clk 142857141 tuning start
[
18.358631@3] meson-mmc: sdio: adj_win: < 0 2 3 4 5 6 >
[
18.358666@3] meson-mmc: sdio: best_win_start =2, best_win_size =6
[
18.364456@3] meson-mmc: sdio: sd_emmc_regs->gclock=0x10000247,sd_emmc_regs->gadjust=0x52000
[
18.372913@3] meson-mmc: delay1:0x0, delay2:0x0
[
18.377666@3] sdioh_start: set sd_f2_blocksize 256
[
18.382885@3]
[
18.382885@3]
[
18.382885@3] dhd_bus_devreset: == Power ON ==
[
18.390813@3] F1 signature read @0x18000000=0x17014354
[
18.415240@1] F1 signature OK, socitype:0x1 chip:0x4354 rev:0x1 pkg:0x0
[
18.417489@1] DHD: dongle ram size is set to 786432(orig 786432) at 0x180000
[
18.423542@3] dhd_bus_devreset: making DHD_BUS_DOWN
[
18.428431@3] dhdsdio_probe_init: making DHD_BUS_DOWN
[
18.434403@3] dhd_os_open_image1: /vendor/etc/wifi/buildin/config.txt (102 bytes) open success
[
18.442449@0] [dhd] dhd_conf_read_sdio_params : dhd_slpauto = 0
[
18.448574@0] [dhd] dhd_conf_read_country_list : ccode = XS
[
18.453535@0] [dhd] dhd_conf_read_country_list : regrev = 0
[
18.460091@0] [dhd] dhd_conf_set_path_params : Final fw_path=/vendor/etc/wifi/buildin/fw_bcm4354a1_ag.bin
[
18.468826@0] [dhd] dhd_conf_set_path_params : Final nv_path=/vendor/etc/wifi/buildin/nvram_ap6354.txt
[
18.479214@0] [dhd] dhd_conf_set_path_params : Final clm_path=/vendor/etc/wifi/buildin/clm_bcm4354a1_ag.blob
[
18.489522@0] [dhd] dhd_conf_set_path_params : Final conf_path=/vendor/etc/wifi/buildin/config.txt
[
18.500889@3] dhd_os_open_image1: /vendor/etc/wifi/buildin/fw_bcm4354a1_ag.bin (654038 bytes) open success
[
18.684261@2] dhd_os_open_image1: /vendor/etc/wifi/buildin/nvram_ap6354.txt (3043 bytes) open success
[
18.688737@3] NVRAM version:
HS2754_NVRAM_V1.3_20190819
[
18.698029@2] dhdsdio_write_vars: Download, Upload and compare of NVRAM succeeded.
[
18.740014@0] dhd_bus_init: enable 0x06, ready 0x06 (waited 0us)
[
18.741047@3] bcmsdh_oob_intr_register: HW_OOB irq=79 flags=0x8
[
18.746651@0] get_mem_val_from_file: File [/data/vendor/misc/wifi/.memdump.info] doesn't exist
[
18.755390@0] dhd_get_memdump_info: MEMDUMP ENABLED = 3
[
18.761929@3] dhd_tcpack_suppress_set: TCP ACK Suppress mode 2 -> mode 1
[
18.767807@3] dhd_apply_default_clm: Ignore clm file /vendor/etc/wifi/buildin/clm_bcm4354a1_ag.blob
[
18.778918@3] Firmware up: op_mode=0x0005, MAC=90:b6:86:6d:af:e1
[
18.786996@3] dhd_preinit_ioctls: event_log_max_sets: 26 ret: -23
[
18.796792@3]
Driver: 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
18.796792@3]
Firmware: wl0: May 31 2019 10:45:27 version 7.36.79.7 (r) FWID 01-be34f5a0
[
18.796792@3]
CLM: 7.9.0 (2019-05-31 10:44:59)
[
18.812068@3] dhd_preinit_ioctls failed -23
[
18.815912@3] dhd_txglom_enable: enable 1
[
18.819484@3] [dhd] dhd_conf_set_txglom_params : txglom_mode=copy
[
18.825554@3] [dhd] dhd_conf_set_txglom_params : txglomsize=36, deferred_tx_len=0
[
18.833048@3] [dhd] dhd_conf_set_txglom_params : txinrx_thres=128, dhd_txminmax=-1
[
18.840685@3] [dhd] dhd_conf_set_txglom_params : tx_max_offset=0, txctl_tmo_fix=300
[
18.848242@3] [dhd] dhd_conf_get_disable_proptx : fw_proptx=1, disable_proptx=-1
[
18.856874@3] dhd_wlfc_hostreorder_init(): successful bdcv2 tlv signaling, 64
[
18.864202@1] dhd_pno_init: Support Android Location Service
[
18.904546@3] dhd_rtt_init : FTM is not supported
[
18.905186@2] dhd_rtt_ftm_config : failed to set config
[
18.923418@3] dhd_preinit_ioctls: Failed to get preserve log # !
[
18.924114@3] [dhd] dhd_conf_set_country : set country XS, revision 0
[
18.933379@0] [dhd] dhd_conf_set_country : Country code: XS (XS/0)
[
18.942480@2] [dhd-wlan0] wl_android_wifi_on : Success
[
18.992180@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 2000000 to 115200
[
19.004095@3] dhd_open : the lock is released.
[
19.004128@3] dhd_open: Exit wlan0 ret=0
[
19.006938@3] [wlan0] tx queue started
[
19.078014@3] P2P interface registered
[
19.078045@3] wl_cfgp2p_add_p2p_disc_if: wdev: eafb9c00, wdev->net:
(null)
[
19.092629@2] WLC_E_IF: NO_IF set, event Ignored
[
19.183852@3] Random MAC OUI to be used - da:1:19
[
19.187950@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.189811@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.196116@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.200078@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[
19.211220@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.217530@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.223847@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.230140@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.236466@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.243030@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.249049@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.255570@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.261690@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.269108@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.276617@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.280707@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.287171@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.293363@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.299722@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.306261@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.312543@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.318804@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.324988@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.331457@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.337617@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.344009@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.350470@1] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.359092@0] dhd_dbg_attach_pkt_monitor, 1501
[
19.391424@1] meson6-dwmac ff3f0000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[
19.394882@1] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[
19.401313@1] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
28.693763@2] is_reset=1
[
28.694818@1] PPMGRVPP: info: task: quit
[
28.694927@1] PPMGRVPP: info: tb cma free addr is 64e80000, size is 18000
[
28.701729@1] ppmgr local_init
[
28.705057@1] DI: di_receiver_event_fun: unreg
[
28.708889@1] DI: provider name:(null)
[
28.712630@1] di:no w
[
28.712641@3] keep exit is di
[
28.712651@3] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.712659@3] video first pts = 0
[
28.712667@3] VD1 AFBC 0x0.
[
28.712684@3] pattern detected = 1, pts_enter_pattern_cnt =2, pts_exit_pattern_cnt =1
[
28.712789@3] di:retry cnt=0
[
28.713379@3] di_cma_release:release 8 buffer use 0 ms(4294695944~4294695944)
[
28.752201@3] DI: unreg f
[
28.756616@3] is_reset=1
[
28.757246@3] The fw has been loaded.
[
28.760926@3] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
28.772917@1] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
28.774474@1] [LOCAL], the fw (h264_multi) will be loaded.
[
28.780157@1] ppmgr local_init
[
28.782860@1] di_receiver_event_fun: vframe provider reg ppmgr
[
28.788664@1] DI: reg f
[
28.791221@3] ppmgr local_init
[
28.794411@3] vdec->port_flag=0x102, port_flag=0x10b
[
28.799197@3] is_reset=0
[
28.803680@2] is_reset=1
[
28.804203@3] PPMGRVPP: info: task: quit
[
28.808004@2] ppmgr local_init
[
28.811047@2] DI: di_receiver_event_fun: unreg
[
28.815443@2] DI: provider name:(null)
[
28.819183@2] di:no w
[
28.819188@3] keep exit is di
[
28.819194@3] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.819198@3] VD1 AFBC 0x0.
[
28.819273@3] di:retry cnt=0
[
28.819291@3] di_cma_release:release 0 buffer use 0 ms(4294696052~4294696052)
[
28.847708@2] DI: unreg f
[
28.851265@2] is_reset=1
[
28.852750@2] The fw has been loaded.
[
28.856433@2] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
28.866286@0] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
28.869968@0] [LOCAL], the fw (h264_multi) will be loaded.
[
28.875717@0] ppmgr local_init
[
28.878316@0] di_receiver_event_fun: vframe provider reg ppmgr
[
28.884362@0] DI: reg f
[
28.886710@2] ppmgr local_init
[
28.889983@2] vdec->port_flag=0x102, port_flag=0x10b
[
28.894639@2] is_reset=0
[
28.898866@0] PPMGRVPP: info: task: quit
[
28.901042@0] ppmgr local_init
[
28.904022@0] DI: di_receiver_event_fun: unreg
[
28.908421@0] DI: provider name:(null)
[
28.912171@0] di:no w
[
28.912180@2] keep exit is di
[
28.912186@2] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.912190@2] VD1 AFBC 0x0.
[
28.912265@2] di:retry cnt=0
[
28.912283@2] di_cma_release:release 0 buffer use 0 ms(4294696144~4294696144)
[
28.940684@0] DI: unreg f
[
28.950615@2] set video_inuse val:0
[
28.977221@2] audio_dsp: dts_dec_control/0x0
[
28.977964@0] VID: VD1 set global output as 0
[
28.980291@0] VID: VD1 off
[
29.014180@3] asoc-aml-card auge_sound: tdm playback stop
[
29.020875@2] asoc-aml-card auge_sound: tdm playback enable
[
29.262121@3] binder: undelivered transaction 28078, process died.
[
29.262941@3] binder: undelivered transaction 28124, process died.
[
29.269529@3] binder: undelivered transaction 28161, process died.
[
29.275640@3] binder: undelivered transaction 28186, process died.
[
29.281797@3] binder: undelivered transaction 28206, process died.
[
29.287526@3] binder: undelivered transaction 27946, process died.
[
29.293520@2] zram0: detected capacity change from 0 to 268435456
[
29.332963@3] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 0, bssidx: 0
[
29.337615@3] mkswap: Swapspace size: 262140k, UUID=be4bcb3d-8b4e-4b37-9412-a585fdbbb97a
[
29.343337@3] Adding 262140k swap on /dev/block/zram0.
Priority:-1 extents:1 across:262140k SS
[
29.359135@1] selinux: SELinux: Skipping restorecon_recursive(/data/system_ce/0)
[
29.359135@1]
[
29.508407@2] selinux: SELinux: Skipping restorecon_recursive(/data/misc_ce/0)
[
29.508407@2]
[
29.542597@2] type=1400 audit(1420072032.184:23): avc: denied { getattr } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
29.573434@1] audit: audit_lost=1 audit_rate_limit=5 audit_backlog_limit=64
[
29.573438@1] audit: rate limit exceeded
[
29.592782@3] type=1400 audit(1420072046.316:24): avc: denied { read execute } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.614417@3] type=1400 audit(1420072046.316:24): avc: denied { read execute } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.636024@3] type=1400 audit(1420072046.320:25): avc: denied { getattr } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.656600@3] type=1400 audit(1420072046.320:25): avc: denied { getattr } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.677528@3] type=1400 audit(1420072046.324:26): avc: denied { read execute } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.701529@3] type=1400 audit(1420072046.324:26): avc: denied { read execute } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.720925@3] type=1400 audit(1420072046.328:27): avc: denied { getattr } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.742093@3] type=1400 audit(1420072046.328:27): avc: denied { getattr } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.763722@3] type=1400 audit(1420072046.348:28): avc: denied { dac_override } for pid=4128 comm="test_flag.sh" capability=1 scontext=u:r:test_flag:s0 tcontext=u:r:test_flag:s0 tclass=capability permissive=1
console:/ $
console:/ $
console:/ $
console:/ $
console:/ $ su
[
31.601979@3] asoc-aml-card auge_sound: tdm playback stop
console:/ #
console:/ #
console:/ #
console:/ #
console:/ #
console:/ # [
32.538619@3] aml_dai_tdm_hw_free(), disable mclk for TDM-B[
32.717162@3] audit: audit_lost=15 audit_rate_limit=5 audit_backlog_limit=64
[
32.718624@3] audit: rate limit exceeded
ifconf[
33.763118@2] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
ig[
34.049163@1] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
[
34.211026@2] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
[
34.231749@1] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
wlan0
Link encap:Ethernet
HWaddr 90:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
[
34.445094@0] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
UP BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:188
eth0
Link encap:Ethernet
HWaddr 90:0e:b3:2c:ea:da
Driver meson6-dwmac
inet6 addr: fe80::920e:b3ff:fe2c:eada/64 Scope: Link
UP BROADCAST RUNNING MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:24 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:4232
Interrupt:28
lo
Link encap:Local Loopback
inet addr:127.0.0.1
Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING
MTU:65536
Metric:1
RX packets:33 errors:0 dropped:0 overruns:0 frame:0
TX packets:33 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:4216 TX bytes:4216
console:/ #

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1034
1035
1036
1037
1038
1039
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1050
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1061
1062
1063
1064
1065
1066
1067
1068
1069
1070
1071
1072
1073
1074
1075
1076
1077
1078
1079
1080
1081
1082
1083
1084
1085
1086
1087
1088
1089
1090
1091
1092
1093
1094
1095
1096
1097
1098
1099
1100
1101
1102
1103
1104
1105
1106
1107
1108
1109
1110
1111
1112
1113
1114
1115
1116
1117
1118
1119
1120
1121
1122
1123
1124
1125
1126
1127
1128
1129
1130
1131
1132
1133
1134
1135
1136
1137
1138
1139
1140
1141
1142
1143
1144
1145
1146
1147
1148
1149
1150
1151
1152
1153
1154
1155
1156
1157
1158
1159
1160
1161
1162
1163
1164
1165
1166
1167
1168
1169
1170
1171
1172
1173
1174
1175
1176
1177
1178
1179
1180
1181
1182
1183
1184
1185
1186
1187
1188
1189
1190
1191
1192
1193
1194
1195
1196
1197
1198
1199
1200
1201
1202
1203
1204
1205
1206
1207
1208
1209
1210
1211
1212
1213
1214
1215
1216
1217
1218
1219
1220
1221
1222
1223
1224
1225
1226
1227
1228
1229
1230
1231
1232
1233
1234
1235
1236
1237
1238
1239
1240
1241
1242
1243
1244
1245
1246
1247
1248
1249
1250
1251
1252
1253
1254
1255
1256
1257
1258
1259
1260
1261
1262
1263
1264
1265
1266
1267
1268
1269
1270
1271
1272
1273
1274
1275
1276
1277
1278
1279
1280
1281
1282
1283
1284
1285
1286
1287
1288
1289
1290
1291
1292
1293
1294
1295
1296
1297
1298
1299
1300
1301
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
1316
1317
1318
1319
1320
1321
1322
1323
1324
1325
1326
1327
1328
1329
1330
1331
1332
1333
1334
1335
1336
1337
1338
1339
1340
1341
1342
1343
1344
1345
1346
1347
1348
1349
1350
1351
1352
1353
1354
1355
1356
1357
1358
1359
1360
1361
1362
1363
1364
1365
1366
1367
1368
1369
1370
1371
1372
1373
1374
1375
1376
1377
1378
1379
1380
1381
1382
1383
1384
1385
1386
1387
1388
1389
1390
1391
1392
1393
1394
1395
1396
1397
1398
1399
1400
1401
1402
1403
1404
1405
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1420
1421
1422
1423
1424
1425
1426
1427
1428
1429
1430
1431
1432
1433
1434
1435
1436
1437
1438
1439
1440
1441
1442
1443
1444
1445
1446
1447
1448
1449
1450
1451
1452
1453
1454
1455
1456
1457
1458
1459
1460
1461
1462
1463
1464
1465
1466
1467
1468
1469
1470
1471
1472
1473
1474
1475
1476
1477
1478
1479
1480
1481
1482
1483
1484
1485
1486
1487
1488
1489
1490
1491
1492
1493
1494
1495
1496
1497
1498
1499
1500
1501
1502
1503
1504
1505
1506
1507
1508
1509
1510
1511
1512
1513
1514
1515
1516
1517
1518
1519
1520
1521
1522
1523
1524
1525
1526
1527
1528
1529
1530
1531
1532
1533
1534
1535
1536
1537
1538
1539
1540
1541
1542
1543
1544
1545
1546
1547
1548
1549
1550
1551
1552
1553
1554
1555
1556
1557
1558
1559
1560
1561
1562
1563
1564
1565
1566
1567
1568
1569
1570
1571
1572
1573
1574
1575
1576
1577
1578
1579
1580
1581
1582
1583
1584
1585
1586
1587
1588
1589
1590
1591
1592
1593
1594
1595
1596
1597
1598
1599
1600
1601
1602
1603
1604
1605
1606
1607
1608
1609
1610
1611
1612
1613
1614
1615
1616
1617
1618
1619
1620
1621
1622
1623
1624
1625
1626
1627
1628
1629
1630
1631
1632
1633
1634
1635
1636
1637
1638
1639
1640
1641
1642
1643
1644
1645
1646
1647
1648
1649
1650
1651
1652
1653
1654
1655
1656
1657
1658
1659
1660
1661
1662
1663
1664
1665
1666
1667
1668
1669
1670
1671
1672
1673
1674
1675
1676
1677
1678
1679
1680
1681
1682
1683
1684
1685
1686
1687
1688
1689
1690
1691
1692
1693
1694
1695
1696
1697
1698
1699
1700
1701
1702
1703
1704
1705
1706
1707
1708
1709
1710
1711
1712
1713
1714
1715
1716
1717
1718
1719
1720
1721
1722
1723
1724
1725
1726
1727
1728
1729
1730
1731
1732
1733
1734
1735
1736
1737
1738
1739
1740
1741
1742
1743
1744
1745
1746
1747
1748
1749
1750
1751
1752
1753
1754
1755
1756
1757
1758
1759
1760
1761
1762
1763
1764
1765
1766
1767
1768
1769
1770
1771
1772
1773
1774
1775
1776
1777
1778
1779
1780
1781
1782
1783
1784
1785
1786
1787
1788
1789
1790
1791
1792
1793
1794
1795
1796
1797
1798
1799
1800
1801
1802
1803
1804
1805
1806
1807
1808
1809
1810
1811
1812
1813
1814
1815
1816
1817
1818
1819
1820
1821
1822
1823
1824
1825
1826
1827
1828
1829
1830
1831
1832
1833
1834
1835
1836
1837
1838
1839
1840
1841
1842
1843
1844
1845
1846
1847
1848
1849
1850
1851
1852
1853
1854
1855
1856
1857
1858
1859
1860
1861
1862
1863
1864
1865
1866
1867
1868
1869
1870
1871
1872
1873
1874
1875
1876
1877
1878
1879
1880
1881
1882
1883
1884
1885
1886
1887
1888
1889
1890
1891
1892
1893
1894
1895
1896
1897
1898
1899
1900
1901
1902
1903
1904
1905
1906
1907
1908
1909
1910
1911
1912
1913
1914
1915
1916
1917
1918
1919
1920
1921
1922
1923
1924
1925
1926
1927
1928
1929
1930
1931
1932
1933
1934
1935
1936
1937
1938
1939
1940
1941
1942
1943
1944
1945
1946
1947
1948
1949
1950
1951
1952
1953
1954
1955
1956
1957
1958
1959
1960
1961
1962
1963
1964
1965
1966
1967
1968
1969
1970
1971
1972
1973
1974
1975
1976
1977
1978
1979
1980
1981
1982
1983
1984
1985
1986
1987
1988
1989
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
2031
2032
2033
2034
2035
2036
2037
2038
2039
2040
2041
2042
2043
2044
2045
2046
2047
2048
2049
2050
2051
2052
2053
2054
2055
2056
2057
2058
2059
2060
2061
2062
2063
2064
2065
2066
2067
2068
2069
2070
2071
2072
2073
2074
2075
2076
2077
2078
2079
2080
2081
2082
2083
2084
2085
2086
2087
2088
2089
2090
2091
2092
2093
2094
2095
2096
2097
2098
2099
2100
2101
2102
2103
2104
2105
2106
2107
2108
2109
2110
2111
2112
2113
2114
2115
2116
2117
2118
2119
2120
2121
2122
2123
2124
2125
2126
2127
2128
2129
2130
2131
2132
2133
2134
2135
2136
2137
2138
2139
2140
2141
2142
2143
2144
2145
2146
2147
2148
2149
2150
2151
2152
2153
2154
2155
2156
2157
2158
2159
2160
2161
2162
2163
2164
2165
2166
2167
2168
2169
2170
2171
2172
2173
2174
2175
2176
2177
2178
2179
2180
2181
2182
2183
2184
2185
2186
2187
2188
2189
2190
2191
2192
2193
2194
2195
2196
2197
2198
2199
2200
2201
2202
2203
2204
2205
2206
2207
2208
2209
2210
2211
2212
2213
2214
2215
2216
2217
2218
2219
2220
2221
2222
2223
2224
2225
2226
2227
2228
2229
2230
2231
2232
2233
2234
2235
2236
2237
2238
2239
2240
2241
2242
2243
2244
2245
2246
2247
2248
2249
2250
2251
2252
2253
2254
2255
2256
2257
2258
2259
2260
2261
2262
2263
2264
2265
2266
2267
2268
2269
2270
2271
2272
2273
2274
2275
2276
2277
2278
2279
2280
2281
2282
2283
2284
2285
2286
2287
2288
2289
2290
2291
2292
2293
2294
2295
2296
2297
2298
2299
2300
2301
2302
2303
2304
2305
2306
2307
2308
2309
2310
2311
2312
2313
2314
2315
2316
2317
2318
2319
2320
2321
2322
2323
2324
2325
2326
2327
2328
2329
2330
2331
2332
2333
2334
2335
2336
2337
2338
2339
2340
2341
2342
2343
2344
2345
2346
2347
2348
2349
2350
2351
2352
2353
2354
2355
2356
2357
2358
2359
2360
2361
2362
2363
2364
2365
2366
2367
2368
2369
2370
2371
2372
2373
2374
2375
2376
2377
2378
2379
2380
2381
2382
2383
2384
2385
2386
2387
2388
2389
2390
2391
2392
2393
2394
2395
2396
2397
2398
2399
2400
2401
2402
2403
2404
2405
2406
2407
2408
2409
2410
2411
2412
2413
2414
2415
2416
2417
2418
2419
2420
2421
2422
2423
2424
2425
2426
2427
2428
2429
2430
2431
2432
2433
2434
2435
2436
2437
2438
2439
2440
2441
2442
2443
2444
2445
2446
2447
2448
2449
2450
2451
2452
2453
2454
2455
2456
2457
2458
2459
2460
2461
2462
2463
2464
2465
2466
2467
2468
2469
2470
2471
2472
2473
2474
2475
2476
2477
2478
2479
2480
2481
2482
2483
2484
2485
2486
2487
2488
2489
2490
2491
2492
2493
2494
2495
2496
2497
2498
2499
2500
2501
2502
2503
2504
2505
2506
2507
2508
2509
2510
2511
2512
2513
2514
2515
2516
2517
2518
2519
2520
2521
2522
2523
2524
2525
2526
2527
2528
2529
2530
2531
2532
2533
2534
2535
2536
2537
2538
2539
2540
2541
2542
2543
2544
2545
2546
2547
2548
2549
2550
2551
2552
2553
2554
2555
2556
2557
2558
2559
2560
2561
2562
2563
2564
2565
2566
2567
2568
2569
2570
2571
2572
2573
2574
2575
2576
2577
2578
2579
2580
2581
2582
2583
2584
2585
2586
2587
2588
2589
2590
2591
2592
2593
2594
2595
2596
2597
2598
2599
2600
2601
2602
2603
2604
2605
2606
2607
2608
2609
2610
2611
2612
2613
2614
2615
2616
2617
2618
2619
2620
2621
2622
2623
2624
2625
2626
2627
2628
2629
2630
2631
2632
2633
2634
2635
2636
2637
2638
2639
2640
2641
2642
2643
2644
2645
2646
2647
2648
2649
2650
2651
2652
2653
2654
2655
2656
2657
2658
2659
2660
2661
2662
2663
2664
2665
2666
2667
2668
2669
2670
2671
2672
2673
2674
2675
2676
2677
2678
2679
2680
2681
2682
2683
2684
2685
2686
2687
2688
2689
2690
2691
2692
2693
2694
2695
2696
2697
2698
2699
2700
2701
2702
2703
2704
2705
2706
2707
2708
2709
2710
2711
2712
2713
2714
2715
2716
2717
2718
2719
2720
2721
2722
2723
2724
2725
2726
2727
2728
2729
2730
2731
2732
2733
2734
2735
2736
2737
2738
2739
2740
2741
2742
2743
2744
2745
2746
2747
2748
2749
2750
2751
2752
2753
2754
2755
2756
2757
2758
2759
2760
2761
2762
2763
2764
2765
2766
2767
2768
2769
2770
2771
2772
2773
2774
2775
2776
2777
2778
2779
2780
2781
2782
2783
2784
2785
2786
2787
2788
2789
2790
2791
2792
2793
2794
2795
2796
2797
2798
2799
2800
2801
2802
2803
2804
2805
2806
2807
2808
2809
2810
2811
2812
2813
2814
2815
2816
2817
2818
2819
2820
2821
2822
2823
2824
2825
2826
2827
2828
2829
2830
2831
2832
2833
2834
2835
2836
2837
2838
2839
2840
2841
2842
2843
2844
2845
2846
2847
2848
2849
2850
2851
2852
2853
2854
2855
2856
2857
2858
2859
2860
2861
2862
2863
2864
2865
2866
2867
2868
2869
2870
2871
2872
2873
2874
2875
2876
2877
2878
2879
2880
2881
2882
2883
2884
2885
2886
2887
2888
2889
2890
2891
2892
2893
2894
2895
2896
2897
2898
2899
2900
2901
2902
2903
2904
2905
2906
2907
2908
2909
2910
2911
2912
2913
2914
2915
2916
2917
2918
2919
2920
2921
2922
2923
2924
2925
2926
2927
2928
2929
2930
2931
2932
2933
2934
2935
2936
2937
2938
2939
2940
2941
2942
2943
2944
2945
2946
2947
2948
2949
2950
2951
2952
2953
2954
2955
2956
2957
2958
2959
2960
2961
2962
2963
2964
2965
2966
2967
2968
2969
2970
2971
2972
2973
2974
2975
2976
2977
2978
2979
2980
2981
2982
2983
2984
2985
2986
2987
2988
2989
2990
2991
2992
2993
2994
2995
2996
2997
2998
2999
3000
3001
3002
3003
3004
3005
3006
3007
3008
3009
3010
3011
3012
3013
3014
3015
3016
3017
3018
3019
3020
3021
3022
3023
3024
3025
3026
3027
3028
3029
3030
3031
3032
3033
3034
3035
3036
3037
3038
3039
3040
3041
3042
3043
3044
3045
3046
3047
3048
3049
3050
3051
3052
3053
3054
3055
3056
3057
3058
3059
3060
3061
3062
3063
3064
3065
3066
3067
3068
3069
3070
3071
3072
3073
3074
3075
3076
3077
3078
3079
3080
3081
3082
3083
3084
3085
3086
3087
3088
3089
3090
3091
3092
3093
3094
3095
3096
3097
3098
3099
3100
3101
3102
3103
3104
3105
3106
3107
3108
3109
3110
3111
3112
3113
3114
3115
3116
3117
3118
3119
3120
3121
3122
3123
3124
3125
3126
3127
3128
3129
3130
3131
3132
3133
3134
3135
3136
3137
3138
3139
3140
3141
3142
3143
3144
3145
3146
3147
3148
3149
3150
3151
3152
3153
3154
3155
3156
3157
3158
3159
3160
3161
3162
3163
3164
3165
3166
3167
3168
3169
3170
3171
3172
3173
3174
3175
3176
3177
3178
3179
3180
3181
3182
3183
3184
3185
3186
3187
3188
3189
3190
3191
3192
3193
3194
3195
3196
3197
3198
3199
3200
3201
3202
3203
3204
3205
3206
3207
3208
3209
3210
3211
3212
3213
3214
3215
3216
3217
3218
3219
3220
3221
3222
3223
3224
3225
3226
3227
3228
3229
3230
3231
3232
3233
3234
3235
3236
3237
3238
3239
3240
3241
3242
3243
3244
3245
3246
3247
3248
3249
3250
3251
3252
3253
3254
3255
3256
3257
3258
3259
3260
3261
3262
3263
3264
3265
3266
3267
3268
3269
3270
3271
3272
3273
3274
3275
3276
3277
3278
3279
3280
3281
3282
3283
3284
3285
3286
3287
3288
3289
3290
3291
3292
3293
3294
3295
3296
3297
3298
3299
3300
3301
3302
3303
3304
3305
3306
3307
3308
3309
3310
3311
3312
3313
3314
3315
3316
3317
3318
3319
3320
3321
3322
3323
3324
3325
3326
3327
3328
3329
3330
3331
3332
3333
3334
3335
3336
3337
3338
3339
3340
3341
3342
3343
3344
3345
3346
3347
3348
3349
3350
3351
3352
3353
3354
3355
3356
3357
3358
3359
3360
3361
3362
3363
3364
3365
3366
3367
3368
3369
3370
3371
3372
3373
3374
3375
3376
3377
3378
3379
3380
3381
3382
3383
3384
3385
3386
3387
3388
3389
3390
3391
3392
3393
3394
3395
3396
3397
3398
3399
3400
3401
3402
3403
3404
3405
3406
3407
3408
3409
3410
3411
3412
3413
3414
3415
3416
3417
3418
3419
3420
3421
3422
3423
3424
3425
3426
3427
3428
3429
3430
3431
3432
3433
3434
3435
3436
3437
3438
3439
3440
3441
3442
3443
3444
3445
3446
3447
3448
3449
3450
3451
3452
3453
3454
3455
3456
3457
3458
3459
3460
3461
3462
3463
3464
3465
3466
3467
3468
3469
3470
3471
3472
3473
3474
3475
3476
3477
Starting kernel ...
uboot time: 2976857 us
[
0.000000@0] Booting Linux on physical CPU 0x0
[
0.000000@0] Linux version 4.9.113 (yxt-rd01@yxtrd01-Super-Server) (gcc version 6.3.1 20170109 (Linaro GCC 6.3-2017.02) ) #1 SMP PREEMPT Mon Aug 23 17:56:15 CST 2021
[
0.000000@0] CPU: ARMv7 Processor [411fd050] revision 0 (ARMv7), cr=10c5383d
[
0.000000@0] CPU: div instructions available: patching division code
[
0.000000@0] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[
0.000000@0] Machine model: Amlogic
[
0.000000@0] 07400000 - 07500000,
1024 KB, ramoops@0x07400000
[
0.000000@0] 05000000 - 05400000,
4096 KB, linux,secmon
[
0.000000@0] df800000 - e0000000,
8192 KB, linux,meson-fb
[
0.000000@0] 78000000 - 80000000,
131072 KB, linux,ion-dev
[
0.000000@0] ee000000 - f0800000,
40960 KB, linux,di_cma
[
0.000000@0] Reserved memory: regions without no-map are not yet supported
[
0.000000@0] 64c00000 - 78000000,
315392 KB, linux,codec_mm_cma
[
0.000000@0] f0900000 - f0900000,
0 KB, linux,codec_mm_reserved
[
0.000000@0] ea000000 - ee000000,
65536 KB, linux,vdin0_cma
[
0.000000@0] e6000000 - ea000000,
65536 KB, linux,vdin1_cma
[
0.000000@0] e4000000 - e6000000,
32768 KB, linux,vm0_cma
[
0.000000@0] cma: Reserved 8 MiB at 0xe3800000
[
0.000000@0] Memory policy: Data cache writealloc
[
0.000000@0] psci: probing for conduit method from DT.
[
0.000000@0] psci: PSCIv1.0 detected in firmware.
[
0.000000@0] psci: Using standard PSCI v0.2 function IDs
[
0.000000@0] psci: MIGRATE_INFO_TYPE not supported.
[
0.000000@0] psci: SMC Calling Convention v1.1
[
0.000000@0] percpu: Embedded 15 pages/cpu @ee167000 s32140 r8192 d21108 u61440
[
0.000000@0] Built 1 zonelists in Zone order, mobility grouping on.
Total pages: 983554
[
0.000000@0] Kernel command line: init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xff803000 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 hdr_policy=0 hdr_priority= otg_device=0 reboot_mode_android=normal logo=osd0,loaded,0x3d800000 vout=1080p60hz,enable panel_type=lcd_1 lcd_ctrl=0x00000000 hdmitx=,444,8bit hdmimode=1080p60hz hdmichecksum=0xcbc80000 dolby_vision_on=0 frac_rate_policy=1 hdmi_read_edid=1 cvbsmode=576cvbs osd_reverse=0 video_reverse=0 irq_check_en=0 androidboot.selinux=permissive androidboot.firstboot=0 jtag=disable androidboot.hardware=amlogic androidboot.bootloader=U-Boot 2015.01 androidboot.build.expect.baseband=N/A androidboot.serialno=1234567890 mac=90:0e:b3:2c:ea:da androidboot.mac=90:0e:b3:2c:ea:da androidboot.oem.key1=ATV00104319 androidboot.rpmb_state=0 ro rootwait skip_initramfs androidboot.dtbo_idx=0 --cmdline root=/dev/mmcblk0p18 buildvariant=userdebug
[
0.000000@0] am_vecm: boot hdr_policy: 0
[
0.000000@0] fb: osd0
[
0.000000@0] fb: loaded
[
0.000000@0] fb: 0x3d800000
[
0.000000@0] vout: 1080p60hz
[
0.000000@0] vout: enable: 1
[
0.000000@0] lcd: panel_type: lcd_1
[
0.000000@0] lcd: lcd_ctrl: 0x00000000
[
0.000000@0] vout: get hdmimode: 1080p60hz
[
0.000000@0] vout: get hdmi checksum: 0xcbc80000
[
0.000000@0] get_dolby_on: 0
[
0.000000@0] hdmitx: hdmitx boot frac_rate_policy: 1
[
0.000000@0] vout: get cvbsmode: 576cvbs
[
0.000000@0] vpp_axis_reverse: bootargs is 0
[
0.000000@0] DI: di_read_canvas_reverse: bootargs is 0.
[
0.000000@0] vdin_get_video_reverse: bootargs is 0.
[
0.000000@0] phlock_phase_config: bootargs is 0.
[
0.000000@0] PID hash table entries: 4096 (order: 2, 16384 bytes)
[
0.000000@0] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes)
[
0.000000@0] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes)
[
0.000000@0] Memory: 3211120K/3940352K available (14336K kernel code, 1336K rwdata, 5108K rodata, 1024K init, 1395K bss, 57488K reserved, 671744K cma-reserved, 2487296K highmem)
[
0.000000@0] Virtual kernel memory layout:
[
0.000000@0]
vector
: 0xffff0000 - 0xffff1000
(
4 kB)
[
0.000000@0]
fixmap
: 0xffc00000 - 0xfff00000
(3072 kB)
[
0.000000@0]
vmalloc : 0xf0800000 - 0xff800000
( 240 MB)
[
0.000000@0]
lowmem
: 0xc0000000 - 0xf0000000
( 768 MB)
[
0.000000@0]
pkmap
: 0xbfe00000 - 0xc0000000
(
2 MB)
[
0.000000@0]
modules : 0xbc000000 - 0xbfe00000
(
62 MB)
[
0.000000@0]
.text : 0xc0108000 - 0xc1000000
(15328 kB)
[
0.000000@0]
.init : 0xc1600000 - 0xc1700000
(1024 kB)
[
0.000000@0]
.data : 0xc1700000 - 0xc184e2e8
(1337 kB)
[
0.000000@0]
.bss : 0xc1850000 - 0xc19ace84
(1396 kB)
[
0.000000@0] zone:Normal, spaned pages:196352, total:196352
[
0.000000@0] zone:HighMem, spaned pages:788736, total:985088
[
0.000000@0] page_trace_pre_work, trace buffer:edc00000, size:3c2000, used:edfc2000, end:ee000000
[
0.000000@0] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[
0.000000@0] Preemptible hierarchical RCU implementation.
[
0.000000@0] Build-time adjustment of leaf fanout to 32.
[
0.000000@0] RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[
0.000000@0] RCU: Adjusting geometry for rcu_fanout_leaf=32, nr_cpu_ids=4
[
0.000000@0] NR_IRQS:16 nr_irqs:16 16
[
0.000000@0] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[
0.000000@0] g12a_aoclkc_init: register ao clk ok!
[
0.000000@0] Meson chip version = RevB (2B:B - 1:0)
[
0.000000@0] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[
0.000000@0] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[
0.000000@0] meson_g12a_gpu_init: register meson gpu clk
[
0.000000@0] meson_g12a_media_init: register meson media clk
[
0.000000@0] meson_g12a_misc_init: register amlogic g12a misc clks
[
0.000000@0] meson_g12a_misc_init: done.
[
0.000000@0] g12a_clkc_init initialization complete
[
0.000000@0] sm1 clk probe ok
[
0.000000@0] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (virt).
[
0.000000@0] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[
0.000005@0] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[
0.000017@0] Switching to timer-based delay loop, resolution 41ns
[
0.000063@0] meson_bc_timer: mclk->mux_reg =f080c190,mclk->reg =f080e194
[
0.000719@0] Console: colour dummy device 80x30
[
0.000746@0] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[
0.000765@0] pid_max: default: 32768 minimum: 301
[
0.000823@0] thread_stack_cache_init, vmap:c012a980, bitmap:c0130400, cache page:e3400
[
0.000837@0] thread_stack_cache_init, allocation vm area:c012c180, addr:bc000000, size:3001000
[
0.000908@0] Security Framework initialized
[
0.000921@0] SELinux:
Initializing.
[
0.001011@0] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes)
[
0.001027@0] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes)
[
0.001835@0] CPU: Testing write buffer coherency: ok
[
0.001880@0] ftrace: allocating 44814 entries in 132 pages
[
0.087742@0] sched-energy: CPU device node has no sched-energy-costs
[
0.087763@0] CPU0: update cpu_capacity 1024
[
0.087772@0] CPU0: thread 0, cpu 0, socket 0, mpidr 81000000
[
0.087802@0] Setting up static identity map for 0x200000 - 0x200058
[
0.132505@0] secmon: can't fine clear_range
[
0.180429@1] CPU1: update cpu_capacity 1024
[
0.180434@1] CPU1: thread 0, cpu 1, socket 0, mpidr 81000100
[
0.212538@2] CPU2: update cpu_capacity 1024
[
0.212543@2] CPU2: thread 0, cpu 2, socket 0, mpidr 81000200
[
0.244661@3] CPU3: update cpu_capacity 1024
[
0.244665@3] CPU3: thread 0, cpu 3, socket 0, mpidr 81000300
[
0.244779@0] Brought up 4 CPUs
[
0.244810@0] SMP: Total of 4 processors activated (192.00 BogoMIPS).
[
0.244818@0] CPU: All CPU(s) started in SVC mode.
[
0.245754@0] addr:bc045cce is in kernel, size fix 4096->10, data:mode=0755
[
0.245901@0] devtmpfs: initialized
[
0.279236@0] VFP support v0.3: implementor 41 architecture 3 part 40 variant 5 rev 2
[
0.279780@0] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[
0.279807@0] futex hash table entries: 1024 (order: 4, 65536 bytes)
[
0.280025@0] pinctrl core: initialized pinctrl subsystem
[
0.281370@0] NET: Registered protocol family 16
[
0.285491@0] DMA: preallocated 256 KiB pool for atomic coherent allocations
[
0.285506@0] schedtune: init normalization constants...
[
0.285515@0] schedtune: no energy model data
[
0.285523@0] schedtune: disabled!
[
0.300359@0] cpuidle: using governor menu
[
0.300483@0] register canvas platform driver
[
0.300534@0] register rdma platform driver
[
0.304238@0] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[
0.304253@0] hw-breakpoint: maximum watchpoint size is 8 bytes.
[
0.304689@0] clkmsr: clkmsr: driver init
[
0.304700@0] codec_mm_module_init
[
0.304751@0] media_configs_system_init
[
0.305106@0] aml_watch_point_probe, in, wp:4
[
0.306026@0] pstore: using zlib compression
[
0.306721@0] console [pstore-1] enabled
[
0.306766@0] pstore: Registered ramoops as persistent store backend
[
0.306780@0] ramoops: attached 0x100000@0x7400000, ecc: 0/0
[
0.306794@0] ramoops: ramoops_io_en:0 1 old:0x0 ftrace_size:0x40000
[
0.309632@0] aml_iomap: amlogic iomap probe done
[
0.310388@0] vpu: driver version: v20190329(10-sm1)
[
0.310407@0] vpu: load vpu_clk: 666666667Hz(7)
[
0.310633@0] vpu: clktree_init
[
0.310722@0] vpu: vpu_probe OK
[
0.316853@0] clkmsr: msr_clk_reg0=f09c0004,msr_clk_reg2=f09c200c
[
0.316879@0] clkmsr: msr_ring_reg0=f09c45fc
[
0.320933@0] audio_clocks: audio_clocks_probe done
[
0.324951@0] aml_snd_reg_map[0], reg:ff661000, size:400
[
0.324987@0] aml_snd_reg_map[1], reg:ff660000, size:1000
[
0.325015@0] aml_snd_reg_map[2], reg:ff661400, size:400
[
0.325043@0] aml_snd_reg_map[3], reg:ff662000, size:1000
[
0.325070@0] aml_snd_reg_map[4], reg:ffd01000, size:1000
[
0.325097@0] aml_snd_reg_map[5], reg:ff661800, size:400
[
0.325127@0] aml_snd_reg_map[6], reg:ff661c00, size:104
[
0.325152@0] aml_snd_reg_map[7], reg:ff664000, size:104
[
0.325162@0] amlogic auge_snd_iomap probe done
[
0.327899@0] aml_vdac_config_probe: cpu_id:6, name:meson-sm1-vdac
[
0.328172@0] aml_vdac_probe: ok
[
0.328393@0] canvas_probe reg=ff638000,size=2000
[
0.328422@0] canvas maped reg_base =f09d8000
[
0.339273@0] rdma_probe,cpu_type:1, ver:0, len:8
[
0.339580@0] rdma_register, rdma_table_addr f0ad1000 rdma_table_addr_phy e3840000 reg_buf ed718000
[
0.339598@0] rdma_register success, handle 1 table_size 32768
[
0.339611@0] set_rdma_handle video rdma handle = 1.
[
0.339657@0] classs created ok
[
0.339681@0] classs file created ok
[
0.345338@0] cvbs_out: cvbsout_probe, cpu_id:6,name:meson-sm1-cvbsout
[
0.345533@0] cvbs_out: find performance_pal config
[
0.345557@0] cvbs_out: clk path:0x0
[
0.345570@0] vout: vout1: register server: cvbs_vout_server
[
0.345584@0] cvbs_out: register cvbs module server ok
[
0.345594@0] vout: vout2: register server: cvbs_vout2_server
[
0.345607@0] cvbs_out: register cvbs module vout2 server ok
[
0.345622@0] cvbs_out: chrdev devno 264241152 for disp
[
0.345939@0] cvbs_out: create cdev cvbs
[
0.345953@0] cvbs_out: cvbsout_probe OK
[
0.346817@0] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[
0.346951@0] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[
0.346963@0] codec_mm_probe ok
[
0.350222@0] earc_platform_probe
[
0.350341@0] regmap_resource, rx_cmdc, start:0xff663800, size:0x400
[
0.350472@0] regmap_resource, rx_dmac, start:0xff663c00, size:0x200
[
0.350586@0] regmap_resource, rx_top, start:0xff663e00, size:0x200
[
0.350658@0] EARC ff663800.earc: Can't get earc gate
[
0.350940@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350959@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350977@0] EARC ff663800.earc: Check whether support eARC TX
[
0.350992@0] EARC ff663800.earc: Check whether support eARC TX
[
0.351039@0] EARC ff663800.earc: platform get irq earc_tx failed, Check whether support eARC TX
[
0.351053@0] earc_platform_probe, irq_earc_rx:48, irq_earc_tx:-6
[
0.351505@3] earc_rx_isr EARCRX_CMDC_IDLE1
[
0.351537@0] earc_platform_probe, register soc platform
[
0.688078@0] vgaarb: loaded
[
0.688466@0] SCSI subsystem initialized
[
0.688856@0] usbcore: registered new interface driver usbfs
[
0.688949@0] usbcore: registered new interface driver hub
[
0.689060@0] usbcore: registered new device driver usb
[
0.689226@0] Linux video capture interface: v2.00
[
0.689383@0] pps_core: LinuxPPS API ver. 1 registered
[
0.689395@0] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[
0.689433@0] PTP clock support registered
[
0.690399@0] secmon: reserve_mem_size:0x300000
[
0.690554@0] secmon secmon: assigned reserved memory node linux,secmon
[
0.690910@0] secmon: get page:ee27f000, 5000
[
0.690926@0] secmon: share in base: 0xc50fe000, share out base: 0xc50ff000
[
0.690938@0] secmon: phy_in_base: 0x50fe000, phy_out_base: 0x50ff000
[
0.691314@0] fb: osd_init_module
[
0.691977@0] fb: viu vsync irq: 58
[
0.692007@0] fb: viu2 vsync irq: 67
[
0.692145@0] 0x000000d8:Y=d8,U=0,V=0
[
0.692157@0] 0x000000d9:Y=d9,U=0,V=0
[
0.692168@0] 0x000000da:Y=da,U=0,V=0
[
0.692180@0] 0x000000db:Y=db,U=0,V=0
[
0.692190@0] 0x000000dc:Y=dc,U=0,V=0
[
0.692202@0] 0x000000dd:Y=dd,U=0,V=0
[
0.692628@0] fb: osd_rdma_init: rdma_table p=0xe3848000,op=0xe3848000 , v=0xf0ada000
[
0.692705@0] rdma_register, rdma_table_addr f0adc000 rdma_table_addr_phy e3849000 reg_buf ed7c6000
[
0.692721@0] rdma_register success, handle 2 table_size 4096
[
0.692734@0] fb: osd_rdma_init:osd rdma handle = 2.
[
0.692759@0] fb: mem_size: 0x800000
[
0.692769@0] fb: mem_size: 0x1980000
[
0.692779@0] fb: mem_size: 0x100000
[
0.692789@0] fb: mem_size: 0x100000
[
0.692799@0] fb: mem_size: 0x800000
[
0.692883@0] meson-fb fb: assigned reserved memory node linux,meson-fb
[
0.692897@0] fb: reserved memory base:0xdf800000, size:800000
[
0.693332@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.693350@0] fb: init fbdev bpp is:32
[
0.695375@0] fb: set osd0 reverse as NONE
[
0.695402@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.702629@0] fb: osd probe OK
[
0.703686@0] hdmitx: system: amhdmitx_probe start
[
0.703701@0] hdmitx: system: Ver: 20190815
[
0.703741@0] hdmitx: system: hdmitx_device.chip_type : 12
[
0.703794@0] hdmitx: system: not find match pwr-ctl
[
0.703846@0] hdmitx: system: not find drm_amhdmitx
[
0.703888@0] hdmitx: system: hpd irq = 51
[
0.704012@0] hdmitx: system: hdcp22_tx_skp failed to probe
[
0.704030@0] hdmitx: system: hdcp22_tx_esm failed to probe
[
0.704672@0] hdmitx: hdmitx20: Mapped PHY: 0xffd00000
[
0.704702@0] hdmitx: hdmitx20: Mapped PHY: 0xff634400
[
0.704726@0] hdmitx: hdmitx20: Mapped PHY: 0xff900000
[
0.704746@0] hdmitx: hdmitx20: Mapped PHY: 0xff800000
[
0.704763@0] hdmitx: hdmitx20: Mapped PHY: 0xff63c000
[
0.704777@0] hdmitx: hdmitx20: Mapped PHY: 0xffd00000
[
0.704792@0] hdmitx: hdmitx20: Mapped PHY: 0xff608000
[
0.704808@0] hdmitx: hdmitx20: Mapped PHY: 0xff600000
[
0.704823@0] hdmitx: hdmitx20: Mapped PHY: 0xffe01000
[
0.704843@0] hdmitx: hw: alread display in uboot 0x10
[
0.704882@0] hdmitx: hw: avmute set to 1
[
0.704897@0] vout: vout1: register server: hdmitx_vout_server
[
0.704910@0] vout: vout2: register server: hdmitx_vout2_server
[
0.705757@0] hdmitx: system: fmt_attr 444,8bit
[
0.705917@0] hdmitx: system: amhdmitx_probe end
[
0.706913@0] lcd: driver version: 20200102(8-sm1)
[
0.713270@0] lcd: detect mode: tablet, fr_auto_policy: 0, key_valid: 0
[
0.713290@0] lcd: detect resume_type: 0
[
0.713557@0] lcd: lcd_clktree_probe
[
0.713571@0] lcd: status: 0
[
0.713585@0] vout: vout1: register server: lcd_vout_server
[
0.713599@0] vout: vout2: register server: lcd_vout2_server
[
0.713613@0] lcd: lcd_get_config from dts
[
0.713634@0] lcd: no range_setting
[
0.713721@0] lcd: P070ACB_FT, mipi, 8bit, 600x1024
[
0.713743@0] lcd: pixel_clk = 49.434MHz, bit_rate = 395.472MHz
[
0.714151@0] vout: error: invalid vinfo1. current vmode is not supported
[
0.714165@0] fb: current vmode=invalid, cmd: 0x20000
[
0.714178@0] lcd: lcd_probe ok
[
0.714707@0] vout: create vout attribute OK
[
0.714916@0] vout: vout_fops_create OK
[
0.714931@0] vout: vout1: register server: nulldisp_vout_server
[
0.715080@0] vout: tvout monitor interval:500(ms), timeout cnt:20
[
0.715113@0] hdmitx: hdmitx_set_current_vmode[4726]
[
0.715124@0] hdmitx: system: recalc before 1080p60hz 60 1
[
0.715136@0] hdmitx: system: recalc after 1080p60hz 2997 50
[
0.715145@0] hdmitx: alread display in uboot
[
0.715156@0] vout: init mode 1080p60hz set ok
[
0.715167@0] vout: aml_tvout_mode_monitor
[
0.715185@0] vout: aml_vout_probe OK
[
0.716686@0] chip type:0x2b
[
0.717298@0] MEMORY:[100000+f0800000]
[
0.717316@0] ramdump_probe, storage device:data
[
0.717327@0] NO valid ramdump args:0 0
[
0.717354@0] ramdump_probe, set sticky to 8f09
[
0.717587@0] VFD Driver
[
0.717901@0] sm1628_init+++++++++++
[
0.717912@0] ---MDrv_FrontPnl_Init---.
[
0.717923@0] ---MDrv_TM1623_Init---++++++++++++.
[
0.717945@0] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.718005@0] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.718060@0] ---MDrv_TM1623_ShowBoot---++++++++++++.
[
0.728303@1] ---MDrv_TM1623_Write_Adr_Data---++++++++++++.
[
0.728350@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728416@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728480@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728541@1] ---MDrv_TM1623_WriteData---++++++++++++.
[
0.728601@1] ---hardware_init---0++++++++++++.
[
0.728614@1] vfd_ioremap--------sync time--------------
[
0.728709@1] power vfd key(116) registed.
[
0.728722@1] volumn-up vfd key(114) registed.
[
0.728733@1] volumn-down vfd key(115) registed.
[
0.728743@1] menu vfd key(139) registed.
[
0.728755@1] up vfd key(402) registed.
[
0.728766@1] down vfd key(403) registed.
[
0.728777@1] enter vfd key(28) registed.
[
0.728920@1] device_create_file completed
[
0.729276@1] input: vfd_keypad as /devices/platform/meson-vfd/input/input0
[
0.729293@1] input_register_device completed
[
0.729317@1] vfd config major:244
[
0.730673@1] Advanced Linux Sound Architecture Driver Initialized.
[
0.731665@1] Bluetooth: Core ver 2.22
[
0.731801@1] NET: Registered protocol family 31
[
0.731816@1] Bluetooth: HCI device and connection manager initialized
[
0.731841@1] Bluetooth: HCI socket layer initialized
[
0.731861@1] Bluetooth: L2CAP socket layer initialized
[
0.731913@1] Bluetooth: SCO socket layer initialized
[
0.732803@1] NetLabel: Initializing
[
0.732820@1] NetLabel:
domain hash size = 128
[
0.732829@1] NetLabel:
protocols = UNLABELED CIPSOv4
[
0.732917@1] NetLabel:
unlabeled traffic allowed by default
[
0.738516@1] clocksource: Switched to clocksource arch_sys_counter
[
0.824196@1] VFS: Disk quotas dquot_6.6.0
[
0.824289@1] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[
0.832603@3] hdmitx: edid: EDID Parser:
[
0.832640@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832650@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832661@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832692@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832711@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832721@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832731@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832742@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832752@3] hdmitx: hdmitx: reach vesa idx MAX
[
0.832773@3] [RX]-up_phy_addr = 1
[
0.832807@3] hdmitx: edid: get dtd0 vic: 19
[
0.832821@3] hdmitx: hdmitx: get PMT vic: 16
[
0.832836@3] hdmitx: edid: find IEEEOUT
[
0.832880@3] hdmitx: edid: check sum valid
[
0.832891@3] hdmitx: edid: check sum valid
[
0.832907@3] hdmitx: edid: check sum valid
[
0.832917@3] hdmitx: edid: check sum valid
[
0.832948@3] hdmitx: edid: blk0 raw data
[
0.832996@3] hdmitx: edid:
[
0.832996@3] 00ffffffffffff004c2d630b47324b300a18010380301b782ad111a55555a028
[
0.832996@3] 0d5054bfef80714f81c0810081809500a9c0b3000101023a801871382d40582c
[
0.832996@3] 4500dd0c1100001e011d007251d01e206e285500dd0c1100001e000000fd0032
[
0.832996@3] 4b1e5111000a202020202020000000fc00533232443339300a202020202001cb
[
0.832996@3]
[
0.832996@3]
[
0.833020@3] hdmitx: edid: blk1 raw data
[
0.833064@3] hdmitx: edid:
[
0.833064@3] 02031af14690041f131203230907078301000066030c00100080011d00bc52d0
[
0.833064@3] 1e20b8285540dd0c1100001e8c0ad090204031200c405500dd0c110000188c0a
[
0.833064@3] d08a20e02d10103e9600dd0c1100001800000000000000000000000000000000
[
0.833064@3] 00000000000000000000000000000000000000000000000000000000000000c8
[
0.833064@3]
[
0.833064@3]
[
0.833092@3] hdmitx: system: update rx hdr info 0
[
0.833816@0] hdmitx: system: irq 80000002 0
[
0.833832@0] earc_hdmitx_hpdst, plugin
[
0.842196@1] dtv_dmd:[amldtvdemod..]aml_dtvdemod_init.
[
0.843384@1] NET: Registered protocol family 2
[
0.844250@1] TCP established hash table entries: 8192 (order: 3, 32768 bytes)
[
0.844325@1] TCP bind hash table entries: 8192 (order: 4, 65536 bytes)
[
0.844407@1] TCP: Hash tables configured (established 8192 bind 8192)
[
0.844520@1] UDP hash table entries: 512 (order: 2, 16384 bytes)
[
0.844571@1] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes)
[
0.844806@1] NET: Registered protocol family 1
[
0.848199@1] wifi: power_on_pin_OD = 0;
[
0.848244@1] aml_wifi wifi: [wifi_dev_probe] no power_on_pin2
[
0.848519@1] aml_wifi wifi: [pwm_double_channel_conf_dt] wifi pwm dt ok
[
0.848561@1] aml_wifi wifi: [pwm_double_channel_conf] wifi pwm conf ok
[
0.848576@1] aml_wifi wifi: [wifi_dev_probe] dhd_static_buf setup
[
0.848588@1] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem(): 100.10.545.3
[
0.849652@1] Wifi: bcmdhd_init_wlan_mem: bcmdhd_init_wlan_mem prealloc ok
[
0.849671@1] aml_wifi wifi: [wifi_dev_probe] interrupt_pin=483
[
0.849684@1] aml_wifi wifi: [wifi_dev_probe] irq_num=0, irq_trigger_type=1
[
0.849697@1] aml_wifi wifi: [wifi_dev_probe] power_on_pin=482
[
0.849710@1] aml_wifi wifi: [wifi_dev_probe] clock_32k_pin=0
[
0.850116@1] aml_wifi wifi: [wifi_setup_dt] wifi_setup_dt
[
0.850293@1] aml_wifi wifi: [wifi_setup_dt] irq num is:(79)
[
0.850309@1] aml_wifi wifi: [wifi_setup_dt] interrupt_pin(483)
[
0.850343@1] aml_wifi wifi: [wifi_setup_dt] power_on_pin(482)
[
0.856639@1] enable_pmuserenr_all() start
[
0.856683@1] enable_pmuserenr_all() end
[
0.856720@1] hw perfevents: clusterb_enabled = 0
[
0.856737@1] hw perfevents: cpumasks 0xf, 0x0
[
0.856797@1] hw perfevents: cluster A irq = 25
[
0.856949@1] hw perfevents: enabled with armv7_cortex_a15 PMU driver, 7 counters available
[
0.862789@1] audit: initializing netlink subsys (disabled)
[
0.862911@1] audit: type=2000 audit(0.800:1): initialized
[
0.864497@2] workingset: timestamp_bits=30 max_order=20 bucket_order=0
[
0.877131@2] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[
0.877353@0] clear:29c00000, free:29c00000, tick:150445 us
[
0.877590@2] exFAT: Version 1.2.9
[
0.879154@2] Registering sdcardfs 0.1
[
0.879476@2] ntfs: driver 2.1.32 [Flags: R/O].
[
0.879869@2] jffs2: version 2.2. (NAND) (SUMMARY)
?2001-2006 Red Hat, Inc.
[
0.880860@2] fuse init (API version 7.26)
[
0.887915@0] NET: Registered protocol family 38
[
0.887939@0] Key type asymmetric registered
[
0.887952@0] Asymmetric key parser 'x509' registered
[
0.888175@0] bounce: pool size: 64 pages
[
0.888473@0] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 241)
[
0.888489@0] io scheduler noop registered (default)
[
0.888500@0] io scheduler deadline registered
[
0.888537@0] io scheduler cfq registered
[
0.902914@1] random: fast init done
[
0.902972@1] random: crng init done
[
0.917950@0] brd: module loaded
[
0.925875@0] loop: module loaded
[
0.926970@0] zram: Added device: zram0
[
0.927419@0] mtdoops: mtd device (mtddev=name/number) must be supplied
[
0.928645@0] libphy: Fixed MDIO Bus: probed
[
0.929071@0] tun: Universal TUN/TAP device driver, 1.6
[
0.929084@0] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[
0.930209@0]
REG0:Addr = f0c3e540
[
0.930235@0]
ee eth reset:Addr = f0cf9008
[
0.930260@0] ----auto_cali_idx 255
[
0.931097@0] meson6-dwmac ff3f0000.ethernet: no reset control found
[
0.931117@0] stmmac - user ID: 0x11, Synopsys ID: 0x37
[
0.931127@0]
Ring mode enabled
[
0.931141@0]
DMA HW capability register supported
[
0.931154@0]
Normal descriptors
[
0.931165@0]
RX Checksum Offload Engine supported
[
0.931175@0] COE Type 2
[
0.931186@0]
TX Checksum insertion supported
[
0.931195@0]
Wake-Up On Lan supported
[
0.931273@0]
Enable RX Mitigation via HW Watchdog Timer
[
0.934375@0] libphy: stmmac: probed
[
0.934395@0] eth%d: PHY ID 02430c20 at 2 IRQ POLL (stmmac-0:02) active
[
0.936413@0] PPP generic driver version 2.4.2
[
0.936694@0] PPP BSD Compression module registered
[
0.936710@0] PPP Deflate Compression module registered
[
0.936738@0] PPP MPPE Compression module registered
[
0.936751@0] NET: Registered protocol family 24
[
0.936911@0] usbcore: registered new interface driver asix
[
0.937027@0] usbcore: registered new interface driver ax88179_178a
[
0.937119@0] usbcore: registered new interface driver cdc_ether
[
0.937197@0] usbcore: registered new interface driver net1080
[
0.937269@0] usbcore: registered new interface driver cdc_subset
[
0.937340@0] usbcore: registered new interface driver zaurus
[
0.937438@0] usbcore: registered new interface driver cdc_ncm
[
0.938316@0] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[
0.938333@0] ehci-pci: EHCI PCI platform driver
[
0.938430@0] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[
0.938465@0] ohci-pci: OHCI PCI platform driver
[
0.939382@0] usbcore: registered new interface driver cdc_acm
[
0.939399@0] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[
0.939496@0] usbcore: registered new interface driver usb-storage
[
0.939653@0] usbcore: registered new interface driver usbserial
[
0.939724@0] usbcore: registered new interface driver pl2303
[
0.939805@0] usbserial: USB Serial support registered for pl2303
[
0.940352@0] mousedev: PS/2 mouse device common for all mice
[
0.940902@0] usbcore: registered new interface driver xpad
[
0.941082@0] i2c /dev entries driver
[
0.941413@0] IR NEC protocol handler initialized
[
0.941428@0] IR RC5(x/sz) protocol handler initialized
[
0.941440@0] IR RC6 protocol handler initialized
[
0.941452@0] IR JVC protocol handler initialized
[
0.941462@0] IR Sony protocol handler initialized
[
0.941473@0] IR SANYO protocol handler initialized
[
0.941483@0] IR Sharp protocol handler initialized
[
0.941496@0] IR MCE Keyboard/mouse protocol handler initialized
[
0.941507@0] IR XMP protocol handler initialized
[
0.941641@0] usbcore: registered new interface driver uvcvideo
[
0.941653@0] USB Video Class driver (1.1.1)
[
0.941744@0] usbcore: registered new interface driver cx231xx
[
0.941760@0] md: linear personality registered for level -1
[
0.942450@0] device-mapper: ioctl: 4.35.0-ioctl (2016-06-23) initialised: dm-devel@redhat.com
[
0.942678@0] device-mapper: verity-avb: AVB error handler initialized with vbmeta device:
[
0.942695@0] Bluetooth: HCI UART driver ver 2.3
[
0.942708@0] Bluetooth: HCI UART protocol H4 registered
[
0.943075@0] cpuidle: enable-method property 'psci' found operations
[
0.943300@0] cpuidle: enable-method property 'psci' found operations
[
0.943445@0] cpuidle: enable-method property 'psci' found operations
[
0.943628@0] cpuidle: enable-method property 'psci' found operations
[
0.945313@0] ledtrig-cpu: registered to indicate activity on CPUs
[
0.945898@0] hidraw: raw HID events driver (C) Jiri Kosina
[
0.946459@0] usbcore: registered new interface driver usbhid
[
0.946473@0] usbhid: USB HID core driver
[
0.946734@0] ashmem: initialized
[
0.948293@0] value of voltage_tolerance 0
[
0.948316@0] meson_cpufreq_init:don't find the node <dynamic_gp1_clk>
[
0.948328@0] value of gp1_clk_target 0
[
0.949780@0] cpu cpu0: meson_cpufreq_init: CPU 0 initialized
[
0.952475@0] ff803000.serial: clock gate not found
[
0.952527@0] meson_uart ff803000.serial: ==uart0 reg addr = f0cfd000
[
0.952593@0] ff803000.serial: ttyS0 at MMIO 0xff803000 (irq = 36, base_baud = 1500000) is a meson_uart
[
0.952613@0] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 0 to 115200
[
1.021022@3] earc_rx_isr EARCRX_CMDC_IDLE2
[
1.360262@0] hdmitx: system: ###plugin!
[
1.360264@0] ###hdmi turn on!
[
1.503145@0] hdmitx: edid: EDID Parser:
[
1.503149@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503153@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503156@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503163@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503168@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503170@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503173@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503174@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503175@0] hdmitx: hdmitx: reach vesa idx MAX
[
1.503183@0] [RX]-up_phy_addr = 1
[
1.503194@0] hdmitx: edid: get dtd0 vic: 19
[
1.503198@0] hdmitx: hdmitx: get PMT vic: 16
[
1.503202@0] hdmitx: edid: find IEEEOUT
[
1.503224@0] hdmitx: edid: check sum valid
[
1.503225@0] hdmitx: edid: check sum valid
[
1.503230@0] hdmitx: edid: check sum valid
[
1.503231@0] hdmitx: edid: check sum valid
[
1.503235@0] hdmitx: edid: blk0 raw data
[
1.503259@0] hdmitx: edid:
[
1.503259@0] 00ffffffffffff004c2d630b47324b300a18010380301b782ad111a55555a028
[
1.503259@0] 0d5054bfef80714f81c0810081809500a9c0b3000101023a801871382d40582c
[
1.503259@0] 4500dd0c1100001e011d007251d01e206e285500dd0c1100001e000000fd0032
[
1.503259@0] 4b1e5111000a202020202020000000fc00533232443339300a202020202001cb
[
1.503259@0]
[
1.503259@0]
[
1.503264@0] hdmitx: edid: blk1 raw data
[
1.503286@0] hdmitx: edid:
[
1.503286@0] 02031af14690041f131203230907078301000066030c00100080011d00bc52d0
[
1.503286@0] 1e20b8285540dd0c1100001e8c0ad090204031200c405500dd0c110000188c0a
[
1.503286@0] d08a20e02d10103e9600dd0c1100001800000000000000000000000000000000
[
1.503286@0] 00000000000000000000000000000000000000000000000000000000000000c8
[
1.503286@0]
[
1.503286@0]
[
1.503290@0] hdmitx: system: update physcial size: 480 270
[
1.503296@0] hdmitx: hw: set audio
[
1.503303@0] hdmitx: hw: hdmitx tx_aud_src = 0
[
1.503315@0] hdmitx: fs = 0, cd = 4, tmds_clk = 148352
[
1.503319@0] hdmitx: hw: aud_n_para = 5824
[
1.503327@0] hdmitx: hw: set channel status
[
3.741081@2] console [ttyS0] enabled
[
3.745313@2] meson_uart ffd24000.serial: ==uart1 reg addr = f0eae000
[
3.751171@2] ffd24000.serial: ttyS1 at MMIO 0xffd24000 (irq = 50, base_baud = 1500000) is a meson_uart
[
3.762608@2] amlogic-new-usb2-v2 ffe09000.usb2phy: USB2 phy probe:phy_mem:0xffe09000, iomap phy_base:0xf0ee2000
[
3.771313@2] amlogic-new-usb3-v2 ffe09080.usb3phy: USB3 phy probe:phy_mem:0xffe09080, iomap phy_base:0xf0eed080
[
3.782067@2] meson-g12a-pinctrl pinctrl@ff634480: pin GPIOZ_0 already requested by ff3f0000.ethernet; cannot claim for ffd1f000.i2c
[
3.792645@2] meson-g12a-pinctrl pinctrl@ff634480: pin-1 (ffd1f000.i2c) status -22
[
3.800175@2] meson-g12a-pinctrl pinctrl@ff634480: could not request pin 1 (GPIOZ_0) from group i2c0_sda_z0
on device pinctrl-meson
[
3.812048@2] meson-i2c ffd1f000.i2c: Error applying setting, reverse things back
[
3.819509@2] meson-i2c: probe of ffd1f000.i2c failed with error -22
[
3.828012@2] Error: Driver 'meson_reset' is already registered, aborting...
[
3.833660@2] aml_dma ff63e000.aml_dma: Aml dma
[
3.839597@2] aml_aes_dma ff63e000.aml_dma:aml_aes: Aml AES_dma
[
3.846511@2] aml_sha_dma ff63e000.aml_dma:aml_sha: Aml SHA1/SHA224/SHA256 dma
[
3.850938@2] meson-remote: Driver init
[
3.854436@2] meson-remote: remote_probe
[
3.858163@2] meson-remote ff808040.rc: protocol = 0x1
[
3.863279@2] meson-remote ff808040.rc: led_blink = 1
[
3.868290@2] meson-remote ff808040.rc: led_blink_frq
= 100
[
3.874010@2] meson-remote ff808040.rc: platform_data irq =49
[
3.879687@2] meson-remote ff808040.rc: custom_number = 3
[
3.885053@2] meson-remote ff808040.rc: ptable->map_size = 50
[
3.890740@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-1
[
3.897937@2] meson-remote ff808040.rc: ptable->custom_code = 0xfb04
[
3.904259@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
3.910417@2] meson-remote ff808040.rc: fn_key_scancode not config yet
[
3.916913@2] meson-remote ff808040.rc: cursor_left_scancode not config yet
[
3.923842@2] meson-remote ff808040.rc: cursor_right_scancode not config yet
[
3.930864@2] meson-remote ff808040.rc: cursor_up_scancode not config yet
[
3.937622@2] meson-remote ff808040.rc: cursor_down_scancode not config yet
[
3.944557@2] meson-remote ff808040.rc: cursor_ok_scancode not config yet
[
3.951344@2] meson-remote ff808040.rc: ptable->map_size = 44
[
3.957034@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-2
[
3.964232@2] meson-remote ff808040.rc: ptable->custom_code = 0xfe01
[
3.970559@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
3.976739@2] meson-remote ff808040.rc: ptable->map_size = 17
[
3.982431@2] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-3
[
3.989623@2] meson-remote ff808040.rc: ptable->custom_code = 0xbd02
[
3.995952@2] meson-remote ff808040.rc: ptable->release_delay = 80
[
4.002104@2] meson-remote ff808040.rc: fn_key_scancode not config yet
[
4.008602@2] meson-remote ff808040.rc: cursor_left_scancode not config yet
[
4.015535@2] meson-remote ff808040.rc: cursor_right_scancode not config yet
[
4.022556@2] meson-remote ff808040.rc: cursor_up_scancode not config yet
[
4.029316@2] meson-remote ff808040.rc: cursor_down_scancode not config yet
[
4.036247@2] meson-remote ff808040.rc: cursor_ok_scancode not config yet
[
4.043015@2] meson-remote ff808040.rc: default protocol = 0x1 and id = 0
[
4.049769@2] meson-remote ff808040.rc: reg=0x0, val=0x1f40190
[
4.055575@2] meson-remote ff808040.rc: reg=0x4, val=0x12c00c8
[
4.061384@2] meson-remote ff808040.rc: reg=0x8, val=0x960050
[
4.067104@2] meson-remote ff808040.rc: reg=0xc, val=0x480028
[
4.072821@2] meson-remote ff808040.rc: reg=0x10, val=0x70fa0013
[
4.078805@2] meson-remote ff808040.rc: reg=0x18, val=0x8616800
[
4.084695@2] meson-remote ff808040.rc: reg=0x1c, val=0x9f00
[
4.090337@2] meson-remote ff808040.rc: reg=0x20, val=0x0
[
4.095703@2] meson-remote ff808040.rc: reg=0x24, val=0x0
[
4.101075@2] meson-remote ff808040.rc: reg=0x28, val=0x0
[
4.107777@2] input: aml_keypad as /devices/platform/ff808040.rc/input/input1
[
4.114939@2] meson-remote: IR XMP protocol handler initialized
[
4.123591@2] ion_dev soc:ion_dev: assigned reserved memory node linux,ion-dev
[
4.127211@2] ge2d: ge2d_init_module
[
4.130538@2] ge2d: ge2d_dev major:235
[
4.134168@2] ge2d: clock source clk_ge2d_gate ed399f40
[
4.139304@2] ge2d: clock clk_ge2d source ed5eeb40
[
4.143919@2] ge2d: clock source clk_vapb_0 ed5ee9c0
[
4.148832@2] ge2d: ge2d init clock is 500000000 HZ, VPU clock is 666666656 HZ
[
4.156142@2] ge2d: ge2d clock is 499 MHZ
[
4.160020@2] ge2d: find address resource
[
4.164019@2] ge2d: map io source 0xff940000,size=65536 to 0xf1010000
[
4.170409@2] ge2d: reserved mem init failed
[
4.174662@2] ge2d: ge2d: pdev=ed6ec800, irq=57, clk=ed399f40
[
4.180417@2] ge2d: ge2d start monitor
[
4.184205@3] ge2d: ge2d workqueue monitor start
[
4.184726@2] [tsync_pcr_init]init success.
[
4.184959@2] amvideom vsync irq: 58
[
4.185001@2] create_ge2d_work_queue video task ok
[
4.185740@2] hdmitx: hdcp: hdmitx_hdcp_init
[
4.186379@2] vout: vout2: create vout2 attribute OK
[
4.186516@2] vout: vout2: vout2_fops_create OK
[
4.186707@2] vout: vout2: clktree_init
[
4.186712@2] vout: vout2: register server: nulldisp_vout2_server
[
4.186846@2] vout: vout2: init mode null set ok
[
4.186848@2] vout: vout2: aml_vout2_probe OK
[
4.186980@2] DI: di_module_init ok.
[
4.187211@2] DI: di_probe:
[
4.187215@2] DI: di_probe: major 509
[
4.187440@2] deinterlace deinterlace: assigned reserved memory node linux,di_cma
[
4.187447@2] di:flag_cma=1
[
4.187451@2] DI: CMA size 0x2800000.
[
4.187472@2] pre_irq:77
[
4.187483@2] post_irq:78
[
4.187486@2] DI: di_probe allocate rdma channel 0.
[
4.187493@2] di_get_vpu_clkb: get clk vpu error.
[
4.187497@2] DI: vpu clkb <334000000, 667000000>
[
4.187530@2] get clkb rate:333333328
[
4.187538@2] DI:enable vpu clkb.
[
4.187555@2] 0x000000e1:Y=e1,U=0,V=0
[
4.187558@2] 0x000000e2:Y=e2,U=0,V=0
[
4.187560@2] 0x000000e3:Y=e3,U=0,V=0
[
4.187561@2] 0x000000f0:Y=f0,U=0,V=0
[
4.187563@2] 0x000000f1:Y=f1,U=0,V=0
[
4.187565@2] 0x000000f2:Y=f2,U=0,V=0
[
4.187568@2] 0x000000f3:Y=f3,U=0,V=0
[
4.187569@2] 0x000000f4:Y=f4,U=0,V=0
[
4.187571@2] 0x000000f5:Y=f5,U=0,V=0
[
4.187573@2] 0x000000f6:Y=f6,U=0,V=0
[
4.187581@2] 0x000000f7:Y=f7,U=0,V=0
[
4.187583@2] 0x000000f8:Y=f8,U=0,V=0
[
4.187584@2] 0x000000f9:Y=f9,U=0,V=0
[
4.187586@2] 0x000000fa:Y=fa,U=0,V=0
[
4.187589@2] 0x000000fb:Y=fb,U=0,V=0
[
4.187590@2] 0x000000fc:Y=fc,U=0,V=0
[
4.187598@2] 0x000000fd:Y=fd,U=0,V=0
[
4.187600@2] 0x000000fe:Y=fe,U=0,V=0
[
4.187602@2] 0x000000ff:Y=ff,U=0,V=0
[
4.187603@2] 0x0000003a:Y=3a,U=0,V=0
[
4.187605@2] 0x0000003b:Y=3b,U=0,V=0
[
4.187607@2] 0x0000003c:Y=3c,U=0,V=0
[
4.187611@2] 0x0000003d:Y=3d,U=0,V=0
[
4.187612@2] 0x0000003e:Y=3e,U=0,V=0
[
4.187614@2] 0x0000003f:Y=3f,U=0,V=0
[
4.187617@2] DI: support multi decoding 61~62~63.
[
4.187827@2] DI: di_probe:Di use HRTIMER
[
4.187972@2] DI: di_probe:ok
[
4.188036@2] dim:dim_module_init
[
4.188402@2] dim:dim_module_init finish
[
4.188405@2] dil:dil_init.
[
4.188644@2] dil:dil_init ok.
[
4.188677@2] vdin_drv_init: major 508
[
4.192962@2] rdma_register, rdma_table_addr f1007000 rdma_table_addr_phy e384a000 reg_buf c93ae600
[
4.192966@2] rdma_register success, handle 3 table_size 512
[
4.192969@2] vdin_drv_probe:vdin.0 rdma hanld 3.
[
4.193253@2] vdin vdin0: assigned reserved memory node linux,vdin0_cma
[
4.193256@2]
[
4.193256@2]
vdin memory resource done.
[
4.193261@2] vdin0 cma_mem_size = 64 MB
[
4.193265@2] vdin0 irq: 55 rdma irq: 2
[
4.193269@2] set_canvas_manual = 0
[
4.193300@2] get fclk_div5 err
[
4.193304@2] vdin_drv_probe: vdin cannot get msr clk !!!
[
4.193331@2] vdin_drv_probe: driver initialized ok
[
4.193430@2] rdma_register, rdma_table_addr f1009000 rdma_table_addr_phy e384b000 reg_buf c93aea00
[
4.193433@2] rdma_register success, handle 4 table_size 512
[
4.193437@2] vdin_drv_probe:vdin.1 rdma hanld 4.
[
4.193654@2] vdin vdin1: assigned reserved memory node linux,vdin1_cma
[
4.193656@2]
[
4.193656@2]
vdin memory resource done.
[
4.193661@2] vdin1 cma_mem_size = 64 MB
[
4.193664@2] vdin1 irq: 56 rdma irq:
videosync_create_instance dev_s ed055c00,dev_s->dev ed076f00
[
4.199991@0] videosync_create_instance reg videosync.0
[
4.200074@0] aml_vecm_init:module init
[
4.200080@1] videosync_thread started
[
4.200454@0]
[
4.200454@0]
VECM probe start
[
4.200785@0] Can't find
detect_colorbar.
[
4.200788@0] Can't find
detect_face.
[
4.200790@0] Can't find
detect_corn.
[
4.200792@0] Can't find
wb_sel.
[
4.200794@0] hdr:Can't find
cfg_en_osd_100.
[
4.200802@0] amlogic, vecm
[
4.200802@0] vlock dt support: 1
[
4.200804@0] vlock dt new_fsm: 0
[
4.200806@0] vlock dt hwver: 0
[
4.200808@0] vlock dt phlock_en: 0
[
4.200811@0] Can't find
vlock_en.
[
4.200812@0] Can't find
vlock_mode.
[
4.200816@0] Can't find
vlock_pll_m_limit.
[
4.200818@0] Can't find
vlock_line_limit.
[
4.200838@0] lcd vlock_en=1, vlock_mode=0x4
[
4.200848@0] param_config vlock_en:1 md=0x4
[
4.200853@0] vlock: maxLine 524,maxPixel 1715
[
4.200856@0] vlock_status_init vlock_en:1
[
4.200859@0] pixel_probe: vpp probe func error!
[
4.200866@0] aml_vecm_probe: ok
[
4.200931@0] amdolby_vision_init:module init
[
4.201367@0]
[
4.201367@0]
amdolby_vision probe start & ver: 20181220
[
4.201375@0]
[
4.201375@0]
cpu_id=2 tvmode=0
[
4.201548@0] dolby_vision_init_receiver(dvel)
[
4.201553@0] dolby_vision_init_receiver: dvel
[
4.201753@0] amdolby_vision_probe: ok
[
4.201762@0] g12 dovi disable in uboot
[
4.201829@0] prime_sl module init
[
4.202448@0] vm_init .
[
4.203609@0] meson-mmc: mmc driver version: 3.02, 2017-05-15: New Emmc Host Controller
[
4.204615@0] meson-mmc: >>>>>>>>hostbase f1042000, dmode
[
4.204908@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
4.204911@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
4.206772@0] hdmitx: hdmitx_set_drm_pkt: tf=1, cf=1, colormetry=0
[
4.252231@0] meson-mmc: meson_mmc_probe() : success!
[
4.257368@1] meson-mmc: >>>>>>>>hostbase f10cc000, dmode
[
4.257429@1] meson-mmc: gpio_cd = 1ca
[
4.298547@1] meson-mmc: meson_mmc_probe() : success!
[
4.299896@0] meson-mmc: >>>>>>>>hostbase f1156000, dmode
[
4.300172@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
4.300177@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
4.341331@0] meson-aml-mmc ffe07000.emmc: divider requested rate 200000000 != actual rate 199999997: ret=0
[
4.341336@0] meson-mmc: actual_clock :199999997, HHI_nand: 0x80
[
4.341339@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000245
[
4.341345@0] meson-mmc: Data 1 aligned delay is 0
[
4.341349@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.342573@1] meson-mmc: meson_mmc_probe() : success!
[
4.343071@1] amlogic mtd driver init
[
4.344228@2] aml_vrtc rtc: rtc core: registered aml_vrtc as rtc0
[
4.344445@2] input: aml_vkeypad as /devices/platform/rtc/input/input2
[
4.345647@2] cectx ff80023c.aocec: cec driver date:2020/03/16:reduece no msg in sleep time
[
4.345647@2]
[
4.345906@2] cectx ff80023c.aocec: compatible:amlogic, aocec-sm1
[
4.345909@2] cectx ff80023c.aocec: cecb_ver:0x2
[
4.345912@2] cectx ff80023c.aocec: line_reg:0x1
[
4.345914@2] cectx ff80023c.aocec: line_bit:0x3
[
4.345917@2] cectx ff80023c.aocec: ee_to_ao:0x1
[
4.346085@2] input: cec_input as /devices/virtual/input/input3
[
4.346226@2] cectx ff80023c.aocec: not find 'port_num'
[
4.346230@2] cectx ff80023c.aocec: using cec:1
[
4.346259@2] cectx ff80023c.aocec: no hdmirx regs
[
4.346262@2] cectx ff80023c.aocec: no hhi regs
[
4.347560@2] irq cnt:2, a:54, b53
[
4.347954@0] cectx ff80023c.aocec: wakeup_reason:0x0
[
4.348188@0] cectx ff80023c.aocec: cev val1: 0x0;val2: 0x0
[
4.348223@0] cectx ff80023c.aocec: aml_cec_probe success end
[
4.349531@0] unifykey: storage in base: 0xc5000000
[
4.349534@0] unifykey: storage out base: 0xc5040000
[
4.349536@0] unifykey: storage block base: 0xc5080000
[
4.349554@0] unifykey: probe done!
[
4.349649@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.349653@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 0, window start 0, size 5
[
4.349658@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.351733@0] unifykey: no efuse-version set, use default value: -1
[
4.351755@0] unifykey: key unify config unifykey-num is 18
[
4.352147@0] unifykey: key unify fact unifykey-num is 18
[
4.352182@0] unifykey: unifykey_devno: 1f200000
[
4.352786@2] unifykey: device unifykeys created ok
[
4.352841@2] unifykey: aml_unifykeys_init done!
[
4.353064@2] meson ts init
[
4.353118@2] tsensor id: 0
[
4.353254@2] tsensor trim info: 0xfa0080a2!
[
4.353258@2] tsensor hireboot: 0xc0ff2ae0
[
4.353339@2] meson ts init
[
4.353357@2] tsensor id: 1
[
4.353455@2] tsensor trim info: 0xfa0080a9!
[
4.353457@2] tsensor hireboot: 0xc0ff2ae0
[
4.353592@2] audio_dsp: [dsp]register dsp to char divece(257)
[
4.353773@2] amaudio: amaudio: driver amaudio init!
[
4.354283@2] amaudio: amaudio_init - amaudio: driver amaudio succuess!
[
4.355148@2] amlkaraoke init success!
[
4.355371@2] sysled: module init
[
4.355560@2] sysled: cust gpio register
[
4.355717@2] meson_wdt ffd0f0d0.watchdog: start watchdog
[
4.355720@2] meson_wdt ffd0f0d0.watchdog: creat work queue for watch dog
[
4.356035@2] meson_wdt ffd0f0d0.watchdog: AML Watchdog Timer probed done
[
4.356745@2] amlogic rfkill init
[
4.356925@2] enter bt_probe of_node
[
4.356945@2] not get gpio_en
[
4.356952@2] not get gpio_btwakeup
[
4.356958@2] power on valid level is high
[
4.356958@2] bt: power_on_pin_OD = 0;
[
4.356960@2] bt: power_off_flag = 1;
[
4.356963@2] dis power down = 0;
[
4.357514@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.357518@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 1, window start 0, size 5
[
4.357523@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.365072@0] meson-mmc: emmc: adj_win: < 0 1 2 3 4 >
[
4.365077@0] meson-mmc: _aml_sd_emmc_execute_tuning() d1_dly 2, window start 0, size 5
[
4.365081@0] meson-mmc: emmc: clk 199999997 tuning start
[
4.371228@0] meson-mmc: emmc: adj_win: < 0 2 3 4 >
[
4.371233@0] meson-mmc: emmc: best_win_start =2, best_win_size =4
[
4.371238@0] meson-mmc: emmc: sd_emmc_regs->gclock=0x10000245,sd_emmc_regs->gadjust=0x42000
[
4.371241@0] meson-mmc: delay1:0x0, delay2:0x0
[
4.371394@0] emmc: new HS200 MMC card at address 0001
[
4.371935@0] emmc: clock 199999997, 8-bit-bus-width
[
4.371935@0]
[
4.371935@0] mmcblk0: emmc:0001 BWBD3R 29.1 GiB
[
4.372135@0] mmcblk0boot0: emmc:0001 BWBD3R partition 1 4.00 MiB
[
4.372329@0] mmcblk0boot1: emmc:0001 BWBD3R partition 2 4.00 MiB
[
4.372526@0] mmcblk0rpmb: emmc:0001 BWBD3R partition 3 4.00 MiB
[
4.373449@0] meson-mmc: Enter aml_emmc_partition_ops
[
4.374063@0] meson-mmc: [mmc_read_partition_tbl] mmc read partition OK!
[
4.374066@0] meson-mmc: add_emmc_partition
[
4.374253@0] meson-mmc: [mmcblk0p01]
bootloader
offset 0x000000000000, size 0x000000400000
[
4.374422@0] meson-mmc: [mmcblk0p02]
reserved
offset 0x000002400000, size 0x000004000000
[
4.374610@0] meson-mmc: [mmcblk0p03]
cache
offset 0x000006c00000, size 0x000046000000
[
4.374755@0] meson-mmc: [mmcblk0p04]
env
offset 0x00004d400000, size 0x000000800000
[
4.374894@0] meson-mmc: [mmcblk0p05]
logo
offset 0x00004e400000, size 0x000000800000
[
4.375030@0] meson-mmc: [mmcblk0p06]
recovery
offset 0x00004f400000, size 0x000001800000
[
4.375179@0] meson-mmc: [mmcblk0p07]
misc
offset 0x000051400000, size 0x000000800000
[
4.375322@0] meson-mmc: [mmcblk0p08]
dtbo
offset 0x000052400000, size 0x000000800000
[
4.375468@0] meson-mmc: [mmcblk0p09]
cri_data
offset 0x000053400000, size 0x000000800000
[
4.375609@0] meson-mmc: [mmcblk0p10]
param
offset 0x000054400000, size 0x000001000000
[
4.375751@0] meson-mmc: [mmcblk0p11]
boot
offset 0x000055c00000, size 0x000001000000
[
4.375899@0] meson-mmc: [mmcblk0p12]
rsv
offset 0x000057400000, size 0x000001000000
[
4.376045@0] meson-mmc: [mmcblk0p13]
metadata
offset 0x000058c00000, size 0x000001000000
[
4.376197@0] meson-mmc: [mmcblk0p14]
vbmeta
offset 0x00005a400000, size 0x000000200000
[
4.376339@0] meson-mmc: [mmcblk0p15]
tee
offset 0x00005ae00000, size 0x000002000000
[
4.376491@0] meson-mmc: [mmcblk0p16]
vendor
offset 0x00005d600000, size 0x000046000000
[
4.376647@0] meson-mmc: [mmcblk0p17]
odm
offset 0x0000a3e00000, size 0x000008000000
[
4.376795@0] meson-mmc: [mmcblk0p18]
system
offset 0x0000ac600000, size 0x000050000000
[
4.376955@0] meson-mmc: [mmcblk0p19]
product
offset 0x0000fce00000, size 0x000008000000
[
4.377109@0] meson-mmc: [mmcblk0p20]
data
offset 0x000105600000, size 0x000642600000
[
4.377130@0] card key: card_blk_probe.
[
4.377136@0] emmc_key_init:183 emmc key lba_start:0x12020,lba_end:0x12220
[
4.377140@0] emmc key: emmc_key_init:205 ok.
[
4.379090@0] meson-mmc: amlmmc_dtb_init: register dtb chardev
[
4.379090@0] meson-mmc: calc f22493e0, store f22493e0
[
4.380968@0] meson-mmc: calc f22493e0, store f22493e0
[
4.380973@0] meson-mmc: total valid 2
[
4.381272@0] meson-mmc: amlmmc_dtb_init: register dtb chardev OK
[
4.381272@0] meson-mmc: Exit aml_emmc_partition_ops OK.
[
4.386644@2] request_irq error ret=-22
[
4.386690@2] dev_pm_set_wake_irq failed: -22
[
4.387636@2] dmc_monitor_probe
[
4.387815@2] page_trace_module_init, create sysfs failed
[
4.388801@2] atv_demod: aml_atvdemod_init: OK, atv demod version: V2.15.
[
4.388980@2] defendkey ff630218.defendkey: Reserved memory is not enough!
[
4.388993@2] defendkey: probe of ff630218.defendkey failed with error -22
[
4.389296@0] bl40: bl40 probe
[
4.389730@1] usbcore: registered new interface driver snd-usb-audio
[
4.391204@1] aml_codec_T9015 ff632000.t9015: aml_T9015_audio_codec_probe
[
4.391228@1] T9015 acodec used by auge, tdmout:1
[
4.394197@1] asoc debug: aml_audio_controller_probe-130
[
4.394885@1] aml_tdm_platform_probe, tdm ID = 0, lane_cnt = 2
[
4.394912@1] snd_tdm ff660000.audiobus:tdm@0: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.394976@1] snd_tdm ff660000.audiobus:tdm@0: neither mclk_pad nor mclk2pad set
[
4.395104@1] aml_tdm_platform_probe(), share en = 1
[
4.395104@1] No channel mask node Channel_Mask
[
4.395375@1] aml_tdm_platform_probe, tdm ID = 1, lane_cnt = 8
[
4.395463@1] TDM id 1 samesource_sel:3
[
4.395477@1] snd_tdm ff660000.audiobus:tdm@1: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.395786@1] TDM id 1 output clk enable:1
[
4.395817@1] aml_tdm_platform_probe(), share en = 1
[
4.395817@1] No channel mask node Channel_Mask
[
4.395840@1] TDM id 1 tuning clk enable:1
[
4.396035@1] aml_tdm_platform_probe, tdm ID = 2, lane_cnt = 4
[
4.396058@1] snd_tdm ff660000.audiobus:tdm@2: lane_mask_out = 1, lane_oe_mask_out = 0
[
4.396256@1] aml_tdm_platform_probe(), share en = 1
[
4.396256@1] No channel mask node Channel_Mask
[
4.397527@1] Spdif id 0 tuning clk enable:1
[
4.397536@1] aml_spdif_platform_probe, register soc platform
[
4.397653@1] aml_spdif_platform_probe, register soc platform
[
4.398528@1] default set lane_mask_in as all lanes.
[
4.398533@1] aml_pdm_platform_probe pdm filter mode from dts:1
[
4.398545@1] aml_pdm_platform_probe, register soc platform
[
4.399027@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 0, irqs toddr 37, frddr 41
[
4.399054@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 1, irqs toddr 38, frddr 42
[
4.399080@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 2, irqs toddr 39, frddr 43
[
4.399106@1] audio-ddr-manager ff660000.audiobus:ddr_manager: 3, irqs toddr 40, frddr 44
[
4.399638@1] datain_src:4, datain_chnum:2, datain_chumask:3
[
4.399642@1] datalb_src:1, datalb_chnum:2, datalb_chmask:3
[
4.399644@1] datain_lane_mask:0x1, datalb_lane_mask:0x1
[
4.399647@1] datalb_format: 1, chmask for lanes: 0x3
[
4.399885@1] loopback_platform_probe, p_loopback->id:0 register soc platform
[
4.400922@1] effect_platform_probe, line:569
[
4.401064@1] eqdrc_clk_set, src pll:399999993, clk:199999997
[
4.401070@1] effect_platform_probe
module:1, lane_mask:1, ch_mask:3
[
4.402136@1] vad_platform_probe vad data source sel:4, level:1
[
4.402320@1] input: vad_keypad as /devices/platform/soc/ff660000.audiobus/ff660000.audiobus:vad/input/input4
[
4.403207@0] Register vad
[
4.502629@1] meson-mmc: card IN
[
4.606921@1] meson-mmc: Uart in
[
4.614861@0] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[
4.614865@0] snd_tdm ff660000.audiobus:tdm@1: ASoC: Failed to add I2SIn CLK: -16
[
4.614868@0] aml_dai_tdm_probe, failed add snd tdm controls
[
4.614877@0] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[
4.614883@0] snd_tdm ff660000.audiobus:tdm@2: ASoC: Failed to add I2SIn CLK: -16
[
4.614885@0] aml_dai_tdm_probe, failed add snd tdm controls
[
4.614890@0] aml_dai_spdif_probe
[
4.614909@0] aml_dai_spdif_probe
[
4.614913@0] asoc debug: earc_dai_probe
[
4.614951@0] master_mode(1), binv(1), finv(0) out_skew(2), in_skew(3)
[
4.615711@0] asoc-aml-card auge_sound: multicodec <-> TDM-A mapping ok
[
4.615753@0] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[
4.616354@0] asoc-aml-card auge_sound: multicodec <-> TDM-B mapping ok
[
4.616384@0] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[
4.616976@0] asoc-aml-card auge_sound: dummy <-> TDM-C mapping ok
[
4.617498@0] asoc-aml-card auge_sound: dummy <-> ff660000.audiobus:pdm mapping ok
[
4.618122@0] asoc-aml-card auge_sound: dummy <-> SPDIF mapping ok
[
4.618546@0] asoc-aml-card auge_sound: dummy <-> SPDIF-B mapping ok
[
4.618552@0] asoc earc_dai_set_fmt, 0x4000, ed721d90
[
4.619162@0] asoc-aml-card auge_sound: dummy <-> ff663800.earc mapping ok
[
4.622983@0] snd_card_add_kcontrols card:ecc81010
[
4.623058@0] eq/drc v1 function enable
[
4.623065@0] no node audio_effect for eq/drc info!
[
4.623067@0] Failed to add audio effects v1 controls
[
4.623270@0] GACT probability NOT on
[
4.623282@0] Mirror/redirect action on
[
4.623289@0] u32 classifier
[
4.623291@0]
Actions configured
[
4.623296@0] Netfilter messages via NETLINK v0.30.
[
4.623532@0] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[
4.623801@0] ctnetlink v0.93: registering with nfnetlink.
[
4.624492@2] xt_time: kernel timezone is -0000
[
4.624575@2] ipip: IPv4 and MPLS over IPv4 tunneling driver
[
4.625041@2] IPv4 over IPsec tunneling driver
[
4.637878@2] ip_tables: (C) 2000-2006 Netfilter Core Team
[
4.638023@2] arp_tables: arp_tables: (C) 2002 David S. Miller
[
4.649267@2] Initializing XFRM netlink socket
[
4.649746@2] NET: Registered protocol family 10
[
4.650842@2] mip6: Mobile IPv6
[
4.650867@2] ip6_tables: (C) 2000-2006 Netfilter Core Team
[
4.667114@0] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver
[
4.668091@0] NET: Registered protocol family 17
[
4.668114@0] NET: Registered protocol family 15
[
4.668139@0] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[
4.668245@0] Bluetooth: RFCOMM TTY layer initialized
[
4.668253@0] Bluetooth: RFCOMM socket layer initialized
[
4.668273@0] Bluetooth: RFCOMM ver 1.11
[
4.668281@0] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[
4.668284@0] Bluetooth: BNEP filters: protocol multicast
[
4.668294@0] Bluetooth: BNEP socket layer initialized
[
4.668297@0] Bluetooth: HIDP (Human Interface Emulation) ver 1.2
[
4.668305@0] Bluetooth: HIDP socket layer initialized
[
4.668328@0] l2tp_core: L2TP core driver, V2.0
[
4.668346@0] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[
4.668347@0] l2tp_ip: L2TP IP encapsulation support (L2TPv3)
[
4.668367@0] l2tp_netlink: L2TP netlink interface
[
4.668395@0] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3)
[
4.668416@0] l2tp_debugfs: L2TP debugfs support
[
4.668420@0] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3)
[
4.668457@0] NET: Registered protocol family 35
[
4.668508@0] Key type dns_resolver registered
[
4.670907@0] Registering SWP/SWPB emulation handler
[
4.670924@0] disable EAS feature
[
4.702251@0] registered taskstats version 1
[
4.713815@0] dwc3 ff500000.dwc3: Configuration mismatch. dr_mode forced to host
[
4.716592@0] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[
4.716613@0] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[
4.716996@0] xhci-hcd xhci-hcd.0.auto: hcc params 0x0228fe6c hci version 0x110 quirks 0x20010010
[
4.717047@0] xhci-hcd xhci-hcd.0.auto: irq 29, io mem 0xff500000
[
4.717853@2] hub 1-0:1.0: USB hub found
[
4.717887@2] hub 1-0:1.0: 2 ports detected
[
4.718312@2] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[
4.718323@2] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[
4.718407@2] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[
4.718811@1] meson-mmc: JTAG in
[
4.719052@0] hub 2-0:1.0: USB hub found
[
4.719079@0] hub 2-0:1.0: 1 port detected
[
4.723859@0] aml_vrtc rtc: setting system clock to 2015-01-01 00:27:01 UTC (1420072021)
[
4.724320@0] dwc_otg: usb0: type: 2 speed: 0, config: 0, dma: 0, id: 0, phy: ffe09000, ctrl: 0
[
4.724323@0] dwc_otg_driver_probe host only, not probe usb_otg!!!
[
4.725004@0] lcd extern: key_valid: 0
[
4.725007@0] lcd extern: lcd_extern_get_config from dts
[
4.725020@0] lcd extern: error: failed to get extern_5
[
4.725062@0] lcd extern: aml_lcd_extern_probe ok
[
4.725619@0] bl: chip type/name: (8-sm1)
[
4.725622@0] bl: key_valid: 0
[
4.725625@0] bl: aml_bl_config_load from dts
[
4.725632@0] bl: load: backlight_0
[
4.725642@0] bl error: failed to get bl_power_attr
[
4.725651@0] bl: bl pwm_port: PWM_F(5)
[
4.725656@0] bl: find bl_pwm_en_sequence_reverse: 0
[
4.725660@0] bl: name
= backlight_pwm
[
4.725664@0] bl: method
= pwm(1)
[
4.725739@0] bl: register pwm_ch(5) 0xed0a20f0
[
4.726077@2] bl: probe OK
[
4.727117@2] meson_cdev probe
[
4.727206@2] meson_cdev index: 0
[
4.727400@2] meson_cdev index: 1
[
4.727406@2] cpucore_cooling_register, max_cpu_core_num:4
[
4.727531@2] meson_cdev index: 2
[
4.727558@2] meson_cdev index: 3
[
4.727601@2] find tzd id: 0
[
4.727735@2] find tzd id: 0
[
4.727781@2] meson_cdev probe done
[
4.728012@2] gxbb_pm: enter meson_pm_probe!
[
4.728028@2] no vddio3v3_en pin
[
4.728029@2] pm-meson aml_pm: Can't get switch_clk81
[
4.728064@2] gxbb_pm: meson_pm_probe done
[
4.728566@2] ALSA device list:
[
4.728570B
6.418816@0] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 115200 to 115200
[
6.526551@0] prepare_namespace() wait 79
[
6.526627@0] md: Waiting for all devices to be available before autodetect
[
6.531884@0] md: If you don't use raid, use raid=noautodetect
[
6.538587@2] md: Autodetecting RAID arrays.
[
6.541909@2] md: Scanned 0 and added 0 devices.
[
6.546536@2] md: autorun ...
[
6.549463@2] md: ... autorun DONE.
[
6.553830@2] EXT4-fs (mmcblk0p18): couldn't mount as ext3 due to feature incompatibilities
[
6.561646@2] EXT4-fs (mmcblk0p18): couldn't mount as ext2 due to feature incompatibilities
[
6.572417@2] EXT4-fs (mmcblk0p18): mounted filesystem without journal. Opts: (null)
[
6.577327@2] VFS: Mounted root (ext4 filesystem) readonly on device 179:18.
[
6.585825@0] devtmpfs: mounted
[
6.588235@0] Freeing unused kernel memory: 1024K
[
6.612711@2] init: init first stage started!
[
6.613519@2] init: Using Android DT directory /proc/device-tree/firmware/android/
[
6.623735@0] init: [libfs_mgr]fs_mgr_read_fstab_default(): failed to find device default fstab
[
6.682567@0] EXT4-fs (mmcblk0p17): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.687482@0] init: [libfs_mgr]__mount(source=/dev/block/odm,target=/odm,type=ext4)=0: Success
[
6.698033@0] EXT4-fs (mmcblk0p19): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.705639@0] init: [libfs_mgr]__mount(source=/dev/block/product,target=/product,type=ext4)=0: Success
[
6.717547@0] EXT4-fs (mmcblk0p16): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[
6.724860@0] init: [libfs_mgr]__mount(source=/dev/block/vendor,target=/vendor,type=ext4)=0: Success
[
6.734250@0] init: Skipped setting INIT_AVB_VERSION (not in recovery mode)
[
6.741186@0] init: Loading SELinux policy
[
6.931120@0] audit: type=1403 audit(1420072023.708:2): policy loaded auid=4294967295 ses=4294967295
[
6.934849@0] selinux: SELinux: Loaded policy from /odm/etc/selinux/precompiled_sepolicy
[
6.934849@0]
[
6.952462@0] selinux: SELinux: Loaded file_contexts
[
6.952462@0]
[
6.958104@2] init: init second stage started!
[
6.984142@0] init: Using Android DT directory /proc/device-tree/firmware/android/
[
6.991698@0] selinux: SELinux: Loaded file_contexts
[
6.991698@0]
[
6.992699@0] init: Running restorecon...
[
7.004122@0] init: waitid failed: No child processes
[
7.009848@0] init: Couldn't load property file '/odm/default.prop': open() failed: No such file or directory: No such file or directory
[
7.020033@0] init: Created socket '/dev/socket/property_service', mode 666, user 0, group 0
[
7.025881@0] init: Forked subcontext for 'u:r:vendor_init:s0' with pid 2534
[
7.032778@0] init: Forked subcontext for 'u:r:vendor_init:s0' with pid 2535
[
7.039243@0] init: Parsing file /init.rc...
[
7.135566@0] ueventd: ueventd started!
[
7.140062@0] selinux: SELinux: Loaded file_contexts
[
7.140062@0]
[
7.141282@0] ueventd: Parsing file /ueventd.rc...
[
7.141395@2] mali_kbase: loading out-of-tree module taints kernel.
[
7.145846@2] mali ffe40000.bifrost: Continuing without Mali regulator control
[
7.145936@2] mali ffe40000.bifrost: max pp is 2
[
7.145941@2] mali ffe40000.bifrost: set min pp to default 1
[
7.145943@2] mali ffe40000.bifrost: min pp is 1
[
7.145946@2] mali ffe40000.bifrost: set min clk default to 0
[
7.145949@2] mali ffe40000.bifrost: min clk
is 0
[
7.145966@2] mali ffe40000.bifrost: hiu io source
0xf15ad000
[
7.145976@2] mali ffe40000.bifrost: hiu io source
0xf15af000
[
7.145980@2] mali ffe40000.bifrost: num of pp used most of time 1
[
7.145986@2] mali ffe40000.bifrost: clock dvfs cfg table size is 6
[
7.146073@2] mali ffe40000.bifrost: max clk set 4
[
7.146076@2] mali ffe40000.bifrost: max clk
is 4
[
7.146082@2] mali ffe40000.bifrost: turbo clk set to 5
[
7.146085@2] mali ffe40000.bifrost: turbo clk
is 5
[
7.146089@2] mali ffe40000.bifrost: default clk set to 4
[
7.146091@2] mali ffe40000.bifrost: default clk
is 4
[
7.146097@2] mali ffe40000.bifrost: ====================0====================
[
7.146097@2] clk_freq= 285714285, clk_parent=fclk_div7, voltage=1150, keep_count=5, threshod=<100 190>, clk_sample=285
[
7.146102@2] mali ffe40000.bifrost: ====================1====================
[
7.146102@2] clk_freq= 400000000, clk_parent=fclk_div5, voltage=1150, keep_count=5, threshod=<152 207>, clk_sample=400
[
7.146106@2] mali ffe40000.bifrost: ====================2====================
[
7.146106@2] clk_freq= 500000000, clk_parent=fclk_div4, voltage=1150, keep_count=5, threshod=<180 220>, clk_sample=500
[
7.146111@2] mali ffe40000.bifrost: ====================3====================
[
7.146111@2] clk_freq= 666666666, clk_parent=fclk_div3, voltage=1150, keep_count=5, threshod=<210 236>, clk_sample=666
[
7.146117@2] mali ffe40000.bifrost: ====================4====================
[
7.146117@2] clk_freq= 846000000, clk_parent=
gp0_pll, voltage=1150, keep_count=5, threshod=<230 255>, clk_sample=846
[
7.146121@2] mali ffe40000.bifrost: ====================5====================
[
7.146121@2] clk_freq= 846000000, clk_parent=
gp0_pll, voltage=1150, keep_count=5, threshod=<230 255>, clk_sample=846
[
7.146125@2] mali ffe40000.bifrost: clock dvfs table size is 6
[
7.147636@2] mali_plat=bf05e2d8
[
7.147975@2] find tzd id: 0
[
7.148046@2] gpu cooling register okay with err=0
[
7.148229@2] find tzd id: 0
[
7.148259@2] gpu core cooling register okay with err=0
[
7.148290@2] shader_present=1, tiler_present=1, l2_present=1
[
7.148371@2] Mali_pwr_on:gpu_irq : 200
[
7.148747@2] hrtimer: interrupt took 18084 ns
[
7.149236@2] mali ffe40000.bifrost: GPU identified as 0x3 arch 7.0.9 r0p0 status 0
[
7.152920@2] mali ffe40000.bifrost: Probed as mali0
[
7.311846@2] ATBM: register atbm8881 demod driver version: V2.01 (Linux version 4.9.113-arm Jan 17 2020 17:28:22).
[
7.312451@2] ATBM: [atbm8881_fe..] probe ok.
[
7.356187@2] PPMGRVPP: info: RegisterTB_Function: gfunc
(null), func: bf0b3000, ver:TB detect: v2016.11.15a *** [ Tue Mar 19 19:21:39 CST 2019]-[ renjiang.han]-[* master]-[67f03d41e0612a58d1edd96db9bc8b92de1a59b1]-[Date: Wed Jul 4 00:44:57 2018 +0800]-[2]
[
7.437294@2] ueventd: Parsing file /vendor/ueventd.rc...
[
7.441701@2] ueventd: /vendor/ueventd.rc: 110: /sys/ lines must have 5 entries
[
7.448042@2] ueventd: Parsing file /odm/ueventd.rc...
[
7.453080@2] ueventd: Unable to read config file '/odm/ueventd.rc': open() failed: No such file or directory
[
7.463090@2] ueventd: Parsing file /ueventd.amlogic.rc...
[
7.468397@2] ueventd: Unable to read config file '/ueventd.amlogic.rc': open() failed: No such file or directory
[
7.985256@2] ueventd: Coldboot took 0.503 seconds
[
7.999586@1] audit: type=1400 audit(1420072024.776:3): avc:
denied
{ write } for
pid=1 comm="init" name="alignment" dev="proc" ino=4026531967 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.013467@1] audit: type=1400 audit(1420072024.788:4): avc:
denied
{ open } for
pid=1 comm="init" path="/proc/cpu/alignment" dev="proc" ino=4026531967 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.059223@2] audit: type=1400 audit(1420072024.836:5): avc:
denied
{ write } for
pid=2534 comm="init" name="watermark_scale_factor" dev="proc" ino=11571 scontext=u:r:vendor_init:s0 tcontext=u:object_r:proc_vm_writable:s0 tclass=file permissive=1
[
8.099260@1] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[
8.162307@2] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.309055@2] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.309055@2]
[
8.309813@2] e2fsck: /dev/block/data: clean, 2439/1643376 files, 285712/6563328 blocks
[
8.309813@2]
[
8.321114@2] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[
8.334035@3] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.341888@3] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[
8.350306@2] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.407972@1] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.407972@1]
[
8.408736@1] e2fsck: /dev/block/cache: clean, 14/71712 files, 13057/286720 blocks
[
8.408736@1]
[
8.419090@3] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[
8.427710@3] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.437763@3] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[
8.445925@3] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[
8.502090@1] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.502090@1]
[
8.502882@1] e2fsck: /dev/block/metadata: clean, 12/4096 files, 1166/4096 blocks
[
8.502882@1]
[
8.513195@3] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[
8.521010@3] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.572970@3] e2fsck: e2fsck 1.43.3 (04-Sep-2016)
[
8.572970@3]
[
8.573733@3] e2fsck: Pass 1: Checking inodes, blocks, and sizes
[
8.573733@3]
[
8.581366@3] e2fsck: Pass 2: Checking directory structure
[
8.581366@3]
[
8.588461@3] e2fsck: Pass 3: Checking directory connectivity
[
8.588461@3]
[
8.597197@3] EXT4-fs (mmcblk0p10): Ignoring removed nomblk_io_submit option
[
8.605528@0] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.657288@0] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[
8.660701@0] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[
8.671054@0] init: 10 output lines suppressed due to ratelimiting
[
8.685524@0] register clk_set_setting cpu[43]
[
8.690740@0] Registered firmware driver success.
[
8.692380@0] Try to load video/h264_enc.bin
...
[
8.696961@0] load firmware size : 76288, Name : video/h264_enc.bin.
[
8.701767@0] Try to load video/video_ucode.bin
...
[
8.725382@3] load firmware size : 1816576, Name : video/video_ucode.bin.
[
8.756041@3] audit: type=1400 audit(1420072025.532:6): avc:
denied
{ read } for
pid=3092 comm="imageserver" name="vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.772401@3] audit: type=1400 audit(1420072025.552:7): avc:
denied
{ write } for
pid=3092 comm="imageserver" name="vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.776140@2] Amlogic A/V streaming port init
[
8.779364@0] get gate demux control ok ed7fae80
[
8.779382@0] get gate parser_top control ok ed7fa780
[
8.779413@0] get gate vdec control ok ed7fab80
[
8.779446@0] get gate clk_81 control ok ed7fa2c0
[
8.779485@0] get gate clk_vdec_mux control ok ed7fa400
[
8.779529@0] get gate clk_hcodec_mux control ok ed7fac40
[
8.779580@0] get gate clk_hevc_mux control ok ed7fa800
[
8.779636@0] get gate clk_hevcb_mux control ok ed7fa7c0
[
8.779658@0] get gate ahbarb0 control ok ed7faa40
[
8.779667@0] get gate asyncfifo control failed
(null)
[
8.801825@2] ammvdec_h264 module init
[
8.834614@2] ammvdec_mpeg12 module init
[
8.843713@2] ammvdec_mpeg4_driver_init_module
[
8.860670@3] audit: type=1400 audit(1420072025.640:8): avc:
denied
{ open } for
pid=3092 comm="imageserver" path="/dev/vndbinder" dev="tmpfs" ino=14820 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.874079@2] amvenc_avc_probe -- reserved memory config fail.
[
8.874082@2] amvenc_avc - cma memory pool size: 60 MB
[
8.874106@2] encode_wq_init.
[
8.874112@2] encode start monitor.
[
8.874228@0] encode workqueue monitor start.
[
8.879560@2] vpu_init
[
8.879828@2] vpu_probe
[
8.879832@2] HevcEnc reserved memory config fail.
[
8.879834@2] HevcEnc - cma memory pool size: 64 MB
[
8.879859@2] HevcEnc - wave420l_irq: 65
[
8.879929@2] vpu base address get from platform driver physical base addr=0xff610000, virtual base=0xf27cc000
[
8.880223@2] success to probe vpu device with video memory from cma
[
8.913457@2] audit: type=1400 audit(1420072025.684:9): avc:
denied
{ setattr } for
pid=1 comm="init" name="slabinfo" dev="proc" ino=4026532028 scontext=u:r:init:s0 tcontext=u:object_r:proc:s0 tclass=file permissive=1
[
8.962740@3] audit: type=1400 audit(1420072025.740:10): avc:
denied
{ ioctl } for
pid=3092 comm="imageserver" path="/dev/vndbinder" dev="tmpfs" ino=14820 ioctlcmd=0x6209 scontext=u:r:imageserver:s0 tcontext=u:object_r:vndbinder_device:s0 tclass=chr_file permissive=1
[
8.988968@0] logd.auditd: start
[
9.128221@0] type=1400 audit(1420072025.904:11): avc: denied { setattr } for pid=2534 comm="init" name="droidota" dev="mmcblk0p20" ino=654085 scontext=u:r:vendor_init:s0 tcontext=u:object_r:update_data_file:s0 tclass=dir permissive=1
[
9.147708@0] type=1400 audit(1420072025.904:11): avc: denied { setattr } for pid=2534 comm="init" name="droidota" dev="mmcblk0p20" ino=654085 scontext=u:r:vendor_init:s0 tcontext=u:object_r:update_data_file:s0 tclass=dir permissive=1
[
9.164329@0] type=1400 audit(1420072025.904:12): avc: denied { setattr } for pid=2534 comm="init" name="log" dev="mmcblk0p20" ino=130822 scontext=u:r:vendor_init:s0 tcontext=u:object_r:log_file:s0 tclass=dir permissive=1
[
9.183966@0] type=1400 audit(1420072025.904:12): avc: denied { setattr } for pid=2534 comm="init" name="log" dev="mmcblk0p20" ino=130822 scontext=u:r:vendor_init:s0 tcontext=u:object_r:log_file:s0 tclass=dir permissive=1
[
9.203313@0] type=1400 audit(1420072025.924:13): avc: denied { setattr } for pid=2534 comm="init" name="media" dev="mmcblk0p20" ino=392452 scontext=u:r:vendor_init:s0 tcontext=u:object_r:media_rw_data_file:s0 tclass=dir permissive=1
[
9.231089@2] aml dvb init
[
9.283446@2] nn is disable,should not do probe continue
[
9.331154@0] logd.daemon: reinit
[
9.749313@3] healthd: BatteryTemperaturePath not found
[
9.749357@3] healthd: BatteryCycleCountPath not found
[
9.849979@3] unifykey: amlkey_init_gen() enter!
[
9.854856@3] emmc_key_read:114, read ok
[
9.854899@3] unifykey: amlkey_init_gen() storagekey_info.buffer=c5080000, storagekey_info.size = 40000!
[
9.869359@3] android.hardware.health@2.0-impl: wakealarm_init: timerfd_create failed
[
9.870674@3] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
9.875141@2] fb: osd_open, 1507, fb_index=0,fb_rmem_size=26738688
[
9.875266@2] fb: osd_open, 1507, fb_index=1,fb_rmem_size=1048576
[
9.875301@2] fb: osd_open, 1507, fb_index=2,fb_rmem_size=1048576
[
9.875474@2] fb: vpu clkc clock is 199 MHZ
[
9.875485@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 18
[
9.875488@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 22
[
9.875490@2] vpu: switch_vpu_mem_pd: unsupport vpu mod: 54
[
9.875498@2] fb: osd_open, 1507, fb_index=3,fb_rmem_size=8388608
[
9.956362@3] VID: VD1 off
[
9.957600@3] hdmitx: system: set hdcp_pwr 1
[
9.987153@2] vfm_map_store:rm default
[
9.988241@2] vfm_map_store:add default decoder ppmgr deinterlace amvideo
[
10.004617@3] hdmitx: system: restore hdcp_pwr 0
[
10.006208@2] file system registered
[
10.007695@1] hdmitx: system: sname = 1080p60hz
[
10.011819@1] hdmitx: system: char_clk = 148500
[
10.015628@2] assign_ffs_buffer FFS_BUFFER_MAX=100!!!
[
10.022655@1] hdmitx: system: cd = 4
[
10.023095@3] cpufreq_interactive: cpufreq_hmp_boost_start()
[
10.023097@3] cpufreq_interactive: no need to active hmp boost!
[
10.042858@1] hdmitx: system: cs = 2
[
10.046597@1] hdmitx: RX tmds clk: 150
Calc clk: 148
[
10.091487@3] dhd_module_init: in Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
10.096449@3] ======== dhd_wlan_init_plat_data ========
[
10.101752@3] dhd_wlan_init_gpio: WL_HOST_WAKE=-1, oob_irq=79, oob_irq_flags=0x418
[
10.109170@3] dhd_wlan_init_gpio: WL_REG_ON=-1
[
10.113617@3] dhd_wifi_platform_load: Enter
[
10.117766@3] Power-up adapter 'DHD generic adapter'
[
10.122659@3] wifi_platform_set_power = 1, delay: 200 msec
[
10.128266@3] ======== PULL WL_REG_ON(-1) HIGH! ========
[
10.133557@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Disable! 482
[
10.340442@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Enable! 482
[
10.603277@2] aml_tdm_open
[
10.604916@1] aml_spdif_open
[
10.606204@2] aml_spdif_close
[
10.607166@2] aml_tdm_open
[
10.614265@1] earc_dai_startup
[
10.614304@1] asoc debug: earc_open
[
10.615920@1] earc_dai_shutdown
[
10.618593@1] asoc debug: earc_close
[
10.622664@1] aml_tdm_open
[
10.623432@2] type=1400 audit(1420072025.924:13): avc: denied { setattr } for pid=2534 comm="init" name="media" dev="mmcblk0p20" ino=392452 scontext=u:r:vendor_init:s0 tcontext=u:object_r:media_rw_data_file:s0 tclass=dir permissive=1
[
10.623465@2] type=1400 audit(1420072027.400:14): avc: denied { create } for pid=3284 comm="HwBinder:3284_1" scontext=u:r:hal_audio_default:s0 tcontext=u:r:hal_audio_default:s0 tclass=netlink_kobject_uevent_socket permissive=1
[
10.623991@2] type=1400 audit(1420072027.400:14): avc: denied { create } for pid=3284 comm="HwBinder:3284_1" scontext=u:r:hal_audio_default:s0 tcontext=u:r:hal_audio_default:s0 tclass=netlink_kobject_uevent_socket permissive=1
[
10.846558@1] wifi_platform_bus_enumerate device present 1
[
10.846595@1] ======== Card detection to detect SDIO card! ========
[
10.854045@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.859234@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.866996@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.872231@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.883259@0] meson-mmc: sdio: resp_timeout,vstat:0xa1ff2800,virqc:3fff
[
10.885239@0] meson-mmc: sdio: err: wait for irq service, bus_fsm:0x8
[
10.910575@1] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
10.910689@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000033c
[
10.936457@1] sdio: queuing unknown CIS tuple 0x80 (2 bytes)
[
10.941534@1] sdio: queuing unknown CIS tuple 0x80 (7 bytes)
[
10.944883@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
10.950560@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
11.052076@1] meson-aml-mmc ffe03000.sdio: divider requested rate 150000000 != actual rate 142857141: ret=0
[
11.056297@1] meson-mmc: actual_clock :142857141, HHI_nand: 0x80
[
11.062230@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000247
[
11.069279@1] meson-mmc: Data 1 aligned delay is 0
[
11.074007@1] meson-mmc: sdio: clk 142857141 tuning start
[
11.088115@1] meson-mmc: sdio: adj_win: < 0 2 3 4 5 6 >
[
11.088148@1] meson-mmc: sdio: best_win_start =2, best_win_size =6
[
11.093921@1] meson-mmc: sdio: sd_emmc_regs->gclock=0x10000247,sd_emmc_regs->gadjust=0x52000
[
11.102370@1] meson-mmc: delay1:0x0, delay2:0x0
[
11.112886@1] sdio: new ultra high speed SDR104 SDIO card at address 0001
[
11.114160@1] sdio: clock 142857141, 4-bit-bus-width
[
11.120154@3] meson-mmc: [sdio_reinit] finish
[
11.140240@3] bcmsdh_register: register client driver
[
11.140462@3] bcmsdh_sdmmc_probe: Enter num=1
[
11.144214@3] bcmsdh_sdmmc_probe: Enter num=2
[
11.148362@3] bus num (host idx)=2, slot num (rca)=1
[
11.153279@3] found adapter info 'DHD generic adapter'
[
11.158428@3] Wifi: bcmdhd_mem_prealloc: sectoin 3, size 139264
[
11.164332@3] succeed to alloc static buf
[
11.168273@3] Wifi: bcmdhd_mem_prealloc: sectoin 4, size 0
[
11.173855@3] sdioh_attach: set sd_f2_blocksize 256
[
11.178689@3] sdioh_attach: sd clock rate = 0
[
11.183607@3] dhdsdio_probe : no mutex held. set lock
[
11.188297@3] F1 signature read @0x18000000=0x17014354
[
11.199442@2] F1 signature OK, socitype:0x1 chip:0x4354 rev:0x1 pkg:0x0
[
11.201209@3] DHD: dongle ram size is set to 786432(orig 786432) at 0x180000
[
11.207587@3] Wifi: bcmdhd_mem_prealloc: sectoin 7, size 25064
[
11.213282@3] [dhd] dhd_conf_set_chiprev : chip=0x4354, chiprev=1
[
11.219398@3] Wifi: bcmdhd_mem_prealloc: sectoin 0, size 10320
[
11.225892@3] Wifi: bcmdhd_mem_prealloc: sectoin 5, size 65536
[
11.231434@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.239387@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.247775@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.256184@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.264599@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.273011@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.281410@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.289834@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
11.298403@3] Wifi: bcmdhd_mem_prealloc: sectoin 19, size 65652
[
11.304122@3] Wifi: bcmdhd_mem_prealloc: sectoin 20, size 262144
[
11.310130@3] Wifi: bcmdhd_mem_prealloc: sectoin 22, size 65536
[
11.315977@3] dhd_log_dump_init: kernel log buf size = 512KB; logdump_prsrv_tailsize = 80KB; limit prsrv tail size to = 76KB
[
11.327154@3] dhd_log_dump_init : Try to allocate memory total(4194304) special(8192)
[
11.334959@3] Wifi: bcmdhd_mem_prealloc: sectoin 15, size 4194304
[
11.341765@3] Wifi: bcmdhd_mem_prealloc: sectoin 16, size 8192
[
11.346967@3] dhd_attach(): thread:dhd_watchdog_thread:d64 started
[
11.353115@2] dhd_attach(): thread:dhd_dpc:d65 started
[
11.358288@2] dhd_attach(): thread:dhd_rxf:d66 started
[
11.363219@2] dhd_deferred_work_init: work queue initialized
[
11.368878@2] dhd_tcpack_suppress_set: TCP ACK Suppress mode 0 -> mode 2
[
11.375612@2] get_mem_val_from_file: File [/data/vendor/misc/wifi/.memdump.info] doesn't exist
[
11.384135@2] dhd_get_memdump_info: MEMDUMP ENABLED = 3
[
11.389352@2] Wifi: bcmdhd_mem_prealloc: sectoin 1, size 10300
[
11.395156@2] Wifi: bcmdhd_mem_prealloc: sectoin 2, size 65536
[
11.401051@2] dhdsdio_probe_init: making DHD_BUS_DOWN
[
11.406214@2] sdioh_cis_read: func_cis_ptr[0]=0x10ac
[
11.428211@0] Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
11.432540@0] Register interface [wlan0]
MAC: 90:b6:86:6d:af:e1
[
11.432540@0]
[
11.439226@0] dhd_dbg_detach_pkt_monitor, 2099
[
11.443530@0] dhd_bus_devreset: == Power OFF ==
[
11.448456@3] dhd_bus_stop: making DHD_BUS_DOWN
[
11.452520@3] bcmsdh_oob_intr_unregister: Enter
[
11.456960@3] bcmsdh_oob_intr_unregister: irq is not registered
[
11.462871@3] dhd_bus_devreset: making dhdpub up FALSE
[
11.467960@3] dhd_txglom_enable: enable 0
[
11.471941@3] dhd_bus_devreset: making DHD_BUS_DOWN
[
11.476808@3] dhd_bus_devreset:
WLAN OFF DONE
[
11.481311@3] wifi_platform_set_power = 0, delay: 0 msec
[
11.486532@3] ======== PULL WL_REG_ON(-1) LOW! ========
[
11.486558@0] vout: aml_tvout_mode_work: monitor_timeout
[
11.497016@3] dhd_ifname: ifidx 16 out of range
[
11.501498@3] <if_bad>: set cur_etheraddr failed
[
11.506091@3] dhd_ifname: ifidx 16 out of range
[
11.510616@3] dhd_register_if: _dhd_set_mac_address() failed
[
11.517221@3] Register interface [wlan1]
MAC: 92:b6:86:6d:af:e1
[
11.517221@3]
[
11.523881@3] dhdsdio_probe : the lock is released.
[
11.528958@3] dhd_module_init: Exit err=0
[
11.537571@3] vout: vout_io_open
console:/ $ [
11.595832@2] [DI] load 0x3e00 pq table len 424 later.
[
11.629702@2] read descriptors
[
11.629746@2] read strings
[
12.023273@3] init: Could not find service hosting interface vendor.amlogic.hardware.hdmicec@1.0::IDroidHdmiCEC/default
[
12.035405@3] vout: vout_io_open
[
12.035440@3] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[
12.038679@3] vout: vout_io_release
[
12.586979@0] capability: warning: `main' uses 32-bit capabilities (legacy support in use)
[
12.671163@0] avc open
[
12.671190@0] amvenc_avc
check CMA pool success, max instance: 3.
[
12.675838@0] allocating phys 0x64c00000, size 20480k, wq:eb808800.
[
12.680457@0] amvenc_avc
memory config success, buff start:0x64c00000, size is 0x1400000, wq:eb808800.
[
12.690033@0] avc release, wq:eb808800
[
12.693538@0] remove
encode_work_queue eb808800 success, _destroy_encode_work_queue line 3724.
[
12.702673@0] [+] vpu_open
[
12.708017@0] allocating phys 0x64c00000, virt addr 0x0, size 65536k
[
12.711507@0] [-] vpu_open, ret: 0
[
12.714600@0] vpu_release
[
12.717190@0] vpu_free_buffers
[
12.720196@0] vpu_free_instances
[
12.723387@0] vpu_release, s_video_memory 0x64c00000
[
13.973324@1] early_suspend_state=0
[
15.159500@1] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.162433@1] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.197871@2] healthd: battery l=42 v=4 t=42.4 h=2 st=2 c=1 fc=10000000 chg=u
[
15.397473@3] type=1400 audit(1420072029.004:20): avc: denied { net_admin } for pid=3279 comm="HwBinder:3279_2" capability=12 scontext=u:r:hdmicecd:s0 tcontext=u:r:hdmicecd:s0 tclass=capability permissive=1
[
15.412155@3] type=1400 audit(1420072032.172:21): avc: denied { read } for pid=3553 comm="android.ui" name="state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.431888@3] type=1400 audit(1420072032.172:21): avc: denied { read } for pid=3553 comm="android.ui" name="state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.450838@3] type=1400 audit(1420072032.184:22): avc: denied { read open } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.475609@3] type=1400 audit(1420072032.184:22): avc: denied { read open } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.500137@3] type=1400 audit(1420072032.184:23): avc: denied { getattr } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
15.950421@1] acc_open
[
15.950459@1] acc_release
[
16.220665@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.224457@3] eth0: device MAC address 90:0e:b3:2c:ea:da
[
16.317145@3] meson6-dwmac ff3f0000.ethernet eth0: fail to init PTP.
[
16.328178@1] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[
16.328556@1] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.337912@3] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
16.380357@0] video_inuse return 0,set 1
[
16.380797@0] is_reset=0
[
16.381283@0] The fw has been loaded.
[
16.384979@0] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
16.396466@0] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
16.398649@0] [LOCAL], the fw (h264_multi) will be loaded.
[
16.404530@1] ppmgr local_init
[
16.406845@1] di_receiver_event_fun: vframe provider reg ppmgr
[
16.413671@1] DI: reg f
[
16.415271@0] ppmgr local_init
[
16.415316@2] PPMGRVPP: info: y5fld[0] is NULL!
[
16.423368@0] vdec->port_flag=0x102, port_flag=0x10b
[
16.450156@2] aml_tdm_open
[
16.451205@3] hdmitx: audio: aout notify format CT_PCM
[
16.452357@3] hdmitx: hw: set audio
[
16.454851@2] PPMGRVPP: info: tb first frame type: 0
[
16.456353@2] PPMGRVPP: info: tb cma memory 64e80000, size 18000, item 8
[
16.456459@2] DI: di_wr_cue_int:finish
[
16.456462@2] di: di_init_buf -S
[
16.456483@2] di: di_init_buf -E
[
16.478017@3] hdmitx: hw: hdmitx tx_aud_src = 0
[
16.483339@3] hdmitx: fs = 3, cd = 4, tmds_clk = 148352
[
16.487732@3] hdmitx: hw: aud_n_para = 5824
[
16.491845@0] di_cma_alloc:alloc 10 buffer use 36 ms(4294683688~4294683724)
[
16.496886@2] pre_de_buf_config:4294683728ms 1th source change: 0x0/0/0/0=>0x9000/1920/1080/0
[
16.502430@0] video first pts = bba
[
16.510939@2] hdmitx: hw: set channel status
[
16.515111@2] hdmitx: audio: Audio Type: PCM
[
16.519383@2] hdmitx: audio: set audio param
[
16.519998@0] videosync_open
[
16.520033@0] omx need drop 0
[
16.546434@3] videosync_open
[
16.554032@2] asoc-aml-card auge_sound: tdm playback enable
[
16.555317@3] fb: osd[0] enable: 1 scale:0x10001 (HwBinder:3295_1)
[
16.560272@0] fb: osd[0] enable: 1 scale:0x10001 (HwBinder:3295_1)
[
16.569710@2] fb: free_scale_switch to fb0, mode: 0x10001
[
16.571814@0] fb: set logo loaded
[
16.691700@0] sdcardfs version 2.0
[
16.691738@0] sdcardfs: dev_name -> /data/media
[
16.695592@0] sdcardfs: options -> fsuid=1023,fsgid=1023,multiuser,derive_gid,default_normal,mask=6,userid=0,gid=1015
[
16.710084@0] sdcardfs: mnt -> ea9a1e10
[
16.710222@0] sdcardfs: mounted on top of /data/media type ext4
[
16.716676@0] Remount options were mask=23,gid=9997 for vfsmnt ea9a1310.
[
16.726020@0] sdcardfs : options - debug:1
[
16.726052@0] sdcardfs : options - gid:9997
[
16.730728@0] sdcardfs : options - mask:23
[
16.739492@0] Remount options were mask=7,gid=9997 for vfsmnt ea9a0610.
[
16.740995@0] sdcardfs : options - debug:1
[
16.744870@0] sdcardfs : options - gid:9997
[
16.749588@0] sdcardfs : options - mask:7
[
17.149543@3] dhd_open: Enter wlan0
[
17.149596@3] dhd_open : no mutex held. set lock
[
17.152487@3]
[
17.152487@3] Dongle Host Driver, version 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
17.162905@3] [dhd-wlan0] wl_android_wifi_on : in g_wifi_on=0
[
17.169399@3] wifi_platform_set_power = 1, delay: 200 msec
[
17.173989@3] ======== PULL WL_REG_ON(-1) HIGH! ========
[
17.179150@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Disable! 482
[
17.399343@3] aml_wifi wifi: [extern_wifi_set_enable] WIFI
Enable! 482
[
17.870864@0] BT_RADIO going: on
[
17.870906@0] AML_BT: going ON
[
18.094567@1] sdio_reset_comm():
[
18.094759@1] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
18.097939@1] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000023c
[
18.130637@0] meson-mmc: actual_clock :400000, HHI_nand: 0x80
[
18.130754@0] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x1000023c
[
18.157543@0] sdio: queuing unknown CIS tuple 0x80 (2 bytes)
[
18.163342@1] sdio: queuing unknown CIS tuple 0x80 (7 bytes)
[
18.166244@3] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
18.183637@1] sdio: queuing unknown CIS tuple 0x80 (3 bytes)
[
18.287061@0] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 0 to 9600
[
18.289999@1] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 9600
[
18.297895@0] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 115200
[
18.312938@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[
18.321629@3] meson-aml-mmc ffe03000.sdio: divider requested rate 150000000 != actual rate 142857141: ret=0
[
18.326082@3] meson-mmc: actual_clock :142857141, HHI_nand: 0x80
[
18.331837@3] meson-mmc: [meson_mmc_clk_set_rate_v3] after clock: 0x10000247
[
18.338882@3] meson-mmc: Data 1 aligned delay is 0
[
18.343830@3] meson-mmc: sdio: clk 142857141 tuning start
[
18.358631@3] meson-mmc: sdio: adj_win: < 0 2 3 4 5 6 >
[
18.358666@3] meson-mmc: sdio: best_win_start =2, best_win_size =6
[
18.364456@3] meson-mmc: sdio: sd_emmc_regs->gclock=0x10000247,sd_emmc_regs->gadjust=0x52000
[
18.372913@3] meson-mmc: delay1:0x0, delay2:0x0
[
18.377666@3] sdioh_start: set sd_f2_blocksize 256
[
18.382885@3]
[
18.382885@3]
[
18.382885@3] dhd_bus_devreset: == Power ON ==
[
18.390813@3] F1 signature read @0x18000000=0x17014354
[
18.415240@1] F1 signature OK, socitype:0x1 chip:0x4354 rev:0x1 pkg:0x0
[
18.417489@1] DHD: dongle ram size is set to 786432(orig 786432) at 0x180000
[
18.423542@3] dhd_bus_devreset: making DHD_BUS_DOWN
[
18.428431@3] dhdsdio_probe_init: making DHD_BUS_DOWN
[
18.434403@3] dhd_os_open_image1: /vendor/etc/wifi/buildin/config.txt (102 bytes) open success
[
18.442449@0] [dhd] dhd_conf_read_sdio_params : dhd_slpauto = 0
[
18.448574@0] [dhd] dhd_conf_read_country_list : ccode = XS
[
18.453535@0] [dhd] dhd_conf_read_country_list : regrev = 0
[
18.460091@0] [dhd] dhd_conf_set_path_params : Final fw_path=/vendor/etc/wifi/buildin/fw_bcm4354a1_ag.bin
[
18.468826@0] [dhd] dhd_conf_set_path_params : Final nv_path=/vendor/etc/wifi/buildin/nvram_ap6354.txt
[
18.479214@0] [dhd] dhd_conf_set_path_params : Final clm_path=/vendor/etc/wifi/buildin/clm_bcm4354a1_ag.blob
[
18.489522@0] [dhd] dhd_conf_set_path_params : Final conf_path=/vendor/etc/wifi/buildin/config.txt
[
18.500889@3] dhd_os_open_image1: /vendor/etc/wifi/buildin/fw_bcm4354a1_ag.bin (654038 bytes) open success
[
18.684261@2] dhd_os_open_image1: /vendor/etc/wifi/buildin/nvram_ap6354.txt (3043 bytes) open success
[
18.688737@3] NVRAM version:
HS2754_NVRAM_V1.3_20190819
[
18.698029@2] dhdsdio_write_vars: Download, Upload and compare of NVRAM succeeded.
[
18.740014@0] dhd_bus_init: enable 0x06, ready 0x06 (waited 0us)
[
18.741047@3] bcmsdh_oob_intr_register: HW_OOB irq=79 flags=0x8
[
18.746651@0] get_mem_val_from_file: File [/data/vendor/misc/wifi/.memdump.info] doesn't exist
[
18.755390@0] dhd_get_memdump_info: MEMDUMP ENABLED = 3
[
18.761929@3] dhd_tcpack_suppress_set: TCP ACK Suppress mode 2 -> mode 1
[
18.767807@3] dhd_apply_default_clm: Ignore clm file /vendor/etc/wifi/buildin/clm_bcm4354a1_ag.blob
[
18.778918@3] Firmware up: op_mode=0x0005, MAC=90:b6:86:6d:af:e1
[
18.786996@3] dhd_preinit_ioctls: event_log_max_sets: 26 ret: -23
[
18.796792@3]
Driver: 100.10.545.5 (r826445-20190922-1) (amlogic-20191015-3)
[
18.796792@3]
Firmware: wl0: May 31 2019 10:45:27 version 7.36.79.7 (r) FWID 01-be34f5a0
[
18.796792@3]
CLM: 7.9.0 (2019-05-31 10:44:59)
[
18.812068@3] dhd_preinit_ioctls failed -23
[
18.815912@3] dhd_txglom_enable: enable 1
[
18.819484@3] [dhd] dhd_conf_set_txglom_params : txglom_mode=copy
[
18.825554@3] [dhd] dhd_conf_set_txglom_params : txglomsize=36, deferred_tx_len=0
[
18.833048@3] [dhd] dhd_conf_set_txglom_params : txinrx_thres=128, dhd_txminmax=-1
[
18.840685@3] [dhd] dhd_conf_set_txglom_params : tx_max_offset=0, txctl_tmo_fix=300
[
18.848242@3] [dhd] dhd_conf_get_disable_proptx : fw_proptx=1, disable_proptx=-1
[
18.856874@3] dhd_wlfc_hostreorder_init(): successful bdcv2 tlv signaling, 64
[
18.864202@1] dhd_pno_init: Support Android Location Service
[
18.904546@3] dhd_rtt_init : FTM is not supported
[
18.905186@2] dhd_rtt_ftm_config : failed to set config
[
18.923418@3] dhd_preinit_ioctls: Failed to get preserve log # !
[
18.924114@3] [dhd] dhd_conf_set_country : set country XS, revision 0
[
18.933379@0] [dhd] dhd_conf_set_country : Country code: XS (XS/0)
[
18.942480@2] [dhd-wlan0] wl_android_wifi_on : Success
[
18.992180@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 2000000 to 115200
[
19.004095@3] dhd_open : the lock is released.
[
19.004128@3] dhd_open: Exit wlan0 ret=0
[
19.006938@3] [wlan0] tx queue started
[
19.078014@3] P2P interface registered
[
19.078045@3] wl_cfgp2p_add_p2p_disc_if: wdev: eafb9c00, wdev->net:
(null)
[
19.092629@2] WLC_E_IF: NO_IF set, event Ignored
[
19.183852@3] Random MAC OUI to be used - da:1:19
[
19.187950@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.189811@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.196116@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.200078@2] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[
19.211220@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.217530@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.223847@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.230140@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.236466@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.243030@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.249049@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.255570@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.261690@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.269108@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.276617@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.280707@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.287171@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.293363@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.299722@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.306261@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.312543@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.318804@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.324988@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.331457@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.337617@3] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.344009@2] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.350470@1] dhd_dbg_set_event_log_tag set log tag iovar failed -23
[
19.359092@0] dhd_dbg_attach_pkt_monitor, 1501
[
19.391424@1] meson6-dwmac ff3f0000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[
19.394882@1] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[
19.401313@1] [dhd] CFG80211-ERROR) wl_cfg80211_netdev_notifier_call : wdev null. Do nothing
[
28.693763@2] is_reset=1
[
28.694818@1] PPMGRVPP: info: task: quit
[
28.694927@1] PPMGRVPP: info: tb cma free addr is 64e80000, size is 18000
[
28.701729@1] ppmgr local_init
[
28.705057@1] DI: di_receiver_event_fun: unreg
[
28.708889@1] DI: provider name:(null)
[
28.712630@1] di:no w
[
28.712641@3] keep exit is di
[
28.712651@3] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.712659@3] video first pts = 0
[
28.712667@3] VD1 AFBC 0x0.
[
28.712684@3] pattern detected = 1, pts_enter_pattern_cnt =2, pts_exit_pattern_cnt =1
[
28.712789@3] di:retry cnt=0
[
28.713379@3] di_cma_release:release 8 buffer use 0 ms(4294695944~4294695944)
[
28.752201@3] DI: unreg f
[
28.756616@3] is_reset=1
[
28.757246@3] The fw has been loaded.
[
28.760926@3] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
28.772917@1] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
28.774474@1] [LOCAL], the fw (h264_multi) will be loaded.
[
28.780157@1] ppmgr local_init
[
28.782860@1] di_receiver_event_fun: vframe provider reg ppmgr
[
28.788664@1] DI: reg f
[
28.791221@3] ppmgr local_init
[
28.794411@3] vdec->port_flag=0x102, port_flag=0x10b
[
28.799197@3] is_reset=0
[
28.803680@2] is_reset=1
[
28.804203@3] PPMGRVPP: info: task: quit
[
28.808004@2] ppmgr local_init
[
28.811047@2] DI: di_receiver_event_fun: unreg
[
28.815443@2] DI: provider name:(null)
[
28.819183@2] di:no w
[
28.819188@3] keep exit is di
[
28.819194@3] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.819198@3] VD1 AFBC 0x0.
[
28.819273@3] di:retry cnt=0
[
28.819291@3] di_cma_release:release 0 buffer use 0 ms(4294696052~4294696052)
[
28.847708@2] DI: unreg f
[
28.851265@2] is_reset=1
[
28.852750@2] The fw has been loaded.
[
28.856433@2] vdec_init, dev_name:ammvdec_h264, vdec_type=VDEC_TYPE_FRAME_BLOCK
[
28.866286@0] H264 sysinfo: 1920x1080 duration=3200, pts_outside=1
[
28.869968@0] [LOCAL], the fw (h264_multi) will be loaded.
[
28.875717@0] ppmgr local_init
[
28.878316@0] di_receiver_event_fun: vframe provider reg ppmgr
[
28.884362@0] DI: reg f
[
28.886710@2] ppmgr local_init
[
28.889983@2] vdec->port_flag=0x102, port_flag=0x10b
[
28.894639@2] is_reset=0
[
28.898866@0] PPMGRVPP: info: task: quit
[
28.901042@0] ppmgr local_init
[
28.904022@0] DI: di_receiver_event_fun: unreg
[
28.908421@0] DI: provider name:(null)
[
28.912171@0] di:no w
[
28.912180@2] keep exit is di
[
28.912186@2] video_vf_unreg_provider: vd1 used: true, vd2 used: false, keep_ret:2, black_out:0, cur_dispbuf:c19303b8
[
28.912190@2] VD1 AFBC 0x0.
[
28.912265@2] di:retry cnt=0
[
28.912283@2] di_cma_release:release 0 buffer use 0 ms(4294696144~4294696144)
[
28.940684@0] DI: unreg f
[
28.950615@2] set video_inuse val:0
[
28.977221@2] audio_dsp: dts_dec_control/0x0
[
28.977964@0] VID: VD1 set global output as 0
[
28.980291@0] VID: VD1 off
[
29.014180@3] asoc-aml-card auge_sound: tdm playback stop
[
29.020875@2] asoc-aml-card auge_sound: tdm playback enable
[
29.262121@3] binder: undelivered transaction 28078, process died.
[
29.262941@3] binder: undelivered transaction 28124, process died.
[
29.269529@3] binder: undelivered transaction 28161, process died.
[
29.275640@3] binder: undelivered transaction 28186, process died.
[
29.281797@3] binder: undelivered transaction 28206, process died.
[
29.287526@3] binder: undelivered transaction 27946, process died.
[
29.293520@2] zram0: detected capacity change from 0 to 268435456
[
29.332963@3] [dhd-wlan0] wl_run_escan : LEGACY_SCAN sync ID: 0, bssidx: 0
[
29.337615@3] mkswap: Swapspace size: 262140k, UUID=be4bcb3d-8b4e-4b37-9412-a585fdbbb97a
[
29.343337@3] Adding 262140k swap on /dev/block/zram0.
Priority:-1 extents:1 across:262140k SS
[
29.359135@1] selinux: SELinux: Skipping restorecon_recursive(/data/system_ce/0)
[
29.359135@1]
[
29.508407@2] selinux: SELinux: Skipping restorecon_recursive(/data/misc_ce/0)
[
29.508407@2]
[
29.542597@2] type=1400 audit(1420072032.184:23): avc: denied { getattr } for pid=3553 comm="android.ui" path="/sys/devices/virtual/amhdmitx/amhdmitx0/hdmi/state" dev="sysfs" ino=10094 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs_amhdmitx:s0 tclass=file permissive=1
[
29.573434@1] audit: audit_lost=1 audit_rate_limit=5 audit_backlog_limit=64
[
29.573438@1] audit: rate limit exceeded
[
29.592782@3] type=1400 audit(1420072046.316:24): avc: denied { read execute } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.614417@3] type=1400 audit(1420072046.316:24): avc: denied { read execute } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.636024@3] type=1400 audit(1420072046.320:25): avc: denied { getattr } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.656600@3] type=1400 audit(1420072046.320:25): avc: denied { getattr } for pid=4128 comm="test_flag.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:test_flag:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.677528@3] type=1400 audit(1420072046.324:26): avc: denied { read execute } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.701529@3] type=1400 audit(1420072046.324:26): avc: denied { read execute } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.720925@3] type=1400 audit(1420072046.328:27): avc: denied { getattr } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.742093@3] type=1400 audit(1420072046.328:27): avc: denied { getattr } for pid=4129 comm="preinstall.sh" path="/system/bin/sh" dev="mmcblk0p18" ino=788 scontext=u:r:preinstall:s0 tcontext=u:object_r:shell_exec:s0 tclass=file permissive=1
[
29.763722@3] type=1400 audit(1420072046.348:28): avc: denied { dac_override } for pid=4128 comm="test_flag.sh" capability=1 scontext=u:r:test_flag:s0 tcontext=u:r:test_flag:s0 tclass=capability permissive=1
console:/ $
console:/ $
console:/ $
console:/ $
console:/ $ su
[
31.601979@3] asoc-aml-card auge_sound: tdm playback stop
console:/ #
console:/ #
console:/ #
console:/ #
console:/ #
console:/ # [
32.538619@3] aml_dai_tdm_hw_free(), disable mclk for TDM-B[
32.717162@3] audit: audit_lost=15 audit_rate_limit=5 audit_backlog_limit=64
[
32.718624@3] audit: rate limit exceeded
ifconf[
33.763118@2] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
ig[
34.049163@1] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
[
34.211026@2] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
[
34.231749@1] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
wlan0
Link encap:Ethernet
HWaddr 90:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
[
34.445094@0] [dhd] CFG80211-ERROR) wl_notify_rx_mgmt_frame : WLC_GET_BSSID error -17
UP BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:188
eth0
Link encap:Ethernet
HWaddr 90:0e:b3:2c:ea:da
Driver meson6-dwmac
inet6 addr: fe80::920e:b3ff:fe2c:eada/64 Scope: Link
UP BROADCAST RUNNING MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:24 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:4232
Interrupt:28
lo
Link encap:Local Loopback
inet addr:127.0.0.1
Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING
MTU:65536
Metric:1
RX packets:33 errors:0 dropped:0 overruns:0 frame:0
TX packets:33 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:4216 TX bytes:4216
console:/ #

从以上LOG 信息当中

[ 0.931186@0] TX Checksum insertion supported
[ 0.931195@0] Wake-Up On Lan supported
[ 0.931273@0] Enable RX Mitigation via HW Watchdog Timer
[ 0.934375@0] libphy: stmmac: probed
[ 0.934395@0] eth%d: PHY ID 02430c20 at 2 IRQ POLL (stmmac-0:02) active
[ 0.936413@0] PPP generic driver version 2.4.2
[ 0.936694@0] PPP BSD Compression module registered
[ 0.936710@0] PPP Deflate Compression module registered
[ 0.936738@0] PPP MPPE Compression module registered
[ 0.936751@0] NET: Registered protocol family 24

我们看到我们的驱动加载后，ID 已经匹配上了

复制代码

console:/ # ifconfig -a
wlan0
Link encap:Ethernet
HWaddr 90:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
UP BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:188
ip6_vti0
Link encap:UNSPEC
NOARP
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
eth0
Link encap:Ethernet
HWaddr 90:0e:b3:2c:ea:da
Driver meson6-dwmac
inet6 addr: fe80::920e:b3ff:fe2c:eada/64 Scope: Link
UP BROADCAST RUNNING MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:47 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:8300
Interrupt:28
ip6tnl0
Link encap:UNSPEC
NOARP
MTU:1452
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
wlan1
Link encap:Ethernet
HWaddr 92:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
sit0
Link encap:IPv6-in-IPv4
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
lo
Link encap:Local Loopback
inet addr:127.0.0.1
Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING
MTU:65536
Metric:1
RX packets:51 errors:0 dropped:0 overruns:0 frame:0
TX packets:51 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:6544 TX bytes:6544
tunl0
Link encap:UNSPEC
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
ip_vti0
Link encap:UNSPEC
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
console:/sys/devices/platform/ff3f0000.ethernet/mdio_bus/stmmac-0/stmmac-0:02 #
cat phy_id
[
113.087726@2] 0: 0x1140
[
113.087795@2] 1: 0x796d
[
113.087873@2] 2: 0x243
[
113.089353@2] 3: 0xc20
[
113.091759@2] 4: 0xde1
[
113.094031@2] 5: 0xc5e1
[
113.096510@2] 6: 0xf
[
113.098664@2] 7: 0x2801
[
113.101129@2] 8: 0x4cba
[
113.103570@2] 9: 0x700
[
113.105818@2] 10: 0x78ff
[
113.108406@2] 11: 0x0
[
113.110650@2] 12: 0x0
[
113.112839@2] 13: 0x0
[
113.115127@2] 14: 0x31b
[
113.117617@2] 15: 0x3000
[
113.120155@2] 16: 0x3ba8
[
113.122758@2] 17: 0xd000
[
113.125596@2] 18: 0x9f01
[
113.127921@2] 19: 0x1da0
[
113.130628@2] 20: 0x0
[
113.132338@2] 21: 0x8d15
[
113.134979@2] 22: 0xb1c
[
113.137315@2] 23: 0x2d
[
113.139700@2] 24: 0x4000
[
113.142131@2] 25: 0xd16d
[
113.144677@2] 26: 0x0
[
113.146950@2] 27: 0xffc8
[
113.149428@2] 28: 0xec40
[
113.152001@2] 29: 0x1767
[
113.154472@2] 30: 0x4a
[
113.156821@2] 31: 0x0
phy reg 0x0 = 0x1140

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
console:/ # ifconfig -a
wlan0
Link encap:Ethernet
HWaddr 90:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
UP BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:2 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:188
ip6_vti0
Link encap:UNSPEC
NOARP
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
eth0
Link encap:Ethernet
HWaddr 90:0e:b3:2c:ea:da
Driver meson6-dwmac
inet6 addr: fe80::920e:b3ff:fe2c:eada/64 Scope: Link
UP BROADCAST RUNNING MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:47 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:8300
Interrupt:28
ip6tnl0
Link encap:UNSPEC
NOARP
MTU:1452
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
wlan1
Link encap:Ethernet
HWaddr 92:b6:86:6d:af:e1
Driver bcmsdh_sdmmc
BROADCAST MULTICAST
MTU:1500
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
sit0
Link encap:IPv6-in-IPv4
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
lo
Link encap:Local Loopback
inet addr:127.0.0.1
Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING
MTU:65536
Metric:1
RX packets:51 errors:0 dropped:0 overruns:0 frame:0
TX packets:51 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:6544 TX bytes:6544
tunl0
Link encap:UNSPEC
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
ip_vti0
Link encap:UNSPEC
NOARP
MTU:1480
Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1
RX bytes:0 TX bytes:0
console:/sys/devices/platform/ff3f0000.ethernet/mdio_bus/stmmac-0/stmmac-0:02 #
cat phy_id
[
113.087726@2] 0: 0x1140
[
113.087795@2] 1: 0x796d
[
113.087873@2] 2: 0x243
[
113.089353@2] 3: 0xc20
[
113.091759@2] 4: 0xde1
[
113.094031@2] 5: 0xc5e1
[
113.096510@2] 6: 0xf
[
113.098664@2] 7: 0x2801
[
113.101129@2] 8: 0x4cba
[
113.103570@2] 9: 0x700
[
113.105818@2] 10: 0x78ff
[
113.108406@2] 11: 0x0
[
113.110650@2] 12: 0x0
[
113.112839@2] 13: 0x0
[
113.115127@2] 14: 0x31b
[
113.117617@2] 15: 0x3000
[
113.120155@2] 16: 0x3ba8
[
113.122758@2] 17: 0xd000
[
113.125596@2] 18: 0x9f01
[
113.127921@2] 19: 0x1da0
[
113.130628@2] 20: 0x0
[
113.132338@2] 21: 0x8d15
[
113.134979@2] 22: 0xb1c
[
113.137315@2] 23: 0x2d
[
113.139700@2] 24: 0x4000
[
113.142131@2] 25: 0xd16d
[
113.144677@2] 26: 0x0
[
113.146950@2] 27: 0xffc8
[
113.149428@2] 28: 0xec40
[
113.152001@2] 29: 0x1767
[
113.154472@2] 30: 0x4a
[
113.156821@2] 31: 0x0
phy reg 0x0 = 0x1140

看到这些信息后，可以确认我们添加的IP1001C 驱动是没有问题的

接下来我们测试，发现100M 网络已经通了，但是1000M 网络不通，这个可能和主控的PHY 控制器有关，接下来我们找一下主控调试PHY的寄存器资料

通过以上资料，我们知道主控有2个寄存器涉及调试1000M 的寄存器

分别为

ff634540 mc_val 对应tx_delay

根据上图组合有：

1601 1621 1641 1661

1609 1629 1649 1669

ff634544 cali_val 对应rx_clk_delay

10000 ~F0000

最终我们通过寄存器控制

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
echo ff634544 >/sys/kernel/debug/aml_reg/paddr
console:/vendor/bin # cat /sys/kernel/debug/aml_reg/paddr
[0xff634544] = 0xC0000
1.echo ff634544
10000 >/sys/kernel/debug/aml_reg/paddr
#测试ETHERNET
10000~f0000
cat
/sys/kernel/debug/aml_reg/paddr
2.echo ff634540 >/sys/kernel/debug/aml_reg/paddr
# 1601
1621 1641
1661
#位翻转参数
# 1609
1629 1649
1669
cat
/sys/kernel/debug/aml_reg/paddr
console:/ # cat
/sys/kernel/debug/aml_reg/paddr
[0xff634540] = 0x1629
得到的理想值为：
&ethmac {
status = "okay";
pinctrl-names = "external_eth_pins";
pinctrl-0 = <&external_eth_pins>;
mc_val = <0x1621>;
cali_val = <0x50000>;
//
rx_delay = <1>;
//
auto_cali_idx = <1>;
internal_phy=<0>;
};

将DTS 更新后，我们查看参数是否已经设置成功

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
g12a_u212_v1#fdt addr $dtb_mem_addr;fdt print /ethernet
ethernet@ff3f0000 {
compatible = "amlogic, g12a-eth-dwmac", "snps,dwmac";
reg = <0xff3f0000 0x00010000 0xff634540 0x00000008 0xff64c000 0x000000a0 0xffd01008 0x00000004>;
reg-names = "eth_base", "eth_cfg", "eth_pll", "eth_reset";
interrupts = <0x00000000 0x00000008 0x00000001>;
interrupt-names = "macirq";
status = "okay";
clocks = <0x00000002 0x00000038>;
clock-names = "ethclk81";
pll_val = <0x09c0040a 0x927e0000 0xac5f49e5>;
analog_val = <0x20200000 0x0000c000 0x00000023>;
pinctrl-names = "external_eth_pins";
pinctrl-0 = <0x00000011>;
mc_val = <0x00001621>;
cali_val = <0x00050000>;
internal_phy = <0x00000000>;
phandle = <0x0000009a>;
};
