ubuntu16 ARM 4G双网卡的上网配置

100 阅读 0 评论 66 点赞

我是靠谱客的博主壮观故事，最近开发中收集的这篇文章主要介绍ubuntu16 ARM 4G双网卡的上网配置，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

1、硬件

Ubuntu 16.04.5 LTS运行在正点原子阿尔法开发板上面，cpu imx6ull具有2个有线以太网接口，再接上一下移远的EC20模块，目有3个网卡，实现一个有线网卡与4G网卡的上网配置。

2、配置网络

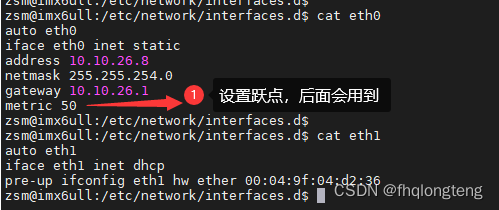

移植ubuntu 16根文件系统到上面以后，设置开机 eth0为静态IP， eth1为dhcp,动态获取IP。需要修改配置文件如下：/etc/network/interfaces.d/目录下创建2个文件eth0, eth1。

配置eth0网卡为静态IP，eth1网卡为自动IP.

3、EC20移植设置

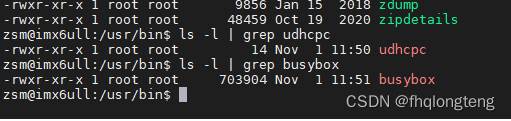

EC20移植把驱动加入内核中编译，再编译生成qeucet-CM文件，quectel-CM用启动控制EC20的启动入网，获取IP地址等操quectel-CM文件放在/usr/bin/目录下。由于quectel-CM启动中需要使用udhcpc和busybox两个文件，可以通过apt-get install udhcpc来安装一下即可。最后可以查看到usr/bin/目录下要有udhcpc, busybox这两个文件。

quectel-CM启动时会调用udhcpc命令，如下面和启动记录中。udhcpc命令会使用一个default.script的脚本来设置4G网卡的IP地址。default.script脚本可以从开发板光盘的根文件系统中获取，并且放在usr/share/udhcpc目录下。

root@imx6ull:~# quectel-CM -s cenet &
[1] 345
root@imx6ull:~# [11-02_09:35:31:253] WCDMA&LTE_QConnectManager_Linux&Android_V1.1.34
[11-02_09:35:31:256] quectel-CM profile[1] = cenet///0, pincode = (null)
[11-02_09:35:31:262] Find /sys/bus/usb/devices/2-1.2 idVendor=2c7c idProduct=0125
[11-02_09:35:31:264] Find /sys/bus/usb/devices/2-1.2:1.4/net/eth2
[11-02_09:35:31:266] Find usbnet_adapter = eth2
[11-02_09:35:31:268] Find /sys/bus/usb/devices/2-1.2:1.4/GobiQMI/qcqmi2
[11-02_09:35:31:270] Find qmichannel = /dev/qcqmi2
[11-02_09:35:31:333] Get clientWDS = 7
[11-02_09:35:31:364] Get clientDMS = 8
[11-02_09:35:31:396] Get clientNAS = 9
[11-02_09:35:31:428] Get clientUIM = 10
[11-02_09:35:31:460] Get clientWDA = 11
[11-02_09:35:31:493] requestBaseBandVersion EC20CEHCR06A03M1G
[11-02_09:35:31:588] requestGetSIMStatus SIMStatus: SIM_READY
[11-02_09:35:31:588] requestSetProfile[1] cenet///0
[11-02_09:35:31:653] requestGetProfile[1] cenet///0
[11-02_09:35:31:684] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE
[11-02_09:35:31:716] requestQueryDataCall IPv4ConnectionStatus: DISCONNECTED
[11-02_09:35:31:780] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE
[11-02_09:35:31:813] requestSetupDataCall WdsConnectionIPv4Handle: 0xe17f8390
[11-02_09:35:31:907] requestQueryDataCall IPv4ConnectionStatus: CONNECTED
[11-02_09:35:31:940] ifconfig eth2 up
[11-02_09:35:31:980] busybox udhcpc -f -n -q -t 5 -i eth2
udhcpc: started, v1.29.0
[11-02_09:35:32:046] Setting IP address 0.0.0.0 on eth2
udhcpc: sending discover
udhcpc: sending select for 10.33.149.162
udhcpc: lease of 10.33.149.162 obtained, lease time 7200
[11-02_09:35:32:234] Setting IP address 10.33.149.162 on eth2

以下是default.script的源代码，也可以直接复制创建文件。

#!/bin/sh
# udhcpc script edited by Tim Riker <Tim@Rikers.org>
RESOLV_CONF="/etc/resolv.conf"
[ -n "$1" ] || { echo "Error: should be called from udhcpc"; exit 1; }
NETMASK=""
[ -n "$subnet" ] && NETMASK="netmask $subnet"
BROADCAST="broadcast +"
[ -n "$broadcast" ] && BROADCAST="broadcast $broadcast"
case "$1" in
deconfig)
echo "Setting IP address 0.0.0.0 on $interface"
ifconfig $interface 0.0.0.0
;;
renew|bound)
echo "Setting IP address $ip on $interface"
ifconfig $interface $ip $NETMASK $BROADCAST
if [ -n "$router" ] ; then
echo "Deleting routers"
while route del default gw 0.0.0.0 dev $interface ; do
:
done
metric=10
for i in $router ; do
echo "Adding router $i"
if [ "$subnet" = "255.255.255.255" ]; then
# special case for /32 subnets:
# /32 instructs kernel to always use routing for all outgoing packets
# (they can never be sent to local subnet - there is no local subnet for /32).
# Used in datacenters, avoids the need for private ip-addresses between two hops.
ip route add $i dev $interface
fi
route add default gw $i dev $interface metric $((metric++))
done
fi
echo "Recreating $RESOLV_CONF"
# If the file is a symlink somewhere (like /etc/resolv.conf
# pointing to /run/resolv.conf), make sure things work.
realconf=$(readlink -f "$RESOLV_CONF" 2>/dev/null || echo "$RESOLV_CONF")
tmpfile="$realconf-$$"

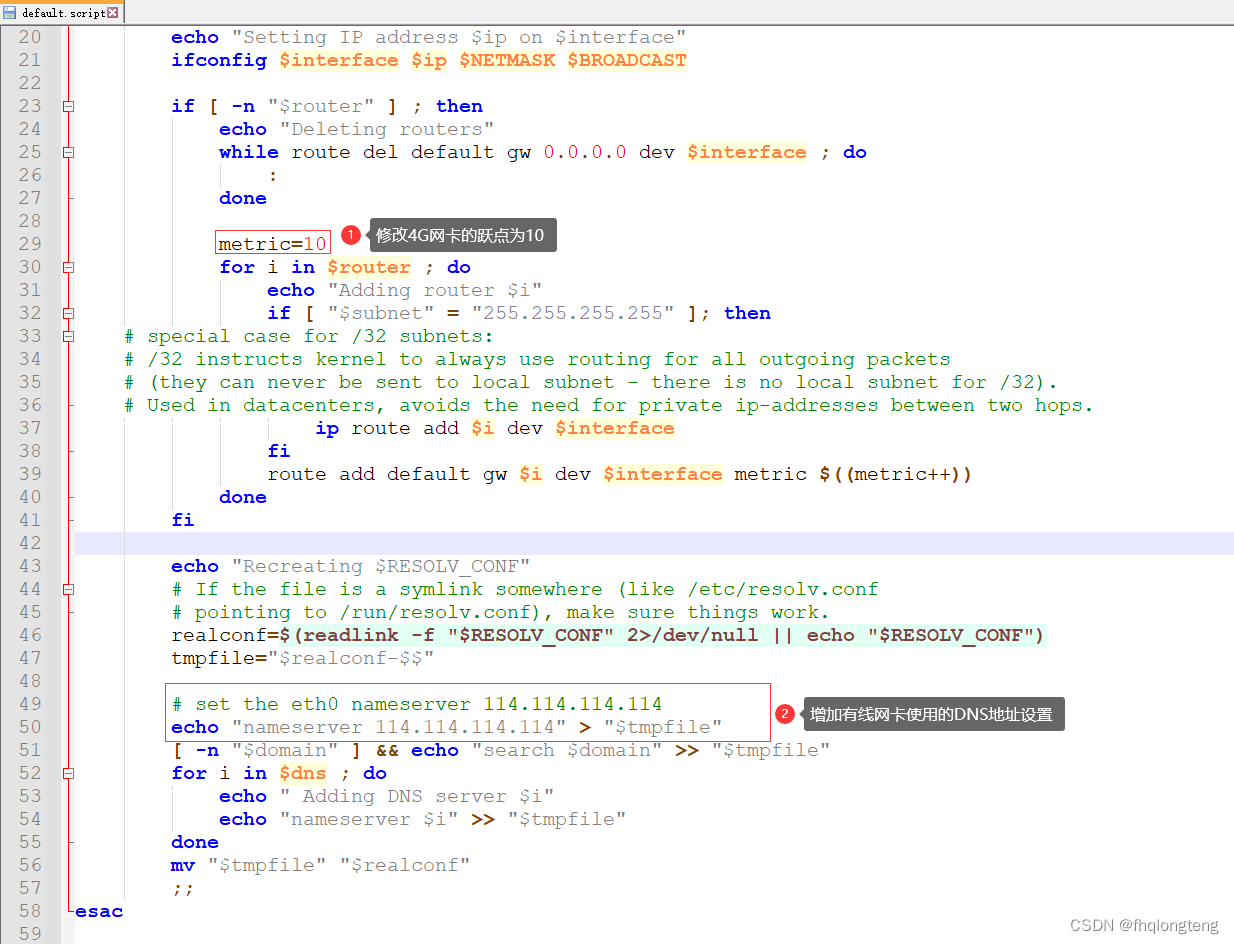

# set the eth0 nameserver 114.114.114.114
echo "nameserver 114.114.114.114" > "$tmpfile"
[ -n "$domain" ] && echo "search $domain" >> "$tmpfile"
for i in $dns ; do
echo " Adding DNS server $i"
echo "nameserver $i" >> "$tmpfile"
done
mv "$tmpfile" "$realconf"
;;
esac
exit 0

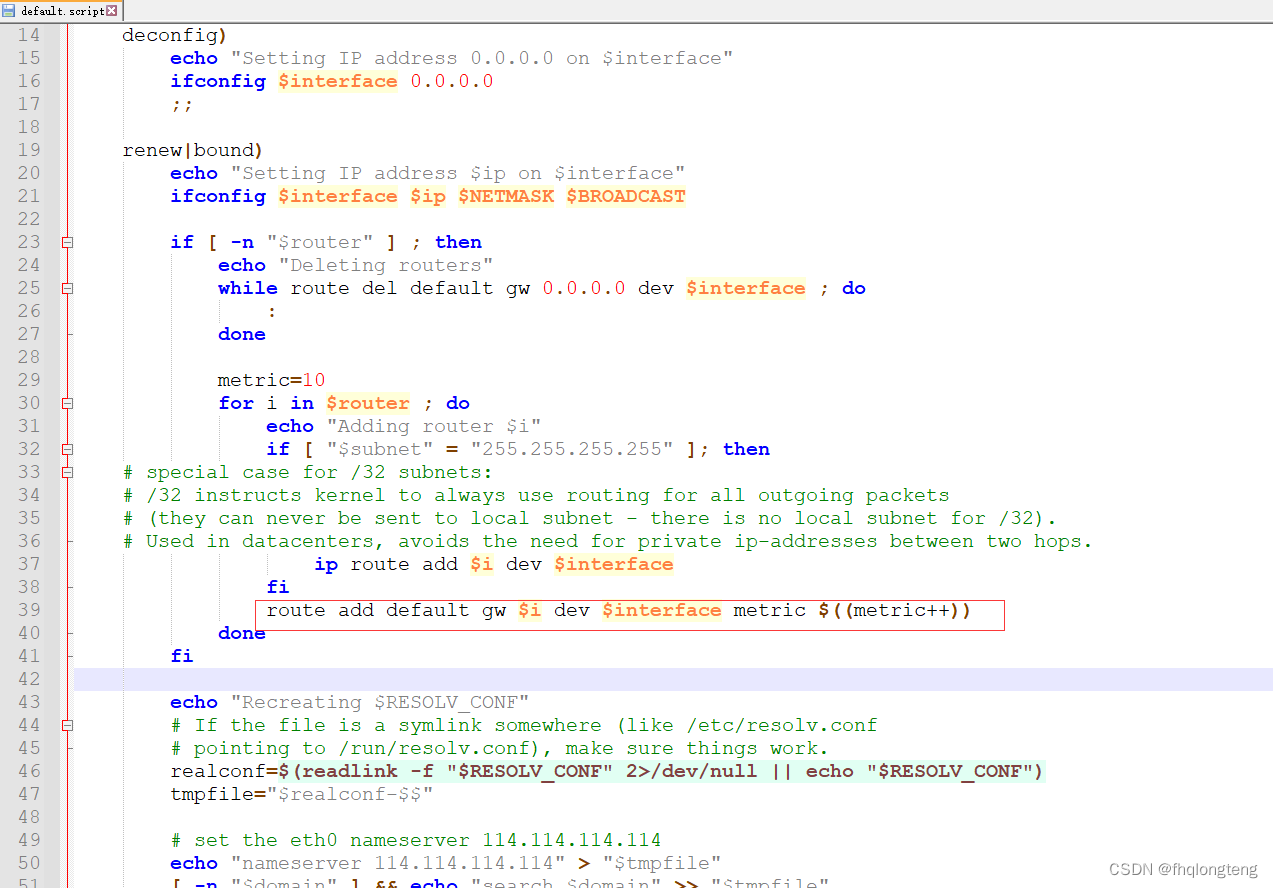

经过以上一系列的操作，可以启动4G网卡了。在命令行输入quectel-CM -s cenet &命令后，启动进行设置4G网卡，输出的打印记录中有arithmetic expression: expecting primary: "metric++"这样一句提示，意思是执行default.script脚本错误，原因是程序启动使用的命令行中不支持脚本中route add default gw $i dev $interface metric $((metric++))。

Ubuntu 中/bin/sh链接默认指向的是dash shell，而服务器上指向的是bash shell。
dash是一个小巧的shell，他的功能自然也就没有bash强大，上述问题就是有与dash shell不支持metric++运算和let命令造成的。

解决办法：sudo ln -sf /bin/bash /bin/sh

经过以上操作4G网卡可以正常出来，获取到了IP地址，但是在默认的网络配置下，无法连接外网了。

4、路由表的问题

不能连接外网,使用ping www.qq.com不通，一般是路由表的问题或是dns服务器地址配置的不对。通过route -n和ip route show查看路由表。如下：

root@imx6ull:~# route -n
Kernel IP routing table
Destination
Gateway
Genmask
Flags Metric Ref
Use Iface
0.0.0.0
10.33.149.161
0.0.0.0
UG
0
0
0 eth2
0.0.0.0
10.10.26.1
0.0.0.0
UG
0
0
0 eth0
10.10.26.0
0.0.0.0
255.255.254.0
U
0
0
0 eth0
10.33.149.160
0.0.0.0
255.255.255.252 U
0
0
0 eth2

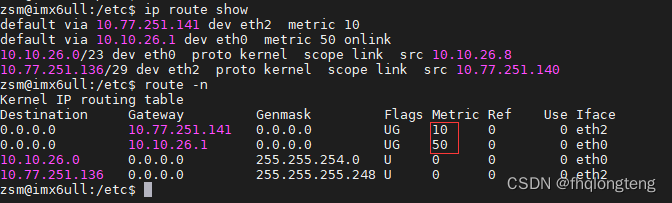

root@imx6ull:~# ip route show
default via 10.10.26.1 dev eth0 onlink
default via 10.33.149.161 dev eth2
10.10.26.0/23 dev eth0
proto kernel
scope link
src 10.10.26.8
10.33.149.160/30 dev eth2
proto kernel
scope link
src 10.33.149.162

查看DNS服务器, cat /etc/resolv.conf。输出nameserver 221.179.155.193
nameserver 221.179.155.209。根据quecel-CM启动的记录可以查看到，这两个dns是4G网卡的设置的，原来的默认的有线网卡的DNS地址没有了。

上面的ip route show查看到路由表可以知道，上外网优先使用前的默认网卡 eth0，而eth0又没有dns服务器地址，无法进行域名解析，只能连接内网，无法ping通外网。
