在car_demo|无人车仿真环境全教程介绍了在系统：Ubuntu 14.04 indigo中安装配置car_demo。由于当时的电脑中的ubuntu与ros版本较低，我按照原教程的配置方法，安装Docker，nvidia-docker2，还有rocker。最终实现的是，让car_demo在独立的docker环境下运行，利用ROS的多机通信的机制配置（如何配置请参见car_demo|无人车仿真环境全教程），使得在自己电脑上能够与仿真环境进行数据交互。但是，这个过程真的好麻烦，使用感觉极为不佳。最近正好换了电脑，索性直接把系统换到ubuntu 18.04+ ros melodic。发现直接在本地编译能通过，之后就是本地的一个ros package，这样使用就方便多了。

系统： ubuntu 18.04+ros melodic
目的：配置car_demo无人车仿真环境

安装与配置过程

git clone car_demo项目到本地：

复制代码

1
2
3
cd ~/Downloads
git clone https://github.com/osrf/car_demo.git

建立并定位到新工作空间，或已有工作空间~/cardemo_ws，这个位置与名字无所谓：

复制代码

1
2
mkdir -p ~/cardemo_ws/src

将对应包复制到新建的工作空间的src目录下：

复制代码

1
2
3
4
5
cd ~/Downloads/car_demo_master
cp -r prius_description ~/cardemo_ws/src/prius_description
cp -r prius_msgs ~/cardemo_ws/src/prius_msgs
cp -r car_demo ~/cardemo_ws/src/car_demo

编译:

复制代码

1
2
3
cd ~/cardemo_ws
catkin_make

添加环境

复制代码

1
2
3
echo "source ～/cardemo_ws/devel/setup.bash" >> ~/.bashrc
source ~/.bashrc

简单测试

复制代码

1
2
roslaunch car_demo demo.launch

我们会看到RVIZ与Gazebo两个界面

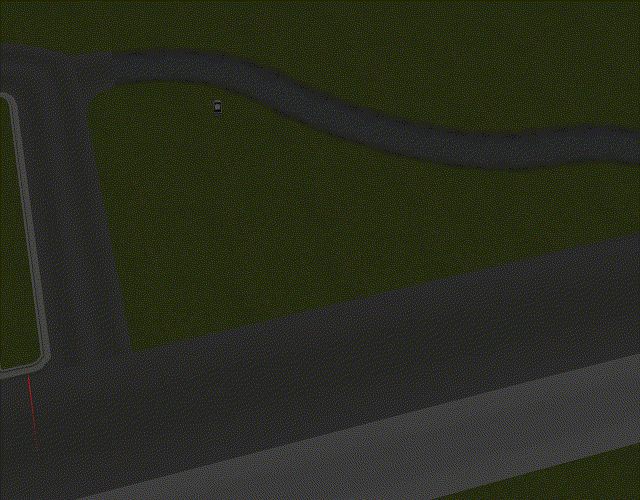

RVIZ

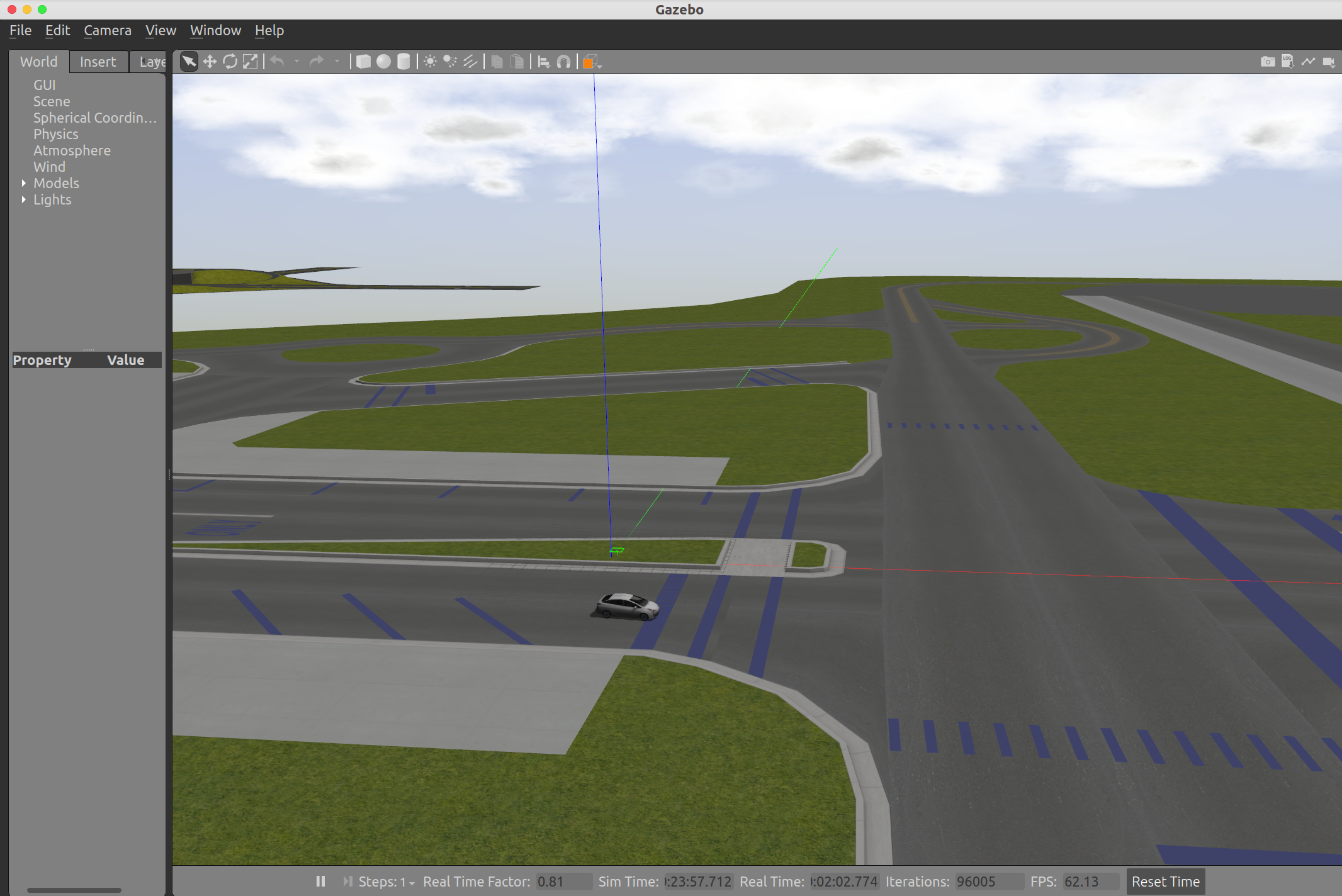

Gazebo
