基于小波变换的图像融合python版（红外和可见光）
- 一、小波变换
- 二、图像融合
- 1、采用对比度拉伸，完成红外图像增强
- 2、采用Surf特征点匹配，完成图像配准
- 3、采用HSV通道小波变换，完成图像融合
- 4、总的代码
- 5、融合效果 上图
- 三、视频融合
- 四、总结
一、小波变换
小波分析是一个比较难的分支，用户采用小波变换，可以实现图像压缩，振动信号的分解与重构等，因此在实际工程上应用较广泛。小波分析与Fourier变换相比，小波变换是空间域和频率域的局部变换，因而能有效地从信号中提取信息。小波变换通过伸缩和平移等基本运算，实现对信号的多尺度分解与重构，从而很大程度上解决了Fourier变换带来的很多难题。
小波分析作一个新的数学分支，它是泛函分析、Fourier分析、数值分析的完美结晶；小波分析也是一种“时间—尺度”分析和多分辨分析的新技术，它在信号分析、语音合成、图像压缩与识别、大气与海洋波分析等方面的研究，都有广泛的应用。
二、图像融合
1、采用对比度拉伸，完成红外图像增强
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16# 裁剪线性RGB对比度拉伸：（去掉2%百分位以下的数，去掉98%百分位以上的数，上下百分位数一般相同，并设置输出上下限） def truncated_linear_stretch(image, truncated_value=2, maxout=255, min_out=0): def gray_process(gray, maxout=maxout, minout=min_out): truncated_down = np.percentile(gray, truncated_value) truncated_up = np.percentile(gray, 100 - truncated_value) gray_new = ((maxout - minout) / (truncated_up - truncated_down)) * gray gray_new[gray_new < minout] = minout gray_new[gray_new > maxout] = maxout return np.uint8(gray_new) (b, g, r) = cv2.split(image) b = gray_process(b) g = gray_process(g) r = gray_process(r) result = cv2.merge((b, g, r))# 合并每一个通道 return result
2、采用Surf特征点匹配，完成图像配准
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44# RGB图片配准函数，采用白天的可见光与红外灰度图，计算两者Surf共同特征点，之间的仿射矩阵。 def Images_matching(img_base, img_target): img_base=cv2.cvtColor(img_base, cv2.COLOR_BGR2GRAY) img_target=cv2.cvtColor(img_target, cv2.COLOR_BGR2GRAY) hessian = 400 # 初始化surf算子 surf = cv2.xfeatures2d.SURF_create(hessian) # surf = cv2.xfeatures2d_SURF.create(hessian) # surf = cv2.SIFT_create(hessian) # 使用surf算子计算特征点和特征点周围的特征向量 kp1, des1 = surf.detectAndCompute(img_base, None) # 1136 1136, 64 kp2, des2 = surf.detectAndCompute(img_target, None) # 进行KNN特征匹配 FLANN_INDEX_KDTREE = 0 # 建立FLANN匹配器的参数 indexParams = dict(algorithm=FLANN_INDEX_KDTREE, trees=5) # 配置索引，密度树的数量为5 searchParams = dict(checks=50) # 指定递归次数 flann = cv2.FlannBasedMatcher(indexParams, searchParams) # 建立匹配器 matches = flann.knnMatch(des1, des2, k=2) # 得出匹配的关键点 list: 1136 good = [] # 提取优秀的特征点 for m, n in matches: if m.distance < 0.7 * n.distance: # 如果第一个邻近距离比第二个邻近距离的0.7倍小，则保留 good.append(m) # 134 src_pts = np.array([kp1[m.queryIdx].pt for m in good]) # 查询图像的特征描述子索引 # 134, 2 dst_pts = np.array([kp2[m.trainIdx].pt for m in good]) # 训练(模板)图像的特征描述子索引 H = cv2.findHomography(dst_pts, src_pts, cv2.RANSAC) # 生成变换矩阵 H[0]: 3, 3 H[1]: 134, 1 return H[0]
3、采用HSV通道小波变换，完成图像融合
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65# YUV通道小波变换RGB融合，低频均值高频最大值 def Images_fusion(img_base,img_target): # 可见光，配准后的红外光 # 按照不同的融合方式，计算通道融合 def fuseCoeff(cooef1, cooef2, method): if (method == 'mean'): cooef = (abs(cooef1) + abs(cooef2)) / 2 # abs 绝对值 # cooef=0.5*cooef1+1.5*cooef2 elif (method == 'min'): cooef = np.minimum(cooef1, cooef2) elif (method == 'max'): cooef = np.maximum(abs(cooef1), abs(cooef2)) return cooef # HSV的小波融合过程 LOW_METHOD = 'mean' HIGH_METHOD = 'max' YUVimg_base = cv2.cvtColor(img_base, cv2.COLOR_BGR2YUV) # 可见光转换为HSV # cv2.imwrite("D:/VS/vsprj/cuda/cudawavetest/2.jpg", YUVimg_base) grayimg_target = cv2.cvtColor(img_target, cv2.COLOR_BGR2GRAY) #红外灰度化 # cv2.imwrite("D:/VS/vsprj/cuda/cudawavetest/1.jpg",grayimg_target) Yimg_base = YUVimg_base[:, :, 0] # 1024，1024 wavelet = 'haar' cooef_base = pywt.wavedec2(Yimg_base[:, :], wavelet, level=1) # base灰度图的小波展开 512, 512 3 start = time.time() cooef_target = pywt.wavedec2(grayimg_target[:, :], wavelet, level=1) # target灰度图的小波展开 512, 512 3 end = time.time()-start print("小波展开:{}".format(end)) fusedCooef = [] for i in range(len(cooef_base)): if (i == 0): fusedCooef.append(fuseCoeff(cooef_base[0], cooef_target[0], LOW_METHOD)) # 低频部分取均值 else: # 高频部分取最大值 c1 = fuseCoeff(cooef_base[i][0], cooef_target[i][0], HIGH_METHOD) c2 = fuseCoeff(cooef_base[i][1], cooef_target[i][1], HIGH_METHOD) c3 = fuseCoeff(cooef_base[i][2], cooef_target[i][2], HIGH_METHOD) fusedCooef.append((c1, c2, c3)) # 高频合并 tempfusedImage = pywt.waverec2(fusedCooef, wavelet) # 小波逆变换 fusedImage = np.multiply(np.divide(tempfusedImage - np.min(tempfusedImage), (np.max(tempfusedImage) - np.min(tempfusedImage))), 255) # 逆变换后归一至（0，255） start = time.time() fusedImage = fusedImage.astype(np.uint8) Yimg_new = fusedImage fusedYUV = cv2.merge([Yimg_new, YUVimg_base[:, :, 1], YUVimg_base[:, :, 2]]) # 用小波变换替换V通道 end = time.time() - start print("图像重建:{}".format(end)) fusedBGR = cv2.cvtColor(fusedYUV, cv2.COLOR_YUV2BGR) # 融合后的HSV转为BGR return fusedBGR
4、总的代码
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173import cv2 import numpy as np import pywt #引入小波模块 import time from PIL import Image # 裁剪线性RGB对比度拉伸：（去掉2%百分位以下的数，去掉98%百分位以上的数，上下百分位数一般相同，并设置输出上下限） def truncated_linear_stretch(image, truncated_value=2, maxout=255, min_out=0): def gray_process(gray, maxout=maxout, minout=min_out): truncated_down = np.percentile(gray, truncated_value) truncated_up = np.percentile(gray, 100 - truncated_value) gray_new = ((maxout - minout) / (truncated_up - truncated_down)) * gray gray_new[gray_new < minout] = minout gray_new[gray_new > maxout] = maxout return np.uint8(gray_new) (b, g, r) = cv2.split(image) b = gray_process(b) g = gray_process(g) r = gray_process(r) result = cv2.merge((b, g, r))# 合并每一个通道 return result # RGB图片配准函数，采用白天的可见光与红外灰度图，计算两者Surf共同特征点，之间的仿射矩阵。 def Images_matching(img_base, img_target): img_base=cv2.cvtColor(img_base, cv2.COLOR_BGR2GRAY) img_target=cv2.cvtColor(img_target, cv2.COLOR_BGR2GRAY) hessian = 400 # 初始化surf算子 surf = cv2.xfeatures2d.SURF_create(hessian) # surf = cv2.xfeatures2d_SURF.create(hessian) # surf = cv2.SIFT_create(hessian) # 使用surf算子计算特征点和特征点周围的特征向量 kp1, des1 = surf.detectAndCompute(img_base, None) # 1136 1136, 64 kp2, des2 = surf.detectAndCompute(img_target, None) # 进行KNN特征匹配 FLANN_INDEX_KDTREE = 0 # 建立FLANN匹配器的参数 indexParams = dict(algorithm=FLANN_INDEX_KDTREE, trees=5) # 配置索引，密度树的数量为5 searchParams = dict(checks=50) # 指定递归次数 flann = cv2.FlannBasedMatcher(indexParams, searchParams) # 建立匹配器 matches = flann.knnMatch(des1, des2, k=2) # 得出匹配的关键点 list: 1136 good = [] # 提取优秀的特征点 for m, n in matches: if m.distance < 0.7 * n.distance: # 如果第一个邻近距离比第二个邻近距离的0.7倍小，则保留 good.append(m) # 134 src_pts = np.array([kp1[m.queryIdx].pt for m in good]) # 查询图像的特征描述子索引 # 134, 2 dst_pts = np.array([kp2[m.trainIdx].pt for m in good]) # 训练(模板)图像的特征描述子索引 H = cv2.findHomography(dst_pts, src_pts, cv2.RANSAC) # 生成变换矩阵 H[0]: 3, 3 H[1]: 134, 1 return H[0] # YUV通道小波变换RGB融合，低频均值高频最大值 def Images_fusion(img_base,img_target): # 可见光，配准后的红外光 # 按照不同的融合方式，计算通道融合 def fuseCoeff(cooef1, cooef2, method): if (method == 'mean'): cooef = (abs(cooef1) + abs(cooef2)) / 2 # abs 绝对值 # cooef=0.5*cooef1+1.5*cooef2 elif (method == 'min'): cooef = np.minimum(cooef1, cooef2) elif (method == 'max'): cooef = np.maximum(abs(cooef1), abs(cooef2)) return cooef # HSV的小波融合过程 LOW_METHOD = 'mean' HIGH_METHOD = 'max' YUVimg_base = cv2.cvtColor(img_base, cv2.COLOR_BGR2YUV) # 可见光转换为HSV # cv2.imwrite("D:/VS/vsprj/cuda/cudawavetest/2.jpg", YUVimg_base) grayimg_target = cv2.cvtColor(img_target, cv2.COLOR_BGR2GRAY) #红外灰度化 # cv2.imwrite("D:/VS/vsprj/cuda/cudawavetest/1.jpg",grayimg_target) Yimg_base = YUVimg_base[:, :, 0] # 1024，1024 wavelet = 'haar' cooef_base = pywt.wavedec2(Yimg_base[:, :], wavelet, level=1) # base灰度图的小波展开 512, 512 3 start = time.time() cooef_target = pywt.wavedec2(grayimg_target[:, :], wavelet, level=1) # target灰度图的小波展开 512, 512 3 end = time.time()-start print("小波展开:{}".format(end)) fusedCooef = [] for i in range(len(cooef_base)): if (i == 0): fusedCooef.append(fuseCoeff(cooef_base[0], cooef_target[0], LOW_METHOD)) # 低频部分取均值 else: # 高频部分取最大值 c1 = fuseCoeff(cooef_base[i][0], cooef_target[i][0], HIGH_METHOD) c2 = fuseCoeff(cooef_base[i][1], cooef_target[i][1], HIGH_METHOD) c3 = fuseCoeff(cooef_base[i][2], cooef_target[i][2], HIGH_METHOD) fusedCooef.append((c1, c2, c3)) # 高频合并 tempfusedImage = pywt.waverec2(fusedCooef, wavelet) # 小波逆变换 fusedImage = np.multiply(np.divide(tempfusedImage - np.min(tempfusedImage), (np.max(tempfusedImage) - np.min(tempfusedImage))), 255) # 逆变换后归一至（0，255） start = time.time() fusedImage = fusedImage.astype(np.uint8) Yimg_new = fusedImage fusedYUV = cv2.merge([Yimg_new, YUVimg_base[:, :, 1], YUVimg_base[:, :, 2]]) # 用小波变换替换V通道 end = time.time() - start print("图像重建:{}".format(end)) fusedBGR = cv2.cvtColor(fusedYUV, cv2.COLOR_YUV2BGR) # 融合后的HSV转为BGR return fusedBGR # def main(): matchimg_di = cv2.imread('images/oripics/basic_day_infrared.jpg') # 1080, 1920, 3 matchimg_dv = cv2.imread('images/oripics/basic_day_visual.jpg') # matchimg_di = cv2.imread('left_2020_11_30-15_15_31.jpg') # 1080, 1920, 3 # matchimg_dv = cv2.imread('right_2020_11_30-15_15_31.jpg') # 1080, 1920, 3 orimg_nv=matchimg_dv orimg_ni=matchimg_di # orimg_nv = cv2.imread('images/oripics/night_visual_40m.jpg') # orimg_ni = cv2.imread('images/oripics/night_infrared_40m.jpg') # orimg_nv = cv2.imread('images/oripics/left_2020_11_30-20_06_54.jpg') # orimg_ni = cv2.imread('images/oripics/right_2020_11_30-20_06_54.jpg') # orimg_nv = cv2.imread('images/oripics/left_2020_11_30-20_08_09.jpg') # orimg_ni = cv2.imread('images/oripics/right_2020_11_30-20_08_09.jpg') orimg_nv = cv2.imread('images/oripics/left_video_2020_11_30-20_09_32_73.jpg') # 1024, 1024, 3 orimg_ni = cv2.imread('images/oripics/right_video_2020_11_30-20_09_32_73.jpg') # 1024, 1024, 3 #用白天图像进行配准 # enhance_matchimg_di = truncated_linear_stretch(matchimg_di)# 配准模板红外图像RGB增强 h, w = orimg_nv.shape[:2] # 1024 1024 H = Images_matching(matchimg_dv, matchimg_di) # (3, 3) # enhance_orimg_ni=truncated_linear_stretch(orimg_ni) # 需融合红外图像RGB增强 matched_ni = cv2.warpPerspective(orimg_ni, H, (w, h)) cv2.imwrite("./1.jpg",matched_ni)# 红外图像按照仿射矩阵配准 1024, 1024, 3 start = time.time() fusion = Images_fusion(orimg_nv, matched_ni) cv2.imwrite("./2.jpg",fusion) end = time.time()-start print(end) # enhance=truncated_linear_stretch(fusion)#融合图像RGB增强 # cv2.imshow('0', cv2.resize(orimg_nv, (600, 400))) # cv2.imshow('1', cv2.resize(orimg_ni, (600, 400))) cv2.imshow('2', cv2.resize(fusion, (1200, 800))) cv2.waitKey(0) # name_fusionfile='YUV_04.jpg' # path_fusionfile='images/fusion/'+name_fusionfile # cv2.imwrite(path_fusionfile, fusion) if __name__ == '__main__': main()

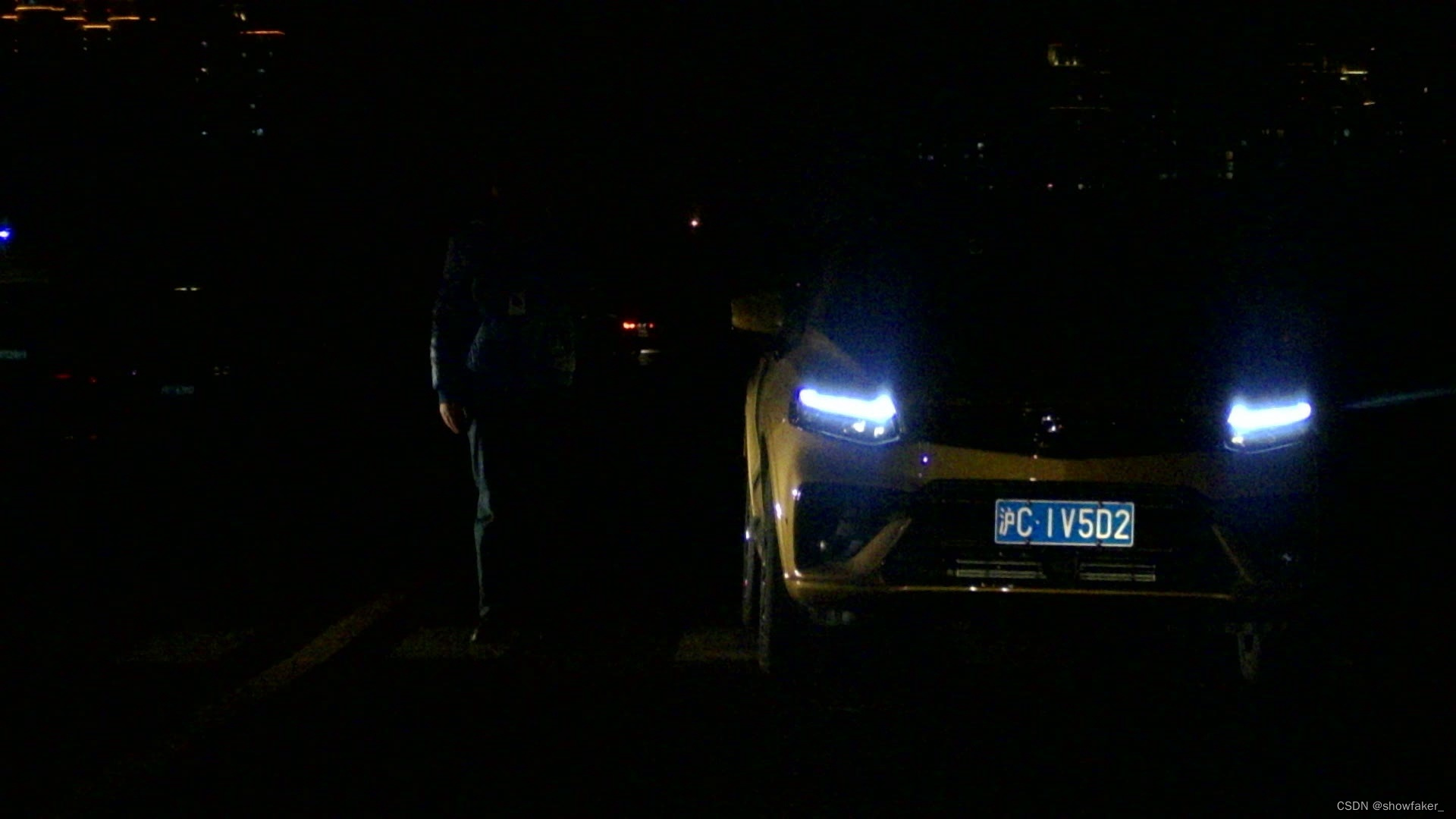

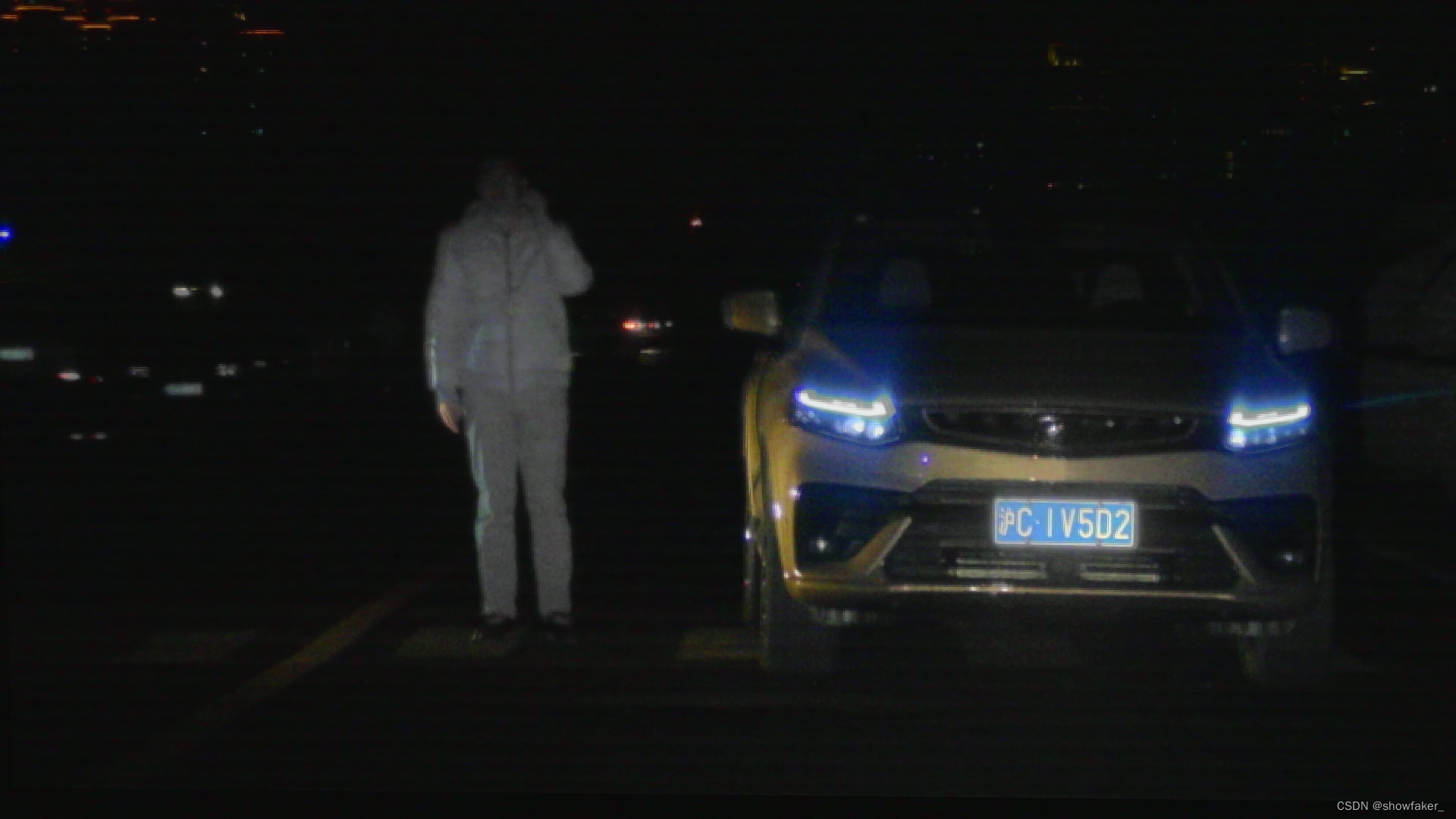

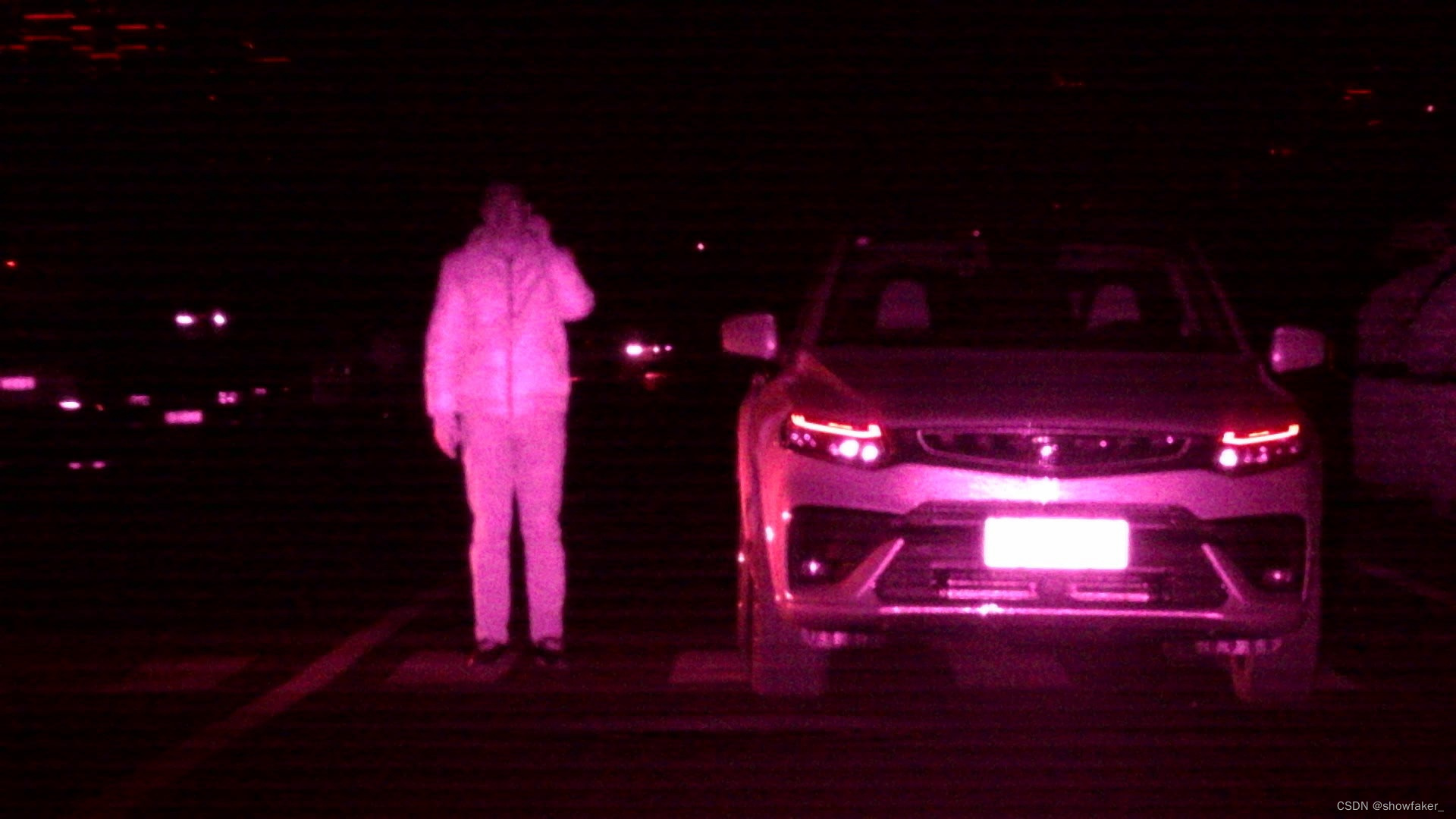

5、融合效果 上图
融合图片
融合后，效果一般，但是将就看吧，熟悉一下融合过程。
三、视频融合
一个可见光摄像头，一个红外摄像头，就可以实现实时夜间车外图像融合啦
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52video_path_infrared = "../videos/ir/video_2020_11_30-20_05_30.avi" video_path_visible = "../videos/vi/video_2020_11_30-20_05_30.avi" video_save_path = "../videos/out.avi" video_fps = 25 # matchimg_di = cv2.imread('images/oripics/basic_day_infrared.jpg') # 1080, 1920, 3 # matchimg_dv = cv2.imread('images/oripics/basic_day_visual.jpg') matchimg_di = cv2.imread('left_2020_11_30-15_15_31.jpg') # 1080, 1920, 3 matchimg_dv = cv2.imread('right_2020_11_30-15_15_31.jpg') H = Images_matching(matchimg_dv, matchimg_di) capture_in = cv2.VideoCapture(video_path_infrared) capture_vi = cv2.VideoCapture(video_path_visible) if video_save_path != "": fourcc = cv2.VideoWriter_fourcc(*'XVID') size = (int(capture_vi.get(cv2.CAP_PROP_FRAME_WIDTH)), int(capture_vi.get(cv2.CAP_PROP_FRAME_HEIGHT))) out = cv2.VideoWriter(video_save_path, fourcc, video_fps, size) fps = 0.0 while (True): t1 = time.time() # 读取某一帧 ref1, frame1 = capture_in.read() ref2, frame2 = capture_vi.read() # 格式转变，BGRtoRGB frame1 = cv2.cvtColor(frame1, cv2.COLOR_BGR2RGB) frame2 = cv2.cvtColor(frame2, cv2.COLOR_BGR2RGB) # 转变成Image # frame1 = Image.fromarray(np.uint8(frame1)) # frame2 = Image.fromarray(np.uint8(frame2)) h, w = frame1.shape[:2] matched_ni = cv2.warpPerspective(frame2, H, (w, h)) cv2.imwrite("./1.jpg", matched_ni) # 进行检测 fusion = Images_fusion(frame1, matched_ni) fusion = np.array(fusion) end = time.time() - t1 # RGBtoBGR满足opencv显示格式 frame = cv2.cvtColor(fusion, cv2.COLOR_RGB2BGR) fps = (fps + (1. / end )) / 2 print("fps= %.2f" % (fps)) frame = cv2.putText(frame, "fps= %.2f" % (fps), (0, 40), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0), 2) cv2.imshow("video", frame) c = cv2.waitKey(1) & 0xff if video_save_path != "": out.write(frame) if c == 27: capture.release() break capture.release() out.release() cv2.destroyAllWindows()
一定选对配准图片，不然会出现鬼影O
四、总结
这个方法试出来视频融合的时候如何加速，大家如果有什么好方法，多教教我！
