1.算法描述

2.仿真效果预览

3.MATLAB核心程序

4.完整MATLAB

1.算法描述

LTE网络中采用MIMO技术增加系统容量，提升吞吐率，从理论上来看,多天线的空分复用能成倍增加系统容量。但实际上并非如此,如，22MIMO的容量C（容量）=22MIMO 小于两倍的SISO容量C（容量）=2SISO，这是因为容量增加了，干扰增大了，干扰主要是由于信道矩阵中信道的相关性造成的，为了消除信道相关性造成影响，需要在接收端对H进行评估，并做线性均衡，最大化MIMO信道矩阵H的容量。

为了获取更高的MIMO容量，接收机侧需要对MIMO的发射矩阵H中的每个信道都进行均衡处理，消除信道间的影响，这样增加接收机的实现复杂度。如SISO模式，接收机需要线性均衡处理一个信道，而对于一个2*2MIMO模式，接收机需要处理评估4个信道；其次，接收端若将H矩阵中的多个信道相关性评估结果反馈给发射机，这会增加系统开销。另一个是，若通过增加天线空间来消除信道间的影响，但天线近处的杂散环境使实现难度增加。于是提出了通过技术改进解决，这个方法就是预编码（Precoding）。
因此，预编码（Precoding）的目的是降低接收机消除信道间影响实现的复杂度，同时减少系统开销，最大提升MIMO的系统容量。当然，消除MIMO信道间的影响，可以在接收机侧实现，也可以通过改变发射机的发射方式，对发射信号进行预处理，辅助接收机消除信道间的影响，这种发射方式的改变就是通过预编码实现的。
为了识别MIMO矩阵H中有用的通道，需要把多个通道（如22MIMO H11H12H21H22)转化成类似于SISO的一对一模式，实现发送信号S1对应接收信号R1，S2对应接收信号R2，也就是将多个MIMO交叉通道转换成多个平行的一对一信道。这个过程通过信道矩阵SVD（奇异值分解）实现。如r=Hs+n，变换为r=UΣ(V*)Ts+n，经过接收端的处理=Σ(V)T*s+UHn，从结果可以发现发射端不再需要知道MIMO信道矩阵H，而知道V（共轭转置矩阵，又叫酉矩阵）即可，此处的V即码本（Codebook），3GPP定义了一系列V矩阵，eNodeB和ue侧均可获得，应用时根据PMI选择一个可以使信道矩阵H容量最大的V。到这里，预编码就很好理解了，实际上就是在发射端对发射信号S乘以V，与后面SVD过程匹配，这样在接收端需要处理的复杂性与开销大大减少了。

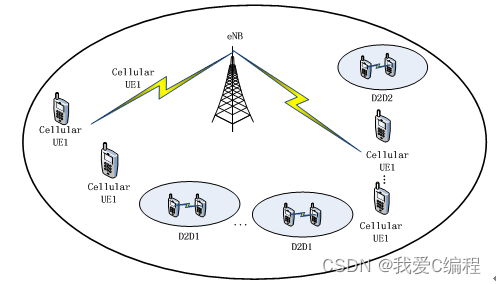

考虑下行链路的蜂窝网络中存在多个D2D通信对和多个蜂窝用户，它们共享相同的频率资源并且蜂窝用户为主用户。

1）传统波束赋形算法1

该算法是一种最简单传统的波束赋形策略，其原理是对于第k个蜂窝用户，赋形矢量wk,conv是自身方向上的信道增益矢量，公式定义如下：

因此，在这个赋形策略中，基站主要针对蜂窝用户进行赋形，并没有对其关联的D2D通信对做干扰消除。

2）ZF波束赋形算法1

在ZF波束赋形算法1中，消除了蜂窝用户之间内部的干扰，第k个蜂窝用户传输在其他所有用户信道的零空间。特别是赋形矢量，对于第个用户将会正交其他所有蜂窝用户的信道矢量。公式如(6)所示：

3）ZF波束赋形算法2

在ZF波束赋形算法中，消除了基站到D2D通信的干扰，第k个蜂窝用户数据传输在所有D2D通信信道的零空间。特别是，第k个蜂窝用户波束赋形矢量将会正交所有基站到D2D通信对信道矢量。

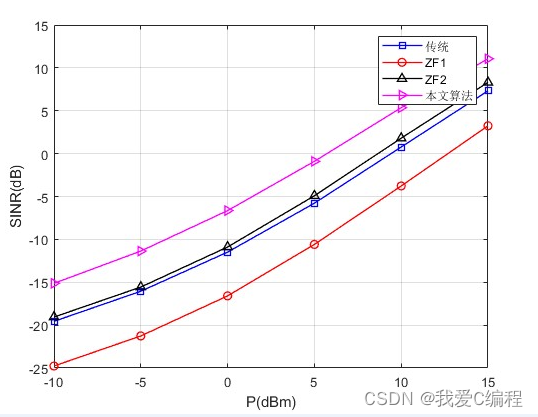

仿真结果与传统波束赋形方法、ZF波束赋形算法1及ZF波束赋形算法2解析结果对比与分析。仿真模型由单个蜂窝小区下，T=4为基站天线数目，K=4为蜂窝用户数量为4，D=4为D2D通信对数量。在仿真场景中，D2D通信对和蜂窝用户到基站的距离固定且采用简单的路径损耗模型。

2.仿真效果预览

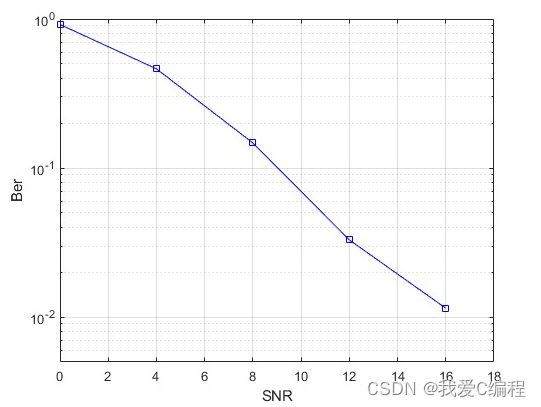

matlab2022a仿真结果如下：

3.MATLAB核心程序

复制代码

clc;
clear;
close all;
warning off;
addpath 'func'
addpath 'funcmodulation'
addpath 'funcestmation'
addpath 'funccp'
addpath 'funcLTEC'
addpath 'funcprecodeing'
SNRS
= [0:4:16];
for jj = 1:length(SNRS);
Tx_n
= 4;
Rx_n
= 4;
%整体信噪比
SNR
= SNRS(jj);
Nfft
= 1024;
Nid
= 17;
Sym_Len
= 7;
CP_length = 144;
CPNfft
= Nfft+CP_length;
for y=1:100
y
SNRS(jj)
noise
= SNR;
N0
= 10^(-noise/10);
%产生信道估计所用的测试信号，功能类似导频
[subframe,data_v,data_v0,data_v1,data_v2,data_v3] = func_data_gen(Tx_n,Rx_n,Sym_Len,Nid);
number_length
= length(find(subframe == 0));
%IFFT
data_ifft1 = zeros(Nfft,2*Sym_Len);
data_ifft2 = zeros(Nfft,2*Sym_Len);
data_ifft3 = zeros(Nfft,2*Sym_Len);
data_ifft4 = zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
data_ifft1(:,i) = ifft(data_v0(:,i),Nfft);
data_ifft2(:,i) = ifft(data_v1(:,i),Nfft);
data_ifft3(:,i) = ifft(data_v2(:,i),Nfft);
data_ifft4(:,i) = ifft(data_v3(:,i),Nfft);
end
%插入CP
WithCP_sequence1 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence2 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence3 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence4 = zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence1(:,i) = func_CP_In(data_ifft1(:,i).',CP_length);
WithCP_sequence2(:,i) = func_CP_In(data_ifft2(:,i).',CP_length);
WithCP_sequence3(:,i) = func_CP_In(data_ifft3(:,i).',CP_length);
WithCP_sequence4(:,i) = func_CP_In(data_ifft4(:,i).',CP_length);
end
T1=reshape(WithCP_sequence1,1,CPNfft*2*Sym_Len);
T2=reshape(WithCP_sequence2,1,CPNfft*2*Sym_Len);
T3=reshape(WithCP_sequence3,1,CPNfft*2*Sym_Len);
T4=reshape(WithCP_sequence4,1,CPNfft*2*Sym_Len);
[r1,channel_impulse1,delay_number1,tap_delay1]=func_LTEChan(T1,'EPA');
[r2,channel_impulse2,delay_number2,tap_delay2]=func_LTEChan(T2,'EPA');
[r3,channel_impulse3,delay_number3,tap_delay3]=func_LTEChan(T3,'EPA');
[r4,channel_impulse4,delay_number4,tap_delay4]=func_LTEChan(T4,'EPA');
[r5,channel_impulse5,delay_number5,tap_delay5]=func_LTEChan(T1,'EPA');
[r6,channel_impulse6,delay_number6,tap_delay6]=func_LTEChan(T2,'EPA');
[r7,channel_impulse7,delay_number7,tap_delay7]=func_LTEChan(T3,'EPA');
[r8,channel_impulse8,delay_number8,tap_delay8]=func_LTEChan(T4,'EPA');
R1
= (r1+r2+r3+r4);
R2
= (r5+r6+r7+r8);
a
= awgn(R1*sqrt(Nfft),noise,'measured');
b
= awgn(R2*sqrt(Nfft),noise,'measured');
noise1 = a/sqrt(Nfft)-R1;
noise2 = b/sqrt(Nfft)-R2;
R1
= a/sqrt(Nfft);
R2
= b/sqrt(Nfft);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%去CP
WithCP_sequence_1 = reshape(R1,CPNfft,2*Sym_Len);
WithCP_sequence_2 = reshape(R2,CPNfft,2*Sym_Len);
NoCP_sequence1
= zeros(2*Sym_Len,Nfft);
NoCP_sequence2
= zeros(2*Sym_Len,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1(i,:) = func_CP_del(WithCP_sequence_1(:,i),CP_length);
NoCP_sequence2(i,:) = func_CP_del(WithCP_sequence_2(:,i),CP_length);
end
NoCP_sequence1=NoCP_sequence1.';
NoCP_sequence2=NoCP_sequence2.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1=zeros(Nfft,2*Sym_Len);
FFTed2=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1(:,i)=fft(NoCP_sequence1(:,i));
FFTed2(:,i)=fft(NoCP_sequence2(:,i));
end
%信道估计
[MH10,MH11,MH12,MH13] = func_channel_estmation(FFTed1,0,Nid,1,Tx_n,Sym_Len,Rx_n);
[MH20,MH21,MH22,MH23] = func_channel_estmation(FFTed2,0,Nid,1,Tx_n,Sym_Len,Rx_n);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%信道估计之后开始在正式的链路的仿真%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%产生随机信号
Din1
= round(rand(1,number_length*2));
Din2
= round(rand(1,number_length*2));
%调制
Din_mod1 = func_QPSK(Din1);
Din_mod2 = func_QPSK(Din2);
%码本选择
for i=1:Tx_n*Rx_n*2*Sym_Len
H
= [MH10(i) MH11(i) MH12(i) MH13(i);MH20(i) MH21(i) MH22(i) MH23(i)];
[R,snr]
= func_codebookselect(H,N0);
r_withRS(i) = R;
end
r
= func_rs_del(Tx_n,r_withRS,0,Nid,1,Sym_Len,Rx_n);
%预编码
[copreding0,copreding1,copreding2,copreding3] = func_Precoding(Din_mod1,Din_mod2,r);
%VRB
k=1;
for i=1:length(subframe)
if data_v(i)==0
data_v0(i)=copreding0(k);
data_v1(i)=copreding1(k);
data_v2(i)=copreding2(k);
data_v3(i)=copreding3(k);
k=k+1;
end
end
IFFTed0_2nd=zeros(Nfft,2*Sym_Len);
IFFTed1_2nd=zeros(Nfft,2*Sym_Len);
IFFTed2_2nd=zeros(Nfft,2*Sym_Len);
IFFTed3_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
IFFTed0_2nd(:,i)=ifft(data_v0(:,i),Nfft);
IFFTed1_2nd(:,i)=ifft(data_v1(:,i),Nfft);
IFFTed2_2nd(:,i)=ifft(data_v2(:,i),Nfft);
IFFTed3_2nd(:,i)=ifft(data_v3(:,i),Nfft);
end
%加CP
WithCP_sequence0_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence1_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence2_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence3_2nd=zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence0_2nd(:,i)=func_CP_In(IFFTed0_2nd(:,i).',CP_length);
WithCP_sequence1_2nd(:,i)=func_CP_In(IFFTed1_2nd(:,i).',CP_length);
WithCP_sequence2_2nd(:,i)=func_CP_In(IFFTed2_2nd(:,i).',CP_length);
WithCP_sequence3_2nd(:,i)=func_CP_In(IFFTed3_2nd(:,i).',CP_length);
end
T0_2nd=reshape(WithCP_sequence0_2nd,1,CPNfft*2*Sym_Len);
T1_2nd=reshape(WithCP_sequence1_2nd,1,CPNfft*2*Sym_Len);
T2_2nd=reshape(WithCP_sequence2_2nd,1,CPNfft*2*Sym_Len);
T3_2nd=reshape(WithCP_sequence3_2nd,1,CPNfft*2*Sym_Len);
[r1_2nd]=func_LTEChannel2(T0_2nd,channel_impulse1,delay_number1,tap_delay1);
[r2_2nd]=func_LTEChannel2(T1_2nd,channel_impulse2,delay_number2,tap_delay2);
[r3_2nd]=func_LTEChannel2(T2_2nd,channel_impulse3,delay_number3,tap_delay3);
[r4_2nd]=func_LTEChannel2(T3_2nd,channel_impulse4,delay_number4,tap_delay4);
[r5_2nd]=func_LTEChannel2(T0_2nd,channel_impulse5,delay_number5,tap_delay5);
[r6_2nd]=func_LTEChannel2(T1_2nd,channel_impulse6,delay_number6,tap_delay6);
[r7_2nd]=func_LTEChannel2(T2_2nd,channel_impulse7,delay_number7,tap_delay7);
[r8_2nd]=func_LTEChannel2(T3_2nd,channel_impulse8,delay_number8,tap_delay8);
R1_2nd=r1_2nd+r2_2nd+r3_2nd+r4_2nd;
R2_2nd=r5_2nd+r6_2nd+r7_2nd+r8_2nd;
R1_2nd=R1_2nd+noise1;
R2_2nd=R2_2nd+noise2;
a=awgn(R1_2nd*sqrt(Nfft),noise);
b=awgn(R2_2nd*sqrt(Nfft),noise);
R1_2nd=a/sqrt(Nfft);
R2_2nd=b/sqrt(Nfft);
%去CP
WithCP_sequence_1_2nd=reshape(R1_2nd,CPNfft,2*Sym_Len);
WithCP_sequence_2_2nd=reshape(R2_2nd,CPNfft,2*Sym_Len);
NoCP_sequence1_2nd=zeros(14,Nfft);
NoCP_sequence2_2nd=zeros(14,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1_2nd(i,:)=func_CP_del(WithCP_sequence_1_2nd(:,i),CP_length);
NoCP_sequence2_2nd(i,:)=func_CP_del(WithCP_sequence_2_2nd(:,i),CP_length);
end
NoCP_sequence1_2nd=NoCP_sequence1_2nd.';
NoCP_sequence2_2nd=NoCP_sequence2_2nd.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1_2nd=zeros(Nfft,2*Sym_Len);
FFTed2_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1_2nd(:,i)=fft(NoCP_sequence1_2nd(:,i));
FFTed2_2nd(:,i)=fft(NoCP_sequence2_2nd(:,i));
end
prb1=zeros(Tx_n*Rx_n,2*Sym_Len);
prb2=zeros(Tx_n*Rx_n,2*Sym_Len);
for i=1:2*Sym_Len
for k=1:Tx_n*Rx_n
prb1(k,i)=FFTed1_2nd(k,i);
prb2(k,i)=FFTed2_2nd(k,i);
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%均衡
vrb_1=reshape(prb1,1,Tx_n*Rx_n*2*Sym_Len);
vrb_2=reshape(prb2,1,Tx_n*Rx_n*2*Sym_Len);
eqed1=zeros(1,Tx_n*12*2*Sym_Len);
eqed2=zeros(1,Tx_n*12*2*Sym_Len);
for i=1:length(vrb_1)
R=r_withRS(i);
H=[MH10(i) MH11(i) MH12(i) MH13(i);MH20(i) MH21(i) MH22(i) MH23(i)];
[eqed1(i),eqed2(i)]=func_Equ(vrb_1(i),vrb_2(i),H,N0,R);
end
Doutf1
= func_rs_del(Tx_n,eqed1,0,Nid,1,Sym_Len,Rx_n);
Doutf2
= func_rs_del(Tx_n,eqed2,0,Nid,1,Sym_Len,Rx_n);
%QPSK解调
out1
= func_DQPSK(Doutf1);
out2
= func_DQPSK(Doutf2);
%计算误码
[En1,En2] = func_error(Din1,Din2,out1,out2);
err(y)
=(En1+En2)/2;
end
BER(jj) = sum(err)/(Tx_n*Rx_n*length(Din1));
end
figure;
semilogy(SNRS,BER,'b-s');
grid on
xlabel('SNR');
ylabel('Ber');
axis([0,18,5e-3,1e0]);

01-132m

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
clc;
clear;
close all;
warning off;
addpath 'func'
addpath 'funcmodulation'
addpath 'funcestmation'
addpath 'funccp'
addpath 'funcLTEC'
addpath 'funcprecodeing'
SNRS
= [0:4:16];
for jj = 1:length(SNRS);
Tx_n
= 4;
Rx_n
= 4;
%整体信噪比
SNR
= SNRS(jj);
Nfft
= 1024;
Nid
= 17;
Sym_Len
= 7;
CP_length = 144;
CPNfft
= Nfft+CP_length;
for y=1:100
y
SNRS(jj)
noise
= SNR;
N0
= 10^(-noise/10);
%产生信道估计所用的测试信号，功能类似导频
[subframe,data_v,data_v0,data_v1,data_v2,data_v3] = func_data_gen(Tx_n,Rx_n,Sym_Len,Nid);
number_length
= length(find(subframe == 0));
%IFFT
data_ifft1 = zeros(Nfft,2*Sym_Len);
data_ifft2 = zeros(Nfft,2*Sym_Len);
data_ifft3 = zeros(Nfft,2*Sym_Len);
data_ifft4 = zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
data_ifft1(:,i) = ifft(data_v0(:,i),Nfft);
data_ifft2(:,i) = ifft(data_v1(:,i),Nfft);
data_ifft3(:,i) = ifft(data_v2(:,i),Nfft);
data_ifft4(:,i) = ifft(data_v3(:,i),Nfft);
end
%插入CP
WithCP_sequence1 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence2 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence3 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence4 = zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence1(:,i) = func_CP_In(data_ifft1(:,i).',CP_length);
WithCP_sequence2(:,i) = func_CP_In(data_ifft2(:,i).',CP_length);
WithCP_sequence3(:,i) = func_CP_In(data_ifft3(:,i).',CP_length);
WithCP_sequence4(:,i) = func_CP_In(data_ifft4(:,i).',CP_length);
end
T1=reshape(WithCP_sequence1,1,CPNfft*2*Sym_Len);
T2=reshape(WithCP_sequence2,1,CPNfft*2*Sym_Len);
T3=reshape(WithCP_sequence3,1,CPNfft*2*Sym_Len);
T4=reshape(WithCP_sequence4,1,CPNfft*2*Sym_Len);
[r1,channel_impulse1,delay_number1,tap_delay1]=func_LTEChan(T1,'EPA');
[r2,channel_impulse2,delay_number2,tap_delay2]=func_LTEChan(T2,'EPA');
[r3,channel_impulse3,delay_number3,tap_delay3]=func_LTEChan(T3,'EPA');
[r4,channel_impulse4,delay_number4,tap_delay4]=func_LTEChan(T4,'EPA');
[r5,channel_impulse5,delay_number5,tap_delay5]=func_LTEChan(T1,'EPA');
[r6,channel_impulse6,delay_number6,tap_delay6]=func_LTEChan(T2,'EPA');
[r7,channel_impulse7,delay_number7,tap_delay7]=func_LTEChan(T3,'EPA');
[r8,channel_impulse8,delay_number8,tap_delay8]=func_LTEChan(T4,'EPA');
R1
= (r1+r2+r3+r4);
R2
= (r5+r6+r7+r8);
a
= awgn(R1*sqrt(Nfft),noise,'measured');
b
= awgn(R2*sqrt(Nfft),noise,'measured');
noise1 = a/sqrt(Nfft)-R1;
noise2 = b/sqrt(Nfft)-R2;
R1
= a/sqrt(Nfft);
R2
= b/sqrt(Nfft);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%去CP
WithCP_sequence_1 = reshape(R1,CPNfft,2*Sym_Len);
WithCP_sequence_2 = reshape(R2,CPNfft,2*Sym_Len);
NoCP_sequence1
= zeros(2*Sym_Len,Nfft);
NoCP_sequence2
= zeros(2*Sym_Len,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1(i,:) = func_CP_del(WithCP_sequence_1(:,i),CP_length);
NoCP_sequence2(i,:) = func_CP_del(WithCP_sequence_2(:,i),CP_length);
end
NoCP_sequence1=NoCP_sequence1.';
NoCP_sequence2=NoCP_sequence2.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1=zeros(Nfft,2*Sym_Len);
FFTed2=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1(:,i)=fft(NoCP_sequence1(:,i));
FFTed2(:,i)=fft(NoCP_sequence2(:,i));
end
%信道估计
[MH10,MH11,MH12,MH13] = func_channel_estmation(FFTed1,0,Nid,1,Tx_n,Sym_Len,Rx_n);
[MH20,MH21,MH22,MH23] = func_channel_estmation(FFTed2,0,Nid,1,Tx_n,Sym_Len,Rx_n);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%信道估计之后开始在正式的链路的仿真%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%产生随机信号
Din1
= round(rand(1,number_length*2));
Din2
= round(rand(1,number_length*2));
%调制
Din_mod1 = func_QPSK(Din1);
Din_mod2 = func_QPSK(Din2);
%码本选择
for i=1:Tx_n*Rx_n*2*Sym_Len
H
= [MH10(i) MH11(i) MH12(i) MH13(i);MH20(i) MH21(i) MH22(i) MH23(i)];
[R,snr]
= func_codebookselect(H,N0);
r_withRS(i) = R;
end
r
= func_rs_del(Tx_n,r_withRS,0,Nid,1,Sym_Len,Rx_n);
%预编码
[copreding0,copreding1,copreding2,copreding3] = func_Precoding(Din_mod1,Din_mod2,r);
%VRB
k=1;
for i=1:length(subframe)
if data_v(i)==0
data_v0(i)=copreding0(k);
data_v1(i)=copreding1(k);
data_v2(i)=copreding2(k);
data_v3(i)=copreding3(k);
k=k+1;
end
end
IFFTed0_2nd=zeros(Nfft,2*Sym_Len);
IFFTed1_2nd=zeros(Nfft,2*Sym_Len);
IFFTed2_2nd=zeros(Nfft,2*Sym_Len);
IFFTed3_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
IFFTed0_2nd(:,i)=ifft(data_v0(:,i),Nfft);
IFFTed1_2nd(:,i)=ifft(data_v1(:,i),Nfft);
IFFTed2_2nd(:,i)=ifft(data_v2(:,i),Nfft);
IFFTed3_2nd(:,i)=ifft(data_v3(:,i),Nfft);
end
%加CP
WithCP_sequence0_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence1_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence2_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence3_2nd=zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence0_2nd(:,i)=func_CP_In(IFFTed0_2nd(:,i).',CP_length);
WithCP_sequence1_2nd(:,i)=func_CP_In(IFFTed1_2nd(:,i).',CP_length);
WithCP_sequence2_2nd(:,i)=func_CP_In(IFFTed2_2nd(:,i).',CP_length);
WithCP_sequence3_2nd(:,i)=func_CP_In(IFFTed3_2nd(:,i).',CP_length);
end
T0_2nd=reshape(WithCP_sequence0_2nd,1,CPNfft*2*Sym_Len);
T1_2nd=reshape(WithCP_sequence1_2nd,1,CPNfft*2*Sym_Len);
T2_2nd=reshape(WithCP_sequence2_2nd,1,CPNfft*2*Sym_Len);
T3_2nd=reshape(WithCP_sequence3_2nd,1,CPNfft*2*Sym_Len);
[r1_2nd]=func_LTEChannel2(T0_2nd,channel_impulse1,delay_number1,tap_delay1);
[r2_2nd]=func_LTEChannel2(T1_2nd,channel_impulse2,delay_number2,tap_delay2);
[r3_2nd]=func_LTEChannel2(T2_2nd,channel_impulse3,delay_number3,tap_delay3);
[r4_2nd]=func_LTEChannel2(T3_2nd,channel_impulse4,delay_number4,tap_delay4);
[r5_2nd]=func_LTEChannel2(T0_2nd,channel_impulse5,delay_number5,tap_delay5);
[r6_2nd]=func_LTEChannel2(T1_2nd,channel_impulse6,delay_number6,tap_delay6);
[r7_2nd]=func_LTEChannel2(T2_2nd,channel_impulse7,delay_number7,tap_delay7);
[r8_2nd]=func_LTEChannel2(T3_2nd,channel_impulse8,delay_number8,tap_delay8);
R1_2nd=r1_2nd+r2_2nd+r3_2nd+r4_2nd;
R2_2nd=r5_2nd+r6_2nd+r7_2nd+r8_2nd;
R1_2nd=R1_2nd+noise1;
R2_2nd=R2_2nd+noise2;
a=awgn(R1_2nd*sqrt(Nfft),noise);
b=awgn(R2_2nd*sqrt(Nfft),noise);
R1_2nd=a/sqrt(Nfft);
R2_2nd=b/sqrt(Nfft);
%去CP
WithCP_sequence_1_2nd=reshape(R1_2nd,CPNfft,2*Sym_Len);
WithCP_sequence_2_2nd=reshape(R2_2nd,CPNfft,2*Sym_Len);
NoCP_sequence1_2nd=zeros(14,Nfft);
NoCP_sequence2_2nd=zeros(14,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1_2nd(i,:)=func_CP_del(WithCP_sequence_1_2nd(:,i),CP_length);
NoCP_sequence2_2nd(i,:)=func_CP_del(WithCP_sequence_2_2nd(:,i),CP_length);
end
NoCP_sequence1_2nd=NoCP_sequence1_2nd.';
NoCP_sequence2_2nd=NoCP_sequence2_2nd.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1_2nd=zeros(Nfft,2*Sym_Len);
FFTed2_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1_2nd(:,i)=fft(NoCP_sequence1_2nd(:,i));
FFTed2_2nd(:,i)=fft(NoCP_sequence2_2nd(:,i));
end
prb1=zeros(Tx_n*Rx_n,2*Sym_Len);
prb2=zeros(Tx_n*Rx_n,2*Sym_Len);
for i=1:2*Sym_Len
for k=1:Tx_n*Rx_n
prb1(k,i)=FFTed1_2nd(k,i);
prb2(k,i)=FFTed2_2nd(k,i);
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%均衡
vrb_1=reshape(prb1,1,Tx_n*Rx_n*2*Sym_Len);
vrb_2=reshape(prb2,1,Tx_n*Rx_n*2*Sym_Len);
eqed1=zeros(1,Tx_n*12*2*Sym_Len);
eqed2=zeros(1,Tx_n*12*2*Sym_Len);
for i=1:length(vrb_1)
R=r_withRS(i);
H=[MH10(i) MH11(i) MH12(i) MH13(i);MH20(i) MH21(i) MH22(i) MH23(i)];
[eqed1(i),eqed2(i)]=func_Equ(vrb_1(i),vrb_2(i),H,N0,R);
end
Doutf1
= func_rs_del(Tx_n,eqed1,0,Nid,1,Sym_Len,Rx_n);
Doutf2
= func_rs_del(Tx_n,eqed2,0,Nid,1,Sym_Len,Rx_n);
%QPSK解调
out1
= func_DQPSK(Doutf1);
out2
= func_DQPSK(Doutf2);
%计算误码
[En1,En2] = func_error(Din1,Din2,out1,out2);
err(y)
=(En1+En2)/2;
end
BER(jj) = sum(err)/(Tx_n*Rx_n*length(Din1));
end
figure;
semilogy(SNRS,BER,'b-s');
grid on
xlabel('SNR');
ylabel('Ber');
axis([0,18,5e-3,1e0]);
