概述

在计算机视觉中，物体的姿态是指相对于相机的相对取向和位置。

本文主要参考了《Head Pose Estimation using OpenCV and Dlib》这篇文章。

进行人脸姿态估计的目的就是获取人脸相对相机的朝向：

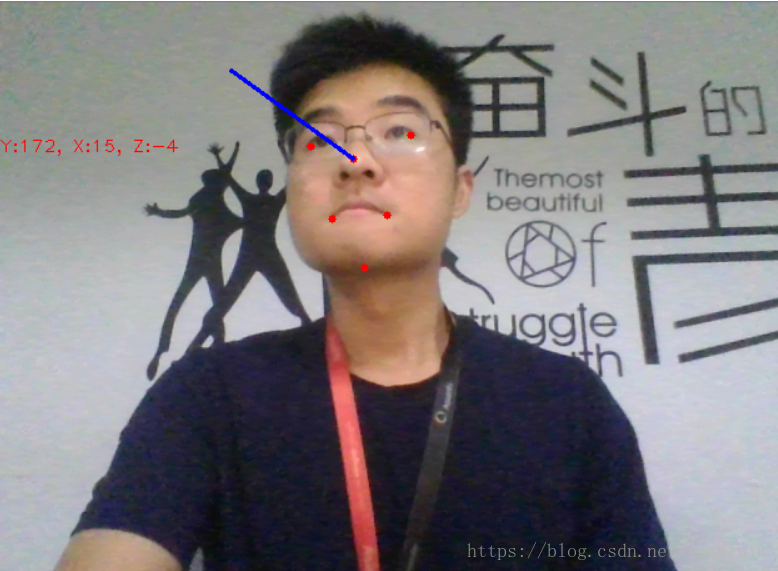

没有描述

人脸姿态估计的思想：旋转三维标准模型一定角度，直到模型上“三维特征点”的“2维投影”，与待测试图像上的特征点（图像上的特征点显然是2维）尽量重合。

代码

从笔记本摄像头取视频，每一帧用dlib检测人脸关键点，用opencv做姿态估计。并实时显示在屏幕上。

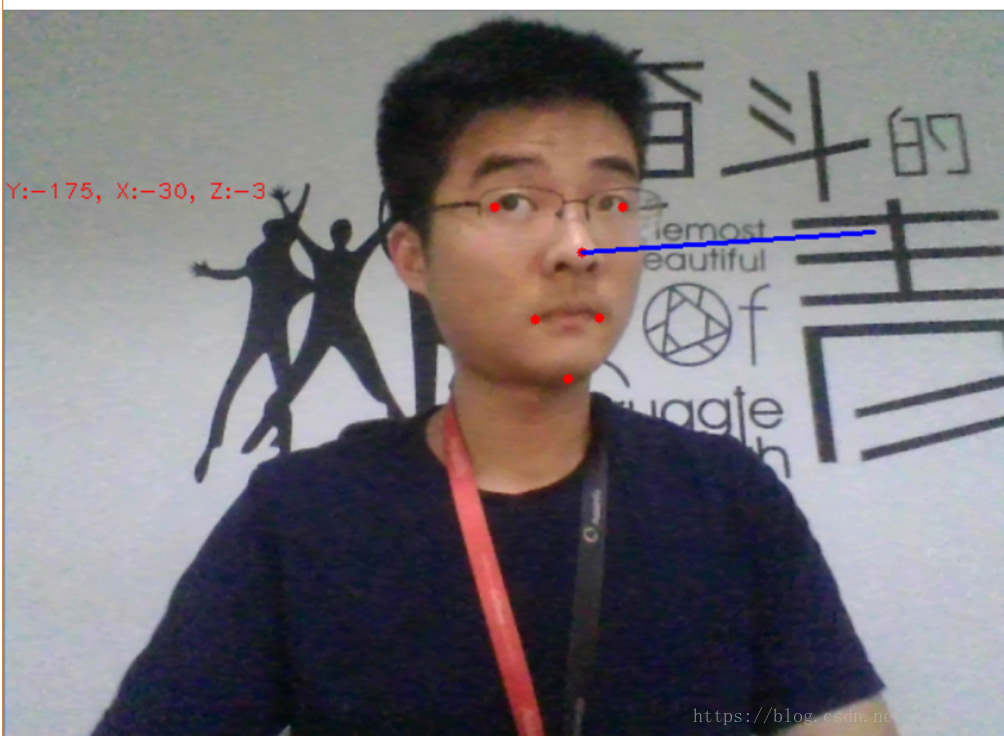

这就是本人
姿态估计部分的代码参考了《Head Pose Estimation using OpenCV and Dlib》这篇文章。

opencv输出的是旋转向量，我参考《基于Dlib和OpenCV的人脸姿态估计(HeadPoseEstimation)》这篇文章的方法，将旋转向量转化为4元数，再转化为欧拉角（弧度）。

这篇文章的坑就是，最终转化出来的欧拉角单位是弧度，需要除以Pi乘以180得到度的单位值。原文的代码是c++，我转化为python3了。

下面的例子是我最终测试完毕没问题的代码。

#!/usr/bin/env python

import cv2
import numpy as np
import dlib
import time
import math

detector = dlib.get_frontal_face_detector()
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")
POINTS_NUM_LANDMARK = 68

# 获取最大的人脸
def _largest_face(dets):
    if len(dets) == 1:
        return 0

    face_areas = [ (det.right()-det.left())*(det.bottom()-det.top()) for det in dets]

    largest_area = face_areas[0]
    largest_index = 0
    for index in range(1, len(dets)):
        if face_areas[index] > largest_area :
            largest_index = index
            largest_area = face_areas[index]

    print("largest_face index is {} in {} faces".format(largest_index, len(dets)))

    return largest_index

# 从dlib的检测结果抽取姿态估计需要的点坐标
def get_image_points_from_landmark_shape(landmark_shape):
    if landmark_shape.num_parts != POINTS_NUM_LANDMARK:
        print("ERROR:landmark_shape.num_parts-{}".format(landmark_shape.num_parts))
        return -1, None

    #2D image points. If you change the image, you need to change vector
    image_points = np.array([
                                (landmark_shape.part(30).x, landmark_shape.part(30).y),     # Nose tip
                                (landmark_shape.part(8).x, landmark_shape.part(8).y),     # Chin
                                (landmark_shape.part(36).x, landmark_shape.part(36).y),     # Left eye left corner
                                (landmark_shape.part(45).x, landmark_shape.part(45).y),     # Right eye right corne
                                (landmark_shape.part(48).x, landmark_shape.part(48).y),     # Left Mouth corner
                                (landmark_shape.part(54).x, landmark_shape.part(54).y)      # Right mouth corner
                            ], dtype="double")

    return 0, image_points

# 用dlib检测关键点，返回姿态估计需要的几个点坐标
def get_image_points(img):

    #gray = cv2.cvtColor( img, cv2.COLOR_BGR2GRAY )  # 图片调整为灰色
    dets = detector( img, 0 )

    if 0 == len( dets ):
        print( "ERROR: found no face" )
        return -1, None
    largest_index = _largest_face(dets)
    face_rectangle = dets[largest_index]

    landmark_shape = predictor(img, face_rectangle)

    return get_image_points_from_landmark_shape(landmark_shape)


# 获取旋转向量和平移向量
def get_pose_estimation(img_size, image_points ):
    # 3D model points.
    model_points = np.array([
                                (0.0, 0.0, 0.0),             # Nose tip
                                (0.0, -330.0, -65.0),        # Chin
                                (-225.0, 170.0, -135.0),     # Left eye left corner
                                (225.0, 170.0, -135.0),      # Right eye right corne
                                (-150.0, -150.0, -125.0),    # Left Mouth corner
                                (150.0, -150.0, -125.0)      # Right mouth corner

                            ])

    # Camera internals

    focal_length = img_size[1]
    center = (img_size[1]/2, img_size[0]/2)
    camera_matrix = np.array(
                             [[focal_length, 0, center[0]],
                             [0, focal_length, center[1]],
                             [0, 0, 1]], dtype = "double"
                             )

    print("Camera Matrix :{}".format(camera_matrix))

    dist_coeffs = np.zeros((4,1)) # Assuming no lens distortion
    (success, rotation_vector, translation_vector) = cv2.solvePnP(model_points, image_points, camera_matrix, dist_coeffs, flags=cv2.SOLVEPNP_ITERATIVE )

    print("Rotation Vector:n {}".format(rotation_vector))
    print("Translation Vector:n {}".format(translation_vector))
    return success, rotation_vector, translation_vector, camera_matrix, dist_coeffs

# 从旋转向量转换为欧拉角
def get_euler_angle(rotation_vector):
    # calculate rotation angles
    theta = cv2.norm(rotation_vector, cv2.NORM_L2)

    # transformed to quaterniond
    w = math.cos(theta / 2)
    x = math.sin(theta / 2)*rotation_vector[0][0] / theta
    y = math.sin(theta / 2)*rotation_vector[1][0] / theta
    z = math.sin(theta / 2)*rotation_vector[2][0] / theta

    ysqr = y * y
    # pitch (x-axis rotation)
    t0 = 2.0 * (w * x + y * z)
    t1 = 1.0 - 2.0 * (x * x + ysqr)
    print('t0:{}, t1:{}'.format(t0, t1))
    pitch = math.atan2(t0, t1)

    # yaw (y-axis rotation)
    t2 = 2.0 * (w * y - z * x)
    if t2 > 1.0:
        t2 = 1.0
    if t2 < -1.0:
        t2 = -1.0
    yaw = math.asin(t2)

    # roll (z-axis rotation)
    t3 = 2.0 * (w * z + x * y)
    t4 = 1.0 - 2.0 * (ysqr + z * z)
    roll = math.atan2(t3, t4)

    print('pitch:{}, yaw:{}, roll:{}'.format(pitch, yaw, roll))

	# 单位转换：将弧度转换为度
    Y = int((pitch/math.pi)*180)
    X = int((yaw/math.pi)*180)
    Z = int((roll/math.pi)*180)

    return 0, Y, X, Z

def get_pose_estimation_in_euler_angle(landmark_shape, im_szie):
    try:
        ret, image_points = get_image_points_from_landmark_shape(landmark_shape)
        if ret != 0:
            print('get_image_points failed')
            return -1, None, None, None

        ret, rotation_vector, translation_vector, camera_matrix, dist_coeffs = get_pose_estimation(im_szie, image_points)
        if ret != True:
            print('get_pose_estimation failed')
            return -1, None, None, None

        ret, pitch, yaw, roll = get_euler_angle(rotation_vector)
        if ret != 0:
            print('get_euler_angle failed')
            return -1, None, None, None

        euler_angle_str = 'Y:{}, X:{}, Z:{}'.format(pitch, yaw, roll)
        print(euler_angle_str)
        return 0, pitch, yaw, roll

    except Exception as e:
        print('get_pose_estimation_in_euler_angle exception:{}'.format(e))
        return -1, None, None, None

if __name__ == '__main__':

    # rtsp://admin:ts123456@10.20.21.240:554
    cap = cv2.VideoCapture(0)
    while (cap.isOpened()):
        start_time = time.time()

        # Read Image
        ret, im = cap.read()
        if ret != True:
            print('read frame failed')
            continue
        size = im.shape

        if size[0] > 700:
            h = size[0] / 3
            w = size[1] / 3
            im = cv2.resize( im, (int( w ), int( h )), interpolation=cv2.INTER_CUBIC )
            size = im.shape

        ret, image_points = get_image_points(im)
        if ret != 0:
            print('get_image_points failed')
            continue

        ret, rotation_vector, translation_vector, camera_matrix, dist_coeffs = get_pose_estimation(size, image_points)
        if ret != True:
            print('get_pose_estimation failed')
            continue
        used_time = time.time() - start_time
        print("used_time:{} sec".format(round(used_time, 3)))

        ret, pitch, yaw, roll = get_euler_angle(rotation_vector)
        euler_angle_str = 'Y:{}, X:{}, Z:{}'.format(pitch, yaw, roll)
        print(euler_angle_str)

        # Project a 3D point (0, 0, 1000.0) onto the image plane.
        # We use this to draw a line sticking out of the nose

        (nose_end_point2D, jacobian) = cv2.projectPoints(np.array([(0.0, 0.0, 1000.0)]), rotation_vector, translation_vector, camera_matrix, dist_coeffs)

        for p in image_points:
            cv2.circle(im, (int(p[0]), int(p[1])), 3, (0,0,255), -1)


        p1 = ( int(image_points[0][0]), int(image_points[0][1]))
        p2 = ( int(nose_end_point2D[0][0][0]), int(nose_end_point2D[0][0][1]))

        cv2.line(im, p1, p2, (255,0,0), 2)

        # Display image
        #cv2.putText( im, str(rotation_vector), (0, 100), cv2.FONT_HERSHEY_PLAIN, 1, (0, 0, 255), 1 )
        cv2.putText( im, euler_angle_str, (0, 120), cv2.FONT_HERSHEY_PLAIN, 1, (0, 0, 255), 1 )
        cv2.imshow("Output", im)
        cv2.waitKey(1)
