python表情换头_人脸头部姿态估计的 Python 实现[转]

坐标变换：利用世界坐标系旋转、平移矩阵，将 3D点 从世界坐标系变换到相机坐标系中. 即：通过算法完成世界坐标系(3D)、2D landmark输入image、相机坐标系之间的映射转换和标定.

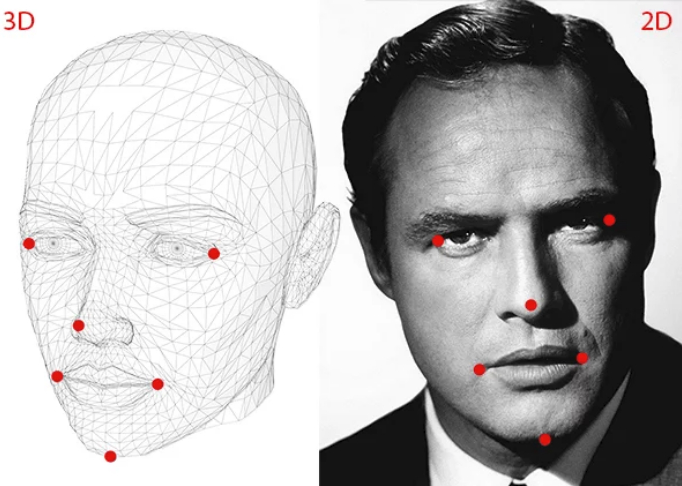

2D人脸特征点与3D世界坐标系的对应点

1. 计算旋转矩阵和平移矩阵

[基于OpenCV和Dlib的头部姿态估计[译] - AIUAI](

2. 旋转矩阵转换为欧拉角

Yaw:摇头 左正右负

Pitch:点头 上负下正

Roll:摆头（歪头）左负 右正

// C++

static cv::Vec3d RotationMatrix2Euler(const cv::Matx33d& rotation_matrix)

{

double q0 = sqrt(1 + rotation_matrix(0, 0) + rotation_matrix(1, 1) + rotation_matrix(2, 2)) / 2.0;

double q1 = (rotation_matrix(2, 1) - rotation_matrix(1, 2)) / (4.0*q0);

double q2 = (rotation_matrix(0, 2) - rotation_matrix(2, 0)) / (4.0*q0);

double q3 = (rotation_matrix(1, 0) - rotation_matrix(0, 1)) / (4.0*q0);

double t1 = 2.0 * (q0*q2 + q1*q3);

double yaw = asin(2.0 * (q0*q2 + q1*q3));

double pitch = atan2(2.0 * (q0*q1 - q2*q3), q0*q0 - q1*q1 - q2*q2 + q3*q3);

double roll = atan2(2.0 * (q0*q3 - q1*q2), q0*q0 + q1*q1 - q2*q2 - q3*q3);

return cv::Vec3d(pitch, yaw, roll);

}% matlab

function [euler] = Rot2Euler(R)

q0 = sqrt( 1 + R(1,1) + R(2,2) + R(3,3) ) / 2;

q1 = (R(3,2) - R(2,3)) / (4*q0) ;

q2 = (R(1,3) - R(3,1)) / (4*q0) ;

q3 = (R(2,1) - R(1,2)) / (4*q0) ;

yaw = asin(2*(q0*q2 + q1*q3));

pitch= atan2(2*(q0*q1-q2*q3), q0*q0-q1*q1-q2*q2+q3*q3);

roll = atan2(2*(q0*q3-q1*q2), q0*q0+q1*q1-q2*q2-q3*q3);

euler = [pitch, yaw, roll];

Python 实现：# Python

class PnpHeadPoseEstimator:

"""

基于 OpenCV PnP 算法实现的头部姿态估计.

It finds Roll, Pitch and Yaw of the head given a figure as input.

It uses the PnP algorithm and it requires the dlib library

"""

def __init__(self, cam_w, cam_h, dlib_shape_predictor_file_path):

"""

@param cam_w the camera width. If you are using a 640x480 resolution it is 640

@param cam_h the camera height. If you are using a 640x480 resolution it is 480

@dlib_shape_predictor_file_path path to the dlib file for shape prediction

(dlib/shape_predictor_68_face_landmarks.dat)

"""

if(IS_DLIB_INSTALLED == False):

raise ValueError('[DEEPGAZE] PnpHeadPoseEstimator: the dlib libray is not installed.

Please install dlib if you want to use the PnpHeadPoseEstimator class.')

if(os.path.isfile(dlib_shape_predictor_file_path)==False):

raise ValueError('[DEEPGAZE] PnpHeadPoseEstimator: the files specified do not exist.')

# Defining the camera matrix.

# To have better result it is necessary to find the focal

# lenght of the camera.

# fx/fy are the focal lengths (in pixels)

# and cx/cy are the optical centres.

# These values can be obtained roughly by approximation,

# for example in a 640x480 camera:

# cx = 640/2 = 320

# cy = 480/2 = 240

# fx = fy = cx/tan(60/2 * pi / 180) = 554.26

c_x = cam_w / 2

c_y = cam_h / 2

f_x = c_x / np.tan(60/2 * np.pi / 180)

f_y = f_x

# Estimated camera matrix values.

self.camera_matrix = np.float32([[f_x, 0.0, c_x],

[0.0, f_y, c_y],

[0.0, 0.0, 1.0] ])

# These are the camera matrix values estimated on my webcam with

# the calibration code (see: src/calibration):

# camera_matrix = np.float32([[602.10618226, 0.0, 320.27333589],

# [ 0.0, 603.55869786, 229.7537026],

# [ 0.0, 0.0, 1.0] ])

# Distortion coefficients

self.camera_distortion = np.float32([0.0, 0.0, 0.0, 0.0, 0.0])

# Distortion coefficients estimated by calibration in my webcam

# camera_distortion = np.float32([ 0.06232237, -0.41559805, 0.00125389, -0.00402566, 0.04879263])

if(DEBUG==True):

print("[DEEPGAZE] PnpHeadPoseEstimator: estimated camera matrix: n" + str(self.camera_matrix) + "n")

# Declaring the dlib shape predictor object

self._shape_predictor = dlib.shape_predictor(dlib_shape_predictor_file_path)

def _return_landmarks(self, inputImg, roiX, roiY, roiW, roiH, points_to_return=range(0,68)):

"""

Return the the roll pitch and yaw angles associated with the input image.

@param image It is a colour image. It must be >= 64 pixel.

@param radians When True it returns the angle in radians, otherwise in degrees.

"""

# Creating a dlib rectangle and finding the landmarks

dlib_rectangle = dlib.rectangle(left=int(roiX), top=int(roiY), right=int(roiW), bottom=int(roiH))

dlib_landmarks = self._shape_predictor(inputImg, dlib_rectangle)

# It selects only the landmarks that

# have been indicated in the input parameter "points_to_return".

# It can be used in solvePnP() to estimate the 3D pose.

landmarks = np.zeros((len(points_to_return),2), dtype=np.float32)

counter = 0 for point in points_to_return:

landmarks[counter] = [dlib_landmarks.parts()[point].x,

dlib_landmarks.parts()[point].y]

counter += 1

return landmarks

def return_roll_pitch_yaw(self, image, radians=False):

"""

Return the the roll pitch and yaw angles associated with the input image.

@param image It is a colour image. It must be >= 64 pixel.

@param radians When True it returns the angle in radians, otherwise in degrees.

"""

# The dlib shape predictor returns 68 points,

# we are interested only in a few of those

TRACKED_POINTS = (0, 4, 8, 12, 16, 17, 26, 27, 30, 33, 36, 39, 42, 45, 62)

# Antropometric constant values of the human head.

# Check the wikipedia EN page and:

# "Head-and-Face Anthropometric Survey of U.S. Respirator Users"

#

# X-Y-Z with X pointing forward and Y on the left and Z up.

# The X-Y-Z coordinates used are like the standard

# coordinates of ROS (robotic operative system)

# OpenCV uses the reference usually used in computer vision:

# X points to the right, Y down, Z to the front #

# The Male mean interpupillary distance is 64.7 mm

# (https://en.wikipedia.org/wiki/Interpupillary_distance)

#

P3D_RIGHT_SIDE = np.float32([-100.0, -77.5, -5.0]) #0

P3D_GONION_RIGHT = np.float32([-110.0, -77.5, -85.0]) #4

P3D_MENTON = np.float32([0.0, 0.0, -122.7]) #8

P3D_GONION_LEFT = np.float32([-110.0, 77.5, -85.0]) #12

P3D_LEFT_SIDE = np.float32([-100.0, 77.5, -5.0]) #16

P3D_FRONTAL_BREADTH_RIGHT = np.float32([-20.0, -56.1, 10.0]) #17

P3D_FRONTAL_BREADTH_LEFT = np.float32([-20.0, 56.1, 10.0]) #26

P3D_SELLION = np.float32([0.0, 0.0, 0.0]) #27 This is the world origin

P3D_NOSE = np.float32([21.1, 0.0, -48.0]) #30

P3D_SUB_NOSE = np.float32([5.0, 0.0, -52.0]) #33

P3D_RIGHT_EYE = np.float32([-20.0, -32.35,-5.0]) #36

P3D_RIGHT_TEAR = np.float32([-10.0, -20.25,-5.0]) #39

P3D_LEFT_TEAR = np.float32([-10.0, 20.25,-5.0]) #42

P3D_LEFT_EYE = np.float32([-20.0, 32.35,-5.0]) #45

#P3D_LIP_RIGHT = np.float32([-20.0, 65.5,-5.0]) #48

#P3D_LIP_LEFT = np.float32([-20.0, 65.5,-5.0]) #54

P3D_STOMION = np.float32([10.0, 0.0, -75.0]) #62

# This matrix contains the 3D points of the

# 11 landmarks we want to find. It has been

# obtained from antrophometric measurement

# of the human head.

landmarks_3D = np.float32([P3D_RIGHT_SIDE,

P3D_GONION_RIGHT,

P3D_MENTON,

P3D_GONION_LEFT,

P3D_LEFT_SIDE,

P3D_FRONTAL_BREADTH_RIGHT,

P3D_FRONTAL_BREADTH_LEFT,

P3D_SELLION,

P3D_NOSE,

P3D_SUB_NOSE,

P3D_RIGHT_EYE,

P3D_RIGHT_TEAR,

P3D_LEFT_TEAR,

P3D_LEFT_EYE,

P3D_STOMION])

# Return the 2D position of our landmarks

img_h, img_w, img_d = image.shape landmarks_2D = self._return_landmarks(

inputImg=image,

roiX=0,

roiY=img_w,

roiW=img_w,

roiH=img_h,

points_to_return=TRACKED_POINTS)

# Print som red dots on the image

# for point in landmarks_2D:

# cv2.circle(frame,( point[0], point[1] ), 2, (0,0,255), -1)

# Applying the PnP solver to find the 3D pose

# of the head from the 2D position of the #landmarks.

# retval - bool

# rvec - Output rotation vector that, together with tvec, brings

# points from the world coordinate system to the camera coordinate system.

# tvec - Output translation vector. It is the position of the world origin (SELLION) in camera co-ords

retval, rvec, tvec = cv2.solvePnP(landmarks_3D,

landmarks_2D,

self.camera_matrix,

self.camera_distortion)

# Get as input the rotational vector

# Return a rotational matrix

rmat, _ = cv2.Rodrigues(rvec)

# euler_angles contain (pitch, yaw, roll)

# euler_angles = cv.DecomposeProjectionMatrix(

# projMatrix=rmat,

# cameraMatrix=camera_matrix,

# rotMatrix,

# transVect,

# rotMatrX=None,

# rotMatrY=None,

# rotMatrZ=None)

head_pose = [rmat[0,0], rmat[0,1], rmat[0,2], tvec[0],

rmat[1,0], rmat[1,1], rmat[1,2], tvec[1],

rmat[2,0], rmat[2,1], rmat[2,2], tvec[2],

0.0, 0.0, 0.0, 1.0 ]

# print(head_pose) #TODO remove this line

return self.rotationMatrixToEulerAngles(rmat)

# Calculates rotation matrix to euler angles

# The result is the same as MATLAB except the order

# of the euler angles ( x and z are swapped ).

def rotationMatrixToEulerAngles(self, R) :

# assert(isRotationMatrix(R))

# To prevent the Gimbal Lock it is possible to use

# a threshold of 1e-6 for discrimination

sy = math.sqrt(R[0,0] * R[0,0] + R[1,0] * R[1,0])

singular = sy < 1e-6

if not singular :

x = math.atan2(R[2,1] , R[2,2])

y = math.atan2(-R[2,0], sy)

z = math.atan2(R[1,0], R[0,0])

else :

x = math.atan2(-R[1,2], R[1,1])

y = math.atan2(-R[2,0], sy)

z = 0

return np.array([x, y, z])

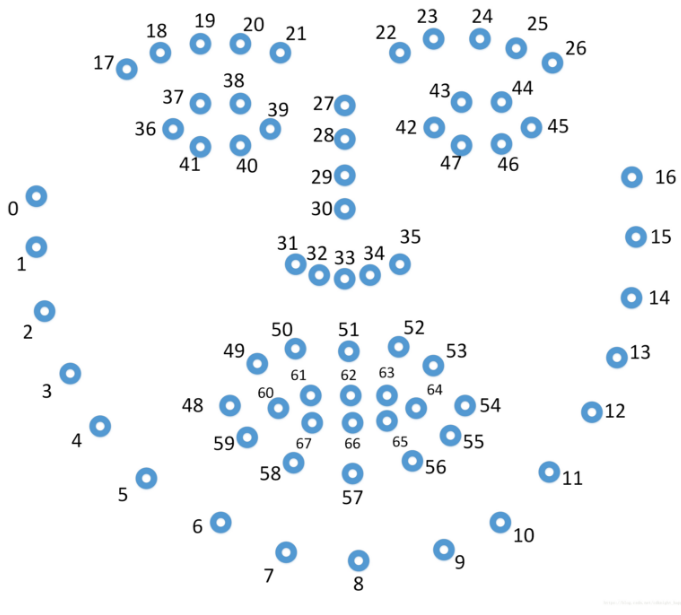

上面 python 源码中是采用的 68 个人脸特征点.
